ResMed Swift FX User manual

Swift™FX
nasal pillows system
User Guide
English • Svenska • Dansk•
Norsk • Suomi •
简体中文 • 繁體中文
608320 book.indb 1 28/10/2011 11:00:33 AM

1
Fitting / Maskinpassning / Tilpasning / Tilpasning /
Sovitusohje / 配戴步骤 / 配戴步驟
1 2 3
4 5
6
Swift™FX
608320 book.indb 1 28/10/2011 11:00:34 AM

2
Swift FX
B D
A
1
2
3
4
65
7
8
9
11
10
C
608320 book.indb 2 28/10/2011 11:00:35 AM

3
Mask components / Maskkomponenter /
Maskekomponenter / Maskens komponenter /
Maskin osat / 面罩组件 / 面罩組件
Item /
Produkt /
Vare /
Artikkel /
Osa /
项目 /
項目
Description / Beskrivning /
Beskrivelse / Beskrivelse / Nimitys /
描述 / 描述
Part number /
Artikelnummer/
Delnummer /
Artikkelnummer /
Tuotenumero /
配件编号 /
配件編號
1 Headgear right/ Huvudband, höger /
Hovedbånd højre / Hodestropp høyre /
Pääremmi, oikea / 右头带 / 右頭帶
—
2 Top buckle / Övre spänne / Øverste
spænde / Toppspenne / Yläsolki /
上端搭扣 / 上端搭扣
—
3 Back strap / Bakre rem / Nakkestrop /
Bakstropp / Takahihna / 后束带 / 後束帶
—
4 Headgear left / Huvudband, vänster /
Hovedbånd venstre / Hodestropp venstre /
Pääremmi, vasen / 左头带 / 左頭帶
—
5 Soft wraps / Mjuka omslag / Bløde
stropper / Myke stroppeomslag /
Pehmusteet / 软包巾 / 軟包
61530
6 Pillows / Näskuddar / Puder / Puter /
Nenäkanyylit / 鼻枕 / 鼻枕
61521 (S)
61522 (M)
61523 (L)
7 Short tube / Kort slang / Kort slange /
Kort slange / Lyhyt letkuosa / 短管 / 短管
—
8 Swivel / Swivel / Drejestuds / Svivel /
Pyörivä liitin / 万向轴 / 萬向軸
—
9 Vent / Ventil / Lufthuller / Ventil /
Ilma-aukko / 通气孔 / 通氣孔
—
10 Elbow / Knärör / Vinkelstykke / Kneledd /
Kulmakappale / 弯头 / 彎頭
—
11 Swivel ring / Swivelring / Drejering /
Svivelring / Liitinrengas / 万向轴环圈 /
萬向軸環圈
—
608320 book.indb 3 28/10/2011 11:00:35 AM

4
Item /
Produkt /
Vare /
Artikkel /
Osa /
项目 /
項目
Description / Beskrivning /
Beskrivelse / Beskrivelse / Nimitys /
描述 / 描述
Part number /
Artikelnummer/
Delnummer /
Artikkelnummer /
Tuotenumero /
配件编号 /
配件編號
A Complete system / Komplett system /
Komplet maske / Komplett system /
Maski täydellisenä / 完整系统 / 完整系統
61502 (EUR 2)
61504 (ANZ)
B Pillows system / Näskuddsystem /
Pudesystem / Neseputesystem /
Nenäkanyylirakenne / 鼻枕系统 / 鼻枕系統
61510 (XS)
61511 (S)
61512 (M)
61513 (L)
C Headgear assembly /
Huvudbandsmontering / Hovedbånd /
Hodestropper / Pääremmisarja / 头带组合 /
頭帶組合
61529
D Short tube assembly / Kort
slangmontering / Kort slange / Kort
slangesett / Letkusarja / 短管组合 /
短管組合
61528 (1)
61527 (10)
Also available / Övrigt / Desuden fås / Leveres også / Saatavissa myös /
另外提供配件 / 另外提供配件
Pillows / Näskuddar / Puder / Puter /
Nenäkanyylit / 鼻枕 / 鼻枕
61520 (XS)
XS Extra Small / Extra Small / Extra Small / Ekstra liten / Erittäin pieni /
超小型 / 超小型,
S Small / Small / Small / Liten / Pieni / 小型 / 小型,
M Medium / Medium / Medium / Medium / Keskikokoinen / 中型 / 中型,
L Large / Large / Large / Stor / Suuri / 大型 / 大型
608320 book.indb 4 28/10/2011 11:00:35 AM

5
Disassembly / Demontering / Adskillelse /
Demontering / Purkaminen / 拆卸 / 拆卸
4
123
Reassembly / Montering / Samling / Montering /
Kokoaminen / 重新组装 / 重新組合
23 1
608320 book.indb 5 28/10/2011 11:00:36 AM

6
7 8
9
5
6
4
608320 book.indb 6 28/10/2011 11:00:37 AM

1
English
English
Swift™FX
nasal pillows system
Thank you for choosing the Swift FX.
Intended use
The Swift FX channels airflow noninvasively to a patient from a positive
airway pressure (PAP) device such as a continuous positive airway
pressure (CPAP) or bilevel system.
The Swift FX is:
•to be used by adult patients (>30 kg) for whom positive airway
pressure has been prescribed
•intended for single-patient re-use in the home environment and
multipatient re-use in the hospital/institutional environment.
Using your mask
When using your mask with ResMed CPAP or bilevel devices that have

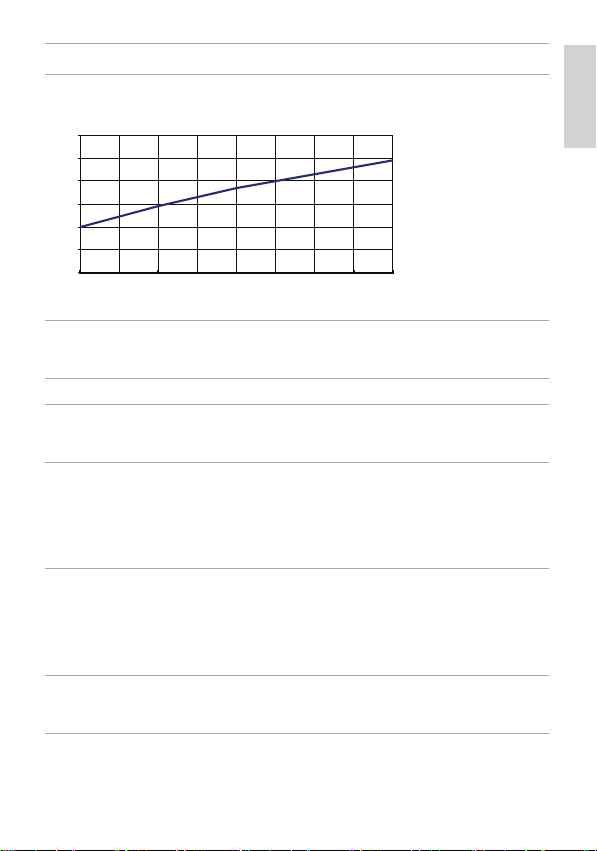

mask setting options, refer to theTechnical specifications section in
this user guide for mask selection options.
For a full list of compatible devices for this mask, see the Mask/Device
Compatibility List on www.resmed.com on the Products page under
Service & Support. If you do not have internet access, please contact
your ResMed representative.
Notes:
•This mask is not compatible for use with ResMed AutoSet CS™2
and VPAP™Adapt SV devices.
•SmartStop may not operate effectively when using this mask with
some CPAP or bilevel devices that have this feature.
•If you experience nasal dryness or irritation, use of a humidifier is
recommended.
608320 book.indb 1 28/10/2011 11:00:37 AM

2
WARNING
•The vent holes must be kept clear.
•The mask should not be used unless the CPAP system is
turned on and operating properly.
•Follow all precautions when using supplemental oxygen.
•Oxygen flow must be turned off when the CPAP or bilevel
device is not operating, so that unused oxygen does not
accumulate within the CPAP or bilevel device enclosure
and create a risk of fire.
•At a fixed rate of supplemental oxygen flow, the inhaled
oxygen concentration varies, depending on the pressure
settings, patient breathing pattern, mask, point of
application and leak rate.
•The technical specifications of the mask are provided for
your clinician to check that they are compatible with the
CPAP or bilevel device. If used outside specification or if
used with incompatible devices, the seal and comfort of
the mask may not be effective, optimum therapy may not
be achieved, and leak, or variation in the rate of leak, may
affect the CPAP or bilevel device function.
•Discontinue using this mask if you have ANY adverse
reaction to the use of the mask, and consult your physician
or sleep therapist.
•Using a mask may cause tooth, gum or jaw soreness or
aggravate an existing dental condition. If symptoms occur,
consult your physician or dentist.
•As with all masks, some rebreathing may occur at low
CPAP pressures.
•Refer to your CPAP or bilevel device manual for details on
settings and operational information.
•Remove all packaging before using the mask.
608320 book.indb 2 28/10/2011 11:00:37 AM

3
English
Cleaning your mask in the home
Your mask and headgear should only be handwashed by gently rubbing
in warm (approximately 30°C) water using mild soap. All components
should be rinsed well with drinking quality water and allowed to air dry
out of direct sunlight.
Daily/After each use:
•To optimise the mask seal, facial oils should be removed from the
cushion after use.
•Handwash the separated mask components (excluding headgear).
•If the vent requires cleaning use a soft bristle brush.
Weekly:
•Handwash the headgear. It may be washed without being
disassembled.
WARNING
Do not use aromatic-based solutions or scented oils (eg,
eucalyptus or essential oils), bleach, alcohol or products
that smell strongly (eg, citrus) to clean any of the mask
components. Residual vapours from these solutions can be
inhaled if not rinsed thoroughly.They may also damage the
mask, causing cracks.
CAUTION
•If any visible deterioration of a system component is
apparent (cracking, crazing, tears or cushion damage), the
component should be discarded and replaced.
•Avoid connecting flexible PVC products (eg, PVC tubing)
directly to any part of the mask. Flexible PVC contains
elements that can be detrimental to the materials of the
mask, and may cause the components to crack or break.
