SERVICE
BULLETIN
Product: Document #: Rev: Page:
SEAKEEPER 9 YRO 90292 1 1 of 2
Procedure: AC POWER LABEL MODIFICATIONS
Description: AC POWER LABELS MAY BE APPLIED INCORRECTLY
PURPOSE: To inspect and possibly correct misapplied labels on AC power cables. Some gyros up to
serial number 9 0050 may have been incorrectly labelled at the factory. It is important to label and
connect the power input and seawater pump power output cables correctly.
REFERENCES:
(a) Seakeeper Doc 90222: SEAKEEPER 9 Installation Manual
(b) Seakeeper Dwg 90257: SEAKEEPER 9 Cable Block Diagram

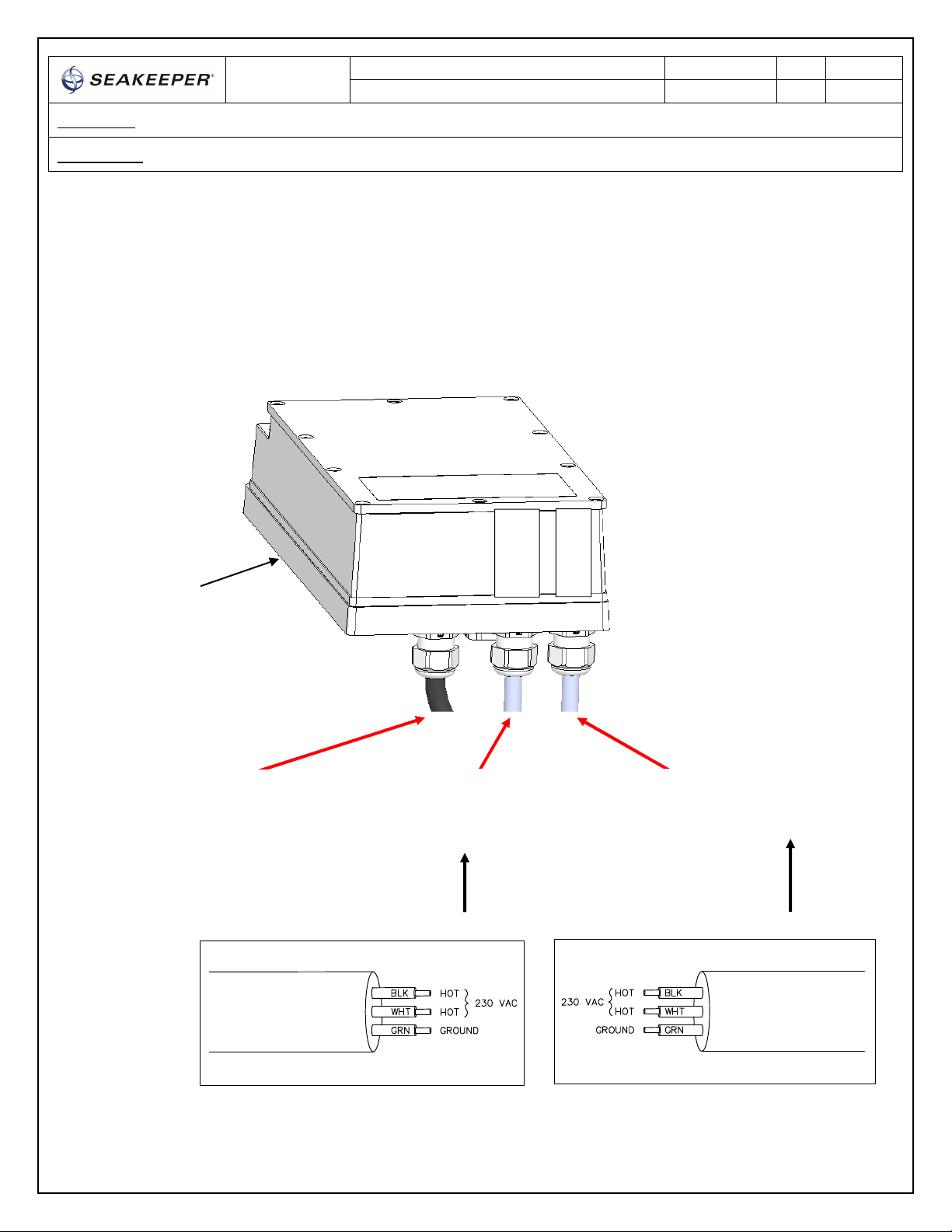

1. Inspect AC power input and output cable labels on the Drive Box and compare these to the figure
below.
Label on Seawater Pump cable end Label on AC Input Power cable end
2. If these AC power cable labels are not in the correct positions as shown, carefully remove them and
reapply correctly.
OUTPUT POWER
3 x 14AWG (3 x 2.5mm
2
)
SEAKEEPER SUPPLIED
SEAWATER PUMP AC INPUT POWER
3 x 10AWG (3 x 5.0mm
2
)
SEAKEEPER SUPPLIED
MIDDLE CABLE LAND FOR
AC POWER OUTPUT TO
SEAWATER PUMP
(CABLE 5)
INWARD CABLE LAND FOR
DRIVE POWER OUTPUT TO
YRO MOTOR
SEAWATER PUMP
OUTPUT 230VAC
5A MAX
INPUT POWER
230VAC, 20A
OUTWARD CABLE
LAND FOR
AC POWER INPUT
(CABLE 2)
Drive
Box
,
Seakeeper
P/N: 20216

SERVICE
BULLETIN
Procedure: Document #: Rev: Page:
AC POWER LABEL MODIFICATIONS 90292 1 2 of 2
3. If these AC power cables are not connected as described, isolate from AC power source, then
connect properly.
WARNING !
If AC power cables are not connected correctly to
Seakeeper Motor Drive Box, damage will occur to
the Motor Drive Box when first operated.
REVISION HISTORY
REVISION DESCRIPTION OF CHAN ES DATE APPROVED
1 INITIAL RELEASE 25JUL15 R. KEOWN
SEAKEEPER, INC.
44425 PECAN COURT, SUITE 151, CALIFORNIA, MARYLAND, 20619, U.S.A
PHONE: [phone] FAX: [phone] E-MAIL: [email protected]
SEAKEEPER 9
GYRO
CUSTOMER
SUPPLIED
CIRCUIT
BREAKER
208 - 230 VAC,
20 A, 1Ø, 50/60 Hz
GYRO AC
DISCONNECT SWITCH
AC DIST
PANEL
SEAWATER PUMP,
230 VAC
(CUSTOMER
SUPPLIED)
CABLE 5
3x14AWG or 3x2.0mm
2
3 METER LENGTH
CABLE 2
3x10AWG or 3x6.0mm
2
3 METER LENGTH
AC INPUT POWER
3 x 10AWG (3 x 5.0mm
2
)
SEAKEEPER SUPPLIED
OUTPUT POWER
3 x 14AWG (3 x 2.5mm
2
)
SEAKEEPER SUPPLIED
SEAWATER PUMP
