Furuno FE-700 User manual

NAVIGATIONAL ECHO SOUNDER
FE - 700
OPE RA TO R 'S M ANUA L
www.furuno.co.jp
M O D EL

Thepaperusedinthismanual
iselementalchlorinefree.
・FURUNOAuthorizedDistributor/Dealer
9‑52Ashihara‑cho,
Nishinomiya,662‑8580,JAPAN
Telephone: +81‑(0)798‑65‑2111
Fax:
+81‑(0)798‑65‑4200
A
:
JAN
2000
.
PrintedinJapan
Allrightsreserved.
T
:
JUL
.
27,2009
Pub.No.
OME‑23660‑T
*00080890817**00080890817*
(
HIMA
)
FE‑700
*
00080890817
*
*
00080890817
*
*00080890817*

i
Ni-Cd Pb
IMPORTANT NOTICES
General
• The operator of this equipment must read and follow the descriptions in this manual. Wrong
operation or maintenance can cancel the warranty or cause injury.
• Do not copy any part of this manual without written permission from FURUNO.
• If this manual is lost or worn, contact your dealer about replacement.
• The contents of this manual and equipment specifications can change without notice.
• The example screens (or illustrations) shown in this manual can be different from the
screens you see on your display. The screens you see depend on your system
configuration and equipment settings.
• Save this manual for future reference.
• Any modification of the equipment (including software) by persons not authorized by
FURUNO will cancel the warranty.
• All brand and product names are trademarks, registered trademarks or service marks of
their respective holders.
How to discard this product
Discard this product according to local regulations for the disposal of industrial waste. For disposal in
the USA, see the homepage of the Electronics Industries Alliance (http://www.eiae.org/) for the correct
method of disposal.
How to discard a used battery
Some FURUNO products have a battery(ies). To see if your product has a battery(ies), see the chapter
on Maintenance. Follow the instructions below if a battery(ies) is used.
In the European Union
The crossed-out trash can symbol indicates that all types of batteries
must not be discarded in standard trash, or at a trash site. Take the
used batteries to a battery collection site according to your national
legislation and the Batteries Directive 2006/66/EU.
In the USA
The Mobius loop symbol (three chasing arrows) indicates that Ni-Cd and
lead-acid rechargeable batteries must be recycled. Take the used
batteries to a battery collection site according to local laws.
In the other countries
There are no international standards for the battery recycle symbol. The number of symbols can
increase when the other countries make their own recycling symbols in the future.
Cd

ii
SAFETY INSTRUCTIONS
Do not power the equipment when the
transducer is in air.
The transducer may become damaged.
The TFT LCD is constructed using the
latest LCD techniques, and displays
99.99% of its pixels. The remaining 0.01%
of the pixels may drop out or blink, how-
ever this is not an indication of malfunc-
tion.
About the TFT LCD
WARNING
Immediately turn off the power at the
switchboard if water leaks into the
equipment.
Continued use of the equipment can cause
fire or electrical shock. Contact a FURUNO
agent for service.
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.
Immediately turn off the power at the
switchboard if the equipment is emitting
smoke or fire.
Continued use of the equipment can cause
fire or electrical shock. Contact a FURUNO
agent for service.
Make sure no rain or water splash leaks
into the equipment.
Fire or electrical shock can result if water
leaks in the equipment.
Use the proper fuse.
Use of a wrong fuse can result in equipment
damage and void the warranty.
ELECTRICAL SHOCK HAZARD
Do not open the equipment.
Only qualified personnel
should work inside the
equipment.
WARNING LABEL
A warning label is attached to the equip-
ment. Do not remove the label. If the
label is missing or illegible, contact
a FURUNO agent or dealer.
WARNING
To avoid electrical shock, do not
remove cover. No user-serviceable
parts inside.
Name: Warning Label (1)
Type: 86-003-1011-1
Code No.: 100-236-231
CAUTION

iii
CONTENTS
FOREWORD .........................................iv
AWord to FE-700 Owners.............................iv
Features.........................................................iv
SYSTEM CONFIGURATION..................v
SPECIFICATIONS OF FE-700 .........SP-1
1 OPERATION.....................................1
1.1 Control Description.................................1
1.2 Indications, Markers...............................2
1.3 Turning On/Off........................................3
1.4 Tone and Brilliance.................................3
1.5 Panel Dimmer.........................................3
1.6 Display Mode..........................................4
1.7 Range Scale...........................................7
1.8 Gain Control ........................................... 7
1.9 Automatic Operation...............................7
1.10 Picture Colors .....................................7
1.11 Shallow Depth Alarm ............................8
1.12 Draft......................................................8
2 MENU OPERATION..........................9
2.1 Menu Overview ......................................9
2.2 Suppressing Low Level Noise ............. 9
2.3 Suppressing Interference.......................9
2.4 Picture Advance ...................................10
2.5 Trend....................................................10
2.6 Interval..................................................10
2.7 Choosing the Transducer.....................10
3 SYSTEM MENU.............................. 11
3.1 System Menu ....................................... 11
3.2 System Menu 1 ....................................12
3.3 System Menu 2 .................................... 12
3.4 System Menu 3 .................................... 13
4 ECHO QUALITY SETTING.............14
4.1 Demonstration Display......................... 14
4.2 Bottom Level ........................................ 14
4.3 TVG Level ............................................ 15
4.4 Echo Offset........................................... 15
5 OPERATION OF DIGITAL DEPTH
INDICATOR FE-720 (OPTION) .....16
5.1 Basic Operation..................................... 16
5.2 Menu Operation.................................. 17
5.3 Diagnosis............................................ 18
5.4 Factory Setting.................................... 18
6 MAINTENANCE,
TROUBLESHOOTING....................19
6.1 Checking .............................................. 19
6.2 Cleaning the Display Unit.....................19
6.3 Transducer Maintenance ..................... 19
6.4 Replacing the Fuse, Battery.................19
6.5 Troubleshooting.................................... 20
6.6 Diagnostic Test..................................... 21
6.7 Test Pattern.......................................... 21
6.8 Clearing the Memory............................ 22
7 MENU TREE...................................23
8DIGITAL INTERFACE (IEC 61162-1
EDITION 2).................................. 24
9 PARTS LOCATION, PARTS LIST ..32
Declaration of Conformity

iv
FOREWORD
A Word to FE-700 Owners
Thank you for purchasing this navigational echo
sounder. We are confident you will discover why
FURUNO has become synonymous with quality
and reliability.
Dedicated in the design and manufacture of
marine electronics equipment for over 60 years,
FURUNO Electric Company has gained an
unrivaled reputation as a world leader in the
industry. This is the result of our technical
excellence as well as our worldwide distribution
and service network.
Please carefully read and follow the safety
information and operating and maintenance
instructions set forth in this manual before
attempting to operate the equipment and
conduct any maintenance. Your navigational
echo sounder will perform to the utmost of its
ability only if it is operated and maintained in
accordance with the correct procedures.
This equipment is designed, produced and
documented by FURUNO ELECTRIC CO., LTD.,
complying with ISO 9001 standards as certified
by the Lloyd’s Register of QualityAssurance
System.
Features
The FURUNO FE-700 is comprised of display
unit and transducer unit. Echo sounding data is
displayed on the bright 6.5-inch color TFT (Thin
Film Transistor) LCD display.
The main features of the FE-700 are
1. Complies with the IMO and ISO standards
MSC.74(69) Annex 4 and ISO9875.
2. Cost-effective; no paper, no consumables;
high accuracy and high reliability - no rotating
gears and belts as in the paper echo
sounders
3. High-contrast 6.5-inch color LCD display
featuring a wide viewing angle and adjustable
brightness.
4. Wide variety of modes with never-get-lost
default position.
5.Automatic function permits unattended
adjustment of range, gain, and pulselength.
The range scale and gain automatically
change to display the bottom.
6. Position, course, speed, time are repeated
from the external devices.
7.Alarms: shallow water, bottom lost, power
drop
8. The dual frequency display can be shown by
using the optional matching box MB-1200.

v

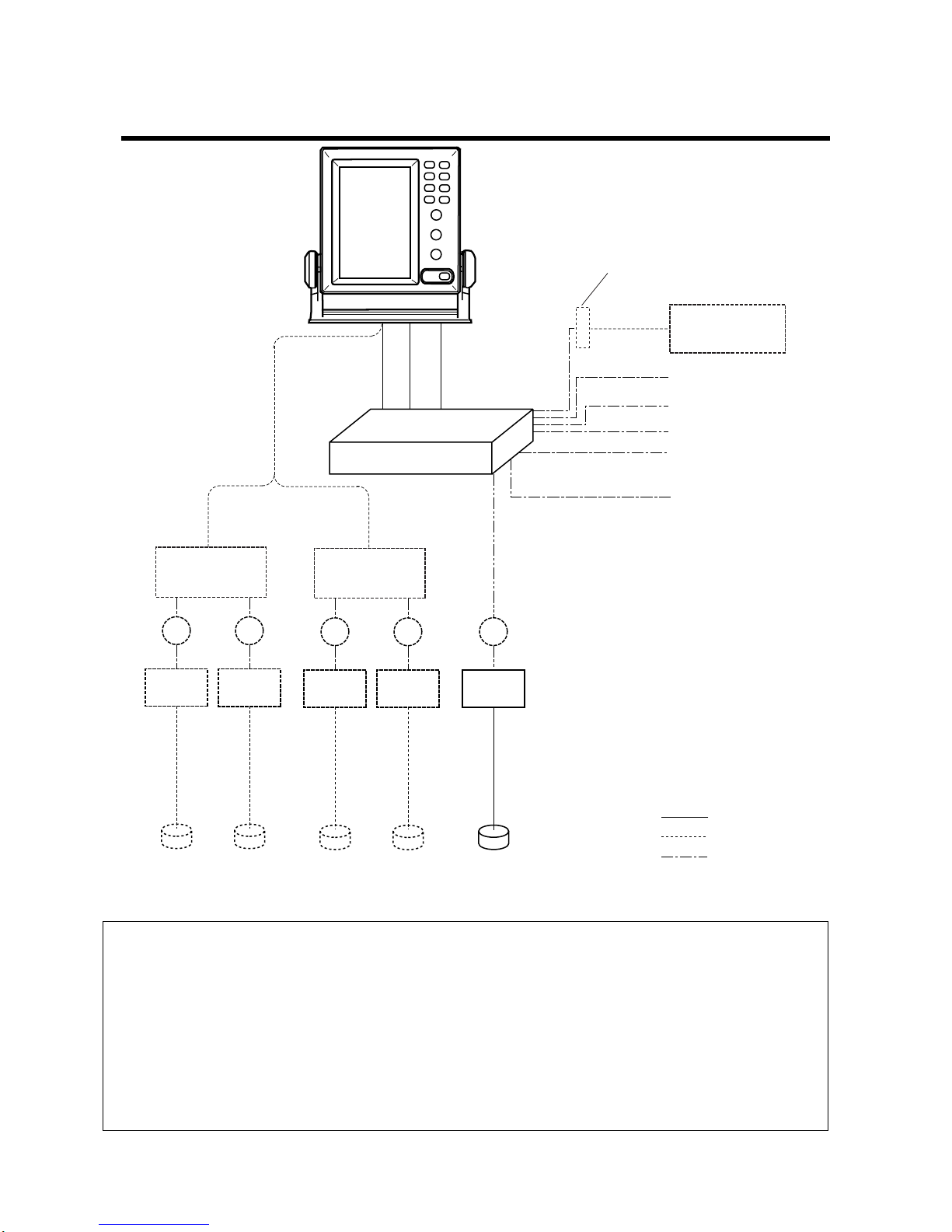

SYSTEM CONFIGURATION
DISTRIBUTION
BOX
FE-702
DISPLAY UNIT
FE-701
JUNCTION BOX
JISF8821-1M0 0-20A3P
MATCHING BOX
MB-502 (for 50B-6B)
MB-504 (for 200B-8B)
JB
IEC 61162-1
EIA-232C
IEC 61162-1 Navigation Device
Navigation Device
Personal Computer
IEC 61162-1
JB
TRANSDUCER
SWITCH BOX
EX-8
DIGITAL DEPTH
INDICATOR
FE-720
CONTACT CLOSURE Alarm Unit
AU-12
: Standard Supply
100/110-115/
200/220-230 VAC
or
24 VDC
: Optional Supply
Terminal Box
DS-802
: Local Supply
JB
JB
DISTRIBUTION
BOX
MB-1200
JB
TRANSDUCER
50B-6B,
200B-8B
FE-700 system configuration
PRINCIPLE OF OPERATION
The FE-700 uses ultrasonic pulses to detect the seabed and other underwater objects. The display unit
contains all basic electric circuits and logic processor. Electrical pulses are converted into acoustical
energy in the transducer fitted on the ship’s hull. The processor measures the time of pulses travelling
between the seabed and transducer and displays the water depths in the graphical form or other forms.
The transducers have a specific beam width with respect to their working frequency, 50 kHz or 200 kHz.
The high frequency has a narrow beamwidth and is immune to aeration when the ship is going astern or in
rough weather. The low frequency has a wide beamwidth and more powerful sounding capability.

FURUNO FE-700
SP - 1 E2366S01T
SPECIFICATIONS OF NAVIGATIONAL ECHO SOUNDER
FE-700
1 GENERAL
1.1 Transmit frequency 50 kHz, 200 kHz, or 50/200 kHz alternating transmit
1.2 Output power 600 Wrms
1.3 Beam width 50B-6B (50 kHz): 35°, 200B-8B (200 kHz): 6°
1.4 Basic display range Range
Unit 1 2 3 4 5 6 7 8
Meter 5 10 20 40 100 200 400 800
Feet 15 30 60 120 300 600 1500 2500
Fathom 3 5 10 20 50 100 200 400
*Default settings; it could be customized for use w/o range 3 and 6.
1.4 Accuracy ±2.5% on any range
1.5 Minimum range 0.5 m (200 kHz), 2.0 m (50 kHz)
1.6 Draft 0 to 30 m in 0.1 m steps, default 0 m
1.7 Pulse repetition rate (PRR)
Depth (m) P/L (ms) PRR (pulse/min)
5, 10, 20 0.25 750
40 0.38 375
100 1.00 150
200 2.00 75
400,800 3.60 42
2 DISPLAY UNIT
2.1 Graphical display 6.5-inch color TFT LCD, 320 x 234 pixels
2.2 Echo colors 8 colors or 8 level monochrome
2.3 Display area 133 x 97 mm
2.4 Display mode
“NAV”: Basic echo presentation with the depth below transducer (or keel)
“DBS”: Echo presentation with the depth below sea surface
“HISTRY”: Historical Echo presentation with the depth
“LOGBOOK”: Echo presentation with the pop-up table showing
Time, Depth and L/L* data memorized at preset interval
“OS DATA”: Echo presentation with the pop-up table of present
navigational data; L/L*, course*, speed*, time, depth
“HELP”: Echo presentation with the help menu and note
“MENU”: Echo presentation with the user menu
2.5 Picture advance speed
Slow mode 15 minutes or more
Fast mode Picture advance range
Range (m) 5 10 20 40 100 200 400 800
Interval (min.) 1.8 8 20 30
2.6 User setting Gain, Range, Alarm, Draft, Brilliance, Dimmer, Color, Auto
2.7 Auto set mode Gain, range and clutter will be automatically adjusted.
2.8 Alarm Shallow water (default 20 m), Bottom lost, Power drop
2.9 Logbook display Depth, Internal clock, L/L*

FURUNO FE-700
SP - 2 E2366S01T
1 hour at 5 sec Interval, 12 hours at 1 minute interval and 24
hours at 2 minutes interval
*: External navigational sensor required.
3 DIGITAL DEPTH INDICATOR
3.1 Display 4.5-inch monochrome LCD
3.2 Depth indication **.* m (less than 100m), **** m (100 m or more)
4 INTERFACE
4.1 Serial input data IEC61162-1, current loop; 1 port
RMA: L/L, Ground track speed, Track
RMC: L/L (GPS), Ground track speed, Track, Time
GGA/GLL: L/L
VTG: Ground track speed, Track (true/magnetic selected on menu)
ZDA: Time
4.2 Serial output data IEC61162-1, output period: 1 sec.; 3 outputs/ 1 port
SDDPT: Depth (m), Draft (m)
SDDBT: Depth (ft, m, fa) below transducer
SDDBK: Depth (ft, m, fa) below keel
SDDBS: Depth (ft, m, fa) below sea surface
4.3 Serial I/O data RS-232C, 1 port
Output Depth, Clock, L/L, Ship’s speed, Course
Input Control command for PC
4.4 Alarm (Depth, Power) Contact closure signal, normal open or normal close,
250 VAC/ 200 VDC, 3A max.
5 POWER SUPPLY
5.1 Distribution box (FE-720)100/110-115/200/220-230 VAC: 0.2 A max., 1 phase, 50/60Hz or
24 VDC: 0.6 A
5.2 Digital depth indicator 24 VDC, 0.15A
6 ENVIRONMENTAL CONDITION
6.1 Temperature -15°C to +55°C
6.2 Relative humidity 93% at +40°C
6.3 Degree of protection
Display unit, Digital depth indicator IPX5
Distribution box, Matching box IPX2
6.4 Vibration IEC 60945
6.5 EMC IEC 60945
7 COATING COLOR
7.1 Display unit Panel: N3.0, Chassis: 2.5GY5/1.5 (fixed)
7.2 Digital depth indicator Panel: N3.0, Chassis: 2.5GY5/1.5 (fixed)
7.3 Distribution box (FE-720) 2.5GY5/1.5 or 7.5BG7/2
7.4 Distribution box (MB-1200) N3.0
7.5 Matching box 2.5G7/2 (fixed)

1
1 OPERATION

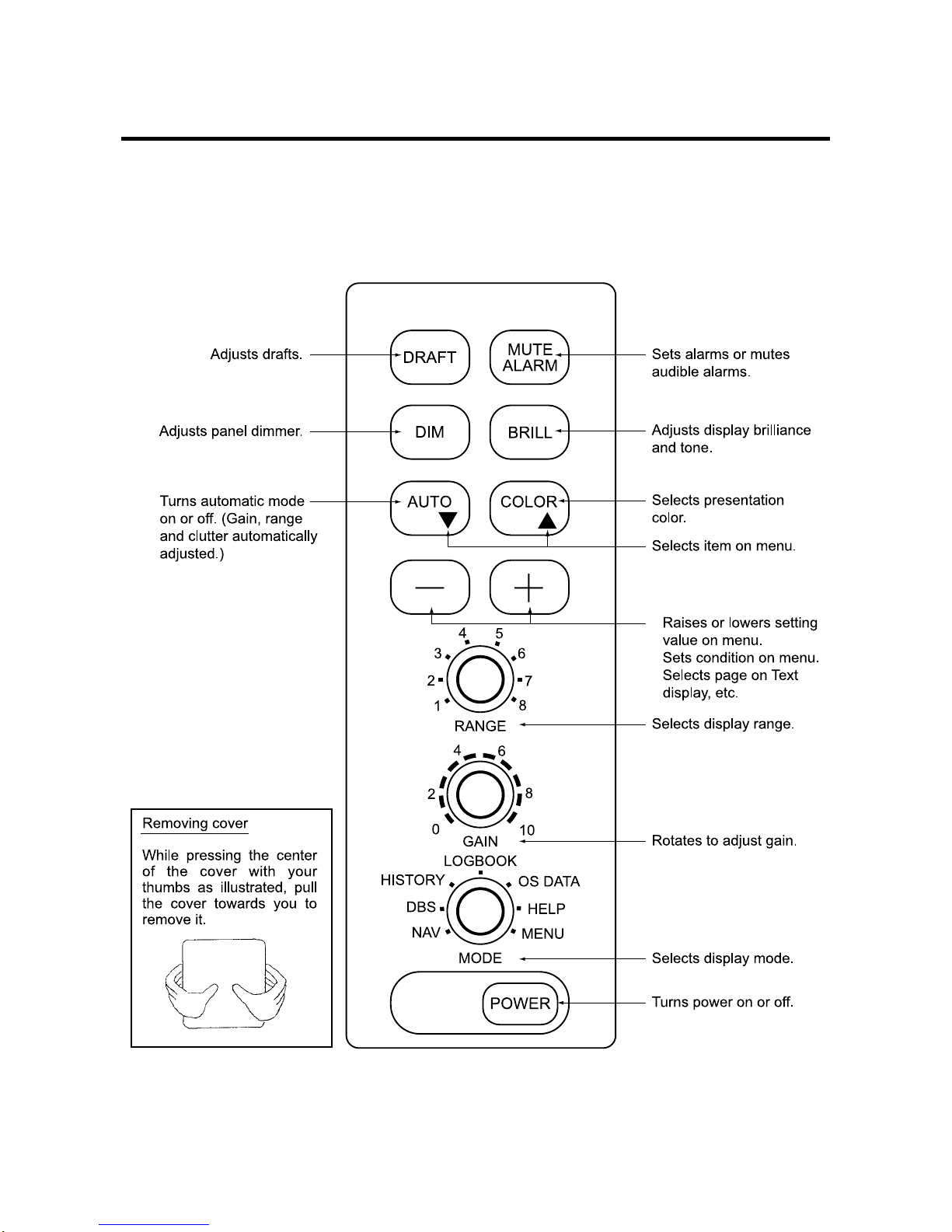

1.1 Control Description
All operation of the FE-700 is carried out with the controls on the front panel of the display unit. Rotary
controls respond immediately to your command but some touch keys require the successive operation.
•
•
•

2

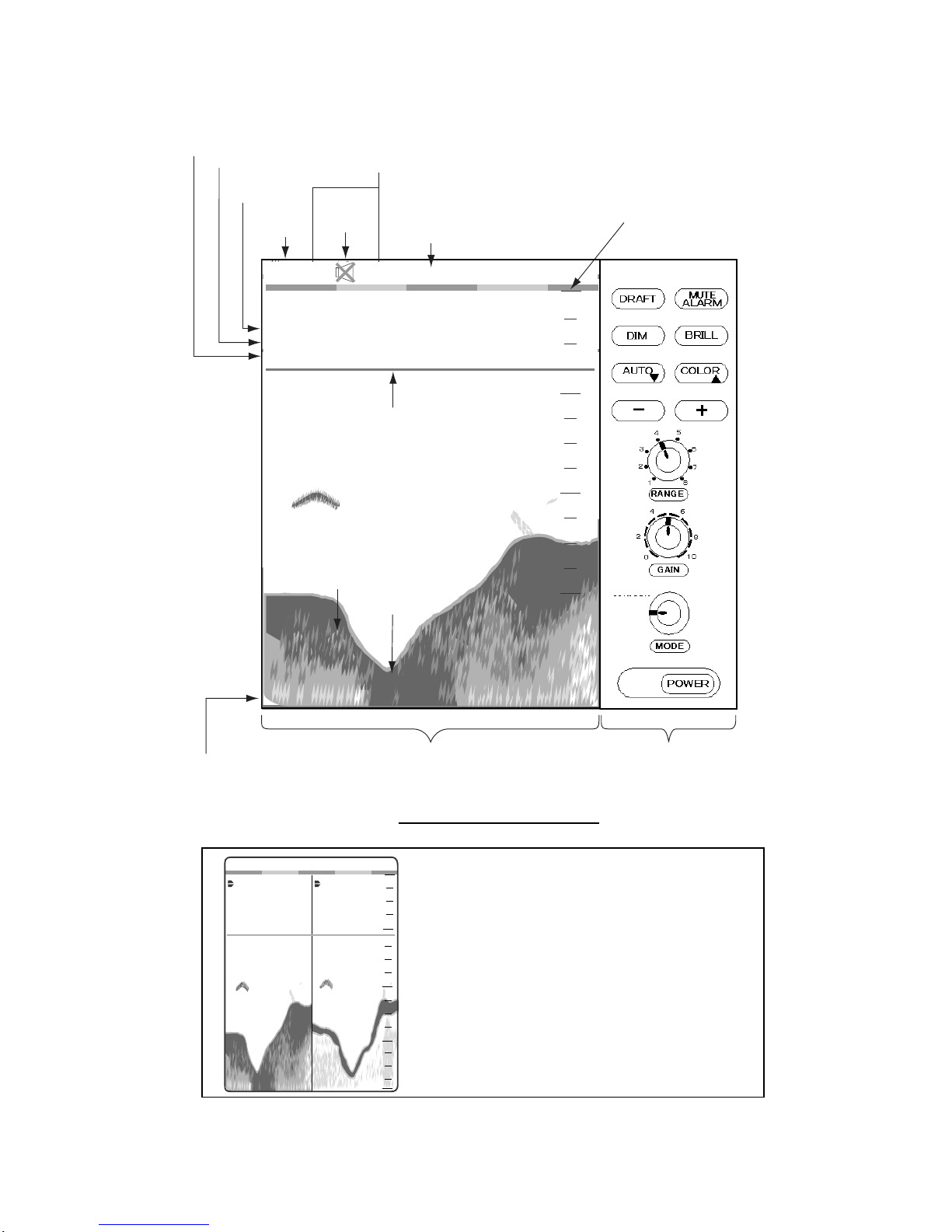

1.2 Indications, Markers
Auto
mode
Range
setting
Gain setting
Display mode
Explanation of depth
(Below transducer, below surface, or below keel)
Alarm
setting
Control panel
Screen
Transducer in use
Alarm
off
ALARM 15m
AU
TO
NAV
DBS
LOGBOOKOS DATA
HELP
MENU
HISTORY
FORE 50kHz
49.6
m
20
40
60
80
0
AU
TO
FORE 50kHz
RANGE: 4
GAIN: 5.5
MODE: NAV
BELOW TRANSDUCER
ALARM 15m
49.6
ALARM:20m DRAFT: 10.0m
0
20
40
60
80
m
49.6
BELOW SURFACE
AFT 50/FORE 200
RANGE:4
GAIN:5.5
MODE:DBS
Ex. Single frequency display
Depth alarm line
Depth
Depth unit
Range scale
When connecting two transducers via the optional
distributor box MB-1200, the dual frequency display
(as left) can be shown.To switch SINGLE and DUAL,
see the Installation Manual.

3
1.3 Turning On/Off
1. Turning on: Press the POWER Switch.
Self-test starts, showing the condition of the
logic circuits. The program number is
displayed.
ROM: OK
DRAM: OK
SRAM: OK
BATTERY: OK
PROGRAM NO. 02522970xx
2. Select a mode with the MODE Selector. The
NAV position of the selector is recommended
for general use. Display color is amber by
default but may be customized. The unit of
measurement is meters. You can freely
select another mode at any time.
3. Turning off: Press the POWER Switch
again.
Wait at least 5 s before reapplying the power.
Note: When two transducers are installed, make
sure which transducer is used.
Note: When lat/long data input error occurs,
“EPFS” ERROR appears on the screen.
(EPFS: Electronic Position-Fixing System
such as GPS receiver)
1.4 Tone and Brilliance
1. Press the BRILL key. The tone and brilliance
setting window appears.
BRILL: 8
TONE: 3
LOW
LOW- +HIGH
2. Press the [+] or [ - ] key for desired tone (in
reality, Contrast).
3. Press the [▲] or [▼] key for desired
brilliance. Pressing the BRILL key also
changes the brilliance from minimum to
maximum and vice-versa.
Note: Tone or brilliance must be adjusted within
10 seconds after pressing the BRILL key.
Otherwise the tone and brilliance window
will be erased.
1.5 Panel Dimmer
1. Press the DIM key. The panel dimmer setting
window appears.
DIMMER: 5 LOW- +HIGH
2. Press the [+] or [ - ] key for desired
illumination of the control panel. Pressing
DIM key also changes the illumination level.

4
1.6 Display Mode
The Mode Selector choose the display mode
among NAV, DBS (depth below surface),
HISTORY, LOGBOOK, OS DATA, HELP, and
MENU.
1.6.1 NAV mode
The depth from the transducer to the seabed
(bottom clearance) is shown on the screen. Note
“BELOW TRANSDUCER” appears at the bottom
of the screen in this mode. If the transducer
setting is DEPTH BELOW KEEL, “BELOW
KEEL” appears at the bottom of the screen.
Default is,
Color: Amber
Range: Automatic range switching
Window: 15 minutes
Shallow depth alarm: 20 m
NOTE: These parameters can be customized to
your preference and the last setting is used at a
next switch-on. This is true on all other modes.
1.6.2 DBS mode
The Depth Below Surface mode provides a
draft-adjusted depth reading and will be useful in
referencing to the nautical chart. The draft should
be adjusted by the DRAFT key according to the
actual draft value. If you find any difficulty to
check for the draft value, use the NAV mode.
When the DBS mode is selected, the message
“Confirm and set ship’s draft to use DBS mode”
appears. Confirm ship's draft and set it by
referring to section 1.12.
BELOW SURFACE appears at the bottom of the
display and the draft value appears at the upper
right-hand corner in the DBS mode.
CAUTION
DBS is not a water clearance below
keel.
Do not use this mode in shallow
waters to avoid grounding.
1.6.3 HISTORY mode
This mode provides a mix of Contour and Strata
displays. The Contour display can be scrolled
over the past 24 h while the right side Strata
display (layers of different colors according to
reverberation strengths) shows the latest
sounding for 5 minutes.
Pressing the [+] or [
- ] key moves the Contour
display forwards or backwards, respectively.
History of the bottom
MENU
HELP
OS DATA
LOGBOOK
HISTORY
DBS
NAV
HISTORY
If the range scale for both the Contour and Strata
display must be the same. If they are not, the
message “OUT OF RANGE” appears.
The update of the contour data may take max.
one minute. Wait for one minute to display
accurate contour if you change the range scale.

5
1.6.4 LOGBOOK mode
The LOGBOOK shows time, depth and own ship
position in tabular form in a pop-up window. The
logging is selected with the INTERVAL option on
the menu among 5 s, 1 min and 2 min. (See
section 2.6.)
There are 60 pages and the total memory
capacity is 720 points. Page 60/60 is the latest
data and 1/60 is the oldest data. Pressing [
- ] or
[+] key changes the pages.
Note that if DEPTH BELOW KEEL is chosen,
DBK also appears together with depth indication
in the DEPTH column.
60/60
TIME DEPTH L/L
11:00:00 47.5 36 55.012'N
135 23.123'E
11:01:00 47.5 36 55.012'N
135 23.123'E
11:02:00 47.5 36 55.012'N
135 23.123'E
11:03:00 47.5 36 55.012'N
135 23.123'E
11:04:00 47.5 36 55.014'N
135 23.123'E
11:05:00 47.5 36 55.014'N
135 23.123'E
60/60
TIME DEPTH L/L
11:00:00 47.0 36 55.012'N
135 23.123'E
11:01:00 46.2 36 55.012'N
135 23.123'E
11:02:00 46.0 36 55.012'N
135 23.123'E
11:03:00 45.8 36 55.012'N
135 23.123'E
11:04:00 45.5 36 55.014'N
135 23.123'E
FORE 50kHz
11:00:00 45.1 36 55.012'N
135 23.123'E
11:01:00 45.0 36 55.012'N
135 23.123'E
11:02:00 44.9 36 55.012'N
135 23.123'E
11:03:00 44.6 36 55.012'N
135 23.123'E
11:04:00 44.5 36 55.014'N
135 23.123'E
AFT 200kHz
* Depth below keel shown when transducer
setting is DEPTH BELOW KEEL.

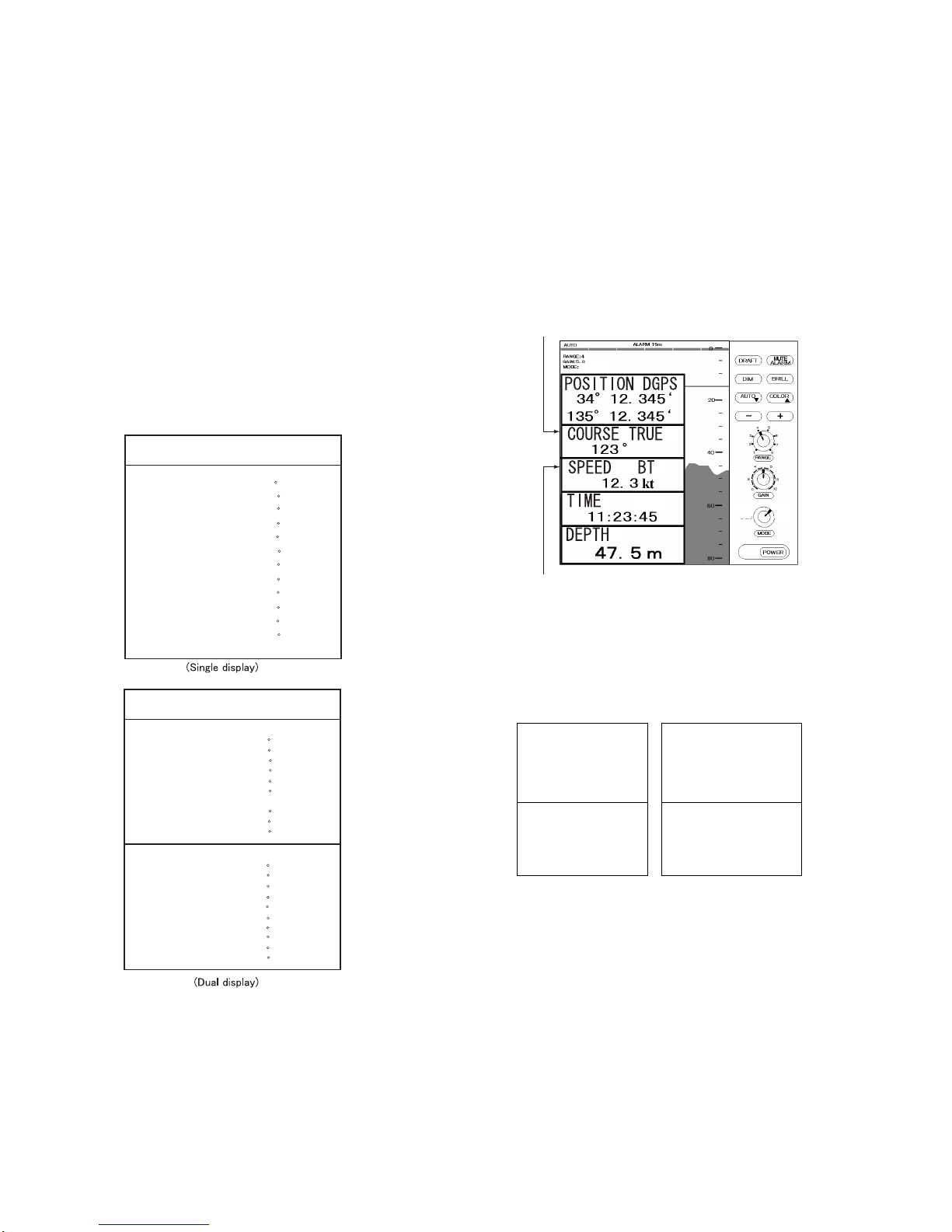

1.6.5 OS DATA mode
This display mode indicates own ship position,
GPS-derived course and speed, and time and
depth in digital form. You can read the data of
your particular interest in large characters. The
screen continues to display the sounding data in
the background. Part of graphical indication is
visible to the right of data slips.
BT means Bottom track
TRUE(true course) or
MAG (magnetic course) appears.
OS DATA
NAV
DBS
LOGBOOKOS DATA
HELP
MENU
HISTORY
N
E
There are two kinds of OS DATA displays: DATA
1 and DATA 2, as selected on the system menu.
DATA 1 is shown in the figure above.
The DATA 2 display is as below.
TIME UTC
11:23:45
TIME UTC
11:23:45
DEPTH
17.2 m
DEPTH AFT FORE
17.2 m 17.2 m
(Single) (Dual)
Note: When lat/long data input error occurs in
the DATA 1 mode, “EPFS” ERROR
appears on the screen. (EPFS: Electronic
Position-Fixing System such as GPS
receiver)

6
Enlarging data of interest
You can enlarge one of the data indications as
follows:
1. Press the [▲] or [▼] key to select the data
you want to enlarge. Current section is
circumscribed with the blue cursor. For
example, select the depth cell.
2. Press the [+] key.
DEPTH
17.2
m
DEPTH AFT FORE
17.2 | 17.2
m m
(Single display) (Dual display)
3. To return to the original display, press the [ - ]
key.
1.6.6 HELP display
This mode provides information about keys.
Press desired key to obtain the corresponding
information. The example below shows help
information for MUTE ALARM.
HELP MENU
DRAFT MUTE ALARM
DIM BRILL
AUTO COLOR
- +
PRESS KEY.
MUTE ALARM
To set or
acknowledge alarms:
1. Press MUTE ALARM
key.
2. Press [
- ] or [+]
key to set alarm
depth.
3. Press MUTE ALARM
key to silence
the alarm.
PRESS KEY.
1.6.7 MENU display
The menu provides functions which normally do
not require frequent adjustment. For details see
Chapter 2.
CLUTTER
AUTO (0-16)
INTERFERENCE REJECT
OFF IR1 IR2 IR3
PICTURE ADVANCE
SLOW FAST
TREND INDICATOR
OFF ON
INTERVAL
5s 1min 2 min
1/2
: To select item
- + : To set option
(Page 1/2)
Press the [▼] key when the cursor is on the
“INTERVAL”, and the following appears.
ECHO XDR*
FORE AFT
CAUTION!
SYSTEM MENU IS ONLY
FOR INSTALLATION. DO
NOT CHANGE SETTINGS.
GO TO SYSTEM MENU?
NO YES
2/2
: To select item
- + : To set option
(Page 2/2)
*For Dual display, "HISTORY XDR" appears.

7
1.7 Range Scale
If the depth goes out of the correct display area,
increase or decrease the range until the seabed
appears near the center of the screen.
Adjust the Range Control, and current range
selection is shown in the range display window.
RANGE 5 m
In the AUTO mode, the range scale is
automatically adjusted. See section 1.9 for
details.
1.8 Gain Control
The GAIN Control adjusts the sensitivity of the
receiver. The AUTO mode provides automatic
adjustment and you are normally not required to
adjust it. Current setting is shown at the upper
left-hand corner. Adjust the GAIN Control and the
following window appears.
GAIN 5.5
Adjust the GAIN Control so that a slight amount
of noise remains on the screen. Generally, use a
higher gain setting for greater depths and a lower
setting for shallower waters. Adjusting range is
between 0.0 and 10.0 in 0.5 steps.
1.9 Automatic Operation
The automatic function automatically selects the
proper gain, range scale and clutter level
according to depth. It works as follows:
• The range changes automatically to locate the
bottom on the lower half of the screen. It jumps
to one step shallower range when bottom
echoes reach a halfway point of the full scale
from top and to one step deeper range when
they come to the lower edge of the scale.
• The gain is automatically adjusted to display
the seabed in specified color.
• Clutter level (on the menu), which works as a
threshold control to suppress overall noise, is
automatically adjusted.
Note: The AUTO MODE is cancelled whenever
the range or the gain is changed.
How to enable/disable automatic
operation
1. Press the AUTO key. The AUTO mode
window appears.
AUTO MODE
OFF ON
- / +: To set option
2. Press the [+] key to select ON or the [ - ] key
to select OFF.
1.10 Picture Colors
1. Press the COLOR key. The following window
appears.
COLOR
- 1 2 3 4 5 6 7 8 9 +
2. Press the [+] or [ - ] key to select a number,
referring to the table below. (You can see the
result of your selection on the display.)
Background Seabed Others marks
1 Monochrome, 8 intensities
2 Blue Red infill 6 colors
3 Black Red infill 6 colors
4 White Red infill 6 colors
5 Blue Yellow infill 6 colors
6 Black Yellow infill 6 colors
7 White Yellow infill 6 colors
8 Black 7 colors (Strata)
9 White 7 colors (Strata)

8
Monochrome (amber) is the default setting. The
Strata display contains multiple colors depending
on the reflectivity from underwater objects of the
sounding pulses. Red is strongest, followed by
brown, orange, yellow, blue, and light blue at the
default setting.
1.11 Shallow Depth Alarm
The shallow depth alarm sounds when the
seabed is shallower than the preset depth. The
default in the NAV position is 20 m. You can
adjust the alarm depth as below:
Activating/deactivating the alarm
1. Press the MUTE ALARM key to display the
depth alarm setting window.
DEPTH ALARM
10 m
- / +: To set option
2. Press the [+] or [ - ] key to change setting
depth. The setting is shown digitally at the
top of the screen and graphically key the
depth alarm line.
When the alarm is activated, the message
“SHALLOW DEPTH ALARM” is displayed at the
center on the screen.
Note: When the keel setting is 0.0 – 10.0 in
the DBK mode, the shallow depth alarm setting
will show a minus value. At this time, the alarm
setting value indication shows “****” and the
alarm function is disabled.
Acknowledging the alarm
You can silence the alarm by pressing the MUTE
ALARM key. The message “SHALLOW DEPTH
ALARM” moves to upper side of the screen.

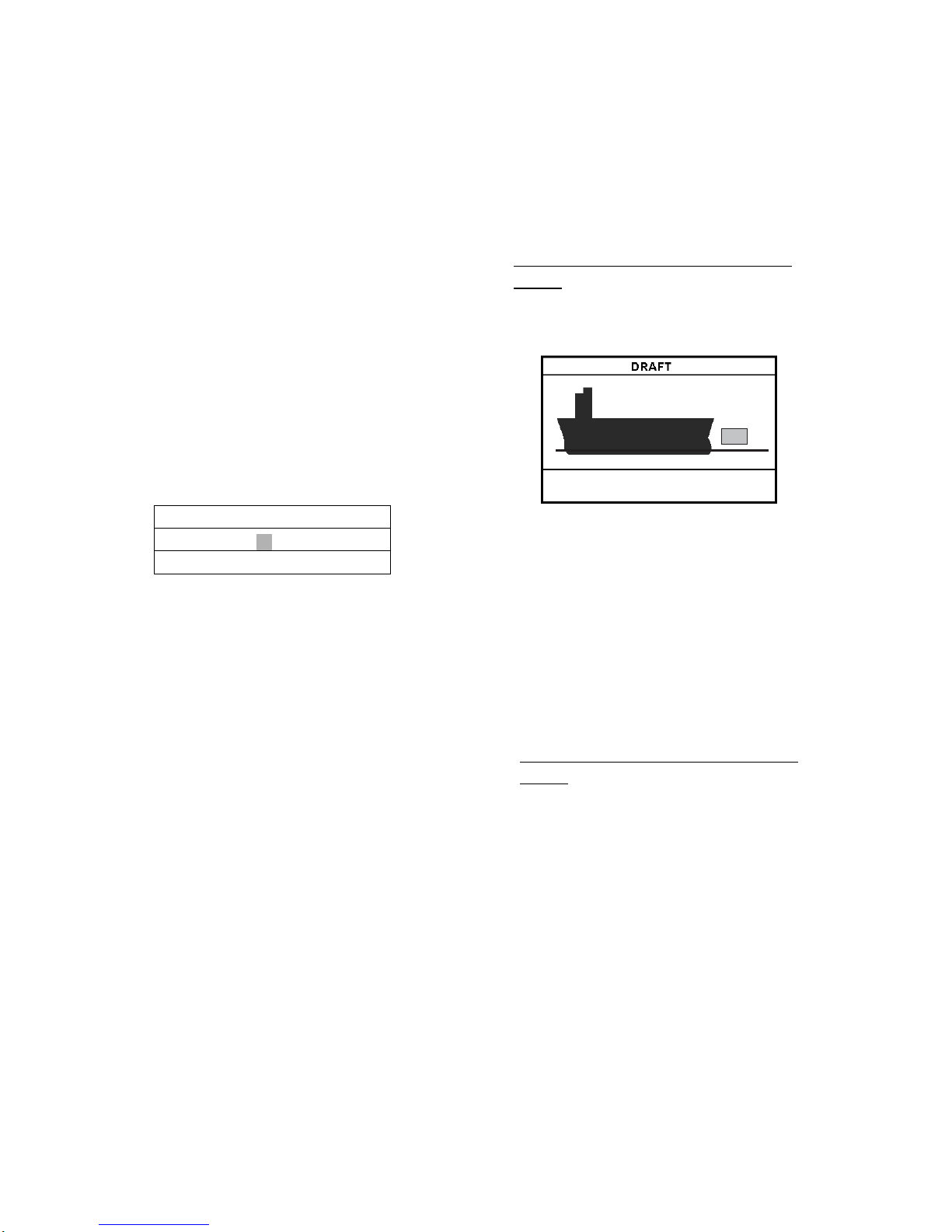

1.12 Draft
It is necessary to set the draft to use the DBS
display mode, which shows depth below surface.
(Single display)
1. Select DBS with the MODE control.
“Confirm and set ships draft to use DBS
mode.” appears.
2. Press the DRAFT key to display the draft
setting window.
0.0 m
-/+:To set option
3. Press the [+] key to increase the setting
depth and [
- ] key to decrease it. The setting
depth is 0 to 30 m in steps of 0.1 m.
The above window disappears in 10 seconds.
The draft setting is displayed at the upper right
corner and the range scale is shifted according to
the draft setting.
(Dual display)
1. Select DBS with the MODE control.
“Confirm and set ships draft to use DBS
mode.” appears.
2. Press the [DRAFT] key to display the draft
setting window for FORE.
3. Press the [+] key to increase the setting
depth and [
- ] key to decrease it. The setting
depth is 0 to 30 m in steps of 0.1 m. The
above window disappears in 10 seconds.
4. Press the [DRAFT] key while the FORE
setting window is shown, to display the draft
setting window for AFT.
5. Press the [+] key to increase the setting
depth and [
- ] key to decrease it. The setting
depth is 0 to 30 m in steps of 0.1 m. The
above window disappears in 10 seconds.

9
2 MENU OPERATION
2.1 Menu Overview
The menu has several functions for advanced
operation.
1. Select MENU with the MODE Selector.
CLUTTER
AUTO (0-16)
INTERFERENCE REJECT
OFF IR1 IR2 IR3
PICTURE ADVANCE
SLOW FAST
TREND INDICATOR
OFF ON
INTERVAL
5s 1min 2 min
1/2
: To select item
- + : To set option
ECHO XDR*
FORE AFT
CAUTION!
SYSTEM MENU IS ONLY
FOR INSTALLATION. DO
NOT CHANGE SETTINGS.
GO TO SYSTEM MENU?
NO YES
2/2
: To select item
- + : To set option
(1/2)
(2/2, single mode)
*For the dual mode. "HISTORY XDR" appears.
2. Press the [▲] or [▼] key to select menu
item.As you operate the [▲] or [▼] key, the
selected item and its current setting appear
in reverse video.
3. Press the [ - ] or [+] key to select option
desired.
4. Set the MODE Selector in another position
to close the menu.
2.2 Suppressing Low Level
Noise
Light-blue dots may appear overall screen. This
is mainly due to dirty water or noise. This noise
can be suppressed by adjusting CLUTTER (in
reality, Threshold of the amplifier).
When the automatic mode is on, the
suppression setting is automatically adjusted.
For manual override, do the following:
1. Select MENU with the MODE Selector.
2. Select CLUTTER by pressing the [▲] key.
3. Press the [ - ] or [+] key to select clutter
rejection level desired. The higher the
number the higher the degree of
suppression. Note that weak echoes may
not be displayed when the clutter circuit is
on.
2.3 Suppressing Interference
Interference from other acoustic equipment
operating nearby or other electronic equipment
on your boat may show itself on the display.
To suppress interference, do the following:
1. Select MENU with the MODE Selector.
2. Select INTERFERENCE REJECT by
pressing the [▲] or [▼] key.
3. Press the [ - ] or [+] key to select degree of
suppression desired; OFF, IR1, IR2 or IR3.
The higher the number the greater the
degree of suppression.
Note that oversuppression will weaken the
sensitivity.

10
2.4 Picture Advance
The picture advance speed determines how
quickly the vertical scan lines run across the
screen.
1. Select MENU with the MODE Selector.
2. Select PICTUREADVANCE by pressing the
[▲] or [▼] key.
3. Press the [+] or [ - ] key to select speed
FAST or SLOW, respectively. The advance
speed varies with the range scale and the
viewing length of 15-16 minutes is available
on all ranges (IMO requirements).
Range (m) Display window (minute)
5, 10, 20 1.8/15 (FAST/SLOW)
40,100 8/15
200 16/20
400, 800 33/33

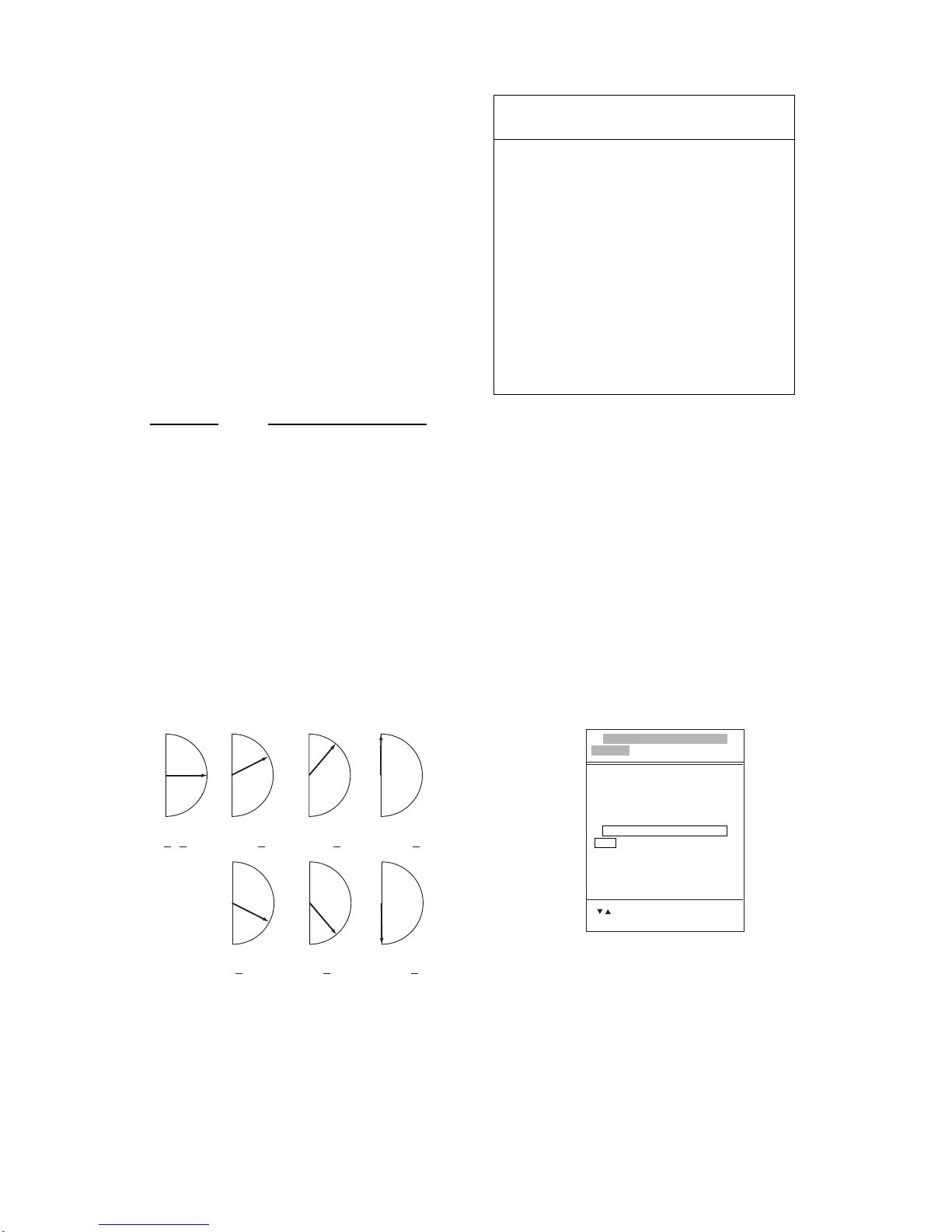

2.5 Trend
The future trend of the seabed depths can be
predicted over a specified period of time (See
page 13). The trend index is set with the item
TREND INDICATOR and appears at the top left
corner. The default setting is ON.
θis inclination angle of bottom.
−2°≤θ≤2° 2°<θ≤10° 10°<θ≤45° 45°<θ≤90°
−2°>θ≥−10° −10°>θ≥−45° −45°>θ≥−90°
2.6 Interval
The interval for sampling data for the
LOGBOOK and HISTORY modes can be set
with INTERVAL, among 5 s, 1 min and 2 min.
The default setting is 1 min.
3/60
TIME DEPTH L/L
11:00:00 47.5 36°55.012’N
135°23.123’E
11:01:00 47.5 36°55.012’N
135°23.123’E
11:02:00 47.5 36°55.013’N
135°23.123’E
11:03:00 47.5 36°55.013’N
135°23.123’E
11:04:00 47.5 36°55.014’N
135°23.123’E
11:05:00 47.5 36°55.014’N
135°23.123’E
In this example, the setting of INTERVAL is
1 minute. That is, the depth and lat/long data are
displayed at 1 minute intervals.
2.7 Choosing the Transducer
Choose the transducer to use on all modes in
the single display and HISTORY mode in the
dual display.
1. Select MENU with the MODE Selector.
2. Select ECHO XDR (single display) or
HISTORY XDR (dual display) by pressing
the [▲] or [▼] key.
ECHO XDR*
FORE AFT
CAUTION!
SYSTEM MENU IS ONLY
FOR INSTALLATION. DO
NOT CHANGE SETTINGS.
GO TO SYSTEM MENU?
NO YES
2/2
: To select item
- + : To set option
(Page 2/2)
*For Dual display, "HISTORY XDR" appears.
3. Press the [+] or [ - ] key to FORE or AFT.
4. Set the MODE Selector in another position
to close the menu.

11
3 SYSTEM MENU
3.1 System Menu
The system menu should be set just after
installation and is not always necessary to be
adjusted. If you change any items of the system
menu or even if you open the system menu, the
sounding picture will be cleared. There are three
menus: 1,2,and 3.
1. Select MENU with the MODE Selector.
CLUTTER
AUTO (0-16)
INTERFERENCE REJECT
OFF IR1 IR2 IR3
PICTURE ADVANCE
SLOW FAST
TREND INDICATOR
OFF ON
INTERVAL
5s 1min 2 min
1/2
: To select item
- + : To set option
(
1/2
)
2. Press the [▼] key several times to display
following window.
()
(2/2, single display)
*For the dual display. "HISTORY XDR" appears.
ECHO XDR*
FORE AFT
CAUTION!
SYSTEM MENU IS ONLY
FOR INSTALLATION. DO
NOT CHANGE SETTINGS.
GO TO SYSTEM MENU?
NO YES
2/2
: To select item
- + : To set option
3. Select YES by pressing the [+] key.
Confirmation message “ARE YOU SURE?”
appears.
4. Press the [+] key again.
The system menu 1 appears.
5. With the cursor selecting MENU SELECT,
operate the [
- ] or [+] key to select system
menu desired; 1, 2 or 3.
SYSTEM MENU 1
MENU SELECT 1 2 3
DEPTH UNIT m ft fa
SPEED UNIT kt MPH km/h
COURSE TRUE MAG
BOTTOM LOST OFF ALARM
GPS ALARM OFF ALARM
INTERFACE 1:95 1:98 NMEA
ALARM SOUND 1 2 3
OS DATA DATA1 DATA2
LANGUAGE English
ALM BUZZER OFF ON
▼▲: To select item
- +: To set option
Select other mode to exit.
↓Press [+] at menu 1.
↑Press [
- ] at menu 2.
SYSTEM MENU 2
MENU SELECT 1 2 3
TIME ADJUST INTERNAL EXTERNAL
DAY 1
MONTH JAN
YEAR 2009 (∼2100)
HOUR 0 (0∼23)
MINUTE 0 (0∼59)
SECOND 0 (0∼59)
01 AUG 2009 00:00:00
▼▲: To select item
- +: To set option
Select other mode to exit.
↓Press [+] at menu 2.
↑Press [ - ] at menu 3.
SYSTEM MENU 3
MENUSELECT 1 2 3
BASIC RANGE1 5 (2∼800)
RANGE2 10 m
RANGE3 20
RANGE4 40
RANGE5 100
RANGE6 200
RANGE7 400
RANGE8 800
TREND 1min
