Zeus3S | Quick Guide - EN
Zeus™ 3S
Quick Guide
Front panel
A
K
E
B
G
CD
F
I
J
L
H
L M
ATouch Screen
BPages/Home key
•Press to open the Home page for page selection and setup options.
CWheel key user configurable key. Refer to the Operator manual.
Default without an autopilot connected to the system:
•Short press: toggles between panels on split screen.
•Long press: maximizes active panel on split screen.
Default with an autopilot connected to the system:
•Short press: opens the autopilot controller and puts the autopilot in standby
mode.
•Long press: toggles between panels on split screen.
DMenu key
•Press to display the active panel’s menu.
ERotary knob
•Turn to zoom or scroll the menu, press to select an option.
FEnter key
•Press to select an option or save settings.
GExit key
•Press to exit a dialog, return to previous menu level, and clear cursor from panel.
EN
01_EN_988-12597-002

2|Zeus3S | Quick Guide - EN
HMOB keys
•Press simultaneously the Enter and Exit keys to create a MOB (Man Over Board) at the
vessel’s position.
IArrow keys
•Press to activate cursor or to move cursor.
•Press to navigate through menu items and to adjust a value.
JMark key
•Press to place waypoint at vessel position, or at cursor position when cursor is active.
•Press and hold to open the Plot dialog from where you can add or manage
waypoints, routes and tracks.
KPower key
•Press and hold: turns the unit ON/OFF
•Short press once: displays the System Controls dialog.
•Repeat short presses: toggles through preset dimming levels.
LCard reader door
MDual card reader slots

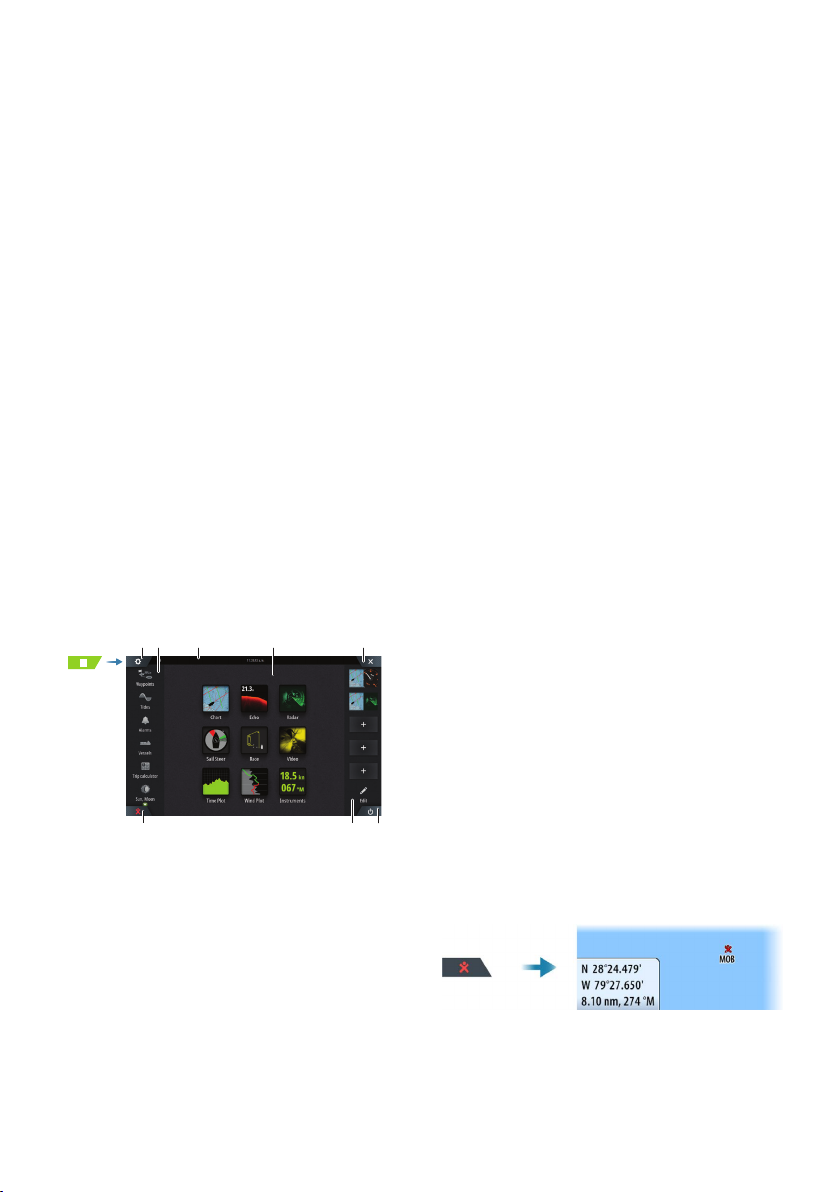

Home Page
A Settings button
B Toolbar
C Status bar
D Application page buttons
E Close button, closes the current panel
F System Controls button
G Favorites bar
H Man Over Board (MOB) button
The MOB mark
To create a MOB mark:
•Press the MOB button.
•Simultaneously press the Enter and Exit keys.
To stop displaying navigational information to the MOB waypoint: cancel the navigation
from the menu.
F
A
G
CDE
B
H

| 3
Zeus3S | Quick Guide - EN
Edit a favorite page
Enter the Favorites edit mode:
•Tap the Edit icon.
•Press and hold a favorite button.
Edit favorite page
Delete favorite page
Add new favorite page
Edit an existing favorite page or configure a new page by dragging panel icons into or out
from the preview area.
Save the changes by tapping the Save button.
System Controls dialog
Used for quick access to system settings.
Activate the dialog by:
•Pressing the System Controls button.
•Swiping from the top of the screen.
•Pressing the Power key.
¼Note: The content of the System Controls dialog depends on connected equipment
and active panel.

4|Zeus3S | Quick Guide - EN
Application pages
A
D
BC
A Home/pages button
B Application panel
C Menu button
D Control bar
Adjust panel size
You can adjust the panel sizes in a split page.
1. Tap the adjust split button in the System Controls dialog to show the resize icon
2. Drag the resize icon to set preferred panel size
3. Save the changes by tapping the screen
Charts
•Zoom the chart by using spread or pinch
gestures or by using the zoom buttons.
•Move the view in any direction by panning
the chart.
•Display information about a chart item by
tapping the item.
N

| 5
Zeus3S | Quick Guide - EN
Waypoints
To create a waypoint:
•Press the Mark key to instantly add a waypoint.
•Press the Rotary knob.
•Select the new waypoint option in the menu.
¼Note: With cursor inactive, the waypoint is placed at vessel’s position. With cursor
active, the waypoint is placed at selected cursor position.
SailSteer™panel
SailSteer™provides a composite view of key sailing
data. All data is displayed relative to the yacht’s bow.
The number of data fields included in the panel is
dependant on available panel size.
Laylines on Chart and SailSteer™ panels
WindPlot panel
Wind direction and wind speed.

6|Zeus3S | Quick Guide - EN
TimePlot panels
Two predefined
layouts. Tap left/
right panel arrow
to switch between
layouts.
Autopilot
•Activate the autopilot controller from the Control bar.
•Select an autopilot mode by pressing the mode button from the
Control bar.
•Switch to standby mode from the autopilot controller or by using
a physical Standby key.
Radar
•Turn the radar transmitting ON/OFF from the
menu.
•Adjust radar range by using the zoom buttons
on the radar panel.
Product manuals
For the full Operator manual, technical specifications and declarations, refer to the website:
www.bandg.com
