INSTRUCTIONS FOR:
SERVICE RESET TOOL WITH OIL
DEGRADATION FUNCTION - FIAT GROUP
MODEL No: VS8623
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
TECHNICAL HELPLINE NO. 01284 757505
Please register your product with Sealey by completing the registration form on-line at www.sealey.co.uk
Navigate to Register Product. By registering your product you can take advantage of Sealey product and technical updates via email.
1. SAFETY
2. INTRODUCTION
 WARNING! Wear appropriate Personal Protective Equipment.Afull range of Personal Protective Equipment is available from your Sealey dealer.
 WARNING! Ensure that Health & Safety, Local Authority Regulations and general workshop practice Regulations are adhered to when using
tools.
 DO NOT use tools if damaged.
 Maintain tools to ensure that they are in an adequate condition for safe use and optimum performance.
 Ensure that a vehicle that has been raised by a jack is adequately supported. Use axle stands.
 Wear suitable clothing to avoid snagging. DO NOT wear jewellery. Tie back long hair.
Account for all tools, parts and components being used. DO NOT leave these in or near the engine. Return tools to suitable storage after
use.
 When not in use, store in a safe, dry childproof place.
 Keep children and unauthorised persons away from the work area.
s IMPORTANT! These instructions are provided as a guide only. Always refer to the vehicle manufacturer’s service instructions
or a proprietary manual to establish the correct procedure and data.
 WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations. The Operator / user must
apply caution and common sense (good practical sense).

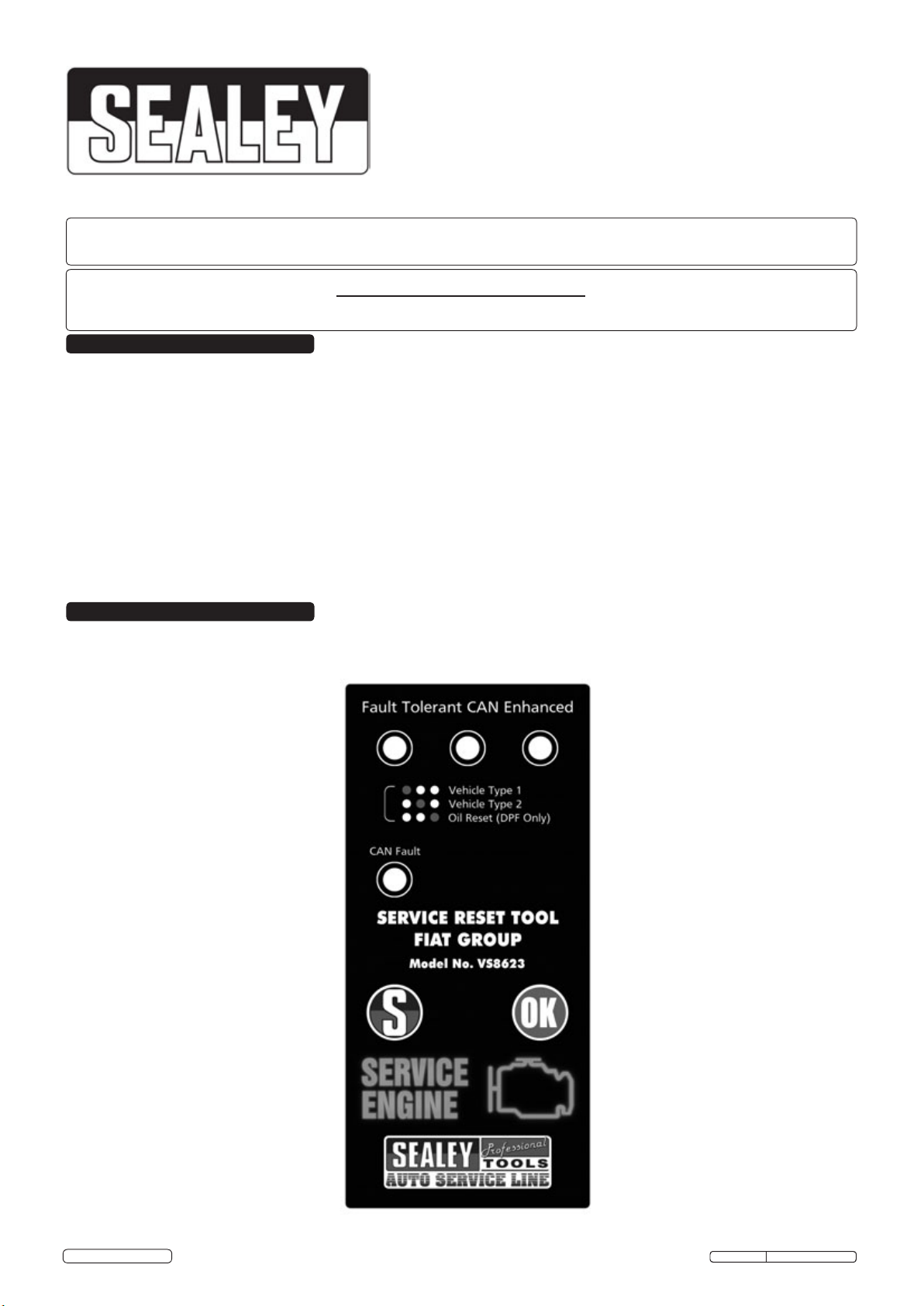

Alfa Romeo, Fiat and Lancia oil service and oil degradation reset tool. Compatible with the latest Fault Tolerant CAN vehicles. Designed to
extinguish the oil service light and to show if there is a fault on the CAN bus which is a common problem with some vehicles.
VS8623 Issue: 2(I) - 21/11/14
Original Language Version
© Jack Sealey Limited

3. OPERATION
 Compatible with latest Fault Tolerant CAN vehicles.
 CAN BUS Fault indicator.
The new FIAT service reset tool has been designed to extinguish service lights for the latest FIAT Fault Tolerant CAN vehicles.
In addition to service reset, the tool has been designed to display a warning lamp when a fault on the CAN bus is present, thus serving as a useful
diagnostic aid for all vehicle systems.
Service Reset Type 1 – Will reset the service dependent on the service schedule for vehicles labelled Type 1.
Service Reset Type 2 – Will reset the service dependent on the service schedule for vehicles labelled Type 2.
Oil Light Reset – Resets the Oil Degradation indicator. Only on models with Diesel Particulate Filter (DPF).
The ’CAN FAULT’ LED will ash on initial power up of the SLR tool if a CAN Bus fault is present.
● ○ ○ Service Reset Type 1
○ ● ○ Service Reset Type 2
○ ○ ● Oil Degradation Reset (DPF only)
Vehicle Set-Up.
1. Connect to vehicle.
2. Switch ignition on.
3. Press mode button to select correct reset type.
4. Press the ‘OK’ button to perform reset.

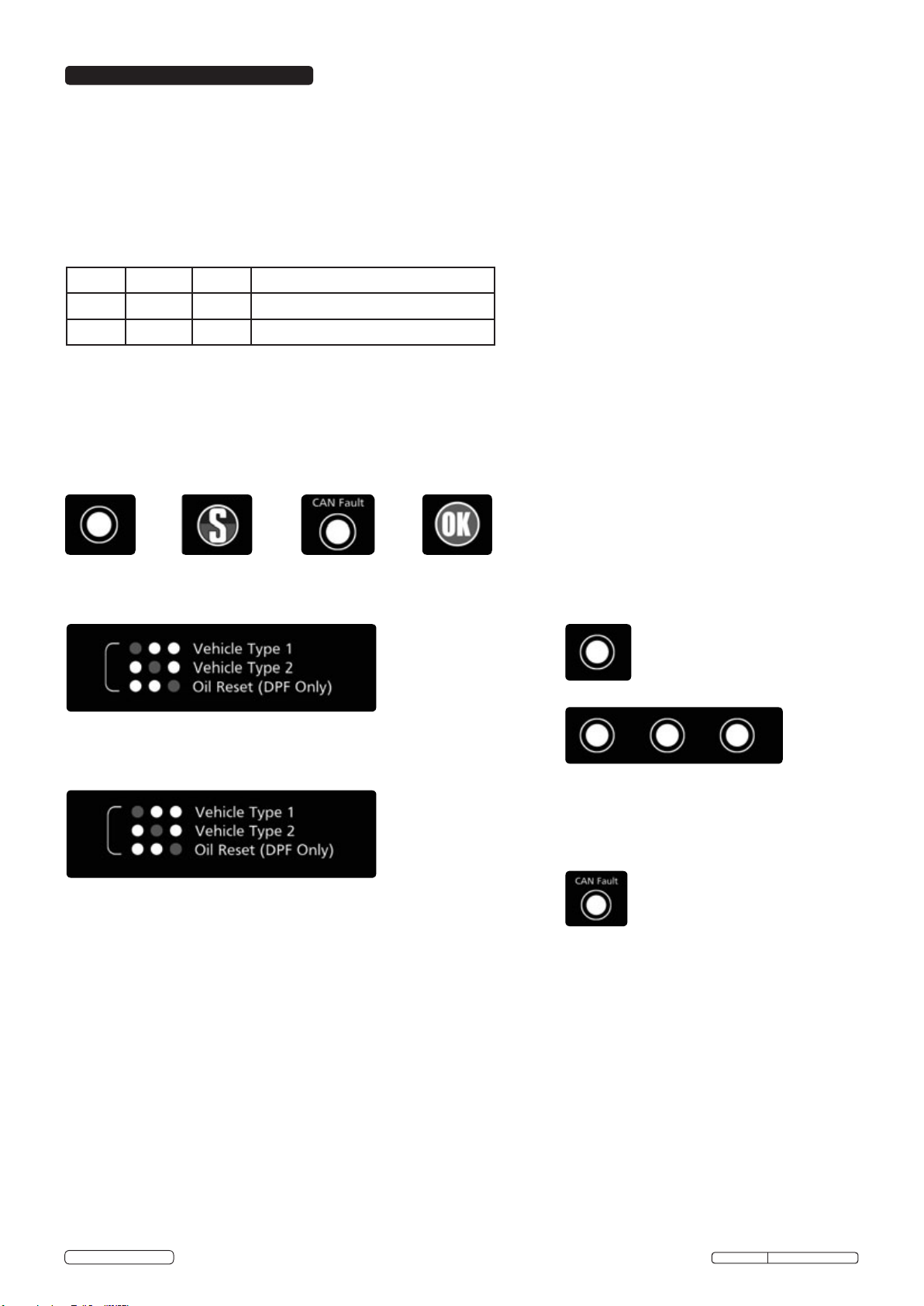

Service LED. Mode Selection. Fault Tolerant CAN
LED.OK Button: Resets The
Service Light.
Mode Selection:
For Selecting
Different Reset
Types.
1. Press the ‘OK’ button to reset
the appropriate service light.
The function LED’s will ash
to indicate a successful reset.
2. If the reset is unsuccessful
all three service LED’s will
ash.
1. The CAN FAULT LED will
ash on the initial power up
of the SLR tool if a CAN bus
fault is present.
(Only applicable for the
vehicles as listed in the
application table).
CAN bus Fault
Vehicle Set-Up
1. Connect to vehicle.
2. Switch ignition on.
3. Press mode button to select correct reset type.
4. Press the ‘OK’ button to perform reset.
VS8623 Issue: 2(I) - 21/11/14
Original Language Version
© Jack Sealey Limited

VS8623 Issue: 2(I) - 21/11/14
Original Language Version
© Jack Sealey Limited
Service Reset Engine Variant Fuel Type Engine
Size Year Engine Code Type
Abarth
500 P/D All 07-10 Type 2
Grande Punto 1.4 TURBO 16V P 1.4 10-on Type 2
Alfa Romeo
147 P/D All 05-09 Type 1
159 P/D All 05-10 Type 1
166 3.0 V6 24V P 3.0 03-06 Type 1
166 '03 2.0 TS 16V P 2.0 03-06 Type 1
166 '03 2.4 JTD 20V D 2.4 03-06 Type 1
166 '03 2.5 V6 24V P 2.5 03-06 Type 1
166 '03 3.0 V6 24V P 3.0 03-06 Type 1
166 '03 3.2 V6 24V P 3.2 03-06 Type 1
Brera P/D All 05-10 Type 1
GT P/D All 05-07 Type 1
Mito 1.3 MJET 16V D 1.3 08-13 Type 2
Mito 1.4 16V P 1.4 08-13 Type 2
Mito 1.4 TURBO 16V P 1.4 08-13 Type 2
Mito 1.6 MJET 16V D 1.6 08-13 Type 2
Mito P/D All 08-10 Type 2
Spider P/D All 06-10 Type 1
Fiat
500 P/D All 07-10 Type 2
Bravo P/D All 07-09 Type 1
Croma P/D All 05-11 Type 1
Doblo P/D All 01-06 Type 1
Doblo (152) 1.3 MJET 16V D 1.3 09-14 Type 2
Doblo (152) 1.4 16V P 1.4 09-14 Type 2
Doblo (152) 1.6 MJET 16V D 1.6 09-14 Type 2
Doblo (152) 2.0 MJET 16V D 2.0 09-14 Type 2
Ducato (250) 2.2 JTD D 2.2 06-11 Type 1
Ducato (250) 2.3 JTD D 2.3 06-11 Type 1
Ducato (250) 3.0 16V CNG Gas 3.0 06-11 Type 1
Ducato (250) 3.0 JTD D 3.0 06-11 Type 1
Ducato (250) MINIBUS 3.0 16V CNG Gas 3.0 06-11 Type 1
Ducato FL (250) 2.0 JTD D 2.0 06-11 Type 2
Ducato FL (250) 2.3 JTD D 2.3 06-11 Type 2
Ducato FL (250) 3.0 JTD D 3.0 06-11 Type 2
Grande Punto 1.2 8V P 1.2 05-12 Type 2
Grande Punto 1.3 MJET 16V D 1.3 05-12 Type 2
Grande Punto 1.4 16V P 1.4 05-12 Type 2
Grande Punto 1.4 8V P 1.4 05-12 Type 2
Grande Punto 1.4 TURBO 16V P 1.4 05-12 Type 2
Grande Punto 1.6 MJET 16V D 1.6 05-12 Type 2
Grande Punto 1.9 MJET 8V D 1.9 05-12 Type 2
Idea P/D All 04-10 Type 1
Linea P/D All 05-10 Type 1
4. APPLICATIONS

VS8623 Issue: 2(I) - 21/11/14
Original Language Version
© Jack Sealey Limited
Service Reset Engine Variant Fuel Type Engine
Size Year Engine Code Type
Palio FLP 1.4 8V P 1.4 07-11 Type 1
Palio FLP 1.8 8V P 1.8 07-11 Type 1
Palio RST 2 1.0 8V P 1.0 07-11 Type 1
Palio RST 2 1.1 8V P 1.1 07-11 Type 1
Palio RST 2 1.2 16V P 1.2 07-11 Type 1
Palio RST 2 1.3 JTD D 1.3 07-11 Type 1
Palio RST 2 1.4 8V P 1.4 07-11 Type 1
Palio RST 2 1.6 16V P 1.6 07-11 Type 1
Palio RST 2 1.7 TD D 1.7 07-11 Type 1
Palio RST 2 1.8 8V P 1.8 07-11 Type 1
Palio RST 2 1.9 D D 1.9 07-11 Type 1
Panda P/D All 03-10 Type 1
Perla 1.7 8V D 1.7 Type 1
Professional Doblo (263) 1.3 MJET 16V D 1.3 10-14 Type 2
Professional Doblo (263) 1.4 16V P 1.4 10-14 Type 2
Professional Doblo (263) 1.6 MJET 16V D 1.6 10-14 Type 2
Professional Doblo (263) 2.0 MJET 16V D 2.0 10-14 Type 2
Professional Grande Punto Van 1.3 MJET 16V D 1.3 05-12 Type 2
Professional Grande Punto Van 1.4 8V P 1.4 05-12 Type 2
Professional Punto Evo Van (199) 1.3 MJET 16V D 1.3 09-12 Type 2
Professional Punto Evo Van (199) 1.4 8V P 1.4 09-12 Type 2
Punto P/D All 03-05 Type 1
Punto 05 P/D All 05-10 Type 2
Punto Evo (199) 1.2 8V P 1.2 09-12 Type 2
Punto Evo (199) 1.3 MJET 16V D 1.3 09-12 Type 2
Punto Evo (199) 1.4 16V M.AIR P 1.4 09-12 Type 2
Punto Evo (199) 1.4 8V P 1.4 09-12 Type 2
Punto Evo (199) 1.4 TURBO 16V M.AIR P 1.4 09-12 Type 2
Punto Evo (199) 1.6 MJET 16V D 1.6 09-12 Type 2
Punto LA P/D All 03-07 Type 1
Stilo P/D All 01-07 Type 1
Strada 1.3 JTD D 1.3 Type 1
Uno Type 1
Lancia
Musa P/D All 04-09 Type 1
Thesis 2.0 20V TB P 2.0 01-09 Type 1
Thesis 2.4 20V P 2.4 01-09 Type 1
Thesis 2.4 JTD 10V D 2.4 01-09 Type 1
Thesis 2.4 JTD 20V D 2.4 01-09 Type 1
Thesis 3.0 V6 24V P 3.0 01-09 Type 1
Thesis 3.2 V6 24V P 3.2 01-09 Type 1
Ypsilon 1.2 16V P 1.2 03-06 Type 1
Ypsilon 1.2 8V P 1.2 03-06 Type 1
Ypsilon 1.3 JTD D 1.3 03-06 Type 1
Ypsilon 1.4 16V P 1.4 03-06 Type 1
Ypsilon 06 1.2 8V P 1.2 06-10 Type 1
Ypsilon 07 1.3 JTD D 1.3 06-10 Type 1
Ypsilon 08 1.4 16V P 1.4 06-10 Type 1
Ypsilon 09 1.4 8V P 1.4 06-10 Type 1
Ypsilon (402) 0.9 TURBO TWINAIR P 0.9 10-on Type 2
Ypsilon (402) 1.2 8V P 1.2 10-on Type 2
Ypsilon (402) 1.3 MJET 16V D 1.3 10-on Type 2

VS8623 Issue: 2(I) - 21/11/14
Original Language Version
© Jack Sealey Limited
Service Reset Engine Variant Fuel Type Engine
Size Year Engine Code Type
Alfa Romeo
159 1.9 JTDm 115 D 1.9 05-10 939A7.000 Bosch
EDC16C39
159 1.9 JTDm 120 D 1.9 05-10 939A1.000 Bosch
EDC16C39
159 1.9 JTDm 16V 136 D 1.9 05-10 939A8.000 Bosch
EDC16C39
159 1.9 JTDm 16V 150 D 1.9 05-10 939A2.000 Bosch
EDC16C39
159 2.4 JTDm 20V D 2.4 05-10 939A3.000 Bosch
EDC16C39
Brera 2.4 JTDm 20V D 2.4 05-10 939A3.000 Bosch
EDC16C39
Mito 1.3 MJET 16V D 1.3 07-11 Marelli 6F3
Fiat
500 1.3 MJET 16V D 1.3 07-11 Marelli 6F3
Bravo 1.9 JTD D 1.9 07-09 Bosch
EDC16C39
Croma 1.9 JTD 8V D 1.9 05-09 939A1.000 Bosch
EDC16C39
Grande Punto 1.3 MJET 16V D 1.3 07-11 Bosch
EDC16C39
Grande Punto 1.9 JTD 16V D 1.9 05-10 199A5.000 Bosch
EDC16C39
Idea 1.3 JTD 8V D 1.3 04-10 939A1.000 Marelli 6F3
Idea 1.9 JTD 8V D 1.9 04-10 939A1.000 Bosch
EDC16C39
Multipla 1.9 JTD D 1.9 02-10 Bosch
EDC16C39
Punto 1.3 MJET 16V D 1.3 07-11 Marelli 6F3
Punto 1.9 JTD 16V D 1.9 05-10 192A5.000 Bosch
EDC16C39
Punto 1.9 JTD 8V D 1.9 05-10 939A1.000 Bosch
EDC16C39
Sedici 1.9 JTD 8V D 1.9 05-10 939A1.000 Bosch
EDC16C39
Stilo 1.9 JTD 16V 140 D 1.9 04-07 192A5.000 Bosch
EDC16C39
Oil Degredation

VS8623 Issue: 2(I) - 21/11/14
Original Language Version
© Jack Sealey Limited
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
01284 757500
01284 703534
[e-mail]
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable)
into approved containers and dispose of the product and the fluids according to local regulations.
WEEE Regulations
Dispose of this product at the end of its working life in compliance with the EU Directive on
Waste Electrical and Electronic Equipment (WEEE). When the product is no longer required, it must be disposed
of in an environmentally protective way. Contact your local solid waste authority for recycling information.
