Sealey Power Products CD2000 User manual

1.1 ELECTRICAL SAFETY. p
p
p
WARNING! It is the users responsibility to check the following:
You must check all electrical equipment and appliances to ensure they are safe before using. You must inspect power supply leads,
plugs and all electrical connections for wear and damage. You must ensure the risk of electric shock is minimised by the installation
of appropriate safety devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board.
We recommend that an RCD (Residual Current Device) is used with all electrical products. It is particularly important to use an RCD
together with portable products that are plugged into an electrical supply not protected by an RCCB. If in doubt consult a professional
electrician. You may obtain a Residual Current Device by contacting your Sealey dealer. You must also read and understand
the following instructions concerning electrical safety.
1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on a business premises, to be tested
by a qualified person at least once a year by using a Portable Appliance Tester (PAT).
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance,
and the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3. DO ensure that the insulation on all cables and the product itself is safe before connecting to the mains power supply.
See 1.1.1. above and use a Portable Appliance Tester (PAT).
1.1.4. DO ensure that cables are always protected against short circuit and overload.
1.1.5. DO regularly inspect power supply, leads, plugs and all electrical connections for wear and damage, especially power
connections to ensure that none are loose.
1.1.6. DO check that the voltage marked on the product is the same as the electrical power supply to be used, and check that all fused
plugs are fitted with the correct capacity fuse.
1.1.7. DO NOT pull or carry the powered appliance by its power supply lead.
1.1.8. DO NOT pull power plugs from sockets by the power cable.
1.1.9. DO NOT use worn or damage leads, plugs or connections. Immediately replace

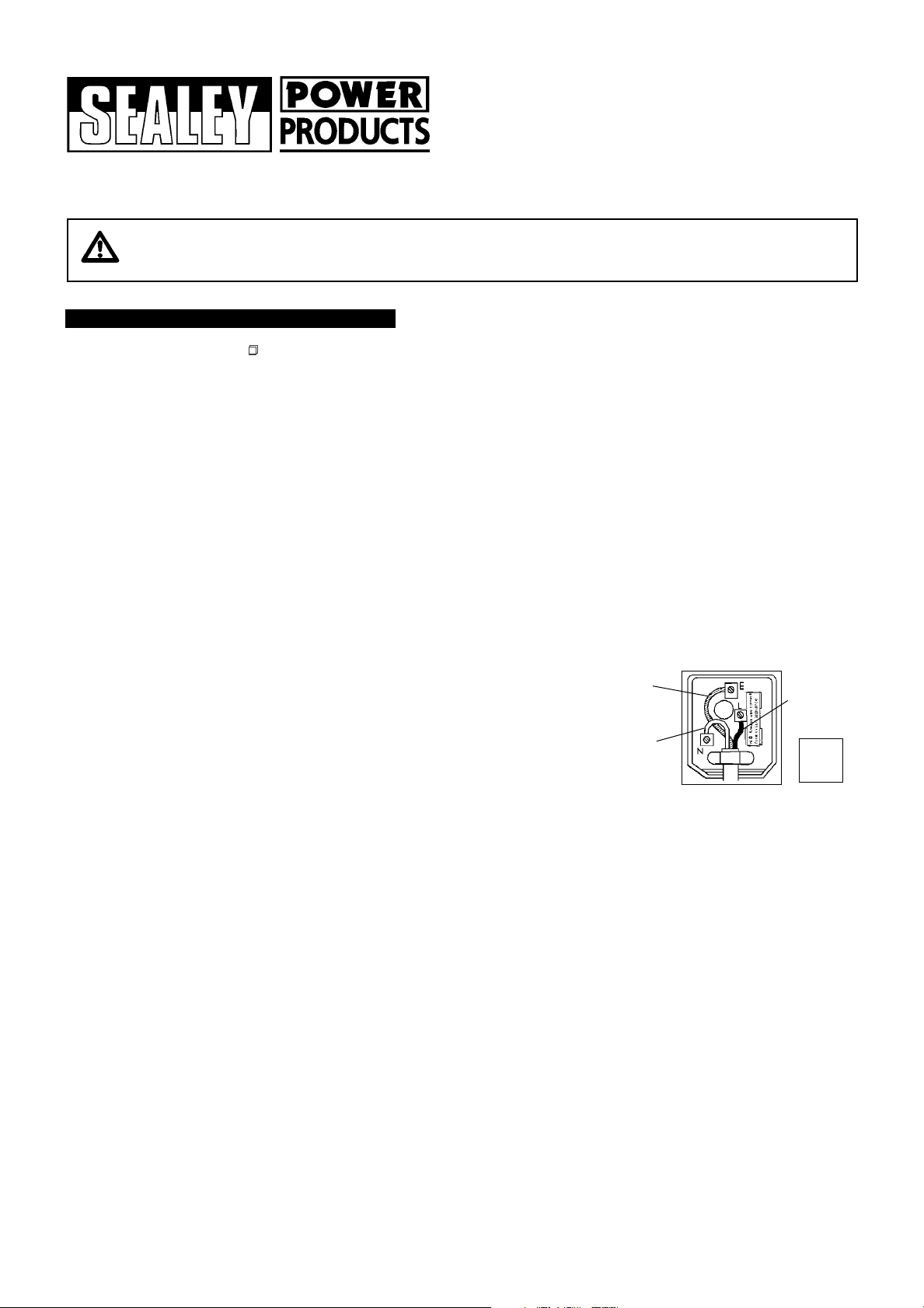

or repair by qualified persons. A U.K. 3 pin plug with ASTA/BS approval
is fitted. In case of damage, cut off and fit a new plug according to the following
instructions (UK only - see diagram at right).
a) Ensure the unit is correctly earthed via a three-pin plug.
b) Connect the GREEN/YELLOW earth wire to the earth terminal E.
c) Connect the BROWN live wire to live terminal L.
d) Connect the BLUE neutral wire to the neutral terminal N.
Blue
Neutral
wire
Yellow & Green
Earth wire
Brown Live
wire
13 amp
3 pin
plug
INSTRUCTIONS FOR:
CONVECTOR HEATERS
Model No: CD2000 & CD2502
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
CD2000 & CD2502-080698
1. SAFETY INSTRUCTIONS
IMPORTANT
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1.2 GENERAL SAFETY
3Disconnect the heater from the mains power before handling or cleaning.
3Maintain the heater in good order and clean condition for best and safest performance.
3Replace or repair damaged parts. Use recommended parts and an authorised service agent.Non authorised parts may be dangerous
and will invalidate the warranty.
3Locate the heater in an adequate working area for its function, keep the immediate area in front of the outlet grill clean and tidy and free
` from unrelated materials.
3Only use the heater standing on its feet in the upright position.
7DO NOT allow the heater to get wet as this may cause an electric shock, and will damage the heater.
7DO NOT let power lead hang over an edge (i.e. table), or touch a hot surface, lie in heater hot air flow, or run under a carpet.
7DO NOT cover heater when in use, and do not obstruct the air inlet and outlet grill (i.e. clothing, curtain, furniture, bedding etc).
7DO NOT use heater on very deep pile carpets.
7DO NOT use in bathroom, shower room, or in any wet or damp environments or where there is high condensation.
7DO NOT insert or allow objects to enter any openings of heater as this may cause an electric shock, fire or damage to heater.
7DO NOT use the heater out of doors. This heater is designed for indoor use only.
7DO NOT use heater if the power cord, plug or the heater is damaged, or if the heater is not working correctly, or if the heater has been
dropped or has become wet.
7DO NOT use the heater where there are flammable liquids, solids or gases such as petrol, solvents, aerosols etc, or where heat sensitive
materials may be stored.
7DO NOT place the heater near items that may be damaged by heat.
7DO NOT touch the outlet grill (top) of the heater during and immediately after use as it will be hot.
7DO NOT allow children to touch or to operate the heater.
7DO NOT place heater too close to yourself, allow the air to circulate.
7DO NOT use the heater for any purpose other than for which it is designed.
3Allow the unit to cool before storage. When not in use, disconnect from the mains and store in a safe, cool, dry, child proof area.

2.1. Specifications
Voltage 230 (50hz) Model CD2502 only with Turbo fan output.
Power output 2000Watt
Temperature adjustment Thermostat
2.2. Model CD2000 operating instructions. Non turbo.
2.2.1. Turn the thermostat to a high (+) setting.
2.2.2. Chose the required heat output by selecting switch ( I = 1000W medium heat output. or II = 2000W high heat output).
The selected switch or switches will light up.
2.2.3. Once the required room temperature has been achieved, turn the thermostat slowly down in the direction of the (-) setting until the heat
output switch light goes out.
The unit output temperature is now set and will automatically start as the room temperature drops below the thermostat setting.
pWARNING! DO NOT Touch the top of the heater when in use as it becomes hot.
2.2.4. To switch the unit off, turn the heat selecting switches off and unplug from the mains.
Allow the unit to cool before handling and storage.
2.3. Model CD2502 operating instructions. Turbo model
The CD2502 is equipped with a motorised fan to boost heater output. For General operation follow steps 2.2.1 to 4. above
with the following exception:
2.3.1. To switch on the fan push the button marked with the fan symbol.
2.3.2. To switch the unit off, turn the fan and heat selecting switches off and unplug from the mains.
2.3.3. Cool air output
To produce a cool air flow, turn the thermostat up and the fan switch only to on.
2.4. Thermostat safety feature.
Both models are fitted with a safety thermostat which will automatically turn the heater off should the air inlet or outlet become
blocked. Should this happen, switch heater off and unplug the heater from the mains power supply.
p p
p
WARNING! in such a case the heater will be very hot. Allow the unit to completely cool before handling the heater and then check
the air inlet and outlet for obstructions and before attempting to switch the unit back on.
2. SPECIFICATIONS & OPERATION
3. MAINTENANCE
Before attempting any maintenance ensure the unit is unplugged from the mains power supply and that it is cool.
3.1. Clean the unit with a soft dry cloth. DO NOT use abrasives or solvents.
3.2. Periodically check the air inlet and outlet to ensure the air way is clear.
Declaration of Conformity We, the sole importer into the UK, declare that the products listed below are in conformity with the following
EEC standards and directives.
The construction file for these products is held by the Manufacturer and
may be inspected on request by contacting Jack Sealey Ltd
For Jack Sealey Ltd. Sole importer into the UK of Sealey Power Products
Signed by John Sealey Date 1st July 1998
Sealey Group,
Bury St. Edmunds,
Suffolk.
01284 757500 01284 703534
E-mail: [e-mail]
CD2000 & CD2502 - 080698
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No responsibility is accepted for incorrect use of this equipment
WARRANTY: Guarantee is 12 months from purchase date. Proof of purchase will be required for any claim.
INFORMATION: Please call us for a copy of our latest catalogue.
Convector Heaters
Models CD2000 & CD2502
73.23/EEC
Low Voltage Directive (S.I. 1994/3260)
