Sealey HVLP732 User manual

Familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.
WARNING!Disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
Maintain the spray gun in good condition (use an authorised service agent).
Replace or repair damaged parts. Use authorised parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
Keep the spray gun clean for best and safest performance.
Ensure that the compressed air system can supply the spray gun air consumption for the model to be used.
Wear approved safety respiratory protection and safety eye goggles.
If spraying isocynate based finisher, wear approved respirator/clean air breathing apparatus and cover exposed skin with latex gloves and an
impervious hooded coverall.
Remove ill-fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.
Locate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is adequate
ventilation and lighting.
Keep children and unauthorised persons away from the work area.
When not in use, ensure that the air supply is turned off.
Avoid unintentional operation of spray gun.
The spray gun has been treated with an anticorrosive agent at the factory and MUST be flushed out thoroughly with thinner before use.
DO NOT point spray gun at yourself, other persons or animals.
DO NOT direct air from the air hose at yourself, other persons or animals.
DO NOT carry the spray gun by the hose, or yank the hose from the air supply.
DO NOT exceed the working pressure of 43psi (3bar).
DO NOT use the spray gun for any purpose other than that for which it is designed.
DO NOT allow untrained persons to operate the spray gun.
DO NOT get the spray gun wet or use in damp or wet locations or in areas where there is condensation.
DO NOT operate the spray gun if any parts are missing or damaged as this may cause failure and/or personal injury.
When not in use, disconnect the spray gun from the air supply, clean thoroughly and store safely.
HVLP732 Gravity Feed Touch Up Spray Gun
Ideal for blowing-in small areas of panel where fine control of paint and
air is necessary. Anodized spray gun body resists corrosion and makes
for easier cleaning. Brass air cap with stainless steel needle and nozzle
make it suitable for waterborne paint. Supplied with 0.8mm set-up,
1.0mm set-up is available separately.
Model No: .............................................................HVLP732
Supplied standard set-up: ...................................................... 0.8mm
Available set-ups: ................................................................... 1.0mm
Working pressure: ..........................................................43psi (3bar)
Air consumption:................................................... 9.0cfm (255 l/min)
Pot capacity............................................................................. 100ml
INSTRUCTIONS FOR:
HVLP GRAVITY FEED TOUCH UP SPRAY GUN
0.8MM SET UP
MODEL NO: HVLP732
1. SAFETY
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
Refer to
instruction
manual
Wear eye
protection
Wear
respiratory
protection
HVLP732 Issue: 1 - 14/11/14
Original Language Version
© Jack Sealey Limited

3.1. Air Supply

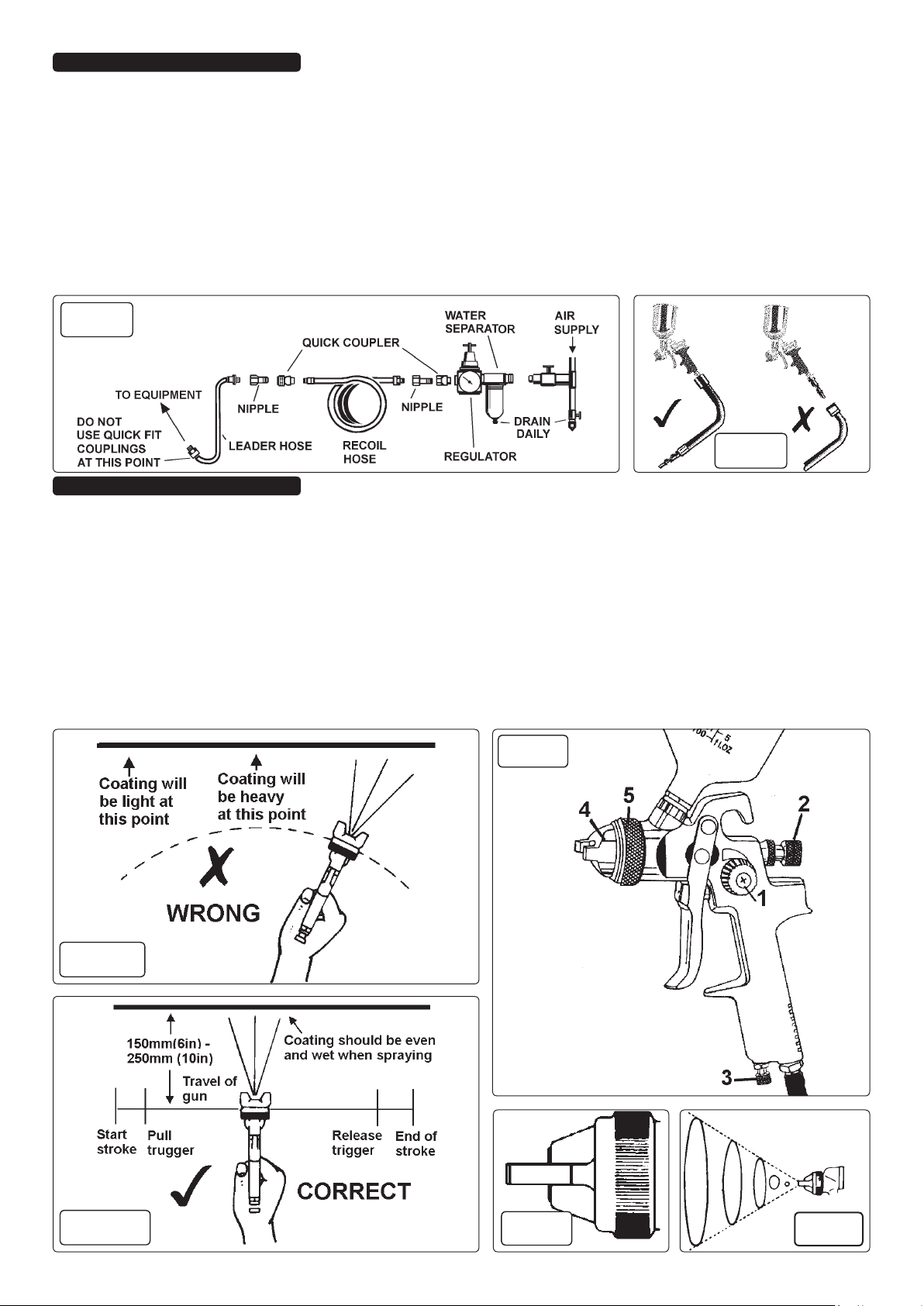

Recommended hook-up is shown in Fig.1.
3.1.1. Ensure spray gun air valve (or trigger) is in the off position before connecting to the air supply.
3.1.2. You will require an air pressure of 43psi, and an air flow according to specification.
3.1.3. WARNING! Ensure the air supply is clean and does not exceed 43psi while operating the spray gun. Too high an air pressure and/or
unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
3.1.4. Drain the air tank daily. Water in the air line will ruin the paint finish and damage the spray gun.
3.1.5. Clean air inlet filter weekly.
3.1.6. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4” I.D. and fittings must have the same inside dimensions.
3.1.7. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
3.2. Couplings
Vibration may cause failure if a quick change coupling is connected directly to the spray gun. To overcome this, connect a leader hose to
the spray gun. A quick change coupling may then be used to connect the leader hose to the air line recoil hose (Figs.1 and 2).
4.1. For best results, the gun should be held perpendicular to the surface being sprayed and moved parallel to it. Start the stroke before
squeezing the trigger and release the trigger before finishing the stroke. This will enable accurate control of the gun and material (Fig.3B).
4.2. Spray from a distance of about 6 to 10 inches (150 to 250mm) depending on the material and the atomizing pressure. The material
deposited should always be even and wet. Each stroke must overlap the preceding stroke to obtain a uniform finish. To reduce over-spray
and obtain maximum efficiency, spray with the lowest possible atomizing air pressure.
4.3. Controlling the fan spray and the fluid.
a) Use the needle (paint) adjustment knob (Fig.4.2) to adjust the amount of paint flow.
b) The atomizing air flow is controlled by the control knob (Fig.4.1).
c) The volume of air input is controlled by the adjustment knob (Fig.4.3).
d) As width of spray is increased more material must pass through the gun to obtain the same coverage on the increased area.
e) Turn the air nozzle (Fig.4.4) to achieve a horizontal or vertical fan spray. Lock the nozzle with retaining ring (Fig.4.5).
The spray pattern of the gun is variable from round to flat with all patterns in between. In normal operation, the wings on the
nozzle are horizontal (Fig.5). This provides a vertical fan-shaped pattern which gives maximum, uniform and even coverage when
moving the gun back and forth, parallel to the work surface (Fig.6).
Fig.4
Fig.5
Fig.3A
Fig.3B
Fig.1
Fig.2
Fig.6
3. AIR SUPPLY
4. OPERATION

FOR OPTIMUM PERFORMANCE IT IS VERY IMPORTANT TO ENSURE THE SPRAY GUN IS CORRECTLY CLEANED AFTER EACH USE.
Disconnect from the air supply before attempting any cleaning or maintenance.
5.1. Cleaning the gun
5.1.1. Flush the gun through with clean solvent.
5.1.2. Use a bristle brush and solvent to wash off accumulated paint.
5.1.3. Clean the air nozzle using a brush. Blow clean with air. Handle all nozzles carefully and do not make any alterations in the gun.
5.1.4. Wipe the outside of the gun with a dampened solvent rag.
5.1.5. If there is a need to probe the holes in the nozzles, ensure a tool that is softer than brass is utilised, under no circumstances use a
metal tool, as the slightest amount of damage will adversely affect the spray pattern.
5.1.6. Adjust the fluid needle valve so that when the gun is triggered, air flow occurs before fluid flow.
5.2. Maintenance
Take care when re-assembling. Screw parts hand tight to avoid cross-threading. If a part cannot easily be turned by hand, check that
it is the correct part, or unscrew it, realign and retry. DO NOT use excessive force when re-assembling.
5.2.1. When changing the nozzle size, ensure the complete nozzle set is fitted. This consists of air cap, fluid nozzle and paint needle. Insert the
fluid nozzle before paint needle.
Dried material in a side port restricts passage of air.
Greater flow of air from the clean side port forces a fan
pattern in the direction of the clogged side.
Dried material around the outside of the fluid nozzle tip
restricts the passage of atomizing air at one point
through the centre opening of the air nozzle and results
in the pattern shown. This pattern can also be caused
by a loose air nozzle.
Material too thin or atomization air pressure too high.
Not enough paint in bottle.
Nozzle set / seating dirty, damaged or loosely installed.
Material bubbles or “boils” in paint
cup.
Atomised air flowing through the paint channel to the
bottle. The paint nozzle is not sufficiently tight.
Air nozzle is not completely screwed on.
Tighten, clean or replace parts accordingly.
Dissolve material in the side ports with solvent, then blow the gun
clean. Do not poke into the nozzles with metal instruments.
Remove the air nozzle and wipe off fluid tip using a rag dampened
with solvent. Tighten the air nozzle.
Regulate material viscosity or reduce air pressure.
Refill bottle. Remove the fluid nozzle, clean the back of the nozzle
and the nozzle seat using a cloth dampened with thinner. Refit the
nozzle and secure it tightly against the body.
If necessary replace nozzle set.
PROBLEM POSSIBLE CAUSES SOLUTION
A faulty spray is usually caused by improper cleaning or dried material around the fluid nozzle tip or in the air nozzle. If cleaning is required, remove
these parts and soak them in solvent. This will soften the dried material which can then be removed with a brush or a cloth.
These parts are carefully machined and any damage to them will cause a faulty spray. If either the air nozzle or fluid nozzle are damaged, they
must be replaced before a perfect spray can be obtained.
Paint spray ‘flutters’
HVLP732 Issue: 1 - 14/11/14
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
01284 757500
01284 703534
sales@sealey.co.uk
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Original Language Version
© Jack Sealey Limited
Parts support is available for this product. To obtain a parts listing and/or diagram,
please log on to www.sealey.co.uk, email sales@sealey.co.uk or telephone 01284 757500.
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable)
into approved containers and dispose of the product and the fluids according to local regulations.
