Sealey SD250K User manual

SOLDERING KIT
MODEL NO: SD250K
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey Stockist.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable
Appliance Test) tested.
Electrical safety information, it is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
correct fuse - see fuse rating in these instructions.
8DO NOT pull or carry the appliance by the power cable.
8DO NOT pull the plug from the socket by the cable.
8DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is
replaced immediately by a qualied electrician.
1.1.4. This product is tted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove from use.
Ensure that repairs are carried out by a qualied electrician.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
Sealey recommend that repairs are carried out by a qualied electrician.
1.2. GENERAL SAFETY
 WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
equipment.
9Familiarise yourself with the application, limitations and potential hazards of the soldering gun.
9 Replace or repair damaged parts. Use genuine parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
9Locate soldering gun in a suitable working area, keep area clean and free from unrelated materials. Ensure that there is adequate
lighting.
9Keep the soldering gun clean for best and safest performance.
9Ensure there are no flammable or combustible materials near the work area.
9 Wear approved safety eye protection (standard spectacles are not adequate).
9 Wear appropriate protective clothing.
9Ensure the workpiece is adequately held before operating the soldering gun.
9Always lay the soldering gun on its side so that the tip cannot make contact with the work surface.
9Remove excess solder from the soldering gun by wiping the tip on a damp, natural sponge.
9Ensure that when the soldering gun is put down during use that the tip is not near to or in contact with any material that may burn or
melt including the product’s own supply lead.
8 DO NOT attempt to remove excess solder from the soldering gun by shaking it as hot solder may become airborne and cause burns
and blisters.
8 DO NOT allow children or pets into the area where the soldering is taking place.
8DO NOT attempt to cool the iron or gun with water.
WARNING! Disconnect the soldering gun from the mains power and allow it to cool before changing tips.
8DO NOT operate the soldering gun when you are tired, under the influence of alcohol, drugs or intoxicating medication.
8DO NOT leave a hot soldering iron or gun unattended. (If you are leaving the work area even for a short period of time switch it off and
allow to cool.)
8DO NOT use the soldering gun for any purpose other than that for which it has been designed.
8DO NOT allow untrained persons to operate the soldering gun.
Recommended fuse rating
3 Amp
SD250K Issue 2 (HF) 24/09/18
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Hot surfaces Indoor use onlyWear eye
protection
Warning

8DO NOT touch the workpiece as it will be very hot. Allow to cool.
8DO NOT operate the soldering gun if damaged.
8DO NOT hold the workpiece by hand.
8DO NOT allow children to operate the soldering gun.
NOTE: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
2. INTRODUCTION
Comprehensive soldering kit featuring a 30/100W dual powered pistol type soldering gun. Unit is tted with a boost trigger function
to increase temperature from 120°C to 250°C. Also tted with an ergonomic handle, LED indicator light, 1.5mtr cable and BS approved
plug. Supplied in rigid storage case with spare soldering tip, soldering wire, solder sucker and metal soldering stand.
3. SPECIFICATION
Model No:..................................................................SD250K
Nett Weight: ................................................................0.98Kg
Temperature Range: ..................................... 120°C to 250°C
4. OPERATION
4.1. Assemble the soldering stand and clamp the work securely.
WARNING. Ensure that the soldering tip rests on a heat-proof surface.
4.2. To use the 30W setting, plug the gun into the mains supply without touching the trigger. The gun will heat up rapidly.
4.3. To use the 100W setting, press the trigger to boost the tip temperature. DO NOT depress the trigger for more than 12 seconds, and
allow to rest for a minimum of 48 seconds before depressing again.
4.4. Wipe off excess solder and allow the gun to cool completely after use before storing in a cool, dry, childproof location.
4.5. USING THE SOLDER SUCKER.
The solder sucker can be used where a joint has to be unsoldered or where excess solder has been deposited and needs to be
reduced.
4.5.1. Prime the sucker by pushing the plunger down until it latches. Bring the soldering iron or gun to the joint and melt the solder. As
soon as the solder is liquid place the tip of the sucker into the solder or as close as possible and press the button on the body of the
sucker.
The plunger will rise by spring action to produce a partial vacuum at the tip. Remove the sucker immediately to avoid being in
contact with the hot tip of the soldering iron/gun.
4.5.2. Empty the excess solder from the body of the sucker by unscrewing the tip and tapping/shaking to dislodge the solder particles.
5. MAINTENANCE
5.1. CHANGING TIPS
After a prolonged period of service the tip may become pitted and need replacing. Wait till the gun is cool and isolate from the mains.
Loosen the cross headed screw from the barrel and remove the old tip (if the tip is stuck, prise out gently with pliers). Replace the tip
and tighten the screw.
5.2. Avoid allowing solder to accumulate where the tip enters the iron as this may make the tip difficult to remove. DO NOT allow solder
deposits to build up on the tip retaining screw as it may prevent a screwdriver fitting into the cross head. Loosen the tip retaining
screw periodically and rotate the tip in the gun to prevent it seizing into the body. Use a proprietary tip cleaner/tinner to keep the tip
clean and tinned correctly
SD250K Issue 2 (HF) 24/09/18
Original Language Version
© Jack Sealey Limited

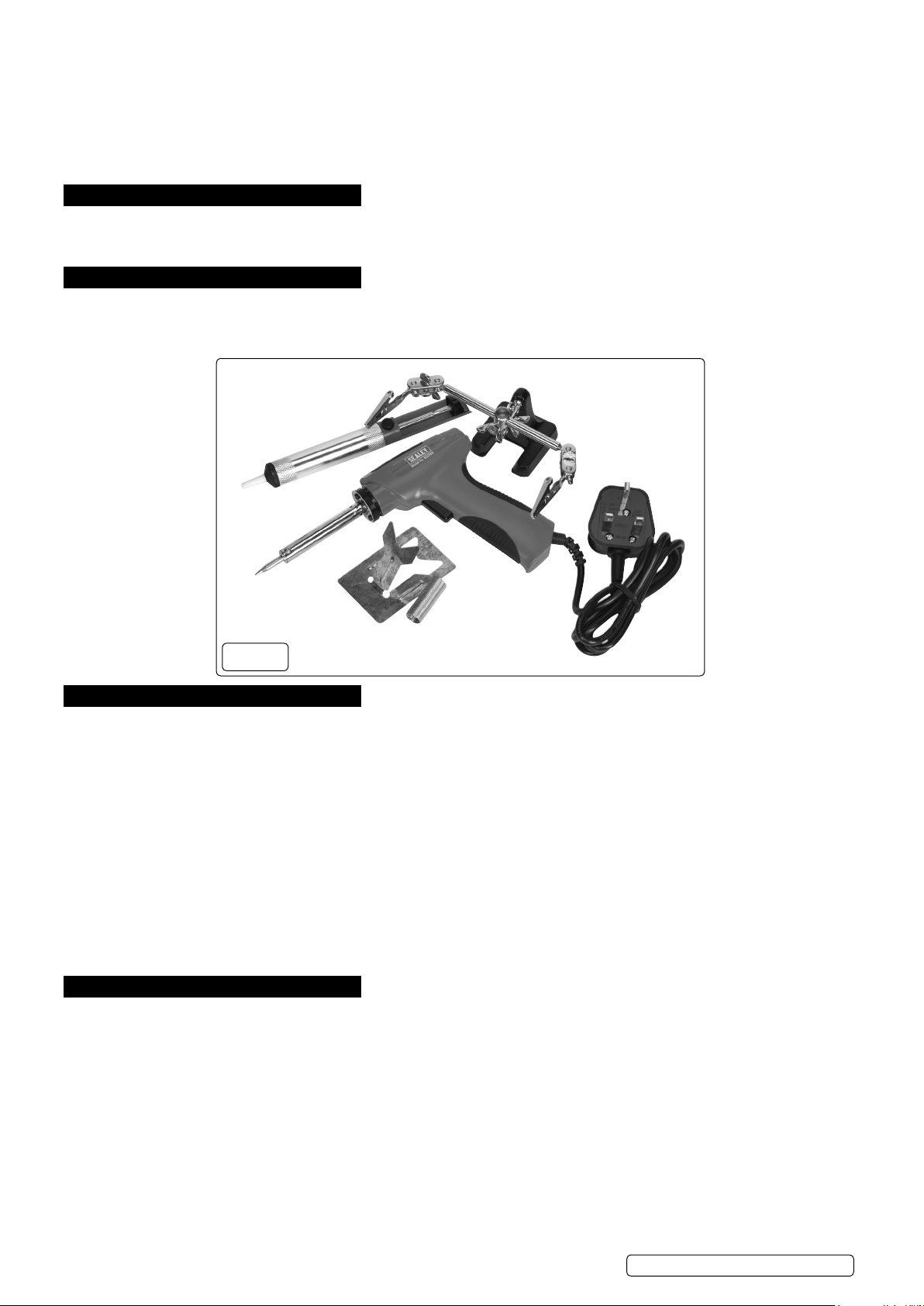

g.1

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
SD250K Issue 2 (HF) 24/09/18
Original Language Version
© Jack Sealey Limited
