Sealey PC195SD.V2 User manual

VACUUM CLEANER WET & DRY 20LTR 1200W
STAINLESS DRUM
MODEL NO: PC195SD.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey stockist.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable
Appliance Test) tested.
Electrical safety information, it is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
IMPORTANT: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
correct fuse - see fuse rating in these instructions.
8DO NOT pull or carry the appliance by the power cable.
8DO NOT pull the plug from the socket by the cable. Remove the plug from the socket by maintaining a rm grip on the plug.
8DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or replaced immediately by a
qualied electrician.
1.1.3. This product is tted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.

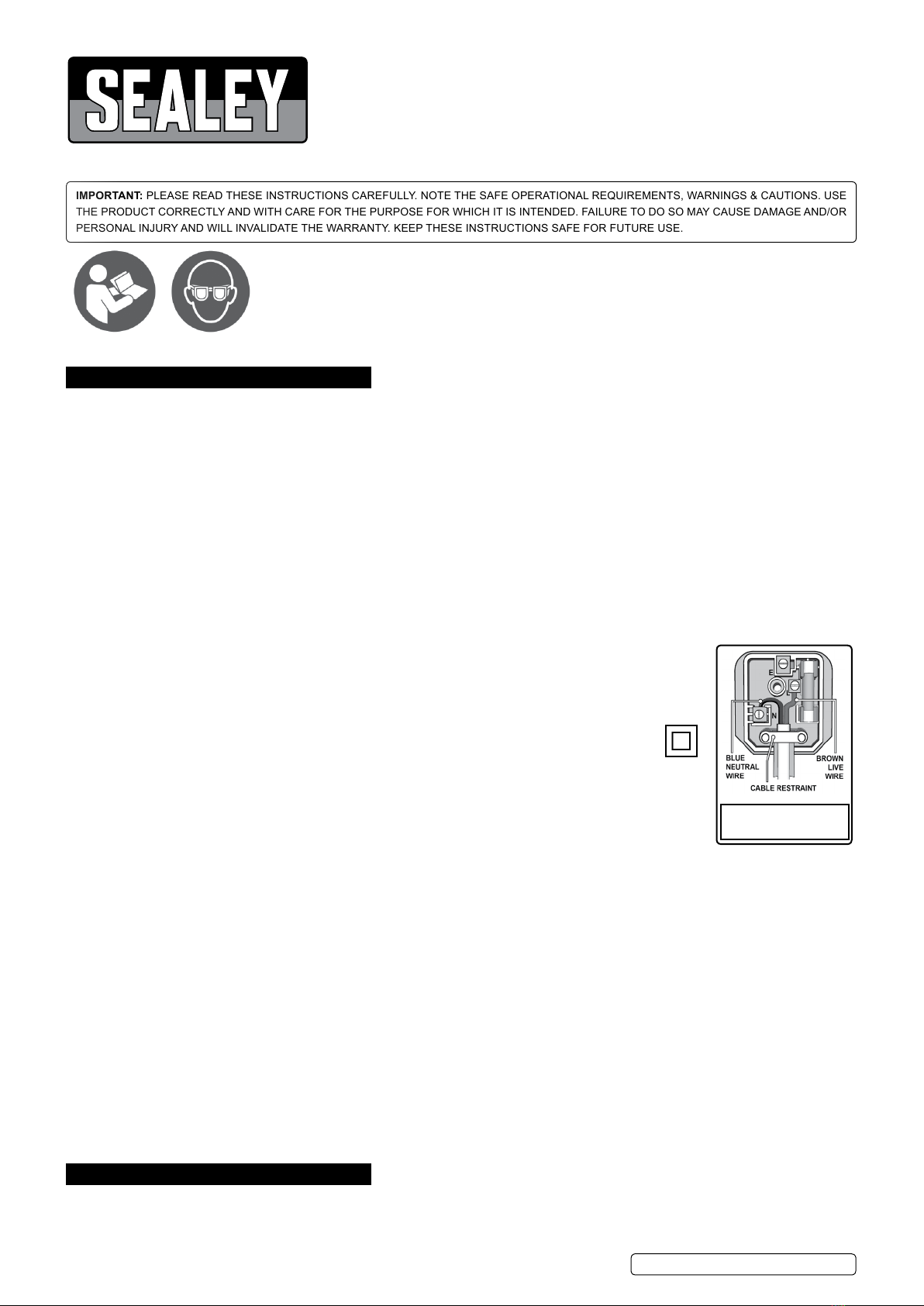

Class II products are wired with live (brown) and neutral (blue) only are marked with the Class II symbol;
A) Connect the BROWN live wire to the live terminal ‘L’.
B) Connect the BLUE neutral wire to the neutral terminal ‘N’.
C) After wiring, check that there are no bare wires and ensure that all wires have been correctly
connected.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
8DO NOT connect either wire to the earth terminal.
Sealey recommend that repairs are carried out by a qualied electrician.
1.2. GENERAL SAFETY
9Disconnect the cleaner from the power supply before servicing, changing accessories, or performing any maintenance.
9 Use only genuine parts and accessories. Unauthorised parts and accessories may be dangerous and will invalidate your warranty.
9
Maintain the cleaner in good condition. Use an authorised agent for servicing. Keep machine clean, but DO NOT use solvents.
9For dry vacuuming ensure the dry reusable filter (section 5), is in place before operating the cleaner.
9For wet vacuuming ensure the wet filter (section 8), is in place before operating the cleaner.
WARNING! Using the cleaner without the appropriate filters may cause damage to the vacuum cleaner and will invalidate your warranty.
9 Wear protective clothing and gloves.
8DO NOT place attachments close to your face (especially eyes, ears, etc). DO NOT point the hose end at other persons or animals.
▲DANGER! DO NOT vacuum hot or glowing ash, cigarette ends, flammable, explosive, corrosive or other dangerous substances.
8DO NOT leave machine running unattended. Turn power supply OFF, and DO NOT leave the vicinity until motor has come to a
complete stop.
8DO NOT operate the cleaner while under the influence of drugs, alcohol or impairing medication, or if you are tired.
8DO NOT use the cleaner in the rain or in very damp conditions.
8DO NOT use the cleaner for a task it is not designed to perform.
9 When not in use, store the cleaner in a safe, dry, childproof location.
NOTE: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
2. INTRODUCTION
High powered, lightweight unit with blower facility. Constructed from stainless steel, the drum unit is mounted on four castor wheels. Tool
storage points on head and base. Supplied with 4mtr cable, 3-pin plug and accessory tool kit, including three rigid extension tubes, wet-use
foam lter, cloth lter and dust bag.
Recommended fuse rating
13 Amp
PC195SD.V2 Issue 2 (3) 01/11/18
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear Eye
Protection

3. SPECIFICATION
Model no: ..........................................................PC195SD.V2
Motor Power................................................................1200W
Supply:...........................................................................230V
Maximum Vacuum Pressure:.................................... 172mbar
Airow: ...................................................................126mtr³/hr
Drum Size: ...................................................................... 20ltr
Drum Type: .................................................... Stainless Steel
Weight:.......................................................................... 5.3kg
Vacuum Accessories Diameter:................................. Ø32mm
Filter Type: .............................................................. Cartridge
Optional Cartridge Filter: ..................................PC195SDCFL
Replacement Foam Filters (Pack of 10) ......... PC195SDFF10
4. ASSEMBLY
WARNING! make sure vacuum is unplugged before assembly (g.1.1).
4.1. OPEN VACUUM CLEANER
4.1.1. Undo barrel locks (g.1.2).
4.1.2. Raise the top cover assembly from the dust barrel (g.1.3).
4.1.3. Remove all of the accessories from the dust barrel (g.1.4).
4.1.4. To Install the pedestal on dust barrel, press it down by hand. Check this is mounted correctly (g.1.5).
4.1.5. Turn the container upside down and insert the four casters. Check that they are mounted correctly (g.1.6).
4.1.6. Make sure handle is installed in the correct position of the top cover (ensure the handle is placed correctly on the top cover
before tightening screws) (g.1.7).
4.1.7. Place the top cover assembly on the dust barrel and lock it in place with both of the barrel locks (g.1.8).
4.1.8. Align the hose assembly port with the suction port, insert and twist it to the right to tighten (g.1.9).
4.1.9. The hose can be extended by using the three extension tubes, push together to t to hose (g.1.10).
4.1.10. To extend the hose use the extension tubes, push the tubes together (g.1.11).
4.1.11. To attach the brush, push onto the tube extension (g.1.12).
g.1
Original Language Version
© Jack Sealey Limited PC195SD.V2 Issue 2 (3) 01/11/18

5. DRY VACUUMING
WARNING! Make sure the vacuum is unplugged (g.2.1).
5.1.1. Release the barrel locks (g.2.2).
5.1.2. Lift the top cover assembly from the dust barrel (g.2.3).
5.1.3. Install Hepa lter in the correct position (g.2.4).
5.1.4. Put the top cover assembly on the dust barrel and lock it in place with the clips (g.2.5).
5.1.5. Insert the hose connector into the air inlet as shown, make sure the connector is tightly fastened (g.2.6).
5.1.6. Connect the tube to the hose assembly (g.2.7).
5.1.7. Connect three tubes (g.2.8).
5.1.8. Connect tubes and oor nozzle (g.2.9).
5.1.9. Plug the machine in (g.2.10).
5.1.10. Switch on the machine (g.2.11).
5.1.11. Start vacuuming (g.2.12).
WARNING! DO NOT suck dust and liquid at the same time.
6. EMPTYING THE DUST BARREL
g.2
g.3
Original Language Version
© Jack Sealey Limited PC195SD.V2 Issue 2 (3) 01/11/18

6.1.1. When the barrel is full of dust (g.3.1).
6.1.2. Turn off the machine (g.3.2).
6.1.3. Unplug the cable (g.3.3).
6.1.4. Release the barrel lock (g.3.4).
6.1.5. Raise the top cover assembly from the dust container (g.3.5).
6.1.6. Empty the debris from the barrel (g.3.6).

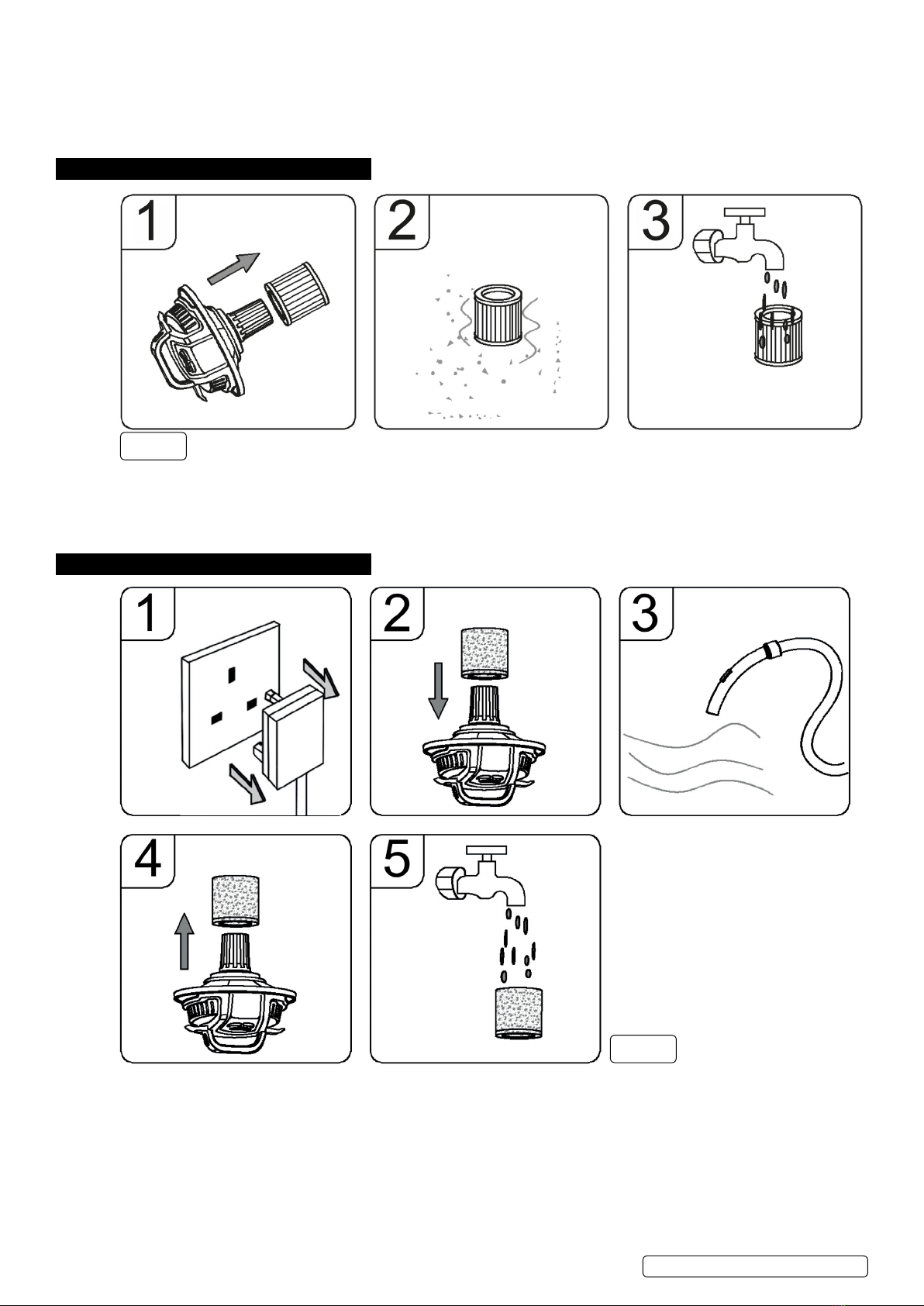

7. HEPA FILTER CLEANING
7.1. The Hepa lter should be washed using clean warm water when it is covered with dust. If very soiled use a mild detergent to wash the
lter.
7.1.1. Remove hepa lter (g.4.1).
7.1.2. Shake off dust (g.4.2).
7.1.3. Wash allow to dry before installing (g.4.3).
8. WET VACUUMING
WARNING! Make sure the vacuum is unplugged (g.5.1).
8.1.1. Install air inlet lter sponge on top cover basket, make sure the cover is correctly installed (g.5.2).
8.1.2. When the barrel reaches its maximum capacity, the safety valve will automatically stop the suction action. Disconnect from the mains,
and drain the liquid into a suitable receptacle or drain (g.5.3).
8.1.3. Each time you empty the barrel wring the sponge lter dry (g.5.4).
8.1.4. Clean air inlet lter sponge with water or with water and a mild detergent, then wring dry, this can be used again (g.5.5). After wet
vacuuming, turn the machine off and remove the plug. Empty the container, clean and dry the machine inside and outside before
storage.
g.4
g.5
Original Language Version
© Jack Sealey Limited PC195SD.V2 Issue 2 (3) 01/11/18

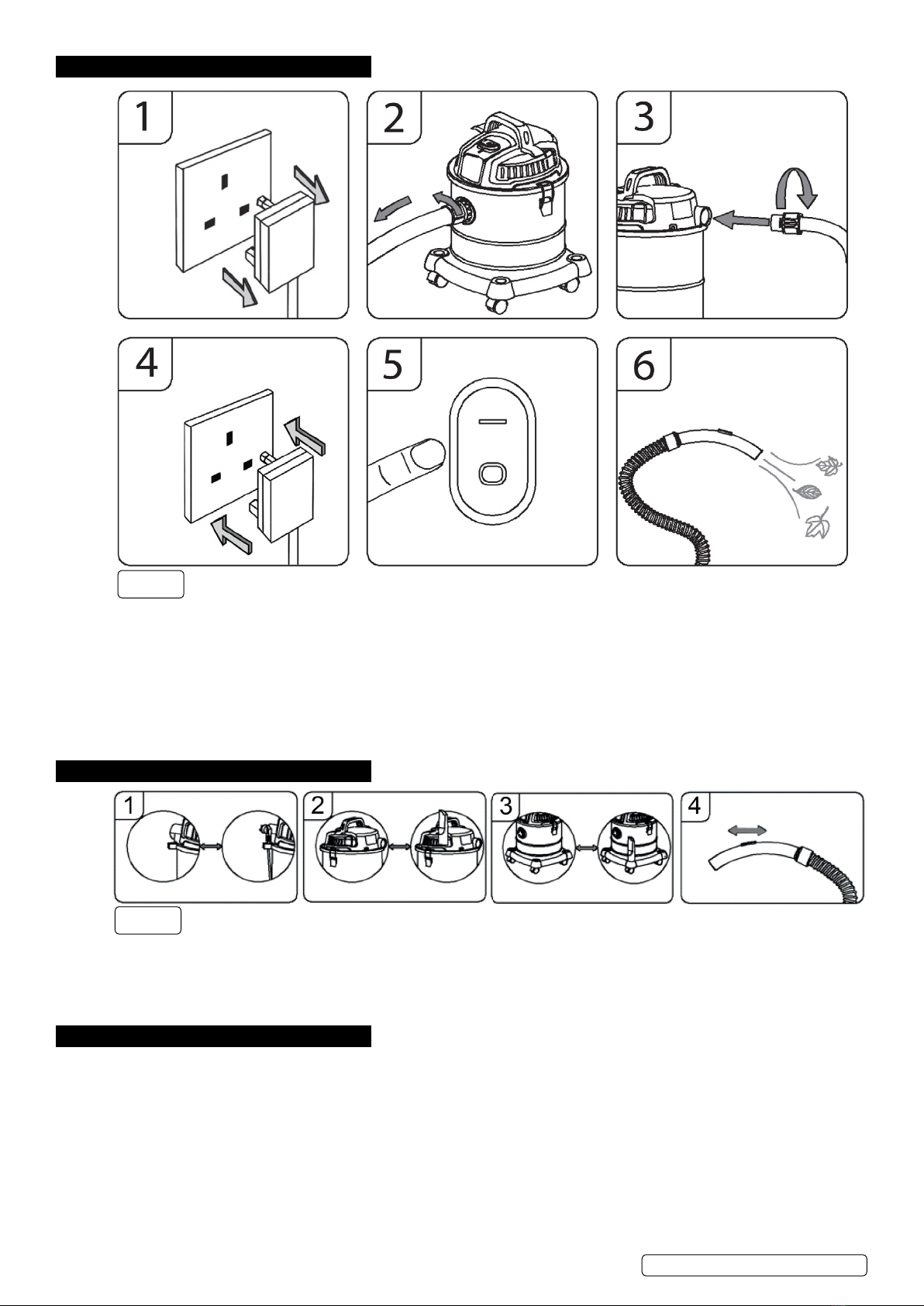

9. BLOWING
WARNING! Make sure the vacuum is unplugged (g.6.1).
9.1.1. Unscrew the hose from the suction port (g.6.2).
9.1.2. Insert the hose assembly into the blower socket (on the back of the top cover), rotate it to the right and tighten it (g.6.3).
9.1.3. Plug in the machine (g.6.4).
9.1.4. Switch on the machine (g.6.5).
9.1.5. The unit will now blow through the vacuum hose and can be used to clear obstructions within the hose (g.6.6)
WARNING! Before using the blower function, make sure the container is empty
WARNING! Always wear safety goggles before using the blower. Keep bystanders away from blowing debris and wear a dust mask if
blowing creates dust that might be inhaled.
10. ACCESSORIES
10.1. Power cable winding (g.7.1).
10.2. Storage brush, crevice nozzle, (g.7.2).
10.3. Storage brush, crevice nozzle, oor nozzle, tubes (g.7.3).
10.4. Adjust airow (g.7.4).
11. MAINTENANCE
11.1. After cleaning the barrel, lters and related accessories, check for leaks. After each use, clean the lter, never use a wet lter.
11.2. Check the plug for damage, if found to be damaged replace the plug.
11.3. If suction is reduced check to see if the air intake is blocked, clear any blockages.
11.4. Carefully empty the machine, DO NOT hit the barrel.
11.5. Keep the machine dry.
11.6. After prolonged use the lter will be covered with dust, and suction will be reduced. To avoid reducing the suction, clean the lter
regularly. If the lter is covered with dust, wash with water, if necessary, use a mild detergent, refer to section 7.
8DO NOT use abrasives to clean.
8DO NOT put entire top cover assembly directly into the water.
8DO NOT let the machine work for more than 2 hours at a time, doing so will reduce the life of the machine.
11.7. If any abnormal vibrations, noises or smells occur stop using the machine immediately.
g.6
g.7
Original Language Version
© Jack Sealey Limited PC195SD.V2 Issue 2 (3) 01/11/18

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
