Sealey PC200 User manual

INSTRUCTIONS FOR:
WET & DRY VACUUM CLEANER
Models: PC200
1. SAFETY INSTRUCTIONS
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1.2. GENERAL SAFETY
3Disconnect the cleaner from the power supply before servicing, changing accessories, or performing any maintenance.
3Use only genuine parts and accessories. Unauthorised parts and accessories may be dangerous and will invalidate your warranty.
3Maintain the cleaner in good condition. Use authorised agent for servicing. Keep machine clean, but DO NOT use solvents.
3Ensure the correct Sealey dust bag is firmly in place before operating the cleaner. Wrong dust bags may cause machine faults and will
invalidate your warranty.
3Wear protective clothing and gloves.
7DO NOT allow children or untrained persons to operate the cleaner.
7DO NOT place attachments close to your face (especially eyes, ears, etc). Do not point the hose end at other persons or animals.
s s
DANGER! DO NOT vacuum hot or glowing ash, cigarette ends, inflammable, explosive, corrosive or other dangerous substances.
7DO NOT operate the unit without the dust bag (except when wet vacuuming).
7DO NOT leave machine running unattended. Turn power supply OFF, and DO NOT leave the vicinity until motor has come to a complete stop.
7DO NOT operate the cleaner while under the influence of drugs, alcohol or impairing medication, or if you are tired.
7DO NOT use the cleaner in the rain or in very damp conditions.
7DO NOT use the cleaner for a task it is not designed to perform.
3When not in use, store the cleaner in a safe, dry, childproof location.
PC200 - 1 - 180204
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
1.1. ELECTRICAL SAFETY
p WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices.
A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a Residual Current
Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is not protected
by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by contacting your Sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.1.1. and 1.1.2.
and use a Portable Appliance Tester.
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. Regularly inspect power supply cables and plugs for wear or damage and check all
connections to ensure that none is loose.
1.1.6. Important: Ensure that the voltage marked on the appliance matches the power supply
to be used and that the plug is fitted with the correct fuse - see fuse rating at right.
1.1.7. DO NOT pull or carry the appliance by the power cable.
1.1.8. DO NOT pull the plug from the socket by the cable.
1.1.9. DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty
item repaired or replaced by a qualified electrician. When a BS 1363/A UK 3 pin plug is
damaged, cut the cable just above the plug and dispose of the plug safely.
Fit a new plug according to the following instructions (UK only).
a) Connect the GREEN/YELLOW earth wire to the earth terminal E.
b) Connect the BROWN live wire to the live terminal L.
c) Connect the BLUE neutral wire to the neutral terminal N.
d) After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable outer insulation
extends beyond the cable restraint and that the restraint is tight.
Double insulated products, which are always marked with this symbol , are fitted with live (brown) and neutral (blue) wires only.
To rewire, connect the wires as indicated above - DO NOT connect either wire to the earth terminal.
1.1.10. Products which require more than 13 amps are supplied without a plug. In this case you must contact a qualified electrician to ensure that a
suitably rated supply is available. We recommend that you discuss the installation of an industrial round pin plug and socket with your electrician.
1.1.11. If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is preferred since any appliance
plugged into it will be protected. The cable core section is important and should be at least 1.5mm2, but to be absolutely sure that the
capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the use of
2.5mm2section cable.
FUSE RATING 13 AMP
Blue
Neutral
Wire
Yellow & Green
Earth Wire
Cable
Restraint
Brown
Live
Wire

p p
WARNING! Ensure you read, understand and apply Section 1 Safety Instructions.
Reminder: DO NOT vacuum hazardous substances. Use of an incorrect dust bag will invalidate your warranty.
4.1. Ensure the machine is unplugged from the power supply.
4.2. Remove the top section and fit the dust bag flange onto the inlet
stub (fig. 2), taking care not to damage the bag.
4.3. Reposition the head onto the drum body, and clip in place.
4.4. Insert the larger end of the flexible hose into the front inlet on the
container and lock in place. Push the required attachment onto
the free end of the hose.
4.5. Plug in the power supply.
4.6. Switch the motor on (position I).
4.7. When you have completed vacuuming, press the switch to Off (position
O),and unplug from power supply.
Regularly check the dust bag and dispose of safely when it is 2/3 full. The
bag is manufactured so that only air, not dust, will pass through the paper and as such the dust bag must not be re-used.
7DO NOT use the dust bag for wet or sharp materials.
2. CONTENTS AND SPECIFICATION
2.1. Carton content
2.2 Carefully unpack the carton.
2.3 Locate the two side clasps (fig. 1.6) which hold the top section (fig.1.1) in place.
2.4. Undo the clasps, remove the top section and take out the items in the
container.
2.5. Check and identify each component as listed below. If anything is missing
or damaged please contact your supplier immediately.
4. DRY VACUUM CLEANING
3. ASSEMBLY

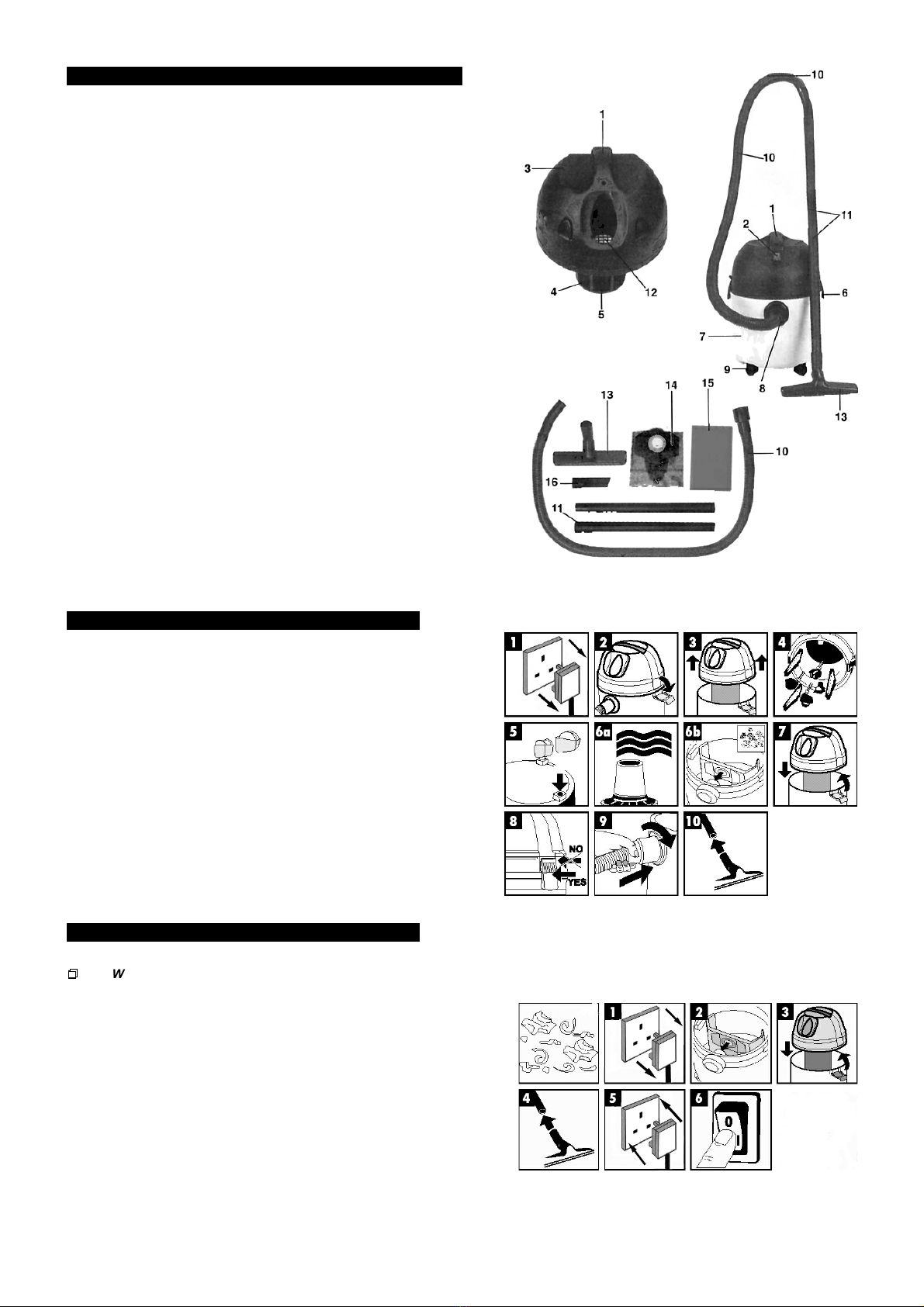

fig. 1
PC200 - 1 - 180204
2.2.1. Specifications
Motor 230V 1250W.
Container 20ltr.
Filter - Dry Paper Bag.
Filter - Wet Foam.
Item Description
1 Handle.
2ON/OFF switch.
3 Top section.
4 Filter basket.
5Safety float valve.
6 Clasp.
7 Container.
8Vacuum hose connection.
9 Castors.
10 Flexible vacuum hose.
11 Two piece vacuum tube.
12 Blow connection.
13 Large vacuum nozzle.
14 Dust bag.
15 Foamed plastic filter.
16 Crevice nozzle.
3.1. Ensure the mains plug is disconnected.
3.2. Undo clasps. (fig. 1.6.)
3.3. Lift off the top section assembly. (fig. 1.1.)
3.4. Remove contents from inside the container.
3.5. Turn the container upside down and insert the casters ensuring
they are pushed all the way in.
3.6a. For wet vacuum cleaning fit the supplied foamed plastic filter.
3.6b. For dry vacuum cleaning fit the supplied dust bag.
3.7. Replace the top section onto the container.
3.8. Align the top section with the clasps and snap into place, by
applying pressure at the mid point of the clasps.
3.9. Insert the large end of the hose into the front inlet of the container
and lock in place by turning clockwise a quarter turn.
3.10. Choose the desired nozzle/extension tube(s) and push it onto the
suction tube.

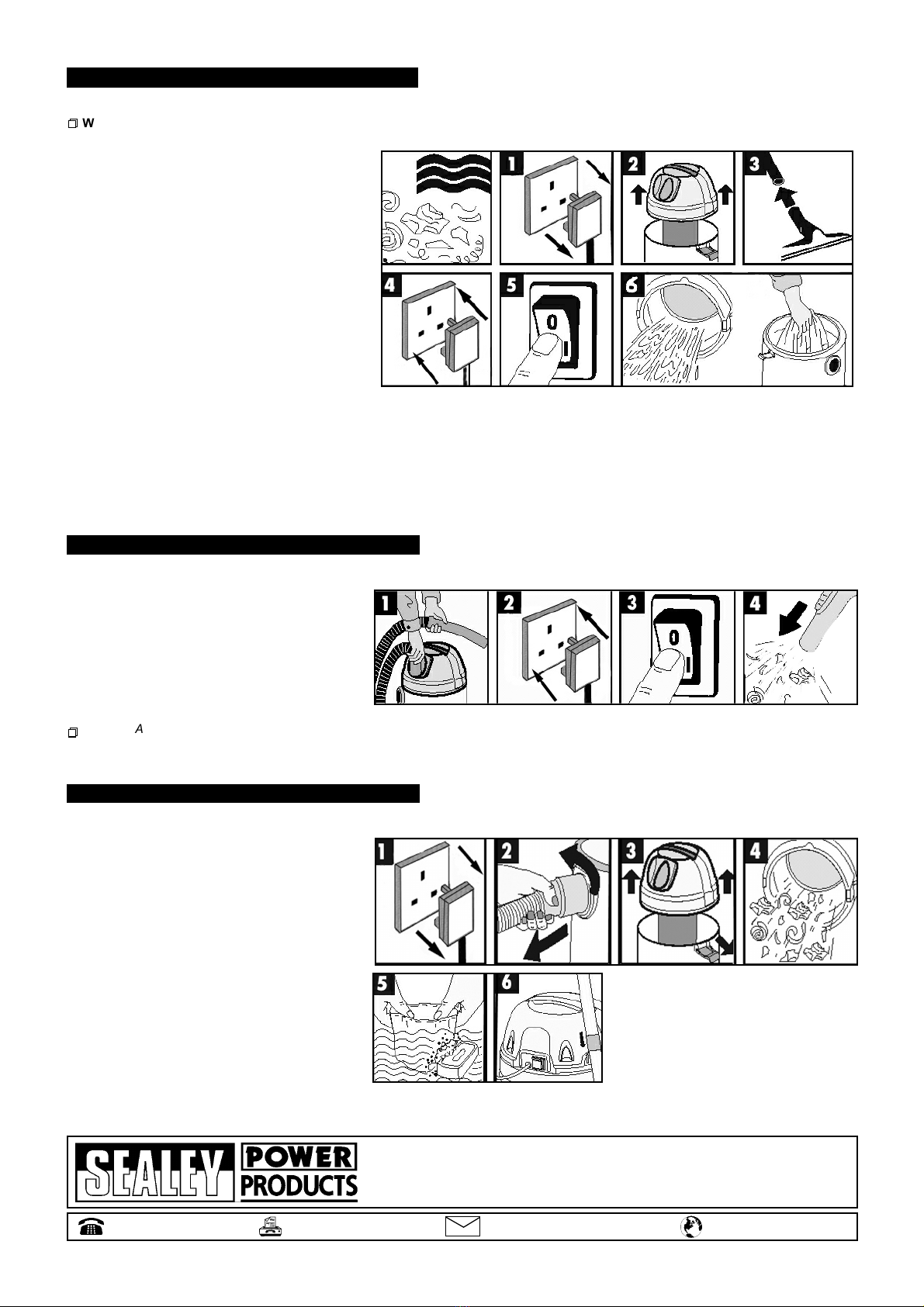

5.1. Ensure the machine is unplugged from the
power supply. Make sure the tank is clean and
free from dust and dirt.
5.2. Remove the dust bag and fit a foam filter over
the filter basket, replace the top section onto
the container.
5.3. To the same flexible hose as used in dry
cleaning fit the desired nozzle.
5.4. Ensure the switch is Off (position 0) before
plugging into the power supply.
5.5. Press the switch to On (position I).
5.6. After use, empty the tank and dry.
To vacuum large quantities of liquid, from a sink or tank etc., do not immerse the nozzle completely in the liquid, leave a gap at the top of the
nozzle opening to allow an air inflow. The machine is fitted with a float valve which stops the suction action when the tank has reached its
maximum capacity. The user will notice an increase in motor speed. When this happens, turn off the machine, disconnect from power supply,
remove the head from the container and empty the liquid into a suitable receptacle or drain. To continue vacuuming, refit the head and
proceed. After wet vacuuming, turn the machine off and remove plug from power supply. Empty the container and clean/dry the inside and
outside before storage.
Remember! After wet vacuuming the foam filter must be removed and a dust bag must be fitted before dry vacuuming again.
5. WET VACUUM CLEANING
p p
WARNING! Ensure you read, understand and apply Section 1 Safety Instructions. Reminder: Remove plug from power supply
before opening unit. DO NOT vacuum solvents, explosives, inflammable and/or hazardous liquids such as petrol, oil, spirits, paint,
thinners, acids etc.
6. BLOWING
6.1. Push the large end of the flexible hose into
the blow connection in the top os the motor
housing.
6.2. Ensure the power switch is turned off and
plug in the power supply.
6.3. Switch on the power (position I).
6.4.. The unit will now blow through the vacuum
hose and can be used to clear obstructions
within the pipe.
p p
WARNING! If after a few seconds the hose
is still blocked turn off the unit and clear the
hose manually.
7. MAINTENANCE
7.1. Ensure the machine is unplugged from
the power supply.
7.2. Disconnect the hose from the container.
7.3. Undo the clasps and remove the motor
head from the container.
7.4. Clear out any dirt or debris from the
container and hose.
7.5. Clean the foam filter by washing it in a
mild soapy solution.
7.6. Check the hoses and attachments, and
check the power cable to make sure it has
not received any damage.
PC200 - 1 - 180204
Sole UK Distributor,
Sealey Group,
Bury St. Edmunds, Suffolk.
01284 757500 [e-mail] www.sealey.co.uk
01284 703534 Web
e-mail

PC200 - 1 - 180204

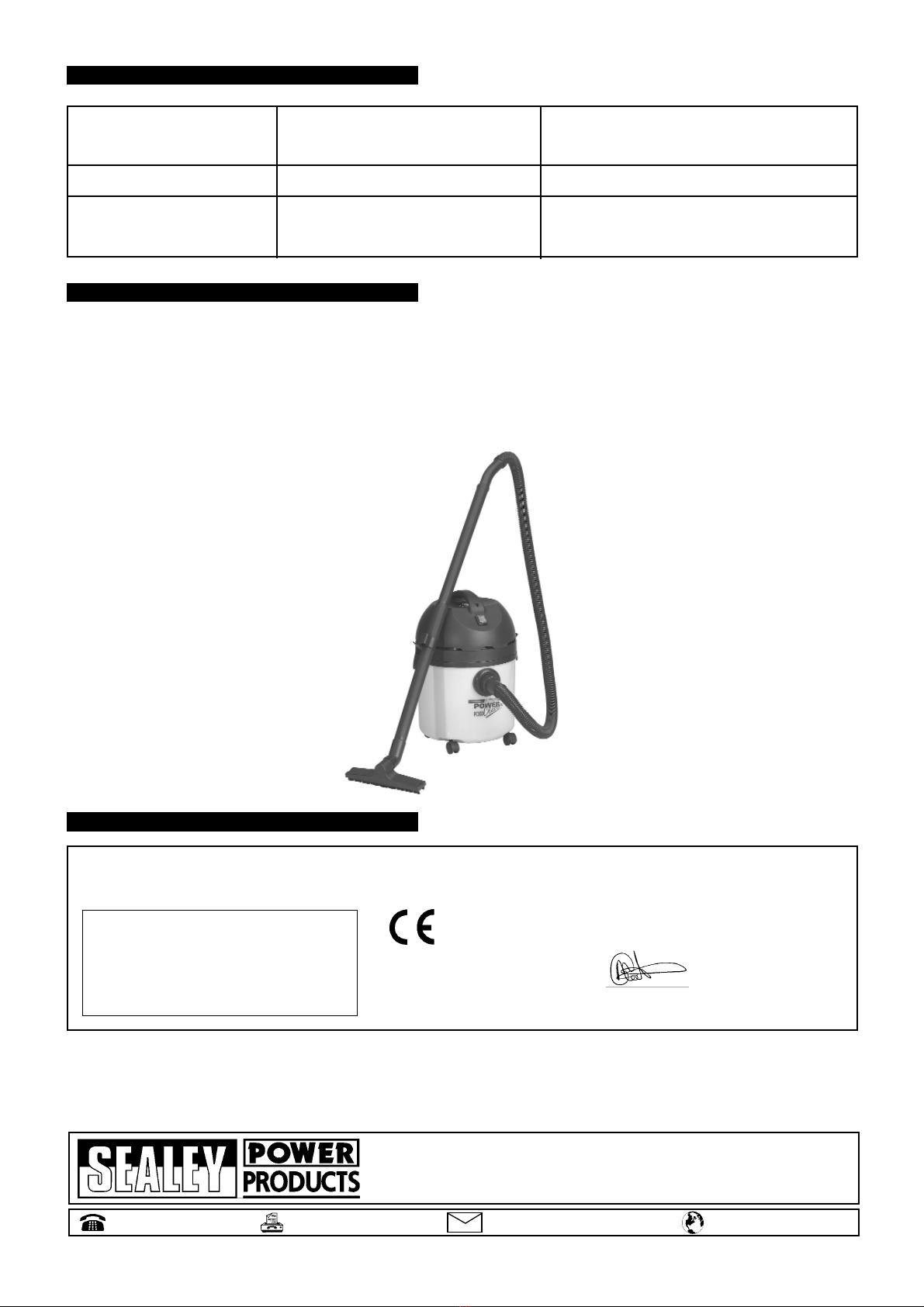

8. TROUBLESHOOTING
10. DECLARATION OF CONFORMITY
9. CONSUMABLES
Declaration of Conformity
We, the sole importers into the UK, declare that the product listed below is in conformity with the following standards and directives.
The construction file for this product is held by the Manufacturer and may
be inspected, by a national authority, on request to Jack Sealey Ltd.
For Jack Sealey Ltd. Sole importer into the UK of Sealey Power Products.
2nd January 2003
Wet & Dry Vacuum Cleaner
Model: PC200
98/37/ EC Machinery Directive
73/23/EEC Low Voltage Directive
89/336/EEC EMC Directive
Signed by Mark Sweetman
Sole UK Distributor,
Sealey Group,
Bury St. Edmunds, Suffolk.
Dust Bags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .PC200.31
Filter (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .PC200.24
Foam Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .PC200.14
IMPORTANT! YOU MUST CHANGE THE DUST BAG REGULARLY. IF THE MACHINE IS USED WITHOUT THE DUST BAG THE MOTOR WILL
BURN OUT EVENTUALLY AND YOUR GUARANTEE WILL BE INVALIDATED. ALWAYS KEEP A PACK OF SPARE BAGS HANDY.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this equipment.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
Cleaner will not operate.
Dust comes from the motor cover.
Reduced efficiency and increased
motor speed/vibration.
No power supply.
Faulty power cable, switch or motor.
Container full of liquid.
Dust bag missing or damaged.
Dust bag full.
Nozzle, hose or container inlet blocked.
Check supply.
Check and repair or replace faulty item.
Empty container.
Fit or replace dust bag.
Replace dust bag.
Check nozzle, hose and container inlet for blockage.
01284 757500 [e-mail] www.sealey.co.uk
01284 703534 Web
e-mail

Item Part No. Description
1. . . . . . . . . . . .PC200.01 . . . . . . . . .SCREW
2 . . . . . . . . . . . .PC200.02 . . . . . . . . .UPPER HANDLE
3. . . . . . . . . . . .PC200.03 . . . . . . . . .SWITCH
4 . . . . . . . . . . . .PC200.04 . . . . . . . . .LOWER HANDLE
5 . . . . . . . . . . . .PC200.05 . . . . . . . . .UPPER COVER
6. . . . . . . . . . . .PC200.06 . . . . . . . . .MIDDLE COVER
7 . . . . . . . . . . . .PC200.07 . . . . . . . . .BAFFLE
8 . . . . . . . . . . . .PC200.08 . . . . . . . . .SEALED RING
9 . . . . . . . . . . . .PC200.09 . . . . . . . . .MOTOR
10 . . . . . . . . . . .PC200.10 . . . . . . . . .FOAM RING
11 . . . . . . . . . . . .PC200.11 . . . . . . . . .LOWER COVER
12 . . . . . . . . . . .PC200.12 . . . . . . . . .WATERPROOF CUP
13 . . . . . . . . . . .PC200.13 . . . . . . . . .BASKET
14 . . . . . . . . . . .PC200.14 . . . . . . . . .FOAM FILTER
15 . . . . . . . . . . .PC200.15 . . . . . . . . .HOSE BASE
16 . . . . . . . . . . .PC200.16 . . . . . . . . .PLASTIC STOPPER
17 . . . . . . . . . . .PC200.17 . . . . . . . . .TANK
Item Part No. Description
18 . . . . . . . . . . .PC200.18 . . . . . . . . .WHEEL
19 . . . . . . . . . . .PC200.19 . . . . . . . . .CATCH
20 . . . . . . . . . . .PC200.20 . . . . . . . . .SOCKET
21 . . . . . . . . . . .PC200.21 . . . . . . . . .WIRE PLUG
22 . . . . . . . . . . .PC200.22 . . . . . . . . .WIRE SLOT
23 . . . . . . . . . . .PC200.23 . . . . . . . . .BOARD
24 . . . . . . . . . . .PC200.24 . . . . . . . . .FILTER
25 . . . . . . . . . . .PC200.25 . . . . . . . . .CLIP
26 . . . . . . . . . . .PC200.26 . . . . . . . . .INDUCTOR
27 . . . . . . . . . . .PC200.27 . . . . . . . . .CAPACITOR
28 . . . . . . . . . . .MC3CX1.0 . . . . . . . . .MAINS CABLE 3 CORE 1mm2
29 . . . . . . . . . . .PC200.29 . . . . . . . . .LABEL
30 . . . . . . . . . . .PC200.30 . . . . . . . . .PLASTIC TUBE
31 . . . . . . . . . . .PC200.31 . . . . . . . . .PAPER DUST BAG
32 . . . . . . . . . . .PC200.32 . . . . . . . . .NARROW NOZZLE
33 . . . . . . . . . . .PC200.33 . . . . . . . . .HOSE
34 . . . . . . . . . . .PC200.34 . . . . . . . . .FLAT ABSORB NOZZLE
Sole UK Distributor,
Sealey Group,
Bury St. Edmunds, Suffolk.
01284 757500 [e-mail] www.sealey.co.uk
01284 703534 Web
e-mail
PARTS LIST FOR:
WET & DRY VACUUM CLEANER
Model: PC200
Issue No: 1
Issue Date: 180204
