Sealey AUTO Valet VMA 913 User manual

INSTRUCTIONS for
Model: VMA 913
Thank you for purchasing this product. Please follow
these instructions carefully.
FOR CLEANING CAR INTERIORS
1. SAFETY INSTRUCTIONS
1.1. ELECTRICAL SAFETY. p
p
WARNING! It is the users responsibility to read, understand and comply with the following:
You must check all electrical equipment and appliances to ensure they are safe before using. You must inspect power supply leads, plugs and
all electrical connections for wear and damage. You must ensure the risk of electric shock is minimised by the installation of appropriate safety
devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD
(Residual Current Device) is used with all electrical products. It is particularly important to use an RCD together with portable products that are
plugged into an electrical supply not protected by an RCCB. If in doubt consult a professional electrician. You may obtain a Residual Current
Device by contacting your Sealey dealer. You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on a business premises, to be tested by
a qualified Electrician at least once a year by using a Portable Appliance Tester (PAT).
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance,
and the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure the insulation on all cables and the product itself is safe before connecting to the mains power
supply. See 1.1.1. & 1.1.2. above and use a Portable Appliance Tester (PAT).
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. Regularly inspect power supply, leads, plugs and all electrical connections for wear and damage,
especially power connections, to ensure that none are loose.
1.1.6. Important: Ensure the voltage marked on the product is the same as the electrical power supply
to be used, and check that plugs are fitted with the correct capacity fuse. A 13Amp plug may require
a fuse smaller than 13Amps for certain products (subject to 1.1.10. below) see fuse rating at right.
1.1.7. DO NOT pull or carry the powered appliance by its power supply lead. Products such as
welders must not be pulled or carried by their output cables.
1.1.8. DO NOT pull power plugs from sockets by the power cable.
1.1.9. DO NOT use worn or damage leads, plugs or connections. Immediately replace or have repaired by
a qualified Electrician. A U.K. 3 pin plug with ASTA/BS approval is fitted. In case of damage, cut off
and fit a new plug according to the following instructions (discard old plug safely).
(UK only - see diagram at right). Ensure the unit is correctly earthed via a three-pin plug.
a) Connect the GREEN/YELLOW earth wire to the earth terminal E.
b) Connect the BROWN live wire to live terminal L.
c) Connect the BLUE neutral wire to the neutral terminal N.
After wiring, check there are no bare wires, that all wires have been correctly connected and that the wire restraint is tight.
Double insulated products are often fitted with live (BROWN) and neutral (BLUE) wires only. Double insulated products are always marked with
this symbol . To re-wire, connect the brown & blue wires as indicated above. DO NOT connect the brown or blue to the earth terminal.
1.1.10. Cable extension reels. When a cable extension reel is used it should be fully unwound before connection. A cable reel with an RCD
fitted is recommended since any product which is plugged into the cable reel will be protected. The section of the cable on the cable
reel is important. We recommend that at least 1.5mm2section cable but to be absolutely sure that the capacity of the cable reel is
suitable for this product and for others that may be used in the other output sockets, we recommend the use of 2.5mm2section cable.
Blue
Neutral
wire
Yellow & Green
Earth wire
wire
restraint
FUSE RATING
THIS PRODUCT MUST BE FITTED
WITH A:
13 Amp FUSE
Brown
Live
wire
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1.2 GENERAL SAFETY
3Disconnect the machine from mains power supply before servicing, changing accessories, or performing any maintenance.
3Use genuine accessories and parts only (non recommended accessories and parts may be dangerous, and will invalidate your warranty).
3Maintain the Valet machine in good condition. Use authorised agent for servicing. Keep machine clean, but DO NOT use solvents.
3Ensure the correct filter is firmly in place before operating the Auto Valet. Wrong filters will invalidate your warranty.
3Wear protective clothing and gloves.
7DO NOT allow children or untrained persons to operate the unit.
7DO NOT place attachments close to your face (especially eyes, ears, etc). Do not point the hose end at other persons or animals.
p p
WARNING! DO NOT get detergent on flesh. If contact is made wash immediately. NEVER allow detergent near eyes, or mouth. If contact
is made, thoroughly rinse and seek medical advice. If swallowed, seek immediate medical advice. Follow instructions on the detergent container
s s
DANGER! DO NOT vacuum hot, or glowing ash, cigarette ends, inflammable, explosive, corrosive or dangerous liquids, dusts or substances.
7DO NOT operate the unit without the correct filter for the type of job. Make sure the filter is firmly in place.
7DO NOT operate the Green Pump Switch when there is no liquid in the detergent tank. The vacuum motor runs independently of the pump.
7DO NOT leave machine running unattended. Turn power supply OFF, and DO NOT leave the vicinity until motor has come to a complete stop.
7DO NOT operate the Auto Valet while under the influence of drugs, alcohol, or impairing medication, or if you are fatigued.
7DO NOT force the Auto Valet to achieve a task it was not designed to perform.
7DO NOT clean the filters with solvents. When not in use store the valet machine in a safe, dry, childproof location.
VMA9133 - 3 - 031003

2. PACKAGE CONTENTS & ASSEMBLY
Item Description
No
76 Foam Filter
77 Vertical Paper collection Bag
78 Cartridge Filter
79 Detergent & Funnel
80 Small Nozzle
2.1. Carton Content
2.1.1. Carefully unpack the carton content and view the main body of the vacuum cleaner.
2.1.2. Locate the two side clips which hold the motor head in place (fig 1).
2.1.3. Undo the clips, remove the motor head and take out the contents of the tank.
2.1.4. Check and identify each component as listed below. If anything is missing or damaged please contact your supplier immediately.
3. DRY VACUUM CLEANING
2.2. Assembly
2.2.1. Fit the trolley handle to the trolley by pressing in the spring lugs and pushing the handle into the
base upright until the spring lugs automatically locate themselves in the uprights sides holes.
2.2.2. Place the vacuum cleaner onto the trolley base with the vacuum hose
outlet pointing outward (fig 2).
2.2.3. Locate the vacuum trolley clip at the back of the main drum and push
it onto the 2nd cross bar of the trolley. Check to ensure the drum can
lift and swing freely on this bar (fig 2).
2.2.4. Take the wire basket and hook it onto the two cross bars at the rear
of the trolley (fig 3).
2.2.5. Seat the detergent tank in the larger of the basket areas.
fig 6fig 4 fig 5
fig 1.
fig 7
p p
WARNING! Ensure you read, understand and apply chapter 1 Safety Instructions. Reminder: DO NOT vacuum hazardous dust or
substances. Use of an incorrect filter will invalidate your warranty. The green pump switch will operate independently of the vacuum
motor. Only press this switch if using the machine as a WET vacuum cleaner (see chapter 4).
To use the machine as a DRY car fabric cleaner, (no liquids involved), proceed as follows:
3.1. Ensure the machine is unplugged from the mains power supply.
3.2. Remove the vacuums motor Head, and fit the correct cartridge filter (figs 4,5,6,).
3.3. Fit the paper dust bag onto the inside of the vacuum intake pipe (see fitting instructions on side of bag).
3.4. Reposition the head onto the drum body ensuring that the switches face forward, and clip in place.
3.5. Connect flexible hose to the front inlet on the tank.
3.6. Attach the appropriate end nozzle: Flat or Tapered Nozzles.
3.7. Plug in to power supply, and PRESS THE BLACK MOTOR ON SWITCH ONLY. DO NOT TOUCH THE GREEN PUMP SWITCH (fig 7).
You are now ready to use the Auto Valet machine as an ordinary vacuum cleaner for vacuuming car interiors.
3.8. When you have completed vacuuming, switch the BLACK MOTOR SWITCH OFF, and unplug from the mains.
3.9. Regularly check the dust bag and remove when it is 2/3 full. Seal bag opening with the cap attached and dispose of the bag
accordingly. The bag is manufactured so that air, not dust, will filter through the paper and as such the dust bag must not be reused.
3.10. If you wish to use the machine for a wet application and the dust bag is less than 2/3 full, carefully remove the bag, store
for future use, and wipe the tank clean.
LIST OF CONTENTS.
(Item numbers correspond to the spare parts list).
Item Description
No
A Detergent puck up (Parts list items 5/8/61/62/63)
41 Main body (incorp Motor head & Tank)
48 Trolley handle
54 Trolley base
60 Wire basket
Item Description
No
61 Detergent tank
64 Flexible Hose
65 Pistol System, (trigger & tube)
66 Clips x 6
67 Narrow pick up nozzle
68 Upholstery tool
fig 3.
fig 2.
VMA9133 - 3 - 031003

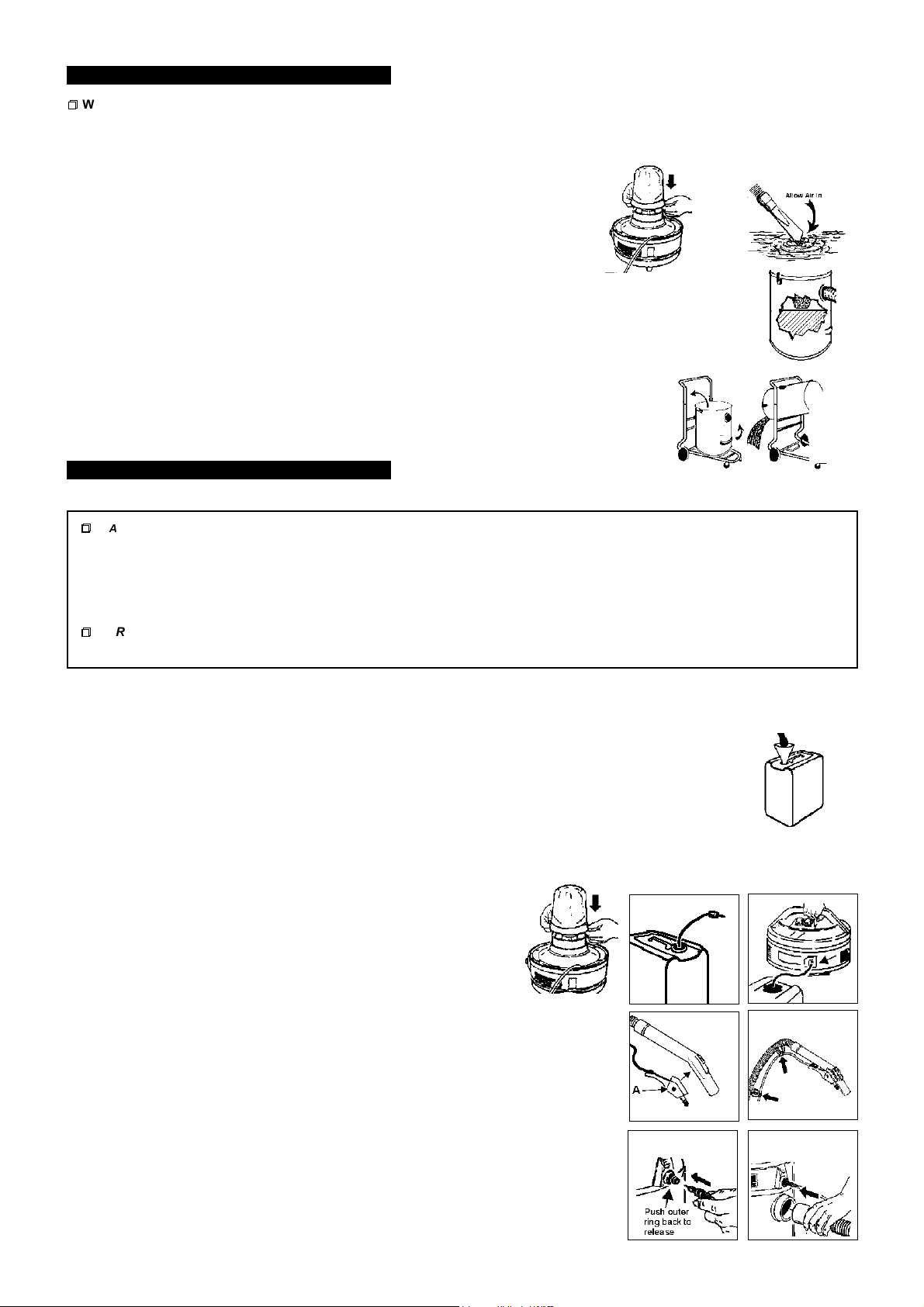

4. 1. Ensure the machine is unplugged from the mains power supply.
4. 2. Make sure the tank is clean and free from dust and dirt.
4. 3. Remove cartridge filter and dust bag if fitted (see 3.9 & 3.10).
4. 4. Fit the blue foam filter in place (fig 8).
4. 5. Replace the head onto the drum body.
4. 6. To the same flexible hose as used in dry cleaning fit the Flat, or Tapered Nozzle.
4. 7. Ensure the BLACK Motor Switch is in the OFF position before plugging in.
4. 8. Plug the cleaner into the mains power socket.
4. 9. Press the BLACK MOTOR SWITCH ON ONLY. DO NOT SWITCH THE PUMP ON.
4. 10. To vacuum large quantities of liquid, i.e from a sink, or tank, etc; do not immerse the nozzle
completely in the liquid, leave a gap at one end of the nozzle to allow a partial air inflow. (fig 9).
4. 11. The machine is fitted with a FLOAT VALVE which stops the suction action when the tank has
reached its maximum capacity. The user will also be aware of increased motor revolutions.
When this happens, turn the machine off, disconnect from mains, remove the head from
tank. Take care to maintain balance and not let trolley slip, and empty liquid out of the tank into
an appropriate receptacle or drain (fig 10), & (11). To continue vacuuming reverse
the process and proceed.
4.12. After WET vacuuming turn the machine off, and remove the plug from mains power supply.
4.13. Empty the tank, then clean and dry the inside before storage.
fig 8
4. WET VACUUM CLEANING For the vacuuming of liquids only
p p
WARNING! Ensure you read, understand and apply chapter 1 Safety Instructions. Reminder: Remove plug from mains power
supply before opening unit. DO NOT vacuum solvents, explosives, inflammable or hazardous liquids, petrol, oil, spirit, paint, thinner
and/or chemicals. The use of incorrect filter will invalidate your warranty.
5. USE AS VALETING MACHINE
FOLLOWING INSTRUCTIONS REFER TO THE VACUUMS USE AS AN AUTOMOTIVE/INDUSTRIAL, FABRIC & UPHOLSTERY CLEANER.
p p
WARNING! USE THE CORRECT DETERGENT: THE ONLY DETERGENT SUITABLE FOR THIS MACHINE IS SEALEY VMR or THE
DETERGENT SUPPLIED WITH THE MACHINE. CONTACT YOUR SEALEY DEALER FOR SUPPLIES. DO NOT (UNDER ANY CIRCUMSTANCES)
USE DOMESTIC DETERGENT OR ANY OTHER GENERAL PURPOSE CARPET CLEANER, CAR WASH, CLEANING OR UPHOLSTERY DETERGENT.
OTHER DETERGENTS PRODUCE EXCESSIVE FOAM WHICH IS UNDESIRABLE FOR THE CLEANING PROCESS AND CAN DAMAGE THE WORKING
PARTS OF YOUR MACHINE. IF, ( WHEN USING THE RECOMMENDED DETERGENT) YOU FIND EXCESSIVE FOAM BEING PRODUCED, THIS MEANS
THE CARPET OR FABRIC HAS BEEN PREVIOUSLY CLEANED WITH A FOAMING DETERGENT. IF THIS HAPPENS, ADD 10cl OF ANTI-FOAMING
AGENT (SEALEY PART NO VMR922) TO THE MAIN WASTE WATER TANK.
p p
WARNING: ENSURE YOU READ, UNDERSTAND AND APPLY CHAPTER 1 SAFETY INSTRUCTIONS. THE USE OF AN INCORRECT FILTER
OR DETERGENT, WILL INVALIDATE THE WARRANTY. ALWAYS TEST MATERIALS FOR COLOUR FASTNESS BEFORE USING THE AUTO VALET.
5.1. FABRIC PREPARATION & DETERGENT
5.1.1. If the condition of the vehicle fabric, or item of upholstery requires dry vacuuming first, you may prefer to use an alternative vacuum
cleaner, keeping your Auto Valet on standby ready for the wet clean.
5.1.2. Should you wish to use the Auto Valet for the preliminary dry clean, then set the machine up as in chapter 3.
5.1.3. To commence with the wet clean ensure you use the correct detergent as described in 5.1.
5.1.4. Remember to add Anti-foaming agent VMR922 to the waste tank if necessary.
5.1.5. Fill the plastic detergent tank with COLD water up to the MAX level indicator number 9,
or according to the amount you wish to use (fig 12).
5.1.6. Add 20cl of SEALEY VMR or Supplied detergent (Note: 20cl is about half a coffee mug).
5.1.7. DO NOT USE ANY OTHER DETERGENT.
5.1.8. DO NOT increase the strength of detergent mix beyond 80 -1.
5.1.9. If part of the fabric is badly soiled, rub in by gloved hand a mix of 80-1 detergent and leave for 2-3 minutes before valeting.
5.2. SETTING UP THE AUTO VALET
How to prepare, and assemble your valet machine ready for wet cleaning.
5.2.1. Ensure you unplug the machine from the main supply.
5.2.2. Having filled the detergent tank, place it in the trolley basket.
5.2.3. Remove the vacuum motor head and fit the blue foam filter (fig 13).
Remove the cartridge filter and paper dust bag if fitted as they are
for dry cleaning only.
5.2.4. Replace the motor head and secure with the side clips.
5.2.5. Insert the filter end of the detergent pick up pipe into the detergent tank, and seal by
screwing (finger tight) the attached tank cap (fig 14).
5.2.6. Insert the other end of the pick up pipe to the rear of the motor head (fig 15).
5.2.7. Loosen the thumb screw on the pistol head (fig 16 A), and clip the pistol over the end
of the vacuum hose (fig 16). Finger tighten the thumb screw and check that the pistol
is adequately attached to the hose. Connect the detergent delivery tube to the main
vacuum hose with clips provided (fig 17).
5.2.8. Push the other end of the delivery tube into the outlet located in the front
of the motor head above the main hose outlet (fig 18). When disconnecting this tube,
push the inlet ring back to release the delivery tube. DO NOT PULL THE TUBE.
5.2.9. The flexible vacuum hose should be fitted to the machine as normal (fig 19).
5.2.10. Attach the valeting tool head to the hose and detergent dispenser tube.
fig 9
fig 10
fig 11
fig 13
fig 14
fig 12
fig 15
fig 16
fig 18 fig 19
fig 17
Steady
the
trolley
whilst
lifting
tank
VMA9133 - 3 - 031003

5.3. OPERATING THE AUTO VALET MACHINE
p p
WARNING! Test materials for colour fastness, test on an area not normally noticed (i.e. under a car seat).
5.3.1. Plug the machine into the mains power supply.
5.3.2. Switch the BLACK MOTOR SWITCH ON to start the vacuum (fig 20).
DO NOT PRESS THE PISTOL TRIGGER AT THIS STAGE.
5.3.3. Place the cleaning head on the material to be cleaned and press the
GREEN PUMP SWITCH ON (fig 20).
5.3.4. Press the trigger (fig 21) and move the tool slowly across the material by drawing
the head towards you. Work in small areas at a time. The pump produces pressure which
forces detergent into the fabric pile. During this first pass approximately 60% of the
dirty fluid will be sucked back up into the waste tank.
5.3.5. Make a second pass WITHOUT pressing the trigger (fig 22). This will extract
the remainder of the fluid from the material, leaving the fabric almost dry.
5.3.6. Allow the fabric, or upholstery to dry completely before walking, or sitting on it.
fig 20
fig. 21 fig. 22
6.1. Remove the plug from the mains.
6.2. Remove the motor head.
6.3. Empty tank of dirty liquid by steadying the trolley and lifting the tank to empty content into an appropriate
waste receptacle or drain (fig 23). Take care to maintain balance and not let the trolley slip.
6.4. Empty and rinse out the detergent tank.
6.5. Fill the detergent tank with clean water, and flush the system by operating into a bucket, or drain.
Continue to flush until all the dirty fluid has been expelled.
6.6. Rinse the tank clean.
6.7. Wipe the tank and fittings and leave to dry.
6.8. Check the filter at the end of the detergent pick-up pipe to ensure it is not clogged.
If it is, remove and rinse under running water (fig 24).
6.9. Remove the main motor head filter and clean as in chapter 7.
NOTE: Before next use, check that the correct filter is fitted for the job you are going to perform.
Use of wrong filter will invalidate your warranty.
fig 23
fig 24
6. AFTER USE
p p
WARNING ENSURE YOU DISCONNECT FROM THE MAINS POWER SUPPLY BEFORE OPENING THE UNIT, OR CARRYING OUT ANY MAINTENANCE.
7.1. General Machine Maintenance.
7.1.1. Remove plug from the mains power supply before carrying out service or maintenance.
7.1.2. Regularly check and clean the filter connected to the end of the detergent pick-up pipe by running under a cold water tap (fig 24).
7.1.3. After having used the appliance as a wet cleaner, empty the contents. Clean and dry the tank and accessories to avoid scaling.
7.1.4. Periodically check to ensure the valet machine, and accessories are not blocked, or damaged, and in good working order.
Any damaged parts must be replaced immediately. Blocked hoses or tubes will impair performance and may damage the machine.
Such damaged motor units returned for repair will not be accepted under the warranty, and may incur expensive repair bills.
7.2. Cleaning Filters.
For optimum performance, all types of filters should be cleaned regularly. Unclean, damaged, or wrongly fitted filters will impair your
machines performance and may damage it. Such damaged motor units returned for repair will not be accepted under the warranty, and
may incur expensive repair bills. Never use the machine without a filter. Dirt in motor will cause failure and will invalidate the warranty.
7.2.1. CLEANING FOAM FILTER. Used for wet cleaning.
a) Wash the foam filter in a suitable container of lightly soapy water (DO NOT use solvents).
b) Allow to dry before use. Check to see if the filter is worn, in which case it must be replaced with a new one.
7.2.2. CARTRIDGE FILTER CLEANING. Used for dry cleaning.
a) Remove the filter cartridge from the motor head (fig 25).
b) Regularly clean the cartridge filter by dusting with a soft bristle brush (fig 26).
c) DO NOT get the filter wet or wash filter in water or any other cleaning liquids as the filter will disintegrate (fig 27).
NOTE: Inspect filters regularly, if large amounts of un-removable deposits are obvious, or if the filter is worn or damaged it must be replaced.
7. MAINTENANCE
Steady
the
trolley
whilst
lifting
tank
fig 25 fig 26 fig 27
VMA9133 - 3 - 031003

8. TROUBLESHOOTING
Sole UK Distributor
Sealey Group
Bury St. Edmunds, Suffolk .
Declaration of Conformity
We, the sole importers into the UK, declare that the product listed below is in conformity with the following EEC standards and directives.
The construction file for this product is held by the Manufacturer
and may be inspected on request by a national authority upon request
to Jack Sealey Ltd.
For Jack Sealey Ltd. Sole importer into the UK of Sealey Power Products
3rd October 2003
Unit does not start. No current. The power cable, switch, Check the plug and fuse. Repair or
or motor faulty. Tank may be full of water. replace faulty part. Empty tank if full.
Dust comes from the motor unit. Damaged filter, or filter incorrectly fitted. Reposition or replace the filter.
Take care, as warranty may be lost.
Low efficiency. Container is full. Filter obstructed. Empty container. Clean or replace the
Hose or accessory blocked. filter (Chapter 7). Unblock hose or accessory.
Filter problems. Outlet filter obstructed. Hose or tool blocked. Check, clean, or replace the filter (chapter 7).
Remove any obstruction from hose.
Motor speed increases Container is full. Filter obstructed. Empty the container, clean, refit, or replace
or motor vibrates. Hose or accessory blocked. filter (Chapter 7). Unblock hose or accessory.
Foam comes out of the air filter. Wrong detergent used, or used on carpet Add Sealey VMR922 Anti-foaming
or fabric previously cleaned with foaming agent to waste water tank (see 5.1).
detergent.
Detergent solution spray not Detergent filter clogged. Remove filter and clean (see 7.2.1) .
uniform. Pick up pipe clogged. Remove pick up pipe and clean filter (7.1.2).
Auto Valet Model: VMA913
73.23/EEC Low Voltage Directive
89/336/EEC EMC Directive
93/68/EEC CE Marking Directive
CONSUMABLES
Part No VMR921 Detergent for Valet Machine . . . . . . . . . . . . . Packs of 12 x 1 Ltr Bottles.
Part No VMR925 Detergent for Valet Machine . . . . . . . . . . . . . Packs of 4 x 5 Ltr Containers.
Part No VMR922 Defoaming Agent . . . . . . . . . . . . . . . . . . . . . Packs of 12 x 1 Ltr Bottles.
7.2.3. AIR OUTLET FILTER.
Behind the side grille in the motor head a special filter is located (fig 28) which ensures the air returned to the environment is as free
as possible from impurities. The filter will require periodic changing, to do so use a coin (or similar) to gently lever off the grille,
remove the filter and replace with a new one. When refitting the grille ensure the arrow on the inner part of the grille points upwards.
We recommended you keep a spare of each filter type.
Remove grille and
replace filters
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this equipment.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: Call us for a copy of our latest catalogue on 01284 757525 and leave your full name and address including your postcode.
fig 28
Signed by Mark Sweetman
VMA9133 - 3 - 031003
01284 757500 [e-mail] www.sealey.co.uk
01284 703534 e-mail Web
