Maintenance Manual of Model MAX

2/ 14
Contents
1. Product Introduction.......................................................................................................................... 4
1.1 Max series.................................................................................................................................错误!未定义书签。
1.2 Parts Identification ................................................................................................................................................ 5
1.3 Function ....................................................................................................................................................................... 5
1.3.1 Display introduction ........................................................................................................................................... 5
1.3.2 Transportation mode ......................................................................................................................................... 6
1.3.3 Learning to ride .................................................................................................................................................... 7
2. Battery and charging............................................................................................................................. 8
2.1 Battery parameter ....................................................................................................................................................... 8
2.2 Charging ......................................................................................................................................................................... 8
2.3 Charging precaution................................................................................................................................................... 8
3. Maintenance........................................................................................................................................... 9
3.1 Tool and torque value list......................................................................................................................................... 9
3.2 Regular check list.......................................................................................................................................................10
3.3 Replacement of common parts............................................................................................................................10
3.4 Failure Diagnosis........................................................................................................................................................10

3/ 14
3.5 Firmware Update .......................................................................................................................................................10
4. Safety issues ...................................................................................................................................... 11
4.1 Safety on riding....................................................................................................................................................11
4.2 Storage and Operating Temperature................................................................................................................... 9
4.3 Design Requirement.................................................................................................................................................13
4.4 Safety on battery .................................................................................................................................................14

4/ 14
1. Product Introduction
1.1 Specification of MAX 2.0
Product name
Max
Max. Speed Limit (Configurable
by FW)
25km/h
Net weight(±0.5kg)
20kg
Full charge trip
60km
Battery capacity
36V 551Wh Lithium Battery
Gradeability
14% (Approx. 8°), (Test under 75kgs, approx.12km.h)
Charging time
Approx.6h (Built-in 2.9A charger)/Approx.4h (External 5A charger)
Charging temperature Range
Available (0-40℃)；Recommended (10-35℃)
Battery type
Non-Swappable battery
IP rating
Vehicle IPX4, Battery Pack IPX7, Controller IPX5, Built-in charger IPX7
Motor nominal power
350W
Driven mode
Rear-wheel drive
Tire
Rubber Tire + Anti-puncturing Layer
Vehicle cable design
Exposed cable
Front wheel brake
Drum brake
Rear wheel brake
Electronic brake
Front fork type
Rigid front fork
Connection mode between
battery compartment cover and
vehicle frame
Disconnect-type
Battery compartment cover lock
NONE
Front light
E-mark LED
Tail light
LED tail light (without reflector)
Kickstand
Single side kickstand

5/ 14
1.2 Parts Identification
Remark：Related parts can be purchased, please contact customer support service.
1.3 Function
1.3.1 Display introduction
Detailed explanation of different icons on the display

6/ 14
The detailed explanations of these icons are shown below:
Icon Type
Icon Display
Display Description
LED Display Enabled
When the Speed Display is enabled, the number will indicate the speed.
When the Battery Capacity Display is enabled, the number will indicate the battery capacity.
When the Error Type Display is enabled, the number will indicate the error code
LED Display Off
Turn off the Nixie Tube Display
S
Mode Icon Display
Enabled S
Enabled D
Enabled ECO
Sport mode is enabled, the S Display will be turned on.
Distance mode is enabled, the D Display will be turned on.
Economical mode is enabled, the ECO Display will be turned on.
Mode Icon Display
Walking assistance mode: Long pressed the throttle when the scooter is stationery; If the Mode
Icon Display is enabled in walking assistance mode, it will be turned on.
Mode Icon Display
Off
The Speed Mode Display will be turned off
Temperature Alarm
Display
It will be turned on only if the battery temperature is too high or too low;
It will be turned off
Error Icon Display
Enabled
It will be turned on only if an error occurs and the nixie tube displays an error;
Error Icon Display Off
It will be turned off
There are 3 modes:
S = Sport Mode. It can accelerate fast, has the fastest speed mode, but the scooter range will be low.
D = Distance. Comparing to the Sport Mode, the Distance Mode accelerates slowly. It is the medium speed.
ECO = Economic mode. Among all 3 modes, this one uses the lowest power of the battery which means it
accelerates slowly, but the scooter range can be higher comparing to other modes.
* You can switch the modes by double clicking the power button on the display.
* When you ride on the scooter, the display will have some icons lightened on the it.

7/ 14
1.3.2 Transportation mode
After unpack and take out the kick scooter,
1) There is a transportation mode that designed to keep healthy battery during long time
transportation to avoid over-discharge.
2) Turn on the Transportation Mode: it is operated by the IOT App ;
3) Turn off the Transportation Mode: Plug the charger, charging longer than 3 seconds to turn on the
scooter, and transportation mode is turned off. Your Scooter is in working mode.
4) Scooters need to be in transportation mode during long term storage.
1.3.3 Learning to ride
1. Wear an approved helmet and other protective gear to minimize any possible injury; and stand on the
footrest with one foot and push off with another foot to start riding.
2. With an initial speed no lower than 2.5mph and press the throttle to start the scooter, sport mode with
maximum speed of 15.5mph, and it also can be customized for local customer’s actual speed
requirement. To turn, shift your body weight and turn the handle slightly.
3. Press the throttle on the right hand to speed up when you are balanced, and slow down by releasing
the throttle. The electrical brake is integrated in the mechanical brake handlbar, when press the brake,
the drum brake of fore wheel and electrical brake of rear wheel will activate together, and the rear light
flash continuously.

8/ 14
2. Battery and charging
2.1 Battery parameter
Item
parameter
Rated voltage
36V
Maximum charging pressure
42V
Rated capacity
15300mAh/551Wh
Cycle times
500times, remaining
capacity>70%
2.2 Charging
Your scooter is fully charged with the LED on the charger changes from red (charging) to green (trickle green),
it will take 4 hours for charging fully. When charging, the screen on the battery will display different color;
when not charging, press the button for 2 seconds to display remaining power. And the display will show the
battery level when charging.
2.3 Charging precaution
1) Lithium Battery Product needs to charge regularly. Use the charger for Model Max to charge
the scooter when the power level is low.
2) Fully charge the scooter and reset the scooter to transportation mode before keep in store house longer
than one week. Recharge when battery level is low. Over Discharge will bring the unrecoverable damage
to your battery.
3) Do not leave scooter charger or single battery without your awareness.
4) Recommended Recharge Frequency as following if stored in the recommended Temperature Range.
Aged battery requires recharge more frequently, shorter time period for older battery.
Transportation Mode
Scooter or the Battery
Recharge

9/ 14
(Spare Part)
Transportation Mode is enabled before leaving Factory
A new Scooter shipped out
from NB factory
Within 150 days from delivery
(after Leaving NB factory)
Customer enable the Transportation Mode
A fully charged Scooter,
with the brand-new or like
brand-new battery
Within 150 days after fully
charged.
Customer enable the Transportation Mode
A fully charged Scooter,
used(aged) battery
Within 120 days after fully
charged. Various depending on
the battery age
Customer doesn’t enable the Transportation Mode
A new or like-new, fully
charged Scooter
Within 45 days after fully charged
Customer doesn’t enable the Transportation Mode
A used(aged) but fully
charged Scooter
Within 30 days after fully charged,
various depending on the battery
age
N/A
Brand New Standalone
Battery
Within 150 days after fully
charged
N/A
Used standalone battery
Within 90 days, various
depending on the battery age.
2.4 Storage and Operating Temperature
Recommended temperatures are shown below:
Range
Ambient Temperature
Operating Temperature
14 - 104 ˚F(-10℃~40℃)
Storage Temperature
-4 - 122˚F (-20℃~50℃)
3. Maintenance
3.1 Tool and torque value list
Item
Description
Item
Description
1
PH1-L
12
wrench head 8#
2
PH2-S
13
wrench head11#
3
S2.5-S
14
wrench head14#
4
S3-S
15
wrench head15#

10 / 14
5
S5-L
16
wrench head18#
6
T10hollow-S
17
wrench head26#
7
T15hollow-L
18
Wrench lever_25N.M
8
T20hollow-S
19
Wrench lever_100N.M
9
T25hollow-S
20
Valve tools_1
10
T30hollow-S
21
Valve tools_2
11
T45hollow-S
22
Valve tools_3
3.2 Regular check list
You can download the full checklist in our customer support system here.
3.3 Replacement of common parts
List of Max SOP
NO.
Name of SOP
NO.
Name of SOP
1
SOP of Display Incompletely
9
SOP of Replacing Rear Wheel
2
SOP of the Throttle cannot Rebound
10
SOP of Replacing Rear Fender Assembly
3
SOP of Shaking on Front/Rear Wheel
11
SOP of Solving Shaking in Riding
4
SOP of Replacing Battery
12
SOP of Replacing Controller
5
SOP of Replacing Built-in Charger
13
SOP of Front Tube Shaking in Riding
6
SOP of Replacing Display
14
SOP of Unable to Boot
7
SOP of Replacing Display Cover
15
SOP of Flat Tire Inspection
8
SOP of Replacing Fore Wheel
3.4 Failure Diagnosis
You can view the full list of Error Codes, their problem description and their solutions in our customer support
system here.
Table of Error code
Diagnostic index
Problem description
Diagnostic index
Problem description
MAX-10
Communication abnormality
between the display and the main
control board
MAX-26
Flash saves error
MAX-11
Motor A-phase current sampling
abnormality
MAX-27
Wrong main control board password
MAX-12
Motor B-phase current sampling
abnormality
MAX-28
Motor driven MOS upper bridge short
circuit
MAX-13
Motor C-phase current sampling
MAX-29
motor driven MOS under bridge fault

11 / 14
abnormality
MAX-14
Throttle Hall sensor abnormality
MAX-30
undefined
MAX-15
Brake Hall sensor abnormality
MAX-31
program jump error
MAX-16
undefined
MAX-32
IOT heartbeat timeout
MAX-17
undefined
MAX-33
undefined
MAX-18
Motor Hall sensor abnormality
MAX-34
undefined
MAX-19
Abnormal battery voltage detection
MAX-35
Scooter with default serial number
MAX-20
undefined
MAX-36
undefined
MAX-21
BMS Communication Error
MAX-37
Failure of charging base or battery
charging cable
MAX-22
Wrong BMS password
MAX-38
undefined
MAX-23
BMS default serial number
MAX-39
Temperature sensor abnormality of Battery
MAX-24
System voltage detection
abnormality
MAX-40
Abnormal temperature sensor of controller
MAX-25
undefined
MAX-41
Temperature of the motor is abnormal
3.5 Firmware Update
Customers should
1) Keep the firmware up to date through the backend management system “Dashboard” or mobile app
Launcher.
2) Talk to Segway Discovery Engineer to find out an alternative way of upgrade
3) Report problems to customer service.
4. Safety issues

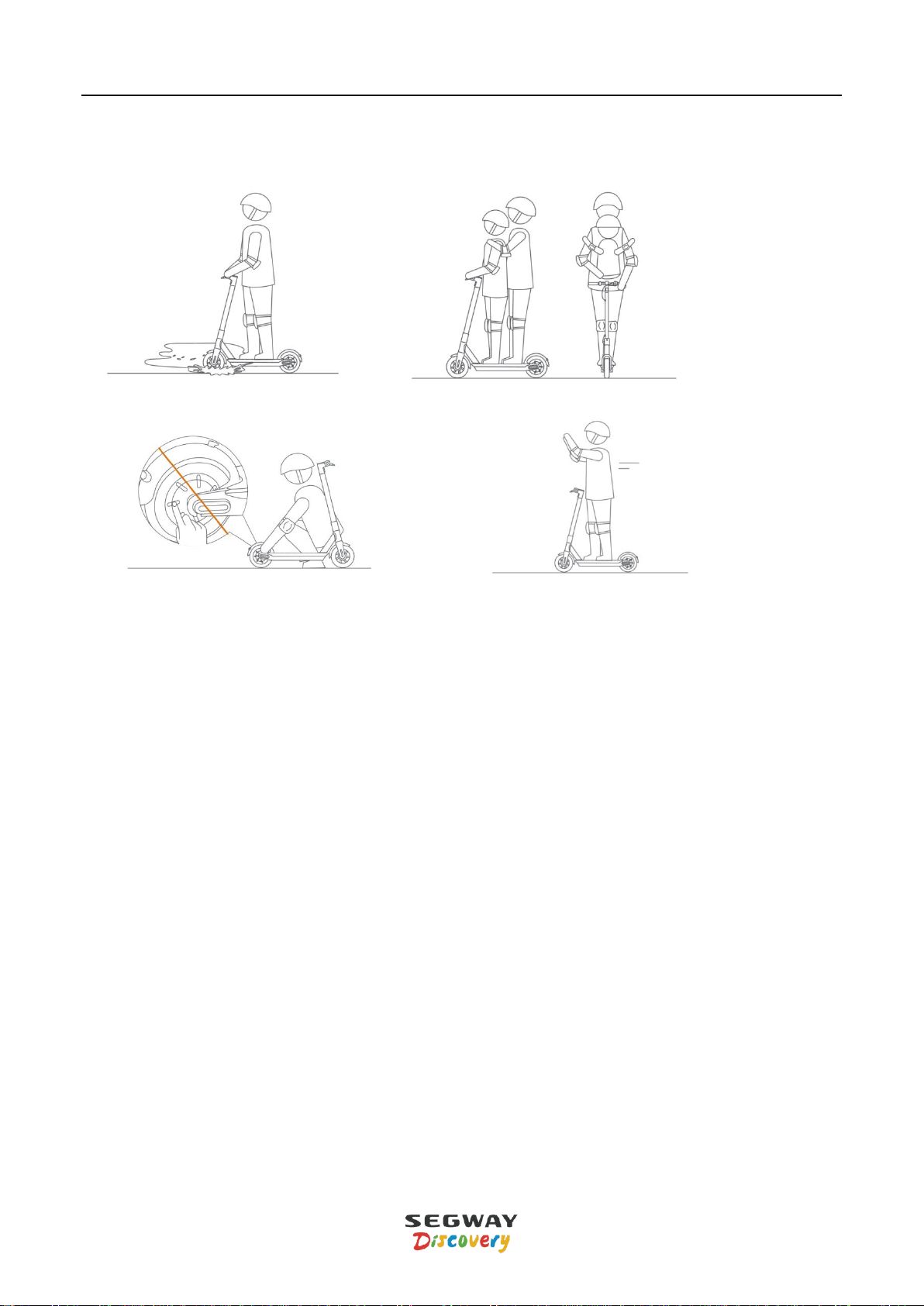

4.1Safety on riding
4) When in riding, do not ride the kick scooter in the rain. Do not get wet. Keep your speed between 5-10km/h.
When you ride through speed bumps, elevator door, bumpy roads or other uneven surfaces. Slightly bend
your knee to better adjust mentioned surfaces.

12 / 14
5) Do not keep your feet on the rear fender; avoid contacting obstacles with the tire/wheel.
6) Do not ride on public roads, motorways or high ways; do not rotate the handle violently while driving at high
speed.
7) Do not carry heavy objects on the handle bar; do not ride the kick scooter with one foot.

13 / 14
8) Do not ride through puddles or any other (water) obstacles. In such a case please lower your speed and
bypass the obstacles, and do not carry any passengers, and do not carry a child, and do not ride when
pregnant.
9) Do not touch the hub motor after riding because it can get hot.
4.2 Design Requirement
The controller can read the battery temperature from Battery Management System, and the BMS can limit the
highest battery output current (Bus Current); Two Temperature Sensors are on the surface of the battery cell.
i) Battery Cell Maximum surface temperature is safe below 158 ˚F（70℃）;
ii) If the cell surface temperature < +107.6 ˚F（42℃）, the maximum Bus Current is 25A
iii) If the cell surface temperature reaches 107 ˚F（42℃）, start to reduce the maximum current
iv) If the cell surface temperature reaches 122 ˚F（50℃）, the output maximum current reduces to 6A.
v) If the cell surface temperature reaches < 14˚F （-10℃）， BMS will turn off the battery output. When
the battery is shut down, the scooter loses the power.
vi) There is 41 ˚F（5℃） temperature difference designed in buffer between the Shut Down temperature
and the Battery Cell Maximum Surface Temperature.
vii) When the controller receives the BMS feedback with the temperature out of the range of -4 ˚F ~ +158
˚F（-20℃~70℃）, the system will prompt the error code 39#, indicating that the BMS temperature is
reported incorrectly, or over-temperature cut off function failure. And If the battery is shut down,
even when the temperature falls back under 149 ˚F（65℃）, the system does not boot automatically.
When the scooter is rebooted again, and the error code 39# will be disappeared.
Remark: We recommend stopping operating when the Ambient Temperature is over 104˚F(40℃).

14 / 14
4.3 Safety on battery
1）No disassembling, squeezing, puncturing the kick scooter; no touching the contact pots; no disassembling or
puncturing the battery case; do not put the kick scooter in the water/fire (including the cooking range,
heating, and other heat resource.) or expose it in the temperature which is higher than 122℉（ 50℃）or is lower
than -4℉（-20℃）（e.g., do not put the battery or the kick scooter exposed in the car in the sun when in
summer）. And please avoid the metal object contacts the battery contact pots to cause the short circuit, and
it will cause the battery damaged or the injury.
2）It will cause the internal circuit damaged if the battery is in water and even cause the possibility of explosion,
and please do not use the battery immediately and contact our CSE.
3）The kick scooter can only use the original battery, and the battery can only use the original charger, or else it
will cause the damage or fire.
Undeserved disposition of waste and useless battery will cause the heavy environment pollution. And please
follow the local regulations on waste and useless battery. Please do not throw away the battery, and
protect natural environment together.
--------------------------------------------Ending------------------------------------------------
