SEIAOTEK ST-M4804TS User manual

User Manual
Packing List
Ethernet Switch
User Manual
Power Cable
Bracket kits
Product description
ST-M4804TS
52 Ports Gigabit Managed Layer 3
Ethernet Switch with 4G SFP Slots
Device Installation
Installation Precautions
Note
A tamper-evident seal is sealed on a mounting screw of the switch chassis. When the
agent maintains the switch, the maintenance switch is required The seal remains intact.
If the user needs to open the switch case, please obtain the permission of the local agent.
Otherwise, due to all consequences caused by opening the cabinet will be borne by the
user himself.
Prepare the installation tools
1. Static bracelet
2. Screw driver
3. Optional: flat-blade screw driver, needle-nose pliers, diagonal pliers
Install the switch into a 19-inch standard cabinet
Step 2: Use the screws to fix the two L-shaped brackets on both sides of the switch.
Step 1: Check the grounding and stability of the rack-mountable.
To avoid damage to the switch or personal injury caused by improper use, please follow up
the below precautions:
1. During the installation procedure, wear an anti-static wristband, keep the switch powered off.
Ensure that the input voltage under the input voltage range.
2. Ensure that the heat dissipation holes of the switch are well ventilated.
3. Do not disassemble the switch.
4. Do not supply power to the switch before cleaning it. Do not use any liquid to scrub the switch.
5. Keep the switch far away from power lines, lights, and power grids.
Step 3: Place the switch in a proper position in the rack, and fix the L-shaped brackets on the
guide grooves at both ends of the rack with screws (if users required) to ensure that the
switch is installed on the rack smoothly
Install the switch to the desktop
After sticking the foot pads on the four corners of the bottom surface of the switch, please place
and keep the switch face up on the stable desktop.
Ethernet ports
SFP Slots
Console
Default
Ground terminal
Power connector
Interface/button Description
1-48: Gigabit Rj45 ports, Support Auto-MDI/MDIX function.
49~52: 4G SFP Slots.
Console port: Connect the Serial Cable to the Serial port of the computer
to manage and configure the switch.
Restart or reset buttons: Press and hold this button around 10 seconds,
the switch will recovery to factory settings.
Connect the power cable with the switch.
Connect the protective ground wire to prevent lightning strikes.
Hardware connection
Connect 10G SFP+ Slots
Step 1: Grab the handle end of the optic fiber module, confirm that the handle of the optic fiber module
facing upwards, and then insert the optical module into the 1X~4X SFP+ port of the switch.
Step 2: After confirming the Rx and Tx ports on the optic fiber module, insert the two fiber connectors at
one end of the fiber into the Rx and Tx ports of the optical module respectively, and then plug the
two fiber connectors at the other end of the fiber into the opposite device. Tx and Rx ports.
PWR
Link/Act
Indicator light
ON
OFF
ON
Flashing
OFF
Switch power supply is normal
The switch is not powered on or the power supply is abnormal
Port is connected
Port is transmitting data
The port is not connected, or the connection is abnormal
Status Description
R
Ground terminal Power
connector
Foot pad
Foot pad
Power switch
48 Ports 10/100/1000M RJ45 4 * 1G SFP
Default
Console SYS
SYS Flashing The switch is working normal
OFF / ON The switch is not power / switch working abnormal
PWR

Warranty Card
Note: Please refer to the User Manual for Detail Warranty policy
Model NO.
Serial NO.
Purchase Date
RMA Number
Return Reason
Customer Name
Customer Address
Customer Email
Interface
Ethernet Ports 1~48: 10/100/1000M Rj45 Ports
SFP Slots 49~52: Gigabit SFP Slots
Name
Model
52 Ports Gigabit Managed Layer 3 Ethernet Switch with 4G SFP Slots
ST-M4804TS

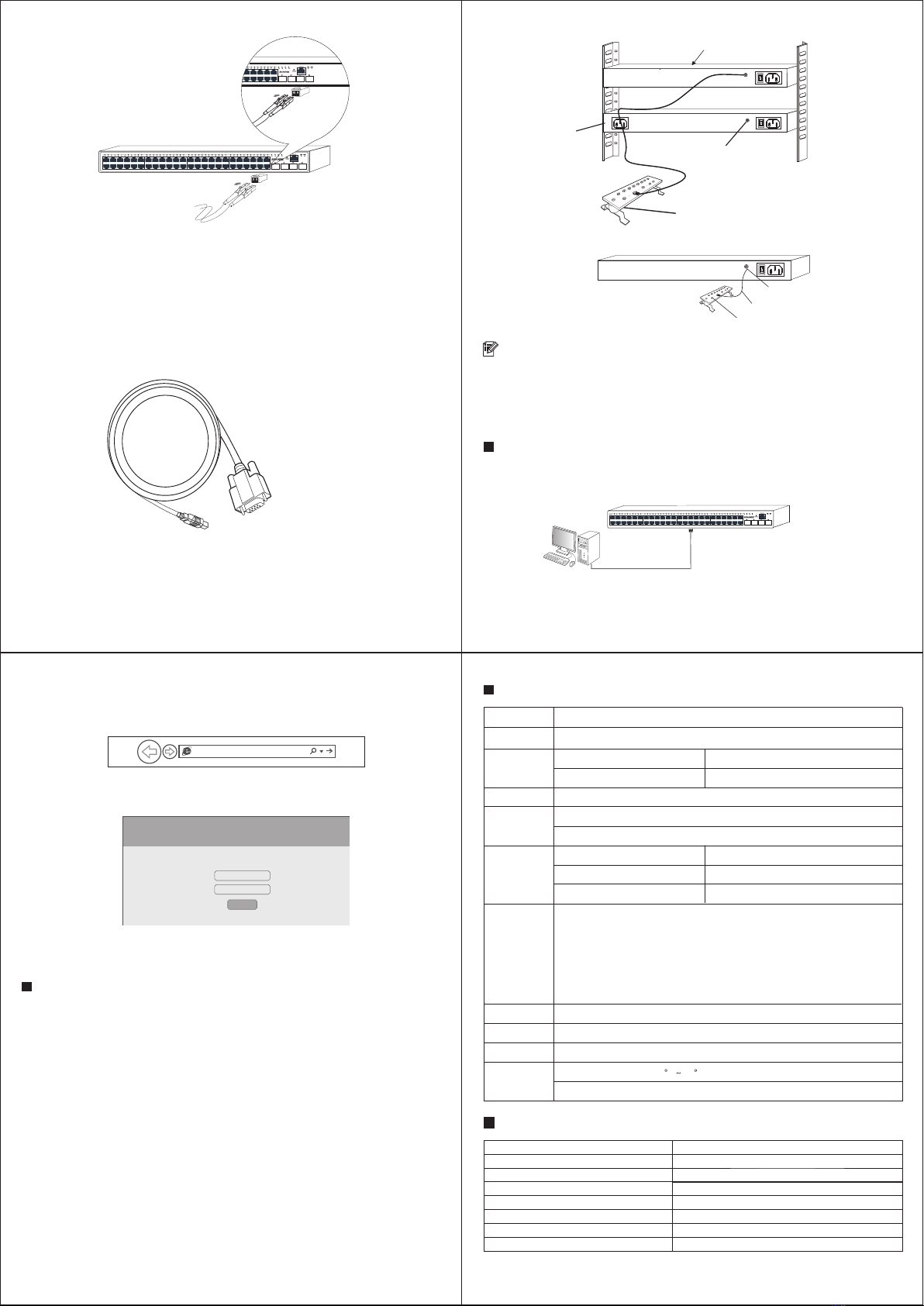

Connect Rj45 port
Connect one end of the network cable to the Rj45 port of the switch, and the other end to the
RJ45 Ethernet port of the opposite network device.
Connect to the console port
Connect the RS232 DB9 male end of the serial cable to the computer, and connect the Rj45end
to the Conport port of the switch.
Rs232 DB9 Male End
Rj45 End
Connect the ground wire
Step 1: Connect one end of the ground wire to the ground terminal of the switch.
Step 2: Connect the other end of the ground wire to other equipment that has been grounded,
or directly connect it to the ground bar of the equipment room engineering terminal.
Note

Log in to the WEB Management Page
1. Connect the computer to the switch through a network cable.
2. Set the computer's local IP address to 192.168.1.X (X is 2~254, and is not occupied by other
devices), and the subnet mask is 255.255.255.0.
The ground wire of the switch should be connected to the engineering ground of the equipment
room. The grounding fire water pipe and the lightning rod of building are not properly grounded.
3. Open the computer's local browser (take IE as an example), enter http://192.168.1.1 into
the address, and press Enter to log in Switch Web Management page.
http://192.168.1.1
4. Enter the user name and password (the default is admin), and then click the login button.
Username:
Password:
Login
5. Log in to the switch web management page and start to configure the switch.

Specifications

Common Tips
What should I do if I can’t log in to the switch's web management page?
Please try the following solutions:
Confirm that the switch is powered on.
1. Confirm that the computer and the switch network cable are connected properly.
2. Confirm that the computer's Ethernet (or local connection) IP address has been set to
192.168.1.X (X is 2~254, and it is not occupied by other devices).
3. Clear the cache of the browser, or change the browser, and confirm that the connection
method of the browser is never dial connection.
4. Turn off the computer's firewall or replace a computer.
5. Confirmed that there is no other devices whose IP address is also 192.168.1.1.
6. If you still cannot log in after the above operations, please restore the factory settings.
The specific operations as follows:
7. When the Power indicator is on, press and hold the Default button on the front
panel of the switch around 10 seconds.
8. Release when all the indicators are on. When the Power indicator keeps on or the
SYS indicator flashing again, the factory settings recovery successfully.
LED PWR , Link / Act
Store-and-forward
Half-duplex back pressure and IEEE802.3x full-drplex flow control
Bandwidth 104Gbps
Packet Forwarding Rate 77.37Mpps
MAC Address 32K
Network
Standards
IEEE802.3i 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-LX
IEEE802.3x Flow Control, IEEE802.3az EEE
IEEE802.1p, IEEE802.1x, IEEE802.1d, IEEE802.1s
Processing
Types
Performance
Specification
Power lnput AC 100~240V 50~60Hz
Dimension 440mm (L) x 360mm (W) x 44mm (H)
Cables UTP Cat 5 or above
Environment
Specification
Working Temperature: 0 C 45 C, Humidity: 10% ~ 90% RH non-condensing
Storage Temperature: 20°C ~ 70°C, Humidity: 5% ~ 95% RH non-condensing
This switch
Other devices
Or
Ground terminal
Ground wire
Ground bar
Ground terminal
Ground wire
Ground bar
Switch
PC
Network cable
