Seima MERO 191740 User manual

630
780
150
400
400
150
370
170
422

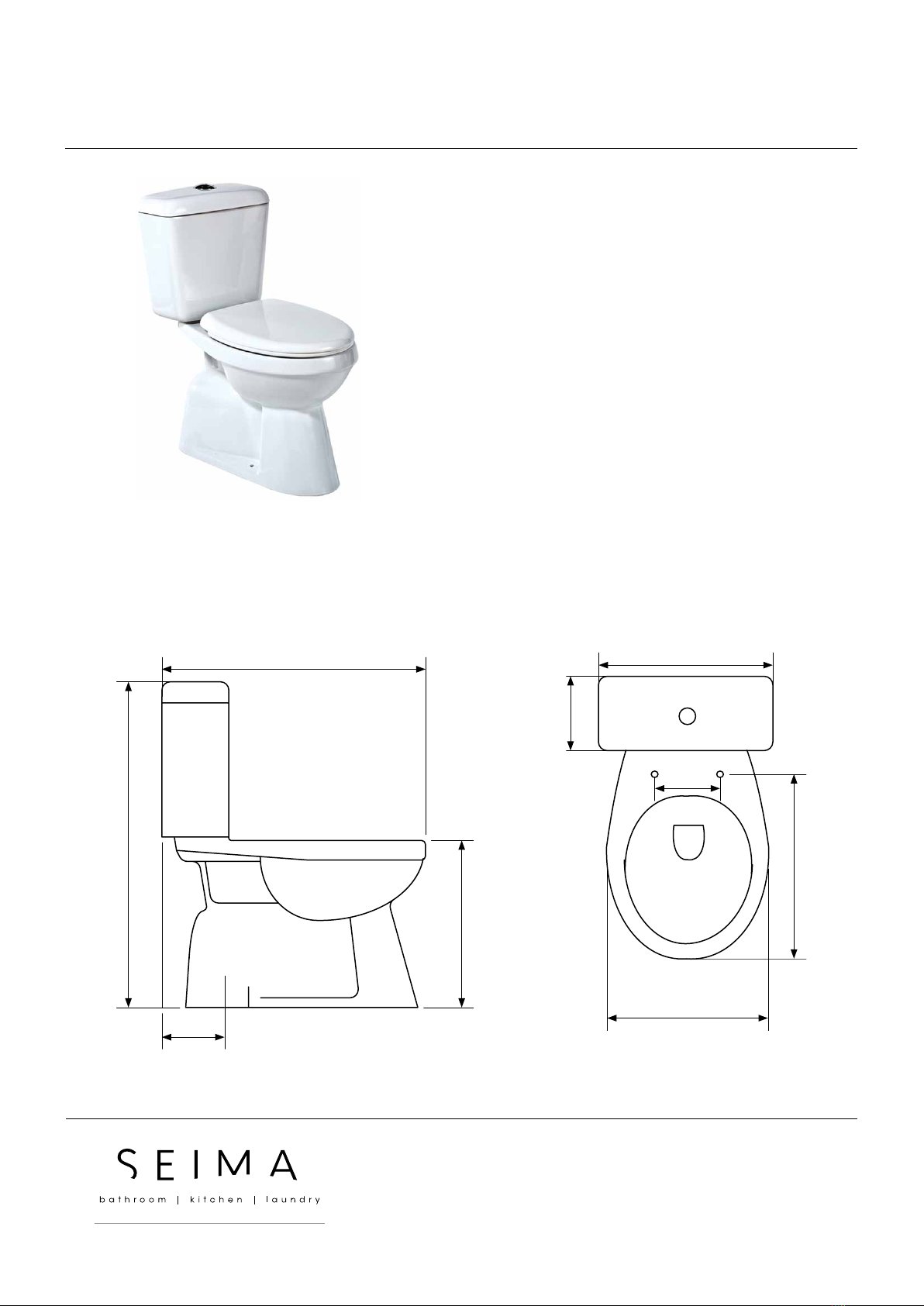

Ceramic close coupled toilet suite
− White vitreous china
− Soft closing seat
− Suitable for S trap installations only
− Right or left bottom entry plumbing
CISTERN Suits bottom entry plumbing. Left and right bottom entry inlet points.
PAN Close coupled with box flushing rim.
TRAPS S trap installations only.
SEAT Soft closing.
WELS 4 star rating 4.5/3 litre water saving flush.
SETOUT 150 mm.
FIXING This is a close coupled toilet suite — the cistern is fixed directly to the
pan and does not require wall fixing.
Pan may be bedded with cement base or using silicone sealant.
INSTALLATION GUIDE
MERO CLOSE COUPLED TOILET SUITE
mero-cc-in | v 2.0 | page 1 of 4
seima.com.au
Please note
− Installation shall be in accordance with AS/NZS3500.
− All measurements are in millimetres. Height dimensions are to base of pan. Make allowance for bedding.
− Bedding: Fix pan to floor using a sand cement mixture of 3:1 to a depth of 60mm. Do not use lime or fast-drying cement.
− Bracket fixing: The pan should be bedded with an acetic cured silicone sealant and fixed with the brackets supplied.
− Dimensions are nominal and subject to normal ceramic manufacturing variations.
− Specifications may vary without notice as part of our continuous improvement practices.
− Clean with a damp cloth. Do not use abrasive cleaners, liquids or pastes. © Seima

floor fixing holes
(both sides of pan)
cistern/pan
attachment holes
seat connection holes
cistern outlet pipe hole
IMPORTANT
1Inspect the components before installation to ensure there are no visible defects. If a defect is found, do not install the toilet suite and contact the
supplier immediately. Claims for defects will not be accepted after the product has been installed.
2This toilet suite is suitable for the following set-ups:
CISTERN — accommodates Bottom Entry Inlet connection (left or right stop valve).
PAN — accommodates S-trap installation.
3The toilet suite must be installed by a licensed plumber. Failure to do so may void the warranty.

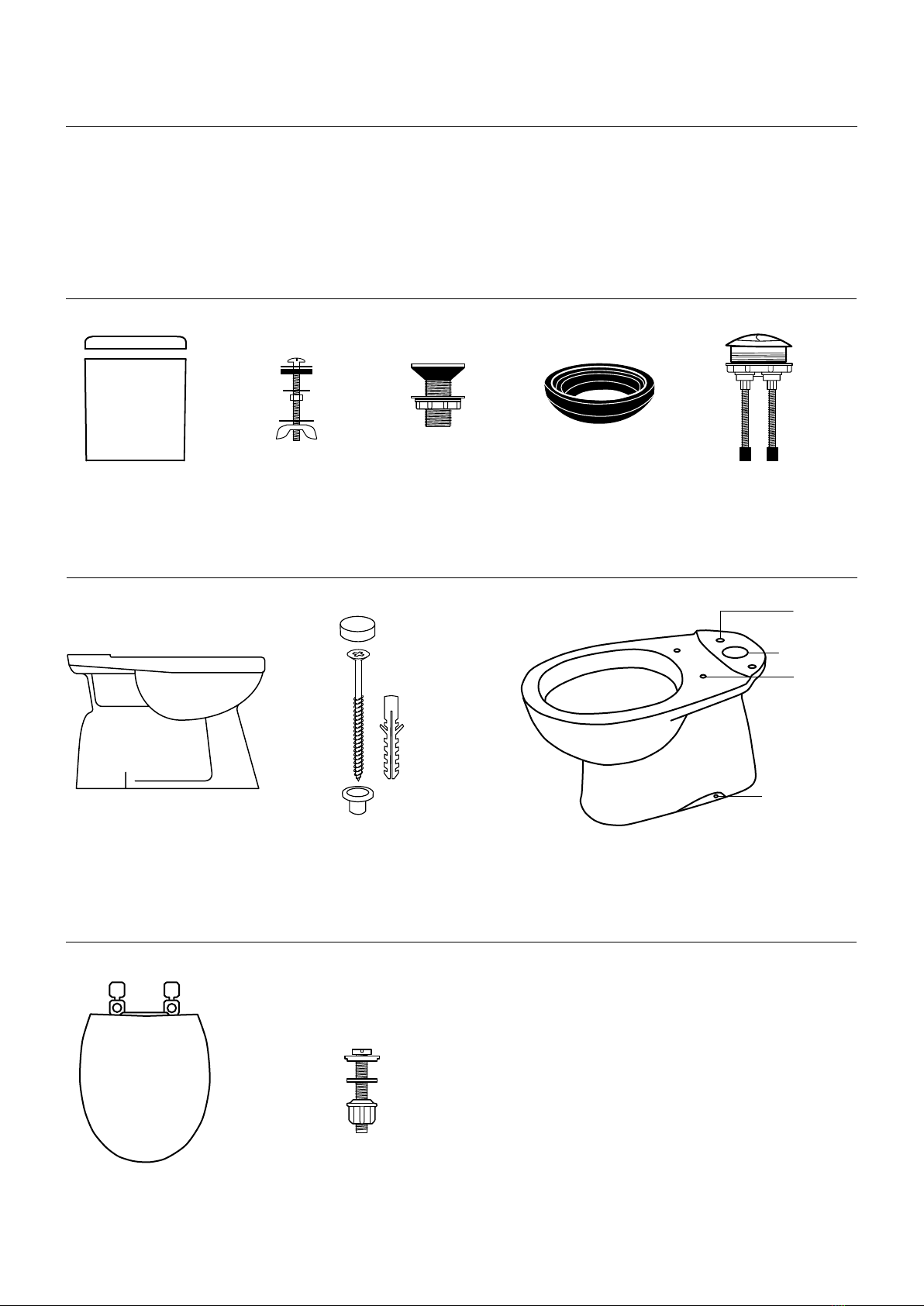

1 x ceramic cistern lid
1 x ceramic cistern base
Cistern is supplied with flush
valve and bottom entry inlet
valve already installed.
2 x bolts w seals
For attaching cistern
to pan.
1 x plug
Only required if installing
back entry (BE) version.
1 x rubber seal
For sealing outlet at
base of cistern.
1 x flush button
Half flush left, full flush right.
1 x ceramic pan 2 x caps (white)
2 x floor screws (+ white plugs)
2 x pan plugs (white)
Optional fixing #2 — used to secure pan to floor. Plastic plug
is placed into hole at base of pan exterior; screw is rebated
into plug. Cap is used to cover plastic plug.
1 x seat and lid — soft closing 2 x plastic bolts
For securing seat to pan.
CISTERN PACKAGE CONTENTS
PAN PACKAGE CONTENTS
SEAT PACKAGE CONTENTS
INSTALLATION GUIDE
MERO CLOSE COUPLED TOILET SUITE
Page 2 of 4 | seima.com.au

5.4 Flush the lines. Then connect the water supply to the inlet valve and
check the operation of the cistern.
6 FITTING THE CISTERN LID
Fit the flush button into the cistern lid, with the half flush on the left
and full flush on the right. Ensure that the rubber feet of the flush
button connect and line up correctly with the flush valve inside the
cistern. Fit the cistern lid and push the buttons to check operation.
7 OPERATION AND MAINTENANCE
Press the half flush on the left side to save water and the full flush
on the right as required. Clean the toilet with liquid detergent and a
damp cloth.
Do not place water additives inside the cistern as this may have
chemicals that damage the valves and impair the functionality of the
cistern.
1 S-TRAP PROCEDURE — SECURING THE PAN
CONNECTOR IN PLACE
Determine the centre of the pan and mark the centre line on the floor
and wall.
The setout is 150mm.
Position the pan connector (not supplied) into the floor outlet pipe
(S-trap).
2 POSITIONING THE PAN
Use the centre line marked on the wall and floor to position the pan
(see Step 1.1). Push the pan into the installed plastic pan connector.
Itis recommended that wedges are used to support the foot of the
pan during positioning.
3 BOTTOM ENTRY INLET CONNECTION:
PAN AND CISTERN SET-UP
The bottom entry inlet valve is already installed on the right side of
the cistern. The position can be swapped to the left side if required.
Check that all valves and plugs are secure and watertight before
fitting the cistern to the pan in Step 5.
4 SECURING THE PAN ON THE FLOOR
Cement fixing (optional fixing #1)
If using cement bedding, level the pan while the cement mixture is
workable. Fix pan to floor using a sand cement mixture of 3:1 to a
depth of 60mm. Do not use lime or fast-drying cement.
Important: Allow at least 24 hours for the cement mixture to set
before using the toilet.
Screw fixing (optional fixing #2)
Bed the pan with acetic cured silicone sealant, ensuring that the pan
is level. Then place the pan plugs into the floor fixing holes in the pan
and install the floor screws into place. The white caps can be used to
cover the plugs on each side of the pan.
Important: Do not over-tighten the bolts or screws as this may cause
the ceramic to crack and break.
cistern/pan
attachment
hole
cistern cistern
pan
cistern

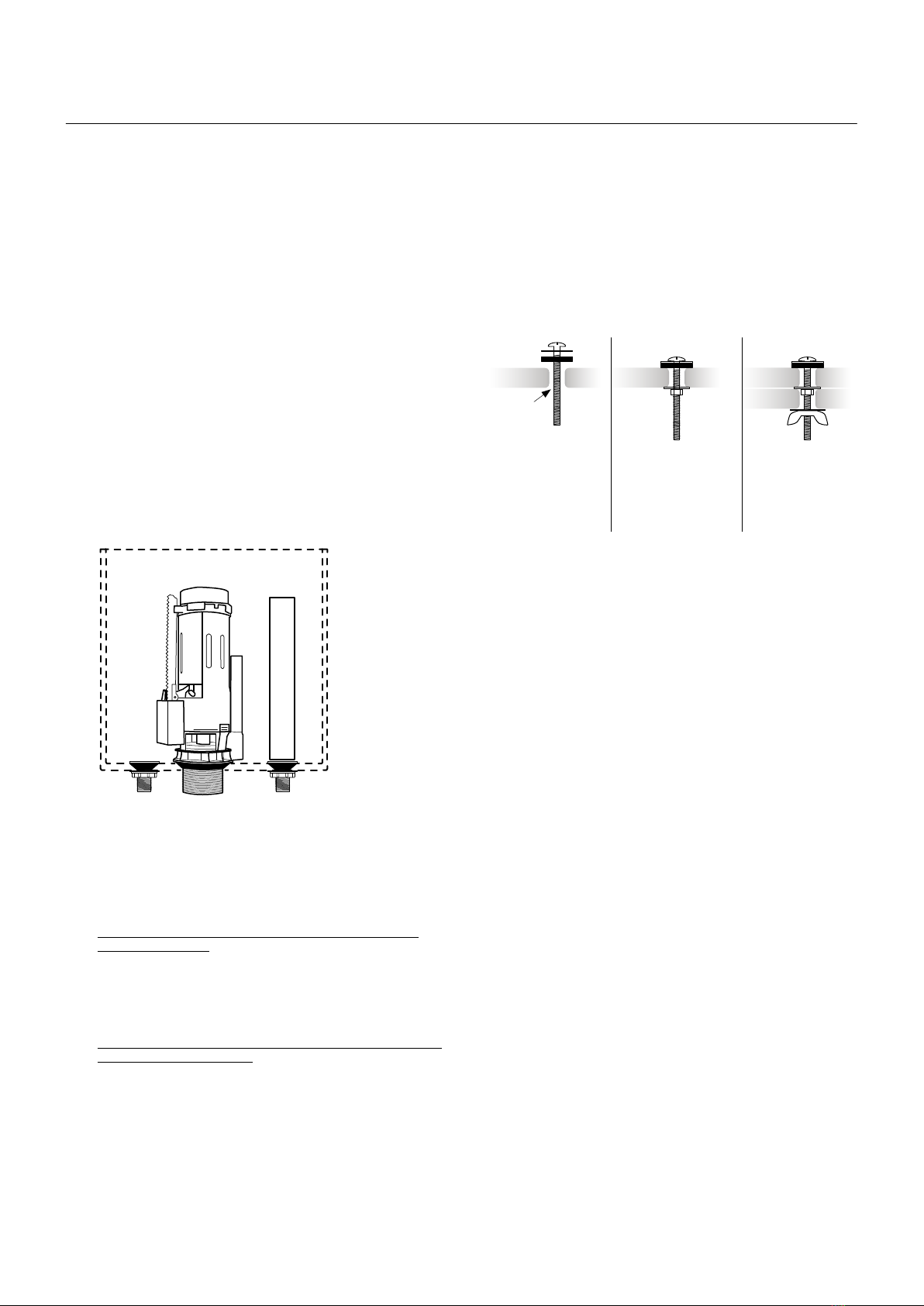

STEP 1:
Place bolt, metal
washer and rubber
seal through cistern/
pan attachment hole
in base of cistern. (Do
this on both sides.)
STEP 2:
Place washer and nut
onto thread of bolt
and tighten. This will
seal the base of cistern
against leakage.
STEP 3:
Now place cistern on
top of pan and locate
bolts into attachment
holes in pan. Place
washer and wingnut
onto thread and
secure.
Cistern setup as
supplied, suitable
for bottom entry
connection.
overflow pipe
flush valve
cistern
bottom entry inlet valve
5 FIXING THE CISTERN TO THE PAN
First check the alignment of the cistern and pan attachment holes —
place the cistern onto the pan and ensure that the holes align. Now
remove the cistern.
Place the rubber seal onto the plastic pipe outlet at the base of the
cistern and ensure it is securely attached. Locate the cistern outlet
(with rubber seal) onto the pan, ensuring a good fit.
Now secure the cistern to the pan using the two bolts with seals in
the cistern/pan attachment holes.
Page 3 of 4 | seima.com.au

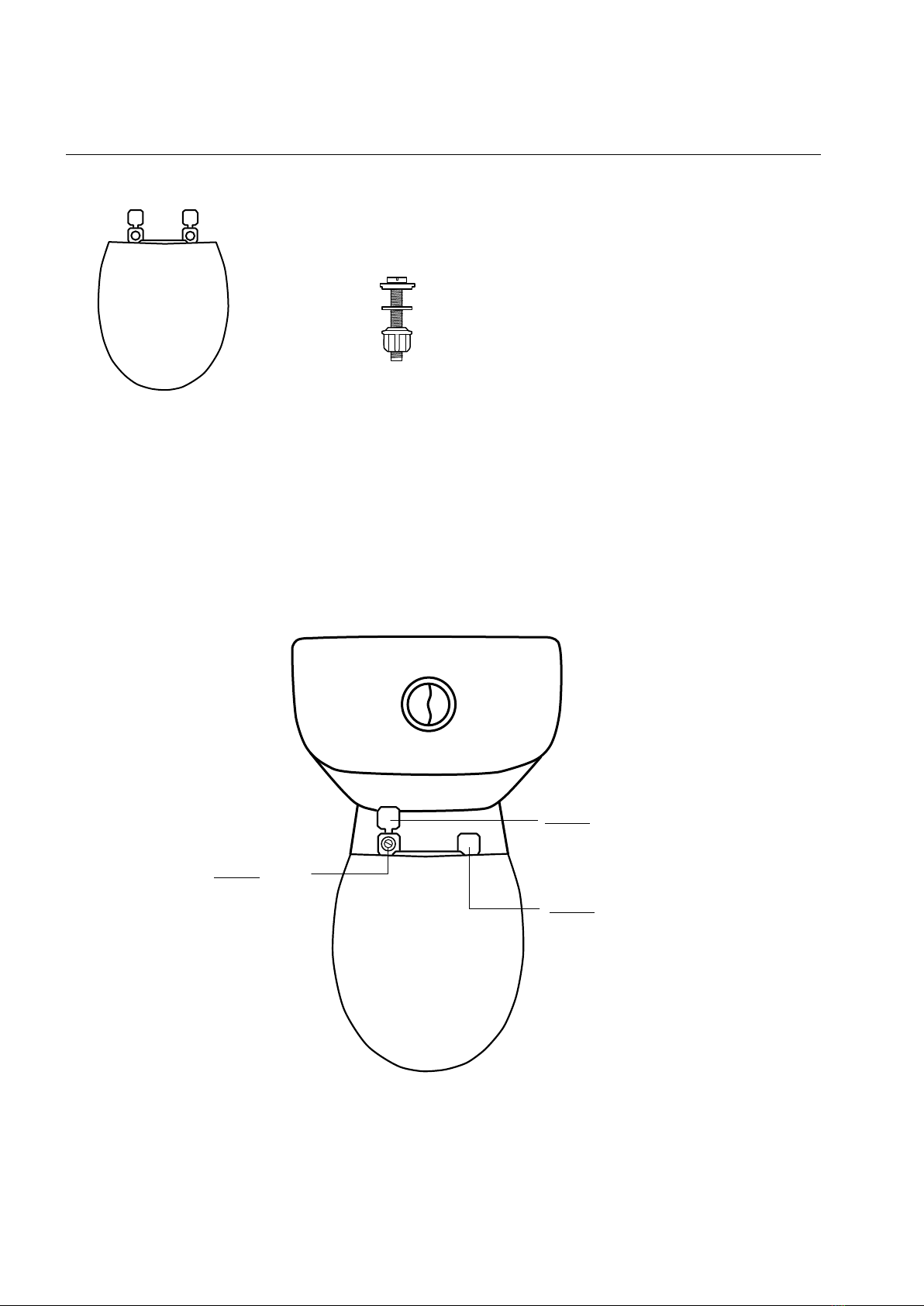

Place the seat on the pan and align the seat connection holes on the pan with the holes in the seat.
To fit the seat, use the plastic bolts to secure the seat in place.
Flip over the cover tabs to hide the bolt and hole. The seat is now fitted.
To remove the seat, flip open the cover tabs and undo the plastic bolts.
8 SEAT INSTALLATION
1 x seat and lid — soft closing 2 x plastic bolts
For securing seat to pan.
To fit seat — use the
plastic bolts to secure
the seat in place.
Cover tab — once the seat
is secured, use the plastic
cover tab to hide the bolt
and hole.
Cover tab — clicked into
place.
