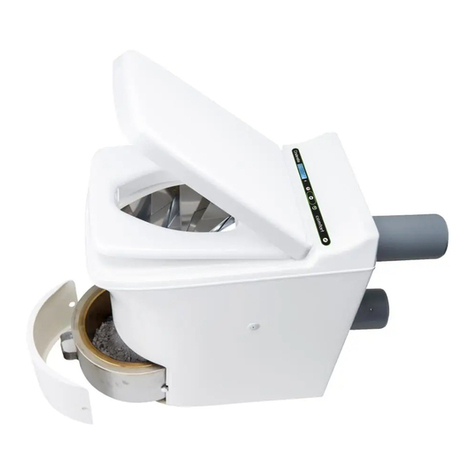

Cinderella CLASSIC User manual

CINDERELLA CLASSIC
Product manual
English
Norsk
Svenska
Suomi
Deutch
Français
Español
Document number: D000769
Revision number: 01
Cinderella Classic Product Manual | 01.01.2022

2
CONTENTS
1. GENERAL SECTION 3
1.1 INTRODUCTION 3
1.2 APPLICATION ACCORDING TO REGULATIONS 3
1.3 OPERATING INSTRUCTIONS GUIDE 3
1.4 LIMITATION OF LIABILITY 3
1.5 LISTINGS AND CERTIFICATIONS 3
1.6 ENVIRONMENTAL REQUIREMENTS 3
1.7 GENERAL SAFETY INSTRUCTIONS 4
1.8 APPLIANCE RATING PLATE 5
1.9 CINDERELLA ONLINE 5
2. INSTALLATION SECTION 6
2.1 UNPACKING THE TOILET AND ACCESSORIES 6
2.2 MEASUREMENT SPECIFICATIONS CINDERELLA CLASSIC 6
2.3 ORIGINAL INSTALLATION PACKAGES FOR YOUR CINDERELLA TOILET 7
2.4 INSTALLATION SPECIFICATION 8
2.4.1 SPECIFICATIONS PARTS AND MATERIALS 8
2.51 INSTALLING THE CINDERELLA INCINERATING TOILET 8
2.5.1 INSTALLING THE OUTLET PIPES 9
2.5.2 INSTALLING THE HORIZONTAL INLET PIPE 10
2.5.3 INSTALLING THE ORIGINAL CINDERELLA FLUE TERMINAL CAP 11
2.6 ELECTRICAL SPECIFICATIONS AND REQUIREMENTS 11
2.7 CHECKLIST TO VERIFY THE COMPLETE INSTALLATION 12
2.8 PERFORMANCE TEST TO VERIFY THE SYSTEM FUNCTIONALITY 12
3. USER SECTION 13
3.1 INTENDED USE AND HANDLING 13
3.2 GENERAL SAFETY 13
3.3 SAFE OPERATIONS 13
3.4 CINDERELLA CLASSIC SAFETY FEATURES 13
3.5 IMPORTANT USER INFORMATION 14
3.6 THE CONTROL PANEL 15
3.7 USING THE CINDERELLA CLASSIC TOILET 16
3.8 OPERATING THE FRONT COVER AND ASH CONTAINER 17
4. GENERAL MAINTENANCE INSTRUCTIONS 18
4.1 END PRODUCT CHARACTERISTICS 18
4.2 CUSTOMER MAINTENANCE 19
4.2.1 EMPTYING AND CLEANING THE ASH CONTAINER 19
4.2.2 STEAM-CLEANING THE CATALYTIC CONVERTER 19
4.2.3 CLEANING THE BOWL 20
4.2.4 INSPECTING THE CATALYTIC CONVERTER 21
4.2.5 CLEANING THE APPLIANCE FLUE TERMINAL 21
4.2.6 RINSING THE CATALYTIC CONVERTER WITH HOT WATER 22
5.0 TROUBLESHOOTING AND FAQ 22
5.1 TROUBLESHOOTING TABLE 24
6. REPAIRS AND SPARE PARTS 25
6.1 SPARE PARTS LIST 25
6.2 WIRE DIAGRAM 26
7. WARRANTY 27

ENGLISH
3
1. GENERAL SECTION
1.1 INTRODUCTION
It is essential to ensure proper ventilation in accordance with the guidelines in this manual to guarantee the
functionality of your new Cinderella toilet. Improper installation may cause malfunction, wear or odours and
will void the warranty. When installing the appliance, the technical and administrative regulations in which the
country it is installed must be adhered to.
1.2 APPLICATION ACCORDING TO REGULATIONS
This appliance is designed to incinerate bodily waste products and small sanitary products such as tampons and
non-alcoholic baby or face wipes.
1.3 OPERATING INSTRUCTIONS GUIDE
Please read this instruction manual carefully before installation and rst use. Store these instructions in a safe
place so you can refer to them when required. If you pass on the product to someone else, hand over this
instruction manual along with it.
These instructions provide you with the necessary guidance for proper installation, handling and maintenance
of the product. It is important that both the installer and the user familiarize themselves with the instructions
given in this manual. The manual also contains information on professional maintenance and any necessary
information for service and repairs.
1.4 LIMITATION OF LIABILITY
The manufacturer accepts no liability for damage in the following cases:
• Faulty installation
• Damage to the product resulting from incorrect connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
• Non-observation of the operating and maintenance instructions
• Application not in accordance with the regulations or provisions
• Use of non-original bowl liners and spare parts
1.5 LISTINGS AND CERTIFICATIONS
The Cinderella Classic has been extensively tested by NEMKO in accordance with the European standard for
electrical safety and electromagnetic compatibility.
1.6 ENVIRONMENTAL REQUIREMENTS
• Ambient temperature range: -20–40°C
• Operating altitude: Tested to 2,500 m
CAUTION!
When the Cinderella toilet is installed, minimum clearance to combustible construction must
be: 50mm from sides, 50mm from rear

4
DANGER!
Safety instruction: Failure to observe this instruction could cause fatal or serious injury.
WARNING!
Safety instruction: Failure to observe this instruction could lead to injury.
CAUTION!
Failure to observe this instruction could cause material damage and impair the function
of the product.
NOTE!
Supplementary information for operating the product.
DANGER!
• Do not spray aerosols in the vicinity of this appliance while it is in operation.
• Do not use or store ammable materials in or near this appliance.
• Do not place articles on or against this appliance.
• Do not modify this appliance.
DANGER!
• Do not operate the incinerating toilet if it is visibly damaged.
• If the power cable for this toilet is damaged, it must be replaced by the manufacturer,
customer service or a similarly qualied person in order to prevent safety hazards.
• This toilet may only be repaired by qualied personnel. Inadequate repairs may cause
serious hazards.
• Only operate the toilet with the voltage shown on the type plate on the back of the toilet.
WARNING!
• Danger of crushing! Do not place your hand on the hinge or underneath the toilet seat
while open, as there is no soft-close function on the lid and seat.
• Do not empty the ash container when hot.
• Before activating, ensure that the power supply line and plug are dry.
CAUTION!
• During transport, only hold the toilet by the toilet shell. Never hold the toilet by the
power cord, front cover, lid or seat or exhaust outlet.
• Danger of overheating! Always ensure sucient ventilation so that the heat and
emissions generated during incineration can dissipate from the ue pipe. Ensure
proper air ow for the system. Always ensure sucient ventilation into the toilet.
Make sure that the toilet is suciently far away from walls or other objects so that air
can circulate.
1.7 GENERAL SAFETY INSTRUCTIONS

ENGLISH
5
REGISTER WITH “MY CINDERELLA”
When you register your toilet in “My Cinderella”, you will receive relevant information about our products and
available support systems, as well as special oers specically tailored to your toilet model. In the event of theft,
registered toilets will be in our manufacturer database.
Online Troubleshooter
A complete guideline to your toilet, providing useful advice and user improvements, enabling you to solve the
most common issues on your own, without having to call for assistance.
Easy access to information
You can download product documentation from our online documentation centre, where you will nd product
manuals, service manuals and a Disassembly of Waste Electrical and Electronic Equipment (WEEE) manual.
Service and spare parts
Select country of origin and receive a list of local dealers where you can obtain service and spare parts.
1.8 APPLIANCE RATING PLATE
The appliance rating plate can be found on the back plate of the incineration toilet. From this plate you can read
the model identication, serial number, toilet ratings and support detail. You will need these details whenever
you contact the customer service centre or when ordering spare parts.
1.9 CINDERELLA ONLINE
Appliance Specications
MANUFACTURER
CINDERELLA ECO GROUP AS
Sjøvikvegen 67, 6475 Midsund, NORWAY
For sales and support call [phone]
or visit our web www.cinderellaeco.com
CINDERELLA CLASSIC
MODEL: CLASSIC
SERIAL:
VOLTAGE........................................ 230-240 V AC 50-60Hz
CURRENT ....................................... 9 A
HEATING ELEMENT:...................... 2000W
EL MOTOR: .................................... 12 V DC
BATTERY: ....................................... 12 V DC 2,6 Ah
FAN BLOWER................................. 12 V DC
CAPACITY....................................... 4 PEOPLE PR. HOUR
DESIGNED FOR.............................. HOME / CABINS
YEAR OF MANUFACTURING......... 2022

6
INCLUDED ITEMS QTY
Cinderella Classic 1
Bowl liners 100
Product manual 1
Height 600 mm
Seated height 540 mm
Width 390 mm
Depth 590 mm
Height center outlet 415 mm
Height center inlet 155 mm
2.2 MEASUREMENT SPECIFICATIONS
590
600
415
390
2. INSTALLATION SECTION
2.1 UNPACKING YOUR CINDERELLA INCINERATING TOILET
NOTE!
When unpacking the Cinderella toilet, use the
pre-xed strip on the bottom of the box. Release
the strip all around the box and lift up the box.

ENGLISH
7
1
2
1
4
2
3
6
5
CINDERELLA ORIGINAL INSTALLATION KIT QTY
1Ari vent 160 mm (201 cm²) 1
2Wall mount rod 3
3Support clamp 3
4Elbow 87 w/drain 1
5 Flue Terminal Cap 1
6Threaded rod 30 mm 3
CINDERELLA ORIGINAL INSTALLATION KIT QTY
1Male-Female 1066 mm ue pipe 5
2Male-Male 500 mm ue pipe 2
2.3 ORIGINAL INSTALLATION PACKAGES FOR YOUR CINDERELLA TOILET
Cinderella Original Installation Kit: We strongly recommend the use of the “Cinderella Original Installation Kit”
when installing you appliance. This complete set includes necessary parts for an ideal installation, optimizing
the incinerating process and functionality of your toilet. The installation kit includes two separate boxes. Box
no. 1 includes 7 x 110mm UV stabilized PP quality pipes - for installing the inlet and outlet ventilation. Box no.
2 includes an optimized ue cowl and elbow, for increasing the system ow rate and incineration eciency. It
contains a storm collar for the inlet air, as well as pipes and clamps to support the installation of the pipes.
NOTE!
• This manual will further explain and demonstrate how to optimally install your toilet,
based on the parts included in the Original Cinderella Installation Kit. Should you desire
to install your Cinderella appliance with other than our original pipes and parts, be sure
that they comply with the specications described under section 2.4.1 “parts and
material specications”.
• In order to guarantee your Cinderella Incineration Toilet functions properly, It is
essential to ensure proper ventilation in accordance with the guidelines in this
manual. Installations deviating from the manufacture specications or the use of
non-authorized parts in the installation of the appliance will cause malfunction, wear
or odors and will void the warranty.

8
2.4 INSTALLATION SPECIFICATIONS
2.4.1 SPECIFICATIONS PARTS AND MATERIALS
ITEM SPECIFICATIONS
Ventilation pipes Cinderella Classic is required to be installed with 110 mm pipes with a smooth inner
surface and a minimum inner diameter of 102 mm. The pipe material must be
specied for temperatures over 100° C and preferably of a PP- or CPVC- type. We
strongly recommend using the Original Cinderella PP- quality pipes.
Elbow (Outlet air) Cinderella Classic is required to be installed with a smooth curved elbow that
minimizes the restriction of the air ow. We strongly recommend using the Original
Cinderella Elbow 87° w/ drain.
Flue Terminal Cap Cinderella Classic is required to be installed with a ue terminal cap that prevents
intrusion of rainwater and that has a minimum restriction of the air ow. Wind
fans or similar is not to be used when venting the Cinderella Incinerating Toilet. We
strongly recommend using the Original Cinderella Flue Terminal Cap.
2.5 INSTALLING THE CINDERELLA INCINERATING TOILET
It is essential to ensure proper ventilation in accordance with the guidelines in this manual to guarantee the
functionality of your new Cinderella toilet. Improper installation may cause malfunction, wear or odors and will
void the warranty. Read each section carefully before starting the installation of the toilet. Always make sure that
the work is carried out by professionals in accordance with local regulations.
WARNING!
Before cutting any holes, always check that you will not cut any electrical wiring or water
pipes.
NOTE!
• The inside of the ventilation pipe must be smooth and not embossed or grooved.
• Never use a mesh net in the ventilation pipe as this might restrict the airow
in the system.
• The elbow must be accessible when installed, so that the drainage pipe can be rinsed,
and the outlet pipe cleaned.
• Cinderella Classic is proved for use in bathrooms/wet rooms (IP 34 classied), but water
must not be splashed over the external parts of the toilet.
• The toilet must be placed on a rm and level base and your Cinderella appliance may
be installed on a heated oor
CAUTION!
• Upon installation of the appliance, the technical and administrative regulations of the
country in which the toilet is installed must be adhered to. We recommend that you
contact your local dealer for planning and installing your Cinderella toilet.
• Never use 90° bends in addition to the elbow.
• If the pipe perforates the roof surface, ensure that it is in compliance with
building regulations.
• Do not use any exible ducts or pipes when installing the Cinderella toilet.
• Never connect more than one appliance to the vent.
• The elbow must be accessible when installed, so as to be able to rinse the drainage pipe
and clean the outlet pipe regularly,

ENGLISH
9
DIAMETER VENT PIPE OUTLET DIRECTION REFERENCE BENDS MAXIMUM PIPE LENGTH
110mm Horizontal ue pipe C (Not allowed) 1.0m
110mm Vertical ue pipe A None 6.0m
110mm Vertical ue pipe B 2 x 45° bends 5.0m
2.5.1 INSTALLING THE OUTLET PIPES
415
Max A
C
415
Max A
415
Max B
C
NOTE!
The center of
the appliance
ue terminal is
415 mm from
the oor level.
NOTE!
When adjusting the pipe length, please notice
that the pipe will enter 35 mm into the appliance
ue terminal, and will have to be calculated into
the planning of your installation.
NOTE!
When installing the pipe vertically, straight up
from the appliance, please notice that the
minimum distance from the wall must be
280mm.
NOTE!
The Original Cinderella Installation Kit includes
5 x 1066 mm pipes to be used on the outlet
installation, the pipes are delivered with socket
and gasket for simple installation. When
installing the pipe on the outer wall, you will have
to enter the pipe from the external to the inside.
415 mm
Ø 111mm
35 mm
280

10
400 mm
600 mm
NOTE!
• The pipe must always be installed vertically above the
roof and extend at least 600 mm above the roof surface.
If the outlet air pipe is to be enclosed (e.g. using metal
siding), make sure that the end of the pipe extends at
least 400 mm above the enclosure.
• If installed where snow is likely to accumulate it might
be necessary to extend the pipe further, and to secure
accordingly.
2.5.2 INLET AIR TERMINAL
It is required to have an inlet air vent in accordance with manufacturer specications, this to ensure adequate air
circulation and oxygen required for proper incineration. The Cinderella Original installation Kit includes a ue
specially designed air vent designed for optimal ow and increased product eciency. The air inlet vent should
preferably be installed as close to the Cinderella toilet as possible, to ensure a good air supply to the toilet and reduce
the environmental impact in the toilet room. It is important that there are no other air-dependent installations used
at the same time as the toilet, e.g. an extractor fan or replace. The Cinderella Classic toilet draws air mainly from the
underside of the toilet. It is therefore possible to have the air intake underneath the toilet. This allows you to insulate
the air as much as possible in the toilet and minimise the environmental impact in the toilet room.
NOTE!
Cinderella supplies a specially designed “siphon” that ts
onto the elbow provided in the installation kit, this item
can be purchased as an accessory from any Cinderella
dealer. If installation is done from the interior, you will
need to connect the siphon to the elbow-piece to prevent
condensation and rainwater to drain onto the oor. Failure
to collect the condensation and emptying it regularly, may
result in damage to the oor.
50 mm
NOTE!
If the installed air vent has an adjustable opening, always
make sure to leave it open by a minimum of 75 mm when
operating the toilet.
NOTE!
• The inlet vent’s minimum dimensions must be 160 mm (diameter) / 201 cm²
• The vent must be open at all times when using the appliance. Remember to clean the
vent at regular intervals.
• Make sure that there is no conict between the toilet’s air supply and other installa-
tions, such as a replace or extractor fan.
• Do not use a separate ventilation fan or similar to extract air from the room where the
toilet is installed when using the Cinderella Classic toilet.
• If you have open ventilation under the toilet, it may be advisable to use a mesh over the
hole to keep insects and vermin from entering the toilet. Make sure that the mesh is
not too ne as this will impede the air ow.
75 mm

ENGLISH
11
Power requirements INPUT CURRENT FUSE
220V-240V AC 9 A 10 A
Power consumption STANDBY MODE INCINERATING MODE
0.5 W 2000 W
Connection polarity CABLE CROSS SECTION CABLE LENGTH PLUG TYPE
1,5 mm² 2,3 m Type F Schuko CEE 7
2.6 ELECTRICAL SPECIFICATIONS AND REQUIREMENTS
WARNING!
• This appliance must be installed in accordance with National Electrical Codes, as well
as all state, municipal and local codes.
• The correct voltage, frequency and amperage must be supplied to the appliance from
a dedicated, grounded circuit which is protected by a properly sized circuit breaker.
• The proper voltage, frequency and amperage are listed in this manual and on the
product rating plate on the back of the toilet.
DANGER!
• The connection cable must be laid in such a way that it does not come into contact with
sharp edges.
• Changes to the internal electrical installation or the connection cable must be performed
by a professional tradesman or a similarly qualied person in order to prevent safety
hazards.
• Power converters are not recommended for use with your Cinderella product. Cinderella
Classic has a maximum power consumption level of 2000W, which may be sustained over
periods exceeding an hour at a time. Power converters with a “peak consumption” level of
2000W may be unable to maintain this power output and become overloaded, damaged
or unsafe if used with your Cinderella Classic.
2.5.3 INSTALLING THE ORIGINAL CINDERELLA FLUE TERMINAL CAP
Min 10 mm
2 x
NOTE!
The toilet is delivered with a 16 Amp, 250Volt,
2 Pole 3Wire Grounding Type F schuko CEE 7/7 plug.
To supply sucient power to the unit as delivered,
it will require a dedicated grounded circuit, with at
least 10 amps of available power at 230 V AC.
NOTE!
The Cinderella Original installation Kit includes a ue terminal cap that is designed for
optimal ow and increased product eciency. This cap consists of two parts, where the
base section can be xed to the pipes with stainless screws or glue, this for easy connection
and removal for maintenance of the ventilation pipes. Use the 500 mm pipe included in the
Cinderella installation kit as the last section of the ventilation pipe, this will utilize the
connection of the ue terminal cap.

12
CONTROL ITEMS CONFORMANCE
The connected voltage is in accordance with the appliance rating plate
The appliance is installed in accordance with manufacturers specications
- The vertical ue pipe is installed according to manufacturer specications
- The ue termination is no less than 600 mm from the roof surface
- Safe draining “siphon” is installed where condensation is likely to accumulate
- Flue pipe material is installed according to manufacturer specications
- Flue cap is installed according to manufacturer specications
- 90 degree elbow is installed according to manufacturer specications
2.7 CHECKLIST TO VERIFY COMPLETE INSTALLATION
2.8 PERFORMANCE TEST TO VERIFY SYSTEM FUNCTIONALITY
When the “Start” button is pressed, the incineration cycle will be activated. The estimated incineration time for
the verication test is approximately 60 – 80 minutes. The yellow light will be lit when the incineration is ongoing,
and the complete test should be completed without any fault indications or system interruptions. The toilet will
have to cool down to the point that the fan has stopped before the ash container can be removed. The cooling
phase can take from 60 – 90 minutes, depending on the ambient cooling temperature.
The end result should only be ne white dust. Any end results deviating from this or an incineration time
exceeding 90 minutes may indicate a restriction in the ue vent or a lack of oxygen. Check that the installation is
in accordance with the manufacture specications, presented in section 2 of this manual.
1 meter
1,2 liter
2
13
564
WARNING!
The ash container will get very hot while incinerating. Do not remove the ash container until
the toilet has cooled completely and the fan has stopped.
60 - 70 minutes
60-80 Minutes

ENGLISH
13
3. USER SECTION
3.1 INTENDED USE AND HANDLING
The Cinderella Classic toilet is intended for indoor installation and use in leisure homes such as cabins, second
homes, outhouses, site welfare units, boathouses and pool houses. The toilet is solely designed to incinerate
bodily waste products and small sanitary products such as tampons, sanitary pads and non-alcoholic baby, face
and cleaning wipes. Using the Cinderella Classic to incinerate other items constitutes misuse and will void your
warranty.
Do not put the following items into the toilet:
3.4 CINDERELLA CLASSIC SAFETY FEATURES
• The incineration process is inactive while the toilet lid is open. The incineration will not start until the seat and
lid are closed.
• The hatch to the incineration chamber CANNOT remain open while the toilet is still hot (e.g. during cleaning).
This is only possible when the toilet has cooled down and the fan has stopped.
• Should a ventilation problem arise and the internal temperature of the toilet increases to more than 105 °C,
incineration will be interrupted and an error message and code is displayed. This situation requires a manual
reset to ensure the ventilation issue is addressed before the toilet can be used again.
• If the ash container is improperly positioned after emptying, incineration will not start and a error message
will be displayed.
• If the combustion chamber hatch mechanism gets jammed or is prevented from closing properly,
incineration will not start and an error message will be displayed.
• The Cinderella Incinerating toilet’s smart software monitors the temperature while incineration is taking
place. If any deviations from the normal temperature range are detected, this will immediately result in the
incineration stopping and a error message will be displayed.
3.2 GENERAL SAFETY
3.3 SAFE OPERATIONS
• Excessive amounts of paper of
any kind
• Chlorine based cleaning agents
• Alcoholic cleaning wipes
• Newspaper
• Paper towels
• Flammable liquids or materials
• Cigarette lighters
• Cigarettes or cigars
• Petrol
• Alcoholic drinks or liquors
• Alcohol or rubbing alcohol
• Nail polish remover
• Lighter uid
• Lamp oil / kerosene
• Aerosol containers
• Glass or plastic bottles or
containers etc.
DANGER!
• Do not operate the incineration toilet if it is visibly damaged.
• If the connection cable for the toilet is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualied person in order to prevent
safety hazards.
• This incineration toilet may only be repaired by qualied personnel. Unauthorized
repairs can result in considerable danger or damage to the toilet.
• Cleaning and user maintenance may not be carried out by unsupervised children.
• Do not use any explosive substances or ammable cleaning agents when maintaining
the toilet.
WARNING!
• The ash container in the toilet will become very hot when the toilet is in use. Make sure
the safety cover is in place when the toilet is in use. Do not empty the ash container
until the toilet has cooled completely.
• The seat does not have a soft-close function, take care not to crush your hands or
ngers when closing the seat or lid.

14
3.5 IMPORTANT USER INFORMATION
Capacity 4 uses per hour
The Cinderella Classic toilet is designed to handle up to four visits per hour. To avoid overload, more
than four visits per hour is not recommended. Overloading the toilet with many visits in a short
period of time, without completing an incineration cycle, can result in odours and leakage, and may
damage the toilet.
Emptying Frequency
The total liquid capacity of the system’s waste container is 5 L. The ash container should be emptied
frequently (once a week) for best operation. This ensures more ecient incineration and helps keep
the catalytic converter cleaner.
If your ash container has not been removed (by weekly emptying routines), your Cinderella Classic
will display a message to empty the container after 90 incineration cycles, and will lock out further
visits if not emptied after 120 visits. We recommend that you empty the toilet as often as possible to
ensure better incineration eciency and less wear of the product.
Failing to empty the ash container when full may cause damage to the toilet and void your warranty.
Preparing your toilet for a lengthy period of non-use
In cases of longer periods of non-use, the waste must be incinerated, and the ash container
emptied.
Short period of increased use
Should the situation require an unusually high number of guests to use the toilet for a short period
of time, please follow these tips:
1. Empty the ash container completely before guests arrive.
2. Preheat the toilet before use by opening and closing the lid then pressing the Start button.
3. Ensure guests are instructed to use a bowl liner and press “Start” after every visit.
4. Check regularly to ensure the toilet lid is closed and the yellow incineration light is still lit.
5. You may need to run an extra incineration cycle or two before emptying the ash container to
ensure that the waste has been fully incinerated.
Long period
No use
1 hour
Max 4 visits
7
Empty Once a week
1 hour
Max 4 visits
NOTE!
• Always remember to place a new liner in the toilet bowl before use, one liner per visit
• The toilet lid must always be closed when the toilet is not in use. Incineration will not
start or continue until the lid has been closed.
• The incineration cycle could take up to 180 minutes from the most recent visit.
• The fan will continue to run until incineration is completed and the internal
temperature of the toilet has returned to the normal range. The cooling phase can
exceed 120 minutes after incineration is completed, depending on the temperature of
the air provided for cooling.
• Your Cinderella toilet may be used at any point during the incineration or cooling
processes. Incineration is interrupted during use. Be sure to close the lid and press
‘‘Start’’ at the completion of each visit.

ENGLISH
15
3.6 THE CONTROL PANEL
The control panel is equipped with three LED lights that will tell the user about the status of the system. It is
important that all users familiarize themselves thoroughly with these signals before use. An overview of all the
light and sound signals can be found in the troubleshooting table in section 5.1.
Emptying indicator
Your Cinderella Classic will indicate when the ash container is full and must be emptied. The yellow and red LED
lights will blink alternately and three beeps will sound when opening the lid. If the ash container is not emptied
within a short number of uses, the toilet will lock down. At this point the yellow, red and green lights will be
constantly lit and you will hear three short beeps every ten seconds until the ash container is emptied.
Standby
Incineration mode
System interrupted
NOTE!
• A green light indicates that the toilet is connected to the power supply. When only the
green light is lit, the toilet is on standby and ready for use.
• A yellow light indicates an ongoing incineration process and will light constantly while
the toilet is in incineration mode
• A red light indicates interruption and will alert the user that the toilet is no longer
incinerating or on standby.
NOTE!
The ash container will usually only be half full when you get the indication to empty the ash,
you should still empty the ash as emptying it often improves the incineration eciency.

16
3.7 USING THE CINDERELLA CLASSIC TOILET
1. Check that the green light on the
control panel is lit, indicating the
unit is powered and ready for use.
2. Lift the toilet lid and seat. A red
light starts ashing. The ventilation
fan starts.
3. Place a bowl liner in the bowl.
Use a new bowl liner for every visit.
4. Lower the seat. The toilet is
ready for use.
5. Use the toilet as usual. If little
waste is produced, it may be
helpful to pour some water into the
bowl to add weight.
6. Close the toilet lid.
7. Push the “Start” button to drop
the bowl liner and its contents
into the incineration chamber.
Incineration begins as soon as the
hatch is closed. The toilet is now
ready for the next user.
8. A constant yellow light will display during active incineration. The toilet
may be used at any point. This will temporarily interrupt incineration.
Incineration time may vary based on the number of visits and amount of
waste.
3
4 5 6
7
1 2
8

ENGLISH
17
3.8 OPERATING THE FRONT COVER AND ASH CONTAINER
1 2 3
4 5 6
WARNING!
Only operate the ash container when the toilet is in standby mode and suciently cooled.
NOTE!
Please see the maintenance section for instructions regarding cleaning and emptying the
ash container.

18
4. GENERAL MAINTENANCE INSTRUCTIONS
This manual includes both customer maintenance and the maintenance to be performed by professionals
in accordance with the necessary expertise and authorizations.
A smooth-running air circulation system is critical to keep your toilet functioning properly. Particles generated
during the incineration process can clog the catalyst and exhaust pipe over time, and it is important to regularly
maintain these elements to ensure proper functionality.
In order to ensure optimal operation and extend the lifetime of your Cinderella Classic appliance you will
need to set aside a little time for preventive maintenance. Good maintenance routines will give you lower
operating costs and cause less wear on the product. We strongly advise our customers to perform frequent
maintenance as follows:
1. Empty the toilet frequently. Do not base your use on the maximum limit of the appliance.
2. Always clean the ash container and insert when emptied (see section 4.2.1).
3. Always perform the steam cleaning after each box of bowl liners (500 uses), preferably after each
emptying and washing of the ash container. (see section 4.2.2).
4. Always observe the end result characteristics when emptying the toilet. Deviations in the end result
may indicate the need for maintenance or service (see section 4.1).
4.1 END PRODUCT CHARACTERISTICS
The residual waste, or “ashes”, will consist of pathological residue, salts and minerals, and will therefore
often be perceived as hard and crystallized. There should be no visible signs of paper or aky layers of
unburned waste, the ashes should be a combination of white and dark shade of grey. If there are larger
deposits of black unburned waste, humidity or paper when emptying the toilet, please start an additional
incineration without inserting paper or water. When the incineration is completed, empty the ash
container and perform the maintenance procedures as instructed in this manual.
WARNING!
Before performing maintenance, always make sure that the toilet is not in incineration
mode and that the toilet is suciently cooled.
CAUTION!
• The ash is not suitable to use as fertilizer or compost. It should be disposed of in your
household waste in accordance with relevant public regulations.
• The remaining ash is sterile and safe to handle when it has incinerated to a light colour.
If the ash is black and aky or the incineration cycle was incomplete, run an extra
incineration cycle to ensure that the ash has been fully incinerated. If the problem
persists, see the troubleshooting section for further advice.

ENGLISH
19
CAUTION!
Do not use any sharp tools or objects when cleaning the ash container insert, as this will
damage the insert and reduce its service life.
NOTE!
• In order to preserve the functionality of your toilet in the best possible way, we
recommend that you carry out the “steam cleaning” procedure in accordance with
section 4.2.2 every time you empty and wash the insert. This will prevent the possible
accumulation of tar and unwanted deposits in the catalytic converter and toilet exhaust
system.
• When emptying the toilet, make sure that the grid power is connected. Emptying the
appliance without power will not enable the system to reset the use counter.
4.2.2 STEAM-CLEANING THE CATALYTIC CONVERTER
Recommended frequency: When emptying the ash container or at least every 500 uses. To perform steam
cleaning:
1. Ensure that the toilet is cold and the ash container has been emptied and cleaned (see section 4.2.1).
2. Remove the front cover and release the ash container
3. Pour approximately 1 L of clean water into the toilet insert
4.2 CUSTOMER MAINTENANCE
4.2.1 EMPTYING AND CLEANING THE ASH CONTAINER
15 minutes
1 2 3
456
7 8

20
123
45 6
1 2 3
4.2.3 CLEANING THE BOWL
Recommended frequency: as required for cleanliness and when emptying the ash container.
To clean the bowl:
1. Open the toilet lid.
2. Press and hold the Start button for three seconds to open the hatch to the washing position.
3. Use moist paper, water and a mild cleaning agent as required. Close the lid and start the incineration
NOTE!
Do not use the toilet during the maintenance procedure, as this will impair the function of
the cleaning. The toilet can be used when the toilet returns to standby mode.
DANGER!
Do not use ammable cleaning agents to clean the bowl. Some metal edges may be sharp.
CAUTION!
Do not use chlorine-based cleaning agents to clean the bowl. Chlorine is extremely harmful
for the catalytic converter and if put into the toilet it may cause the catalyst to malfunction.
4. Insert the ash container carefully without spilling any water, and attach the front cover.
5. Press “Start” to begin an incineration cycle.
6. The water will start to boil and the steam will clean out any debris in the catalytic converter. This system
cleaning will normally take 60–80 minutes.
60 - 70 minutes
60-80 minutes
