Sentec IPV 1 User manual

Place a maximum of 20 ml of normal
saline or prescribed medication in the
nebulizer cup.
Connect yellow tubing quick-connect
fi  ing to nebulizer cup.
Connect clear tubing quick-connect
fi  ing to the cap.
Press red tubing onto connector.
Connect blue corrugated tubing to
exhalation port.
Connect the universal connector to
the bo om of the IPV® 1 device, then
place the Phasitron in the holder.
Ensure Gas Source knob is in the OFF
position. Then, connect the IPV® to a
50 psi gas source.
Place a maximum of 20 ml of normal
saline or prescribed medication in the
Connect yellow tubing quick-connect
Connect clear tubing quick-connect
Connect blue corrugated tubing to
Connect the universal connector to
the bo om of the IPV® 1 device, then
place the Phasitron in the holder.
Assembling Phasitron Patient Connections
IPV®1 Quick Reference Guide
Mouthpiece
Instruct patient to keep
lips and cheeks splinted
to ensure the pulses are
directed into the lungs.
Mask
It is recommended
to use a resuscitation
mask or similar non-
vented mask.
Direct
The Phasitron can be
a ached directly to
an artifi cial airway or
airway adaptor.
Before you start
NOTE: For patients under fi ve
years of age without an artifi cial
airway, mask confi guration is
recommended

Gas Source knob turns on the IPV® 1 and
allows selection of air or oxygen or turns
o the IPV ® 1.
Starting Position: OFF
Frequency determines the rate of high-
frequency percussive pulses delivered to
the patient.
Starting Position: Rotated fully to the left.
Amplitude determines the pressure
delivered to the patient.
Starting Position: Rotate Fully to the
right in the OFF position.
NOTE: for patients coming o
respiratory support consider starting
with amplitude on (i.e. knob pointing
straight up) and quickly titrate to target
the MAP delivered from previous
support.
Controls + Starting Se ings

Delivering Therapy
W o r k fl o w
Patient Se ings
CONTROL ADJUSTMENTS
AMPLITUDE Adjust by rotating the knob to the left until visible chest wiggle is obtained
and pulses can be auscultated throughout lung fi elds.
FREQUENCY Fast/higher: secretion mobilization and quickly improving gas exchange.
Slow/lower: mobilizing thicker secretions as well as recruiting the lung.
Before
administering
IPV® therapy,
ensure knobs
are in their
recommended
starting positions.
Ensure the patient
is in an upright,
comfortable
position, or is lying
with head and
shoulders elevated
by pillows.
Ensure GAS
SOURCE is in the
OFF position.
Then, connect the
IPV® to either a
50 psi oxygen or
air gas source.
Then turn the GAS
SOURCE knob to
the appropriate
source of gas.
Connect the
Phasitron to
the patient
using mouthpiece,
mask, or direct
to patient airway.
Gradually
increase the
AMPLITUDE
by turning the
knob to the left to
obtain adequate
chest wiggle and
aeration of pulses
throughout lung
fi elds.
As patient
becomes
acclimated to the
the ra py, rotate
FREQUENCY
knob to the right.
Rotate between
fast and slow
frequencies every
few minutes, or as
indicated by the
patient’s response
to therapy or lung
condition.
NOTE: It is recommended to perform
therapy for 15 to 20 minutes every 6
or 8 hours, or per provider orders.
Patient should be monitored throughout
therapy.
NOTE: It is recommended to perform
a pre-use check of device operation
before a aching the Phasitron
to the patient interface, as
described in the IPV® 1 Manual

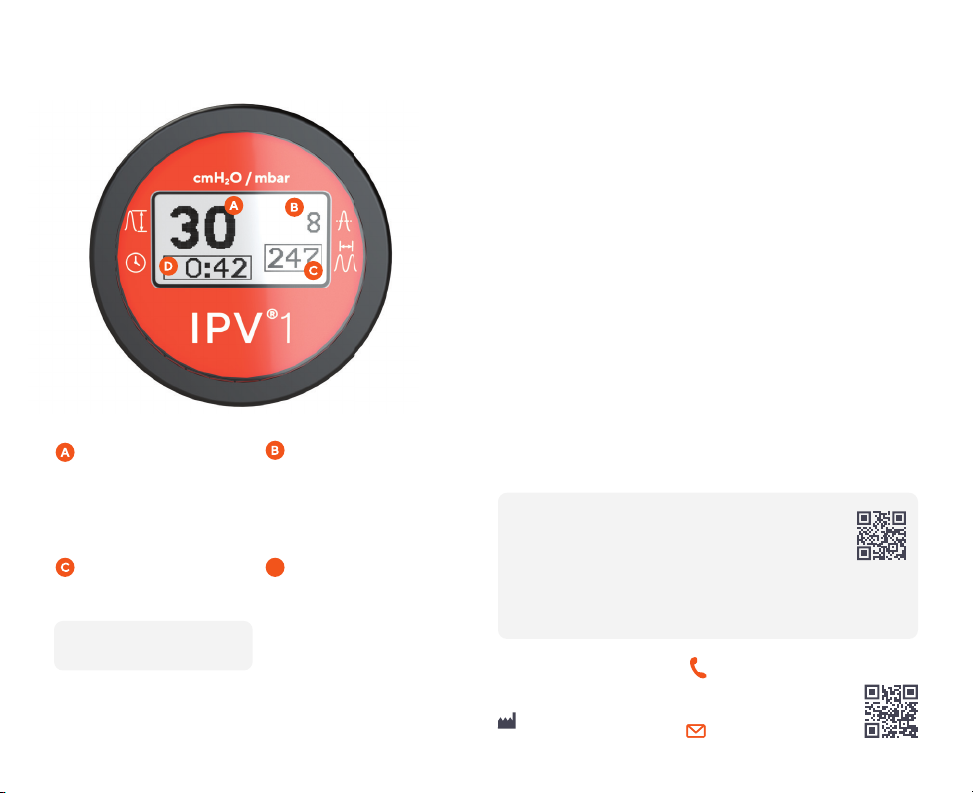

Pulse Amplitude:
Calculated from measuring
the di erence between the
peak and minimum pulse
pressure, averaged over 5
seconds.
Mean Airway Pressure
(MAP): is the average
pressure (amplitude +
CPAP) in the lungs over 5
seconds.
Pulse Frequency Rate:
represents the number of
pulses per minute.
D Usage Timer: total usage
time of the current session
NOTE: Display numbers are
for reference only.
Digital Display Troubleshooting
NOTE: Refer to the Instruction Manual for the
IPV® 1 for warnings, cautions, and additional
information. Always follow hospital protocol and
use good clinical judgement when delivering IPV®
therapy. Absolute contraindications for IPV®
usage include untreated tension pneumothorax
and/or an untrained or unskilled operator.
Digital display o
The IPV® pressure must be >2.5 cmH2O at the Phasitron
before the display turns on. Consider occluding the end of
the Phasitron, allowing the device to measure at least 2.5
cmH2O to wake digital display. Check connections and/or
digital display ba ery.
Nebulizer not aerosolizing
Ensure there is liquid present in the nebulizer cup and check
for fl ow out of the nebulizer ba le. Disconnect the yellow
tubing and verify fl ow. If fl ow is present, turn the Gas
Source knob to the OFF position and reconnect the yellow
tubing to the nebulizer bowl. If the issue persists, contact
product support.
Slow or no percussions
Check that the inlet gas source is properly connected.
Check the device to ensure the Gas Source is turned on to
the correct source, make sure Amplitude is not in the OFF
position, and adjust Frequency knob for higher rate. If the
issue persists, contact service.
Product
support
24/7 Clinical Support:
800-850-7250 #2
Technical Support:
877-425-8746
[e-mail]
PAC-SAL-LIT-734 (1)
2024-01
Percussionaire
130 McGhee Road, Suite 109
Sandpoint, ID 83864
