Separett Tiny User manual

User manual Användarmanual Käyttöopas Brukerhåndbok
Bedienungsanleitung Mode d’emploi Manual de usuario
TinyTiny®®
MADE IN
VÄRNAMO
SWEDEN
Tiny with urine container art.no. 1270-01
12340-01

3
Dear customer,
Thank you for choosing a product from Separett and congratulations on your new toilet!
At Separett, we have been developing toilet solutions that are not limited by the availability of
either water or sewage systems for over 40 years, with the vision of contributing to a higher
quality of life for the many.
Today, our toilet solutions make the lives of hundreds of thousands of people easier, all over the
world. It is very important to us that the toilet solution you have chosen is of a high quality, has a
high degree of reliability, and requires minimal maintenance.
We hope that you enjoy your new product, while at the same time saving our planet loads of
water.
Welcome to the Separett family

4
Warranty
This product has a 5-year warranty for manufacturing and/or material defects.
However, this warranty does not apply to normal wear and tear, incorrect use or maintenance,
or if the customer has damaged or altered the product in some way. If you have any questions
regarding spare parts or warranty, please contact your nearest Separett dealer, which you can

Keep your receipt
Space for receipt


5
Content
Warranty 4
Important safety instructions 6
Technical data 8
Use 10
Waste handling 13
Troubleshooting 15
Accessories 16
Contact Us 17

6
Important safety instructions
IMPORTANT SAFETY INSTRUCTIONS
READ THE INSTRUCTIONS CAREFULLY BEFORE USE. THE MANUFACTURER IS
NOT RESPONSIBLE FOR ANY PERSONAL INJURY OR OTHER DAMAGES ARI-
SING AS A RESULT OF FAULTY INSTALLATION OR IMPROPER USE. SPARE THE
USER MANUAL FOR FUTURE NEEDS!
Safety
This product can be used by children and people with
impaired physical, sensory or mental capacity, as well as people
with a lack of experience and knowledge of the product, pro-
vided that they are monitored or instructed on how to use the
product safely and understand the risks that are
associated with improper use.
• Toilet packaging and packing materials are not toys. Keep pack-
ing material out of reach for children and dispose of it properly.
WARNING! Do not use the toilet if it is damaged or not
working properly.
Ensure the functioning of the toilet by regularly checking
the following:
1. That the urine container is correctly positioned
2. That the gaskets are functioning
3. That there is no damage to any load-bearing parts
4. That there is no damage to the cabling

7

The toilet must only be used in accordance with the user ma-
nual. Materials not associated with normal toilet use should not
be thrown in the toilet. Ensure that all new users of the toilet
receive required information on how to use the toilet safely. The
toilet is not adapted for standing or climbing on. Young children
or children who cannot safely use the toilet in accordance with
this manual should only use the toilet under adult supervision.
Do not allow children to play with this product.
Maintenance
Regular maintenance is important to ensure that the toilet func-
tions properly. Check the following during maintenance:
1. That toilet gaskets are intact
2. That the urine container is correctly positioned
3. That the level indicator in the urine container is
functioning properly
Avoid electric shocks
1. Never use a damaged power cord or plug, and never
run the cord over hot surfaces or hard sharp edges.
2. If the power cord is damaged, it must be replaced by
the manufacturer, its service agent or by a professional
to avoid danger.
Other
• This product is intended for household use only
or for a limited number of people with good knowledge of its
proper use. We advise against placing urine-diverting toilets in
public restrooms.
• Do not make any changes to the product that will change


8
Technical data
Toilet parts
1. Lid
2. Emptying indicator
3. Power connection
4. Seat
5. Urine bowl
6. Inner lid
7. Screen
8. Fan duct
9. Ventilation outlet
10. Solid waste container
11. Clip-on strip for bag
12. Lid for solid waste
container
13. Urine container
1
43
5
87
2
9
10
611
12
13

9

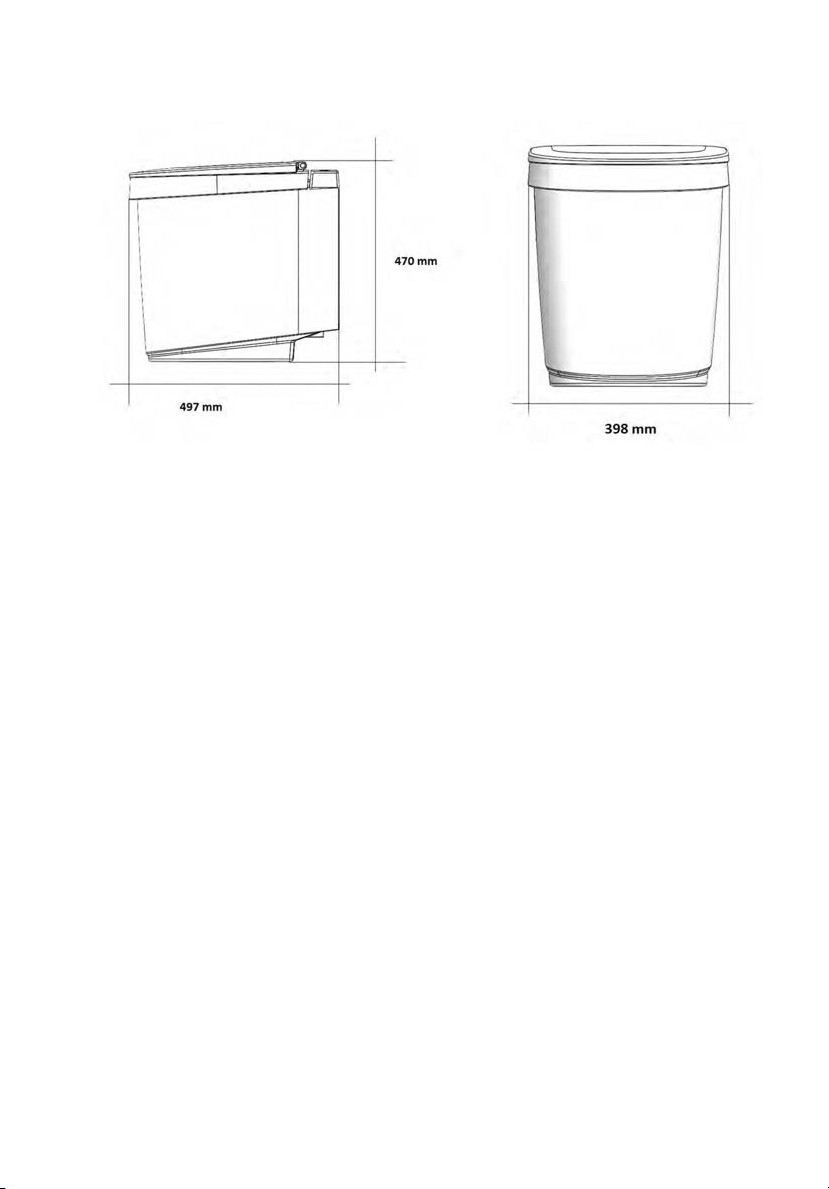

Measurements
Height: 470 mm (18.5”)
Length: 497 mm (19.6”)
Width: 398 mm (15.7”)
Seat height: 440–452 mm (17.3–17.8”)
Material
Outer material: High-gloss polypropylene
Inner material: Polyamide and polypropylene
Gaskets: Thermoplastic (TPE)
All materials are recyclable
Weight
8.5 kg (18.7 lbs)
Volume
Urine container: 7,1 L
Solid waste container: 14,5 L
Pipe dimensions
Ventilation pipe: Ø 50 mm (outer diameter)
Electronics
12 V, 1.6 W
Electrical connection
Grid connection: AC adapter 110/240 V–12 V (1.55 m / 5.1 ft)
Low-voltage connection: 12 V battery cable (1.9 m/6.25 ft) with crocodile clips
Power consumption
0.04 kwh/day, 14 kwh/year

10
Use
Before use
1. Ensure the function of the toilet (see section “Important Safety Instructions”)
2. Connect the toilet to a power source (see section “Power supply for toilet”)
3. Make sure that the fan is running
4. Place a compostable waste bag for Tiny in the waste container. The bag must always be held

getting caught in the view screen.
5. Place an Absorb pad at the bottom of the waste bag to soak up excess moisture
6. Place a Bio Drain Cleaner in the basket in the urine bowl for a fresh scent and to keep the
urine drain free from sediments

11

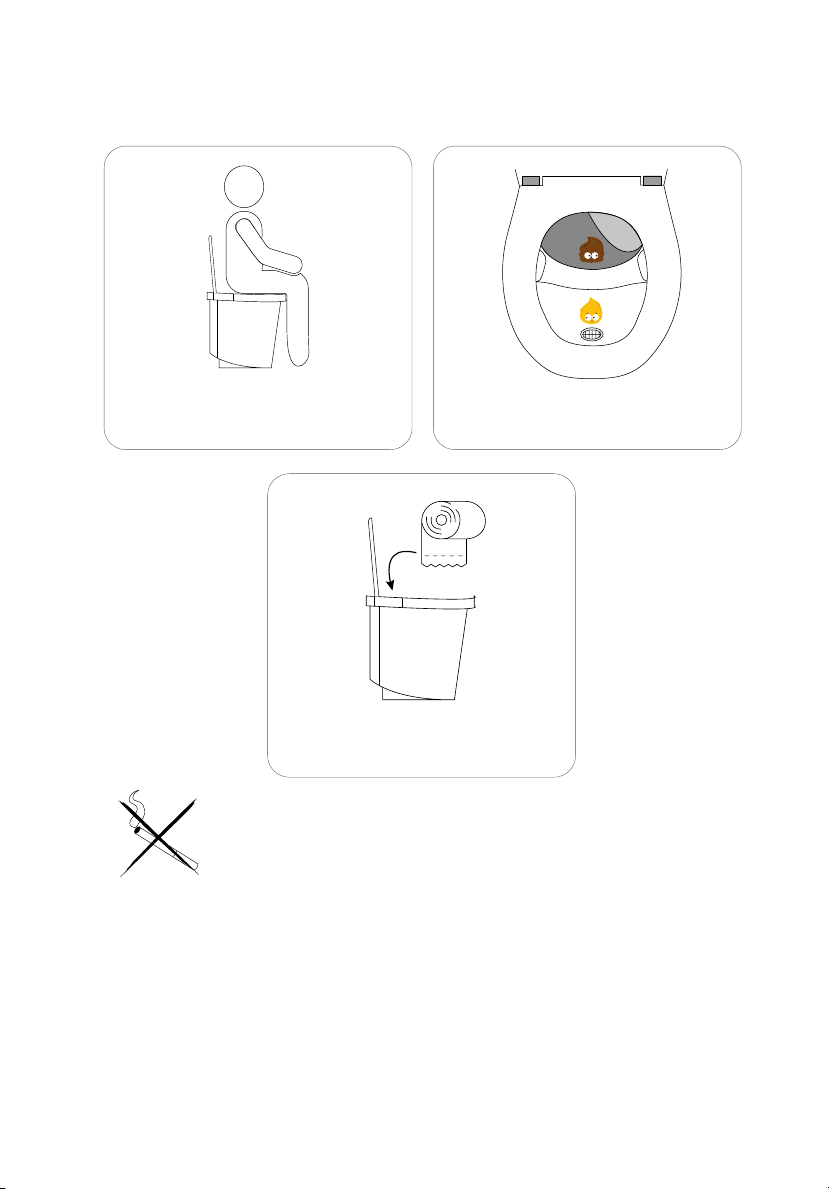

Always


1. 2.
3.
The view screens will slide away
when you sit down.
Toilet paper can be thrown in the
same bin as the solid waste.
IMPORTANT! Never throw burning or smoldering objects in the toilet!
Using the toilet
User instructions can be downloaded at www.separett.com.

12

Separett Tiny should be cleaned with an environmentally friendly non-abrasive cleaner. This
toilet is made of a strong, high-gloss polypropylene material that risks being scratched if an
abrasive cleaner or scrubbing plate is used.

fan duct with water to maintain good ventilation.

13
Waste handling
IMPORTANT! 

Emptying of urine container
For full-time use in a household of 2 people, the urine container
should be emptied approximately 2–3 times per week. The toilet
will signal when the urine container is full by illuminating the
logo on the toilet in red. Once the light is on, the toilet can hand-
le 1–2 uses, after which the container must be emptied. Open
the top of the toilet to empty the tank. Make sure that the top is
locked in its opened position before releasing it. Then follow the
steps below:
1. Make sure that the small yellow cap is screwed on tight and then screw the large yellow cap
onto the urine container
2. Keep the caps on and lift the container out of the toilet. To facilitate lifting, use the transverse
yellow handle on the container when lifting it.
3. Carry the container to the place where it is to be emptied.
4. Unscrew the small cap and keep the large one screwed on.

of the container with the other. Now angle the container downwards and empty the contents
from the small outlet.
6. When the container is empty, screw the small cap back on and make sure it is secured.
7. Place the container in the toilet again and make sure that it is correctly positioned.
8. Unscrew the large cap of the tank and place it in its designated storage location.
9. To close the top of the toilet, pull the top towards you until the latch releases. Then carefully
close the top and make sure it closes correctly. To make sure that the container is correctly
positioned, test to see if the upper part springs back when you press down on the front part of
the seat. If nothing happens, the container is misplaced.
A. Small cap
B. Large cap
B
A

14
Emptying of solid waste

For full-time use in a household of 2 people, the solid waste should be emptied approximately
after 2 weeks of use. Open the upper part of the toilet to empty the solid waste. Make sure that
the top is locked in its opened position before releasing it. Then follow the steps below:
1. Place the included lid on the container.
2. Lift the container by its yellow handle and pull it up out of the toilet.
3. Carry the container to where the waste will be handled.
The solid waste can then be handled in one of the following ways:
Option 1: To be composted directly in an approved compost
Option 2: To be incinerated directly in an approved incinerator
Option 3: Place it in a container and have it standing in “hibernation” for at least 12 months by
following the steps below:
A) Place in an appropriate location outdoors in a suitable container with a solid bottom.
B) Fill the container with a layer of soil (approx. 2 cm (0,8”)), make sure that the container is
properly ventilated so that air circulates in the container.
C) Let sit for 12 months. The bacteria in the soil will break down the harmful organisms in the
feces, rendering the waste harmless.
D) After the storage period, the contents can be composted in an ordinary compost, garden
compost or buried along with the compostable bio bag.

15
Troubleshooting
If the indicator lamp for emptying the urine container is
not working
If the urine container light does not come on when the tank is full, please check the following:
• Is there power in the wall socket?
• Is the battery/power source supplying the toilet with power?
• Are the connections and cables correctly connected to the back of the toilet?
• Is the plug for the sensor under the toilet correctly connected?
If it smells
A urine-diverting toilet from Separett should, thanks to the well-developed urine diverting and

please check the following:
• Is the fan running properly? If the fan is not running properly, make sure that:
1. Power is being supplied by the power source.
2. The fan plug is properly connected.
3. The cables on the back are properly connected.
• Is the ventilation grid on the pipe cap clean?
• Is the insect net of the ventilation outlet clean?
• Has the piping been carried out in accordance with the instructions?
Problems with pests in the toilet
Assuming a correct installation and correct use of Separett Tiny, the toilet space should be odor
free. This means that the toilet does not need to have any additional material (such as sawdust)
added to the waste container*. If you still have problems with pests in the toilet, please check
the following:

• Check that the ventilation pipe is intact and that its joints are tight and sealed

the fan

16
Accessories
Supplement with
Urine-diverting child seat
The urine-diverting child seat is a perfect complement to your
urine-diverting toilet solution, enabling even the smallest ones to
use the toilet.
Ventilation kit
A supplementary ventilation kit that can be used if the installation
requires ventilation ducts to be laid higher up and/or further away
from the toilet.
Urine tube
With this set a Tiny with urine container can be converted into Tiny
with external urine collection.
Consumables
Bio Drain Cleaner 5-pack
Separett Bio Drain Cleaner is a biological tablet that is placed in the basket
in the urine bowl of the toilet. The tablet is slowly broken down and the
enzymes keep the urine drain free from sediments, which over time risk

months. Tablets can be purchased separately in packs of 5.
Compostable Waste Bags, Tiny 10 pcs/20 pcs

The bag helps to keep the waste container clean and is made of corn
starch, which is an environmentally friendly compostable material. For
containers up to 14.5 liters.
Absorb Tiny 10-pcs
The Absorb pad is placed in the bottom of the waste bag and is used to
soak up any moisture coming from the waste. The cloth helps keep the
contents dry and thereby odorless. This product is specially adapted for
the Tiny toilet and made from compostable material.
See all articles at www.separett.com
1101
1344
1343
1118
1337/1338
1346

17
Contact Us
Documentation
This user manual as well as instructional videos are available at any time on our website.
Contact us



please feel free to contact us:
Separett AB @separettwaterlesstoilets Separett Sverige Separett AB
USA
Website: www.separett.us
Email: [email protected]
Phone: [phone]
Global
Website: www.separett.com
Email: [email protected]
Phone: [phone]

www.separett.com
