Serta Motion SIGNATURE User manual

Owner’s Manual
Manual Part No. D1103-Serta-MSI REV: 2013-11-26
Copyright © 2013 . All Rights Reserved Ascion LLC.

Warranty Information: Please see the warranty that came with your product.
Serta Motion SIGNATURE Adjustable Foundation
2
Remote Control Operation Guide..........................................................................................16
Replacement Remote Control Programming....................................................................18
Emergency Power Down Feature...........................................................................................19
Remote Stand User’s Guide......................................................................................................20
Troubleshooting...........................................................................................................................21
Warranty.......................................................................................................................................... 22
CUSTOMER SERVICE: 800-695-2540
Table Of Contents
Safety Precautions........................................................................................................................3
Parts List...........................................................................................................................................8
Frame Assembly Instructions...................................................................................................9
Bluetooth Accessory Module User’s Guide.........................................................................12
Wireless Remote Control...........................................................................................................15

CUSTOMER SERVICE: 800-695-2540
3
WARNING! IMPORTANT SAFETY INSTRUCTIONS.
PLEASE READ THESE INSTRUCTIONS
THOROUGHLY BEFORE USING THIS PRODUCT.
SAVE THESE INSTRUCTIONS!
When using an electrical furnishing basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS FURNISHING)
WARNING:
To reduce the risk of burns, fire, electric shock, or injury to persons:
DANGER: To reduce the risk of electric shock:
Always unplug this furnishing from the electrical outlet before cleaning.
• Unplug from outlet before putting on or taking off parts.
• Close supervision is necessary when this furnishing is used by or near children, invalids or
diabled persons.
• Use this furnishing only for its intended use as described in these instructions.
Do not use attachments not recommended by the manufacturer.
• Never operate this furnishing if it has a damaged cord or plug, or if it is not working properly,
dropped or damaged, or dropped into the water. Return the furnishing to a service center for
examination and repair.
• Keep the cord away from heated surfaces.
• Never operate the furnishing with the air openings blocked. Keep the air openings free of lint,
hair and the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
SAFETY PRECAUTIONS

CUSTOMER SERVICE: 800-695-2540
4
WARNING: Risk of Injury:
Keep children away from extended foot support (or other similar parts).
DANGER:
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or serviceman if you are in doubt as to whether the product is properly
grounded.
Do not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
SAVE THESE INSTRUCTIONS!
WARNING: Risk of electric shock:
Connect this furnishing to a properly grounded outlet only.
See Grounding instructions.
GROUNDING INSTRUCTIONS:
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
SAFETY PRECAUTIONS
L'AVERTISSEMENT:
LE RISQUE DE CHOC ÉLECTRIQUE
POUR L’UTILISATION DU MÉNAGE/RÉSIDENTIELLE SEULEMENT
N’UTILISEZ PAS DEHORS
L'AVERTISSEMENT:
N’UTILISE PAS PRÉS DE L’UTILISATION DE GENS OU DU PORTAGE DES ARTIFICES MÉDICAUX

CUSTOMER SERVICE: 800-695-2540
5
This product is for use on a circuit having a standard rating of 120 volts and is factory equipped with a specific
electric cord and plug to permit connection to a proper electric circuit. Make sure that the product is connected
to an outlet having the same configuration as the plug. No adapter should be used with this product.
If the product must be reconnected for use on a different type of electric circuit, the reconnection should be
made by qualified service personnel.
Unauthorized modifications could void the electrical portion of your warranty. Failure to use a properly
grounded outlet for this product or modification of the plug will compromise this important grounding safety
feature and may result in electrical shock, electrical fire, or faulty operation of the product.
A.Grounded Outlet Box
Grounding Pin
Grounded
Outlet
Metal Screw
B.Grounded Outlet Box
Tab For
Grounding
Screw
Adapter
Grounding Pin
Metal Screw
C.Adapter
Tab For
Grounding Screw
Metal Screw
WARRANTY PRECAUTION:
IN-HOME USE AND HOSPITAL DISCLAIMER:
WARNING!
Do not open control box, motors or wireless remote controls (with the exception of the battery compartment
if equipped). The warranty is void if these units are tampered with. Any repair or replacement of adjustable
Foundation parts must be performed by an authorized technician.
Your Adjustable Foundation is strictly designed for in-home use only. It is NOT designed for hospital use
and is NOT designed to meet hospital standards. Do not use this bed with TENT TYPE oxygen therapy
equipment or near explosive gases.
DO NOT USE NEAR PEOPLE USING OR WEARING MEDICAL DEVICES. FOR HOUSEHOLD /
RESIDENTIAL USE ONLY. DO NOT USE OUTDOORS.
This product conforms to UL STD 962

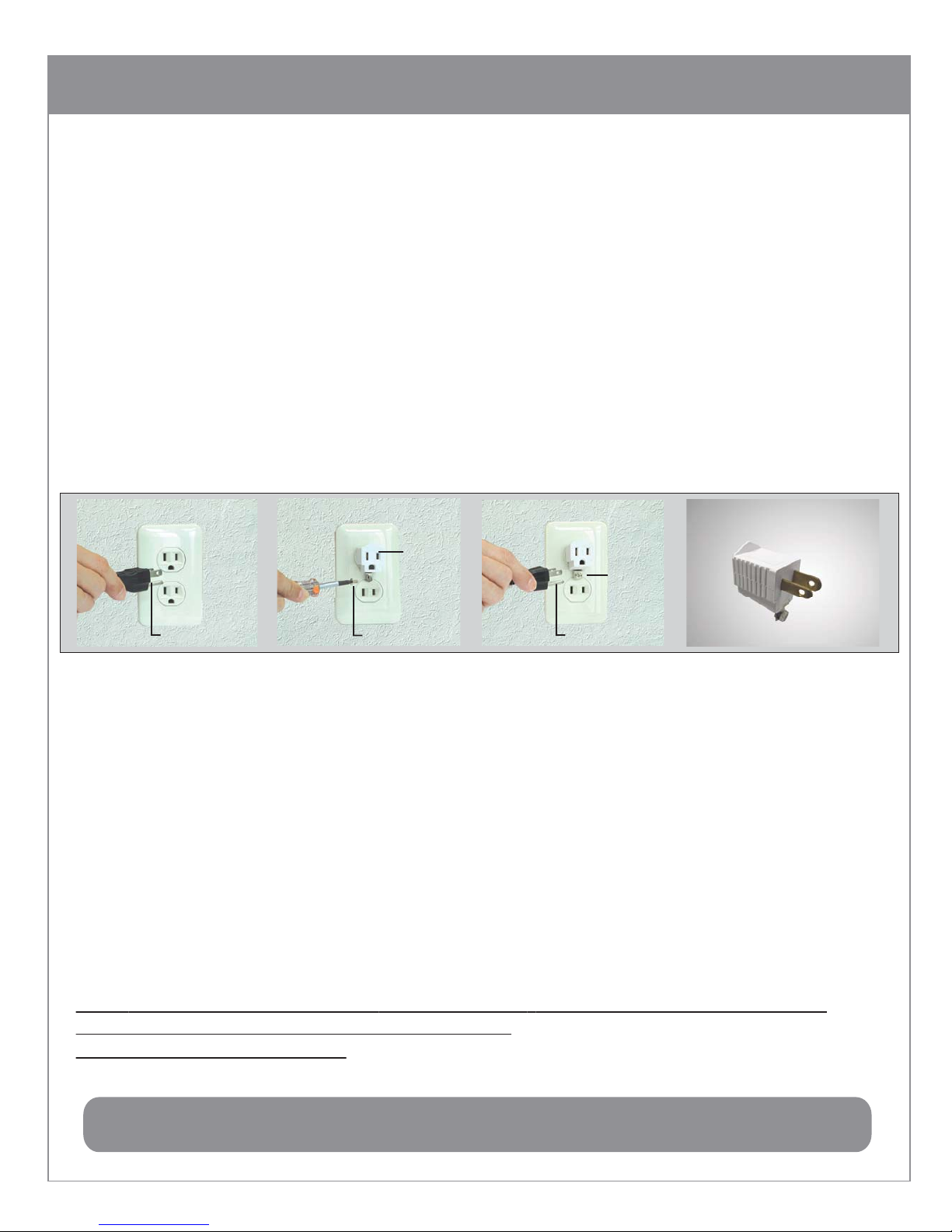

This product is for use on a standard 120-volt circuit, and has a grounding plug that looks like the
plug illustrated in photo A (see Figure). A temporary adapter that looks like the adapter illustrated in
photo B and C able to be used to connect this plug to a 2-pole receptacle as shown in photo B if a
properly grounded outlet is not available. The temporary adapter should be used only until a properly
grounded outlet (photo A) can be installed by a qualified electrician. The green colored rigid ear, lug
or the like extending from the adapter must be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.
FOR BEST RESULTS, YOUR ADJUSTABLE FOUNDATION SHOULD BE PLUGGED INTO A SURGE
PROTECTOR (not included).
SAFETY PRECAUTIONS

CUSTOMER SERVICE: 800-695-2540
6
IMPORTANT SAFETY FEATURES:
Use this furnishing only for its intended use as described in these instructions. Do not use attachments not
recommended by the manufacturer.
USER-SERVICEABLE PARTS:
This product is specifically designed to have no maintenance by you, the user. Therefore, you are encouraged
not to open any motors, alter the wiring, adjust, modify or change the structure of the product, as it will
void the warranty.
POWER RATINGS:
INPUT: AC 120V - 60Hz, 1.5 Amp
OUTPUT: DC 24V-3A
FUSE: 1.5A 250V
If there is an overload weight condition on the head or foot mechanism, the control unit will automatically
stop all functions. Once the excess weight is removed the control unit will automatically allow all functions to
resume operation after 30 seconds.
As with any product that produces a vibrating motion, it is possible that some pacemakers may interpret this
motion as a false sense of movement and/or exercise. This may or may not affect your pacemaker.
If you have any concerns, please consult your physician. For more information please contact customer
service by calling 800-695-2540.
The input transformer voltage is AC120V (1.5 Amp) 60HZ, and the output voltage is DC24V (3Amp).
When there is a short-circuit, a fuse on the transformer will be blown in order to protect the electrical
equipment (Fuse: 1.5A). Should the above situation occur, the customer should seek professional
assistance by calling a licensed electrician or by contacting customer service at 800-695-2540.
SAFETY PRECAUTIONS
After your Motion SIGNATURE Adjustable Foundation has been unboxed, immediately dispose of
packaging as it can smother small children and pets. To avoid injury, children and pets should not be
allowed to play on or under the bed.
Children should not operate this product without adult supervision. Close supervision is necessary when
this furnishing is used by, or near children, invalids, or disabled persons.
SMALL CHILDREN AND PETS WARNING:

CUSTOMER SERVICE: 800-695-2540
7
SAFETY PRECAUTIONS
SAVE THESE INSTRUCTIONS:
Your Motion SIGNATURE Adjustable Foundation has been designed to provide you with the reliable
operation and durability you expect. This product has been inspected and tested prior to shipment.
RADIO FREQUENCY IS 433.92 MHZ
FCC COMPLIANCE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
To comply with the FCC RF exposure compliance requirements, no change to the antenna or the
device is permitted. Any change to the antenna or the device could result in the device exceeding
the RF exposure requirements and void the user’s authority to operate the device.
Note: Exceeding the recommended weight restrictions could damage your adjustable
foundation and void your warranty and using a mattress on top of your adjustable
foundation that is not designed for adjustability may also void your warranty.
PRODUCT RATINGS:
The lift motor in your Motion SIGNATURE Adjustable Foundation is NOT designed for continuous use.
Reliable operation and full life expectancy will be attained as long as the lift motor does not operate more
than two (2) minutes over an eighteen (18) minute period, or approximately 10% duty cycle. Any attempt to
circumvent or exceed this rating will shorten the life expectancy of this product and may void the warranty.
The
recommended weight restrictions for your Motion SIGNATURE Adjustable Foundation is up to 850 lbs.
total weight, including people and the mattress for all sizes of adjustable foundations. Lift speed will vary due
to weight and
mattress configuration, as well as the mattress type. The weight must be evenly distributed
across the bed. This Product is not designed to support or lift 850 lbs of total weight in the head or foot
sections of your Motion SIGNATURE Foundation alone, or in any unevenly distributed fashion. Some
mattresses are not designed for Adjustable Foundations because they do not bend or flex well when
adjusted. When using such a mattress with your Motion SIGNATURE Adjustable Foundation the weight
limits set forth herein do not apply, as the bending of the mattress requires significant force and puts
significant strain on the motors and the Adjustable Foundation itself.
For best performance, you should enter and exit the adjustable bed while it is in the flat or fully lowered position.
DO NOT SIT ON THE HEAD OR FOOT SECTIONS WHILE IN THE RAISED POSITION.
INTENDED USAGE:
The electric adjustable foundation should be installed with the head board brackets and/or the
head of the frame positioned close to a wall.

Parts List
r
ts L
i
st
8
NOTE: Before discarding any packing materials, check the adjustable bed frame carton and verify
the following items in the parts list are included:
CUSTOMER SERVICE: 800-695-2540
Motion SIGNATURE ADJUSTABLE FOUNDATION C.
F.
I.
L.
O.
D.
G .
J.
M.
E.
H.
K.
N.
A. B.
PARTS LIST
A. Wireless Remote Control (1) and
CR2477 3V Lithium battery (1)
B. Pro-Fit™ Mattress Retainer System (4)
C. Foundation Legs (4)
D. Inner Headboard Bracket (2)
E. Outer Headboard Bracket (2)
F. Retainer Bar Bolt (8)
G. Inner Headboard Bracket Bolt (4)
H. Outer Headboard Bracket Bolt (4)
I. Retainer Bar Plate (8)
J. 5/16 Inch Washer (16)
K. 5/16 Inch Locking Nut (8)
L. Allen Key (1)
M. Wrench (1)
N. 9-Volt Batteries (2)
O. Remote Stand (1)

CUSTOMER SERVICE: 800-695-2540
9
To avoid damage to the adjustable bed,
always open the carton while the bed
is laying in the FLAT position
on the floor.
IMPORTANT UNPACKING INSTRUCTIONS
OPEN FLAT

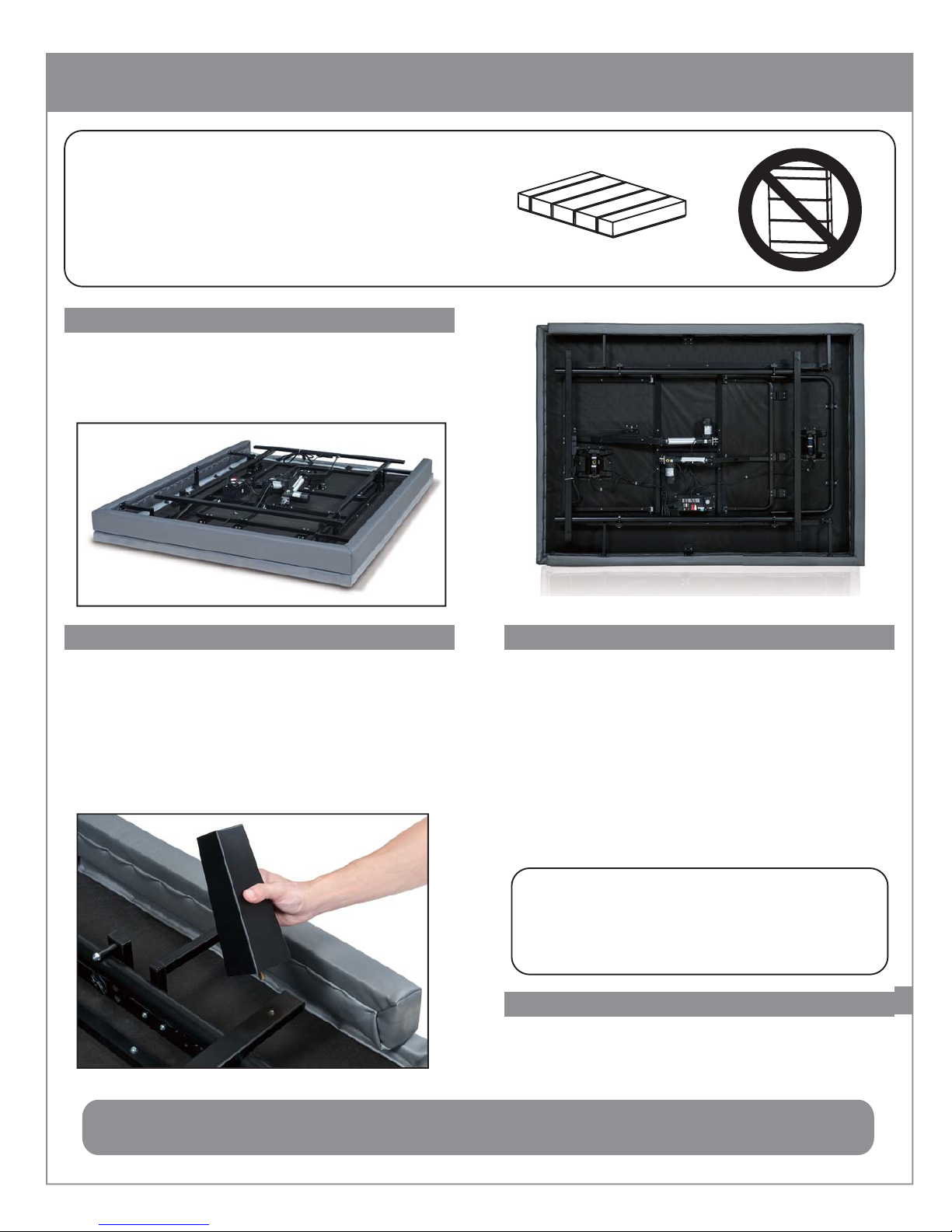

Carefully lift the bed frame unit out of the shipping
carton, keeping the unit top side down. For safety
reasons, this should be performed by 2 people.
STEP 1
.
Assembling Bed Legs:
Open the accessories box, take out the 4 legs,
and thread them in a clockwise direction into
the threaded holes in the frame.
STEP 2
NOTE: Tighten the legs securely to the frame.
Leave no space between leg and frame.
STEP 3
Remove and extend the power cord from the
frame.
WARNING:
POWER CORDS MUST NOT INTERFERE
WITH ANY ADJUSTABLE BED MECHANISMS.
Frame Assembly Instructions
Remove the plastic packaging from the
adjustable foundation.
STEP 4
Base overview
A 3-outlet, 2M, 13A UL approved power strip
is pre-installed to the adjustable foundation to
serve as power cord to the power outlet.
One of the outlets is used to power the
adjustable foundation. The remained two
outlets will be handy for the appliances near
the foundations.

CUSTOMER SERVICE: 800-695-2540
10
STEP 7

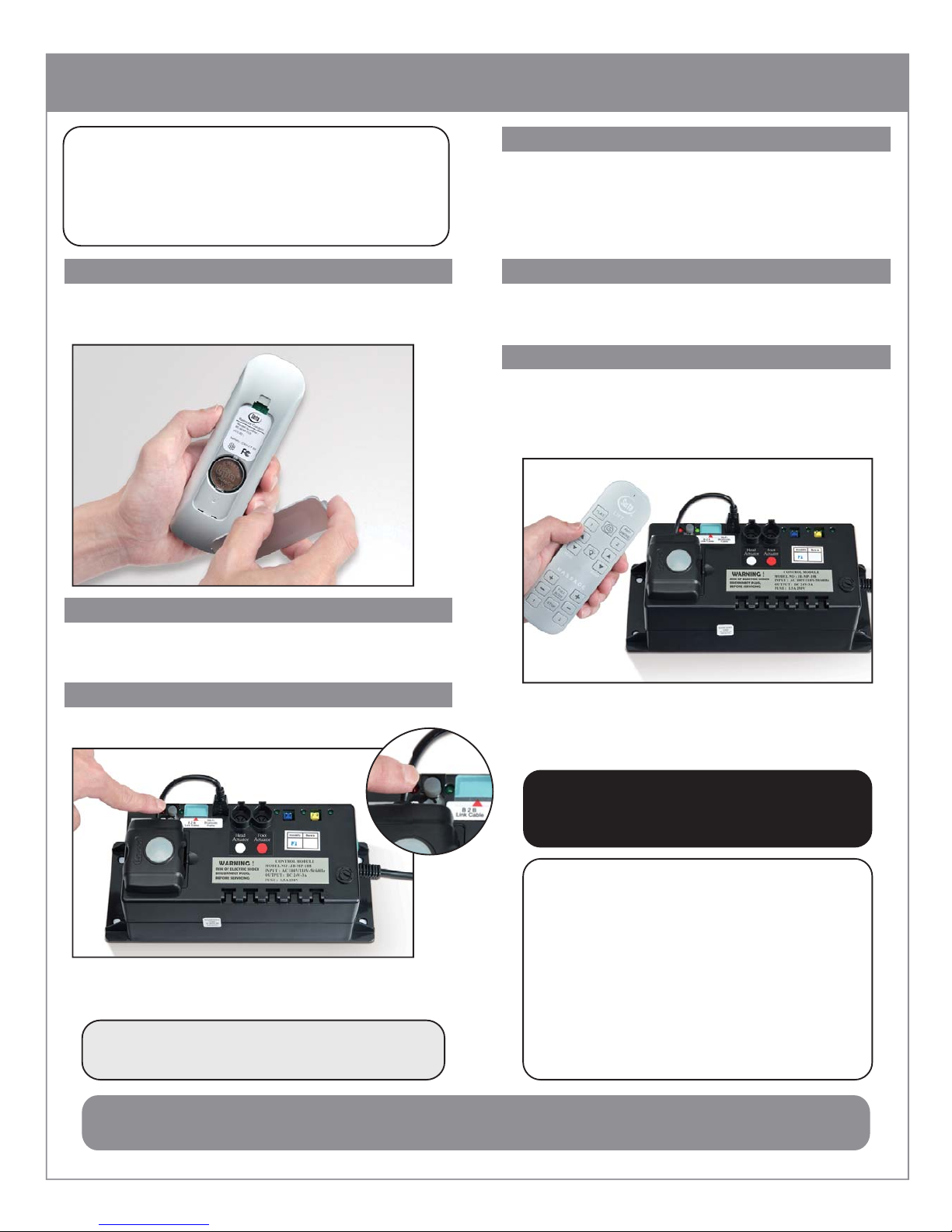

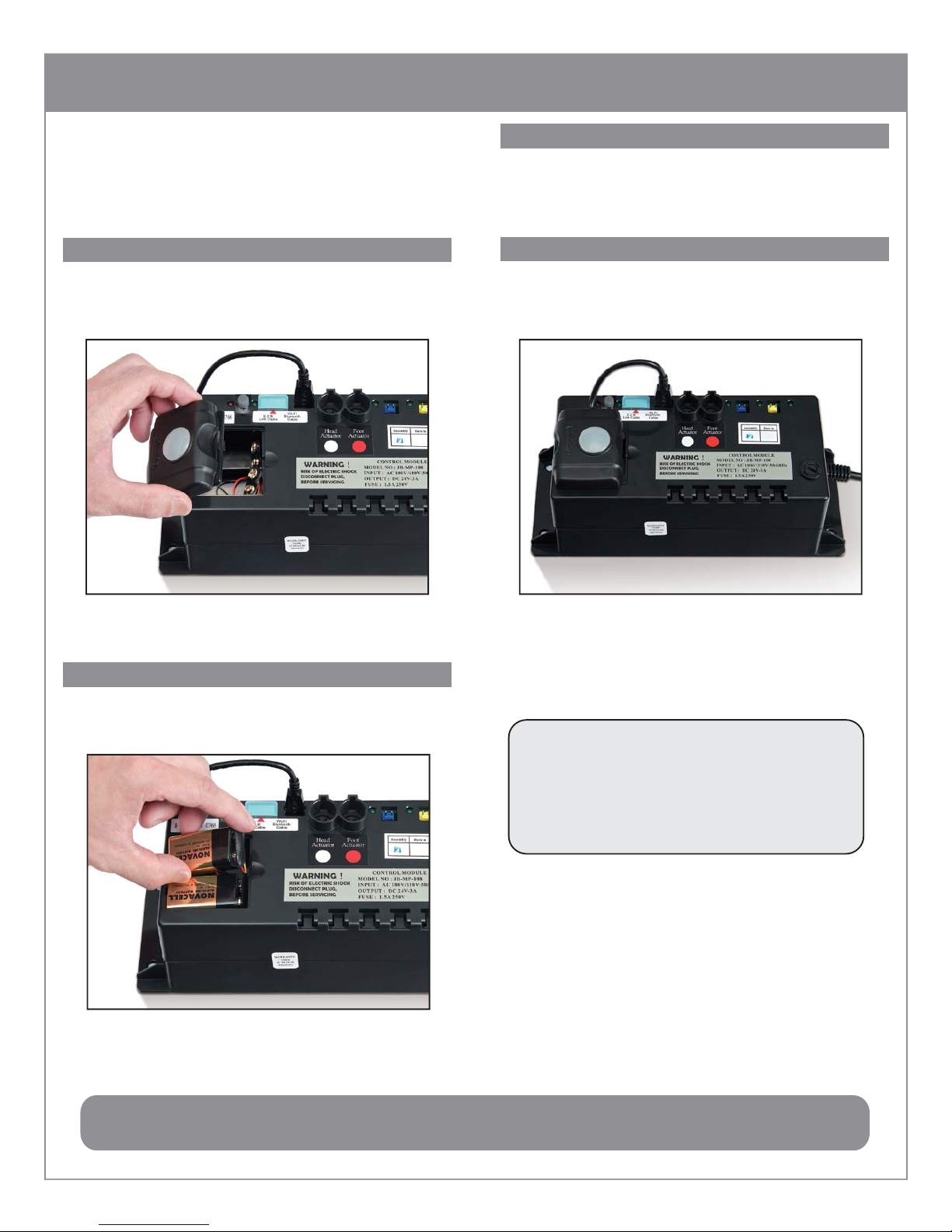

Install the batteries in your wireless remote control.
Briefly activate all functions on the wireless remote
control to verify that all of the features are operational.
If your Motion SIGNATURE foundation does NOT
operate, please refer to the Troubleshooting
section beginning on page 21 of this manual.

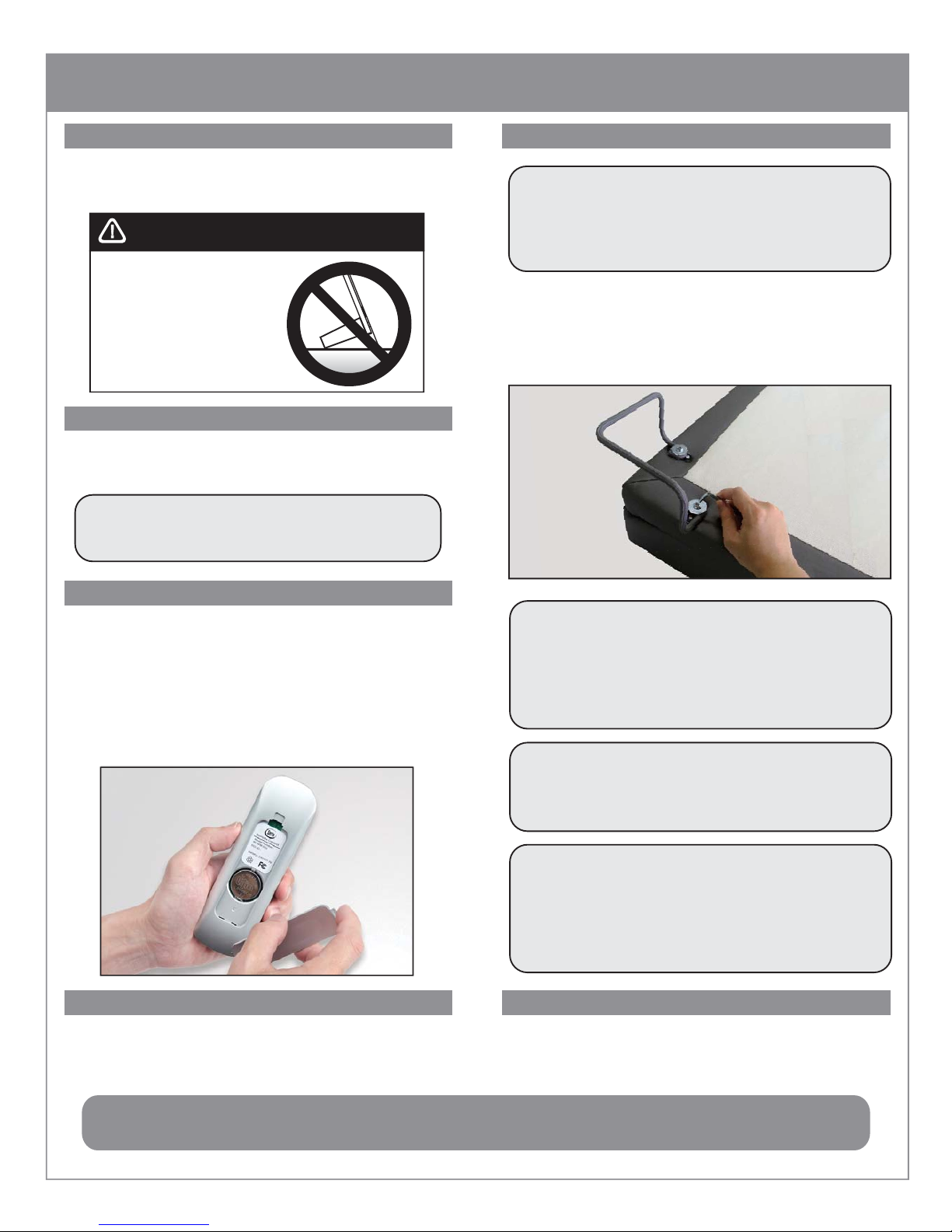

STEP 9
Use the Retainer Bolts (F) and Retainer Bar Plate (I)
to fasten the Pro-Fit™ Mattress Retainer System (B)
to the front of the bed Frame.
(As shown in the diagram).
NOTE: Use only a manual screwdriver to
install the retainer bolts. DO NOT use a power
screwdriver to tighten the bolts. DO NOT over
tighten the mattress retainer hardware.
NOTE: It is important to position the bottom
of the headboard cross member a maximum
distance of 3 inches (76.2 mm) between the
headboard and the top of the mattress.
Do not exceed 3 inches (76.2 mm).
ATTENTION: Failure to follow the proper
installation instructions may result in damage
to your adjustable bed frame.
NOTE: If the adjustable frame is to be set up
without a headboard, simply install a mattress
on the frame. Installation is now complete.
If a headboard is to be installed, proceed to
step 10.
DO NOT
lean the bed against the
installed legs to flip it over.
ATTENTION ! Improper handling
Plug the power cord into a grounded electrical
outlet.
STEP 6
Carefully rotate the base frame over to the
upside up position.
STEP 5
NOTE: An Electrical surge protection unit is
recommended (not included).
Frame Assembly Instructions
Return the bed to the flat position and proceed to
assemble the Pro-Fit™ Mattress Retainer System.
STEP 8
Install the headboard brackets to the bed base frame.
Place one bracket on the left-hand side ofthe base
and one bracket on the right-hand side of the base.
STEP 10

CUSTOMER SERVICE: 800-695-2540
11
Place your mattress on top of your adjustable
frame.
Typical Motion SIGNATURE foundation
installation is now complete. If the bed is equipped
with a programmable setting or options, refer to the
Remote Control Guide for more information.

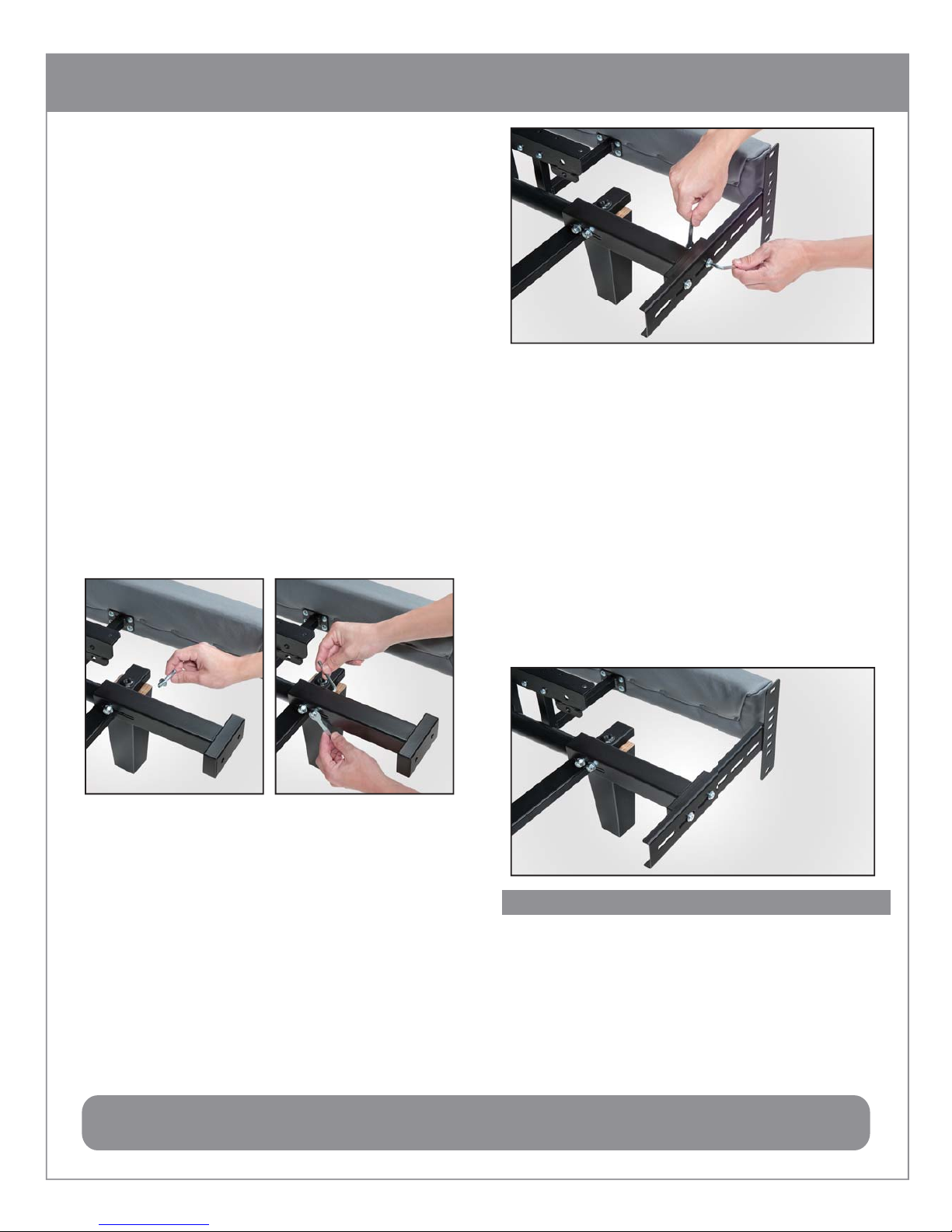

Install the headboard brackets to the bed base
frame. Place one bracket on the left-hand side
of the base and one bracket on the right-hand
side of the base.
1. Use the remote control to raise the head of the
bed in order to gain access to the bed base
frame.
2. Remove plastic cap and place the Inner
Headboard Bracket (D) into the round tube
frame making sure the bracket inserted into
the round tube.
This will create a box shape. Place the Headboard
Bracket Bolt (G) with a 5/16 Inch Washer (J)
through the pre-drilled hole in the round tube
frame and pass it through the Inner Headboard
Bracket. Use the 5/16 Inch Washer (J) and 5/16
Inch Locking Nut (K) and tighten the bolt in place.
Repeat for the opposing side of the bed frame.
Headboard Installation
STEP 11
4. Firmly tighten the headboard bolts (not included)
to the end of the headboard bracket assembly.
5. Measure the distance of the center to center
mounting holes in the headboard.
6. Measure the distance of the center to center
mounting holes in the headboard bracket
assemblies.
7. If the headboard brackets require adjustments,
loosen the bolts that are holding the outer
headboard brackets and move them to the
necessary distance. Reinstall the bolts and
firmly tighten.
3. Place the open side of the outer headboard
bracket (E) onto the exposed square tube of the
inner head board bracket (D). This will create
a tight fit between (D) and (E). Place a
Headboard Bracket Bolt (H) with a 5/16 Inch
Washer (J) through the Outer Headboard Bracket
(E) and into the Inner Headboard Bracket (D).
Use a 5/16 Inch Washer (J) and 5/16 Inch Locking
Nut (K) and hand tighten to allow for adjustment.
Repeat same procedure for opposing side of the
bed frame.

Bluetooth Accessory Module User’s Guide
CUSTOMER SERVICE: 800-695-2540
12
Your Motion Signature adjustable foundation
has a Bluetooth Accessory Module as standard
equipment.
The Bluetooth Accessory Module allows you to
control your adjustable foundation with your mobile
device using a free, downloadable app.
The Module is compatible with the following
devices:
iPhone 4S or 5 series
iPad 3 or later
iPod Touch 5th generation
WiFi is not required for this device to operate.
Type “ Serta Remote ” in the search column.
Select the Serta Motion Signature app.
Click Install to download the app.
STEP 2
STEP 3
STEP 4
NOTE:Once the App is installed, opening
the app the Bluetooth Accessory Module
will connect to your device automatically.
STEP 1
Please use your iPod Touch (5th generation),
iPhone 4S or iPad 3 to log into the App store.
How to download the App Software
Nightlight Feature
The LED light on the Bluetooth Accessory Module
serves as a nightlight that can be controlled with
the remote control or with your mobile device.

Bluetooth Accessory Module User’s Guide
CUSTOMER SERVICE: 800-695-2540
13
Operating Instructions
A, B. Head and Foot adjustment:
• Raise and lower head and foot section of base.
C. Zero Gravity:
• Legs slightly above the chest, for better
circulation.
D. Bed “Flat” Button:
• Levels the bed: Press and hold for 3 seconds
to activate button.
Note: To cancel, press buttons A or B
E. Two programmable memory buttons:
• You can store 2 personalized memory positions.
• To set a memory position, press the “set” button
• After programming the memory settings, press
Memory button 1 or 2 and the bed will move to
the position that you've set.
when you are in your desired position, then press
the 1 or 2 memory button to lock in the position.
F. Anti-Snore:
• Raises the head slightly for easier breathing.
G, H. Head and foot massage controls:
• Starts at an intensity of 5 out of 10.
• To increase massage intensity, press (︿) button.
• To decrease massage intensity, press (﹀) button.
Note: The lowest setting will turn off the
corresponding massage unit.
A.
C.
E.
B.
M.
D.
F.
G.
I.
K.
H.
M.
J.
L.
I. Massage stop button:
• Press for 2 seconds to stop all massage features.
J. Full body massage function:
• Turns on both head and foot massage motors
and alternates between Wave mode 1 & 2.
Note: You must stop the massage before
you can switch to another wave function or
to the full body massage.
K. Nightlight ON / OFF :
• Turns on LED lights up.
The default shut off time can be adjusted in the
app.
ATTENTION:
If FLAT BUTTON (D) is pushed, massage
motors will stop until bed is flat. Massage
resumes in 30 seconds.
L. Wave massage mode:
• Turns on both head and foot massage motors
to one of the 2 wave functions.
ATTENTION:
If FLAT BUTTON (D) is pushed, massage
motors will stop until bed is flat. Massage
resumes in 30 seconds.
M. Menu
Interface Screen 1 Interface Screen 2

Bluetooth Accessory Module User’s Guide
CUSTOMER SERVICE: 800-695-2540
14

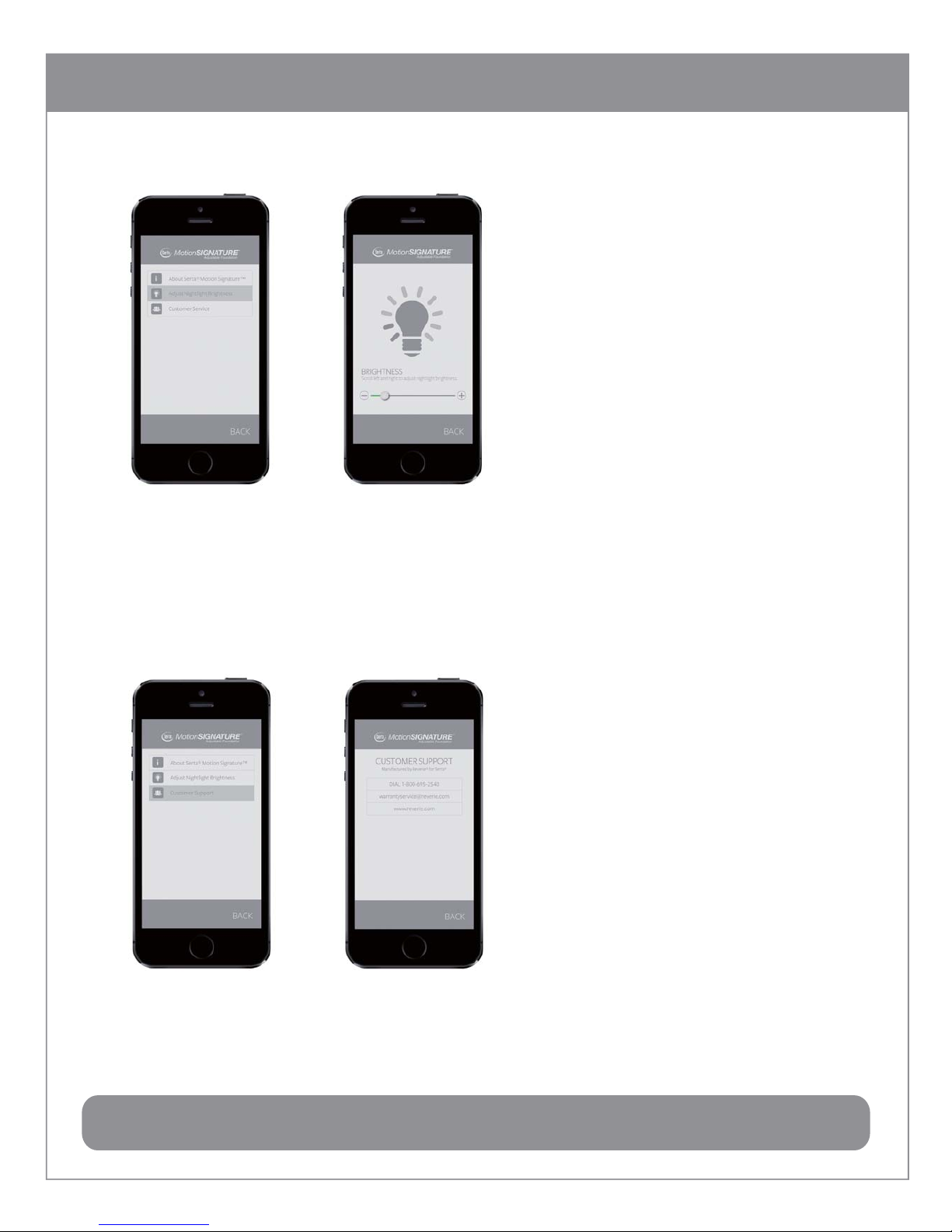

Adjust Night Brightness:
Adjust the brightness setting of the nightlight.
You will see the nightlight get brighter and
dimmer as you move right or left.
Customer Support:
Please contact us if you have questions or
concerns about your adjustable foundation.

Wireless Remote Control
CUSTOMER SERVICE: 800-695-2540
15
LED LIGHT
G. RAISE(▲) / LOWER (▼)
E. RAISE (▲) / LOWER (▼)
FOOT SECTION OF THE BASE
B. ZERO GRAVITY
A. ANTI SNORE
D. PROGRAM UP TO 2
MEMORY POSITIONS
J. INCREASE (+) / REDUCE (-)
MASSAGE INTENSITY ON
HEAD SECTION OF THE BASE
H. INCREASE (+) / REDUCE (-)
F. NIGHTLIGHT ON / OFF
MASSAGE INTENSITY ON
FOOT SECTION OF THE BASE
K. SELECT 1 OF 2 MASSAGE
WAVE SPEEDS
L. STOP ALL MASSAGE FEATURES
I. TURNS ON THE FULL BODY
MASSAGE FUNCTION
C. RETURN ALL SECTIONS
TO THE FLAT POSITION
HEAD SECTION OF THE BASE

CUSTOMER SERVICE: 800-695-2540
16
HEAD AND FOOT ADJUSTMENT (E, G)
• Adjusts the head and foot sections to the
desired positions.
PROGRAMMABLE MEMORY BUTTONS (D)
NIGHTLIGHT ON / OFF (F)
BED “FLAT” BUTTON (C)
• Levels the bed to the flat position when the button
is pressed and held for at least 1 second.
NOTE: The “FLAT” cycle can be interrupted
and cancelled by pressing the head or foot
adjustment buttons (E, G).
ZERO GRAVITY (B)
• Allows your legs to be lifted to a position slightly
above the chest, which enables blood flow to
easily circulate back to the heart, thus reducing
stress and fatigue.
ANTI SNORE
(A)
• Raises the HEAD to an upright position for
anti-snore .
NOTE: The lowest setting will turn off the
corresponding massage unit.
WAVE MASSAGE MODE (K)
• Turns on both head and foot massage
motors to one of the 2 wave functions.
NOTE: You must stop the massage before
you can switch to another wave function
or to the full body massage.
MASSAGE STOP BUTTON (L)
• Press for 2 seconds to stop all massage
features.
NOTE: The massage feature is designed
to automatically shut off after 30 minutes
of continuous use.
FULL BODY MASSAGE FUNCTION (I)
• Turns on both head and foot massage motors
and alternates between Wave Modes 1 & 2 .
You can store 2 personalized memory positions
• To Set a Memory Position: When in desired
position, press and hold Memory button for
more than 5 seconds until the LED light flashes
3 times to signal Memory position is stored.
• To Recall a Memory Position: Press Memory
button 1 or 2 until LED lights up.
ATTENTION: If the massage motors are
operating and Head and Foot lift or Memory
buttons are pressed, the massage motor will
stop and resume operating after lift position
reached. But if Flat button is pressed, the
massage motors will not resume after flat
position reached.
HEAD AND FOOT MASSAGE CONTROLS (H, J)
• Turns on the corresponding massage unit
(starting at intensity 5 of 10)
•
Slowly increases or decreases massage
intensity.
To increase massage intensity, press (+) button.
To decrease massage intensity, press (+) button.
NOTE: Do not hold the Memory button for
more than 5 seconds otherwise a new
memory position will be set.
NOTE: The default nightlight automatically
shut off time is 8 hours unless adjusted from
the App.
Remote Control Operation Guide
• Turns on LED lights up.

Remote Control Operation Guide
CUSTOMER SERVICE:800-695-2540
17
Safety:
Notice:
• If there is an overload weight condition on the
head or foot mechanism, the control unit will
automatically stop all functions.
NOTE: Once the excess weight is removed,
the control unit will automatically start all
functions after 30 seconds.
• If the massage motors are continuously used for
a 30 minute period, the motors will automatically
shut down.
• The input transformer voltage is AC 120V 60 HZ,
the output voltage is DC 24V 3A. When there is
a short circuit, a fuse on the transformer will be
blown in order to protect the electrical equipment
(Fuse: 1.5A).
The changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
Important Note
• To comply with the FCC RF exposure
compliance requirements, no change to the
antenna or the device is permitted. Any change
to the antenna or the device could result in the
device exceeding the RF exposure requirements
and void user’s authority to operate the device.
THIS DEVICE COMPLIES WITH
PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE
(2) THIS DEVICE MUST ACCEPT
ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED
OPERATION.
• The buttons are backlit, when a button is
pressed,to aid in the visibility of the remote in
low light environments.
NOTE: This bed may have minor intermittent
performance due to RF Interference.
This is a normal operation of the bed and is
not a defect.
• The Motion SIGNATURE adjustable foundation
uses a RF (Radio Frequency) remote control
system.
Additional Remote Features:
• Customers can control the remote without facing
the receiver (best transmission range is within 9
feet or 3 meters).
ATTENTION: When the above situation
occurs,
the customer MUST seek professional
assistance.

CUSTOMER SERVICE: 800-695-2540
18
Note: The remote that comes with the
bed is already paired with your bed. No
further action is required. Only replacement
remote controls require user programming.
Place 3V Lithium battery into the remote
control.
Ensure the bed is plugged into a functioning
outlet.
Press the learn button for 3 seconds.
NOTE: If a new signal is not received, it will
reset itself to normal mode in 10 seconds.
When the Green LED signature light illuminates,
the RF frequency code setting function will be
activated.
STEP 5
Figure 1: Press “Learn Button” to initiate
the RF learning Mode.
Press any button on the remote control.
Replacement Remote Control Programming
STEP 4
STEP 5
STEP 1
STEP 2
STEP 3
When the receiver light flashes, you have
completed the learning process of the RF
frequency code.
Figure 2: A flashing Green LED indicates the
control box has received the remote control
signal.
1 Wireless Remote Control and
2 Motion SIGNATURE
adjustable foundations
STEP 6
PAIRING INSTRUCTIONS
FOR JOINING 2 FOUNDATIONS
Use the same remote control to pair with
the two adjustable foundations one after
the other following the “ Replacement
Remote Control Programming” procedures
(Step 3 ~ Step 6).

CUSTOMER SERVICE: 800-695-2540
19
Locate and remove the cover for the 9 volt
batteries.
Install the two (2) alkaline 9 volt batteries.
Your bed should lower to the flat position.
NOTE: The two (2) 9 volt batteries are
only intended to be used once. After
you complete the emergency lowering,
the batteries need to be replaced with
new alkaline batteries.
Your Motion SIGNATURE adjustable foundation
has an emergency lowering feature in the event
that your base is in the raised position and has
lost power due to a power outage.
Figure 2: Install 9 volt batteries.
Figure 1: 9 volt batteries cover.
Press the “FLAT” button (C) or the individual
lowering buttons (E, G) to lower the foundation
to flat position.
Remove the two 9 volt batteries and replace
the battery cover.
Figure 3: Remove the batteries and replace
the battery cover.
Remote Control Emergency Power Down Feature
STEP 3
STEP 4
STEP 1
STEP 2

CUSTOMER SERVICE: 800-695-2540
20
Remote Stand User’s Guide
To avoid accident or injury,
please read the Mfollowing
instructions before use.
1. The stand is for indoor use only.
2. To reduce the risk of electrical shock or fire,
don't expose the unit to rain or excessive
moisture.
3. Plug the remote stand into the power strip
as in the diagram to avoid a short circuit.
4. To avoid electrical shock, do not insert
objects other than electrical plugs into outlet
openings.
5. Before use, please ensure local voltage and
power are in accordance with the remote
stand requirements.
6. Do not make any changes or modifications
to the remote stand.
Failure to comply will void the manufacturer's
warranty.
7. Do not use the stand if the stand has been
damaged in any way.
8. Please don't attempt to disassemble the
remote stand.
9. To clean, unplug the remote stand from the
power strip and use a damp cloth.
I. Profile of Remote Stand
1. Refer to drawing in Part I. Plug the remote
stand into the 120V AC power strip outlet
under the bed.
2. Plug light electrical devices into the remote
stand outlets as desired.
3. Plug USB cord in front to charge your mobile
devices.
4. Place your remote in the cradle of the front
side of the stand for storage.
INSTALLATION DIAGRAM
Power Strip Outlet
AC Plug
Indicator
Lamp
Power
Outlet USB
Charger
Back Side
Front Side
Electrical
Appliance
II. Installation
III. Specifications
1. Model Number: RC-STAND-S01
2. Power Rating: AC120V, 300W
3. Housing: ABS
4. Indicator Lamp: 1/4 W power on lamp
5. Outlets: 2 outlets on back of stand
6. Cable: 1.8M / UL
7. Surge Protection: 125 joules
8. USB Charger : 5V, 1A
Caution:
This device is only to be used to control light
household electrical appliances such as lamps,
phone chargers, and laptop computers.
You should never plug heaters or other items
with heating elements into this device.
