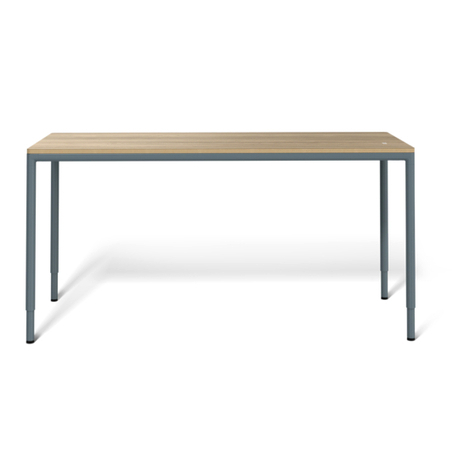

WATSON Essential Desk Stand By Power & Mobility Kit User manual

ASSEMBLY
Essential Desk Stand By Power & Mobility Kit
V.21.0 12/2021 360.394.1300 watsonfurniture.com

2 ESSENTIAL DESK STAND BY POWER & MOBILITY KIT ASSEMBLY INSTRUCTIONS
Essential Desk Stand By Power Kit Components
Essential Desk Mobility Kit Components
200mm Cable
Linak BA001 LI Battery
Caster Stems Locking Casters Casters
Linak Power Cable
Linak External
Charging Components
Linak External Charger

3 ESSENTIAL DESK STAND BY POWER & MOBILITY KIT ASSEMBLY INSTRUCTIONS
Hardware
#8 x 5/8” Flat Head Screw
(116754)
Tools
Phillips BitElectric Drill
1/2” Wrench

4 ESSENTIAL DESK STAND BY POWER & MOBILITY KIT ASSEMBLY INSTRUCTIONS
Mobility Kit: Install Casters
Remove the glides and replace them with the (4) stems using a 1/2” wrench to tighten the stems snugly. Push the casters
onto the stems. Place the locking casters at the front of the desk for easier access. A helpful tip when installing the
casters is to prop the desk onto a taller object, to allow for access to the desk feet.
1.

5 ESSENTIAL DESK STAND BY POWER & MOBILITY KIT ASSEMBLY INSTRUCTIONS
Stand By Power Kit: Install Battery Pack
Remove the battery bracket from the back of the battery by sliding the bracket off of the battery (a.). Using (4) screws secure the
bracket to the underside of the desk surface (b.). Once the bracket is secured, install the battery by sliding the battery onto the
bracket until it clicks (c.). Note the placement of the bracket to allow for clearance when attaching or removing the battery pack,
also check placement of the bracket to allow the 200mm cable to reach the control box.
1.
a.
b.
c.
#8 x 5/8” Flat Head Screw
(116754)

6 ESSENTIAL DESK STAND BY POWER & MOBILITY KIT ASSEMBLY INSTRUCTIONS
Stand By Power Kit: Connect Battery to Control Box
Connect the 200mm cable to the battery and route it to the control box located in the Support Rail, on the underside of
the work surface. Plug into the 2 port connection labeled DC. For more information on use of external charger & power
cord, refer to Linak Battery Pack manual, QR code/link below.
Linak Instructions
2.
