BMG..T Double Disc Brake
for Stage Applications
O perating I nstructions
GA253000
Edition 01/2006
11386614 / EN

SEW-EURODRIVE – Driving the world

Operating Instructions – BMG..T Double Disc Brake for Stage Applications
3
Contents
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1 Important Notes................................................................................................. 4
1.1 Safety and warning instructions................................................................ 4
2 Safety Notes ...................................................................................................... 5
3 Certificate........................................................................................................... 6
4 Structure of the BMG..T Stage Brake.............................................................. 7
4.1 Basic structure.......................................................................................... 7
4.2 Unit designation........................................................................................ 8
5 Installation/Startup............................................................................................ 9
5.1 Mechanical installation.............................................................................. 9
5.2 Electrical installation ................................................................................. 9
5.3 Startup ...................................................................................................... 9
6 Inspection/Maintenance ................................................................................. 10
6.1 Inspection and maintenance periods...................................................... 10
6.2 Checking the dual circuit braking function .............................................. 11
6.3 Customer service.................................................................................... 14
7 Technical Data................................................................................................. 15
7.1 BMG..T braking torque............................................................................ 15
7.2 Brake controllers..................................................................................... 16
7.3 BMG..T operating currents...................................................................... 16

4
Operating Instructions – BMG..T Double Disc Brake for Stage Applications
1Safety and warning instructions
Important Notes
Operating Instructions
1 Important Notes
1.1 Safety and warning instructions
Always follow the safety and warning notes in this publication.
This documentation contains safety requirements and additional information on the
BMG..T double disc brake for use in stage applications.
As a prerequisite for fault-free operation and fulfillment of warranty claims, you must
adhere to the information in the operating instructions. Therefore, read the operating
instructions before you start working with the brake! The operating instructions contain
important information about servicing and should be kept close to the unit. This docu-
ment supplements the "AC Motors, Asynchronous Servomotors" operating instructions
and limits the application notes according to the following information.
The guidelines in this documentation must be strictly observed for safety appli-
cations. This applies in particular to the requirements of the employer’s liability
insurance association and TÜV.
Disposal This product consists of:
•Iron
• Copper
•Aluminum
• Plastic
Dispose of all components in accordance with applicable regulations.
Electrical hazard
Possible consequences: Severe or fatal injuries.
Hazard
Possible consequences: Severe or fatal injuries.
Hazardous situation
Possible consequences: Slight or minor injuries.
Harmful situation
Possible consequences: Damage to the unit and the environment.
Tips and useful information.

Operating Instructions – BMG..T Double Disc Brake for Stage Applications
5
2
Safety and warning instructions
Safety Notes
2 Safety Notes
• The requirements for the emergency stop relay and the permitted circuit variants are
specified in detail in the following sections and must be strictly observed.
•The system/machine manufacturer must perform a system/machine-specific
risk analysis. The use of the BMG..T double disc brake for stage applications
must be taken into account in this analysis.
•The switching equipment of the external voltage supply for the brakes must
comply at least with category 3 to EN 954-1 or with a comparable national stan-
dard.
•In normal operation, the manual release lever for the brake must not be
attached. This prevents the brake from being released unintentionally. It is not
permitted to convert the brake to enable lockable manual release.
General
information
•Please also consider the supplementary safety notes in the individual sections
of these operating instructions.
• During and after operation, the brakes may have live and moving parts and their sur-
faces may be hot.
•All work related to transportation, putting into storage, setting up/mounting,
connection, startup, maintenance and repair may only be performed by trained
personnel observing
– The relevant detailed operating instruction(s) and wiring diagrams
– The specific regulations and requirements for the system
– National/regional regulations governing safety and the prevention of accidents
•Serious injuries and damage to property may result from:
– Improper use
– Incorrect installation or operation
– Removal of required protective covers or the housing when this is not permitted
•If work is carried out on the electrical section of the system, the supply voltage
must be disconnected.
Designated use • The BMG..T double disc brakes are certified as safe components of mobile flying
equipment or rigging systems for stage applications to DIN 56950, EN 954-1,
EN 13849-1 and BGV C1. Drives fitted with BMG..T brakes must fulfill the require-
ments in the above standards. The "Driving mechanisms" section in particular must
be observed.
• Technical data and information on the permitted conditions can be found on the
nameplate and in the documentation.
• BMG..T double disc brakes cannot be retrofitted.
•It is essential to observe all the specified information!
Transportation • Inspect the shipment for any damage that may have occurred in transit as soon as
you receive the delivery. Inform the shipping company immediately. It may be nec-
essary to preclude startup.

6
Operating Instructions – BMG..T Double Disc Brake for Stage Applications
3Safety and warning instructions
Certificate
3 Certificate
The following certification is available for the BMG..T double disc brake for stage appli-
cations:
• Product certificate of the Rheinisch-Westfälischer Technische Überwachungs-
Verein e.V (RW TÜV)
The certification reports accompanying the respective certificates must be observed.
The conditions are listed in this publication. The sections "Safety Notes" and "Installa-
tion/Startup" must be observed in particular.

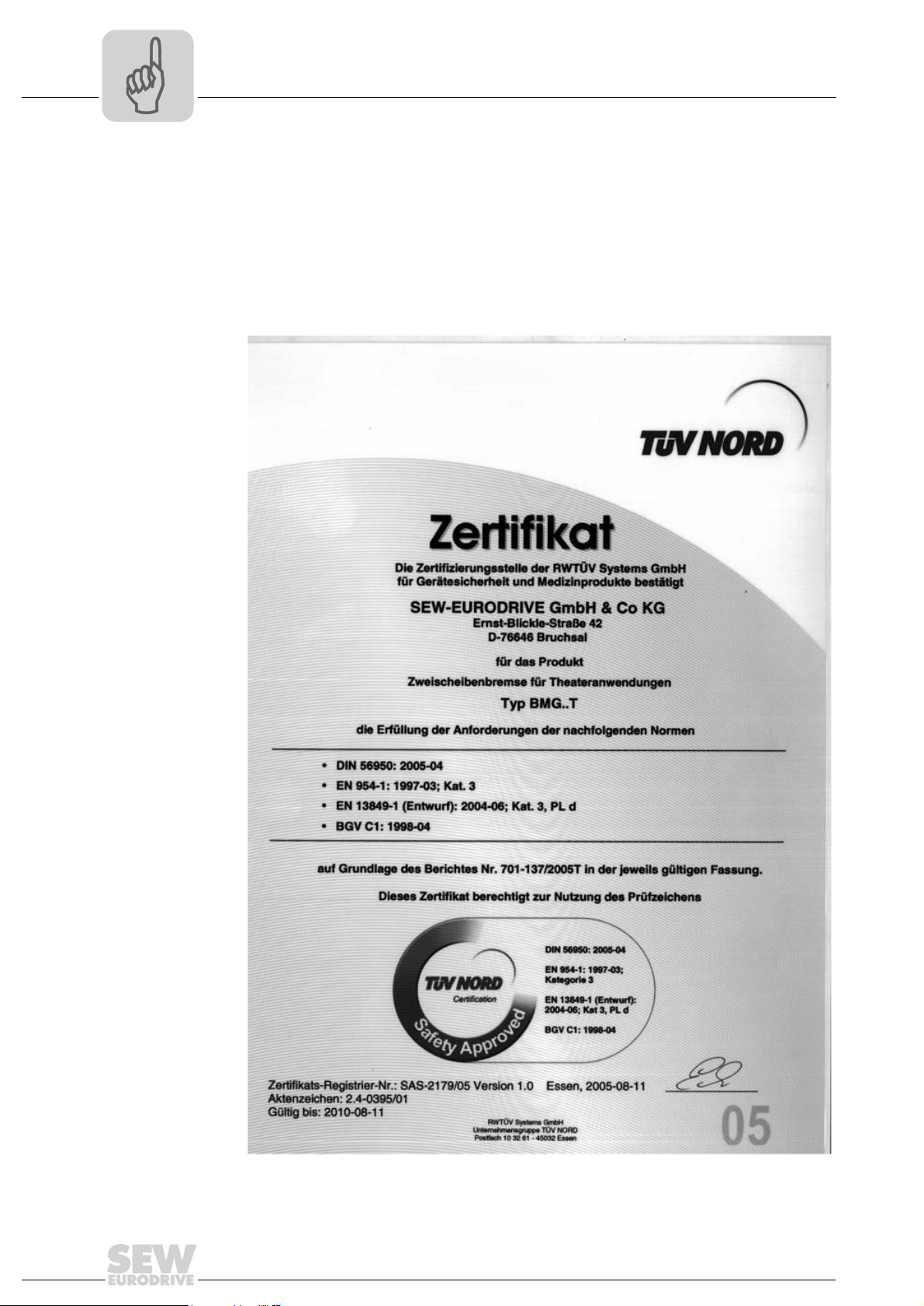

57626AXX
Figure 1: Product certificate

Operating Instructions – BMG..T Double Disc Brake for Stage Applications
7
4
Basic structure
Structure of the BMG..T Stage Brake
4 Structure of the BMG..T Stage Brake
4.1 Basic structure
The following sectional view is intended to explain the general structure. Its only purpose
is to facilitate the assignment of components to the spare parts lists. Discrepancies may
occur depending on the brake size and version!
54283AXX
Figure 2: Basic structure of the BMG..T brake
42 Brake end shield
49 Pressure plate
50 Brake spring
52 Brake stationary disc
53 Manual release
54 Complete brake coil body
56 Stud
57 Conical coil spring
58 Hexagonal nut
59 Dowel pin
60 Stud
61 Hexagonal nut
65 Pressure ring
66 Rubber sealing collar
67 Counter spring
68 Complete brake disc
69 Circular spring
73 Stainless steel shim plate
95 Sealing ring
157 Clamping strap
265 Brake spring, red
69
52
66
49
157
50
265
53
54
56
57
58
42 73
67
65
68
60
61
95
59

8
Operating Instructions – BMG..T Double Disc Brake for Stage Applications
4Unit designation
Structure of the BMG..T Stage Brake
4.2 Unit designation
The following motor/brake combinations are permitted for stage applications:
Brake type For motor size Rated braking torque [Nm]
BMG4T DT90 32 (2 x 16)
20 (2 x 10)
DV100
40 (2 x 20)
32 (2 x 16)
20 (2 x 10)
BMG8T
DV112 60 (2 x 30)
37 (2 x 18.5)
DV132S
75 (2 x 37.5)
60 (2 x 30)
37 (2 x 18.5)
BMG15T
DV132M 100 (2 x 50)
DV132ML DV160M 150 (2 x 75)
100 (2 x 50)
BMG32T DV160L 300 (2x150)
200 (2 x 100)
DV180 400 (2 x 200)
300 (2 x 150)
200 (2 x 100)
BMG62T DV200 DV225
400 (2 x 200)
300 (2 x 150)
200 (2 x 100)

Operating Instructions – BMG..T Double Disc Brake for Stage Applications
9
5
Mechanical installation
Installation/Startup
5 Installation/Startup
5.1 Mechanical installation
•In normal operation, the manual release lever for the brake must not be
attached. This prevents the brake from being released unintentionally.
•The drive may only be installed when
• The drive is undamaged (no damage caused by transportation or storage)
• It is certain that the following requirements have been met:
– Ambient temperature between -25 °C and +40 °C
– No oil, acid, gas, vapors, radiation, etc.
– Installation altitude max. 1000 m above sea level.
5.2 Electrical installation
•As regards the safety of the switching equipment, it must comply at least with
category 3 to EN 954-1 or with a comparable national standard.
•The utilization category of the contactors for the brake controller must be at
least AC-3 in accordance with EN 60947-4-1 or a comparable national standard.
•The brake is released electrically. The brake is applied mechanically when the
voltage is switched off.
– Connect the brake according to the wiring diagram supplied with the brake.
– The supply voltage must lie within the rated voltage range of the brake coil (see
Sec. "Technical Data").
• The brake can only be run with the SEW brake controller it is intended for (see Sec.
"Technical Data").
•Check the line cross sections – operating currents (see Sec. "Technical Data").
– Apply brake voltage according to the nameplate.
– Connect the brake controller according to the wiring diagram supplied with the
brake.
– For motors in thermal class H, install the brake rectifier in the switch cabinet!
– Use only copper cables with the following temperature ranges as connection ca-
bles: Temperature range: 60/75 °C
•Comply with the applicable regulations issued by the relevant employer’s lia-
bility insurance association regarding phase failure protection and the associ-
ated circuit/circuit modification!
5.3 Startup
• For startup, in addition to the safety notes in these operating instructions, it is essen-
tial that you comply with the safety notes in the operating instructions for the motor
as well as the legal and liability insurance conditions.

10
Operating Instructions – BMG..T Double Disc Brake for Stage Applications
6Inspection and maintenance periods
Inspection/Maintenance
6 Inspection/Maintenance
• Use only genuine spare parts in accordance with the valid parts list!
• Always install a new brake controller at the same time as replacing the brake coil.
• Motors can become very hot during operation – danger of burns!
• Secure or lower the mobile flying equipment and rigging system (danger of falling)!
• Isolatethe motorandbrake fromthepower supplybeforestarting work,safeguarding
them against unintentional power-up!
• The notes in the AC motor and brake motor operating instructions under BM/BMG
apply.
Auxilliary tools
table
The following table lists the part numbers of the distance blocks needed to perform the
dynamic check. Three distance blocks are required for the check.
6.1 Inspection and maintenance periods
The necessary inspection/maintenance periods must be calculated by the system man-
ufacturer according to the specific project planning documents for individual applica-
tions, in accordance with the directives of the employer’s liability insurance association.
According to the "BGV C1" regulation of the employer’s liability insurance association,
brakes for stage applications must be checked once a year.
The BMG..T brakes may only be disassembled by trained personnel.
Brake Part no. of the distance block
BMG4T 594 865 7
BMG8T 594 866 5
BMG15-62T 594 864 9
The distance blocks are not included in the scope of delivery for the brake.
During maintenance, the mobile flying equipment or rigging system must not be
subject to load.

Operating Instructions – BMG..T Double Disc Brake for Stage Applications
11
6
Checking the dual circuit braking function
Inspection/Maintenance
6.2 Checking the dual circuit braking function
The BMG..T brakes can be checked both statically and dynamically. A static check may
not be suitable for some applications (due to the higher reference torque). The system
operator determines the procedure that is to be used and how often a check is to be per-
formed (see the inspection and maintenance periods).
The following table lists the reference torque ratings to be applied. Regardless of the
inspection and test procedure used, the test should only be carried out by quali-
fied personnel!
Brake type Rated
braking
torque
Permitted
load torque Dynamic reference
torque
Static
reference
torque
BMG4T
40 (2 x 20) 13 16 32
32 (2 x 16) 10,5 13 26
20 (2 x 10) 6,5 8 16
BMG8T
75 (2 x 37.5) 25 31 62
60 (2 x 30) 20 25 50
37 (2 x 18.5) 12 15 30
BMG15T 150 (2 x 75) 50 62 125
100 (2 x 50) 35 44 88
BMG32T
400 (2 x 200) 70 87,5 175
300 (2 x 150) 100 125 250
200 (2 x 100) 135 169 338
BMG62T
400 (2 x 200) 70 87,5 175
300 (2 x 150) 100 125 250
200 (2 x 100) 135 169 338

12
Operating Instructions – BMG..T Double Disc Brake for Stage Applications
6Checking the dual circuit braking function
Inspection/Maintenance
Dynamic check in
accordance with
DIN 56950
The BMG..T brakes have a dual circuit braking function. If one brake circuit fails, the
other is able to hold the load. The following section describes how to check the
effectiveness of this backup brake system. The effectiveness is checked in accordance
with the periods specified by the system operator (see the inspection and maintenance
intervals). To check the effectiveness, one of the two brake discs is removed from the
power flow by inserting distance blocks.
1. Secure or lower the mobile flying equipment and rigging system (danger of
falling)!
2. Remove protective canopy and encoder.
3. Remove the rubber sealing collar.
4. Release the brake manually or electrically.
5. Remove one brake disc from the power flow by inserting three distance blocks above
the studs (see Figure 3 to page 13). To do so, turn the adjusting screws [3] of the
distance blocks [1] to the left until the brake discs [4] are inoperative.
6. Apply the brake.
7. Set the working air gap for the brake disc in the power flow to 0.25 mm (see the "In-
spection / Maintenance" section in the AC motor operating instructions).
8. The brake system in the power flow; that is, the one that has not been bridged using
distance blocks, must be able to cope with the dynamic reference torque ratings list-
ed in the following table, i.e. 125 % of the permitted load torque.
9. Remove distance blocks.
10.Repeat points 4 to 9 for the second brake disc.
11.Reset the working air gap.
12.Install the rubber sealing collar.
13.Attach the encoder and protective canopy.
Brake type Rated brak-
ing torque Permitted load torque Dynamic refer- ence torque
BMG4T
40 (2 x 20) 13 16
32 (2 x 16) 10.5 13
20 (2 x 10) 6.5 8
BMG8T
75 (2 x 37.5) 25 31
60 (2 x 30) 20 25
37 (2 x 18.5) 12 15
BMG15T 150 (2 x 75) 50 62
100 (2 x 50) 35 44
BMG32T
400 (2 x 200) 135 169
300 (2 x 150) 100 125
200 (2 x 100) 70 87.5
BMG62T
400 (2 x 200) 135 169
300 (2 x 150) 100 125
200 (2 x 100) 70 87.5
If one of the brake systems cannot cope with the specified dynamic torque, stop
the test immediately. This means that the dual circuit brake function is not
ensured. Stop the mobile flying equipment or rigging system, remove the brake
and check it.

Operating Instructions – BMG..T Double Disc Brake for Stage Applications
13
6
Checking the dual circuit braking function
Inspection/Maintenance
58038AXX
Figure 3: Checking the dual circuit brake function with distance blocks
[1] Distance blocks (3x)
[2] Air gap
[3] Adjusting screw
[4] Brake disc not in the power flow
[5] Brake disc in the power flow
[1]
[2]
[3]
[4]
[5]

14
Operating Instructions – BMG..T Double Disc Brake for Stage Applications
6Customer service
Inspection/Maintenance
Static check Brakes in the BMG..T series have a dual circuit braking function. The permitted load
torque during operation is much lower than the rated braking torque.
Before performing the static check described here, you must ensure that the transmis-
sion components are strong enough to cope with the test ratings. The strength must be
proved beforehand.
The static check is used to test the total braking torque of the individual brake discs; that
is, the braking circuits are subjected to load at the same time. Choose the static
reference torque according to the following table and apply the torque once you have
secured or lowered the mobile flying equipment and rigging system.
To check the backup and safety factors in a single test, 250 % of the permitted load
torque is applied as a static reference torque.
6.3 Customer service
Please have the following information to hand if you require the assistance of our cus-
tomer service:
• Data from the nameplate (complete)
• Type and extent of the problem
• Time the problem occurred and any accompanying circumstances
• Assumed cause
Brake type Rated
braking
torque
Permitted
load torque Static refer- ence torque
BMG4T
40 (2 x 20) 13 32
32 (2 x 16) 10.5 26
20 (2 x 10) 6.5 16
BMG8T
75 (2 x 37.5) 25 62
60 (2 x 30) 20 50
37 (2 x 18.5) 12 30
BMG15T 150 (2 x 75) 50 125
100 (2 x 50) 35 88
BMG32T
400 (2 x 200) 70 175
300 (2 x 150) 100 250
200 (2 x 100) 135 338
BMG62T
400 (2 x 200) 70 175
300 (2 x 150) 100 250
200 (2 x 100) 135 338
If the system cannot cope with the specified static torque during the test, stop the
test immediately. This means that the dual circuit brake function is not ensured.
Stop the mobile flying equipment or rigging system, remove the brake and check
it.
As an alternative static check, use a torque wrench on the B-side.

Operating Instructions – BMG..T Double Disc Brake for Stage Applications
15
7
BMG..T braking torque
Technical Data
7 Technical Data
7.1 BMG..T braking torque
After the motor test run, deviations of ±0.05 mm can occur in the working air gap caused
by parallelism tolerances in the brake disc.
Brake type For motor
size Working air gap Braking torque settings
nom./
min. nom./ max. Rated braking
torque
Type and
number of
brake springs
Order numbers for
brake springs
[mm] [mm] [Nm] Stan-
dard Red Standard Red
BMG4T
DT90
0.2 0.6
32 (2 x 16) 2 2
135 150 8 135 151 6
20 (2 x 10) 6
DV100
40 (2 x 20) 3
32 (2 x 16) 2 2
20 (2 x 10) 6
BMG8T
DV112 60 (2 x 30) 2 2
184 845 3 135 570 8
37 (2 x 18.5) 6
DV132S
75 (2 x 37.5) 3
60 (2 x 30) 2 2
37 (2 x 18.5) 6
BMG15T
DV132M 100 (2 x 50) 6
184 486 5 184 487 3
DV132ML
DV160M 150 (2 x 75) 3
100 (2 x 50) 6
BMG32T
DV160L 300 (2 x 150) 4
187 455 1 187 457 8
200 (2 x 100) 8
DV180
400 (2 x 100) 4 4
300 (2 x 150) 4
200 (2 x 100) 8
BMG62T DV200
DV225
400 (2 x 100) 4 4
187 455 1 187 457 8300 (2 x 150) 4
200 (2 x 100) 8
P
if
kVA
Hz
n

16
Operating Instructions – BMG..T Double Disc Brake for Stage Applications
7Brake controllers
Technical Data
7.2 Brake controllers
SEW-EURODRIVE stipulates the following brake controllers as standard in combination
with brakes from the BMG..T series for installation in terminal boxes:
If you want to install the brake controller in a switch cabinet, SEW-EURODRIVE
stipulates the following brake controllers in combination with brakes in the BMG..T
series:
If you want to install a different brake controller, please contact SEW-EURODRIVE to
discuss the possibilities.
7.3 BMG..T operating currents
The following table lists the operating currents of BMG..T:
BMG4T BMG8T BMG15T BMG 32T/
BMG62T
AC supply BG/BGE BGE BGE BGE
24 VDC supply BS/BSG BSG BSG BSG
BMG4T BMG8T BMG15T BMG32T/
BMG62T
AC supply BMS/BME/BMP BME/BMP BME/BMP BME/BMP
24 VDC supply BS/BSG BSG BSG BSG
BMG4T BMG8T BMG15T BMG32T BMG62T
Max. rated braking torque [Nm] 40 75 150 400 400
Braking power [W] 35 40 60 78 78
Inrush current ratio IB/IH- 6.3 7.5 8.5 8.5
Rated voltage UNBMG4T BMG8T BMG15T BMG32T BMG62T
IH[AAC] IH[AAC] IH[AAC] IH[AAC] IH[AAC]
24 DC 1.301)
1) Direct current for DC supply
1.752)
2) Direct current for operation with BSG
2.652) --
230 AC (208-233) 0.25 0.28 0.42 0.53 0.53
240 AC (234-261) 0.22 0.25 0.38 0.48 0.48
290 AC (262-293) 0.20 0.22 0.34 0.42 0.42
400 AC (370-414) 0.14 0.16 0.24 0.30 0.30
440 AC (415-464) 0.12 0.14 0.21 0.27 0.27
IBAccelerator current – brief inrush current
IHHolding current r.m.s. value in the connecting lead to the SEW brake rectifier
UNRated voltage (rated voltage range)
Permitted tolerances for rated voltage: Rated voltage range ± 10 %
Example: Rated voltage 230 VAC
Lower limit 208 VAC -10 %
Upper limit 233 VAC +10 %
P
if
kVA
Hz
n

Address List
04/2006
17
Address List
Germany
Headquarters
Production
Sales
Bruchsal SEW-EURODRIVE GmbH & Co KG
Ernst-Blickle-Straße 42
D-76646 Bruchsal
P.O. Box
Postfach 3023 · D-76642 Bruchsal
Tel. [phone]
Fax [phone]
http://www.sew-eurodrive.de
[email protected]
Service
Competence Center Central Gear units /
Motors
SEW-EURODRIVE GmbH & Co KG
Ernst-Blickle-Straße 1
D-76676 Graben-Neudorf
Tel. [phone]
Fax [phone]
[email protected]
Central
Electronics SEW-EURODRIVE GmbH & Co KG Ernst-Blickle-Straße 42
D-76646 Bruchsal
Tel. [phone]
Fax [phone]
[email protected]
North SEW-EURODRIVE GmbH & Co KG
Alte Ricklinger Straße 40-42
D-30823 Garbsen (near Hannover)
Tel. [phone]
Fax [phone]
[email protected]
East SEW-EURODRIVE GmbH & Co KG
Dänkritzer Weg 1
D-08393 Meerane (near Zwickau)
Tel. [phone]
Fax [phone]
[email protected]
South SEW-EURODRIVE GmbH & Co KG
Domagkstraße 5
D-85551 Kirchheim (near München)
Tel. [phone]
Fax [phone]
[email protected]
West SEW-EURODRIVE GmbH & Co KG
Siemensstraße 1
D-40764 Langenfeld (near Düsseldorf)
Tel. [phone]
Fax [phone]
[email protected]
Drive Service Hotline / 24 Hour Service +49 180 5 SEWHELP
[phone]
Additional addresses for service in Germany provided on request!
France
Production
Sales
Service
Haguenau SEW-USOCOME
48-54, route de Soufflenheim
B. P. 20185
F-67506 Haguenau Cedex
Tel. [phone]
Fax [phone]
http://www.usocome.com
[email protected]
Assembly
Sales
Service
Bordeaux SEW-USOCOME
Parc d’activités de Magellan
62, avenue de Magellan - B. P. 182
F-33607 Pessac Cedex
Tel. [phone]
Fax [phone]
Lyon SEW-USOCOME
Parc d’Affaires Roosevelt
Rue Jacques Tati
F-69120 Vaulx en Velin
Tel. [phone]
Fax [phone]
Paris SEW-USOCOME
Zone industrielle
2, rue Denis Papin
F-77390 Verneuil I’Etang
Tel. [phone]
Fax [phone]
Additional addresses for service in France provided on request!
Algeria
Sales Alger Réducom
16, rue des Frères Zaghnoun
Bellevue El-Harrach
16200 Alger
Tel. [phone]
Fax [phone]
Argentina
Assembly
Sales
Service
Buenos Aires SEW EURODRIVE ARGENTINA S.A.
Centro Industrial Garin, Lote 35
Ruta Panamericana Km 37,5
1619 Garin
Tel. [phone]
Fax [phone]
[email protected]

Address List
18
04/2006
Australia
Assembly
Sales
Service
Melbourne SEW-EURODRIVE PTY. LTD.
27 Beverage Drive
Tullamarine, Victoria 3043
Tel. [phone]
Fax [phone]
http://www.sew-eurodrive.com.au
[email protected]
Sydney SEW-EURODRIVE PTY. LTD.
9, Sleigh Place, Wetherill Park
New South Wales, 2164
Tel. [phone]
Fax [phone]
[email protected]
Austria
Assembly
Sales
Service
Wien SEW-EURODRIVE Ges.m.b.H.
Richard-Strauss-Strasse 24
A-1230 Wien
Tel. [phone]
Fax [phone]
http://sew-eurodrive.at
[email protected]
Belgium
Assembly
Sales
Service
Brüssel SEW Caron-Vector S.A.
Avenue Eiffel 5
B-1300 Wavre
Tel. [phone]
Fax [phone]
http://www.caron-vector.be
[e-mail]
Brazil
Production
Sales
Service
Sao Paulo SEW-EURODRIVE Brasil Ltda.
Avenida Amâncio Gaiolli, 50
Caixa Postal: 201-07111-970
Guarulhos/SP - Cep.: 07251-250
Tel. [phone]
Fax [phone]
http://www.sew.com.br
[e-mail]
Additional addresses for service in Brazil provided on request!
Bulgaria
Sales Sofia BEVER-DRIVE GmbH
Bogdanovetz Str.1
BG-1606 Sofia
Tel. [phone]
Fax [phone]
[email protected]
Cameroon
Sales Douala Electro-Services
Rue Drouot Akwa
B.P. 2024
Douala
Tel. [phone]
Fax [phone]
Canada
Assembly
Sales
Service
Toronto SEW-EURODRIVE CO. OF CANADA LTD.
210 Walker Drive
Bramalea, Ontario L6T3W1
Tel. [phone]
Fax [phone]
http://www.sew-eurodrive.ca
[email protected]
Vancouver SEW-EURODRIVE CO. OF CANADA LTD.
7188 Honeyman Street
Delta. B.C. V4G 1 E2
Tel. [phone]
Fax [phone]
[email protected]
Montreal SEW-EURODRIVE CO. OF CANADA LTD.
2555 Rue Leger Street
LaSalle, Quebec H8N 2V9
Tel. [phone]
Fax [phone]
[email protected]
Additional addresses for service in Canada provided on request!
Chile
Assembly
Sales
Service
Santiago de
Chile SEW-EURODRIVE CHILE LTDA. Las Encinas 1295
Parque Industrial Valle Grande
LAMPA
RCH-Santiago de Chile
P.O. Box
Casilla 23 Correo Quilicura - Santiago - Chile
Tel. [phone]
Fax [phone]
[email protected]
China
Production
Assembly
Sales
Service
Tianjin SEW-EURODRIVE (Tianjin) Co., Ltd.
No. 46, 7th Avenue, TEDA
Tianjin 300457
Tel. [phone]
Fax [phone]
[email protected]
http://www.sew.com.cn

Address List
04/2006
19
Assembly
Sales
Service
Suzhou SEW-EURODRIVE (Suzhou) Co., Ltd.
333, Suhong Middle Road
Suzhou Industrial Park
Jiangsu Province, 215021
P. R. China
Tel. [phone]
Fax [phone]
[e-mail]
Additional addresses for service in China provided on request!
Colombia
Assembly
Sales
Service
Bogotá SEW-EURODRIVE COLOMBIA LTDA.
Calle 22 No. 132-60
Bodega 6, Manzana B
Santafé de Bogotá
Tel. [phone]
Fax [phone]
[email protected]
Croatia
Sales
Service Zagreb KOMPEKS d. o. o. PIT Erdödy 4 II
HR 10 000 Zagreb
Tel. [phone]
Fax [phone]
[email protected]
Czech Republic
Sales Praha SEW-EURODRIVE CZ S.R.O.
Business Centrum Praha
Luná 591
CZ-16000 Praha 6 - Vokovice
Tel. +420 a220121236
Fax [phone]
http://www.sew-eurodrive.cz
[email protected]
Denmark
Assembly
Sales
Service
Kopenhagen SEW-EURODRIVEA/S
Geminivej 28-30, P.O. Box 100
DK-2670 Greve
Tel. [phone]
Fax [phone]
http://www.sew-eurodrive.dk
[email protected]
Estonia
Sales Tallin ALAS-KUUL AS
Paldiski mnt.125
EE 0006 Tallin
Tel. [phone]
Fax [phone]
[email protected]
Finland
Assembly
Sales
Service
Lahti SEW-EURODRIVE OY
Vesimäentie 4
FIN-15860 Hollola 2
Tel. [phone]
Fax [phone]
http://www.sew-eurodrive.fi
[e-mail]
Gabon
Sales Libreville Electro-Services
B.P. 1889
Libreville
Tel. [phone]
Fax [phone]
Great Britain
Assembly
Sales
Service
Normanton SEW-EURODRIVE Ltd.
Beckbridge Industrial Estate
P.O. Box No.1
GB-Normanton, West- Yorkshire WF6 1QR
Tel. [phone]
Fax [phone]
http://www.sew-eurodrive.co.uk
[email protected]
Greece
Sales
Service Athen Christ. Boznos & Son S.A. 12, Mavromichali Street
P.O. Box 80136, GR-18545 Piraeus
Tel. [phone]
Fax [phone]
http://www.boznos.gr
[email protected]
Hong Kong
Assembly
Sales
Service
Hong Kong SEW-EURODRIVE LTD.
Unit No. 801-806, 8th Floor
Hong Leong Industrial Complex
No. 4, Wang Kwong Road
Kowloon, Hong Kong
Tel. [phone] + 79604654
Fax [phone]
[email protected]
China

Address List
20
04/2006
Hungary
Sales
Service Budapest SEW-EURODRIVE Kft. H-1037 Budapest
Kunigunda u. 18
Tel. [phone]
Fax [phone]
[email protected]
India
Assembly
Sales
Service
Baroda SEW-EURODRIVE India Pvt. Ltd.
Plot No. 4, Gidc
Por Ramangamdi · Baroda - 391 243
Gujarat
Tel. [phone]
Fax [phone]
[email protected]
Technical Offices Bangalore SEW-EURODRIVE India Private Limited
308, Prestige Centre Point
7, Edward Road
Bangalore
Tel. [phone]
Fax [phone]
[email protected]
Ireland
Sales
Service Dublin Alperton Engineering Ltd. 48 Moyle Road
Dublin Industrial Estate
Glasnevin, Dublin 11
Tel. [phone]
Fax [phone]
Israel
Sales Tel-Aviv Liraz Handasa Ltd.
Ahofer Str 34B / 228
58858 Holon
Tel. [phone]
Fax [phone]
[email protected]
Italy
Assembly
Sales
Service
Milano SEW-EURODRIVE di R. Blickle & Co.s.a.s.
Via Bernini,14
I-20020 Solaro (Milano)
Tel. [phone]
Fax [phone]
[email protected]
Ivory Coast
Sales Abidjan SICA
Ste industrielle et commerciale pour l’Afrique
165, Bld de Marseille
B.P. 2323, Abidjan 08
Tel. [phone]
Fax [phone]
Japan
Assembly
Sales
Service
Toyoda-cho SEW-EURODRIVE JAPAN CO., LTD
250-1, Shimoman-no,
Iwata
Shizuoka 438-0818
Tel. [phone]
Fax [phone]
[email protected]
Korea
Assembly
Sales
Service
Ansan-City SEW-EURODRIVE KOREA CO., LTD.
B 601-4, Banweol Industrial Estate
Unit 1048-4, Shingil-Dong
Ansan 425-120
Tel. [phone]
Fax [phone]
[email protected]
Latvia
Sales Riga SIA Alas-Kuul
Katlakalna 11C
LV-1073 Riga
Tel. [phone]
Fax [phone]
[email protected]
Lebanon
Sales Beirut Gabriel Acar & Fils sarl
B. P. 80484
Bourj Hammoud, Beirut
Tel. [phone]
[phone]
[phone]
Fax [phone]
[email protected]
Lithuania
Sales Alytus UAB Irseva
Naujoji 19
LT-62175 Alytus
Tel. [phone]
Fax [phone]
[email protected]
http://www.sew-eurodrive.lt
