Shark BR Series Service manual

For technical assistance or the SHARK dealer nearest you, call 1-800-771-1881
or visit our website at www.shark-pw.com
97-723

BR-442537

BR-353237

BR-373537

BR-404027

BR-455037E

BR-343087E
MODEL: BR
OPERATING INSTRUCTION
AND PARTS MANUAL

3
CONTENTS
Model Number _________________________________
Serial Number _________________________________
Date of Purchase _______________________________
The model and serial numbers will be found on a decal at tached
to the pressure washer. You should record both serial number and
date of purchase and keep in a safe place for future ref er ence.
96-718, 97-721, 97-722, 97-723 • REV. 1/05
Important Safety Information
...............................................................
.
4-5
Component Identi cation Small
...............................................................
6
Component Identi cation Large
...............................................................
7
Assembly Instructions
...............................................................
...............
8
Operating Instructions
...............................................................
.........
9-10
Applying Detergent and General Operating Techniques
........................
11
Shut Down and Clean-Up
...............................................................
.......
12
Storage
...............................................................
...................................
12
Troubleshooting
...............................................................
.................
13-14
Preventative Maintenance
...............................................................
......
15
Oil Change Record
...............................................................
.................
15
Exploded View - Large
...............................................................
............
16
Exploded View Parts List
...............................................................
...
17-19

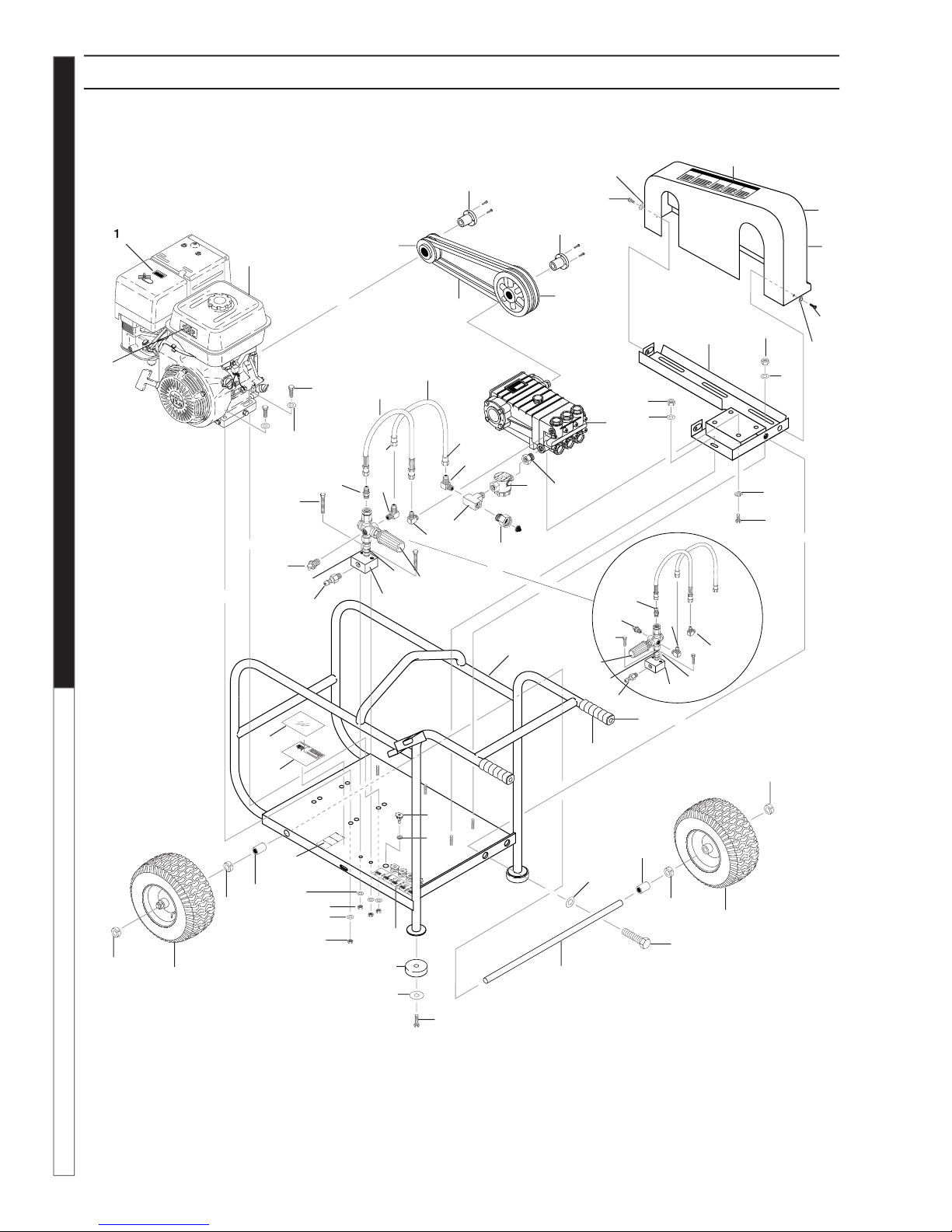

Exploded View - Small
...............................................................
............
20
Exploded View Parts List
...............................................................
...
21-22
Hose and Spray Gun Assembly
.............................................................
23
Speci cations
...............................................................
.....................
24-25
Warranty

96-718, 97-721, 97-722, 97-723 • REV. 1/05
OPERATOR’S MANUAL PRESSURE WASHER
4
PRESSURE WASHER OPERATOR’S MAN U AL
CAUTION: Risk of as phyx i a tion
— Use this product only in a well
ven ti lat ed area.
4.
Avoid installing ma chines in
small areas or near ex haust
fans. Ex haust con tains poi-
son ous car bon mon ox ide gas;
ex po sure may cause loss of
con scious ness and may lead to
death. It also con tains chemicals known, in cer tain
quan ti ties, to cause can cer, birth de fects or oth er
re pro duc tive harm.
WARNING: Flammable liquids
can create fumes which can
ig nite caus ing prop er ty damage
or se vere in ju ry.
WARNING: Risk of  re — Do not
add fuel when the prod uct is
operating.
WARNING: Risk of explosion —
Do not spray  am ma ble liq uids.
5.
Do not place ma chine near  ammable ob jects as
the en gine is hot.
6.
Allow engine to cool for 2 minutes before re fu el ing. If
any fuel is spilled, make sure the area is dry be fore
test ing the spark plug or start ing the en gine. (Fire
and/or ex plo sion may oc cur if this is not done.)
When refueling gasoline engines on mo bile or
por ta ble equipment, make sure to refuel:
a.
outdoors;
b.
with the engine on the equip ment stopped;
c.
with no source of ig ni tion within 10 feet of the
dis pens ing point; and
d.
with an allowance made for ex pan sion of the
fuel should the equip ment be exposed to a
high er am bi ent tem per a ture.
In an over lling or spillage situation, additional pre-
cau tions are nec es sary to en sure that the sit u a tion
is han dled in a safe man ner.
WARNING: High pressure stream
of water that this equip ment can
pro duce can pierce skin and its
un der ly ing tis sues, lead ing to
se ri ous in ju ry and pos si ble
am pu ta tion.
WARNING
HIGH PRESSURE
SPRAY CAN PIERCE
SKIN AND TIS SUES.
INTRODUCTION
Thank you for purchasing a this pressure washer.
All in for ma tion in this man u al is based on the lat est
prod uct in for ma tion avail able at the time of print ing.
Manufacturer reserves the right to make changes at
any time with out incurring any obligation.
This machine was designed for max i mum use
of 8 hours per day, 5 days per week.
Owner/User Responsibility:
The owner and/or user must have an un der stand ing of
the manufacturer’s operating instructions and warnings
be fore us ing this pressure washer. Warning in for ma tion
should be emphasized and understood. If the op er a tor
is not  uent in En glish, the manufacturer’s in struc tions
and warnings shall be read to and dis cussed with
the op er a tor in the operator’s native lan guage by the
pur chas er/owner, making sure that the operator com-
pre hends its contents.
Owner and/or user must study and maintain for fu ture
ref er ence the man u fac tur ers’ instructions.
The operator must know how to stop the machine
quick ly and un der stand the operation of all controls.
Never per mit any one to op er ate the engine without
proper in struc tions.
This manual should be considered a permanent
part of the machine and should remain with it if
ma chine is resold.
When ordering parts, please specify model and
serial number.
I
MPORTANT SAFETY
INFORMATION
CAUTION: To reduce the risk of
in ju ry, read op er at ing in struc -
tions care ful ly be fore us ing.
1.
Read the own er's man u al
thor ough ly. Fail ure to fol low
in struc tions could cause mal-
func tion of machine and re sult
in death, se ri ous bodily injury
and/or prop er ty dam age.
2.
All installations must com ply
with local codes. Con tact your elec tri cian, plumb er,
utility com pa ny or the sell ing dis trib u tor for spe ci c
details.
3.
This machine has been pro vid ed with Warn ing and
In struc tion decals for the safety of the operator. If
these decals are removed or be come damaged
they should be re placed. Contact your dealer for
re place ment de cals.
WARNING
RISK OF FIRE.
DO NOT ADD FUEL
WHEN OPERATING
MACHINE.
READ OPERATOR’S
MANUAL THOR OUGH LY
PRI OR TO USE.
CAUTION
RISK OF
ASPHYXIATION.
USE ONLY IN A WELL
VENTILATED AREA.
CAUTION

OPERATOR’S MANUAL PRESSURE WASHER
96-718, 97-721, 97-722, 97-723 • REV. 1/05
5
PRESSURE WASHER
PRESSURE WASHER
OPERATOR’S MAN U AL
PRESSURE WASHER
PRESSURE WASHER
14.
Cleaning area should be provided with adequate
slopes and drainage. This will reduce the pos si bil i ty
of a fall due to slippery surface.
15.
The best in sur ance against an accident is pre-
cau tion and knowl edge of the ma chine.
16.
Manufacturer will not be liable for any changes
made to our stan dard ma chines, or any com po -
nents not pur chased from the manufacturer.
17.
Read engine safety in struc tions provided.
WARNING: Keep water spray
away from electrical wir ing or
fa tal elec tric shock may re sult.
18.
Never run pump dry or leave
spray gun closed long er than
5 min utes.
19.
Do not allow children to op-
er ate the pressure wash er at
any time.
20.
Do not allow machine to run un at tend ed.
21.
Inlet water sup ply must be cold and clean fresh
water.
CAU TION: Spray gun kicks back – Hold with both
hands.
CAU TION: Risk of injury – Dis con nect battery
ground ter mi nal be fore servicing.
WARNING: High pressure spray
can cause paint chips or other
par ti cles to become air borne and
 y at high speeds. To avoid per-
son al in ju ry, eye safe ty de vic es
must be worn.
7.
Protective cloth ing and foot
protection must be worn when
using this equipment.
8.
High pres sure de vel oped by these machines will
cause per son al in ju ry or equip ment dam age. Use
cau tion when op er at ing. Do not di rect dis charge
stream at peo ple, or se vere in ju ry or death will
re sult.
9.
Never make ad just ments on ma chine while in
operation.
10.
Do not block or tie spray gun in open position.
11.
Do not place hands or feet on non-insulated areas
of the pres sure washer when starting gas o line
engine.
12.
When applying detergents, fol low the safety rules
on the de ter gent label.
13.
Use detergent from a covered D.O.T. approved
con tain er.

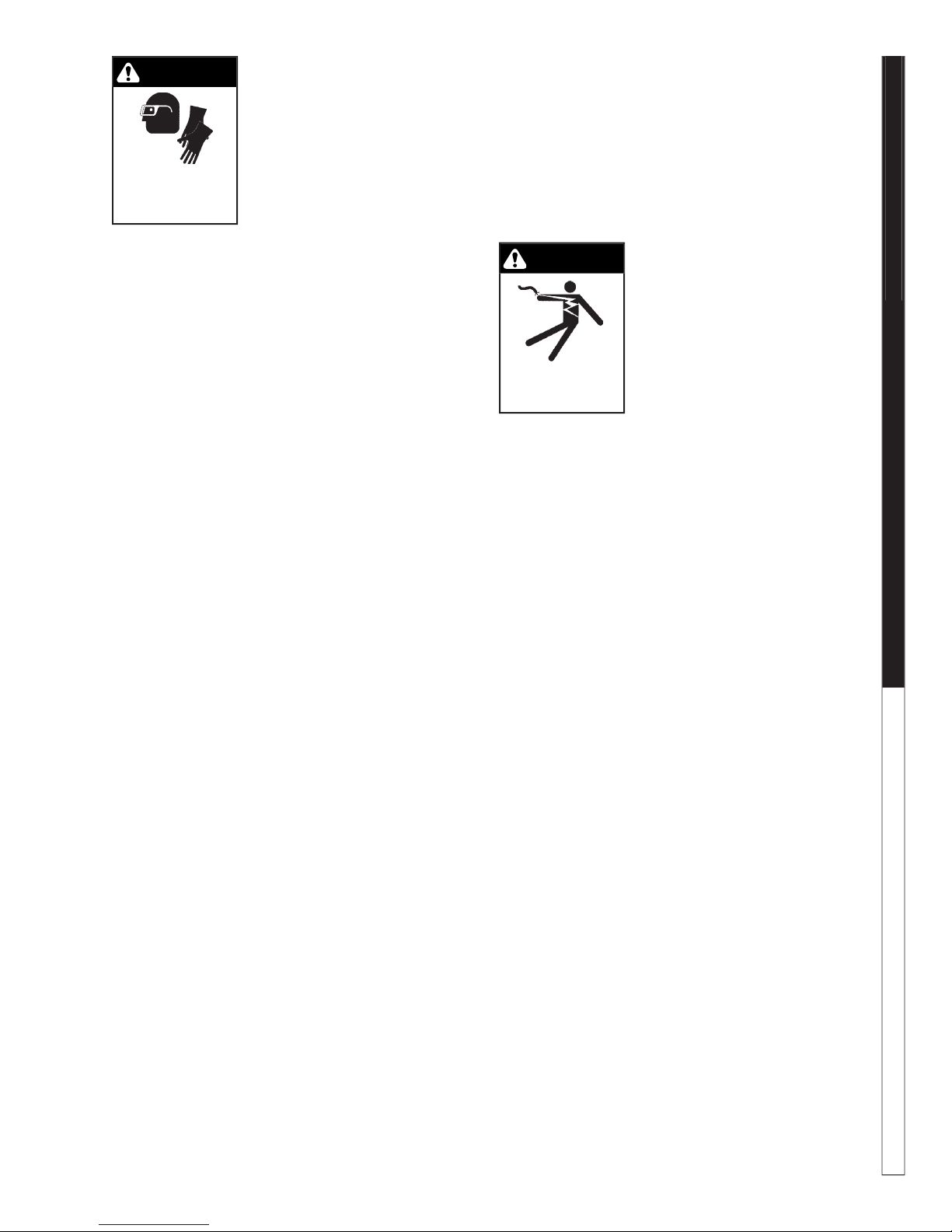

WARNING
PROTECTIVE
EYEWEAR AND
CLOTH ING MUST
BE WORN.
WARNING
KEEP WATER SPRAY
AWAY FROM
ELECTRICAL WIRING.

96-718, 97-721, 97-722, 97-723 • REV. 1/05
OPERATOR’S MANUAL PRESSURE WASHER
6
PRESSURE WASHER OPERATOR’S MAN U AL
COMPONENT IDENTIFICATION — SMALL MODELS
Pump
— Develops high pressure.
Starter
Grip
— Used for starting the engine man u al ly.
Spray Gun
— Controls the application of water and
de ter gent onto cleaning surface with trigger device.
In cludes safe ty latch.
Detergent Injector
— Allows you to siphon and mix
detergents (not shown).
Wand
— Must be connected to the spray gun.
High Pressure Hose
— Connect one end to water
pump dis charge nipple and the other end to spray
gun.
Note
:
If trigger on spray gun is released for more
than 2 minutes, water will leak from valve. Warm
water will dis charge from pump protector onto  oor.
This sys tem pre vents internal pump dam age.
Spray Gun
Wand
High Pressure
Hose
Water Inlet
High Pressure
Discharge
Nozzle
Starter
Grip
Pump

OPERATOR’S MANUAL PRESSURE WASHER
96-718, 97-721, 97-722, 97-723 • REV. 1/05
7
PRESSURE WASHER
PRESSURE WASHER
OPERATOR’S MAN U AL
PRESSURE WASHER
PRESSURE WASHER
COMPONENT IDENTIFICATION — LARGE MODELS
Nozzle
Spray Gun
Wand
Water Inlet
High Pressure
Discharge
High Pressure
Hose
Starter
Grip
Pump

96-718, 97-721, 97-722, 97-723 • REV. 1/05
OPERATOR’S MANUAL PRESSURE WASHER
8
PRESSURE WASHER OPERATOR’S MAN U AL
ASSEMBLY INSTRUCTIONS
STEP 1:
Attach the high pres sure
hose to the spray gun using te on
tape on hose threads.
STEP 3:
Release the coupler col lar
and push the nozzle until the collar
clicks. Pull the nozzle to make sure
it is seat ed properly.
STEP 5:
Connect the high pres sure
hose to the pump discharge  tting.
Push coupler collar forward until
se cure.
STEP 2:
Pull the spring-load ed col-
lar of the wand coupler back to in sert
your choice of pres sure noz zle.
STEP 6:
Connect garden hose to
the cold water source.
STEP 7:
Check inlet  lters, remove
debris, then connect garden hose
to pump wa ter in let.
CAU TION: Do
not run the pump with out wa ter or
pump dam age will result.
Safety
Latch
Spray
Gun
High Pressure
Hose
Wand
Coupler
Pressure
Nozzle
Pressure
Nozzle
Wand
Coupler
Wand
Collar
Discharge
Fitting
High Pressure Hose
Cold
Water
Source
Garden
Hose
Pump
Water Inlet
Garden
Hose
Coupler Collar
Dipstick
STEP 4:
Remove shipping cap and
install oil dipstick. Check pump oil
level by using dipstick or observe
oil level in oil window (if equipped).
Use 30 wt. non detergent oil.

OPERATOR’S MANUAL PRESSURE WASHER
96-718, 97-721, 97-722, 97-723 • REV. 1/05
9
PRESSURE WASHER
PRESSURE WASHER
OPERATOR’S MAN U AL
PRESSURE WASHER
PRESSURE WASHER

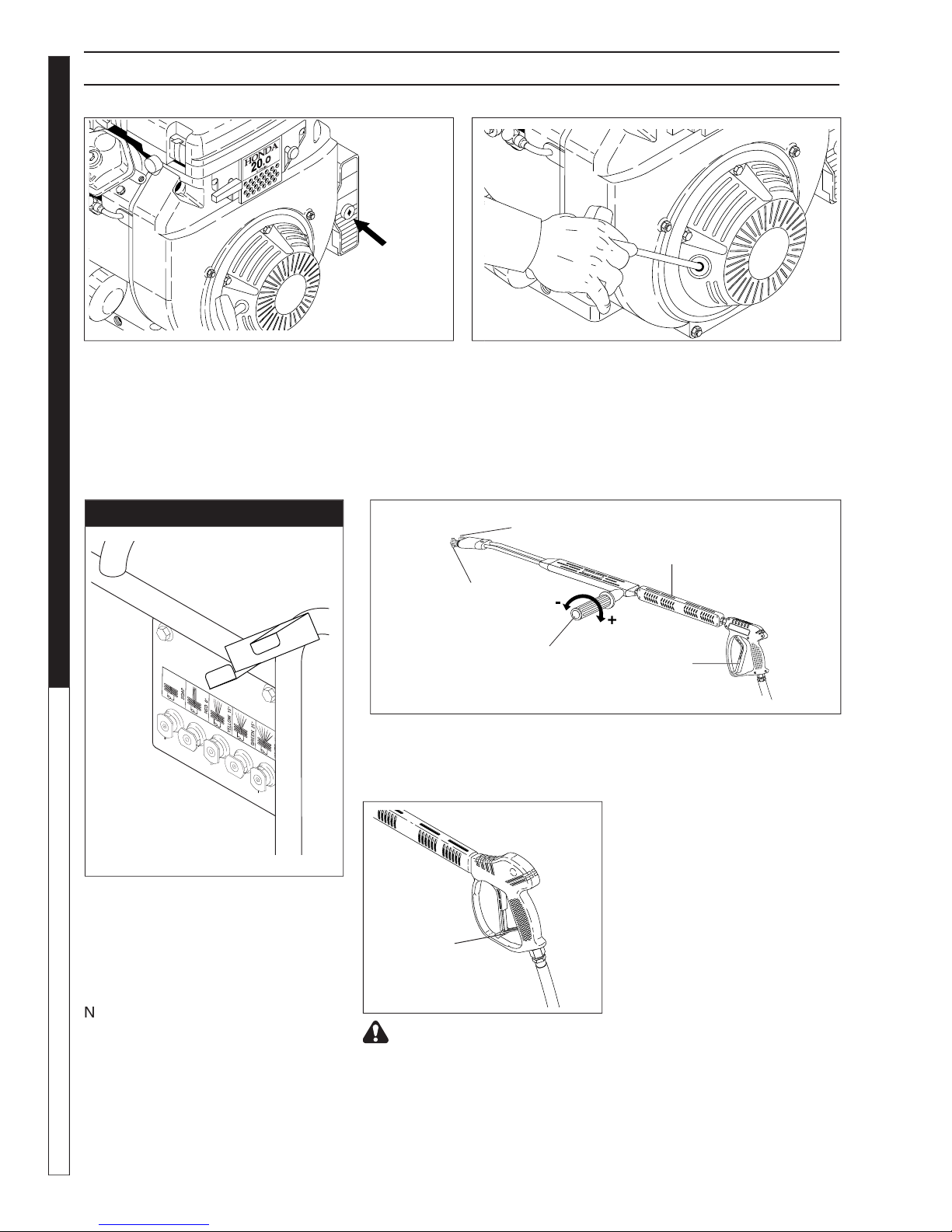

STEP 1:
Check engine oil level. Oil level should be level with the bottom
of the oil  ller neck. Be sure the ma chine is level when checking the oil
level. (Refer to the en gine's op er at ing manual included with machine.) We
rec om mend that the oil be changed after the  rst 5 hours of use, then once
every 50 hours.
Note:
Im prop er oil levels will cause low oil sensor to shut
off engine.
IMPORTANT! Do not run engine with high or low oil levels
as this will cause engine damage.
STEP 3:
Connect garden hose
to the cold water source and turn
wa ter on completely. Never use
hot wa ter.
STEP 5:
Rotate the fuel shut-off valve to the "On" po-
si tion. Slide the fuel valve lever to the "ON" position.
When the engine is not in use, leave the fuel valve in
the "OFF" position.
STEP 4:
Trigger the spray gun to
elim i nate trapped air then wait for a
steady  ow of water to emerge from
the spray noz zle.
OPERATING INSTRUCTIONS
STEP 2:
Fill gas tank with un-
lead ed gasoline. Do not use leaded
gas o line.
STEP 6:
Pull the choke knob out to the "Choke" po si tion
(on a warm engine, when in the run po si tion, leave the
choke knob in). Push the choke knob to the "Closed"
po si tion. To restart a warm engine, leave the choke knob
in the "Open" position.
Engine
Oil
Dipstick
Cold
Water
Source
Garden
Hose
Choke
Knob
Fuel
Valve
Gas
Tank

96-718, 97-721, 97-722, 97-723 • REV. 1/05
OPERATOR’S MANUAL PRESSURE WASHER
10
PRESSURE WASHER OPERATOR’S MAN U AL
STEP 7:
Turn the engine switch to "ON" position.
STEP 8:
Pull the starter grip. If the engine fails to start
after 2 pulls, squeeze the trigger gun to release pres sure
and repeat step. Return start er gently. After the en gine
warms up enough to run smoothly, move choke to run
position and throt tle to fast position.
CAUTION: Small engines may kick back. Do not hold
pull starter grip tightly in hand.
OPERATING INSTRUCTIONS (CON'T)
WARNING! Never replace
noz zles without engaging the
safe ty latch on the spray gun
trig ger.
The  ve color-coded quick con nect
noz zles provide a wide array of spray
widths from 0° to 45° and are easily ac-
cessible when placed in the con ve nient
rubber nozzle holder, which is provided
on the front of the ma chine.
N
OTE:
For a more gentle rinse, se lect
the white 40° or green 25° noz zle. To
scour the surface, select the yellow 15°
or red 0° nozzle. To apply de ter gent
select the black noz zle.
NOZZLES
On-Off
Switch
Safety
Latch
Selection of high or low pressure is accompanied by turn ing the handle.
Note:
High pressure nozzle must be in sert ed at end of wand to obtain
high pressure. To apply soap read operator's manual.
Variable Pressure
Control Handle
Trigger
Variable Pressure
Wand (VP)
High
Pressure
Nozzle
Brass Soap
Nozzle

OPERATOR’S MANUAL PRESSURE WASHER
96-718, 97-721, 97-722, 97-723 • REV. 1/05
11
PRESSURE WASHER
PRESSURE WASHER
OPERATOR’S MAN U AL
PRESSURE WASHER
PRESSURE WASHER
WARNING: Some de ter gents
may be harm ful if in haled or
in gest ed, caus ing severe nau-
sea, fainting or poi son ing. The
harm ful el e ments may cause
prop er ty dam age or severe
injury.
STEP 1:
Connect detergent in jec tor to discharge nipple
on machine. Connect high pressure hose to in jec tor
with quick coupler. (Check to make sure locking cou pler
sleeves are in proper position before ap ply ing wa ter
pres sure).
STEP 2:
Use detergent de signed
spe ci cal ly for pres sure washers.
House hold de ter gents could dam-
age the pump. Pre pare detergent
so lu tion as required by the man u -
fac tur er. Fill a container with pres-
sure washer de ter gent. Place the
 lter end of detergent suction hose
into the de ter gent container.
STEP 3:
With safety latch on spray
gun engaged, se cure black soap noz zle into quick cou pler.
NOTE:
De ter gent can not be ap plied using red, yellow,
green or white noz zles.
STEP 4:
With the engine run-
ning, pull trig ger to op er ate ma-
chine. Liq uid detergent is drawn
into the ma chine and mixed with
water. Apply de ter gent to work
area. Do not al low de ter gent to
dry on sur face.
IMPORTANT: You must  ush the detergent in jec tion
sys tem after each use by plac ing the suction hose
into a buck et of clean wa ter, then run the pres sure
wash er in low pres sure for 1-2 minutes.
WARNING
APPLYING DETERGENT
AND GENERAL CLEANING
TECHNIQUES
THERMAL PUMP
PROTECTION
If you run the engine on your pres sure wash er for 3-5
min utes with out pressing the trig ger on the spray gun,
cir cu lat ing water in the pump can reach high tem per a-
tures. When the water reach es this tem per a ture, the
pump pro tec tor engages and cools the pump by dis-
charg ing the warm water onto the ground. This ther mal
de vice pre vents internal dam age to the pump.
CLEANING TIPS
Pre-rinse clean ing surface with fresh water. Place de-
ter gent suc tion tube di rect ly into clean ing solution and
ap ply to sur face at low pressure (for best re sults, lim it
your work area to sec tions ap prox i mate ly 6 feet square
and al ways ap ply de ter gent from bottom to top). Allow
de ter gent to re main on sur face 1-3 min utes. Do not al-
low de ter gent to dry on sur face. If sur face appears to
be drying, sim ply wet down sur face with fresh water. If
need ed, use brush to re move stub born dirt. Rinse at
high pres sure from top to bottom in an even sweep ing
mo tion keep ing the spray nozzle ap prox i mate ly 1 foot
from clean ing sur face. Use over lap ping strokes as you
clean and rinse any sur face. For best surface clean ing
action spray at a slight an gle.
Recommendations:
•
Before cleaning any surface, an inconspicuous
area should be cleaned to test spray pattern and
dis tance for maximum cleaning results.
•
If painted surfaces are peeling or chipping, use
ex treme caution as pressure washer may re move
the loose paint from the surface.
•
Keep the spray nozzle a safe distance from the
sur face you plan to clean. High pressure wash a
small area, then check the surface for damage. If
no dam age is found, continue to pressure wash-
ing.
CAUTION - Never use:
CAUTION - Never use:
CAUTION - Never use:
CAUTION - Never use:
•
Bleach, chlorine products and other corrosive
chem i cals
•
Liquids containing solvents (i.e., paint thinners,
gas o line, oils)
•
Tri-sodium phosphate products
•
Ammonia products
•
Acid-based products
These chemicals will harm the machine and will dam-
age the surface
being cleaned.
RINSING
It will take a few sec onds for the de ter gent to clear.
Apply safe ty latch to spray gun. Re move black soap
noz zle from the quick cou pler. Select and in stall the
de sired high pres sure noz zle.
NOTE:
You can also stop
de ter gent from  ow ing by sim ply re mov ing de ter gent
si phon hose from bottle.
Detergent
Injector
Quick Coupler
Filter
Discharge
Nipple
High
Pressure
Hose
Soap
Nozzle

96-718, 97-721, 97-722, 97-723 • REV. 1/05
OPERATOR’S MANUAL PRESSURE WASHER
12
PRESSURE WASHER Troubleshooting Guide
SHUTTING
DOWN
AND CLEAN-UP
STEP 1:
Remove detergent suc tion
tube from container and insert into
one gallon of fresh water. Slide noz zle
for ward for low pressure or to con nect
black detergent nozzle. Pull trig ger on
spray gun and si phon water for one
minute.
STEP 2:
Turn engine switch to "OFF"
position.
STEP 3:
Turn off water
sup ply.
STEP 5:
Disconnect the garden
hose from the water inlet on the
machine.
STEP 6:
Disconnect the high
pres sure hose from high pres-
sure out let.
STEP 7:
En gage
the spray gun safe ty
lock.
STEP 4:
Press
trig ger to re lease
wa ter pres sure.
CAUTION: Al ways store your pressure washer in a
lo ca tion where the temperature will not fall be low
32°F (0°C). The pump in this machine is sus cep ti ble
to permanent dam age if fro zen. FREEZE DAM AGE
IS NOT COV ERED BY WARRANTY.
1.
Stop the pressure washer, squeeze spray gun trig-
ger to release pressure.
2.
Detach water supply hose and high pressure hose.
3.
Turn on the machine for a few seconds, until re-
main ing water exits. Turn engine off im me di ate ly.
4.
Drain the gas and oil from the engine.
5.
Do not allow high pressure hose to become kinked.
6.
Store the machine and accessories in a room which
does not reach freezing temperatures.
CAUTION: Fail ure to follow the above di rec tions will
result in dam age to your pres sure washer.
When the pres sure washer is not being operated or is
be ing stored for more than one month, follow these
in struc tions:
1.
Replenish engine oil to up per level.
2.
Drain gas o line from fuel tank, fuel line, fuel valve
and carburetor.
3.
Pour about one teaspoon of engine oil through
the spark plug hole, pull the starter grip several
times and re place the plug. Then pull the starter
grip slow ly until you feel increased pressure which
indicates the pis ton is on its compression stroke and
leave it in that position. This closes both the intake
and ex haust valves to prevent rusting of cylinder.
4.
Cover the pressure washer and store in a clean, dry
place that is well ventilated away from open  ame
or sparks.
NOTE:
The use of a fuel additive, such
as STA-BIL
®
, or an equivalent, will minimize the
for mu la tion of fuel deposits during shortage. Such
ad di tives may be added to the gasoline in the fuel
tank of the engine, or to the gasoline in a storage
con tain er.
After Extended Storage
CAUTION: Prior to restarting, thaw out any
pos si ble ice from pressure washer hos es,
spray gun or wand.
Engine Maintenance
During the winter months, rare atmospheric conditions
may develop which will cause an icing con di tion in the
car bu re tor. If this de vel ops, the engine may run rough,
lose power and may stall. This temporary condition can
be overcome by de ecting some of the hot air from the
en gine over the carburetor area.
NOTE:
Refer to the
en gine man u fac tur er's manual for service and main te -
nance of the engine.
STORAGE
On-Off
Switch
Water
Inlet
High Pressure
Outlet
Safety
Latch

OPERATOR’S MANUAL PRESSURE WASHER
96-718, 97-721, 97-722, 97-723 • REV. 1/05
13
PRESSURE WASHER Troubleshooting Guide
PRESSURE WASHER Troubleshooting Guide
PRESSURE WASHER Troubleshooting Guide
PRESSURE WASHER Troubleshooting Guide
PRESSURE WASHER Troubleshooting Guide
PRESSURE WASHER Troubleshooting Guide
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SOLUTION
LOW OPERATING
PRESSURE
Insuf cient water supply. Closed
faucet. Inlet hose kinked
Use larger garden hose; clean inlet water
screen. Open faucet.
Clogged inlet hose strainer
Check plumbing system for leaks. Retape
leaks with te on tape.
Faulty or misadjusted unloader
valve
Adjust unloader for proper pressure. Install
repair kit when needed. Call technical sup-
port.
Worn packing in pump
Call technical support.
Machine has been stored in freez-
ing temperatures.
Thaw out machine completely, including
hose, spray gun and wand.
Slow engine RPM
Call technical support.
FLUCTUATING
PRESSURE
Worn or dirty pump valves
Call technical support.
Nozzle is obstructed
Use nozzle wire in accessory kit.
Pump sucking air, inlet hose leak-
ing
Check all pump lines and connections.
PRESSURE LOW
AFTER PERIOD OF
NORMAL USE
Nozzle worn
Replace nozzle.
Unloader valve worn
Replace unloader valve.
ENGINE WILL NOT
START OR STOPS
WHILE OPERATING
Low oil shutdown
Fill engine with oil.
Water in gasoline
Drain gas tank;  ll with clean fuel.
Out of gas
Fill fuel tank.
ENGINE IS
OVERLOADED
Nozzle partially blocked
Clean nozzle.
Excessive pressure from high
engine RPM
Adjust engine throttle to lower RPM.
WATER OR OIL
LEAKING FROM
BOTTOM OF PUMP
A small amount of leaking is
normal
If excessive leaking occurs, call technical
support.
PRESENCE OF WATER
IN PUMP OIL
Water sprayed at machine
Change oil. Direct spray away from ma-
chine.
High humidity in air
Check and change oil twice as often.
Piston packing worn. Oil seal
worn
Call technical support.

96-718, 97-721, 97-722, 97-723 • REV. 1/05
OPERATOR’S MANUAL PRESSURE WASHER
14
PRESSURE WASHER OPERATOR’S MAN U AL
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SOLUTION
ENGINE OPERATES
FOR 15 MIN. THEN
STOPS
Not enough gas or engine oil
Fill tank with gas. Check oil level.
Vapor lock developed by heat of
day
Keep gas tank full to avoid vapor locking.
Obstruction in fuel  lter
Clean or replace fuel  lter.
ENGINE LACKS POWER
Dirty air  lter
Replace air  lter.
ENGINE FALTERS
Choke is opened too soon
Move choke to halfway position until en-
gine runs smoothly.
WATER DRIPPING FRO-
MUNDER PUMP
Piston packing worn
Call technical support.
O-Ring plunger retainer worn
Call technical support.
Cracked piston
Call technical support.
OIL DRIPPING
Oil seal worn or damaged
Call technical support.
WATER LEAKING FROM
PUMP PROTECTOR
Spray gun closed with machine
running 5 minutes or longer
Open spray gun or turn off machine.
Excess water supply pressure
Place a pressure regulator at end of 50’
garden hose.
NO DETERGENT
Detergent suction tube not prop-
erly connected to machine
Check connection.
Detergent is too thick
Dilute detergent. For best results, use
Rhino detergent.
Detergent  lter valve is at lowest
setting
Set detergent  lter valve to a higher set-
ting.
Filter on detergent suction tube is
clogged
Run warm water through  lter to remove
debris.
Damaged or clogged detergent
suction tube
Remove obstruction or replace detergent
suction tube.
A high pressure nozzle is at-
tached.
Replace with black detergent nozzle.
Discharge nozzle is obstructed
Blow out or remove debris with  ne needle.
GARDEN HOSE
CONNECTION LEAKS
Loose  ttings
Tighten  ttings.
Missing/worn rubber washer
Insert new washer.
SPRAY WAND LEAKS
Spray wand not properly attached
Slide the spray wand into the gun. Turn the
wand collar clockwise onto the spray gun
threads until tight.
Broken o-ring
Call customer service and order an o-ring.
PUMP IS NOISY
Pump is sucking air
Check that hoses and  ttings are air tight.
Turn off machine and purge pump by
squeezing trigger gun until a steady  ow of
water emerges through nozzle.

OPERATOR’S MANUAL PRESSURE WASHER
96-718, 97-721, 97-722, 97-723 • REV. 1/05
15
PRESSURE WASHER
PRESSURE WASHER
OPERATOR’S MAN U AL
PRESSURE WASHER
PRESSURE WASHER
PREVENTATIVE MAINTENANCE
This pressure washer was produced with the best avail able ma te ri als and quality craftsmanship. However, you
as the own er have certain re spon si bil i ties for the correct care of the equip ment. At ten tion to reg u lar pre ven ta tive
main te nance pro ce dures will as sist in preserving the per for mance of your equipment. Contact your dealer for
main te nance. Regular pre ven ta tive main te nance will add many hours to the life of your pres sure washer. Per form
main te nance more often under severe conditions.
OIL CHANGE RECORD
Check pump oil and engine oil level before  rst use of your new pressure washer.
Pump Oil
Inspect
Daily inspect the oil level
After  rst 50 hours, then every 500 hours or
annually
Change
Replace high pressure nozzle
Every 6 months
Replace quick connects
Annually
Clean water screen/ lter
Weekly
Replace HP hose
Annually if there is any sign of wear
Grease motor
Every 10,000 hours
Date Oil Changes
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
Date Oil Changes
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change

96-718, 97-721, 97-722, 97-723 • REV. 1/05
OPERATOR’S MANUAL PRESSURE WASHER
16
PRESSURE WASHER OPERATOR’S MAN U AL
EXPLODED VIEW - LARGE
31
39
40
2
27
4
55
5
57
57
56
52
32
26
34
38
35
37
57
36
78
21
61
15
14
1
12
28
18
16
18
33
45
20
9
8
50
22
60
46
42
59
30
59
47
53
7
25
59, 60, 61
29
51
10,41
47,59
60
24
49
29
48
54
43
43
73
73
48
74
49
49
74
48
74
74
74
48
74
48
72
69
70
58
70
66
67
74
48
48
74
74
71
79
23
75
76
53
17
343087E,343089E,
404027, 404029
404027, 404029
404027, 404029
Models
18
45
23
16
8, 9
51
3
68
80
81
Models
Models
404027,
404027,
404029
404029
6
62
22
60
59
58
72
85
86
87
59
84
44
71
82
10
All Models
Except
4040
4040
59
60
59
88
42

OPERATOR’S MANUAL PRESSURE WASHER
96-718, 97-721, 97-722, 97-723 • REV. 1/05
17
PRESSURE WASHER
PRESSURE WASHER
OPERATOR’S MAN U AL
PRESSURE WASHER
PRESSURE WASHER
EXPLODED VIEW PARTS LIST- LARGE
ITEM
PART NO.
DESCRIPTION
QTY
1
10-02011
Label, This Tank For Gas Only
(405037E,455037E,405037E,
455039E,455034E)
1
10-020090
Label, Diesel (343087E,
343089E)
1
2
10-02025A
Label, “Hot/Caliente” w/Arrows
1
3
10-02029
Label, Danger Cool Engine
(405037E,455037E,405039E,
455039E,455034E)
1
4
11-01011
Label, Warning Pictoral(Small)
1
5
11-013

Label, Logo, Belt Guard
(BR)
1
11-014

Label, Logo, Belt Guard
(BC)
1
10-03014

Label, Logo, Belt Guard
(MP)
1
11-3006

Label, Logo, Belt Guard
(BD)
1
6
11-0316
Label, Instructions
1
7
10-03008
Label, Nozzle Identi cation
1
8
2-0051
Nipple, 1/2” JIC, 3/8” Pipe
1
9
2-0079
Swivel, 1/2" JIC Fem,
3/8" Male
1
10
2-010061
Bushing, Rubber, Nitrile (405039E,
455039E, 455034E, 405037E,
455037E)
1
(343087E,343089E)
2
11
2-0103
Grommet, Rubber, Nozzle
Holder
5
12
2-011507
Tank, Encore 5 Gal. Tank
(343087E,343089E,405039E,
455039E,455034E,405037E,
455037E)
1
13
2-01167
Cap, Fuel Tank, Plastic (343087E,
343089E,405039E,455039E,
455034E,405037E,455037E)
1
14
2-0117
Battery, Box (343087E,343089E,
405039E,455039E,455034E,
405037E,455037E)
1
15
2-011700
Plate, Battery Box, Small, Polypro
(343087E,343089E,405039E,
455039E,455034E,405037E,
455037E)
1
16
2-0051
Nipple 1/2" JIC x 3/8" Male
(343087E,343089E,404027,
404029)
1
2-00510
Nipple, 1/2" JIC x 3/8" Fem
(405037E,405039E,455034E,
455037E,455039E)
1
17
2-0155
Fastener, Ratchet, Black Nylon
2
ITEM
PART NO.
DESCRIPTION
QTY
18
2-1062
Elbow, 1/2" JIC x 1/2", 90°
(405037E,405039E,455034E,
455037E,455039E)
2
(343087E,343089E,404027,
404029)
1
2-1060
Elbow, 1/2” JIC x 3/8”, 90°
(404027, 404029, 343087E,
343089E)
1
19
2-10942
Swivel, 1/2"MP x 3/4" GHF
w/Strainer
1
20
2-1105
Swivel, 1/2" JIC Fem, Push-On
2
21
2-1923
Strainer, 1/2" PA, Inline Plastic
1
22
2-20022
Nipple, 3/8" Fem, 11,000 PSI”
(405039E,455039E,455034E,
405037E,455037E)
1
2-2007
Nipple, 3/8" x 3/8" NPT ST Male
(404027,404029,343087E,
343089E)
1
23
2-30082
Pump Protector, 1/2" PTP
(405039E,455039E,455034E,
405037E,455037E)
1
2-300816
Pump Protector, 3/8" (404027,
404029,343087E,343089E)
1
24
2-90151
Clamp, Snap-In Wire (343087E,
343089E,405039E,455039E,
455034E,405037E,455037E)
2
25
2-9016
Clamp, Round, 0.56 I.D. (405039E,
455039E, 455034E, 405037E,
455037E)
1
26
4-02047914
Hose, 3/8" x 14", 2 Wire,
Pressure Loop (405037E,405039E,
(455034E,455037E,455039E)
1
4-02047714
Hose, 3/8" x 1/4", 2 Wire Pressure
(343087E,343089E,404027,
404029)
1
27
4-02100000
Hose, 1/4", Push-On, Fuel Line
(343087E,343089E,405039E,
455039E,455034E,405037E,
455037E)
4.75 ft.
28
4-02110000
Hose, 1/2", Push-On
1.25 ft.
29
4-0307
Wheel & Tire Cmpl, 6"
4

96-718, 97-721, 97-722, 97-723 • REV. 1/05
OPERATOR’S MANUAL PRESSURE WASHER
18
PRESSURE WASHER OPERATOR’S MAN U AL
ITEM
PART NO.
DESCRIPTION
QTY
30
4-12803500
Nozzle, SACQMEG, 0003.5, Red
(405039E,405037E)
1
4-12803515
Nozzle, SAQCMEG 1503.5, Yellow
(405039E,405037E)
1
4-12803525
Nozzle, SAQCMEG, 2503.5,
Green (405039E,405037E)
1
4-12803540
Nozzle, SAQCMEG 4003.5, White
(405039E,405037E)
1
4-12804000
Nozzle, SAQCMEG 0004, Red
(343087E,343089E,404029,
404027,455039E,455034E,
455037E)
1
4-12804015
Nozzle, SAQCMEG 1504, Yellow
(343087E,343089E,404029,
404027,455039E,455034E,
455037E)
1
4-12804025
Nozzle, SAQCMEG 2504, Green
(343087E,343089E,404029,
404027,455039E,455034E,
455037E)
1
4-12804040
Nozzle, SAQCMEG 4004, White
(343087E,343089E,404029,
404027,455039E,455034E,
455037E)
1
4-16540
Nozzle COMPL, QCEM-6540,
Brass (BD404029,BD455039E,
BD405039E,BD343089E,
MP455034E,BC405037E,
BC455037E,BR455037E)
1
31
Engine, See Speci cations Pages
32
Pump, See Speci cations Pages
33
Unloader, See Speci cations Pages
34
Engine Pulley, See Speci cations Pages
35
Pump Pulley, See Speci cations Pages
36
Pump Bushing, See Speci cations Pages
37
Engine Bushing, See Speci cations Pages
38
Belts, See Speci cations Pages
39
6-05109
Cable, Battery, 32" Red, 4 Gauge
(343087E,343089E,405039E,
455039E,455034E,405037E,
455037E)
1
40
6-051092
Cable, Battery, 36" Black, 4 Gauge
(343087E,343089E,405039E,
455039E,455034E,405037E,
455037E)
1
41
2-30057
Valve, Shut-Off, 1/4 Turn
1
42
90-1007
Bolt, 5/16" x 1", NC HH
(343087E, 343089E
6
405039E,455039E, 455034E,
405037E,455037E)
4
(404027,404029)
2
43
90-1010
Bolt, 5/16" x 1-3/4", NC HH
(404027, 404029)
4
90-1019
Bolt, 3/8" x 1-3/4" (343087E,
343089E)
4
EXPLODED VIEW PARTS LIST- LARGE
ITEM
PART NO.
DESCRIPTION
QTY
43
90-1020
Bolt, 3/8" x 2", NC, HH (405037E,
405039E,455034E,455037E,
455039E)
4
44
2-010066
Elbow, Fuel Tank, Zinc (343087E,
343089E)
1
45
90-1020
Bolt, 3/8" x 2" NC, HH
2
46
90-102746
Bolt, 1/2" x 5" NC HH Tap (404027,
404029,405037E,455037E,
405039E,455039E,455034E)
1
90-102751
Bolt, 1/2" x 3-1/2", NC, HH
(343087E,343089E)
1
47
90-18012
Screw, 1/4" x 5/8", Phil PH MS
(343087E,343089E,405037E,
405039E,455034E,455037E,
455039E)
4
48
90-20041
Collar, 5/8" Bore Shaft
8
49
90-40181
Washer , Nylon Spacer, 0.656 x
1.25 x 0.65 THK
4
50
95-07101216/B Block, Unloader, 3/8" x 3/8"
Brass
1
51
95-07393125
Axle, 5/8" x 31.25"
2
52
95-07104036
Guard, Belt, Rear Steel
1
53
95-07162047
Assy, Weld, Battery Brkt, CW
Cage, Red (343087E,343089E,
405039E,455039E,405037E,
455037E)
1
95-07162048
Assy, Weld, Battery Brkt, CW
Cage, Black (455034E)
1
95-07162081
Holder, Nozzle (404027
404029)
1
54
95-07162054
Assy, Weld, Cage, CW Red
(BD, BC, BR)
1
95-07162055
Assy. Weld, Cage, CW Black
(MP)
1
55
95-07162045
Guard, Belt, Front, CW Cage,
Black
1
56
95-07162071
Assy, Weld, Slider, CW Cage,
Red (404029,405037E,405039E,
455037E,455039E, 404027)
1
95-07162072
Assy, Weld, Slider, CW Cage,
Black (455034E)
1
95-07162096
Slider, Assy., Welded, 10HP
Lombardini (343087E,343089E)
1
57
90-1995
Screw, 1/4" x 1/2" BH SOC CS
7
58
90-2000
Nut, 1/4" ESNA, NC
4
59
90-4001
Washer, 5/16" FLAT, SAE (343087E,
343089E,405037E,405039E,
455034E,455037E,455039E)
20
(404027,404029)
16

OPERATOR’S MANUAL PRESSURE WASHER
96-718, 97-721, 97-722, 97-723 • REV. 1/05
19
PRESSURE WASHER
PRESSURE WASHER
OPERATOR’S MAN U AL
PRESSURE WASHER
PRESSURE WASHER
ITEM
PART NO.
DESCRIPTION
QTY
59
90-4002
Washer, 3/8" (404027,404029)
2
(343087E,343089E,405037E,
405039E,455034E,455037E,
455039E)
10
60
90-2001
Nut, 5/16" ESNA, NC (404027,
404029)
10
(343087E, 343089E)
14
(405037E, 405039E, 455034E,
455037E, 455039E)
12
90-2002
Nut, 3/8" ESNA (404027,
404029)
2
(343087E, 343089E, 405037E,
405039E, 455034E, 455037E,
455039E)
6
61
90-100543
Screw, 5/16"-18 x 3/4" M PH
TRH
4
62
2-1046
Plug, 1/4" Countersunk (405037E,
405039E,455034E,455037E,
455039E)
1
63
90-400910

Washer, 7/16" Lock-Split
Ring
4
90-10343

Bolt, 10mm x 20mm, HH
4
64
2-01103
Grip, 1" Square Handle
2
65
2-10323
Tee, 1/2", Branch Male
1
66
95-07104828
Bracket, Brake Pad, Red
(BD, BR, BC)
1
95-07164828 Bracket, Brake Pad, Black (MP)
1
67
95-07164829
Linkage, Brake, Black (MP)
1
95-07104829 Linkage, Brake, Red (BC, BD,
BR)
1
68
90-3096
Washer, 1/2" Flat
1
69
95-07162065
Handle, Break, CW Cage,
Red (BC, BD, BR)
1
95-07162066 Handle, Break, CW Cage,
Black (MP)
1
70
90-100472
Bolt, Carriage, Zinc, 1/4"-20 x 1.0
PLT
4
71
2-9040
Clamp, Hose, .46-.54 ST
(405039E,455039E,455034E,
405037E,455037E)
2
(343087E,343089E)
4
72
90-4000
Washer, 1/4" Flat, SAE
12
73
90-40001
Washer, 1/4" FLAT, SAE, Black,
Zinc
5
74
90-4005
Washer, 5/8" Flat
8
75
2-3409
Dusk, Rupture Assy, 7000PSI
(405039E,455039E,455034E,
405037E,455037E)
1
EXPLODED VIEW PARTS LIST- LARGE
ITEM
PART NO.
DESCRIPTION
QTY
76
2-00271
Elbow, 3/8" x 1/2" Street, Steel
(405039E,455039E,455034E,
405037E,455037E)
1
77
2-0006
Nipple, 3/8" Hex Steel (405037E,
405039E,455037E,455039E,
455034E)
1
78
2-0053
Elbow, 1/2" JIC, 3/8", 90°
1
79
77-VHRM4
Muf er, Honda, GX620/670 Right
(405037E,405039E,455037E,
455039E,455034E)
1
76-807964

Muf er, Exhaust, Briggs 16HP
(404029,404027)
1
95-07101149

Guard, Muf er, Briggs 16HP
(404029,404027)
1
95-071011491

Brace, Muf er Guard (404029,
404027)
2
76-495518

Muf er, De ector, Vanguard
(404027,404029)
1
79-11465813800

De ector, Exhaust, Honda
(405037E,405039E,455037E,
455039E,455034E)
1
80
10-9999
Clear Lexan
1
81
10-08017
Label, Intended For Outdoor
Use
1
82
4-02100000
Hose, 1/4 Push-On (343087E,
343089E)
7.66 ft.
83
2-00471
Plug, 1/8" Square Head, Black
(343087E,343089E,405037E,
405039E,455037E,455039E,
455034E)
1
84
2-1100
Adaptor, 1/2 x 1/2 (455037E,
405037E, 343087E, 404027,
404029, 455039E, 343089E,
455034E)
1
85
90-19980
Screw, 1/4" x 1" (405037E,405039E,
455034E,455037E,455039E)
2
86
90-40001
Washer, 1/4" Flat, SAE, Black
(405037E,405039E,455034E,
455037E,455039E)
2
87
90-2000
Nut, 1/4" ESNA (405037E,405039E,
455034E,455037E,455039E)
2
88
95-07162057
Bracket, Regulator
1

Not Shown

96-718, 97-721, 97-722, 97-723 • REV. 1/05
OPERATOR’S MANUAL PRESSURE WASHER
20
PRESSURE WASHER OPERATOR’S MAN U AL
EXPLODED VIEW - SMALL
1
32
37
29
2
41
7
5
41
34
35
33
36
15
40
48
55
51
37
30
19
17
20
22
52
53
14
16
44
39
43
27
43
49
43
27
43
49
3
4
28
12
6
42
8
46
13
47
38
11
50
31
10
9
21
25
26
21
9
23
24
18
37
56
56
45
54
57
11
50
31
10
9
9
23
24
18
38
Model
442539
56
56
45
