Thank you for purchasing a SHARP air conditioner. Please read this manual carefully
before operating the product.
• PRECAUTIONS ............................................... E-1
•ADDITIONAL NOTES ON OPERATION ......... E-3
•TIPS ON SAVING ENERGY............................ E-3
•PART NAMES.................................................. E-4
•USING THE REMOTE CONTROL .................. E-6
• TIPS ABOUT PLASMACLUSTER OPERATION. E-7
•BASIC OPERATION ........................................ E-8
CONTENTS
• ADJUSTING THE AIR FLOW DIRECTION ... E-10
•PLASMACLUSTER OPERATION ............. E-11
•ONE-HOUR OFF TIMER ........................... E-11
•TIMER OPERATION.................................. E-12
•AUXILIARY MODE .................................... E-14
•MAINTENANCE......................................... E-14
•BEFORE CALLING FOR SERVICE .......... E-16
PRECAUTIONS
WARNINGS FOR USE
1Donotpullordeformthepowersupplycord.Pullingandmisuseofthepowersupplycord
can result in damage to the unit and cause electrical shock.
2Be careful not to expose your body directly to the outlet air for a long time. It may affect
your physical conditions.
3Whenusingtheairconditionerforinfants,children,elderly,bedridden,ordisabledpeople
make sure the room temperature is suitable for those in the room.
4Never insert objects into the unit. Inserting objects can result in injury due to the high
speed rotation of internal fans.
5Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe,
waterpipe,lightningrodortelephonegroundingwire. Incompletegroundingmaycause
electric shock.
6If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation
immediately and turn the circuit breaker OFF.
7Follow local rules and regulations for power supply cord cabling. Improper cable
connection can cause the power supply cord, plug and the electrical outlet to overheat
and cause fire.
8Useonlythemanufacture-specifiedpowercordforreplacement.Replacementshouldbe
performed by a qualified technician or a service person.
WARNINGS FOR INSTALLATION / REMOVAL / REPAIR
•Donot attempttoinstall/remove/repairtheunitbyyourself.Incorrectwork will causeelectric
shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the
installation/removal/repair of the unit.

PRECAUTIONS
CAUTIONS FOR USE
1Open a window or door periodically to ventilate the room, especially when using gas
appliances. Insufficient ventilation may cause oxygen shortage.
2Do not operate the buttons with wet hand. It may cause electric shock.
3For safety, turn the circuit breaker off when not using the unit for an extended period of
time.
4Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly
in place.
5Do not put anything on the outdoor unit nor step on it. The object or the person may fall
down or drop, causing injury.
6This unit is designed for residential use. Do not use for other applications such as in a
kennel or greenhouse to raise animals or grow plants.
7Do not place a vessel with water on the unit. If water penetrates into the unit, electrical
insulations may deteriorate and cause electric shock.
8Do not block the air inlets nor outlets of the unit. It may cause insufficient performance
or troubles.
9Be sure to stop the operation and turn the circuit breaker off before performing any
maintenance or cleaning. A fan is rotating inside the unit and you may get injured.
10
Do not splash or pour water directly on the unit. Water can cause electrical shock or
equipment damage.
11
This appliance is not intended for use by young children or infirm persons without
supervision.
Young children should be supervised to ensure that they do not play with the appliance.
CAUTIONS FOR LOCATION / INSTALLATION
•Make sure to connect the air conditioner to power supply of the rated voltage and
frequency.
Use of a power supply with improper voltage and frequency can result in equipment
damage and possible fire.
•Do not install the unit in a place where inflammable gas may leak. It may cause fire.
Install the unit in a place with minimal dust, fumes and moisture in the air.
•Arrangethedrainhosetoensuresmoothdrainage. Insufficientdrainagemaycausewetting
of the room, furniture etc.
•Make sure a leak breaker or a circuit breaker is installed, depending on the installation
location, to avoid electrical shock.
E-2

ENGLISH
INDOOR TEMP. OUTDOOR TEMP.
COOLING upper limit 32˚C D.B. 43˚C D.B.
23˚C W.B. -
lower limit 21˚C D.B. 21˚C D.B.
15˚C W.B. -
ADDITIONAL NOTES ON OPERATION
OPERATING TEMPERATURE RANGE
•The built-in protective device may prevent the unit from operating when used out of this
range.
•Condensation may form on the air outlet if the unit operates continuously in the COOL or
DRY mode when humidity is over 80 percent.
D.B. = Dry-bulb W.B. = Wet-bulb
TIPS ON SAVING ENERGY
Below are some simple ways to save energy when you use your air conditioner.
WHEN POWER FAILURE OCCURS
This air conditioner has a memory function to store settings when a power failure occurs.
After power recovery, the unit will automatically re-start in the same settings which were
active before the power failure, except for timer settings.
If the timers were set before a power failure, they will need to be re-set after power recovery.
E-3
SET THE CORRECT TEMPERATURE
•Setting the thermostat 1°C higher than the desired temperature in the COOL mode will
save approximately 10 percent in power consumption.
•Setting the temperature lower than necessary during cooling operation will result in
increased power consumption.
BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS
•Blocking direct sunlight during cooling operation will reduce power consumption.
•Close the windows and doors during cooling opeation.
SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR
CIRCULATION
KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION
MAKE MOST OF THE TIMER OFF FUNCTION
DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN
EXTENDED PERIOD OF TIME
•The indoor unit still consumes a small amount of power when it is not operating.

PART NAMES
1Inlet (Air)
2Open Panel
3AUX. Button
4Air Filters
5RECEIVER Window
6Louvre Unit
Open to clean the inside of the
air conditioner.
7Power Supply Cord
8Indicator Panel
9Vertical Adjustment Louvres
0Horizontal Adjustment Louvres
qOutlet (Air)
wRemote Control
eAUTO FAN SPEED Lamp
(green )
rFAN SPEED Lamp (green )
tPLASMACLUSTER Lamp
(blue,green)
yTIMER Lamp (orange )
uOPERATION Lamp (red )
OUTDOOR UNIT
NOTE: Actual units might vary slightly from those shown above.
INDOOR UNIT
1
2
3
4
5
6
7
8
9
0
q
w
iInlet(Air)
oRefrigerant Tube and Inter-
connecting Cord
pDrainage Hose
aOutlet(Air)
E-4
e
r
t
y
u
i
o
p
a

ENGLISH

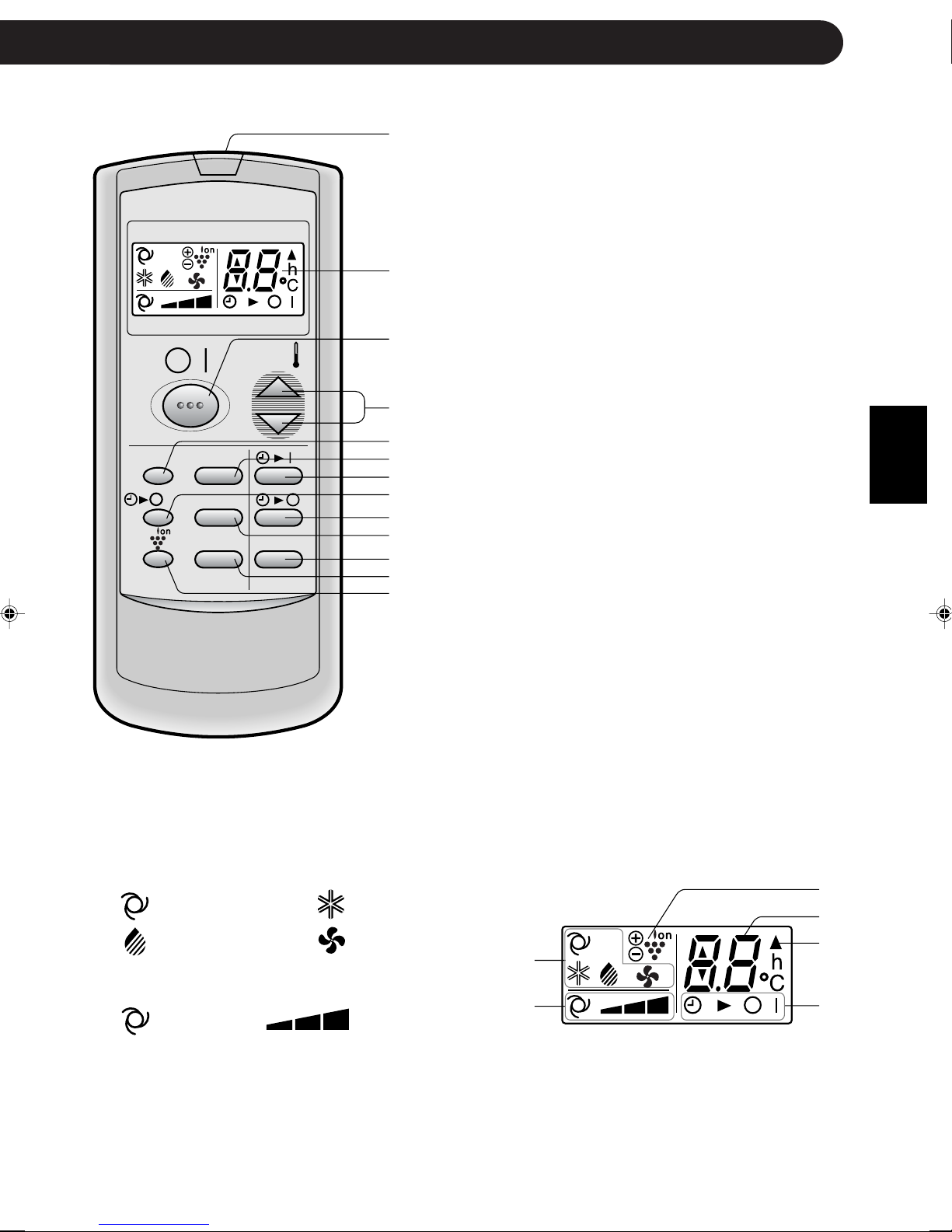

REMOTE CONTROL
1TRANSMITTER
2DISPLAY (Liquid Crystal Display)
3ON/OFF Button
4THERMO. (Thermostat) Button
5DISPLAY Button
6MODE Button
7TIMER ON Button (for setting the timer)

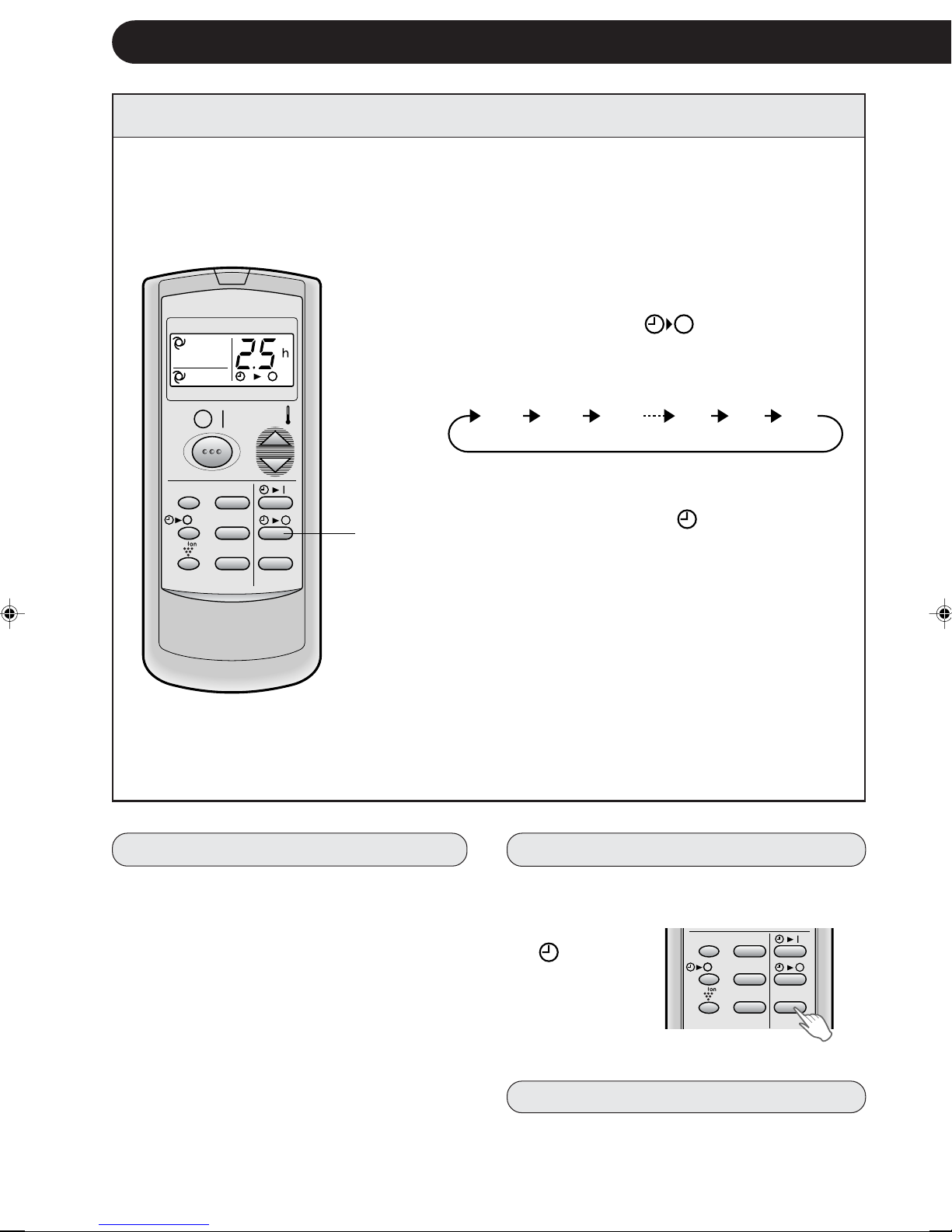

8ONE-HOUR OFF TIMER Button
9TIMER OFF Button (for setting the timer)
0FAN Button
qTIMER CANCEL Button
wSWING Button

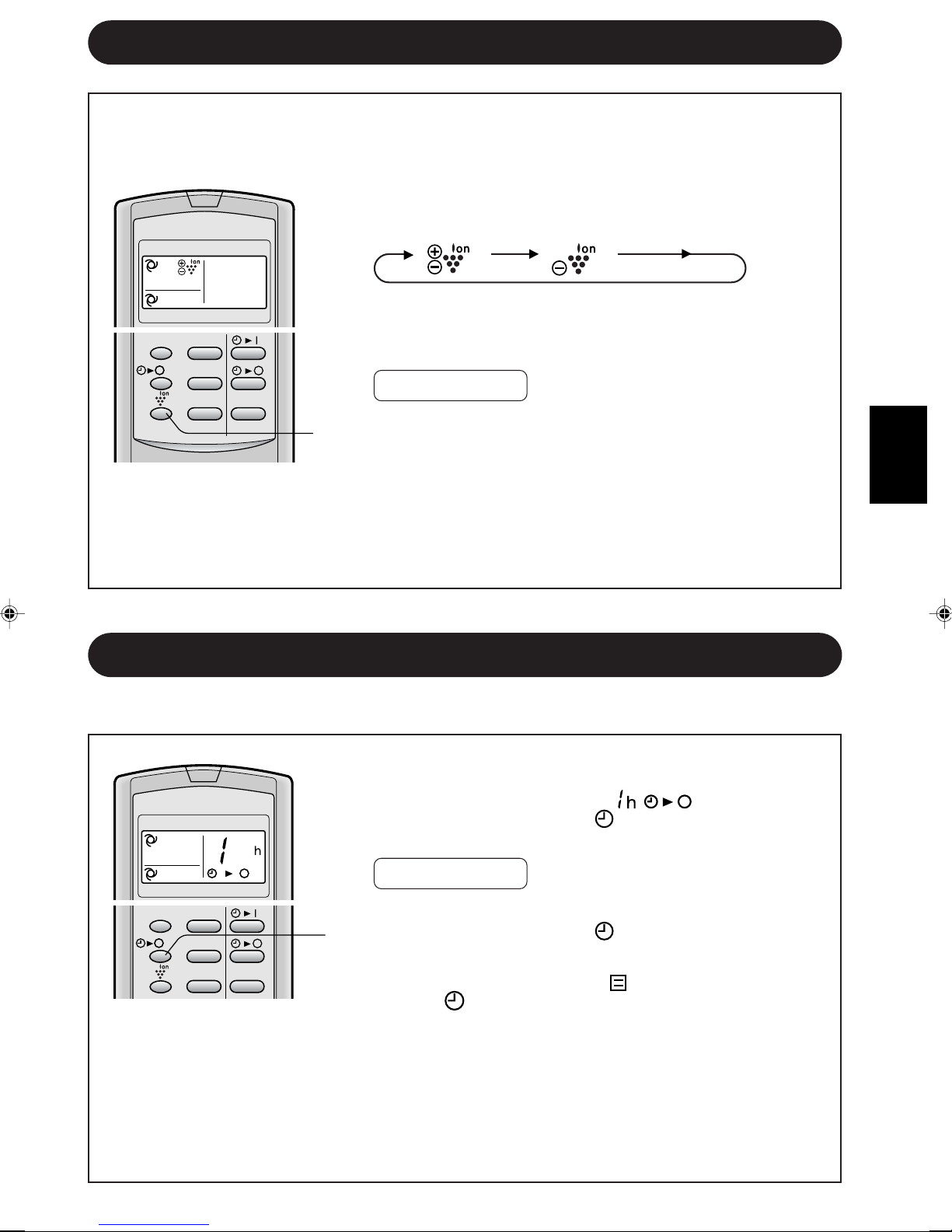

ePLASMACLUSTER Button
E-5
rMODE SYMBOLS
: AUTO : COOL
: DRY : FAN ONLY
tFAN SPEED SYMBOLS
: AUTO : Manual setting
yPLASMACLUSTER SYMBOL
uTEMPERATURE AND TIMER COUNT DOWN
INDICATOR
iTRANSMITTING SYMBOL
oTIMER ON/TIMER OFF INDICATOR
Indicates when timer on or timer off is set.
L.C.D. REMOTE CONTROL DISPLAY
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
MODE
DISPLAY MODE
FAN1h
SWING
CANCEL
TEMP.
TEMP.
FAN TIMER

CAUTION
•Do not allow the signal receiver window to receive strong direct sunlight, since it can
adversely affect its operation. If the signal receiver window is exposed to direct sunlight,
close a curtain to block the light.
•Using a fluorescent lamp with a quick starter in the same room may interfere with
transmission of the signal.
•The unit can be affected by signals transmitted from the remote control of a television,
VCR or other equipment used in the same room.
•Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit
and remote control from moisture and shock which can discolour or damage them.
1Remove the battery cover at the
back of the remote control.
2Insert batteries in the compartment,
making sure the ±and —
polarities are correctly aligned.
•Lines will be indicated on the dis-
play when batteries are properly
installed.
3Reinstall the battery cover.
USING THE REMOTE CONTROL
E-6
NOTES:
•The battery life is approximately one year in normal use.
•When you replace the batteries, always change both batteries, and make sure
they are the same type.
•If the remote control does not operate properly after replacing the batteries, take
out the batteries and reinstall them again after 30 seconds.
•If you will not be using the unit for a long time, remove the batteries from the
remote control.
Point the remote control towards
the unit’s signal receiver window
and press the desired button. The
unit generates a beep when it re-
ceives the signal.
•Make sure there is no curtain or other
object between the remote control and
the unit.
•The remote control can send signals
from up to 7 metres away.
LOADING BATTERIES Use two size-AAA (R03) batteries.
HOW TO USE THE REMOTE CONTROL
Remote control
cover

ENGLISH
E-7
TIPS ABOUT PLASMACLUSTER OPERATION
AIR CLEAN OPERATION
Cluster ions released into the air will reduce airborne mold fungus and deodorize/
decompose odor-causing molecules.
REFRESHING OPERATION
It is said that plenty of negative ions exist in places such as waterfalls or forests in
natural environment. In this operation mode, negative ions will be released in an
increased rate, in order to bring the room air close to this condition.
Please refer to page 11 for operation.

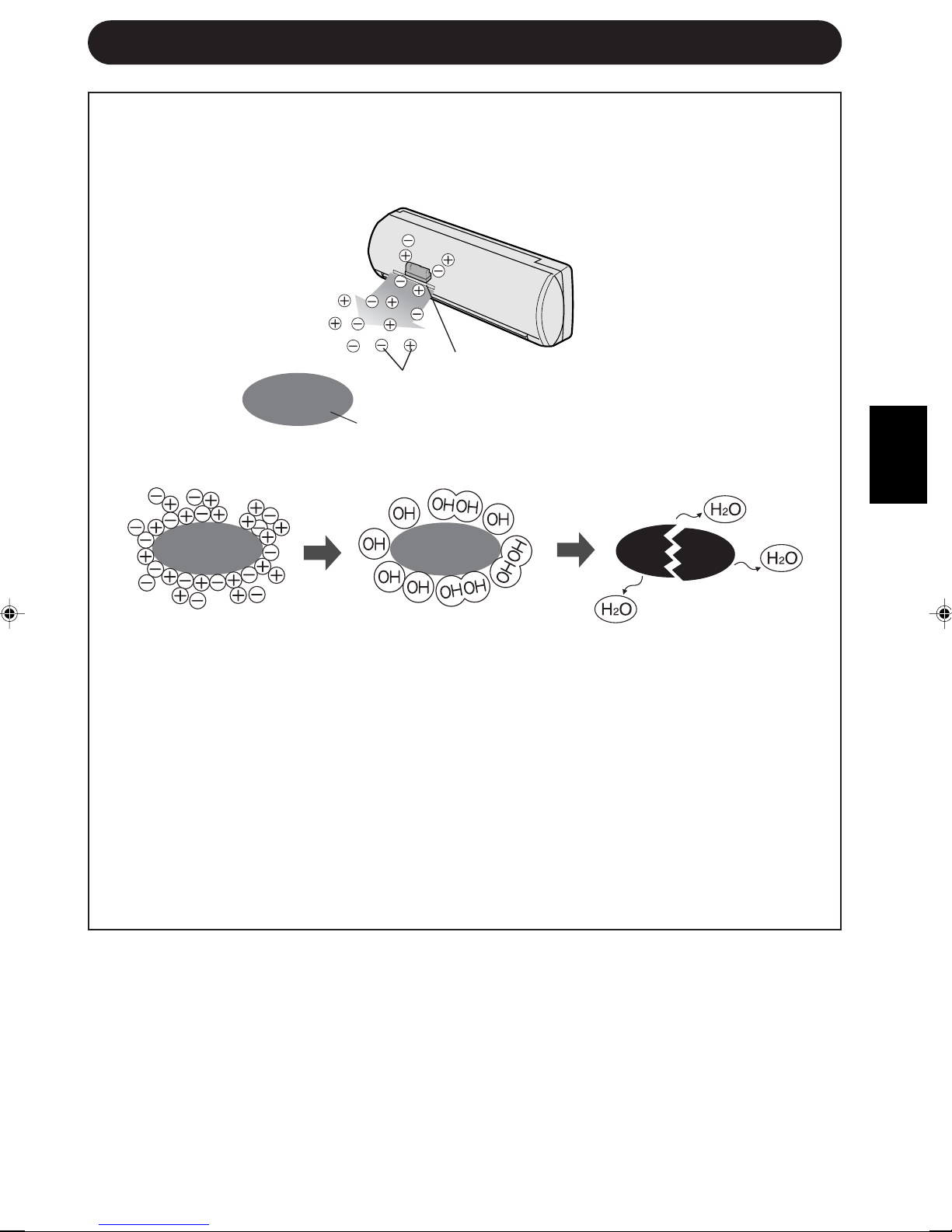

The ionizer inside the air conditioner will release cluster ions, which are collective
mass of positive and negative ions, into the room.
The cluster ions reduce airborne mold fungus and deodorize/decompose odor-
causing molecules.
Ionizer
Cluster ions
Mold fungus
Odor

Press the THERMO. button to set the
desired temperature.
AUTO/DRY MODE
The temperature can
be changed in 1°C in-
crements within the
range of 2°C higher to
2°C lower from the tem-
perature automatically
determined by the air
conditioner.
COOL MODE
The temperature can
be set within the range
of 18 to 32°C.
FAN ONLY MODE
The temperature set-
ting cannot be made.
1
E-8
BASIC OPERATION
2Press the ON/OFF button to start op-
eration.
•The red OPERATION lamp ( ) on the
unit will light.
3
4
1
4
5
2
3
Press the MODE button to select the
operation mode.
AUTO COOL DRY FAN ONLY
5
MODE
DISPLAY MODE
FAN1h
SWING
CANCEL
TEMP.
TEMP.
FAN TIMER
Press the FAN button to set the de-
sired fan speed.
AUTO SOFT LOW HIGH
•In the DRY mode, the fan speed is pre-
set to AUTO and cannot be changed.
•In the FAN ONLY mode, the fan speed
cannot be set to AUTO.
To turn off the unit, press the ON/OFF
button again.
•The red OPERATION lamp ( ) on the
unit will turn off.

ENGLISH
E-9
Automatic Operation
Mode Thermostat Setting
Below 24°C DRY Room Temp. at start-up
24°C-26°C COOL 24°C
26°C-28°C COOL 25°C
Above 28°C COOL 26°C
TIPS ABOUT AUTO MODE
In the AUTO mode, the temperature setting and mode are automatically
selected according to the room temperature when the unit is turned on.
Modes and Temperature Settings
Room temp. at opera-
tion start-up
TIPS ABOUT FAN SPEED LAMP
During operation, the FAN SPEED Lamp will light up in 3 levels (2 levels
for DRY mode) on the indicator panel of the unit to indicate the fan
speed.
When fan speed is set to AUTO When fan speed is set to manual
Soft speed
Low speed
High speed
DISPLAY MODE
FAN1h
SWING
CANCEL
The AUTO FAN SPEED Lamp
will light up.
To turn off the FAN SPEED Lamp,
press the DISPLAY button.
The PLASMACLUSTER Lamp will also
go off.

COOL and DRY mode Horizontal air flow
FAN ONLY mode Diagonal air flow
E-10

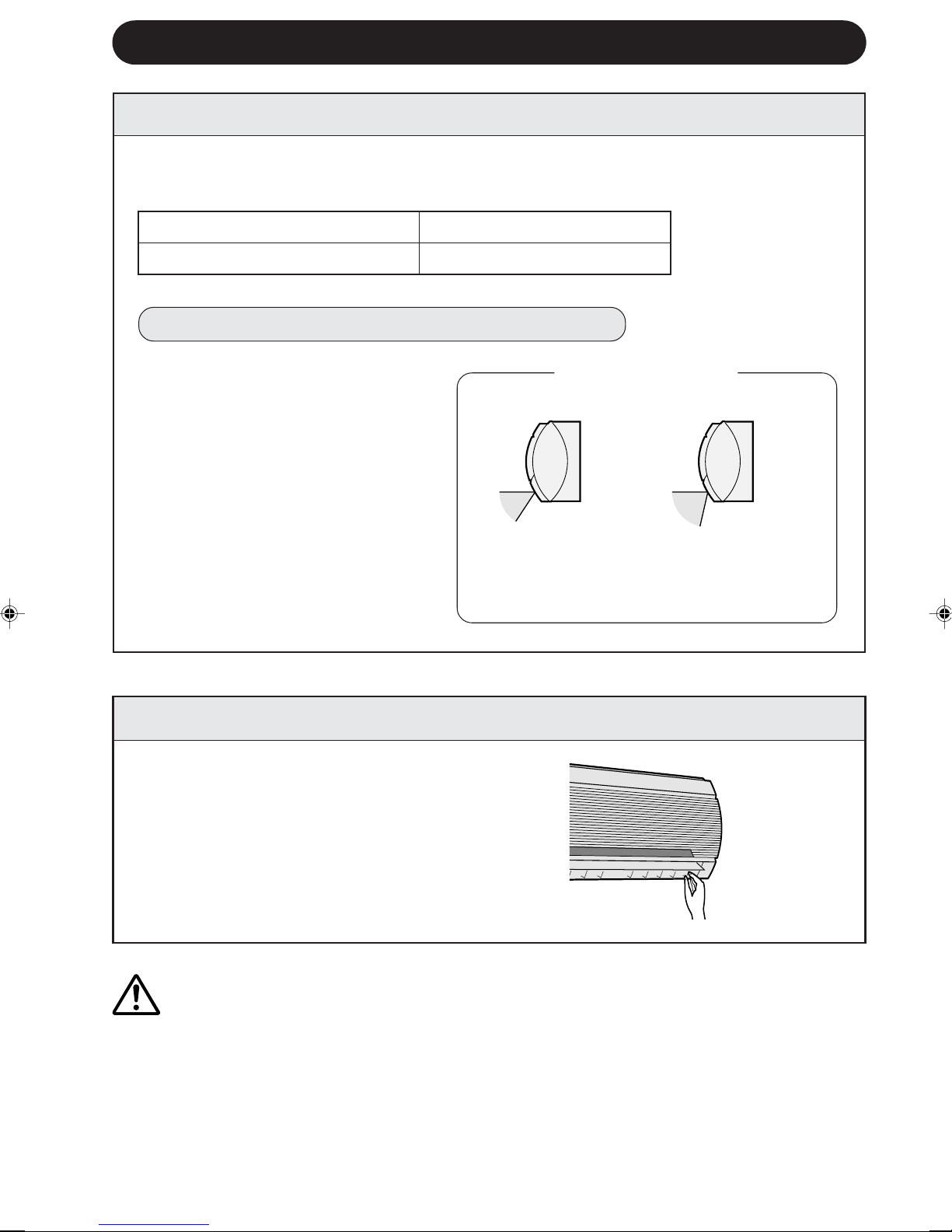

ADJUSTING THE AIR FLOW DIRECTION
VERTICAL AIR FLOW DIRECTION
The air flow direction is automatically preset in each mode as follows for optimum
comfort:
HOW TO ADJUST THE AIR FLOW DIRECTION
The adjustment range
is narrower the SWING
range in order to pre-
vent condensation
from dripping.
Hold the horizontal adjustment lou-
vre as shown in the diagram and
adjust the air flow direction.
Press the SWING button on the re-
mote control once.
•The vertical adjustment louvre will
change its angle continuously.
Press the SWING button again
when the vertical adjustment louvre
is at the desired position.
•The louvre will stop moving within
the range shown in the diagram.
•The adjusted position will be
memorized and will be automati-
cally set to the same position
when operated the next time.
Adjustment range
HORIZONTAL AIR FLOW DIRECTION
CAUTION
Never attempt to adjust the vertical adjustment louvres manually.
•Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction
when the remote control is used for the adjustment.
•When the vertical adjustment louvre is positioned at the lowest position in the COOL or
DRY mode for an extended period of time, condensation may result.
Do not adjust the horizontal adjustment louvre extremely to the right or left when operating
the air conditioner with fan speed "SOFT" for an extended period of time.
Condensation may form on the louvres.
The range is wide so
the air flow can be di-
rected toward the floor.
COOL and DRY mode FAN ONLY mode

ENGLISH
PLASMACLUSTER OPERATION
1During operation, press the PLASMACLUSTER but-
ton to select the mode.
AIR CLEAN REFRESHING CANCEL
•In the AIR CLEAN operation, the blue
PLASMACLUSTER lamp on the unit will light up.
•In the REFRESHING operation, the green
PLASMACLUSTER lamp on the unit will light up.
TO CANCEL
Press the PLASMACLUSTER button until
PLASMACLUSTER symbol on the remote control dis-
play goes off.
•The PLASMACLUSTER lamp on the unit will turn off.
1
AIR CLEAN OPERATION : Cluster ions released into air will reduce airborne mold
fungus and deodorize/decompose odor-causing molecules.
REFRESHING OPERATION : Negative ions will be released in an increased rate.
NOTE:
•Setting of the PLASMACLUSTER operation will be memorized and will operate in the same
mode, the next time you turn on the air conditioner.
•To turn off the PLASMACLUSTER Lamp, press the DISPLAY button.
E-11
1Press the ONE-HOUR OFF TIMER button.
•The remote control displays “ ”.
•The orange TIMER lamp ( ) on the unit will light up.
•The unit will stop operating after one hour.
TO CANCEL
Press the CANCEL button.
•The orange TIMER lamp ( ) on the unit will turn off.
Or, turn the unit off by pressing the ON/OFF button.
•The red OPERATION lamp ( ) and the orange TIMER
lamp ( ) on the unit will turn off.
1
When the ONE-HOUR OFF TIMER is set, the unit will stop operating after one hour.
ONE-HOUR OFF TIMER
NOTES:
•The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF
operations.
•When the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will
operate for an hour with the formerly set condition.
•If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER
activiates, press the ONE-HOUR OFF TIMER button again during operation.
MODE TEMP.
FAN TIMER
DISPLAY MODE
FAN1h
SWING
CANCEL
MODE TEMP.
FAN TIMER
DISPLAY MODE
FAN1h
SWING
CANCEL

E-12
The unit will turn off automatically according to your setting.
Timer duration can be set from minimum 0.5 hours (30 minutes) to maximum 12
hours.
Up to 9.5 hours, you can set by 0.5 hours (30 minutes) increments and from 10 to 12
hours, by 1 hour increment.
TIMER OPERATION
TIMER OFF
WhentheTIMEROFFisset,thetemperature
setting is automatically adjusted to prevent
the room from becoming excessively cold
while you sleep. (Auto Sleep function)
•Onehourafterthetimeroperationbegins,
the temperature setting rises 1°C higher
than the original thermostat setting.
NOTE:
•The Auto Sleep function will not activate
during the FAN ONLY mode.
1
TO CANCEL TIMER
TIPS ABOUT TIMER OFF OPERATION
Point the remote control at the signal receiver win-
dow on the unit.
1Press the TIMER OFF ( ) button and set
time as desired.
•The time setting will change as you to press the
button as follows.
MODE
DISPLAY MODE
FAN1h
SWING
CANCEL
TEMP.
TEMP.
FAN TIMER
Hold the button pressed down for fast setting.
•The orange TIMER lamp ( ) on the unit will
light.
•The unit will generate a beep when it receives
the signal.
•The time setting will count down to show re-
maining time.
DISPLAY MODE
FAN1h
SWING
CANCEL
Example : When you wish to
stop the operation
2.5 hours later.
Press the CANCEL button.
•The orange
TIMER lamp
( ) on the
unit will turn
off.
TO CHANGE TIMER SETTING
Press the TIMER button which you wish to
change, (TIMER OFF or TIMER ON) and
change the time setting.
0.5h 1.0h 1.5h 10h 11h 12h

ENGLISH
E-13
The unit will turn on automatically according to your setting.
Timer duration can be set from minimum 0.5 hours (30 minutes) to maximum 12
hours.
Up to 9.5 hours, you can set by 0.5 hours (30 minutes) increments and from 10 to 12
hours, by 1 hour increment.
TIMER ON
1
Point the remote control at the signal reciever window
on the unit.
1Press the TIMER ON ( ) button.
•The time setting will change as you press the
button as follows.
NOTES FOR TIMER SETTING AND OPERATION
•The latest time setting will be memorized and will appear on the remote control display
the next time you set the TIMER OFF or TIMER ON.
•TIMER OFF and TIMER ON can not be set together.
The latest set TIMER will be active.
•When ONE-HOUR OFF TIMER is set, TIMER OFF and TIMER ON will not be
available.
•When ONE-HOUR OFF TIMER is set during TIMER OFF or TIMER ON duration, the
TIMER ON or TIMER OFF will be cancelled.
MODE
DISPLAY MODE
FAN1h
SWING
CANCEL
TEMP.
TEMP.
FAN TIMER
Hold the button pressed down for fast setting.
•The orange TIMER lamp ( ) on the unit will
light.
•The unit will generate a beep when it receives
the signal.
•The time setting will count down to show re-
maining time.
Select the mode, temperature, fan speed setting
and PLASMACLUSTER OPERATION as desired.
•When the temperature is set with the TIMER ON, the
temperature will show in the display for 5 seconds
and then return to the time display.
•If you do not change the setting, the unit will operate
with the latest setting.
•The unit will turn on prior to the set time to allow the
room to reach the desired temperature by the pro-
grammed time. (Awaking function)
Example : When you wish the
room temperature
to be as desired
6.5 hours later.
0.5h 1.0h 1.5h 10h 11h 12h

E-14
AUXILIARY MODE
Use this mode when the remote control is not available.
TO TURN ON
Lift the front panel of the indoor unit and press the
AUX. button on the operation panel.
•The red OPERATION lamp ( ) on the unit will light and
the unit will start operating in the AUTO mode.
•The fan speed and temperature setting are set to AUTO.
TO TURN OFF
Press the AUX. button on the operation panel again.
•The red OPERATION lamp ( ) on the unit will turn off.
NOTE:
If the AUX. button is pressed during normal operation, the unit will turn off.
MAINTENANCE
CLEANINGTHE INTERIOR OF AIR CONDITIONER UNIT
1Be sure to disconnect the power cord from the
wall outlet or turn off the circuit breaker.
2OPEN THE LOUVRE UNIT
1Lift the open panel.
2Push down both hooks at the left and right, and
release the lock.
3Pull out the louvre unit forward.
4Let it open downward gently.
3CLEAN THE INTERIOR OF THE AIR CONDI-
TIONER UNIT
Make sure the fan inside is not rotating.
Remove the dust using a vacuum cleaner or
wipe with dry cloth.
4CLOSE THE LOUVRE UNIT
1Lift up the louvre unit and slide it back into its
position.
2Make sure both hooks at the left and right are
locked in place and the three supports are firmly fit.
3Close the open panel.
5Connect the power cord to the wall outlet or turn on the circuit breaker.
6Make sure the all lamps on the indicator panel are not blinking.
If the louvre unit is not reinstalled properly, the safety equipment will work and the
lamps will blink, preventing the unit from operating. In such case, reinstall the
louvre unit properly. Push the ON/OFF button of the remote control and check if
the unit operates properly.
1
2
3
supports
4

ENGLISH
MAINTENANCE
E-15
CLEANING THE UNIT AND THE REMOTE CONTROL
Be sure to disconnect the power cord from the wall outlet or turn off the circuit
breaker before performing any maintenance.

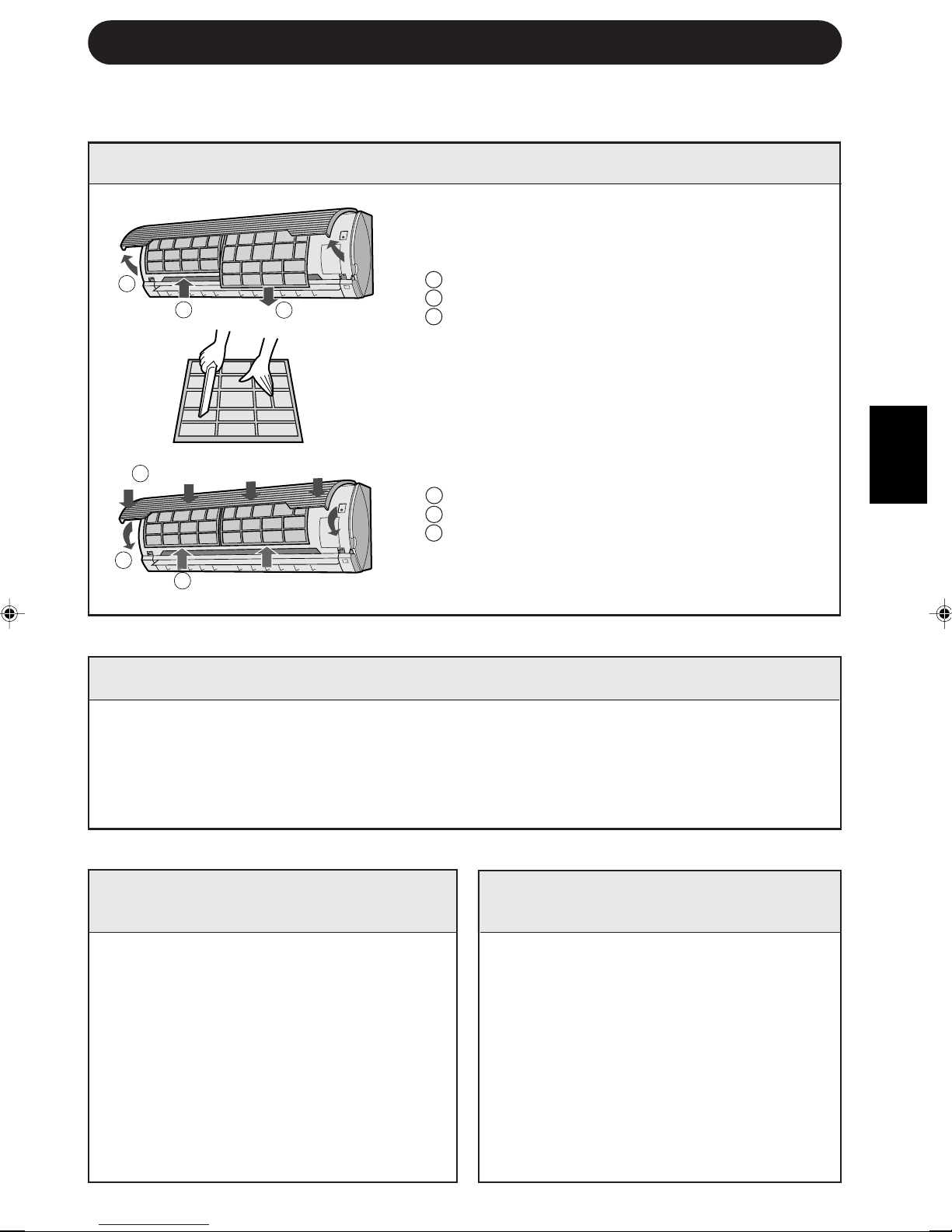

CLEANING THE FILTERS The air filters should be cleaned every two weeks.
1TURN OFF THE UNIT
2REMOVE THE FILTERS
1Lift the open panel.
2Push the air filters up slightly to unlock them.
3Pull the air filters down to remove them.
3CLEAN THE FILTERS
Use a vacuum cleaner to remove dust. If the
filters are dirty, wash them with warm water
and a mild detergent. Dry filters in the shade
before reinstalling.
4REINSTALL THE FILTERS
1Reinstall the filters in the original positions.
2Close the open panel.
3Push the arrow-marked of the panel firmly to
lock it in place.
MAINTENANCE AFTER AIR
CONDITIONER SEASON
1Operate the unit in the FAN ONLY
mode for about half a day to allow
the mechanism to thoroughly dry.
2Stop the operation and unplug the
unit. Turn off the circuit breaker, if
you have one exclusively for the air
conditioner.
3Clean the filters, then reinstall
them.
MAINTENANCE BEFORE
AIR CONDITIONER SEASON
1Make sure that the air filters are
not dirty.
2Make sure that nothing obstructs
the air inlet or outlet.
3Check the outdoor mounting rack
periodically for wear and to make
sure it is firmly in place.
•Wipe them with a soft cloth.
•Do not directly splash or pour water on them. We can cause electrical shock or
equipment damage.
•Do not use hot water, thinner, abrasive powders or strong solvents.
1
23
2
3
1

IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL
Check whether the remote
control batteries have be-
come old and weak.
Try to send the signal again
with the remote control
pointed properly towards the
unit’s signal receiver window.
Check whether the remote
control batteries are in-
stalled with the polarities
properly aligned.
E-16
BEFORE CALLING FOR SERVICE
The following conditions do not denote equipment malfunctions
UNIT DOES NOT OPERATE
The unit will not operate if it is turned on
immediately after it is turned off. The unit will not
operate immediately after the mode is changed.
This is to protect the internal mechanisms. Wait 3
minutes before operating the unit.
CRACKING NOISE
Theunitmayproduceacrackingnoise.Thissound
is generated by the friction of the front panel and
other components expanding or connecting due to
a temperature change.
If the unit appears to be malfunctioning, check the following points before calling for
service.
IF THE UNIT FAILS TO OPERATE
•Check to see if the circuit breaker has tripped or the fuse has blown.
•Check if the louvre unit is properly installed. All lamps on the indicator panel will blink when
the louvre unit is not properly installed.
IF THE UNIT FAILS TO COOL THE ROOM EFFECTIVELY
Check the filters. If dirty,
clean them. Check the outdoor unit to make sure nothing is blocking
the air inlet or outlet.
Check the thermostat is
proper setting.
Make sure windows and
doors are closed tightly. A large number of people in
the room can prevent the unit
from achieving the desired
temperature.
Check whether any heat-
generating appliances are
operating in the room.
ODORS
Carpet and furniture odors that entered into the
unit and the air conditioner's inner component
odors at the early stage of installation may be
sent out from the unit.
SWISHING NOISE
The soft, swishing noise is the sound of
the refrigerant flowing inside the unit.
WATER VAPOUR
In the COOL and DRY operation, water
vapour can sometimes be seen at the
air outlet due to the difference between
the room air temperature and the air
discharged by the unit.
Please call for service when OPERATION Lamp and TIMER Lamp on the indicator panel blink.
ODOR EMITTED FROM THE
PLASMACLUSTER AIR OUTLET
This is the smell of ozone generated
from the ionizer. Density of the ozone is
very little, having no adverse effect over
your health. The ozone released into
the air will decompose soon, and its den-
sity in the room will not increase.
A LOW BUZZ NOISE EMITTED
This is a sound emitted when the unit is generating
ion clusters.

INDONESIA
I-1
Terima kasih anda telah membeli AC SHARP. Bacalah buku petunjuk ini dengan seksama
sebelum mengoperasikan alat ini.
•TINDAKAN PENCEGAHAN ............................ I-1
•CATATAN TAMBAHAN PENGOPERASIAN... I-3
•PETUNJUK PENGHEMATAN ENERGI .......... I-3
•NAMA NAMA BAGIAN..................................... I-4
•PENGGUNAAN REMOTE CONTROL ............ I-6
•
TIPS TENTANG PENGOPERASIAN
PLASMACLUSTER ..............................................
I-7
•PENGOPERASIAN DASAR ............................ I-8
ISI
• MENGUBAH ARAH ALIRAN UDARA ........... I-10
•MENGOPERASIKAN PLASMACLUSTER ... I-11
•TIMER SATU-JAM MATI ........................... I-11
•MENGOPERASIKAN TIMER..................... I-12
•MODE TAMBAHAN ................................... I-14
• PEMELIHARAAN....................................... I-14
•SEBELUM MEMANGGIL BAGIAN
SERVIS...................................................... I-16
TINDAKAN PENCEGAHAN
PERINGATAN DALAM PENGGUNAAN
1Jangan menarik atau merusak kabel listrik. Menarik dan penggunaan kabel listrik yang
salah dapat merusak unit dan menyebabkan kejutan listrik.
2Janganmengarahkanlangsunglubangudaraketubuhanda,karenaberpengaruhpada
kondisi fisik anda.
3Aturlah suhu ruangan yang cocok untuk bayi, anak-anak, lanjut usia, orang sakit, atau
orang yang cacat.
4Jangan memasukkan benda apapun ke dalam unit karena bisa menyebabkan cedera
akibat kecepatan perputaran kipas.
5Hubungkan AC dengan arde (bumi). Jangan hubungkan kabel arde dengan pipa gas,
pipa air, penangkal petir atau kabel arde telepon. Hubungan kabel arde yang tidak baik
menyebabkan kejutan listrik.
6Jika ada ketidak-normalan pada AC (misalnya bau hangus), putuskan aliran listrik
segera.
7Patuhilah aturan dan ketentuan mengenai penggunaan kabel listrik. Kabel yang tidak
terhubungdenganbaikmenyebabkankabel,steker,danstopkontakpanasdanterbakar.
8Gunakankabelkhususyangdisediakanolehpabrik.Penggantiankabelharusdilakukan
oleh teknisi yang ditunjuk atau oleh bagian servis.
PERINGATAN UNTUK PEMASANGAN/PEMBONGKARAN/
PERBAIKAN
•Jangan memasang, membongkar atau memperbaiki unit ini sendiri karena dapat
menyebabkan kejutan listrik, kebocoran, terbakar dan lain-lain. Hubungi dealer anda atau
teknisi servis yang resmi untuk pemasangan/pembongkaran/perbaikan unit ini.
INDONESIA

TINDAKAN PENCEGAHAN
PERHATIAN UNTUK PEMAKAIAN
1Bukalah pintu atau jendela pada waktu-waktu tertentu agar ada pertukaran udara,
khususnyajikamemakaialatyangmenggunakangas.Kurangnyapertukaranudarada-
pat menyebabkan kurangnya oksigen.
2Janganmenyentuhtombol-tombol dengan tanganbasah karena menyebabkan kejutan
listrik.
3Untuk keamanan, matikan saklar saat tidak menggunakan unit ini untuk jangka waktu
yang lama.
4Periksalah braket untuk unit luar secara rutin dan periksalah apakah terpasang dengan
baik.
5Janganmenginjakataumenaruhbendaapapundiatasunitluar.Bendaatauorangdapat
terjatuh atau tertimpa sehingga cedera.
6Unit ini hanya untuk digunakan di rumah tangga. Jangan menggunakan unit untuk
penggunaan lainnya seperti di kandang hewan atau di rumah kaca.
7Jangan meletakkan wadah berisi air di atas unit. Jika air masuk ke dalam unit, bagian
isolasi akan rusak dan menyebabkan kejutan listrik.
8Jangan menyumbat lubang udara masuk atau keluar karena menyebabkan gangguan
atau kerusakan.
9MatikanACdanputuskanaliranlistriksebelummembersihkanataumemperbaiki.Kipas
yang berputar dapat menyebabkan cedera.
10Janganmenyiramairlangsungkeunit.Airdapatmenyebabkankejutanlistrikdankerusakan.
11Alat ini tidak boleh dioperasikan oleh anak-anak atau orang cacat tanpa pengawasan.
Awasilah anak-anak agar tidak bermain-main dengan alat ini.
PERHATIAN UNTUK PENEMPATAN/PEMASANGAN
•Pastikan tegangan dan frekuensi listrik yang digunakan sesuai dengan yang tercantum di
alat.
Penggunaan alat pada tegangan dan frekuensi listrik yang berbeda menyebabkan keru-
sakan dan kebakaran.
•Jangan memasang AC di tempat di mana terdapat gas mudah terbakar, karena dapat
terbakar.
Pasang unit di tempat tidak berdebu, tidak lembab, dan tidak basah.
•Aturlah pipa pembuangan air agar pembuangan lancar. Pembuangan yang tidak lancar
menyebabkan ruangan, perabot dll menjadi basah.
•Pasanglah pengaman aliran listrik, tergantung letak pemasangan, untuk menghindari
kejutan listrik.
I-2
