Sharp SF-1014 User manual

SERVICE MANUAL
CODE: 00ZSF1014SM1E
Copier
MODEL SF-1014
[ 1 ] GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
[ 2 ] PRODUCT SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
[ 3 ] EXTERNAL VIEW AND INTERNAL STRUCTURE . . . . . . . . . . . . . . . . . . . . . . . 3-1
[ 4 ] UNPACKING AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
[ 5 ] GENERAL DESCRIPTIONS OF EACH SECTION . . . . . . . . . . . . . . . . . . . . . . . 5-1
[ 6 ] DISASSEMBLY AND ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
[ 7 ] ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
[ 8 ] SIMULATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
[ 9 ] SELF DIAGNOSTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
[10] SERVICE AT MEMORY TROUBLE AND
[10] MAIN CONTROL PWB REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-1
[11] MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-1
[12] ELECTRICAL SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-1
SHARP CORPORATION
CONTENTS
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
Parts marked with "!" is important for maintaining the safety of the set. Be sure to replace these parts with specified
ones for maintaining the safety and performance of the set.

CONTENTS
[ 1 ] GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . 1-1
1. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
2. Target users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
3. System outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
[ 2 ] PRODUCT SPECIFICATIONS . . . . . . . . . . . . . . . 2-1
1. Basic specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2. Details of each section . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
3. Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
[ 3 ] EXTERNAL VIEW AND INTERNAL
STRUCTURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
1. External view and internal structure . . . . . . . . . . . . . . . 3-1
2. Operation panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3. Cross section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
4. Switches, sensors, detectors . . . . . . . . . . . . . . . . . . . . 3-4
5. Clutches, solenoids . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
6. Motors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
7. PWBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
[ 4 ] UNPACKING AND INSTALLATION . . . . . . . . . 4-1

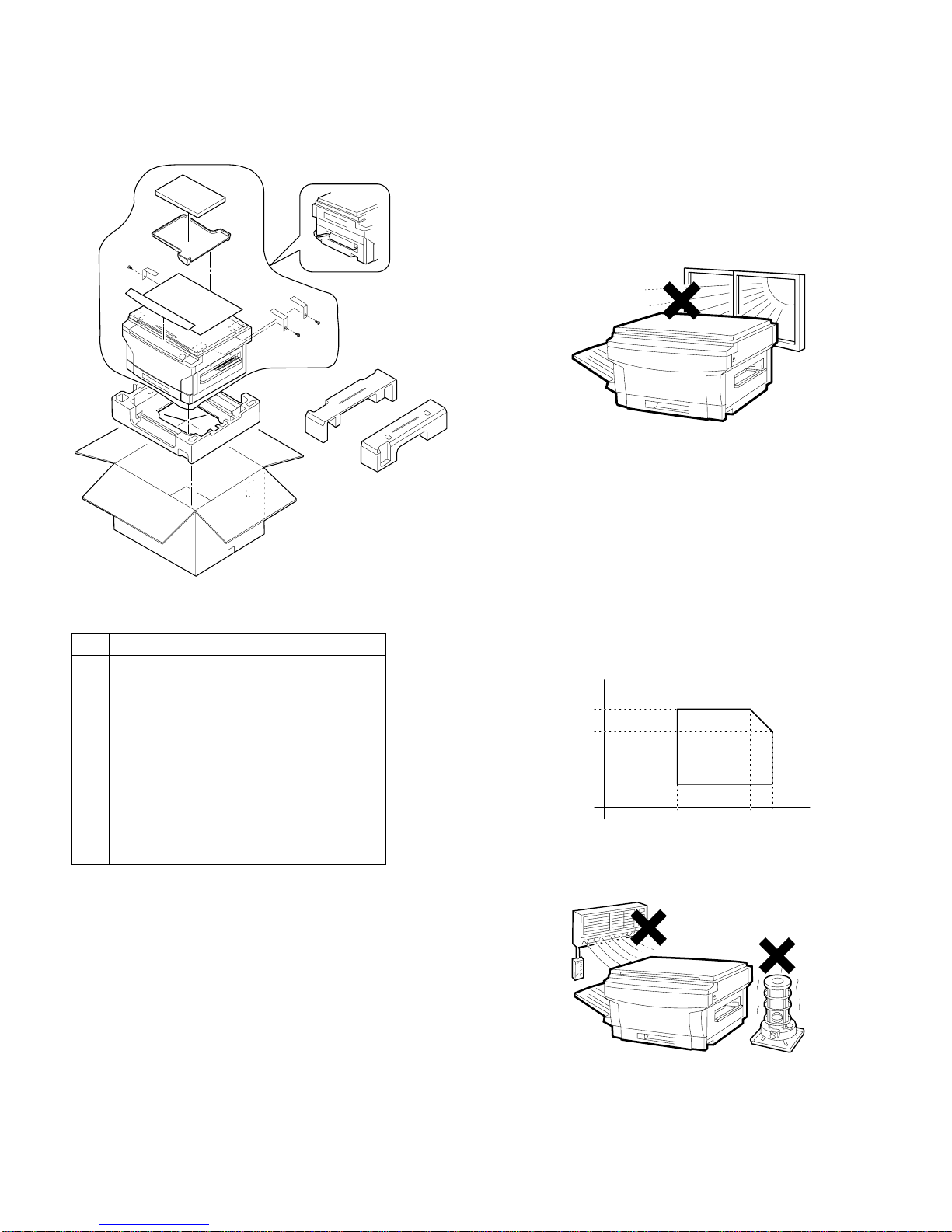

1. Packing drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
(1) Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
(2) Space around the machine . . . . . . . . . . . . . . . . . . . 4-2
(3) Installing table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
(4) Power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
(5) Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

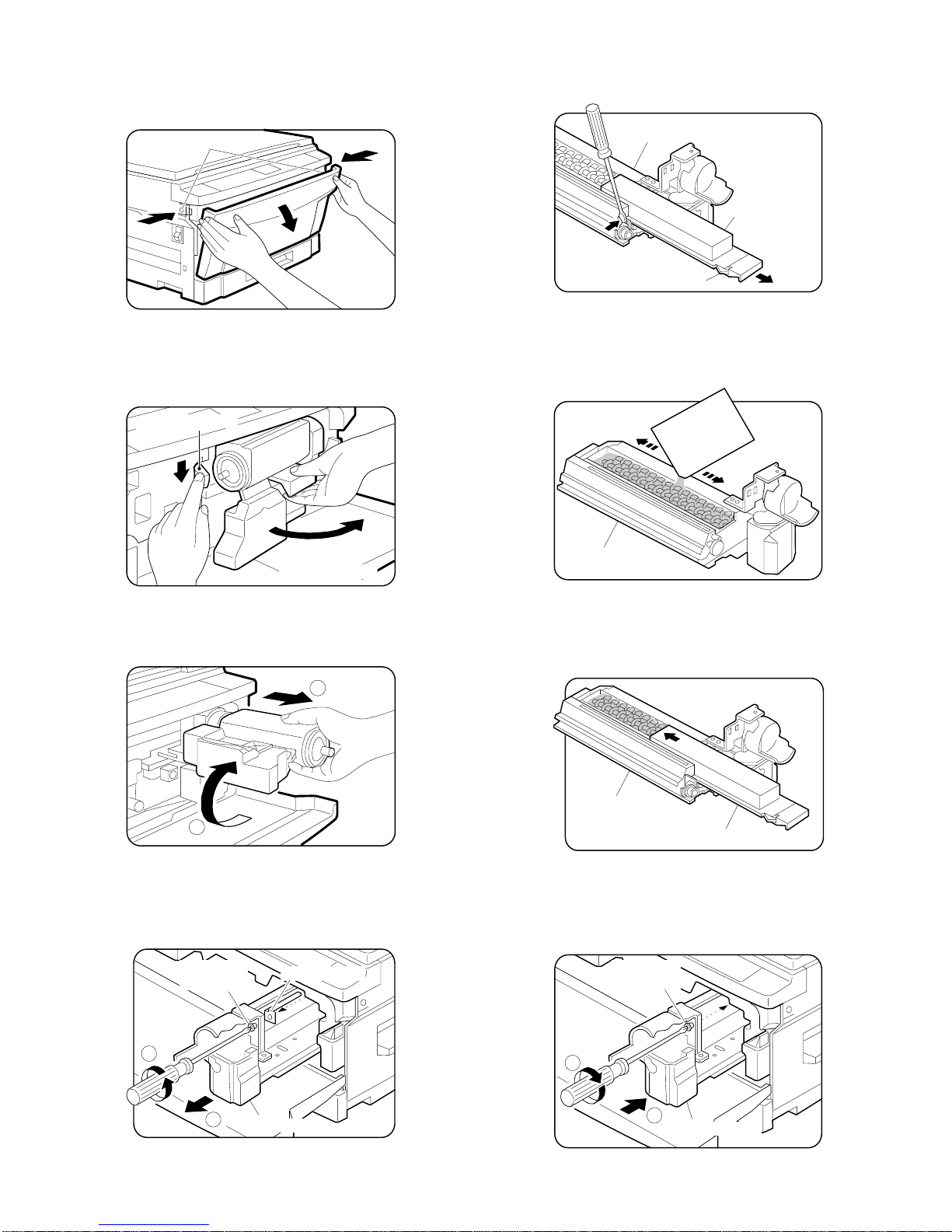

3. Installation procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
(1) Optical system unlocking . . . . . . . . . . . . . . . . . . . . . 4-3
(2) Cassette setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
(3) Developer setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
(4) Toner supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
(5) Toner density sensor level check . . . . . . . . . . . . . . 4-5
(6) Accessory attachment . . . . . . . . . . . . . . . . . . . . . . . 4-5
4. Locking procedure for transit or repacking . . . . . . . . . . 4-6
(1) No.2/No.3 mirror unit (Mirror base B) lock . . . . . . . 4-6
(2) No.4/no.5 mirror unit (Mirror base C) lock . . . . . . . 4-6
5. Optional multi bypass feeder unit Installation Manual . . 4-6
(1) Open the upper unit of the main copier unit. . . . . . . 4-6
(2) Release the lock for the manual bypass unit and
remove the manual bypass unit. . . . . . . . . . . . . . . . 4-6
(3) Mount the multi bypass feeder unit onto
the main copier unit. . . . . . . . . . . . . . . . . . . . . . . . . 4-7
[ 5 ] GENERAL DESCRIPTIONS OF
EACH SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
1. Paper feed section . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
2. Separation, transport section . . . . . . . . . . . . . . . . . . . . 5-2
3. Fuser, paper exit section . . . . . . . . . . . . . . . . . . . . . . . 5-2
4. Developer section . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
4-1. General descriptions . . . . . . . . . . . . . . . . . . . . . . . 5-2
(1) Two-component developer . . . . . . . . . . . . . . 5-2
(2) Two-component magnetic brush
development . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
(3) Developing bias . . . . . . . . . . . . . . . . . . . . . . 5-2
5. Optical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
5-1. General descriptions . . . . . . . . . . . . . . . . . . . . . . . 5-3
(1) Original table . . . . . . . . . . . . . . . . . . . . . . . . 5-3
(2) Copy lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
(3) Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
(4) Lens (Fixed focus lens) . . . . . . . . . . . . . . . . .5-3
(5) Lens home position sensor (LHPS) . . . . . . . .5-3
(6) Lens base . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
(7) Lens drive shaft . . . . . . . . . . . . . . . . . . . . . . .5-4
(8) Lens drive wire . . . . . . . . . . . . . . . . . . . . . . . .5-4
(9) No. 4/5 mirror base . . . . . . . . . . . . . . . . . . . .5-4
(10) Mirror motor . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
(11) Mirror home position sensor (MHPS) . . . . . . .5-4
(12) No. 2/3 mirror base . . . . . . . . . . . . . . . . . . . .5-4
(13) Copy lamp unit . . . . . . . . . . . . . . . . . . . . . . .5-4
(14) Thermal fuse . . . . . . . . . . . . . . . . . . . . . . . . .5-4
(15) Reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
(16) Exposure adjustment plates . . . . . . . . . . . . . .5-4
(17) Mirror base drive wire . . . . . . . . . . . . . . . . . . .5-4
(18) Lens drive motor . . . . . . . . . . . . . . . . . . . . . .5-4
(19) AE sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
5-2. Basic operations . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
6. Copy process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
(1) Photoconductor . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
(2) Process diagram . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
(3) Actual process . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
(4) Transit of photoconductor drum surface
potential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-11
(5) Process correction system . . . . . . . . . . . . . . . . . .5-12
1) Outline of the correction system . . . . . . . . . . .5-12
2) Correction operation . . . . . . . . . . . . . . . . . . . .5-12
[ 6 ] DISASSEMBLY AND ASSEMBLY . . . . . . . . . . . 6-1
1. Paper feed section, paper transport section,
power section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
1-1. Paper feed unit . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
1-2. Paper feed roller ass’y removal . . . . . . . . . . . . . .6-1
1-3. Separation roller . . . . . . . . . . . . . . . . . . . . . . . . .6-2
1-4. Takeup roller, paper feed roller . . . . . . . . . . . . . .6-2
1-5. Resist roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3
1-6. Transport belt . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4
1-7. Socket holder unit . . . . . . . . . . . . . . . . . . . . . . . . .6-4
1-8. Lower unit PWB . . . . . . . . . . . . . . . . . . . . . . . . . .6-4
1-9. Cassette paper empty detector (CPED1) . . . . . . .6-4
1-10. Power unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4
2. Manual paper feed section . . . . . . . . . . . . . . . . . . . . . . .6-5
2-1. Manual paper feed roller, manual takeup roller . . .6-5
2-2. Reverse rotation roller ass’y . . . . . . . . . . . . . . . . . .6-5
3. Fuser section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
3-1. Fuser unit removal . . . . . . . . . . . . . . . . . . . . . . . . .6-6
3-2. Heater lamp replacement . . . . . . . . . . . . . . . . . . . .6-6
3-3. Upper heat roller ass’y removal . . . . . . . . . . . . . . .6-7
3-4. Upper separation pawl replacement . . . . . . . . . . . .6-7
3-5. Lower cleaning roller and
lower heat roller replacement . . . . . . . . . . . . . . . . .6-7
3-6. Scraper replacement . . . . . . . . . . . . . . . . . . . . . . .6-8
3-7. Thermistor/thermostat removal . . . . . . . . . . . . . . . .6-8
4. Optical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9
4-1. Copy lamp replacement . . . . . . . . . . . . . . . . . . . . .6-9
4-2. Copy lamp unit replacement . . . . . . . . . . . . . . . . . .6-9
4-3. Mirror base drive wire replacement . . . . . . . . . . . .6-9
4-4. Lens and lens drive wire replacement . . . . . . . . .6-10
4-5. No. 4/5 mirror unit and
peripheral parts replacement . . . . . . . . . . . . . . . .6-11
I

4-6. Optical unit removal . . . . . . . . . . . . . . . . . . . . . . 6-11
4-7. Other parts in the optical system . . . . . . . . . . . . . 6-11
4-8. Light adjustment plate/temperature fuse
removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
5. Drum section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
5-1. Drum unit removal . . . . . . . . . . . . . . . . . . . . . . . . 6-13
6. Developer section . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
6-1. Developer unit removal . . . . . . . . . . . . . . . . . . . . 6-13
6-2. Developer cartridge removal . . . . . . . . . . . . . . . 6-13
6-3. Toner motor removal . . . . . . . . . . . . . . . . . . . . . 6-13
6-4. Toner density sensor . . . . . . . . . . . . . . . . . . . . . 6-14
7. Operation panel section/medium cabinet . . . . . . . . . . 6-14
8. Major parts in the frame side . . . . . . . . . . . . . . . . . . . . 6-14
8-1. Ozone filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
8-2. Optical unit cooling fan removal . . . . . . . . . . . . . 6-14
8-3. Ventilation fan motor . . . . . . . . . . . . . . . . . . . . . 6-15
8-4. Transport roller clutch . . . . . . . . . . . . . . . . . . . . 6-15
8-5. Paper exit sensor . . . . . . . . . . . . . . . . . . . . . . . . 6-15
[ 7 ] ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
1. Developer section . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
(1) MG roller main pole position adjustment . . . . . . . . . 7-1
(2) Adjustment of clearance between DV doctor and
MG roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
2. Optical section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
A. Adjustments list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
B. Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
C. Adjustment contents . . . . . . . . . . . . . . . . . . . . . . . . 7-6
(1) Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
(2) Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
(3) Image distortion adjustment . . . . . . . . . . . . . . . 7-8
(4) Copy image center position adjustment . . . . . 7-12
(5) Focus adjustment (Resolutionadjustment) . . . 7-14
(6) Copy magnification ratio adjustment . . . . . . . . 7-15
(7) Uniformity adjustment . . . . . . . . . . . . . . . . . . . 7-18
(8) Image loss/void area adjustment . . . . . . . . . . . 7-18
3. COPY DENSITY ADJUSTMENT . . . . . . . . . . . . . . . . 7-23
(1) Copy density adjustment timing . . . . . . . . . . . . . 7-23
(2) Note for copy density adjustment . . . . . . . . . . . . 7-23
(3) Necessary items for the copy density adjustment 7-23
(4) Copy density adjustment mode . . . . . . . . . . . . . . 7-23
(5) Copy density adjustment procedure . . . . . . . . . . 7-23
A. Test chart (UK0G-0162FCZZ) setting . . . . . . 7-23
B. Normal copy mode (Non-toner-save mode)
copy density adjustment . . . . . . . . . . . . . . . . 7-23
C. Normal copy mode (Toner save mode)
copy density adjustment . . . . . . . . . . . . . . . . 7-24
D. Photo copy mode (Non-toner-save mode)
copy density adjustment . . . . . . . . . . . . . . . . 7-24
E. Auto copy mode (Non-toner-save mode)
copy density adjustment . . . . . . . . . . . . . . . . 7-24
F. Auto copy mode (Toner save mode) copy
density adjustment . . . . . . . . . . . . . . . . . . . . . 7-25
(6) Copy density adjustment table . . . . . . . . . . . . . . 7-26
4. Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27
(1) Transfer charger wire installation . . . . . . . . . . . . 7-27
(2) How to adjust the separation corona valtage . . . 7-27
(3) How to adjust the developing bias voltage . . . . . 7-27
[ 8 ] SIMULATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
1. Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
2. Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
3. Operating procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
4. Purpose list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
5. Details of simulations . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
6. User simulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-12
[ 9 ] SELF DIAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
1. Summary/purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
2. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
3. Clearing the self diag display . . . . . . . . . . . . . . . . . . . . .9-1
4. Self diag contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-2
5. Conditions for the JAM display . . . . . . . . . . . . . . . . . . . .9-7
[10] SERVICING AT MEMORY TROUBLE AND
MAIN CONTROL PWB REPLACEMENT . . . .10-1
1. General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-1
2. Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-1
3. Remedies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-1
4. Set value recording sheet . . . . . . . . . . . . . . . . . . . . . . .10-4
5. Memory simulation list . . . . . . . . . . . . . . . . . . . . . . . . .10-5
[11] MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-1
[12] ELECTRICAL SECTION . . . . . . . . . . . . . . . . . . . .12-1
1. System block diagram . . . . . . . . . . . . . . . . . . . . . . . . . .12-1
2. System operation at power ON . . . . . . . . . . . . . . . . . . .12-1
3. Main circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-2
(1) Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-2
(2) CPU (IC110) M37702 . . . . . . . . . . . . . . . . . . . . . .12-2
1Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-2
2Pin arrangement . . . . . . . . . . . . . . . . . . . . . . .12-2
3Block diagram . . . . . . . . . . . . . . . . . . . . . . . . .12-3
4CPU: M37702 (IC110) pin signals . . . . . . . . . .12-4
(3) Start/stop control circuit . . . . . . . . . . . . . . . . . . . .12-5
(4) Heater lamp control circuit . . . . . . . . . . . . . . . . . .12-6
1General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-6
(5) Driver circuit (Solenoid, magnetic clutch) . . . . . . .12-7
1General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-7
2Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-7
(6) Stepping motor drive circuit . . . . . . . . . . . . . . . . .12-7
1General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-7
(7) AE (Auto Exposure) sensor circuit . . . . . . . . . . . .12-7
(8) Toner supply motor drive circuit . . . . . . . . . . . . . .12-8
(9) Reset IC (IC113) . . . . . . . . . . . . . . . . . . . . . . . . . .12-8
1Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-8
2Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-8
(10) Copy lamp control section . . . . . . . . . . . . . . . . . .12-9
4. Operating section . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-11
(1) Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-11
(2) Display circuit . . . . . . . . . . . . . . . . . . . . . . . . . . .12-12
1Block diagram . . . . . . . . . . . . . . . . . . . . . . . .12-12
2Operation . . . . . . . . . . . . . . . . . . . . . . . . . . .12-12
(3) LED display . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13
5. Power section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13
(1) Signal name and output voltage . . . . . . . . . . . . .12-13
II

[1] GENERAL DESCRIPTION
1. Features
[Small]
•Compact design
•Small area for operation
[Speedy]
•Warm-up time 30 sec or less, the first copy 5.9 sec ∼the fastest in
the class.
[Soft]
•The energy save mode reduces the total power consumption.
•Ozone generation is limited.
•Use of materials which can be recycled.
User simulation
The user can select the desired operating conditions easily. Auto
clear time, power save mode time, power save mode warm up time
can be set by the user simulation.
2. Target users
Average copy volume of 2,000 ∼3,000 sheets/month (max. 15,000
sheets/month)
3. System outline
Zooming range
(64 ~ 129%)
250-sheet tray
50
Single manual feed (Standard)
50-sheet multi manual feed unit (SF-MF14)
(Option)
1 – 1

[2] PRODUCT SPECIFICATIONS
1. Basic specifications
(1) Type: Table top
(2) Copy speed
Paper size Normal Enlargement Reduction
B4 11 sheets/min 10 sheets/min 12 sheets/min
A4 (Landscape) 14 sheets/min 10 sheets/min 12 sheets/min
B5 (Landscape) 14 sheets/min 10 sheets/min 12 sheets/min
10″×14″11 sheets/min 10 sheets/min 12 sheets/min
Legal 11 sheets/min 10 sheets/min 12 sheets/min
Letter
(Landscape) 14 sheets/min 10 sheets/min 12 sheets/min
Note: Copy speeds in the enlargement/reduction copy are the
same in all the rates.
(3) Warm-up time
Normal 30 sec or less (20 °C, 65%RH, rated
voltage)
(Preheat YES/NO) 10sec or less (Preheat mode)
Max. 30sec (auto power shut off mode)
Jam recovery time 8sec (Conditions: Standard condition
after 60sec of leaving after opening
the door.)
(4) First copy time
First copy time from
each paper feed port Tray: 5.9sec Manual: 5.9sec
(5) Jam recovery time: 5 sec (Condition: Jam in a section except
for the fuser section, within 6.0 sec from
door open, standard condition.)
(6) Multi copy
Max. quantity of multi copy 99 sheets
(7) Original
Max. original size B4/10″ × 14″
Original reference
position Left side, about 12mm from the rear
Detection NO
Detection size AB series
Inch series
(8) Copy magnification ratio
Fixed
ratio AB series 3R+3E/129, 122, 115, 81, 70, 64%
Inch series 2R+2E/129, 117, 78, 64%
Zoom width 64 ∼129%
(9) Exposure
Exposure mode Auto/Manual/Photo
Manual steps 9 steps
(10) Void width
Normal Reduction Enlargement
Void area
Lead edge
3.0mm or less
Lead edge
3.0mm or less
Lead edge
3.0mm or less
Side (front)
3.0mm or less
Side (front)
3.0mm or less
Side (front)
3.0mm or less
Rear edge
1mm ∼3.0mm
Rear edge
1mm ∼3.0mm
Rear edge
1mm ∼3.0mm
loss
Lead edge
3.0mm max.
Lead edge
5.0mm max.
Lead edge
2.5mm max.
Side (front)
3.0mm max.
Side (front)
5.0mm max.
Side (front)
2.5mm max.
Rear edge
4.0mm max.
Rear edge
6.0mm max.
Rear edge
3.0mm max.
(11) Paper exit
Paper exit tray capacity 100 sheets
(12) External view
W ×D ×H (mm) OC top 500 ×492 ×288
Occupying area W (mm) 500 + 257 (paper exit tray) +
205 (option Multi paper feed
unit)
D (mm) 492
Weight About 27.4 kg
(13) Power source
Voltage 100V, 110V, 120V, 127V, 220V, 220 ∼230V,
230 ∼240V, 240V
Frequency 50/60Hz common
(14) Power consumption
Max. power consumption 1.4 kW
Average power consumption when operating
(Ref. value) 582.4 Wh
Power consumption in standby (Ref. value) 72.5 Wh
Power consumption in pre-heating (Ref. value) 47.7 Wh
Power consumption in auto power shut off
(Ref. value) 14.8 Wh
Auto OFF mode (Ref. value)
Dry heater connected
Dry heater not connected 9.5 Wh 0 Wh
Energy consumption efficiency 49.4 Wh
Note: Max. value when an option is installed.
2. Details of each section
(1) Paper feed
Copying size
(Max. ∼Min.) AB series B4 ∼A6 (Postcard)
Inch series 10 ×14 ∼5 1/2 ×8 1/2
Paper feed system 1 tray + single manual feed
Paper feed capacity 250 sheets ×1
2 – 1

•AB series
Each paper
feed port
Paper feed
size
Paper
weight Special paper
Paper
feed
position
Tray B4 ∼A5
(Landscape)
56 ∼
80g/m2Recommended recycle paper
Front
Single
manual feed
B4 ∼A6
postcard
(Portrait)
52 ∼
130g/m2No. 2 original, OPH, label,
recommended
recycle paper,
postcards
Side
*For paper of 104 ∼
130g/m2, A4 or smaller.
Multi
manual
feed (OP)
•When in
multi
paper
feed
B4 ∼A5
(Landscape)
56 ∼
80g/m2Recommended recycle paper
Side
•When in
single
paper
feed
B4 ∼A6 52 ∼
130g/m2Recommended recycle paper,
No. 2 original,
OPH label
Side
*For paper of 104 ∼
130g/m2, A4 or smaller.
•Inch series
Each paper
feed port
Paper feed
size
Paper
weight Special paper
Paper
feed
position
Tray 10 ×14 ∼
5 1/2 ×8
1/2
15 ∼21 lbs. Recommended
recycle paper
Front
Single
manual feed
10 ×14 ∼
5 1/2 ×8
1/2
14 ∼34.5
lbs.
No. 2 original,
OHP.
recommended
recycle paper
Side
*For paper of 28 ∼
34.5lbs, letter size or
smaller.
Multi
manual
feed (OP)
Side
•When in
multi
paper
feed
10 ×14 ∼
5 1/2 ×8
1/2
15 ∼21 lbs. Recommended
recycle paper
•When in
single
paper
feed
10 ×14 ∼
5 1/2 ×8
1/2
14 ∼34.5
lbs.
No. 2 original,
OHP, label,
recommended
recycle paper
Side
*For paper of 28 ∼
34.5lbs, letter size or
smaller.
(2) Optical section
Light source Halogen lamp
Exposure system Slit exposure by moving the
light source
Magnification ratio changing
system By changing the lens position and scan speed.
Lens Fixed focus lens
(3) Process section
Charging system (–) DC scorotron system
Transfer system (–) DC scorotron system
Separation
system Discharge plate/separation pawl
Main charger
grid voltage
Copy mode Simulations
No. Grid voltage
Standard 8-02 –750V
Photo 8-03 –460V
Toner save 8-04 –634V
Charge/Transfer
charger applied
voltage –50.0µA ±4µA
(4) Developer section
Developing system Two-component developing
system
Toner density detection
system Magnetic sensor system
Toner box capacity Toner 210 ±5g
Developing bias DC–200V±3V
•Developer
Material Iron powder carrier
Charging system Negatively charged by friction
•Toner
Charging system Positively charged by friction
(5) Fuser section
Fusing system Heat roller system
Upper heat roller surface
temperature 180°C
Heater lamp 100V Halogen lamp 1000 W ×1 pc.
110V Halogen lamp 1000 W ×1 pc.
120V Halogen lamp 1000 W ×1 pc.
127V Halogen lamp 1000 W ×1 pc.
220V Halogen lamp 1000 W ×1 pc.
230V Halogen lamp 1000 W ×1 pc.
240V Halogen lamp 1000 W ×1 pc.
(6) Drive section
Main motor
standard 3-phase full wave drive, DC brushless Rating: DC32V, max. 1.32A, 1500 rpm
2 – 2

3. Supplies
Middle and South America
No. Name Content Product name Life
1 OPC drum kit OPC drum x 1 SF114DR 50K
Cleaning blade x 1
2 Black developer Black developer (560g) x 10 SF114LD
(SF114DVx10) 60K ×10
3 Black toner Black toner cartridge (200g) x 10 SF114LT
(SF114Tx10) 6K ×10
4 Heat roller kit
Upper heat roller x 1
SF214HR
(For LAG: SF214HR1) 80K
Upper fusing separation pawl x 3
Fusing bearing (F) x 1
Fusing bearing (R) x 1
Roller stopper x 2
Lower heat roller x 1
Lower fusing separation pawl x 4
Note 1: The heat roller kit for this series is common with the previous
models SF-2314/2414/2514.

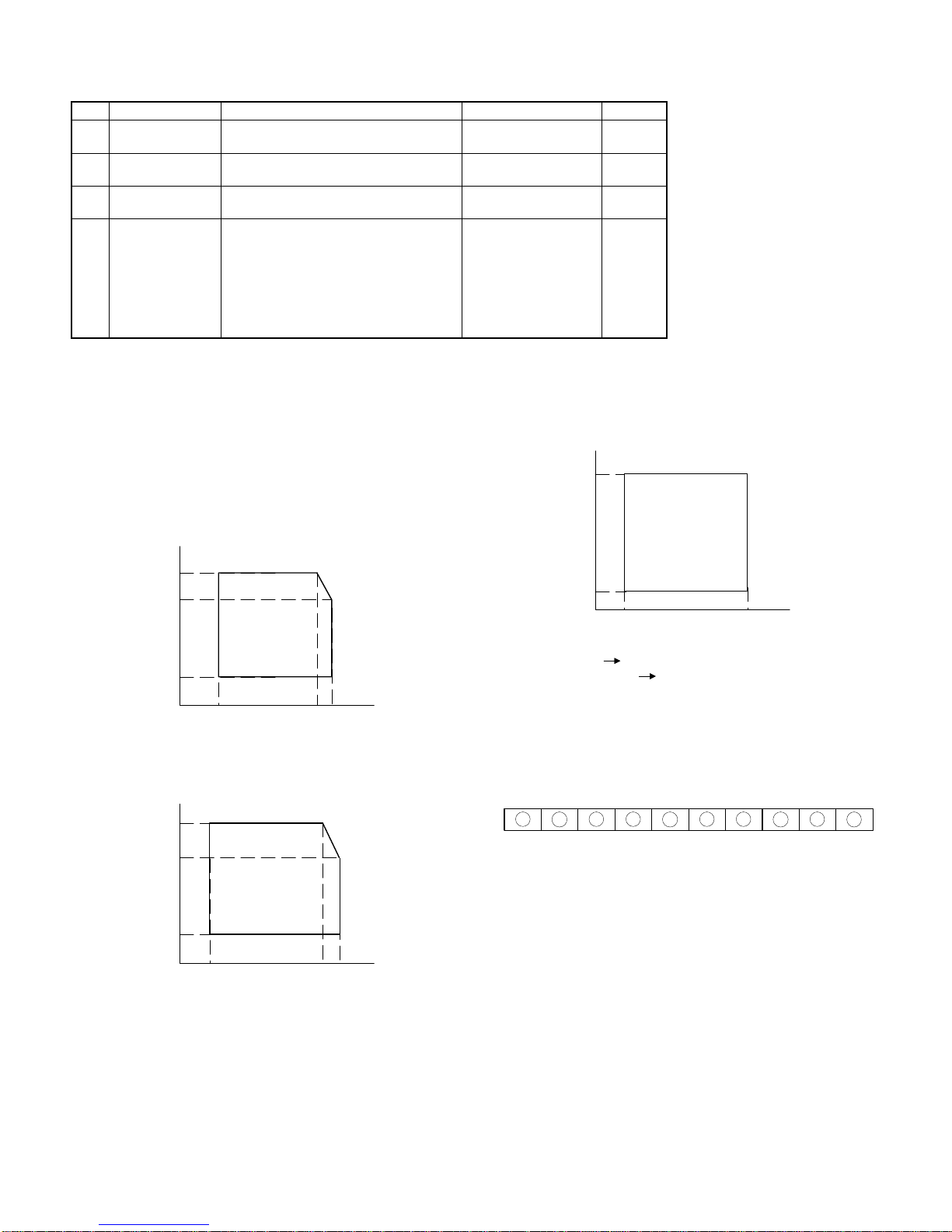

Environmental conditions
Observe the following environmental conditions to ensure the copy
quality and machine performance.
1Standard condition
20 ∼25 °C, 65 ±5% RH
2Operational condition
3Shipping condition of copier (within 2 weeks)
4Supply storing condition
5Identification of production number
A. OPC drum
The lot no. is of 10 digits. Each digit indicates as follows. This number
is printed on the F side flange.
1Numeral
Indicates the OPC drum sensitivity.
2Alphabet
Indicates the model code. "M" is the code for this model.
3Numeral
The end digit of the year of coating.
4Numeral or X, Y, Z
Indicates the month of coating.
X means October, Y November, and Z December.
56Numeral
Indicates the day of coating.
7Numeral or X, Y, Z
Indicates the month of packing.
X means October, Y November, and Z December.
89Numeral
Indicates the day of packing.
85
60
20
(%)RH
10 30 35
(˚C)
90
60
20
(%)RH
-20 30 45
(˚C)
90
10
(%)RH
-5
(˚C)
40
Storage period:
OPC drum Max. 36 months from production
Developer/Toner Max. 24 months from production
1 2 3 4 5 6 7 8 9 10
2 – 3

FAlphabet
Indicates the factory of production. "A" is the code for Nara plant.
B. Developer and toner
The lot number of toner is put on the individual cartridge package and
on the group package, and that of toner is put on the bag and the
group package.
The lot number is of 7 digits, each digit indicating as follows:
1Alphabet
Indicates the factory of production.
2Numeral
Indicates the end digit of the year of production.
34Numeral
Indicates the month of production.
56Numeral
Indicates the day of production.
7Numeral
Indicates the sub lot number.
Normal C A B
1234
When a change is made on the product in the same operation sys-
tem:
Normal C A B
15263748
A,B,C: Operation system
1 2 3 4 5 6 7
2 – 4

[3] EXTERNAL VIEW AND INTERNAL STRUCTURE
1. External view and internal structure
No. Name No. Name No. Name
1Exit tray 2Document cover 3Document glass
4Operation panel 5Manual bypass 6Manual bypass guide
7Power switch 8Front cover 9Paper tray
FFusing unit lever GToner cartridge HFusing unit
IPhotoconductive drum JRelease lever
1 2 34
56
9
8
7
10 11 12 13 14
Upper unit
Lower unit
3 – 1

2. Operation panel
No. Name No. Name No Name
1Auto/manual/photo key and indicators 2Light and dark keys and exposure
indicators 3Maintenance required indicator
4Developer replacement required
indicator 5Misfeed indicator 6Toner required indicator
7Copy ratio selector key and indicators 8Zoom keys 9ZOOM indicator
FCopy quantity display GCopy ratio display key H10-key pad
IClear key JPower save indicator KTray select key and indicators
LZero/readout key MPrint button and READY indicator
C
5
4
3
8
9
1
6
7
2
0
51234
%
ZOOM
AUTO
117%
129%
78%
64%
100%
5
8
8
SF-1014
1
2 3 5 6 7 8 9 10 11 12 13 14
1716
15
1/2x11
5
1/2x 1/2
88
1/2x
8
1/2 1/2x11
8
1/2x11 10x14
1/2x14
8
1/2x11
4
3 – 2

3. Cross section
No. Name No. Name No Name
1No.3 mirror 2No.2 mirror 3Drum separation pawl
4Cleaner unit 5Discharge lamp 6Main charger unit
7No.1 mirror 8Copy lamp 9Lens unit
FNo.6 mirror GBlank lamp HDeveloper magnet roller
INo.4 mirror JNo.5 mirror KDeveloper tank
LManual paper feed roller MManual feed take-up roller NManual paper feed follower roller
OTray paper feed takeup roller PTray transport follower roller QTransport roller (Upper)
RTray paper feed roller SOption tray transport roller TResist roller
UResist roller VTransfer charger WPhotoconductor drum
XSuction belt YUpper heat roller ZLower cleaning roller
[Lower heat roller \Lower separation pawl ]Upper separation pawl
^Heater lamp
1
51098 7 6 3 4
2
11 12
13
14
15
16
17
18
19
20
21
22
23
2627
2829
30
31
32
34
24
25
33
3 – 3

4. Switches, sensors, detectors
No. Abbreviation Function Type Operation
1POD Paper out sensor Transmission photo sensor H when paper is sensed.
2MHPS Mirror home position sensor Transmission photo sensor H at the home position.
3LHPD Lens home position sensor Transmission photo sensor H at the home position.
4PWD Paper size (large/small) sensor Transmission photo sensor L with the large size.
5PPD Paper transport sensor Transmission photo sensor L when paper is sensed.
6CPED1 Tray paper empty sensor Transmission photo sensor H when paper is present.
7PID (MFD1) Paper sensor for Manual paper feed unit
(only single Manual Paper feed unit) Transmission photo sensor L when the cover is open.
1
2
3
4
5
6
7
3 – 4

5. Clutches, solenoids
No. Abbreviation Name Function and operation
1PSPS Paper separation solenoid For paper separation solenoid drive
2RRC Resist roller clutch For resist roller rotation
3TRC Transport roller clutch For transport roller rotation
4MPFS Manual paper feed solenoid For takeup roller pressing
5CPFC1 Tray paper feed clutch For paper feed roller rotation
6MPFC Multi paper feed clutch For multi paper feed roller rotation
2
4
3
1
5
6
3 – 5

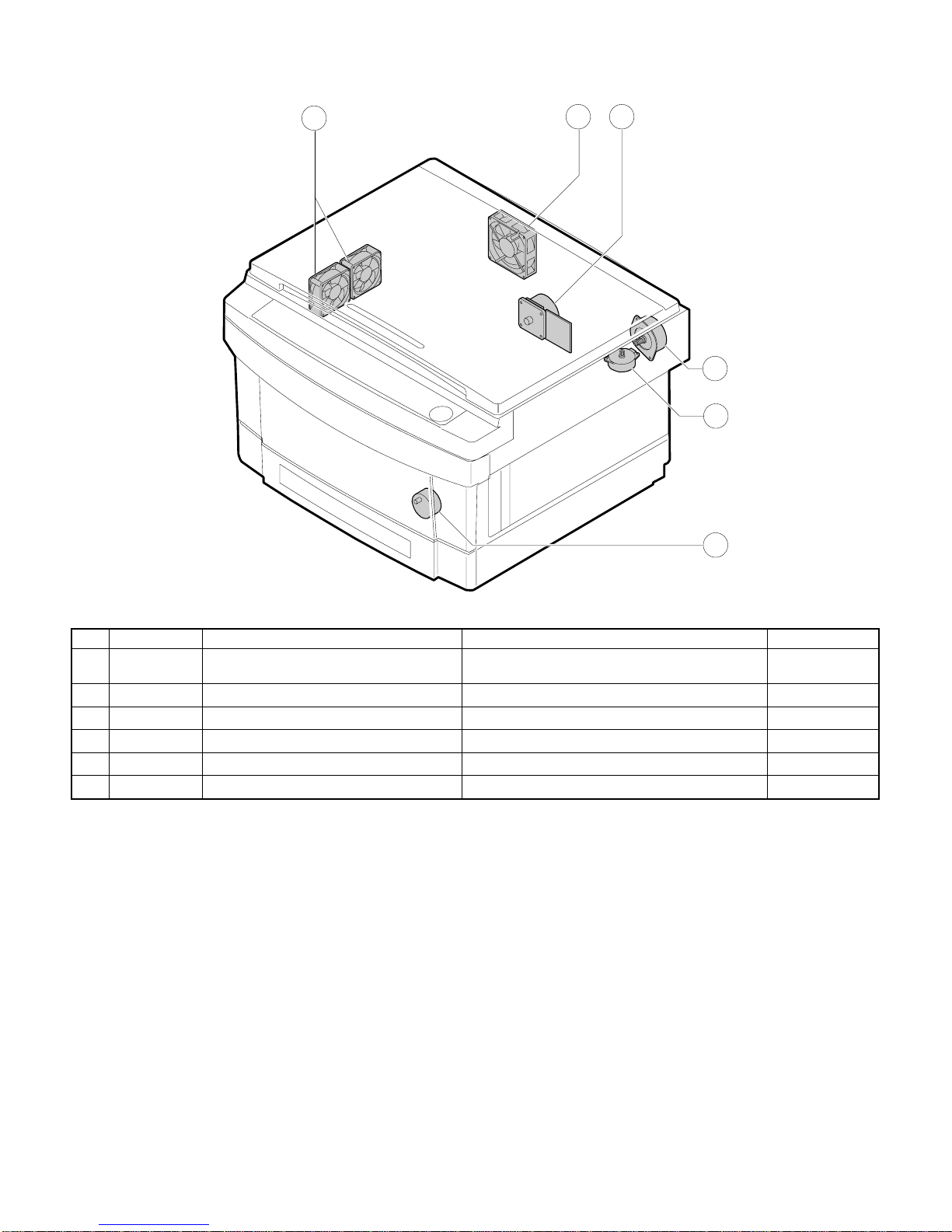

6. Motors
No. Abbreviation Name Function Type
1VFM Paper exit fan motor For ventilation of the fuser unit.
For cooling the machine and removing ozone. DC brushless
2CFM Cooling fan motor For cooling the optical system DC brushless
3MM Main motor For the main body drive and the option drive DC brushless
4LM Lens motor For the optical lens drive DC stepping
5MRM Mirror motor For the optical mirror base drive DC brushless
6TM Toner motor For toner supply DC synchronous
3
12
4
5
6
3 – 6

7. PWBs
No. Name Description
1AC circuit PWB AC power input
2Discharge lamp PWB Discharge lamp drive
3Main PWB Main body control
4AE PWB Document density auto exposure detection
5Blank lamp PWB Blank lamp control
6Lower unit PWB Lower unit parts control
7High voltage PWB Supply of the process high voltage and the developer bias voltage.
8Operation PWB Operation input, display control
6
7
5
3
2 1 4 8
3 – 7

[4] UNPACKING AND INSTALLATION
1. Packing drawing
List of packing materials and accessories
Name Q’ty
1 Packing case 1
2 Body 1
3 Polyethylene bag for paper exit tray 1
4 Vinyl sheet for body 1
5 Bottom case 1
6 Bottom case pad (L) 1
7 Bottom case pad (R) 1
8 AC cord sleeve 1
9 Paper exit tray 1
10 Instruction Manual 1
2. Installation
Installationconditions
The following installing conditions must be satisfied to assure the
normal operations of the machine.
(1) Environment
1Keep the machine away from direct sunlight and avoid instal-
lation near a window or in a bright place.
(Draw the curtain and close the blind shutter completely.)
The plastic parts and the original cover may be deformed by direct
sunlight. Avoid installation near a window even with frosted glass.
2Avoid installation in high temperature or high humitity en-
vironments. Also, avoid installation where temperature or
humidity may change quickly. (e.g., near an air conditioner).
Otherwise copy papers may be dampened and condensation may
be generated in the machine. This may result in paper jams or
poor copy quality.
(Ideal conditions): The best suitable conditions for machine
operation:
20°C∼25°C: 65 ±5%RH
(Temperature/humidity range): 15°C ∼30°C (59°F ∼86°F),
20% ∼85%
65% for 35°C (95°F)
% RH
85
Humidity
65
20
15 30 35
˚C
(59˚) (86˚) (95˚) (˚F)
4 – 1

3Avoid installation where there is a lot of dust or vibrations.
If dust enters the machine, it may degrade copy quality and cause
malfunctions.
4Avoid installation on an unstable surface.
To assure the proper operations, install on a level surface.
5Install in a well ventilated place.
6Avoid installation where there is inflammable gases or am-
monium gases.
Installation near a diazonium copier may degrade copy quality and
cause malfunctions.
7Install near a power outlet.
(2) Space around the machine
Allow a space of about 15 cm (6 inches) between the rear side of the
machine and the wall for ventilation of the cooling fan. Also allow
sufficient space around the machine for operations.
(3) Installing table
Use a level (UKOGM0054CSZZ) to install the machine horizontal-
ly.
(Allowable tilt: 5 mm between the front and rear frames)
(Note) If the machine is not installed horizontally, toner density con-
trol may not function properly. This may result in poor copy
quality.
(4) Power source
1The power source should be the rated voltage ±10% with the
capacity corresponding to the max. power consumption.
2Do not use an extension cord, or operate any other equipment
from the same wall outlet.
(5) Grounding
To avoid electrical hazard, use the properly grounded wall outlet only.
(Carrying the machine)
When carrying the machine, remove the copy tray and hold the dent
portions on the bottom.
4 – 2

3. Installation procedure
(1) Optical system unlocking
1Unlock the No.2/No.3 mirror unit.
Remove the No.2/No.3 mirror unit fixing screw (1 pc.) on the left
side of the copier.
2Unlock the No.4/No.5 mirror unit.
Remove the No.4/No.5 mirror unit fixing screws (2 pcs.) on the
right side of the copier.
[In the case of SF-1014 with SF-MF14 (Optional) equipped.]
Open the paper feed tray on the right side of the copier.
Remove the No.4/No.5 mirror unit fixing screws (2 pcs.).
Then close the paper feed tray.
(2) Cassette setting
1Pull out the cassette.
Lift the cassette and slowly pull it out from the copier until it stops.
2Loading copy paper.
Set the copy papers in the cassette. Do not exceed the limit line
indicator.
Gently insert the cassette fully into the copier.
Mirror unit fixing screw
Mirror unit fixing screw
Mirror unit fixing screw
4 – 3

(3) Developer setting
1Open the front cabinet.
Push the front cabinet open buttons which are on the left and right
sides of the copier, and open the front cabinet.
2Open the toner cartridge.
While pressing the toner cartridge release lever (B), open the
toner cartridge.
3Remove the toner cartridge.
Slowly turn the toner cartridge clockwise to remove.
4Remove the developing unit.
Loosen the fixing screw (step screw) which is fixing the copier and
the developing unit, and slowly pullout the developing unit and
Lenz hold Plate from the copier.
5Remove the developer tank.
Slightly open the pawl which is fixing the developing unit and the
developer tank with a screw driver, and pull out the developer
tank.
6Supply developer.
Supply a bag of developer to the developer supply port of the
developing unit.
At that time, move the bag of developer to supply developer even-
ly.
7Install the developer tank.
Insert the developer tank to the developing unit along the guide of
the developing unit.
At that time, check that the developer tank is securely fixed in the
developing unit.
8Install the developing unit.
Slowly insert the developing unit into the copier along the guide of
the copier until it stops.
Tighten the fixing screw which was removed in procedure (D), and
fix the developing unit to the copier.
Front cabinet open button
Toner cartridge
Release lever (B)
1
2
Developer unit
Fixing screw
(step screw)
1
2
Lenz hold plate
Developing unit
Developing
tank
Pawl
Developing unit
Developing
Developing unit
Developing tank
Developer unit
Fixing screw
(step screw)
1
2
4 – 4

(4) Toner supply
1Shake the toner cartridge up and down.
Shake the toner cartridge up and down 9 to 10 times.
2Install the toner cartridge.
Install the toner cartridge to the copier along the guide of the
copier.
Turn the toner cartridge counterclockwise to lock.
3Supply toner.
Remove the sheet from the toner cartridge and supply toner.
Slowly return the toner cartridge to the original position.
4Close the front cabinet.
(5) Toner density sensor level check
1Turn on the power switch of the copier.
2Adjust the developer level.
(a) Perform the key operations of simulation 25 sub 2.
With the above key operations, simulation 25 is performed and
the developer is stirred for 3 minutes.
(b) After stirring the developer for 3 minutes, the toner density
level is read by the main PWB.
During stirring, the toner density sensor level is displayed on
the MULTI COPY display. (Range: 1 ∼99)
[Note] If the simulation is cancelled during execution, the
automatic reading cannot be performed. Do not cancel
the simulation during execution.
(c) Press the CLEAR key three times to cancel simulation 25.
(6) Accessory attachment
Attach the copy tray.
1
2
C0 0 C
25 2
ccc
4 – 5
