OPERATION MANUAL
FACSIMILE
MODEL
UX-355L
1. Installation
2. Setting Up and Using OpenLCR
3. Sending Documents
4. Receiving Documents
5. Making Copies
6. Making Telephone Calls
7. Answering Machine Hookup
8. Special Functions
9. Printing Lists
10. Maintenance
11. Troubleshooting
UX-355L FACSIMILE
www.OpenLCR.com
open
LCR

WARNING - FCC Regulations state that any unauthorized changes or modifications to this equipment
not expressly approved by the manufacturer could void the user’s authority to operate this equipment.
Note: This equipment has beentested and found to comply with thelimits for a ClassB digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
ABOUT THE TELEPHONE CONSUMER PROTECTION ACT OF 1991
"The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a
computer or other electronic device to send any message via a telephone facsimile machine
unless such message clearly contains in a margin at the top or bottom of each transmitted
page or on the first page of the transmission the following information:
(1) The date and time of transmission.
(2) Identification of either the business, business entity or individual sending the message.
(3) Telephone number of either the sending machine, business, business entity or individual.
In order to program this information into your facsimile machine, please refer to the
appropriate instructions in the operation manual."
As an ENERGY STARpartner, SHARP has deter-
mined that this product meets the ENERGY STAR
guidelines for energy efficiency.
FOR YOUR RECORDS
Please record the model number and serial number below, for easy
reference, in case of loss or theft. These numbers are located on the
rear side of the unit.Space is also provided for other relevant
information.
Model Number
Serial Number
Date of Purchase
Place of Purchase
all.book Page 0 Wednesday, April 26, 2000 7:08 PM

1
Introduction
*Based on ITU-T Test Chart #1 at standard resolution, excluding time for proto-
col signals (i.e., ITU-T phase C time only).
Automatic dialing Rapid Key Dialing: 7 numbers
Speed Dialing: 40 numbers
Imaging film Initial starter roll (included with machine):
32 ft. (10 m) (approx. 30 letter-size pages)
Replacement roll:
UX-3CR 98 ft. (30 m) (two rolls in
package, one roll yields approx. 100
letter-size pages)
Memory size* 476 KB (approx. 27 average pages with ECM
turned off)
Modem speed 14,400 bps with automatic fallback to lower
speeds.
Transmission time* Approx. 6 seconds (only when ECM is on)
Resolution Horizontal: 203 pels/inch (8 pels/mm)
Vertical:
Standard: 98 lines/inch (3.85 lines/mm)
Fine /Halftone:
196 lines/inch (7.7 lines/mm)
Super fine:
391 lines/inch (15.4 lines/mm)
Automatic document
feeder
10 pages max. (20 lb paper)
Recording system Thermal transfer recording
Welcome, and thank you for
choosing a Sharp facsimile
machine! The features and
specifications of your new
Sharp fax are shown below.
all.book Page 1 Wednesday, April 26, 2000 7:08 PM

2
Halftone (grayscale) 64 levels
Display 16-digit LCD display
Paper tray capacity
(16- to 20-lb. paper)
Letter: 60 sheets
Legal: 30 sheets
Compression scheme MR, MH, MMR
Applicable telephone line Public switched telephone network
Compatibility ITU-T (CCITT) G3 mode
Input document size Automatic feeding:
Width: 5.8 to 8.5" (148 to 216 mm)
Length: 5.5 to 11" (140 to 279 mm)
Manual feeding:
Width: 5.8 to 8.5" (148 to 216 mm)
Length: 5.5 to 23.6" (140 to 600 mm)
Effective scanning width 8.3" (210 mm) max.
Effective printing width 8.3" (210 mm) max.
Contrast control Automatic/Dark selectable
Reception modes TEL/FAX/A.M. (Note: A.M. mode is for
connecting an answering machine)
Copy function Single/Multi/Sort (99 copies/page)
Telephone function Yes (cannot be used if power fails)
Power requirements 120 V AC, 60 Hz
Operating temperature 41 - 95°F (5 - 35°C)
Humidity Maximum: 85% RH
Power consumption Standby: 4.0 W
Maximum: 100 W
all.book Page 2 Wednesday, April 26, 2000 7:08 PM

3
As a part of our policy of continuous improvement, SHARP reserves the right to
make design and specification changes for product improvement without prior notice.
The performance specification figures indicated are nominal values of production
units. There may be some deviations from these values in individual units.
Dimensions Width: 13.5" (343 mm)
Depth: 10.1" (256 mm)
Height: 7.2" (182 mm)
Weight Approx. 7.7 lbs. (3.5 kg)
Important safety information
• Do not disassemble this machine or attempt any procedures not
described in this manual. Refer all servicing to qualified service
personnel.
• Do not install or use the machine near water, or when you are wet.
For example, do not use the machine near a bath tub, wash bowl,
kitchen sink or laundry tub, in a wet basement, or near a swimming
pool. Take care not to spill any liquids on the machine.
• Unplug the machine from the power outlet and telephone jack and
consult a qualified service representative if any of the following
situations occur:
- Liquid has been spilled into the machine or the machine has been
exposed to rain or water.
- The machine produces odors, smoke, or unusual noises.
- The power cord is frayed or damaged.
- The machine has been dropped or the housing damaged.
• Do not allow anything to rest on the power cord, and do not install
the machine where people may walk on the power cord.
• This machine must only be connected to a 120 V, 60 Hz, grounded
(3-prong) outlet. Connecting it to any other kind of outlet will
damage the machine and invalidate the warranty.
all.book Page 3 Wednesday, April 26, 2000 7:08 PM

4
•Never insert objects of any kind into slots or openings on the
machine. This could create a risk of fire or electric shock. If an
object falls into the machine that you cannot remove, unplug the
machine and consult a qualified service representative.
•Do not place this machine on an unstable cart, stand or table. The
machine could be seriously damaged if it falls.
•Never install telephone wiring during a lightning storm.
•Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
•Never touch bare telephone wires or terminals unless the telephone
line has been disconnected at the network interface.
•Use caution when installing or modifying telephone lines.
•Avoid using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock from
lightning.
•Do not use a telephone to report a gas leak in the vicinity of the
leak.
•The power outlet must be installed near the equipment and must be
easily accessible.
Important:
•This facsimile machine is not designed for use on a line which has
call waiting, call forwarding, or certain other special services
offered by your telephone company. If you attempt to use the fax
machine in conjunction with any of these services, you may
experience errors during transmission and reception of facsimile
messages.
•This facsimile machine is not compatible with digital telephone
systems.
all.book Page 4 Wednesday, April 26, 2000 7:08 PM

5
Table of Contents
Introduction 1
Important safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Table of Contents 5
A Look at the Operation Panel 7
1. Installation 9

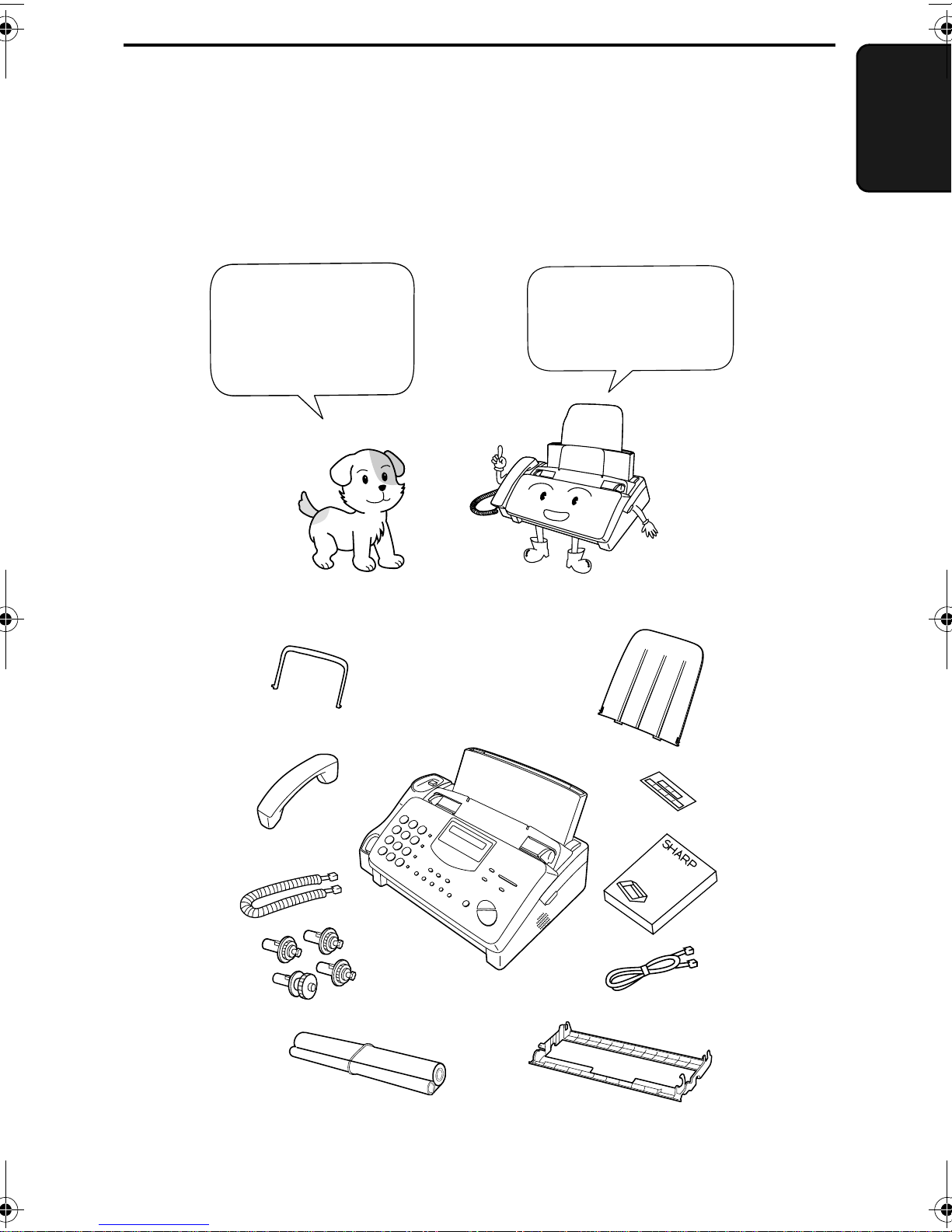

Unpacking Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

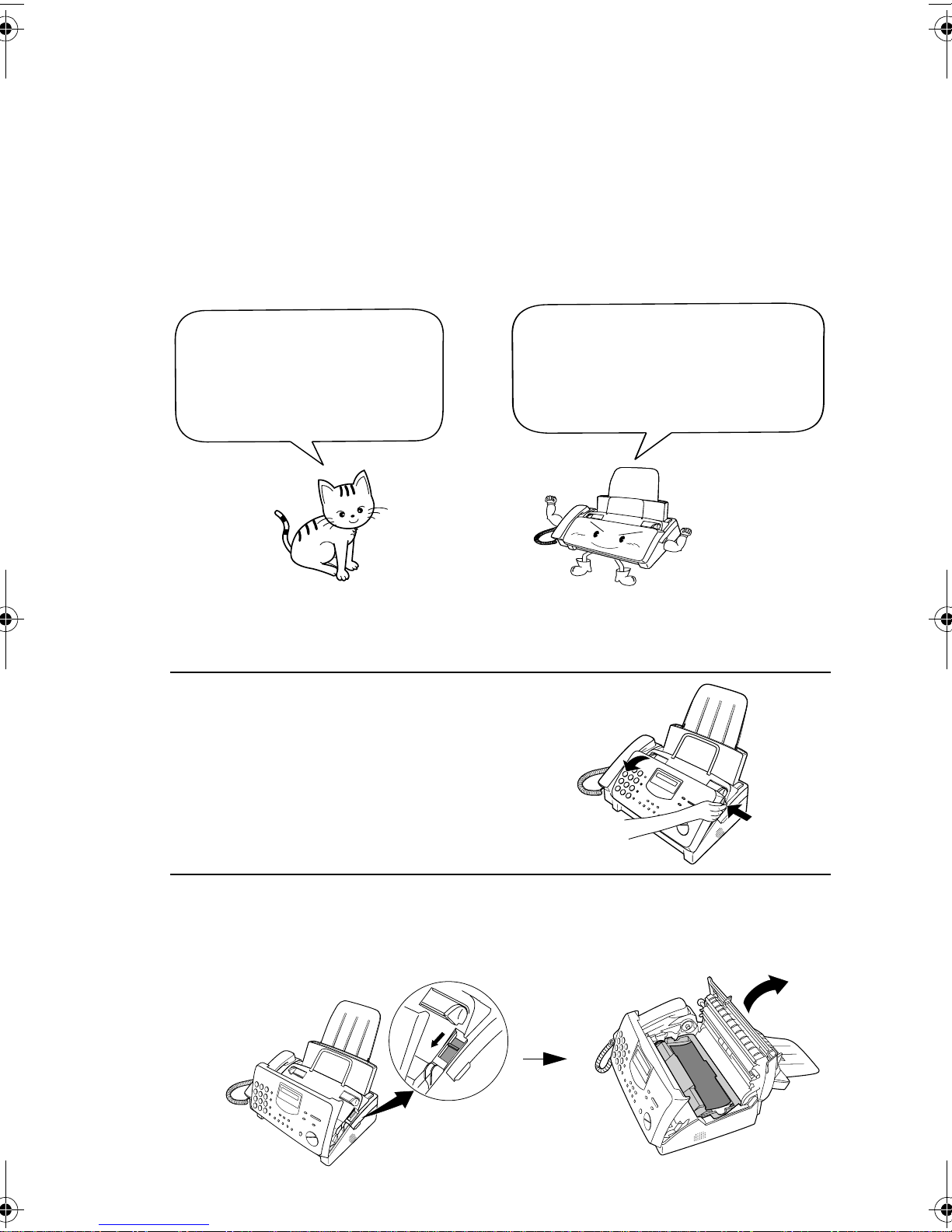

Loading the Imaging Film. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Loading Printing Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Entering Your Name and Fax Number. . . . . . . . . . . . . . . . . . . . . . . 25
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setting the Reception Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2. Setting Up and Using OpenLCR 35
3. Sending Documents 50
Transmittable Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Adjusting the Resolution and Contrast. . . . . . . . . . . . . . . . . . . . . . . 55
Sending a Fax by Normal Dialing. . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Sending a Fax by Automatic Dialing. . . . . . . . . . . . . . . . . . . . . . . . . 60
4. Receiving Documents 72
Using FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Using TEL Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Substitute Reception to Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
5. Making Copies 81
6. Making Telephone Calls 85
all.book Page 5 Wednesday, April 26, 2000 7:08 PM

Table of Contents
6
7. Answering Machine Hookup 88
Connecting an Answering Machine . . . . . . . . . . . . . . . . . . . . . . . . .88
Optional A.M. Mode Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
8. Special Functions 93
Caller ID (Requires Subscription to Service) . . . . . . . . . . . . . . . . . .93
Distinctive Ring (Requires Subscription to Service) . . . . . . . . . . . . .99
Broadcasting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Cover Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Batch Page Numbering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Blocking Reception of Unwanted Faxes . . . . . . . . . . . . . . . . . . . . .108
Sending Documents From Memory . . . . . . . . . . . . . . . . . . . . . . . .110
Polling (Requesting a Fax Transmission) . . . . . . . . . . . . . . . . . . . .112
Timer Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
9. Printing Lists 119
10. Maintenance 126
11. Troubleshooting 130
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
Messages and Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Ordering Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
FCC Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Quick Reference Guide 143
Guía de referencia rápida 145
Index 151
all.book Page 6 Wednesday, April 26, 2000 7:08 PM

7

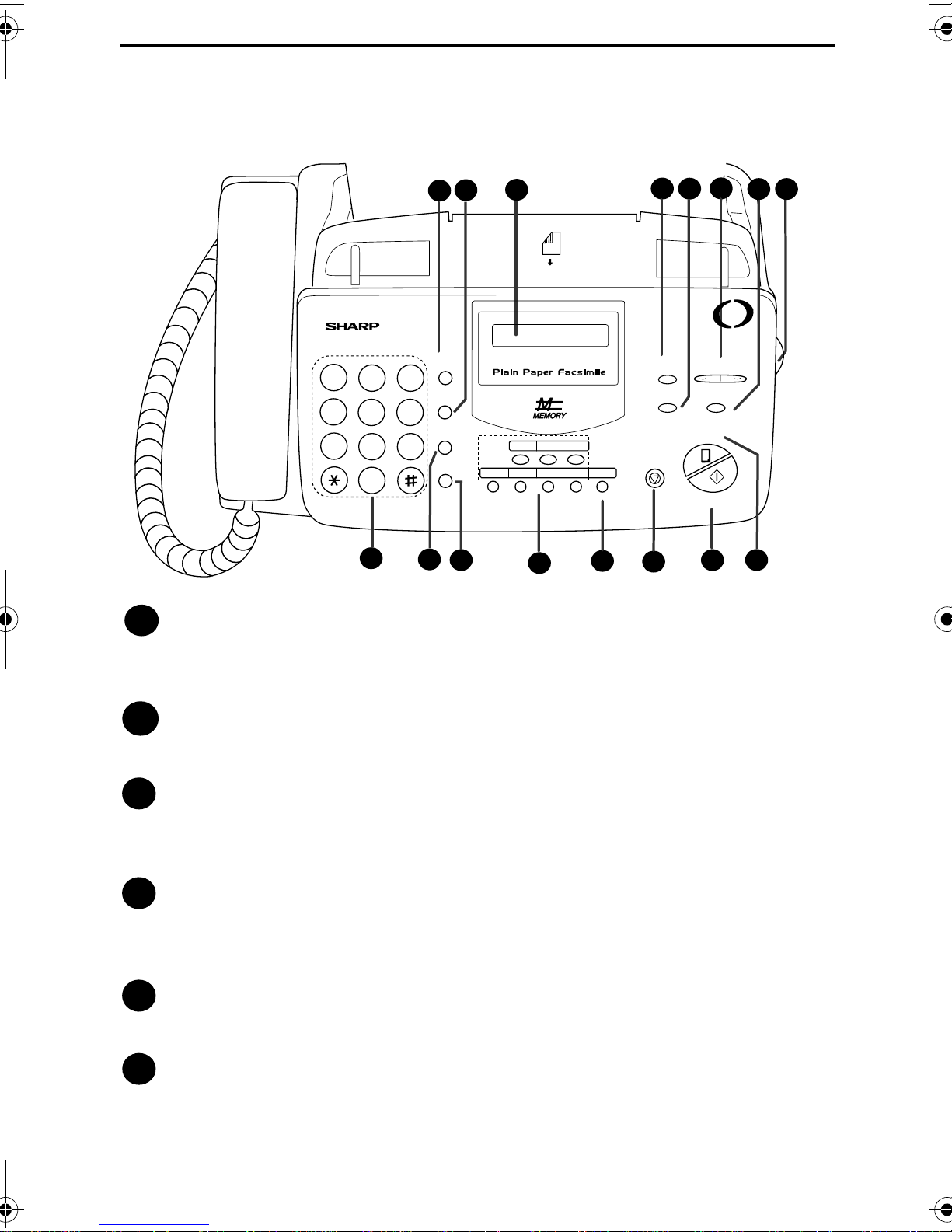

SPEED DIAL key
Press this key to dial a fax or voice number using an abbreviated
2-digit Speed Dial number.
REDIAL key
Press this key to automatically redial the last number dialed.
Display
This displays messages and prompts during operation and
programming.
RECEPTION MODE key
Press this key to select the reception mode. An arrow in the display
will point to the currently selected reception mode.
RESOLUTION key
Press this key to adjust the resolution for faxing or copying.
VOLUME key
Press this key to adjust the volume of the speaker when the
SPEAKER key has been pressed, the volume of the handset when the
handset is lifted, or the volume of the ringer at all other times.
A Look at the Operation Panel
JKL
SPEED
DIAL
REDIAL
SPEAKER
HOLD/
SEARCH
STOP
COPY/HELP
START / MEMORY
VOLUME
DOWN UP
RECEPTION
MODE
RESOLUTION FUNCTION
ABC
2
1
DEF
3
WXYZ
9
GHI
45
MNO
6
PQRS
7
TUV
8
0
12345678
910 11 12 14 15 16
www.OpenLCR.com
open
LCR
13
TEL FAX
A.M.
07/POLL060504
030201
OpenLCR
OpenLCR
1
6
2
3
4
5
5
all.book Page 7 Wednesday, April 26, 2000 7:08 PM

8
FUNCTION key
Press this key to select various special functions.
Panel release
Grasp this finger hold and pull toward you to open the operation
panel.
Number keys
Use these keys to dial numbers, and enter numbers and letters when
storing auto-dial numbers.
HOLD/SEARCH key
Press this key to search for an auto-dial number, or, during a phone
conversation, press this key to put the other party on hold.
SPEAKER key
Press this key to listen to the line and fax tones through the speaker
when faxing a document.
Note: This is not a speakerphone. You must pick up the handset to
talk with the other party.
Rapid Dial Keys
Press one of these keys to dial a fax number automatically.
OpenLCR key
Press this key to register for OpenLCR service and receive carrier rate
data to your fax.
STOP key
Press this key to cancel an operation before it is completed.
START/MEMORY key
Press this key to begin transmission when using Speed Dialing, Direct
Keypad Dialing, or Normal Dialing.
COPY/HELP key
When a document is in the feeder, press this key to make a copy of a
document. At any other time, press this key to print out the Help List,
a quick reference guide to the operation of your fax machine.
15
16
14
13
12
11
10
9
8
7
all.book Page 8 Wednesday, April 26, 2000 7:08 PM

9
1. Installation
1. Installation
Unpacking Checklist
If any are missing,
contactyourdealer
or retailer.
Before setting up,
make sure you
have all of the
following items.
Original
document
support
Handset
Handset
cord
Gears (4)
Imaging film
(initial starter
roll)
Paper tray
extension
Rapid key
labels
Operation
manual
Telephone
line cord
Imaging
film
cartridge
all.book Page 9 Wednesday, April 26, 2000 7:08 PM

Connections
10
Connections

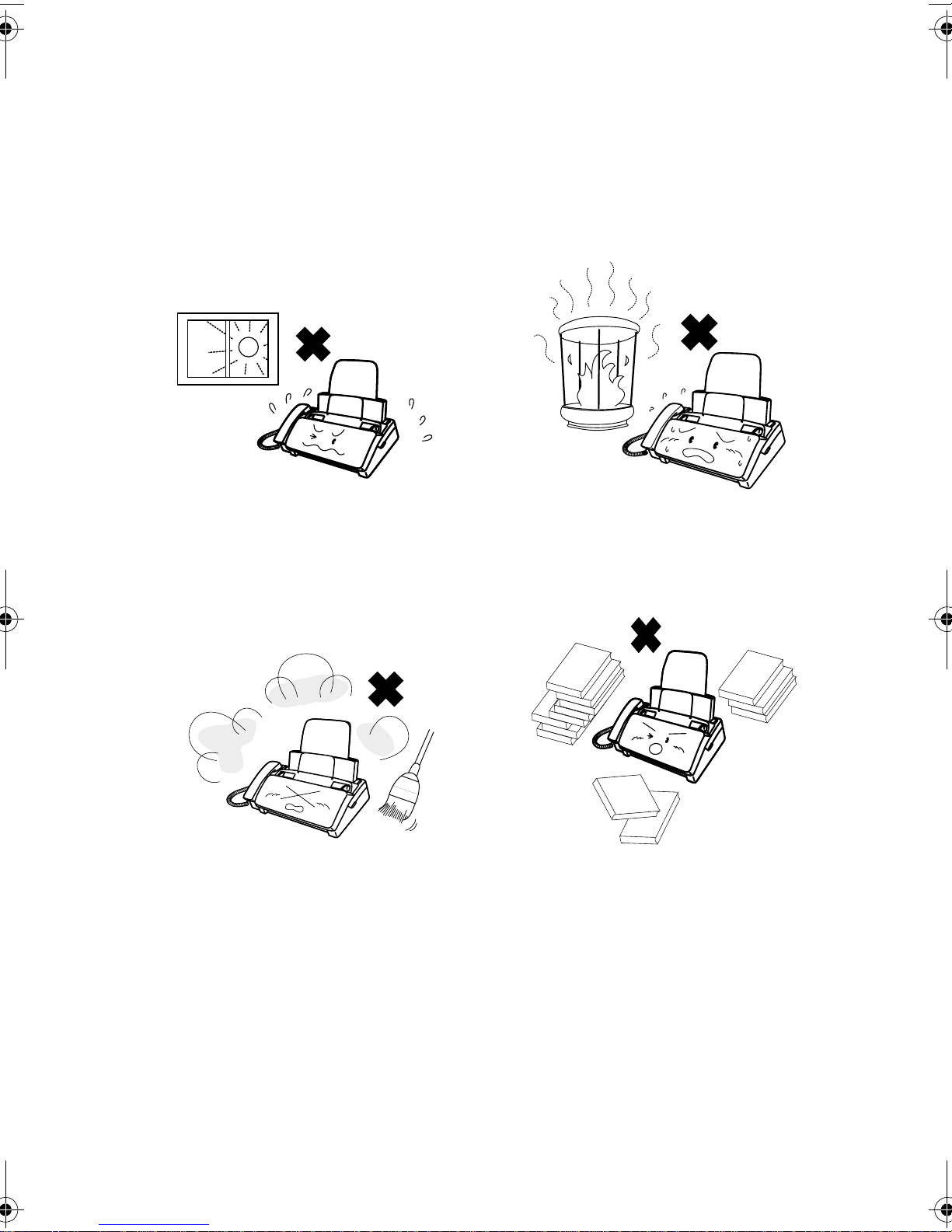

Points to keep in mind when setting up
Do not place the machine in
direct sunlight. Do not place the machine near heaters or air conditioners.
Keep dust away from the
machine. Keep the area around the machine clear.
About condensation
If the machine is moved from a cold to a warm place, it is possible
that condensation may form on the scanning glass, preventing proper
scanning of documents for transmission. To remove the condensation,
turn on the power and wait approximately two hours before using the
machine.
all.book Page 10 Wednesday, April 26, 2000 7:08 PM

Connections
11
1. Installation

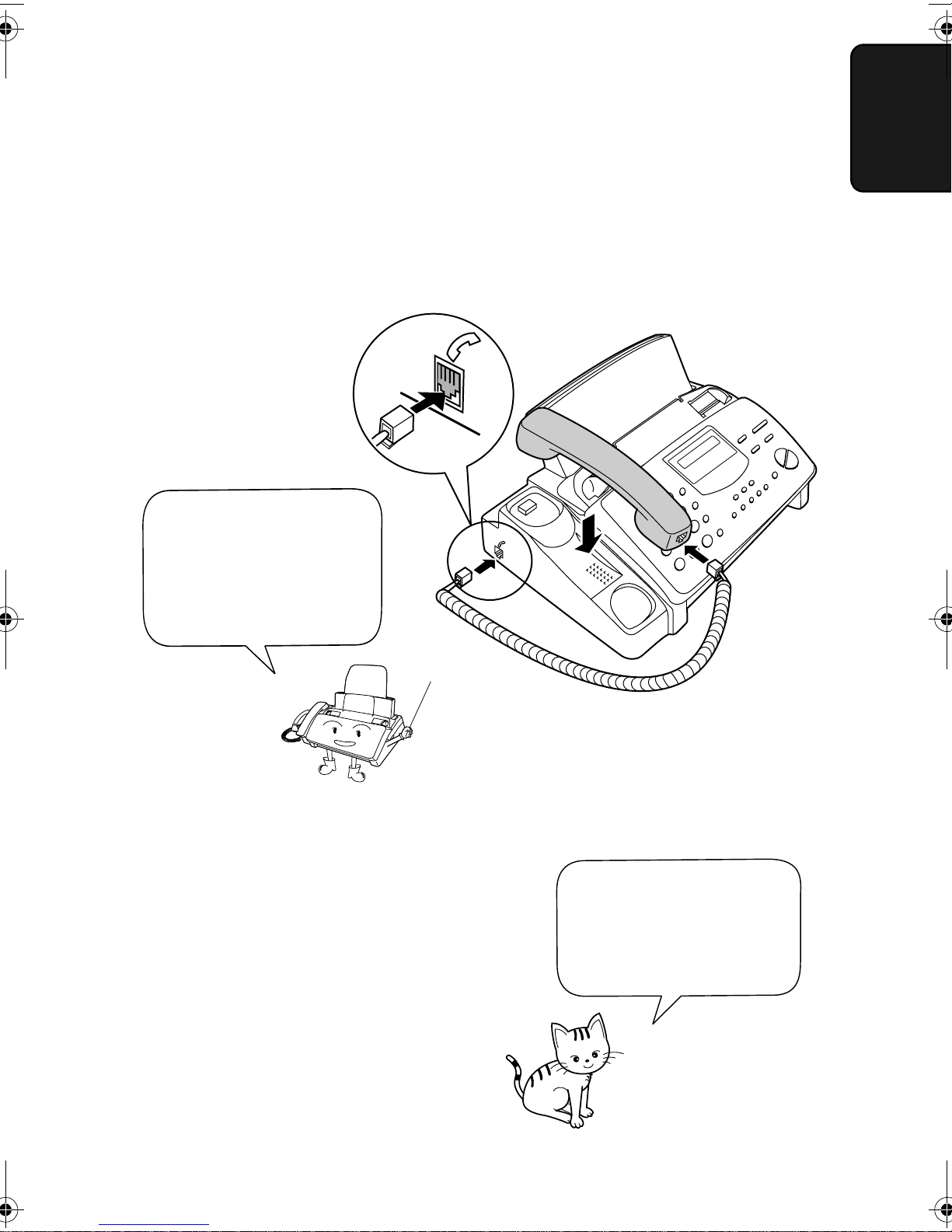

Connecting the Handset
Connect the handset as shown and place it on the handset rest.
♦The ends of the handset cord are identical, so they will go into
either jack.
Use the handset to
make ordinary phone
calls,ortotransmitand
receive faxes manually.
Makesurethehandset
cord goes into the jack
marked with a handset
symbol on the side of
the machine!
all.book Page 11 Wednesday, April 26, 2000 7:08 PM

Connections
12
Connecting the power cord
Plug the power cord into a 120 V, 60 Hz, grounded AC (3-prong)
outlet.
Caution!
Do not plug the power cord into any other kind of outlet. This will
damage the machine and is not covered under the warranty.
Note: If your area experiences a high incidence of lightning or power
surges, we recommend that you install surge protectors for the power and
telephone lines. Surge protectors can be purchased at most telephone spe-
cialty stores.
The machine does not have
a power on/off switch, so
the power is turned on and
off by simply plugging in or
unplugging the power cord.
all.book Page 12 Wednesday, April 26, 2000 7:08 PM

Connections
13
1. Installation

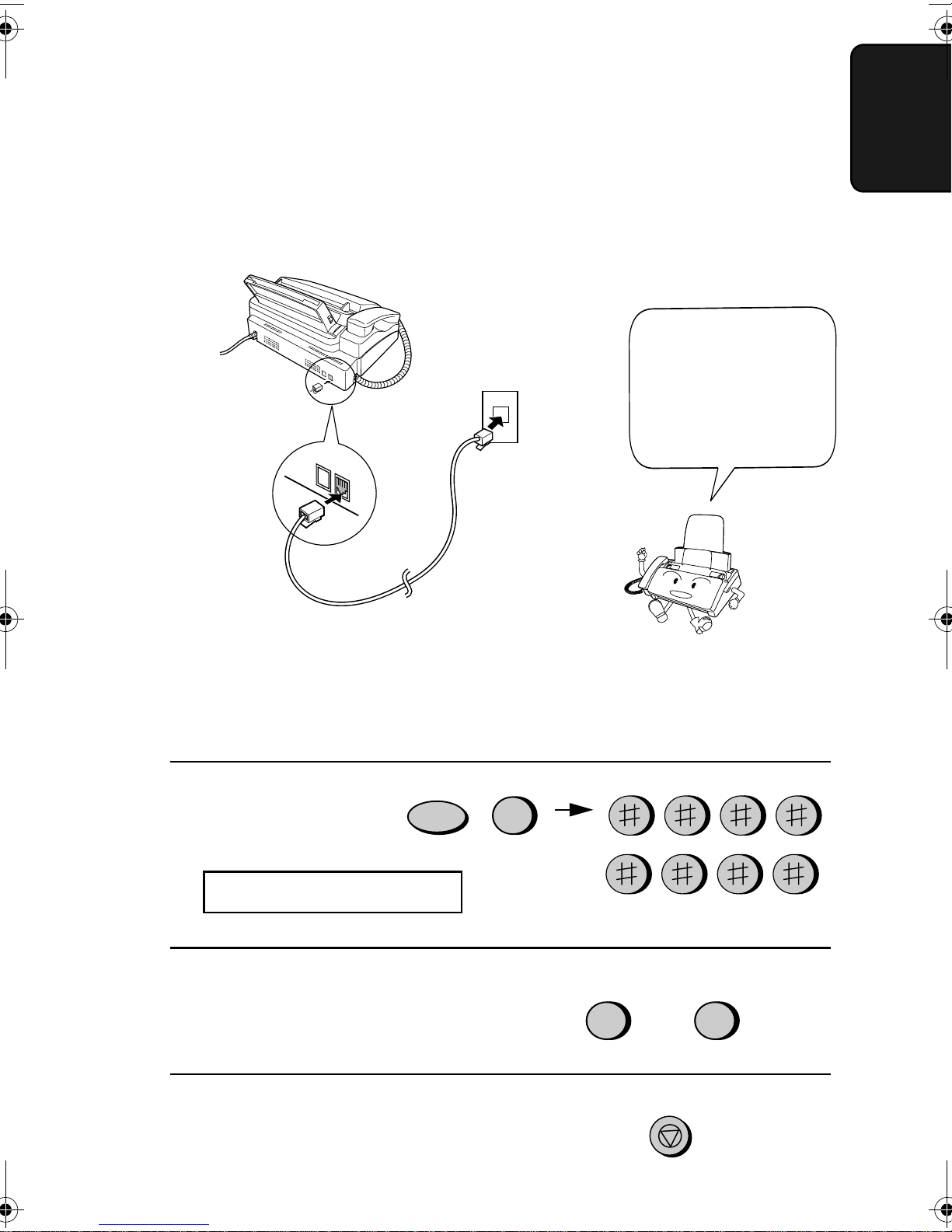

Connecting the telephone line cord
Insert one end of the line cord into the jack on the back of the machine
marked TEL. LINE. Insert the other end into a standard (RJ11C)
single-line wall telephone jack.
Note: The fax machine is set for tone dialing. If you are on a pulse
dial line, you must set the fax machine for pulse dialing. Press the
keys on the operation panel as follows:
1Press these keys:
The display will show:
4
DIAL MODE
2Press 1to select tone dialing, or 2 to
select pulse dialing.
1 2
or
TONE PULSE
3Press the STOP key to return to the
date and time display.
FUNCTION
STOP
Be sure to insert
the line into the
TEL. LINE jack.
Do not insertitinto
the TEL. SET jack.
TEL.
SET TEL.
LINE
all.book Page 13 Wednesday, April 26, 2000 7:08 PM

Connections
14
Attaching the tray extension and document support
Attach the paper tray extension.
♦Pull the paper release plate forward. Insert the paper tray extension
horizontally into the notches in the paper tray. Rotate the paper tray
extension up until it snaps into place.
Attach the original document support.
Note: The original
document support
has a top side and a
bottom side. If you
cannot insert the
tabs on the support
into the holes, turn
the support over.
all.book Page 14 Wednesday, April 26, 2000 7:08 PM

Connections
15
1. Installation
Extension phone (optional)
If desired, you can connect an extension phone to the TEL. SET jack
on the fax.
♦To connect an answering machine to your fax, see Chapter 7,
Answering Machine Hookup (page 88).
2Connect the extension phone line to
the TEL. SET jack.
1Remove the seal covering the TEL.
SET jack.
TEL.
SETTEL.
LINE
all.book Page 15 Wednesday, April 26, 2000 7:08 PM

Loading the Imaging Film
16
Loading the Imaging Film
Your fax uses a roll of imaging film to create printed text and images.
The print head in the fax applies heat to the imaging film to transfer
ink to the paper. Follow the steps below to load or replace the film..
Note: If there is paper in the paper tray, pull the paper release plate for-
ward and remove the paper before loading the imaging film.
When replacing the film, use a
roll of Sharp UX-3CR imaging
film. One roll can print about
100 letter-size pages.
The initial starter roll of
imagingfilmincludedwith
your fax can print about
30 letter-size pages.
1Open the operation panel by grasping
the finger hold and pulling up.
2Pull the green release on the right side
of the machine forward, and open the
print compartment cover.
all.book Page 16 Wednesday, April 26, 2000 7:08 PM

Loading the Imaging Film
17
1. Installation

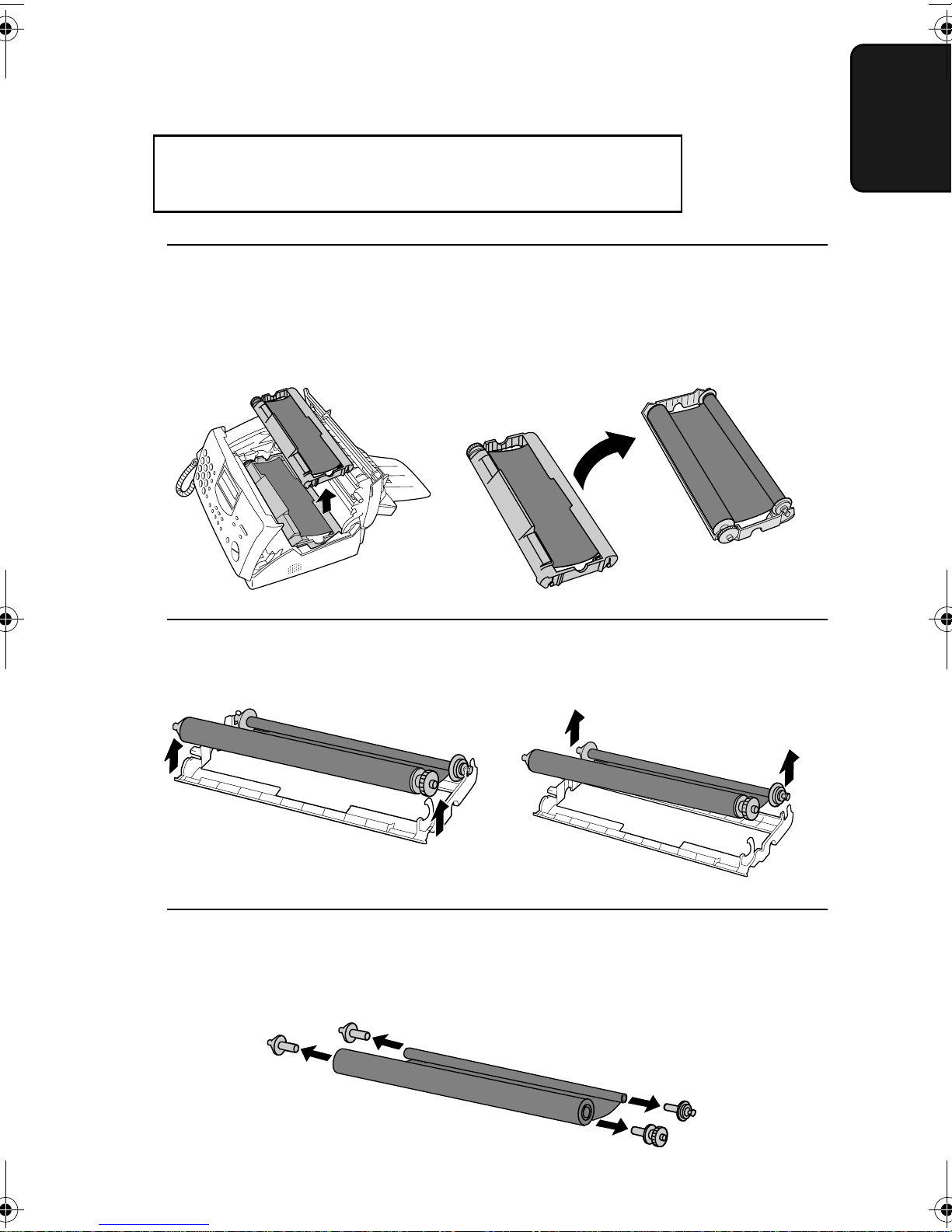

4Remove the used film from the
cartridge.
5Remove the four green gears from the
used film. DO NOT DISCARD THE
FOUR GREEN GEARS!
3Remove the imaging film cartridge
from the print compartment (grasp the
handle at the front of the cartridge)
and turn it over.
If you are installing the imaging film for the
first time, go to Step 6.
all.book Page 17 Wednesday, April 26, 2000 7:08 PM

Loading the Imaging Film
18

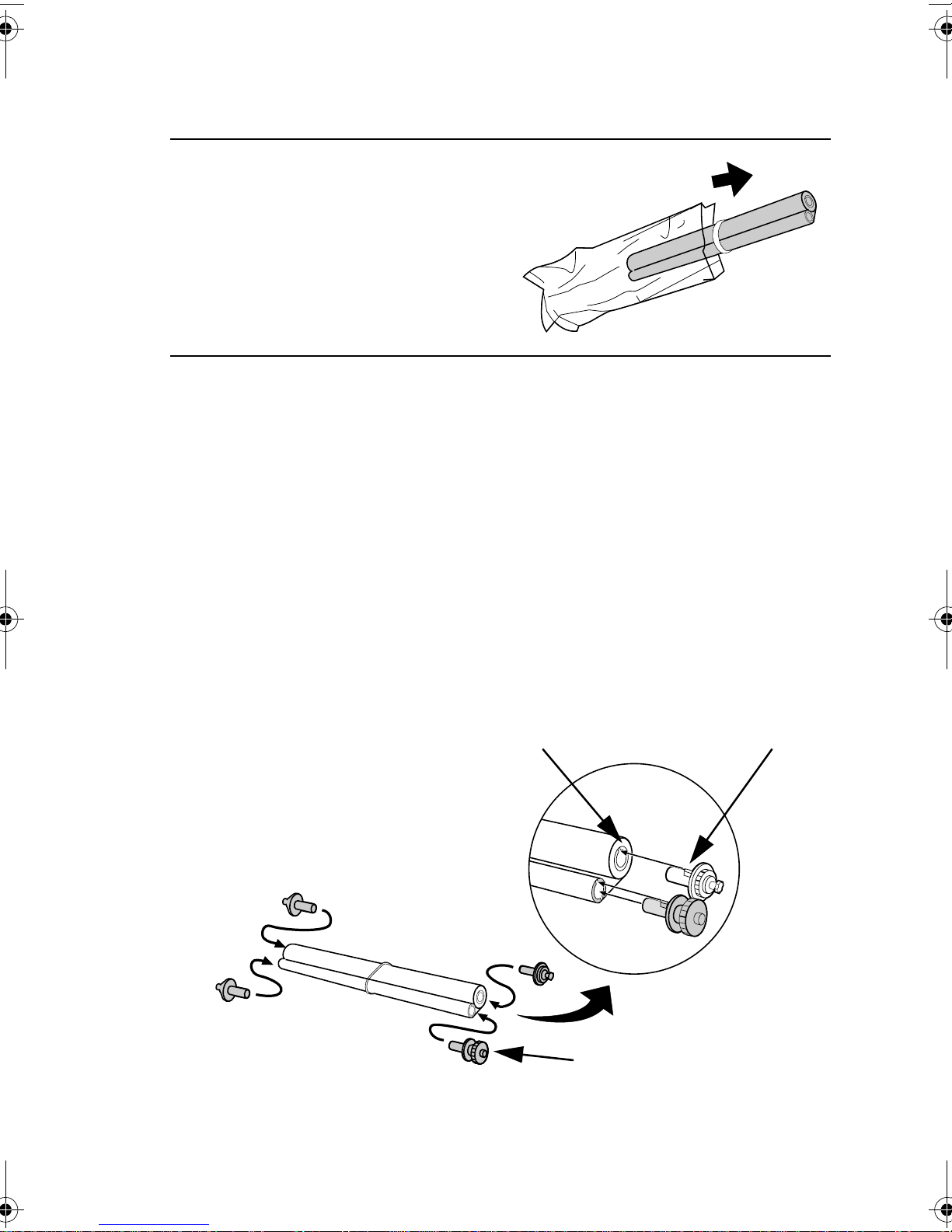

7Insert the large gear into the green end
of the empty spool. Make sure the two
protrusions on the large gear fit firmly
into the slots in the end of the spool.
Insert the remaining three gears into
the spools, making sure the protrusion
on each gear fits firmly into one of the
slots in the end of each spool.
•If needed, pull the spools apart
slightly to allow the gears to fit (the
band will stretch).
6Remove the new roll of imaging film
from its packaging.
•Do not yet remove the band that
holds the rolls together.
Slot Protrusion
Large gear
all.book Page 18 Wednesday, April 26, 2000 7:08 PM
