Sharp HT-DV50U User manual

HT-DV50U
SERVICE MANUAL
No. S5818HTDV50UT
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified
ones for maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
HT-DV50U
MODEL
HT-DV50U DVD Cinema consisting of HT-DV50U (main
unit), CP-DV50 (speaker) and CP-SW40 (subwoofer
system).
• In the interests of user-safety (Required by safety regulations in
some countries) the set should be restored to its original
condition and only parts identical to those specified be used.
SHARP CORPORATION
[ For Taiwan ]
This Service Manual is for HT-DV50U, which is minor modification model of the HT-DV40H. This Service Manual, therefore ,
describes only the changed points from the Service Manual. Please refer to the HT-DV40H Service Manual
(SY756HTDV40HW) together with this Service Manual.
A
C Power Supply Cord
QACCZA016AW00

HT-DV50U
2
Specifications
Main Unit
(*) This power consumption value is obtained when the
demonstration mode is cancelled in the power stand-by mode.
Power source AC 110 - 127 V ~ 50/60 Hz
Power
consumption
Power on: 71 W
Power stand-by: 0.6 W (*)
Output power Speaker:
MPO: 150 W (75 W + 75 W) (10% T.H.D.)
RMS: 150 W (75 W + 75 W) (10% T.H.D.)
RMS: 90 W (45 W + 45 W) (0.9% T.H.D.)
Subwoofer:
MPO: 100 W (10% T.H.D.)
RMS: 100 W (10% T.H.D.)
RMS: 55 W (0.9% T.H.D.)
Video output
terminals
Video output: RCA type x 1
S-video output: S-terminal x 1
Component video output: (Y/PB/PR) x 1
HDMI output : HDMI x 1
Support 480p/570p/1080i output formats.
Audio input
terminals
Optical digital input (DIGITAL 1): Square type x 1
Optical digital input (DIGITAL 2): Square type x 1
Analogue input : 500 mV/47K ohms
Audio output
terminals
Speakers: 4 ohms
Subwoofer: 12 ohms
Headphones: 16 - 50 ohms
(recommended: 32 ohms)
Dimensions Width: 300 mm (11-13/16")
Height: 106 mm (4-1/8")
Depth: 300 mm (11-13/16")
Weight 3.8 kg (8.4 lbs.)
DVD player
Subwoofer
Signal system PAL/NTSC colour
Supported disc
types
DVD (with the same region number at the
back of the unit), audio CD, CD-R, CD-RW,
JPEG, DivX (version 3 ~ 6)
Video signal Horizontal resolution: 500 lines
S/N ratio: 70 dB
Audio signal Frequency
characteristics
Linear PCM DVD:
20 Hz to 20 kHz
(sampling rate: 48 kHz)
20 Hz to 20 kHz
(sampling rate: 96 kHz)
CD: 20 Hz to 20 kHz
S/N radio CD: 94 dB (1 kHz)
Dynamic range Linear PCM DVD: 95 dB
CD: 94 dB
Total harmonic
distortion ratio
0.01% maximum
Type Subwoofer system
20 cm (8 ") subwoofer
Maximum input
power
200 W
Rated input power 100 W
Impedance 12 ohms
Dimensions Width: 220 mm (8-11/16")
Height: 354 mm (13-15/16")
Depth: 438 mm (17-1/4")
Weight 7.6 kg (16.7 lbs.)
Tuner
Frequency
range
FM: 87.5 - 108 MHz (Mexico and Central and
South America)
FM: 88 - 108 MHz (Others)
Other Maximum station can be stored is 30 preset.
USB
USB host
interface
Complies with USB 1.1/2.0 (Full Speed)
Mass Storage Class.
Support Bulk only and CBI protocol.
Support file MPEG 1 Layer 3
MPEG 2 Layer 3
WMA (Non DRM)
Bitrate support MP3 (32 - 320 kbps)
WMA (64 - 160 kbps)
Other Maximum total number of MP3/WMA files is
1200.
The ID3TAG information supported are
TITLE, ARTIST and ALBUM only.
Support ID3TAG version 1 and version 2.
File system
support
Support USB devices with Microsoft
Windows/DOS/FAT 12/FAT 16/FAT 32.
2 kbyte block length for sector.
CP-DV50 Speaker
Type 2-way type speaker system
2.5 cm (1") tweeter
6.5 cm (2-1/2") woofer (x 3)
Maximum input
power
150 W
Rated input power 75 W
Impedance 4 ohms
Dimensions Width: 100 mm (3-15/16")
Height: 1243 mm (48-15/16")
Depth: 114 mm (4-1/2")
Weight 7.1 kg (15.65 lbs.)/each

HT-DV50U
3

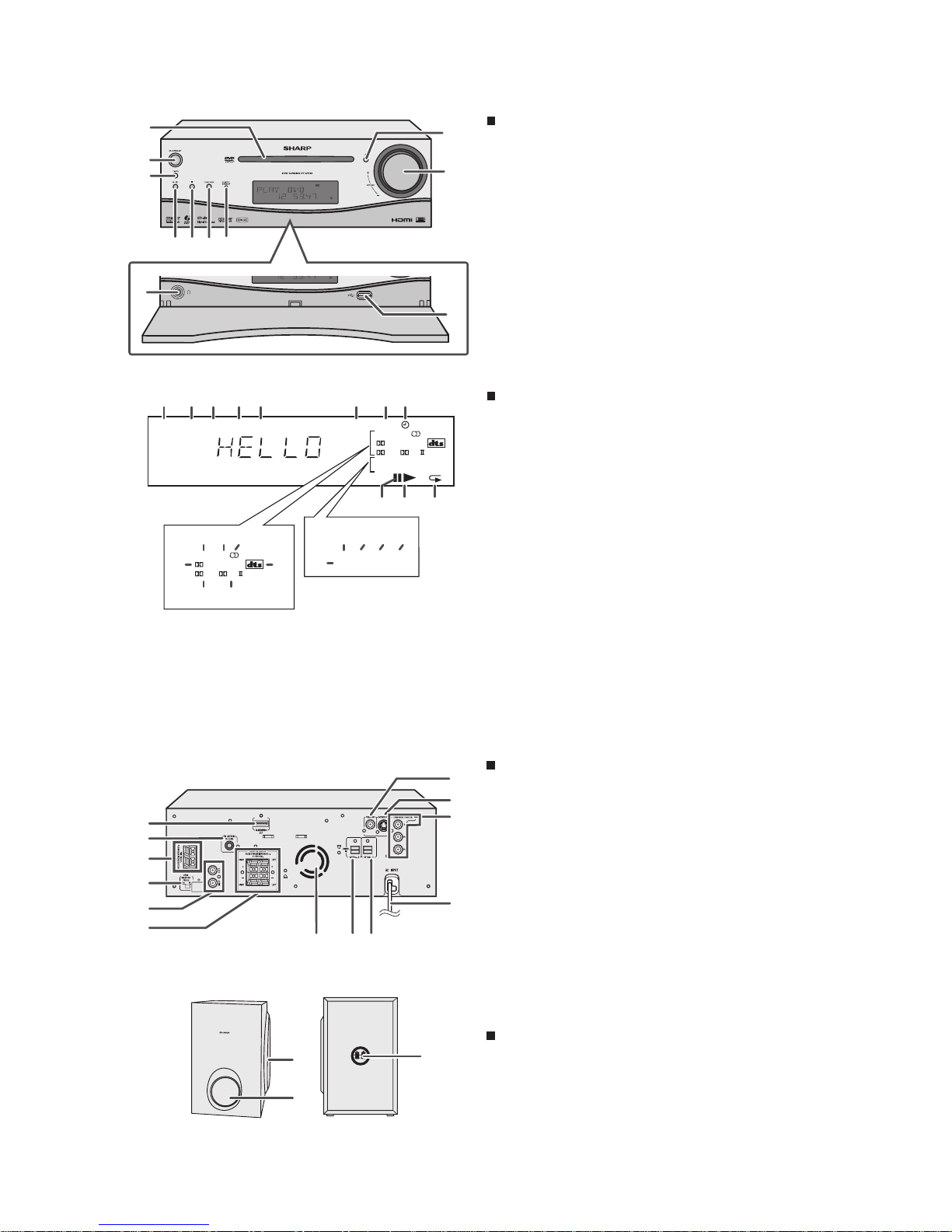

Front panel
1. CD Compartment
2. On/Stand-by Button
3. Timer Indicator
4. DVD/CD/USB Play/Pause Button
5. Disc or USB Stop Button
6. Function Button
7. Remote Sensor
8. Headphone Socket
9. Disc Eject Button
10. Volume Control
11. USB Terminal
Rear panel
1. HDMI Socket
2. FM 75 Ohms Aerial Socket
3. Subwoofer Terminals
4. Span Selector Switch
5. Auxiliary Input Sockets
6. Front Speaker Terminals
7. Cooling Fan
8. Optical Digital Input 1 Socket
9. Optical Digital Input 2 Socket
10. Video Output Socket
11. S-Video Output Socket
12. Component Video Out Sockets
13. AC Power Lead
Subwoofer (CP-SW40)
1. Subwoofer
2. Bass Reflex Duct
3. Speaker Terminals
1. Chapter Indicator
2. Title Indicator
3. Folder Indicator
4. MP3 Indicator
5. WMA Indicator
6. Total Indicator
7. Sleep Indicator
8. Timer Play Indicator
9. Daily Timer Indicator
10. FM Stereo Mode Indicator
11. FM Stereo Receiving Indicator
12. Dolby Digital Signal Indicator
13. DTS Indicator
14. Dolby Virtual Speaker Indicator
15. Dolby Pro Logic II Indicator
16. Mono to Stereo Indicator
17. Intelligent Volume Indicator
18. Natural Bass Indicator
19. Sound Space Indicator
20. Memory Indicator
21. Disc or USB Pause Indicator
22. Disc or USB Play Indicator
23. Disc or USB Repeat Indicator
Display
Names Of Parts
1
2
3
4567
10
9
11
8
DOOR OPEN
1
2
3
4
5
10
11
12
13
6
98
7
MP3 WMA
TOTAL
DAILY
MTS
MEMORY
MHz
A1 B
IVC NB SS
DIGITAL
VS PL
ST
FOLDTITLECHAP
SLEEP
1 2 3 4 5 6 7
22
21 23
8
DAILY
DIGITAL
VS PL
ST
9
14 15
12 13
10 11
MTS
MEMORY
IVC NB SS
16 17 18 19
20
2
13

HT-DV50U
4
4
1
2
3

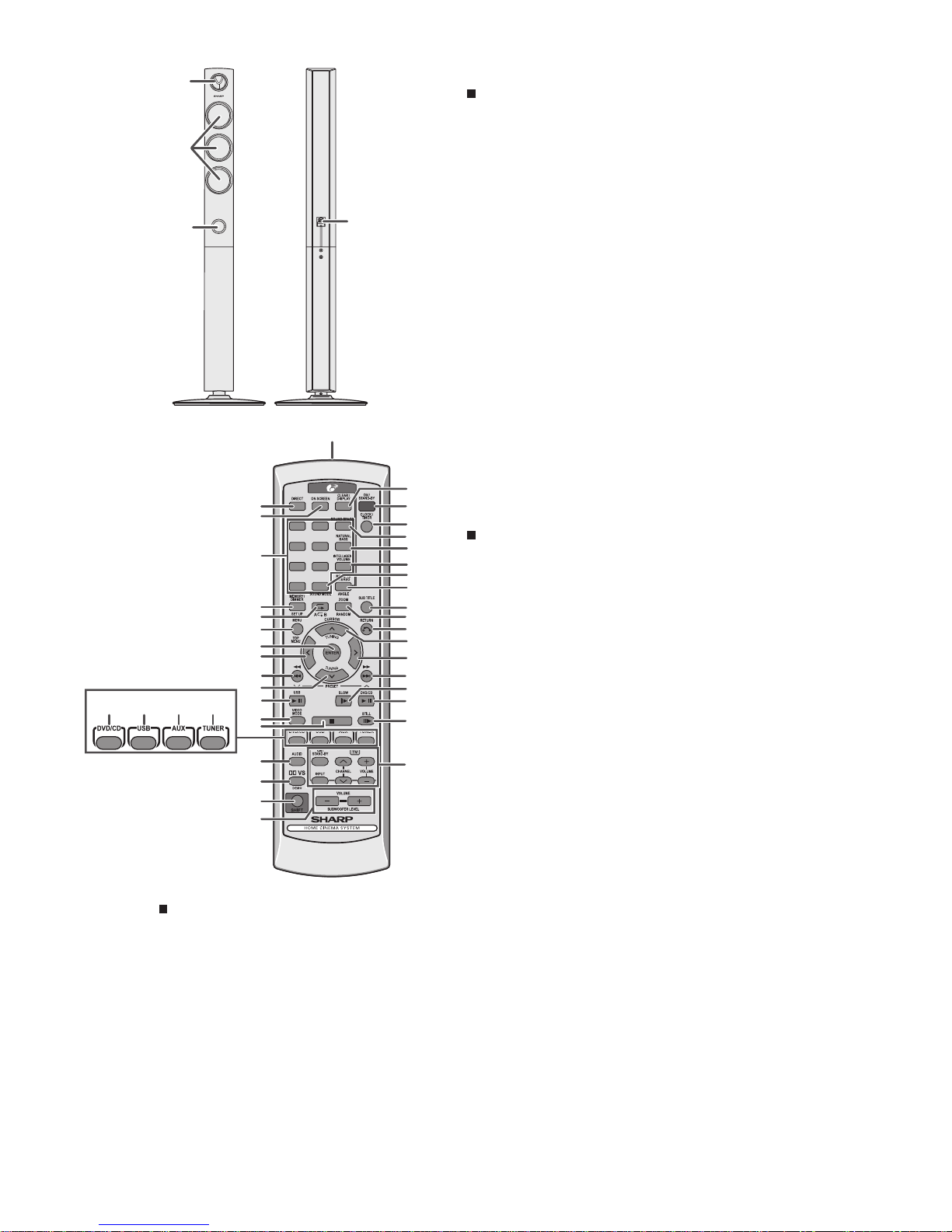

Speaker system (CP-DV50)
1. Tweeter
2.Woofers
3. Bass Reflex Duct
4. Speaker Terminals
Remote control with shift button
5. Set Up Button
6. A-B Repeat Button
7. Top Menu Button
20. Demo Button
22. Subwoofer level - or + Button
26. Sound Space Button
27. Natural Bass Button
28. Intelligent Volume Button
29. Sound Mode Button
30. Mono to Stereo Button
32. Random Button
Remote control
1. Remote Control Transmitter
2. DVD Direct Button
3. DVD On Screen Button
4. Direct Search Buttons
5. Memory or Dimmer Button
6.DVD/CD/MP3/WMA Repeat Button
7. Menu Button
8. Enter Button
9. Cursor Left Button
10. DVD Chapter Skip/DVD/MP3/WMA Fast Reverse/CD/MP3/WMA
Track Down/Tuner Preset Down and Time Down Button
11. Tuning Down or Cursor Down Button
12. USB Play or Pause Button
13. Video Mode Button
14. DVD/CD/MP3/WMA/Stop Button
15. DVD/CD/MP3/WMA Button
16. USB Button
17. Auxiliary Button
18. Tuner Button
19. Audio Button
20. Dolby Virtual Speaker Button
21. Shift Button
22. Volume Up or Down Buttons
23. Clear or Display Button
24. On/Stand-by Button
25. Clock or Timer Button
30. DVD Angle Button
31. DVD Subtitle Button
32. DVD Zoom Button
33. Return Button
34. Tuning Up or Cursor Up Button
35. Cursor Right Button
36. DVD Chapter Skip/DVD/MP3/WMA Fast Forward/CD/MP3/
WMA Track Up/Tuner Preset Up and Time Up Button
37. DVD Slow Button
38. DVD/CD/MP3/WMA Play or Pause Button
39. DVD/CD/MP3/WMA Still Button
40. TV Operation Buttons
1 2 3
4 5 6
7 8 9
+100
1
23
24
25
26
27
28
29
30
31
32
33
34
35
36
2
3
4
5
6
7
8
9
10
11
12
13
14
19
20
21
22
15 38
39
40
16 17 18
37

HT-DV50U
5
REF. NO. PARTS NO. PARTS NO. DESCRIPTION CODE
HT-DV40H HT-DV50U
DIFFERENCE BETWEEN HT-DV40H AND HT-DV50U
[1] INTEGRATED CIRCUITS
iC5 RH-iXA186AW00 RH-iXA216AW00 Flash ROM, 48 Bit AT
[2] TRANSISTORS
! Q906 VSSPA06N803-1 VSiPA50R250-1 MOSFET,550V 13A
[4] TRANSFORMER
! T900 RTRNZA023AWZZ RTRNZA024AWZZ Power, Main AY
! T901 RTRNPA079AWZZ RTRNPA078AWZZ Power, Sub AM
[5] COILS
L201 VPBNN2R7K0000 ------------- Coil, 2.7 µ H Nil
L205 RCORF0015AWZZ ------------- Core Nil
RF8 RCORF0018AWZZ ------------- Cyclinder Core Nil
[6] CAPACITORS
C221 VCEAZA1AW477M ------------- 470 µ F,10V,Electrolytic Nil
C222 VCEAZA1AW477M ------------- 470 µ F,10V,Electrolytic Nil
C223 VCEAZA1AW477M ------------- 470 µ F,10V,Electrolytic Nil
C224 VCEAZA1AW477M ------------- 470 µ F,10V,Electrolytic Nil
C225 VCEAZA1HW105M ------------- 1 µ F,50V,Electrolytic Nil
C226 VCEAZA1HW105M ------------- 1 µ F,50V,Electrolytic Nil
C240 VCKYCY1HB102K ------------- 0.001 µ F,50V Nil
C242 VCKYCY1HB102K ------------- 0.001 µ F,50V Nil
C243 VCKYCY1HB102K ------------- 0.001 µ F,50V Nil
C244 VCKYCY1HB102K ------------- 0.001 µ F,50V Nil
C248 VCKYCY1EB105K ------------- 1 µ F,25V Nil
C249 VCKYCY1EB105K ------------- 1 µ F,25V Nil
! C945 RC-EZ3097AWZZ RC-EZ3101AWZZ 680 µ F,250V,Electrolytic AT
[9] RESISTORS
J802 VRS-CY1JB000J ------------- 0 ohms,Jumper,0.8x1.55mm Nil
J803 VRS-CY1JB000J ------------- 0 ohms,Jumper,0.8x1.55mm Nil
JP828 ------------- VRS-CY1JB000J 0 ohms,Jumper,0.8x1.55mm AA
JW807 VRS-TV2AB000J ------------- 0 ohms,Jumper,1.25x2mm Nil
JW810 VRS-TV2AB000J ------------- 0 ohms,Jumper,1.25x2mm Nil
JW811 VRS-TV2AB000J ------------- 0 ohms,Jumper,1.25x2mm Nil
JW812 VRS-TV2AB000J ------------- 0 ohms,Jumper,1.25x2mm Nil
JW820 VRS-TV2AB000J ------------- 0 ohms,Jumper,1.25x2mm Nil
L207 VRS-TV2AB000J ------------- 0 ohms,Jumper,1.25x2mm Nil
L208 VRS-TV2AB000J ------------- 0 ohms,Jumper,1.25x2mm Nil
L209 VRS-TV2AB000J ------------- 0 ohms,Jumper,1.25x2mm Nil
L210 VRS-TV2AB000J ------------- 0 ohms,Jumper,1.25x2mm Nil
R05 VRS-CY1JB000J ------------- 0 ohms,Jumper,0.8x1.55mm Nil
R06 VRS-CY1JB000J ------------- 0 ohms,Jumper,0.8x1.55mm Nil
R209 VRS-CY1JB000J ------------- 0 ohms,Jumper,0.8x1.55mm Nil
R758 ------------- VRS-CY1JB102J 1 kohms,1/16W AA
R759 VRS-CY1JB102J ------------- 1 kohms,1/16W Nil
R777 VRS-CY1JB102J ------------- 1 kohms,1/16W Nil
R778 VRS-CY1JB102J ------------- 1 kohms,1/16W Nil
R909 VRD-ST2CD470J VRD-ST2CD101J 100 ohms,1/6W AA
R915 VRD-ST2EE152J VRD-ST2EE222J 2.2 kohms,1/4W AA
R917 VRS-VV3DA100J VRS-VV3LA330J 33 ohms,Metal Oxide
R926 VRD-ST2CD100J VRD-ST2CD120J 12 ohms,1/6W AA
R936 VRD-RT2HD684J VRD-RT2HD334J 330 kohms,1/2W AA
R939 VRS-VV3AA753J VRS-VV3AA183J 18 kohms,1W AB
R941 VRS-VV3DA474J VRS-VV3DA224J 220 kohms,2W AB
RD751 VRS-CY1JB000J VRS-CY1JB562J 5.6 kohms,1/16W AA
RU759 ------------- VRS-CY1JB103J 10 kohms,1/16W AA
[10] OTHER CIRCUITRY PARTS
Bi9 QCNWNA877AWPZ ------------- Connector Ass'y,13 / 14 Pin with CNS9 Nil
CNP301 QCNCWZX15AWZZ QCNCWZX11AWZZ Connector,11 Pin AC
FFC301 QCNWNA779AWPZ QCNWN2525AWZZ Flat Cable,11 Pin AC
F900 QFS-C402AAWNL QFS-C802AAWNL Fuse 8A ,250V AD
JK203 QSOCZ2102REZZ ------------- Scart Out Audio / Video Nil
SW601 ------------- QSW-SA005AWZZ Slide Switch AB
TP1 RTUNSA021AWZZ RTUNSA020AWZZ Tuner Pack AY

HT-DV50U
6

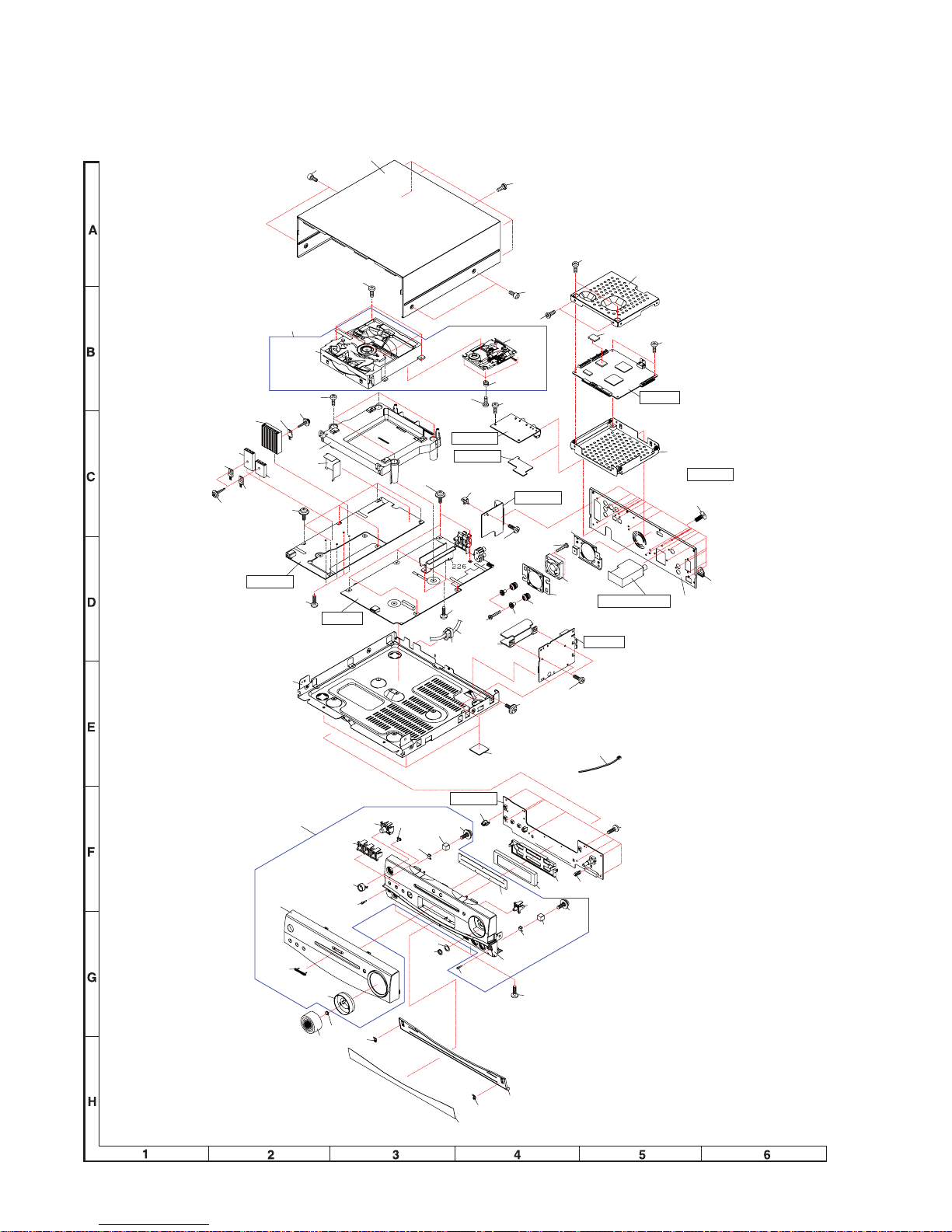

[11] CABINET PARTS
601 x 20
610 x 2
202 - 2
202 - 3 x 4
610
608 x 2
604 x 6
604 x 2
609 x 4
202
202-1
610 x 4
605
225
227
224
228
218
218
D913
D913
605 x 2 606 x 6
612 x 4
217
216 226
233
611 x 2 231 x 2
606 x 2
612 x 2
222 x 4
607 x 8
221
602201-2
201-12
201-10
201-7
201-8
201
201-5
201-4
201-3
210-6
210 213
213
613 X 2
201-11
234
235
201-1
201-10
220 219
201-12
201-13
FL501
201-9 602
209
207
203
201-11
215
212
611 x 2
223 x 2
M901
211
612 x 2
606 x 6 214
612
Q906
604 x 2
205
610 x 2
602 x 4
230
232
229
208
206
TUNER PACK
TP1
PWB-B3
PWB-B3
PWB-C
PWB-B5
PWB-B1
PWB-A
PWB-D
PWB-B2
PWB-B4

HT-DV50U
7
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
[11] CABINET PARTS
201 CCABA7043AW01 Front Panel Ass'y
201-1 ------------- - Front Panel (Not Replacement item)
201-2 GCOVAA118AWSA AC Cover, LED
201-3 HBDGBA006AWSA AE Badge, SHARP
201-4 HDECQA431AWSA AN Decoration Panel
201-5 HDECQA407AWSA AG Decoration, Power Knob
201-6 HDECQA408AWSA AE Decoration, Volume Knob
201-7 JKNBZA241AWSA AH Button, Power
201-8 JKNBZA242AWSA AM Button, Play/Stop
201-9 JKNBZA243AWSA AG Button, Eject
201-10 LANGKA144AWFN AC Bracket, Door Support, A
201-11 PCUSG0061AWZZ AB Cushion, CD Door
201-12 PMAGZA002AWZZ AE Magnet, Open Door Lock
201-13 PSHEPA089AWZZ AG Sheet, CD Door
202 ------------- - DVD Mechanism Ass'y(Not Replacement item)
202-1 KMECZA005AWZZ BB DVD Loader
202-2 KMECZA007AWZZ BC DVD Mechanism Unit
202-3 PCUSGA114AWSA AC Cushion, DVD Mechanism
203 92LCSPR1431C AA Spring, Ring
205 GCAB-A054AWSA AX Top Cabinet
206 GCOVD1006AWSB AD Cover, Terminal
207 GDORFA018AWSA AL Door
208 GITARA523AWSA Rear Panel
209 HDECZA034AWSA AP Decoration Panel, Door
210 JKNBKA024AWSA AM Button, Volume
211 LANGK0402AWFW AE Bracket, Fan Support A
212 LANGK0403AWFW AE Bracket, Fan Support B
213 LANGKA145AWFN AC Bracket, Door Lock
214 LANGT0042AWFW AC Bracket, PWB Support
215 LBND-1011AWZZ AA Nylon Band
216 LBSHC0002AWZZ AD Bushing, AC Power Supply Cord
217 LCHSMA073AWFW AU Chassis, Main
218 LCHSZA015AWZZ AL Chassis, DVD Mechanism
219 LHLDZA122AWZZ AC Holder, LED
220 LHLDZA185AWZZ AD Holder
221 LHLDZA186AWZZ AC Holder, LED
222 PCUSG0022AWZZ AB Cushion, Leg
223 PCUSG0095AWZZ AD Cushion, Fan
224 PRDAR0315AWFW AD Heat Sink,Sub
225 PRDARA122AWFW AL Heat Sink,Sub
226 PRDARA157AWFW AH Heat Sink, Amplifier
227 PRDARA158AWFW AE Heat Sink,Sub
228 PSHEZA138AWZZ AF Sheet, Safety Cover
229 PSLDMA081AWFW AK Shield, Top
230 PSLDMA082AWFW AK Shield, Bottom
231 PSPAZ0039AWZZ AC Spacer, Washer
232 PSPAZA010AWZZ AD Sheet, Rubber, B
!233 QACCZA016AW00 AC Power Supply Cord
234 ------------- - Nut (Not Replacement Item )
235 ------------- - Washer (Not Replacement Item )
M901 RMOTV0058AWZZ AV Motor, Air cooling Fan
601 LX-BZA031AWF8 AA Screw, M3 X 8mm
602 LX-EZ0005AWF7 AB Special Screw, M2.6 X 10mm
604 LX-EZA028AWF8 AB Special Screw
605 LX-JZ0036AWF7 AC Special Screw, M3 X 12mm
606 LX-JZ0047AWF7 AB Special Screw, M3 X 8mm
607 XEBY726P10000 AA Screw, M2.6 X 10mm
608 XEBY730P10000 AA Screw, M3 X 10mm
609 XEBY730P12000 AA Screw, M3 X 12mm
610 XJBY730P08000 AA Screw, M3 X 8mm
611 XJBY730P16000 AB Screw, M3 X 16mm
612 XJBY830P08000 AB Screw, M3 X 8mm
613 XJSY730P10000 AA Screw, M3 X 10mm
NEW PART FOR MODEL HT-DV50U

HT-DV50U
8
[12] SPEAKER BOX PARTS ( FRONT L-CH / R-CH )
925
925
924x4
906
918
907
923
919
905
926
921
922
901
920
916
915
904
914
913
911
902
928x12
928x4
928x4
928x4
928x4
SP7, 8
917
914
915
903
BLUE
SP7, 8
TWEETER
BLACK
SP5, 6
WOOFER
SP3, 4
WOOFER
SP1, 2
WOOFER
SP5, 6
WOOFER
SP3, 4
WOOFER
SP1, 2
WOOFER
SP7, 8
TWEETER
RED BLACK
TERMINAL
FILM-CAP CAPACITOR
3.3 F 100V
TERMINAL
SP 1-6
912
929x2
923x3
927x6
925
910x4
927x4
927x4
908
909

HT-DV50U
9
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
[12] SPEAKER BOX PARTS ( FRONT L-CH / R-CH )
901 CCAB-A055AW01 BL Back Cabinet Ass'y (Top)
902 CPNLSA075AW01 BL Front Panel Ass'y (Top)
903 CPNLSA076AW01 BE Front Panel Ass'y (Bottom)
904 GBFL-A015AWSA AX Baffle Board
905 GCAB-A056AWSA BD Back Cabinet (Bottom)
906 GCOVAA185AWSA BA Stand Cover
907 LPLTMA013AWSA AK Support Plate
908 LPLTMA014AWSA BD Stand Plate
909 MROD-A001AWSA AS T-Rod
910 PCUSG0170AWZZ AE Leg Cushion
911 PCUSSA029AWZZ AC Cushion, Tweeter, B
912 PCUSSA082AWZZ AE Cushion, Duct Port
913 PCUSSA083AWZZ AE Cushion, Tweeter, A
914 PFLT-A132AWZZ Felt, A
915 PFLT-A133AWZZ Felt, B
916 PKYU-A032AWZZ White Wool, A
917 PKYU-A033AWZZ White Wool, B
918 PPIPFA001AWSA AK Stand Pipe
919 QCNWHA024AWPZ Speaker Wire
920 QCNWNA929AWPZ AU Speaker Wire Ass'y
921 QTANAA003AWZZ AH Speaker Terminal
922 TSPC-B014AWZZ Label, Specification
923 LX-HZA014AWF8 AE Special Screw, M4 x10mm
924 LX-HZA015AWF8 AE Special Screw, M5 x8mm
925 LX-HZA017AWF8 Special Screw, M5 x12mm
926 XEBY730P10000 AA Screw, M3 x10mm
927 XEBY840P12000 Screw, M4 x12mm
928 XEMY835P12000 AE Screw, M3.5 x12mm
929 XEPY850P16000 Screw, M5 x16mm
SP1-6 RSP-ZA268AWZZ AZ Woofer
SP7,8 RSP-ZA263AWZZ BA Tweeter
NEW PART FOR MODEL HT-DV50U

HT-DV50U
10
[13] SPEAKER BOX PARTS ( SUBWOOFER )
906
912 x 4
901
907
903
908
909
908 909
905 x 4
913 x 8
SP1
910
911
902
904

HT-DV50U
11
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
[13] SPEAKER BOX PARTS ( SUBWOOFER )
901 CDUC-A072AW01 AZ Duct Port Ass'y
902 CWAKPA044AW01 BA Net Frame Ass'y
903 GBOXSA174AW01 BN Wooden Box Ass'y
904 HPNLSA074AWSA AZ Subwoofer Panel
905 PCUSG0170AWZZ AE Cushion, Leg
906 PCUSSA069AWZZ AF Cushion, Port
907 PCUSSA070AWZZ AF Cushion, Port
908 PFLT-A119AWZZ AE Felt
909 PFLT-A120AWZZ AE Felt
910 QCNWNA885AWPZ AK Subwoofer Wire Ass'y
911 TSPC-A868AWZZ Label, Specification
912 XEBY730P12000 AA Screw, M3x12mm
913 XMBSN40P16000 AD Screw, M4X16mm
SP1 RSP-ZA266AWZZ BH Subwoofer Unit
[14] ACCESSORIES / PACKING PARTS (UNIT)
1 92LFANT1535A AF FM Antenna
2 PNNOKA003WJZZ AN Cleaning Cloth
3 QCNW-E991WJPZ BA HDMI Cable
4 QCNWGA035AWPZ AQ USB Cable
5RRMCGA150AWSA Remote Control
6 SPAKAA177AWZZ AL Packing, Add., Unit, Left/Right
7SPAKCA528AWZZ Packing Case
8 SPAKZA489AWZZ AF Protection Pad, Unit
9SPAKZA514AWZZ Protection Pad
10 SPAKZA508AWZZ AC Protection Pad, Accessories
11 SSAKAA010AWZZ AB Polyethylene Bag, Accessories
12 SSAKHA120AWZZ AE PolyethyleneBag, Unit
13 TCADZA005AWZZ Card, Pop
15 TGANZA030AW01 Warranty Sheet
16 TINSZA364AWZZ Operation Manual
17 TLABZ0605AWZZ AB Label,Saving Energy
18 ------------- - Battery ( Not Replacement Item )
[15] ACCESSORIES / PACKING PARTS (FRONT SPEAKER)
1LX-HZA017AWF8 Special Screw, M5 x12mm
2QCNWHA022AWPZ AT Speaker Cord , Subwoofer
3SPAKAA181AWZZ Packing, Add., Front Speaker, Bottom
4SPAKAA182AWZZ Packing, Add., Front Speaker, Top
5SPAKZA515AWZZ Packing, Add., Front Speaker, Protection
6SSAKHA124AWZZ AE PolyethyleneBag, Screw
7SSAKHA135AWZZ Miramat Bag, Front Speaker, Top / Bottom
8SSAKHA127AWZZ Miramat Bag, Front Speaker, Stand
9SPAKP0026AWZZ AB Miramat Bag, Speaker Wire
10 SSAKHA130AWZZ Miramat Bag, Front Speaker,, Stand
11 XEPY850P16000 Screw, M5 x16mm
[16] ACCESSORIES / PACKING PARTS (SUBWOOFER)
1 SPAKAA176AWZZ AQ Packing, Add., Subwoofer, Left/Right
2 SSAKHA119AWZZ AF Miramat Bag, Subwoofer
[17] P.W.B. ASSEMBLY ( Not Replacement Item )
PWB-A 92LPWB7102MANS -Main
!PWB-B
92LPWB7100PWRS -Power B1 / Display B2 / Scart B3 / Video Out B4 / Digital In B5
PWB-C 92LPWB7101DVAS -DVD
PWB-D
92LPWB6891SWFS -Subwoofer
[18] OTHER SERVICE PARTS
UDSKA0004AFZZ AZ CD Optical Pickup Lens Cleaner Disc
NEW PART FOR MODEL HT-DV50U
