Sharp CD-C662 User manual

– 1 –
CD-C662
No. S4917CDC662//
CONTENTS Page
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)....................................................................................................... 2
SPECIFICATIONS ............................................................................................................................................................. 2
NAMES OF PARTS ........................................................................................................................................................... 3
OPERATION MANUAL ...................................................................................................................................................... 5
QUICK GUIDE (FOR U.S.A. ONLY) .................................................................................................................................. 6
DISASSEMBLY.................................................................................................................................................................. 7
REMOVING AND REINSTALLING THE MAIN PARTS................................................................................................... 10
ADJUSTMENT ................................................................................................................................................................. 10
NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 13
WAVEFORMS OF CD CIRCUIT...................................................................................................................................... 14
BLOCK DIAGRAM ........................................................................................................................................................... 15
SCHEMATIC DIAGRAM/WIRING SIDE OF P.W.BOARD................................................................................................18
TROUBLESHOOTING (CD SECTION) ........................................................................................................................... 36
FUNCTION TABLE OF IC................................................................................................................................................ 41
FL DISPLAY......................................................................................................................................................................48
REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING OF THE SET (FOR U.S.A. ONLY)
CD-C662
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
SERVICE MANUAL
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
SHARP CORPORATION
CD-C662minicomponentsystem consistingofCD-C662(Mainunit)
and CP-C662 and (Speaker system).

CD-C662
– 2 –
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)
BEFORE RETURNING THE AUDIO PRODUCT
(Fire & Shock Hazard)
Before returning the audio product to the user, perform the
following safety checks.
1. Inspect all lead dress to make certain that leads are not
pinchedorthathardwareisnotlodgedbetweenthechassis
and other metal parts in the audio product.
2. Inspect all protective devices such as insulating materials,
cabinet,terminalboard,adjustmentandcompartmentcovers
or shields, mechanical insulators etc.
3. To be sure that no shock hazard exists, check for leakage
current in the following manner.
* Plug the AC line cord directly into a 120 volt AC outlet.
* Using two clip leads, connect a 1.5k ohm, 10 watt resistor
paralleled by a 0.15µF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
* Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).
* Connect the resistor connection to all exposed metal parts
havingareturnpathtothechassis(antenna,metalcabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.
AllcheckmustberepeatedwiththeAClinecordplugconnection
reversed.
Anyreading of0.3 voltRMS (thiscorresponds to0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
TEST PROBE
0.15 µ F
1.5k ohms
10W
VTVM
AC SCALE
Compact disc player section
Type: 3-disc multi-play compact disc
player
Signal readout: Non-contact, 3-beam semi-
conductor laser pickup
D/A Converter: 1-bit D/A converter
Frequency response: 20 - 20,000 Hz
Dynamic range: 90 dB (1 kHz)
Speaker section
Type: 2-way type [7-7/8" (200 mm)
woofer and 3-1/8" (80 mm)
tweeter]
Maximum input power: 300 W
Rated input power: 150 W
Impedance: 6 ohms
Dimensions: Width; 9-13/16" (250 mm)
Height; 13" (330 mm)
Depth; 13-1/14" (335 mm)
Weight: 13.4 lbs. (6.1 kg)/each
CP-C662
General
Power source: AC 120 V, 60 Hz
Power consumption: Stand-by; 0.3 W
Power on; 210 W
Dimensions: Width; 10-5/8" (270 mm)
Height; 13" (330 mm)
Depth; 14-1/8" (358 mm)
Weight: 22.0 lbs. (10.0 kg)
Amplifier section
Output power: 150 watts minimum RMS per
channel into 6 ohms from 60 Hz
to 20 kHz, 10 % total harmonic
distortion
Output terminals: Speakers; 6 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
CD digital output (optical)
Input terminal: Video/Auxiliary (audio signal);
500 mV/47 kohms
Tuner section
Frequency range: FM; 87.5 - 108 MHz
AM; 530 - 1,720 kHz
Cassette deck section
Frequency response: 50 - 14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/
playback)
Wow and flutter: 0.15 % (WRMS)
Specifications for this model are subject to change without
prior notice.
SPECIFICATIONS
CD-C662

– 3 –
CD-C662
NAMES OF PARTS
Rear Panel
38. CD Digital Output Socket
39. AC power lead
40. FM/AM Loop Aerial Socket
41. Video/Auxiliary (Audio Signal) Input Sockets
42. Speaker Terminals
Front Panel
1. Disc Number Selector Buttons
2. Disc Tray
3. Multi Indicator
4. Disc Skip Button
5. Open/Close Button
6. Extra Bass Indicator
7. FM Stereo Mode Indicator
8. FM Stereo Indicator
9. (CD) Repeat Indicator
10. (CD) Play Indicator
11. (CD) Pause Indicator
12. Spectrum Analyzer/Volume Level Indicator
13. (TAPE 2) Record Indicator
14. (CD) Disc Number Indicators
15. (CD/TUNER) Memory Indicator
16. Timer Play Indicator
17. Timer Record Indicator
18. Sleep Indicator
19. (CD) Track Down/Review Button
(TUNER) Preset Down Button
(TAPE 2) Rewind Button
20. (CD/TAPE) Stop Button
21. (TAPE) Play Button
(CD) Play/Repeat Button
22. (CD) Track Up/Cue Button
(TUNER) Preset Up Button
(TAPE 2) Fast Forward Button
23. Timer/Sleep Button
24. Clock Button
25. Timer Set Indicator
26. Power Button
27. Function Selector Buttons
28. Equalizer Mode Selector Button
29. Dimmer Button
30. Extra Bass/Demo Mode Button
31. Headphones Socket
32. (TAPE 2) Record Pause Button
33. Memory/Set Button
34. Tuning and Time Up/Cue Buttons
35. Volume Control
36. (TAPE 1) Cassette Compartment
37. (TAPE 2) Cassette Compartment
CD-C662
145
23
6
7
8
9
10
11
12 13
17
18
14 15
16
19 20 21
33
23
24 29
28
25 30
35
31
22
32 34
26
27
3736
39 41
38 40
42

CD-C662
– 4 –
CP-C662
Front Speaker
1. Tweeter
2. Woofer
3. Bass Reflex Ducts
4. Speaker Terminals
Remote Control
1. Remote Control Transmitter LED
CD Control section
2. Disc Number Select Buttons
3. Memory Button
4. Pause Button
5. Clear Button
6. Track Down/Review Button
7. Track Up/Cue Button
8. Disc Skip Button
9. Play/Repeat Button
10. Stop Button
11. Random Button
Tuner control section
12. Preset Up/Down Buttons
Tape control section
13. (TAPE 1) Play Button
14. (TAPE 2) Record Pause Button
15. (TAPE 1/2) Stop Button
16. (TAPE 2) Play Button
17. (TAPE 2) Rewind Button
18. (TAPE 2) Fast Forward Button
Common section
19. Equalizer Mode Selector Button
20. Function Selector Buttons
21. Power Button
22. Extra Bass Button
23. Volume Up/Down Buttons
1
24
3
1
8
3
410
9
5
6
7
11
12
13 14 16 17 18
20
21 23
2
15
22
19

– 5 –
CD-C662
OPERATION MANUAL
SETTING THE CLOCK
1
Press the POWER button to enter the stand-by mode.
2
Press the CLOCK button.
3
Within 5 seconds, press the MEMORY/SET button.
4
Press the TUNING/TIME ( or ) button to select the time
display mode.
"AM 12:00" →The 12-hour display will appear..
(AM 12:00 - PM 11:59)
"AM 0:00" →The 12-hour display will appear.
(AM 0:00 - PM 11:59)
"0:00" →The 24-hour display will appear.
(0:00 - 23:59)
Note that this can only be set when the unit is first installed
or it has been reset.
5
Press the MEMORY/SET button.
6
Press the TUNING/TIME ( or ) button to adjust the hour.
Press the TUNING/TIME ( or ) button once to advance
the time by 1 hour. Hold it down to advance continuously.
When the 12-hour display is selected, "AM" will change auto-
matically to "PM".
7
Press the MEMORY/SET button.
8
Press the TUNING/TIME ( or ) button to adjust the
minutes.
Press the TUNING/TIME ( or ) button once to advance
the time by 1 minute. Hold it down to change the time in 5
minute intervals.
The hour setting will not advance even if minutes advance from
"59" to "00".
9
Press the MEMORY/SET button.
The clock starts operating from "0" seconds.
(Seconds are not displayed.)
Note:
In the event of a power failure or when the AC power cord is
disconnected, the clock display will go out.
When the AC power supply is restored, the clock display will
flash on and off to indicate the time when the power failure
occurred or when the AC power cord was disconnected.
CLOCK
POWER
MEMORY/
SET
TUNING/
TIME
( )
AM 12:00 AM 0:00 0:00
2
3
4
7
6
5
8
9
If this happens, follow the procedure below to change the clock
time.
To change the clock time:
Press the CLOCK button.
Within 5 seconds, press the MEMORY/SET button.
Perform steps 6 - 9 above.
To see the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.
To change the time display mode:
Perform steps 1 - 2 in the section "RESETTING THE
MICROCOMPUTER", on page 15.
Perform steps 1 - 9 above.
(Main unit operation)
In this example, the clock is set for the
12-hour (AM 12:00) system.
1
2
1
2
3
2
1,2
RESETTING THE MICROCOMPUTER
Reset the microcomputer under the following conditions:
To erase all of the stored memory contents (clock and timer
settings, and tuner and CD presets).
If the display is not correct.
If the operation is not correct.
1
Press the POWER button to enter the stand-by mode.
2
While pressing down the button and the
button, hold down the POWER button for at least 1 second.
Caution:
The operation explained above will erase all data stored in
memory including clock and timer settings, and tuner and CD
presets.

CD-C662
– 6 –
SPEAKERS
LEFTRIGHT
RATED SPEAKER INPEDANCE :
6 OHMS MIN.
MINI COMPONENT SYSTEM
Quick Guide/Guía rápida
CD-C662
Remote control x 1
Controlador remoto x 1
2 “AA” batteries
Dos pilas “AA”
Remote Sensor
Sensor remoto
2
Preparation for use /
Preparación para su uso
1
Check the supplied accessories /
Compruebe los accesorios suministrados
FM/AM loop antenna x 1
Antena de cuadro de
FM/AM x 1
Batteries are not included.
Las pilas no están incluidas.
8” - 20’ (0.2m - 6m)
0,2m - 6m
Speaker connection
Conexión de los altavoces
Antenna connection
Conexión de las antenas
Right speaker
Altavoz derecho
Left speaker
Altavoz izquierdo
AM Loop Antenna
Antena de cuadro
de AM
FM Antenna
Antena de FM
AC 120 V, 60 Hz
120 V de CA, 60 Hz
Turning the power on and off
Conexión y desconexión de la alimentación
Remote control
Controlador remoto
POWER
Speaker wire x 2
Cable de altavoz x 2
Red
Rojo
Black
Negro
Red
Rojo
Black
Negro
Red
Rojo
15
15
3
Listening to a CD /
Audición de discos CD
4
Listening to a tape /
Audición de una cinta
5
Listening to the radio /
Audición de la radio
6
Recording from CDs /
Grabaciones de discos CD
7
Sound control /
Control del sonido
Label facing up
Etiqueta hacia arriba
To stop the playback
Para detener la reproducción
To stop the recording
Para detener la grabación
Load the disc to be
recorded.
Introduzca el disco
que va a grabar.
CD recording
starts.
La grabación de
CD empieza.
Volume
Volumen
Extra bass (X-BASS)
Graves extra (X-BASS)
Pre-programmed equalizer
Ecualizador preprogramado
FLAT HEAVY-1 HEAVY-2
SOFT-2 SOFT-1 VOCAL
To stop the playback
Para detener la reproducción
TAPE 1 TAPE 2
TAPE 2
VOLUME

– 7 –
CD-C662
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3.Takeoffnylon bands orwireholderswhere they needto
beremovedwhendisassemblingtheunit.Afterservicing
theunit,besure to rearrangetheleadswherethey were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 7-2
Figure 7-3
CD-C662
1 Top Cabinet 1. Screw ..................... (A1) x4 7-1
2 Side Panel 1. Screw ..................... (B1) x8 7-1
(Left/right)
3 CD Player Unit/ 1. Turn on the power supply, 7-2
CD Tray Cover open the disc tray, take out
the CD cover, and close.
(Note 1)
2. Screw ..................... (C1) x1
3. Hook....................... (C2) x3
4. Hook....................... (C3) x2
5. Socket .................... (C4) x3
4 Rear Panel 1. Screw ..................... (D1) x5 7-2
(with Digital
Output PWB)
5 Main PWB 1. Screw ..................... (E1) x1 8-1
2. Socket .................... (E2) x4
3. Flat Cable .............. (E3) x1
6 Front Panel 1. Screw ..................... (F1) x3 8-1
2. Socket .................... (F2) x1
7 Power Amp. PWB 1. Screw ..................... (G1) x7 8-2
2. Socket .................... (G2) x2
3. PWB Holder ........... (G3) x1
8
Power Supply PWB
1. Screw ..................... (H1) x4 8-2
9 Display PWB/ 1. Screw ..................... (J1) x13 8-3
Switch PWB 2. Socket .................... (J2) x1
10 Tape Mechanism 1. Open the cassette holder. 8-3
2. Screw...................... (K1) x6
11 Turntable 1. Screw ..................... (L1) x1 8-4
2. Cover ..................... (L2) x1
12 Disc Tray 1. Screw ..................... (M1) x2 8-4
2. Guide ..................... (M2) x2
13 CD Servo PWB 1. Screw ..................... (N1) x1 8-5
(Note 2) 2. Socket .................... (N2) x4
14 CD Changer 1. Screw ..................... (P1) x4 8-6
Mechanism
15 CD Mechanism 1. Screw ..................... (Q1) x1 8-6
STEP REMOVAL PROCEDURE FIGURE
Note 1:
How to open the changer manually. (Fig. 7-3)
1. Change, turn fully the lock lever in the arrow direction
throughtheholeontheloadingchassisbottominthisstate.
After that, push forward the CD player base.
Note 2:
1.Afterremoving the connectorforthe opticalpickupfromthe
connector, wrap the conductive aluminium foil around the
front end of connector to protect the optical pickup from
electrostatic damage.
Figure 7-1
CD-C662
LOCK
LEVER
Top Cabinet Front Panel
(A1)x2
ø3x12mm
(A1)x2
ø3x12mm
Side Panel
(Left)
Side Panel
(Right)
(B1)x2
ø3x10mm
(B1)x2
ø3x10mm
(B1)x4
ø3x10mm
Back Board
(D1)x1
ø3x10mm
CD Tray Cover
Rear Panel
CD Player
Unit
Hook
(C2) x3
(C3) x1
(C1) x1
ø3x10mm
(D1) x1
ø3x10mm
(D1) x3
ø3x6mm
(C4) x3
1
1
2
Pull
(C3) x1

CD-C662
– 8 –
Figure 8-1
Figure 8-2
Figure 8-3
Be careful when installing the CD changer mechanism.
InstalltheCDchangermechanismontheCDplayerbaseafter
the shift lever has been set in the highest position.
Figure 8-5
Figure 8-6
Figure 8-4
(E2)x2
(E3)x1
Front Panel
(E1)x1
ø3x10mm
(F1)x3
ø3x10mm
(F2)x1
Main
PWB
Power Amp.
PWB
(E2)x1
Main PWB
(E2)x1
Power Amp.
PWB
Power Supply
PWB
(G1)x5
ø3x10mm
(G2)x2
(G1)x2
ø3x6mm
(H1)x4
ø4x8mm
Push Push
1 1
2Pull
Power Amp.
PWB
(G3)x1
Power
Supply
PWB
PowerAmp. PWB
Main
Chassis
Front Panel
Display
PWB
Switch PWB
Open
Cassette
Holder
Tape Mechanism
(J1)x2
ø3x10mm
(J1)x11
ø3x10mm
(K1)x6
ø3x10mm
(J2)x1
(M1) x1
ø3 x10mm
(M1) x1
ø3 x10mm
(L1) x1
ø3 x10mm
Turntable
Disc Tray
(L2) x1
(M2) x1
(M2) x1
CD Player Unit
Washer
(N1) x1
ø3 x10mm
(N2) x2
(N2) x2 CD Player Unit
CD Servo PWB
(P1) x4
ø3 x12mm
(Q1) x1
ø2.6 x10mm
CD Changer
Mechanism
CD Mechanism
Shift Lever
CD Player Base

– 9 –
CD-C662
CP-C662
1 Front Panel 1. Net.......................... (A1) x1 9-1
2. Rubber ................... (A2) x4
3. Screw ..................... (A3) x4
4. Tip .......................... (A4) x2 9-2
2 Woofer 1. Screw ..................... (B1) x4 9-2
3 Tweeter 1. Screw ..................... (C1) x4 9-2
STEP REMOVAL PROCEDURE FIGURE
Figure 9-1
(A1)x1
Front Panel
(A3)x4
ø4x16mm
(A2)x4
Front Panel Tweeter (C1)x4
ø3x10mm
Woofer
(B1)x4
ø4x16mm
(A4)x2
Figure 9-2

CD-C662
– 10 –
MECHANISM SECTION
•Driving Force Check
Torque Meter Specified Value
Play: TW-2412 Tape 1: Over 80 g
Tape 2: Over 80 g
•Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 60 g. cm 30 to 60 g.cm
Fast forward: TW-2231 — 60 to 120 g.cm
Rewind: TW-2231 — 60 to 120 g.cm
Specified
Value
Adjusting
Point Instrument
Connection
Test Tape
Normal MTT-111 Variable 3,000 ±Speaker
speed resistor in 30 Hz terminal
motor. (Load
(MM1) resistance:
8 ohms)
ADJUSTMENT
Specified Value
Tape 1
•Tape Speed
TAPE MECHANISM
MM 1
Motor
Variable resistor in motor
(A1) x2
ø2.6 x5mm
Loading/Up/Down
Motor
Motor
PWB
(B1) x2
ø2.6 x6mm
Shaft
(B2) x1
Stop Washer
(B3) x1
Gear
(B4) x1
CD Mechanism
Pickup
How to remove the pickup (See Fig. 10-2)
1.Removethescrews(B1) x 2 pcs., toremovetheshaft(B2).
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4).
3. Remove the pickup.
Figure 10-2
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Performsteps1,2,3,11,12,13,14and15ofthedisassembly
method to remove the CD mechanism.
How to remove the loading motor
(See Fig. 10-1)
1. Remove the screws (A1) x 2 pcs., to remove the loading
motor.
Figure 10-1
Note
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector to protect the optical pickup from
electrostatic damage.
Figure 10-3

– 11 –
CD-C662
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
*1. Input: Antenna, Output: TP302
*2. Input: Antenna, Output: TP301
TUNER SECTION
fL: Low-range frequency
fH: High-renge frequency
IF 450 kHz 1,720 kHz T351 *1
Band — 530 kHz (fL): T333 *2
Coverage 1.1 ±0.1 V
Tracking 990 kHz 990 kHz (fL): T331 *1
Test Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
*1. Input: Antenna, Output: TP301
*2. Input: Antenna, Output: Speaker terminal
•FM RF
Signal generator: 1 kHz, 75 kHz dev., FM modulated
Band — 87.50 MHz L303(fL): *1
Coverage 3.4 V ±50 mV
RF 98.00 MHz 98.00 MHz L302 *2
(10-30 dB)
Test Stage Instrument
Connection
Frequency Frequency
Display Serring/
Adjusting
Point
•Detection
Signal generator: 10.7 MHz, FM sweep generator
Detection 10.7 MHz 98.00 MHz T352 Input: Pin 1 of
IC303
Output: TP302
IF 10.7 MHz 98.00 MHz T301(Turn Input: Pin 1 of
the core of IC301
transformer Output: TP302
T352 fully
counter-
clookwise.)
Instrument
Connection
Test
Stage Adjusting
Parts
Frequency
Display
Frequency
Adjusting
Parts Instrument
Connection
Frequency
Display
Frequency
•VCO Frequency
* Adjust for 76 kHz ±200 Hz.
Notes:
After preparing the test circuit shown in Fig 11-2, connect the
Pin 13 , Pin 21 and ground of the IC303 with test circuit, and
measure the Value.
At this time, apply a standard unmodulated signal input and
adjust the VCO.
Figure 11-2
98.00 MHz 98.00 MHz VR351* Pin 13, Pin 21
(60 dB) and ground
of IC303
Figure 11-1 ADJUSTMENT POINTS
Pin 13 of IC303 Pin 21 of IC303
D
G
S
10 kΩ
TO FREQUENCY
COUNTER
FET : 2SK19 or 2SK54
MAIN PWB
AM LOOP
ANTENNA
AM TRACKING
fL
AM BAND
COVERAGE fL
IC301
FM BAND
COVERAGE fL
VCO
VR351
IC303 T352
FM DET
T333
T351
1
1
2113
T331
AM IF
FM IF FM RF
L303 T301
TP301
L302
BF301
TP302
R360
R381
CNP301
CD ERROR CODE DESCRIPTION
When a malfunction occurs during CD operation, an error
code will be displayed to identify the function in CD operation
which failed.
Error State Code
0001 Cannot detect pickup in SW
0101 Tray close operation error
0105 Tray close operation error
0201 Tray open operation error
0203 Tray open operation error
0304 Disc skip operation error
0305 Disc skip operation error
0307 Disc skip operation error

CD-C662
– 12 –
TEST MODE
Figure 12-2 Figure 12-3
Since this CD system incorporates the following automatic adjustment function, when the pickup is replaced, it is not necessary
to readjust it.
Since this CD unit does not need adjustment, the combination of PWB and laser pickup unit is not restricted.
• Automatic adjustment item
1. Focus offset (Fig. 12-2)
2. Tracking offset (Fig. 12-3)
3. E/F balance (tracking error balance) (Fig. 12-4)
4. RF level AGC function (HF level: constant)
5. RF level automatic follow-up of the tracking gain
This automatic adjustment is performed each time a disc is changed. Therefore,
each disc is played back using the optimal settings.
CD SECTION Figure 12-1
Note:
Only in STOP state it is possible to slide the pickup with the ( ) or ( ) key.
VOL. --- Last memory
BAL. --- CENTER
R.GEQ. --- FLAT
X-BAS --- OFF
Canceling method - POWER OFF
• Setting the test mode
Any one of test mode can be set by pressing several keys as follows.
<REC. PAUSE> + <DISC. SKIP> + <POWER> TEST: CD operation test
• TEST mode
Function — CD test mode
Setting of TEST mode
Indication of CD TST mode (Fig. 12-1)
OPEN/CLOSE operation is manual operation.
The pickup can be moved by using the ( ) or ( ) key.
<MEMORY>
LASER ON
<PLAY> key input Press <STOP> key. Stop
TOC. IL is performed, and the ordinary PLAY is performed.
If the following key is pressed during PLAY, it is possible
to specify directly any Track No.
<Disc Number 1> key: Track 4
<Disc Number 2> key: Track 9
<Disc Number 3> key: Track 15
<MEMORY>
Tracking on the spot.
SERVO OFF PLAY
<MEMORY>
Tracking on the spot.
SERVO ON PLAY STOP
Figure 12-4
IL is not performed.
<STOP>
1 2 3
2
0.1s
0.50 V
IC1 20 FE
0.1s
0.50 V
IC1 7 TE
1
FOCUS
OFF-SET
ADJUST
TRACKING
OFF-SET
ADJUST
2
1
10ms
0.50 V
IC1 20 FE
10ms
0.50 V
IC1 7 TE
Enlarged
View
TRACKING
OFF-SET
ADJUST
2
1
TO
TE
200 ms
1V/diV
IC 1 15
200 ms
1V/diV
IC 1 7
TRACKING/
ERROR
BARANCE
ADJUST

– 13 –
CD-C662
•The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
•Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
•Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
•Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolyticcapacitor,theexpression“capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
•Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION POSITION
SW713 STOP ON—OFF
SW714 TUNER (BAND) ON—OFF
SW715 VIDEO/AUX ON—OFF
SW716 TAPE ON—OFF
SW717 CD ON—OFF
SW722 FF ON—OFF
SW723 TUNING UP ON—OFF
SW724 TUNING DOWN ON—OFF
SW725 PLAY ON—OFF
SW728 X-BASS/DEMO ON—OFF
SW729 EQUALIZER ON—OFF
SW730 DIMMER ON—OFF
SWM 3 FOOL PROOF ON—OFF
SWM 4 F.A.S. ON—OFF
SWM 5 CAM ON—OFF
REF. NO DESCRIPTION
JOG701 VOLUME JOG ON—OFF
SW1 OPEN/CLOSE ON—OFF
SW2 MECHA UP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW701 POWER ON—OFF
SW703 CLOCK ON—OFF
SW704 TIMER/SLEEP ON—OFF
SW705 DISC 1 ON—OFF
SW706 DISC 2 ON—OFF
SW707 DISC 3 ON—OFF
SW708 DISC SKIP ON—OFF
SW709 OPEN/CLOSE ON—OFF
SW710 REV ON—OFF
SW711 REC PAUSE ON—OFF
SW712 MEMORY/SET ON—OFF
Figure 13 TYPES OF TRANSISTOR AND LED
(1) (2) (3)
(S) (G) (D)
E C B
FRONT
VIEW
2SA1015 GR
2SA1318
2SC3331
2SC535 C
KRA102 M
KRA109 M
KRC102 M
KRC104 M
KRC107 M
KTA1266 GR
KTA1271 Y
KTA1273 Y
KTA1274 Y
KTD2058
KTC3199 GR
KTC3200 GR
KTC3203 Y
L1154GT4
SLI342YCB
SLI342DCB
SLI342UCB
SLI342YCJ
FRONT VIEW

CD-C662
– 14 –

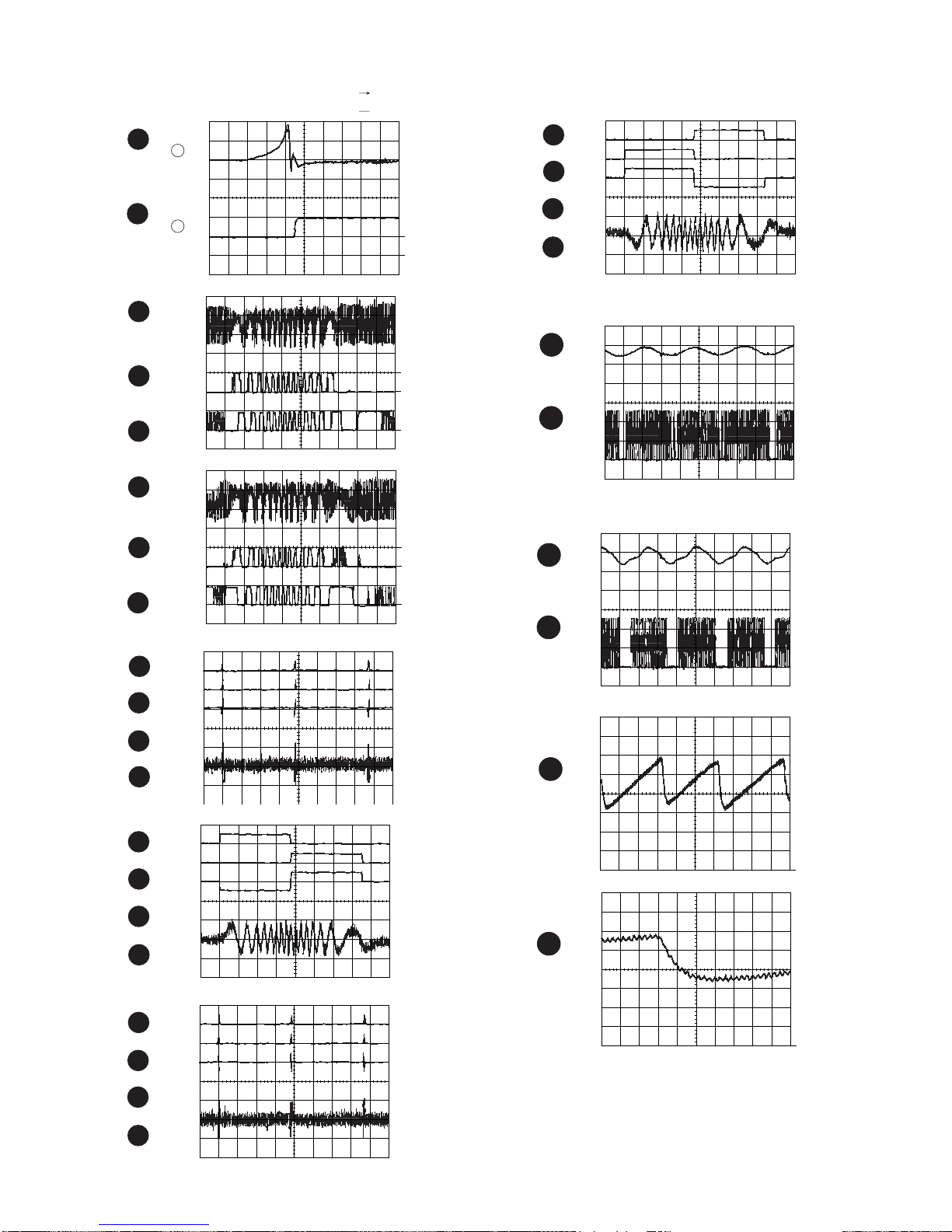

WAVEFORMS OF CD CIRCUIT
3
5ms
0.50 V
IC1 20 F.E
1
5ms
5.0 V
IC1 54 DRF
STOP PLAY
FOCUS SERCH
1
3
5
4
2
6
7
8
9
10
11
3
4
5
6
7
8
9
6
7
8
10
11
12
9
6
7
8
9
12
0.5ms
1.00 V
HF
0.5ms
5.0 V
HFL
0.5ms
5.0 V
TES
1
2
3
CUE
0.5ms
1.00 V
HF
1
2
3
0.5ms
5.0 V
HFL
0.5ms
5.0 V
TES
REVIEW
50ms
10.0 V
JP+
CUE
50ms
10.0 V
JP-
50ms
0.50 V
JP
50ms
1.00 V
TE
0.5ms
10.0 V
JP+
0.5ms
10.0 V
JP-
0.5ms
0.50 V
JP
0.5ms
1.00 V
TE
REVIEW
50ms
10.0 V
JP+
50ms
10.0 V
JP-
50ms
0.50 V
JP
50ms
1.00 V
TE
0.5ms
10.0 V
JP+
0.5ms
10.0 V
JP-
0.5ms
0.50 V
JP
0.5ms
1.00 V
TE
PLAY
20ms
1.00 V
SPO
NORMAL DISC
TN0=01
20ms
2.00 V
CLV+
PLAY
TCD-712 (140mm)
TN0=01
50ms
1.00 V
SPO
50ms
2.00 V
CLV+
PLAY
TCD-712
5s
100mV
SLD
1
0.5s
100mV
SLD
1

– 15 –
CD-C662
Figure 15 BLOCK DIAGRAM (1/3)
27
1
2
3
4
1
8
6
7
18
24
40
20
4
5
15
23
16
26
27
7
2
2520
29
21 22 35
14
38
39
28
41
42
37
36
PU-IN SW
XL1
XIN
LD0
FIN2 JP–
CV+
SLC
SL1
FIN1
E
F
TO
FD
SPO
NC
SLD
SL–
SL+
DRF
CL
DAT
CE
VCC1
6
+5V
PICKUP IN
SW4
FOCUS COIL
TRACKING COIL
M1
SPINDLE
MOTOR
M
M
M2
SLED
MOTOR
PICKUP UNIT
9
IC2
LC78622NE
SERVO/SIGNAL
CONTROL
+B1
IC3
M63001FP
FOCUS/
TRACKING/
SPIN/SLED
DRIVER
IC1
LA9241M
SERVO AMP.
RES. CQCK. COIN
SQOUT. RWC. WRQ
~
~
~
CL, DAT, SELIAL CONTROL/CE
Q51
SL+. SL–. DRF
9
8
7
6
5
4
3
2
1
GND (D)
MECHA UP
GND (D)
DISK NO.
OPEN/CLOSE
GND (D)
M–
M+
GND (M)
9
8
7
6
5
4
3
2
1
CNP10
M
+5V
+B1
62 64 45 3623 43
37
31
38
39
40
24
25
10
1
2
2
1
3
3
2
1
4
5
6
10
265853
10
12
20
32
40
43
44
5352515431302923271615
4144
Q1 Q52
+4.3V Q81 +7.3V (+B1)
REGULATOR
TO MAIN SECTION
(TO IC601)
XOUT
EFMO
EFMIN
CLV+
JP–
CONT2
CONT1
LCHO
LVSS
RVSS
RCHO
VVDD
VDD
LVDD
RVDD
XVDD
SW1
OPEN/CLOSE
SW2
MECHA UP
SW3
DISC No.
M3
LOADING
SOLM1
TO MAIN
SECTION
CNS10
+B5
~~
CNP11
BI1B
2
1
BI1A
CNP99
+5V
2
4
8
33 38 39 46
~
646251
11
22

CD-C662
– 16 –
Figure 16 BLOCK DIAGRAM (2/3)
Q113
Q114
5 6
21
16
22
13
20
16
21
17
1 3
24 23
15
20
1
22
15
9
10
11
7
11
3 4 5 6
10
GNDAM IF FM DET
FM DET
FM IN
IC302
LC72131
PLL (TUNER)
OSC
VR351
MPX VCO ADJ
AM IF
AM MIX
AM IN AM+B
AM RF IN
X352
4.5MHz
FMOSC
AM TRACKING AM BAND
COVERAGE
T351
+B4 +B4
T352
IC303
LA1805
FM/AM IF MPX.
DET OUT
L
R
STEREO
AM OSC IN
Q343
VT
DO
DI
CL
CE
1
24
2
23
3
4
4
21
5
20
6 7
17
8
9
16
10
14
12
13
18
H/N
T1/T2
R-CH
L-CH
L-CH
R-CH
P.B
REC
TAPE 2
TAPE 1
L NF
L(T1)
R(T1)
L(T2)
R(T2)
R NF
L
R
POP REDUCE
L REC
R REC
L
R REC
P.B.
REC
ALC
NOR/
HIGH T1/T2
REF L NF
R NF
PB HEAD
REC PB HEAD
SWITCHING
Q103~Q106
AC BIAS
IC101
AN7345K
PLAYBACK AND RECORD
/PLAYBACK AMP.
PB
ERASE
HEAD
SWITCHING BAIS
Q126
Q124
L103
Q128
L104
Q111
Q110
Q109
Q107
Q108
SWITCHING SWITCHING
SWITCHING
+B4
1
2
3
CNS11
FROM CD SECTION
CNP11
17
+B4
VOLTAGE
REGURATER
SWM3
FOOL PROOF
SWM4
F.A.S
SOLM1
SOLENOID
SWM5
CAM
5
16
4
17
3
18
2
19
1
20
9
IC601
M62439SP
AUDIO PROCESSOR
L
L
R
R
L
RL
R
L
R
L
R
TUNER
AUX
TAPE
CD
1
IC704
3
+B7 2
MUTING
Q121
Q122
–B4
FM/AM
SWITCHING
13
8
9
1
2 3 4 5 7 8
6
Q302
FM IF IN
FM IF
FM RF
FM
OSC
T301
FM OSC
FM
ANTENNA
FM B.P.F
IC301
TA7358AP
FM FRONT END
L303
L302
OSC BUFF
BF301
7
FM
Q344
FM +B
SWITCHING
CF301
FM+B MO/ST
VCO
FM/AM
BIAS
OCS
15 19
11 10
MONO/ST
JK601
VIDEO/AUX
MPXIN
AM LOOP
ANTENNA
T331 T333
CF351
1
6 7
4
8
3
3
5
–
B
+B5
4
8
–B1+B5
IC56
3
KIA455
8
OPE A
M
IC56
2
KIA455
8
OPE A
M

– 17 –
CD-C662
Figure 17 BLOCK DIAGRAM (3/3)
Q704
+B5
Q908
Q909
Q910
Q911 +B5
D810
9
1
0
1 2 3 4 15 2516 26 28 373839
FL701
DISPLAY
9 8 7 6 5 4 3 2 1
IC701
IX0280AW
SYSTEM CONTROL
MICROCOMPUTER
L
R
VDD
UNSWITCH
+B7
MEMORY
BACK UP
VDD
XL701
4.19MHz
+B5 +B7
KEY
SW701,
SW703~SW717,
SW722~SW725,
SW728~SW730
Q905
Q903
Q904
Q901
Q902
+B5
M
Q907
+B1
RL901
TO CD
SECTION
M901
FAN MOTOR
JK671
HEADPHONES
SO901
SPEAKER
TERMINAL
T.F
F801
5A/125V
T801
POWER
TRANSFORMER
RL801
AC POWER
SUPPLY CORD
AC 120V, 60Hz
T802
POWER
TRANSFORMER
Q801
Q802
+B7 UNSWITCH
1
BAIS
T1/T2
REC
–B4
D809
D811~D814
Q803 D815
~D817
2 3
1
+B7
RX701
Q705
Q706
Q707
78
1
4
15
14
13
L-OUT
IC901
STK40704
POWER AMP.
VH–
VH+
VL–
VL+
R-OUT
1
3
8
Q601
Q602
ZD802
Q603
Q604
+B1
+B4
+B5
+7.3V
+12V(ANALOG)
+12V(MOTOR)
Q853
Q852
Q851
Q850
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
Q702
Q703
AVDD
~~~
18
22
2
101112131415161718192021222324
25
2627
282930
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
7170696867666564636261 80797877
767574
737260595857
56
5554
535251
N
O/ST
VDD
PHM1
D802~D805
FRONT
SPEAKER
F804
5A/125V
F805
5A/125V
F806
2A/250V
29 36
~
M
MM1
TAPE MOTOR
+B7
+B7
1
1
6 7
4
8
3
3
5
–B1+B5
4
8
–B1+B5
IC563
KIA4558P
OPE AMP.
IC562
KIA4558P
OPE AMP.

CD-C662
– 18 –
Figure 18 SCHEMATIC DIAGRAM (1/10)
A
B
C
D
E
F
G
H
123456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.
REC_R REC_L
CHASSIS
MECHA BASE
L
R
RL
Vcc
GND
T1_R
T1_L
A_GND
A_GND
M_GND
ERASE
T2_R2
T2_R1
T2_L1
T2_L2
9.3V 8.6V
9.3V
0V 3.4V
3.4V
0V
0V
0V
0V 0.7V
0V
0.7V
0V 0V
0V
0.7V
0V
0V
0V
0.7V
0V 0V
0V
0V
0V
0.7V
0.7V 0V
0V
0V
11.7V
11.6V
R-CHL-CH
1
2
9
5
3
4
3
2
10
13
6
12
5
7
11
4
1
7
8
6
NC
NC
ALC
NC
ALC
RIPPLE
Nor/CrO2
–
+
–
+
Hich=T1
+ +
–
–
Hich=CHROME
56K
112K
56K
112K
0V
0V
1
3
2 1
3
2
1
3
2
6
5
7
4
ERASE
HEAD
R-CH
L-CH P22 2 - E
TO POWER AMP.PWB
CNP901
HP_RLY
HP_GND
HP-R CH
HP-L CH
SP_RLY
SP_DET
–15V
GND
M_GND
M_+12V
A_GND
R_CH
L_CH
+B
–B
+B +B
–B
+B
2
MUTING
1
2 3
1
2 3
+B
+B
TAPE2
RECORD/
PLAYBACK HEAD
CNS102
CNS101
TAPE1
PLAYBACK HEAD
+B
MAIN PWB-A1(2/2)
FM SIGNAL
CD SIGNAL
PLAYBACK SIGNAL
RECORD SUGNAL
11.6V
R123
3.9K
R121
100K
C121
1/50
C115
47/25
R623
5.6K
C627
22/25
R132
33K
R120
56
C122
1/50
C116
47/25
R635
330
R636
330
R625
22K
R652
100K R653
100K
R620
2.2K
R619
2.2K
C604
4.7/50
R616
4.7K
R615
4.7K
R146
10K
C145
22/25
C102
0.001
Q104
KTC3200 GR
R102
1K
C117
0.033
C107
0.001
R630 560(1/2W)
C612 0.033
C141
1/50
C106
180P
C105
180P
R108
47K
R155
150 R175
1K
CNS901
R629
560(1/2W)
R610
10K
R153
10K
C156
3.3/50
R109
4.7K
R605 1.5K
R145
10K
Q604
KTC3199 GR
R611
330
C153
100/16
C129
470P
R603 1.5K
C634
8200P
C635
8200P
C112
330P
R609
2.2K
R125
5.6K
R160
150 (1/2W)
C615
0.22
C616
4.7P
R607 1.5K
R126
5.6K
Q105
KTC3200 GR
R136
18K
C628
0.22
R101
1K
C127
0.022
R638
220K
C605
4.7/50
Q111
KRC104 M
SWITCHING
R137
6.8K
C133
22/25
R140
560
R172
220K
Q114
KTC3199 GR
C134
22/25
C624
0.001
CNP101
ZD602
MTZJ2.4B
C620
10/50
C603
4.7/50
C120
560P
Q113
KTC3199 GR
R104
2.2K
R170
1.8K
R142
56
R174
5.6K
Q601
KTC3199 GR
R113
10K
Q107
KTC3199 GR
SWITCHING
C111
330P
Q106
KTC3200 GR
C614 0.22
R606 1.5K
R158
220
R613
10K
Q603
KTC3199 GR
R156
220K
R118
1K
C606
@
4.7/50
R624
330
CNP102
R167
100K
R617
2.2K
C623
0.001
Q602
KTC3199 GR
R115
4.7K
R141
56
C617
10/50
R105
3.3K
C119
560P
IC601
M62439SP
AUDIO PROCESSOR
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
R164
C101
0.001
R162
C625
0.001
ZD601
MTZJ2.4B
C619
0.022
R103
2.2K
C130
470P
R173
5.6K
R122
100K
L103
100µH
R614
10K
C109
0.047
R106
3.3K
C132
0.001
R604 1.5K
Q103
KTC3200 GR
R135 18K
Q122
KTC3199 GR
C626
0.001
R114
10K
R124
3.9K
C602
4.7/50
C118
0.033
C611 0.033
C136
0.082
R134 68K
R107
47K
R112
10K
C146
220/16
C114
330P
C629
22/25 R628
22K
IC101
AN7345K
PLAYBACK AND
RECORD/
PLAYBACK
AMP.
R169
1.8K
C131
0.001
Q110
KRC104 M
SWITCHING
R117
1K
Q121
KTC3199 GR
MUTING
C155
3.3/50
R110
4.7K
R131
33K
R608 1.5K
C154
47/16
C140
0.0033
C108
0.001
Q108
KTC3199 GR
SWITCHING
R171
220K
C622
10/50
Q109
2SA1318
SWITCHING
R154
10K
R618
2.2K
C142
1/50
R157
220K
R111 10K
C139
0.0033
C621
10/50
R626
2.2K
R637
220K
R138
6.8K
C135
0.082
Q124
2SA1015 GR
SWITCHING
R166
47K
R602 1.5K
C618
0.022
R139
560
C128
3.3/50
C113
330P
C613 0.22
R601 1.5K
C601
4.7/50
R612
15K
24 23 22 21 20 19 18 17 16 15 14 13
12
11
10
9
8
7
6
5
4321
C151
0.027(ML)
L104 330
µ
H
R168
12
Q12
KTC32
0
C150
0.0039
L601
2.2µH
D101
1SS133
D102
1SS133
C103
0.01
R119
56

– 19 –
CD-C662
Figure 19 SCHEMATIC DIAGRAM (2/10)
78 9 10 11 12
E
C_R REC_L
CHASIS
+12V
–15V
SPA SIG
A_+12V
M_+12V
M_GND
A_GND
CD_GND
+5V
GND
+B
Vcc
GND
0.7V 0V
0V
0V
11.7V
11.6V
0V
0V
ALC
RIPPLE
TUN_R
TUN_L
CLK
D_GND
DI
CE
DO
A_+12V
A_GND
SPEANA3 NC
M_+12V NC
TUN_SM
3
2
1
P26 5 - A
TO TUNER SECTION
L-CH
R-CH
0V
0V
0V
–B
–B
+B +B
+B +B
–B
CD GND
CNS99
+4.3V
D_OUT 1
DIGITAL OUTPUT PWB-A4
CNP99
P25 12 - D
TO CD SERVO PWB
VIDEO/AUX
IN
–B
DI
CE
DO
HP-R CH
CLK
HP_RLY
HP_GND
HP-L CH
SPEANA1
SPEANA2
SP_DET
SP_RLY
HI_CUT
S_MUTE
T_T1 T2
T_BIAS
REC/PLAY
D_GND
+5V
SPN_P NC
P20 1 - D
TO DISPLAY PWB
+B
+B
+B
+B
+B
+B
+B
3
2
1
CNS801
CNP801
P23 7 - F
TO POWER SUPPLY PWB
CNS11
+12V
+7V
CD_GND
L-CH
A_GND
R-CH
+B
1
2 3
BIAS OCS
+B
11.6V
C641
0.001
R650
1K
R651
1K
R642
47K
R640
47K
R641
22K
R639
@
22K
C850
3300/25
C556
0.0068
R567
270K
C559
0.0027
C555
0.0068
R555
56K
R566
2.2M
IC563
KIA4558P
OPE AMP.
C553
0.0027
D551
1SS133
R570
220K
R562
390K
R551
10K
R573
560K
R572
2.2M
C562
0.022
R568
220K
R553
12K
R561
15K
C551
270P
R560
470K
C557
270P
R558
68K
R564
390K
C561
0.022
R556
33K
D602
1SS133
C632
390P
R632
8.2K
D601
1SS133
R633
39K
C630
0.001
R634
39K
R631
8.2K C631
390P
C145
22/25
3
5
K
R160
150 (1/2W)
C628
0.22
R638
220K
R158
220
@
4.7/50
R
624
3
30
R167
100K
Q126
KRC104 M
BIAS
R164
4.7K R162
47K
L103
100µH
C146
220/16
Q121
T
C3199 GR
MUTING
R157
220K
R626
2.2K
R637
220K
Q124
2SA1015 GR
SWITCHING
R166
47K
C853
0.047(ML)
C854
47/25
D853
1SS133
C852
0.047(ML)
R852
22K
C851
22/25
R851
33
D852
1SS133
Q853
AN78L05
31
Q850
KTD2058Y
R850
3.3(1/2W)
D851
1SS133
C859
0.1(ML)
C856
0.1(ML)
C855
0.1(ML)
C858
0.1(ML)
C860
47/25
R854
10K
Q852 KIA7806P
3
1
C857
47/25
R853
22K
D850
1SS133
Q851
KIA7812P
3
1
14 13
12
11
2
2
2
1
42
3
5
6 8
7
R580
100K R579
100K R578
100K
C568
2.2/50
C567
2.2/50
C566
2.2/50
D554
1SS133
D555
1SS133
D556
1SS133
ZD551
MTZJ6.2C
C563
0.022 R574
330
R575
330
IC562
KIA4558P
4
1
8
7
2
3
5
6
C569
0.022
10
9
8
7
6
5
4
3
2
1
20
19
18
17
16
15
14
13
12
11
21
22
23
24
JK601
C151
0.027(ML)
L104 330µH
R168
12
Q128
KTC3203 Y
C152
47/25
C150
0.0039
3 3
2 2
11
BI99
3
2
1
IC99
C98
0.022
C99
100/10
L99
2.2µH
2
3
4
5
7
9
1
CNP701
R855
3.3
(1/2W)
BI801
1
1
2
2
3
3
4
4
5
5
6
6
BI11
6
8
CNS701
+B
OPE AMP.
SUR_ON/OFF
CNP11
P25 12 - B
TO POWER SUPPLY PWB

CD-C662
– 20 –
A
B
C
D
E
F
G
H
123456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.
Figure 20 SCHEMATIC DIAGRAM (3/10)
JK671
HEADPHONES
R720
R719
R717
R747
10K
R
R756
10K
R755
10K
R753
10K
R754
10K
R752
10K
R760
10K
D716
1SS133
Q702
KTA1273 Y
C705
47/16
R758
1.2K
R759
10K
Q703
KTA1271 Y
D714
1SS133 D715
1SS133
R726 10K
10K
10K
10K
10K
10K
R729
10K
R728
10K
IC701
IX0301AW
SYSTEM CONTROL
MICROCOMPUTER
R724
R727
C702
1/50
R716
33
R721
100K R722
100K R723
100K
C720
47/50
R707
1K
R708
1K
R706
1K
Q706
KTC3199 GR
Q705
KTC3199 GR
Q707
KTC3199 GR
R750
10K
R749
10K
R748
10K
R709
R710
R711
R712
R713
R715
R737
R736
D703
1SS133
R734
R733
R732
R731
R730
LED722
SLI342UCJ
R735
C704
0.001
C703
0.001
R714 1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
22K
R701
R702
R703
R705
R741
1K
R740
1K
R739
R738
JOG701
VOLUME
JOG
NC
NC
NC
L:DEMO START
DIST0 H:ECHO START
DIST0
SP_RLY
PHM1
RUN PALS
SENSOR
_
MM1
TAPE MOTOR
2
MOTOR
GND
+12V
T2 RUN
T1 RUN
SOLENOID
CAM SW
FWM1
SWM3
F.P.
CNPM2
SWM4
F.A.S
SOLM1
SOLENOID
SWM5
CAM FWM2
REC/PLAY
AC RLY-CON
AB
KEY JOG B
KEY JOG A
12V
12V
12V
12V
0V
0V
U/D SW
VDD
G5
G6
G7
G8
G9
G10
G11
VLOAD
S16
S17
S18
S19/DIST1
S20/DIST2
S21/DIST3
S22/DIST4
DISTOUT
SPN_P
SP-DET
POWER
HI-CUT
S MUTE
T_T1T2
T-BIAS
H/P
FPA
T1FAS
CAM SW
VDD
T_MOT
T_SOL
TIMER LED
DNO SW
VSS
REMOCON
SYS STOP
O/C SW
PUIN SW
T2 RUN
TUN SM
SPEAN
DO
C
S15
S14
S13
S12
S11
S10
S9
S8
S7
S6
S5
S4
S3
S2
S1
CD
CD
CD
CD
AVREF
1
2
3
35363738394041424344454647484950
30
29
28
53
54
52
51
53
52
51
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96
78
79
80
56
55
1
2
3
4
5
6
7
8
9
10
22
21
20
19
18
17
16
15
14
13
12
11
23
SPEANA1
SPEANA2
SPEANA3
+5V
TUN SM
M_+12V
D_GND
REC/PLAY
T_BIAS
T_T1 T2
S.MUTE
HI_CUT
SP_RLY
SP_DET
SPN_P
11 22 33
4 4
5 5
66
7 7
88
9
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
1 2 3
FL701
F2
F2
F2
G11
G10
G09
G08
G07
G06
G05
S01
S02
S03
S04
S05
S06
S07
S08
S09
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
DISPLAY PWB-A2
+B
+B
+B
HP_RLY
HP_GND
HP-R CH
HP-L CH
DO
CLK
CE
DI
C673
0.01
+B +B
+B
+B
+B
+B
+B
+B
BI702
FPA
1
2
3
4
5
6
7
8
9
10
11
12
10
11
12
TAPE MECHANISM
PWB-F
M
+B
24
CNS701
FFC701
CNP701
P19 12 - E
TO MAIN PWB
+B
+B
CNPM1
CNSM1
10K
1K
1K
1K
1K
1K
1K
1.8K
2.2K
2.2K
+
1
FM SIGNAL
Table of contents
Other Sharp Stereo System manuals

Sharp
Sharp CD-XP300W User manual

Sharp
Sharp CD-BA120 User manual

Sharp
Sharp CD-SW440N User manual

Sharp
Sharp XL-UH240 User manual

Sharp
Sharp SD-EX220H User manual

Sharp
Sharp MUSIC SYSTEM DK-A1 User manual

Sharp
Sharp XL-3000V User manual

Sharp
Sharp XL-E100H(BK) User manual

Sharp
Sharp CD-BA250H User manual

Sharp
Sharp CD-BA1500H User manual

Sharp
Sharp DK-KP85PH User manual

Sharp
Sharp CD-BA2600 User manual

Sharp
Sharp XL-MP150 User manual

Sharp
Sharp GX-M10H User manual

Sharp
Sharp CD-MPS440W User manual

Sharp
Sharp MD-X8 User manual

Sharp
Sharp CD-S600H User manual

Sharp
Sharp XL-HP700 User manual

Sharp
Sharp CDC2900 - 3-CD Compact Stereo System User manual

Sharp
Sharp XL-3000 User manual
