Sharp XL-520H User manual

– 1 –
XL-520H,520E/CP-520,520E
CONTENTS Page
SAFETY PRECAUTION FOR SERVICE MANUAL .......................................................................................................... 2
SPECIFICATIONS ............................................................................................................................................................ 3
NAMES OF PARTS .......................................................................................................................................................... 4
OPERATION MANUAL..................................................................................................................................................... 6
DISASSEMBLY................................................................................................................................................................. 7
REMOVING AND REINSTALLING THE MAIN PARTS.................................................................................................... 8
ADJUSTMENT.................................................................................................................................................................. 9
BLOCK DIAGRAM .......................................................................................................................................................... 16
SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD............................................................................................ 20
VOLTAGE ....................................................................................................................................................................... 28
NOTES ON SCHEMATIC DIAGRAM ............................................................................................................................. 29
TYPE OF TRANSISTOR AND LED ................................................................................................................................ 29
WAVEFORMS OF CD CIRCUIT..................................................................................................................................... 30
TROUBLESHOOTING (CD SECTION) .......................................................................................................................... 31
FUNCTION TABLE OF IC .............................................................................................................................................. 36
LCD SEGMENT .............................................................................................................................................................. 43
PACKING METHOD (XL-520E ONLY) ............................................................................................................................44
REPLACEMENT PARTS LIST/EXPLODED VIEW
XL-520H
XL-520E
CP-520
CP-520E
XL-520H and CP-520 constitute XL-520H.
XL-520E and CP-520E constitute XL-520E.
Illustration: XL-520H/CP-520
SERVICE MANUAL
SHARP CORPORATION
No. S9768XL520HE/
• In the interests of user-safety the set should be restored to its original
condition and only parts identical to those specified should be used.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.

XL-520H,520E/CP-520,520E
– 2 –
SAFETY PRECAUTION FOR
SERVICE MANUAL
Precaution to be taken when replacing and servicing the
Laser Pickup.
The AEL (Accessible Emission Level) of Laser Power Output
forthismodelisspecifiedtobelowerthanClassIRequirements.
However, the following precautions must be observed during
servicing to protect your eyes against exposure to the Laser
beam
(1) When the cabinet has been removed, the power is turned
on without a compact disc, and the Pickup is on a position
outerthanthelead-inposition,theLaserwilllightforseveral
seconds to detect a disc. Do not look into the Pickup Lens.
(2) The Laser Power Output of the Pickup inside the unit and
replacementservicepartshavealreadybeenadjustedprior
to shipping.
(3) No adjustment to the Laser Power should be attempted
when replacing or servicing the Pickup.
(4) Under no circumstances look directly into the Pickup Lens
at any time.
(5)CAUTION -Useofcontrols oradjustments,orperformance
of procedures other than those specified herein may result
in hazardous radiation exposure.
LASER KLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO
BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA
EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I
STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.
VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE.
ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD.
STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT
INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE
INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.
VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN
TÄSSÄ
KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA
ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.
VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT
ÄN I DENNA BRUKSANVISNING SPECIFICERAS. KAN
ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG
LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR
LASERKLASS 1.
(XL-520E)
(XL-520H)

– 3 –
XL-520H,520E/CP-520,520E
Cassette deck section
Frequency response: 50 - 14,000 Hz (Normal tape)
Signal/noise ratio: 50 dB
Wow and flutter: 0.25 % (WRMS)
Type: 2-way [12 cm (4-3/4") woofer and 2 cm
(13/16") tweeter]
Rated input power: 20 W
Maximum input power: 40 W
Impedance: 4 ohms
Dimensions: Width; 160 mm (6-5/16")
Height; 240 mm (9-1/2")
Depth; 183 mm (7-1/4")
Weight: 1.8 kg (4.0 lbs.)/each
General
Power source: AC 230 V, 50 Hz
Power consumption: 95 W
Dimensions: Width; 160 mm (6-5/16")
Height; 240 mm (9-1/2")
Depth; 300 mm (11-13/16")
Weight: 3.5 kg (7.7 lbs.)
Amplifier section
Output power: PMPO; 112 W (total)
MPO; 56 W (28 W + 28 W) (10% T.H.D)
RMS; 40 W (20 W + 20 W) (10% T.H.D)
Input terminals: Video/Auxiliary (audio signal);
500 mV/47 kohms
Output terminals: Speakers; 4 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
Tuner section
Frequency range: FM; 87.5 - 108 MHz
MW; 522 - 1,620 kHz
LW; 153-281 kHz
Compact disc player section
Type: Compact disc player
Signal readout: Non-contact, 3-beam semi-conductor
laser pickup
D/A Converter: 1-bit D/A converter
Filter: 8-times oversampling digital filter
Frequency response: 20 - 20,000 Hz
Wow and flutter: Unmeasurable
(less than 0.001% W.peak)
SPECIFICATIONS
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Specifications for this model are subject to change without
prior notice.
XL-520H/520E
CP-520/520E

XL-520H,520E/CP-520,520E
– 4 –
NAMES OF PARTS
Front Panel
1. Functin/Band/Track Number Indicator
2. Volume Indicator
3. Extra Bass/Equalizar Indicator
4. Timer Indicator
5. Record Indicator
6. Sleep Indicator
7. Repeat Indicator
8. Play Indicator
9. Video/Auxiliary Indicator
10. Random Indicator
11. Memory Indicator
12. FM Stereo Mode Indicator
13. FM Stereo Indicator
14. CD Compartment
15. On/Stand-by Switch
16. Remote Control Sensor
17. Record Pause/Beat Cancel Button
18. Memory/Set Button
19. (CD) Track Down/Review Button
(TAPE) Rewind Button
(TUNER) Preset Down Button
20. Headphone Socket
21. CD Eject Button
22. Function Selector Button
23. Band Selector Button
24. Extra Bass/Equalizer Mode Button
25. Volume Up/Down Buttons
26. (CD) Play/Pause Button
(TAPE) Play Button
(TUNER) Tuning Up Button
27. (CD/TAPE) Stop Button
(TUNER) Clear Button
28. (CD) Track Up/Cue Button
(TAPE) Fast Forward Button
(TUNER) Preset Up Button
29. Cassette Compartment
30. CD Digital Output Socket (Optical)
Rear Panel
1. AC Power Input Socket
2. FM 75 ohms Aerial Socket
3. MW/LW Loop Aerial Input Socket
4. Video/Auxiliary (Audio Signal) Input Sockets
5. Speaker Terminals
XL-520H/520E
VOL
EQ
AUX
RANDOM MEMORY ST
REC SLEEP
kHz
MHz
123456
78910 11 12 13
17
18
19
14
15
16
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
(Illustration: XL-520H)

– 5 –
XL-520H,520E/CP-520,520E
Speaker Section
1. Tweeter
2. Woofer
3. Bass Reflex Duct
4. Speaker Wire
Remote Control
1. Remote Control Transmitter LED
2. On/Stand-by Button
3. (CD) Repeat/Random Button
4. (CD/TUNER) Memory/Set Button
5. (CD/TUNER) Clear Button
6. Timer/Set Button
7. Sleep Button
8. (CD/TAPE) Stop Button
9. (CD) Play/Pause Button
(TAPE) Play Button
10. (CD) Track Up/Cue Button
(TAPE) Fast Forward Button
(TUNER) Preset Up Button
11. (CD) Track Down/Review Button
(TAPE) Rewind Button
(TUNER) Preset Down Button
12. Tuning Up/Down Buttons
13. Timer Button
14. Timer Up/Down Buttons
15. Function Selector Button
16. Band Selector Button
17. Extra Bass/Equalizer Mode Button
18. Volume Up/Down Buttons
CP-520/520E
XL-520H/520E
1
2
34
ON/
STAND-BY
/RANDOM
TIMER/
SET
PRESET
MEMORY/
SET TUNING
TIMER
VOLUME
CLEAR
SLEEP
FUNCTION BAND
X-BASS/
EQUALIZER
TIMER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
(Illustration: XL-520H)

XL-520H,520E/CP-520,520E
– 6 –
OPERATION MANUAL
SETTING THE CLOCK
1
Press the ON/STAND-BY button to enter the stand-by mode.
2
Press the MEMORY/SET button.
3
Press the PRESET ( or ) button to select the time display mode. "0:00" →The 24-hour display will appear. (0:00 - 23:59) "AM 12:00" →The 12-hour display will appear. (AM 12:00 - PM 11:59)
●Note that this can only be set when the unit is first installed
or it has been reset (see page 6).
4
Press the MEMORY/SET button.
5
Press the PRESET ( or ) button to adjust the hour.
●Press the PRESET button once to advance the time by 1 hour.
Hold it down to advance continuously.
●When the 12-hour display is selected, "AM" will change auto-
matically to "PM".
6
Press the MEMORY/SET button.
7
Press the PRESET ( or ) button to adjust the minutes.
●Press the PRESET button once to advance the time by 1
minute. Hold it down to change the time in 5 minute intervals.
●The hour setting will not advance even if minutes advance from
"59" to "00".
8
Press the MEMORY/SET button.
●The clock starts operating from "0" seconds. (Seconds are not
displayed.)
Note: ●In the event of a power failure or when the AC power lead is
disconnected, the clock display will go out. When the AC power supply is restored, the clock display will flash on and off to indicate the time when the power failure occurred or when the AC power lead was disconnected.
ON/ STAND-BY
ON/ STAND-BY
MEMORY/ SET
MEMORY/ SET
PRESET ( / )
PRESET ( / )
AM 12:000:00
2
3
4 5 6 7 8
If this happens, follow the procedure below to change the clock time.
To change the clock time: 1
Press the ON/STAND-BY button to enter the stand-by mode.
2
Perform steps 4 - 8 above.
To change the time display mode:
1
Perform steps 1 - 3 in the section "RESETTING THE MICRO- COMPUTER", on page 6.
2
Perform steps 1 - 8 above.
In this example, the clock is set for the 24-hour (0:00) system.
PREPARATION FOR USE
15
15
■
Remote control
Notes concerning use: ●Replace the batteries if control distance decreases or operation
becomes erratic.
●Periodically clean the transmitter LED on the remote control
and the sensor on the main unit with a soft cloth.
●Exposing the sensor on the main unit to strong light may in-
terfere with operation. Change the lighting or the direction of the unit.
●Keep the remote control away from moisture, excessive heat,
shock, and vibrations.
0.2 m - 6 m (8" - 20')
RESETTING THE MICROCOMPUTER
Reset the microcomputer under the following conditions: ●To erase all of the stored memory contents (clock and timer
settings, tuner and CD presets).
●If the display is not correct. ●If the operation is not correct.
1
Press the ON/STAND-BY button to enter the stand-by mode.
2
Unplug the AC power lead from the AC INPUT socket on this unit.
3
Whilst pressing down the MEMORY/SET button and the X- BASS/EQUALIZER button, plug the AC power lead into the AC INPUT socket on this unit.
1
2,3
3
3
Caution: ●The operation explained above will erase all data stored in
memory, such as clock and timer settings, tuner and CD pres- ets.

– 7 –
XL-520H,520E/CP-520,520E
1 Top Cabinet 1. Screw .................. (A1) x4 7-1
2. Socket ................. (A2) x3
3. Screw .................. (A3) x1
2 Side Panel 1. Screw .................. (B1) x7 7-1
(Left/Right)
3 Back Board 1. Screw .................. (C1) x4 7-1
(With Power 2. Socket ................. (C2) x3
Amp. PWB)
4 Front Panel 1. Screw .................. (D1) x4 7-2
2. Socket ................. (D2) x3
5 Display PWB/ 1. Screw .................. (E1) x6 7-2
CD Servo PWB 2. Socket ................. (E2) x1
6 Main PWB 1. Screw .................. (F1) x4 7-2
2. Shield Plate......... (F2) x1
7 Power Supply PWB 1. Screw .................. (G1) x5 7-2
8 Tape Mechanism 1. Screw .................. (H1) x4 7-3
9 CD Mechanism 1. Screw .................. (J1) x3 7-4
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3.Takeoffnylonbandsorwireholderswheretheyneedbe
removed when disassembling the unit. After servicing
theunit, be sureto rearrange the leadswhere they were
before disassembling.
4. Take suffcient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 7-2
Figure 7-3
STEP REMOVAL PROCEDURE FIGURE
Figure 7-1
XL-520H/520E
STEP REMOVAL PROCEDURE FIGURE
1 Woofer 1. Net........................... (A1) x1 7-5
3. Screw ...................... (A2) x4
CP-520/520E
(A1)x1
ø3x12mm
(A1)x1
ø3x12mm
(B1)x2
ø3x10mm
(C1)x2
ø3x10mm
(B1)x2
ø3x10mm
(C1)x2
ø3x10mm
(C2)x3
(B1)x3
ø3x10mm
(A1)x2
ø3x10mm
(A2)x2
(A2)x1
CD
Mechanism
(A3)x1
ø3x10mm
Swicth
PWB
Top Cabinet
Top
Cabinet
Side Panel
Front
Panel
Rear
Panel
Back
Board
Power Amp PWB
(E1)x6
ø3x10mm
(D1)x1
ø3x10mm
(D1)x1
ø3x10mm
CD Servo PWB
Main PWB
Power Supply
PWB
Power
Transformer
Front Panel
Display PWB
(G1)x4
ø4x6mm
(F1)x1
ø3x10mm
(F1)x1
ø3x10mm
(F1)x1
ø3x10mm
(F2)x1
(G1)x1
ø3x10mm
(D1)x2
ø3x10mm
(D2)x1
(E2)x1
(D2)x2 CD Servo
PWB
Main
PWB
Tape MechanismOpen
(H1)x4
ø3x10mm
Front Panel
CD Mechanism
(J1)x3
ø2.6x10mm
Top Cabinet
(A2)x4
ø4x12mm
Net
(A1x1)
Woofer
Speaker Box
Screw
driver
Direction of handle
XL-520H/520E
Figure 7-4
CP-520/520E
Figure 7-5

XL-520H,520E/CP-520,520E
– 8 –
Figure 8
How to remove the pickup (See Fig. 8)
1. Remove the mechanism cover, paying attention to the
pawls (A1) x 4 pcs.
2. Remove the screws (A2) x 2 pcs., to remove the shaft (A3)
x 1 pc.
3. Remove the stop washer (A4) x 1 pc., to remove the gear
(A5) x 1 pc.
4. Remove the pickup.
Note:
After removing the optical pickup connector wrap the front
end of connector in conductive aluminium foil so as to
prevent damage of optical pickup by static electricity.
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Performsteps1,to5ofthedisassemblymethodtoremovethe
CD mechanism.
Pickup Unit
( A2 ) x2
ø2.6 x6mm
( A1 ) x2
CD Mechanism
Shaft
( A3 ) x1
Gear
( A5 ) x1
StopWasher
( A4 ) x1
Mechanism Cover ( A1 ) x2

– 9 –
XL-520H,520E/CP-520,520E
MECHANISM SECTION
• Driving Force Check
Torque Meter Specified Value
Play: TW-2412 Over 80 g
• Torque Check
Torque Meter
Play: TW-2111 30 to 70 g. cm
Fast forward: TW-2231 50 to 140 g.cm
Rewind: TW-2231 50 to 140 g.cm
Specified
Value
Adjusting
Point Instrument Connection
Test Tape
MTT-111 Motor 3,000 ±Headphone
90 Hz terminal
ADJUSTMENT
Specified Value
• Tape Speed
fL: Low-range frequency
fH: High-renge frequency
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
IF 450 kHz 1,620 kHz T351 *1
MW Band — 522 kHz (fL): T306 *2
Coverage 1.1 ±0.1 V
LW Band — 153 kHz (fL): T305 *2
Coverage 1.1 ±0.1 V
MW 990 kHz 990 kHz (fL): T302 *1
Tracking
LW 225 kHz 225 kHz (fL): T301 *1
Tracking
Test Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
Adjusting
Parts Instrument Connection
Display
Frequency
98.00 MHz 98.00 MHz VR351*1 Input: SO301
(25 dBµV) Output: Speaker
Terminal
Figure 9-1 ADJUSTMENT POINT
TUNER SECTION
TAPE MECHANISM
M901
Motor
Volume in motor
*1. Input: Antenna, Output: Speaker Terminal
*2. Input: Input is not connected, Output: TP301
• Setting the Test Mode
KeepingtheBANDbuttonandMEMORYbuttonpressed,turn
on POWER. Then, the frequency is initially set in the memory
as shown in Table. Call it with the , button to use it
for adjustment and check of tuner circuit.
Preset No. FM Preset No. MW
1 87.50 MHz 6 522 kHz
2 108.00 MHz 7 1,620 kHz
3 98.00 MHz 8 990 kHz
4 90.00 MHz 9 603 kHz
5 106.00 MHz 10 1,404 kHz
• FM Mute Level
Signal generator: 1 kHz, 40 kHz dev., FM modulated
Adjust so that an output signal appears.
Figure 9-2 ADJUSTMENT POINTS
MAIN PWB
ANTENNA
TERMINAL
T351
R331
CNP301
FE301
VR351
FM MUTE
LEVEL
AM IF
TP301
TP302
SO301
T302
T301
MW
TRACKING
T306
MW BAND
COVERAGE
T305
LW BAND
COVERAGE LW
TRACKING
Check Point Instrument
Connection
Display
Frequency
87.5 MHz 87.5 MHz 2.2 V ±0.7 V TP301
108 MHz 108 MHz 7.3 V ±1.0 V TP301
• Check FM VT
Signal generator: 1 kHz, 40 kHz dev., FM modulated
Preset No. LW
11 153 kHz
12 281 kHz
13 225 kHz
14 162 kHz
15 261 kHz

XL-520H,520E/CP-520,520E
– 10 –
Figure 10-2 Figure 10-3
1. This CD unit need adjustment as follow.
CD SECTION
Figure 10-4
CD Test Mode Adjustment Part Value/Adjusting Method Instrument Connection
Step 1 VR803 (Focus Offset) DC + 40 mV (FEI>VRO) FEI (R826) and VRO
(1-Pin of TP801)
Step 4 VR802 (Tracking Error Balance) *1 (See Fig. 10-2) TSO (3-Pin of TP801)
and VRO (1 Pin of TP801)
*1: Adjust to obtaiin vertically symmetrical waveform (Fig. 10-2) with respect toreference DC level. The reference level is VRO
(Approx DC 2.1V).
2. This CD unit have the following automatic adjustment function. Automatic adjustment item.
2-1: Focus Servo Gain (Fig. 10-3)
Focus Gain Adjustment is performed when disc is changed.
2-2: Tracking Servo Gain (Fig. 10-4)
Tracking Gain Adjustment is performed when disc is changed and disc is playbacked.
TSO
VRO 1SYMMETRICAL
UP AND DOWN
FET
FSO
1
2
TSO
TS2O
1
2
Figure 10-1 ADJUSTMENT POINTS
VR802 VR803 TP801
TRACKING
ERROR
BALANCE
FOCUS
OFFSET T
S
O
N
CV
R
O
321
321
CD SERVO PWB

– 11 –
XL-520H,520E/CP-520,520E
TEST MODE
TheTestModeforthis microcomputerhastwovariations,namely"regularTest Mode"foradjustmentandmeasurementand"self-
diagnosis Test Mode" for self-judgment in final inspection of products.
1. Entering the Test Mode
To enter the each Test Mode, press the POWER key, holding down the following two keys in the regular standby mode (power
off state). In this case only the main unit keys are valid. The Test Mode is not set even when the remote controller POWER
key is turned on.
[Regular Test Mode] [Holding Down Keys]
1. CD Test Mode (TEST 1)………………………… Stop + Play
2. Tuner Test Mode (TEST 3)……………………… Memory/Set + Band Selector
3. Electronic volume Test Mode (TEST 4)…………Stop + Extra Bass/Equalizer Mode
4. Timer Test Mode (TEST 5)……………………… Fast Forward + Function Selector
5. LCD Test Mode (TEST 6)…………………………Memory/Set + Function Selector
[Self-diagnosis Test Mode]
1. Key input diagnosis TEST Mode (TESTA)………Play + Record Pause
2. Step 2 Mode
When the PLAY key is pressed in the mode above, the laser lighting is turned on. In this state the laser is only turned on,
and other operations are not performed.
2. CD Test Mode (TEST 1)
1. Step 1 Mode
When the CD Test Mode is set, the following display lights, and the CD pickup slides to the innermost periphery.
After lighting for 1.5 sec
When the following operation key is pressed in this state, the following operation is performed.
"POWER" ................The Test Mode is set to off, power is turned off, and the mode is changed to the regular standby mode.
"FF/FWD" ................After the pickup returns once to the innermost periphery, the pickup slides to the external periphery while
.................................this key is held down.
"REW/REV" .............After the pickup returns once to the innermost periphery, the pickup slides to the internal periphery while
.................................this key is held down. However, input is invalid if PU-IN is on.
"PLAY".....................Shift to Step 2
"STOP" ....................Invalid
* In case of mode entry the pickup is moved to the internal periphery. At this time entry of any key other than POWER key is
disabled until shift of pickup to the internal periphery is completed. If PU-IN SW ON cannot be detected while waiting for 10
seconds, the slide motor is stopped, the following error is displayed, and entry of any key other than POWER key is disabled.

XL-520H,520E/CP-520,520E
– 12 –
When the following operation key is pressed in this state, the following operation is performed.
"POWER" ................The Test Mode is set to off, power is turned off, and the mode is changed to the regular standby mode.
"FF/FWD" ................While this key is held down, the pickup slides to the external periphery.
"REW/REV" .............While this key is held down, the pickup slides to the internal periphery. However, if PU-IN is on, entry is
.................................invalid.
"PLAY".....................Shift to Step 3
"STOP" ....................Return to Step 1
3. Step 3 Mode
Whilethelaserislighting,thefocusservoisturnedon,andfocussearchisperformed. Iffocusingfailureoccurs,focussearch
is repeated until focusing is attained.
When the following operation keys are pressed in this state, the following operations are performed.
"POWER" ................The Test Mode is set to off, power is turned off, and the mode is changed to the regular standby mode.
"FF/FWD" ................While this key is held down, the pickup slides to the external periphery.
"REW/REV" .............While this key is held down, the pickup slides to the internal periphery. However, if PU-IN is on, entry is
.................................invalid.
"PLAY".....................If focusing has been attained, the process proceeds to Step 4. Unless focusing has been attained,
.................................reception is inhibited.
"STOP" ....................Return to Step 1
4. Step 4 Mode
The disc is rotated and CLV is locked while the tracking servo is off.
The time display indicates always "0:00".
When the following operation keys are pressed in this state, thefollowing operations are performed.
"POWER" ................The Test Mode is set to off, power is turned off, and the mode is changed to the regular standby mode.
"FF/FWD" ................While this key is held down, the pickup slides to the external periphery.
"REW/REV" .............While this key is pressed, the pickup slides to the internal periphery. However, if PU-IN is on, entry is
.................................invalid.
"PLAY".....................Shift to Step 5
"STOP" ....................Return to Step 1
5. Step 5 Mode
The tracking servo is turned on, groove is traced, mute is set to off, and playback is started. Even when the outermost
periphery of disc is reached in playback mode, it does not stop. The LCD display indicates playback lapse time as in case
of regular CD playback.

– 13 –
XL-520H,520E/CP-520,520E
When the following operation keys are pressed in this state, the following operations are performed.
"POWER" ................The Test Mode is set to off, power is turned off, and the mode is changed to the regular standby mode.
"FF/FWD" ................While this key is held down, the pickup slides to the external periphery.
"REW/REV" .............While this key is held down, the pickup slides to the internal periphery. However, if PU-IN is on, entry is
.................................invalid.
"PLAY".....................Invalid
"STOP" ....................Return to Step 1
Other cautions
• While the CD lid OPEN is detected, entry into any step later than Step 2 is disabled. If CD lid OPEN is detected in any step
higher than Step 2, return to Step 1 is done.
• TOC IL is not performed in the Test Mode.
• The key operation, excepting that specified above, is the same as that of regular operation (CD). Only the FUNCTION key
is input-inhibited.
• Syncro REC with REC key input is also invalid in this mode.
3. Tuner Test Mode (TEST 3)
1. Outline of tuner (radio) Test Mode
The tuner Test Mode is intended to store adjustment/measurement frequency in the preset memory CH without frequency
adjustment by the adjusting personnel when the tuner is adjusted in the production line.
2. Details of tuner Test Mode
When power is turned on with the POWER key while the MEMORY/SET key and BAND key are held down together in
POWER OFF state, the frequency for adjustment/measurement of specific destination specified by the AREA terminal is
preset-stored in the preset memory CH (the frequency to be preset-stored for specific destination is explained in the Item
C). When the tuner Test Mode is started up, it is started with FM. FM is FM STEREO only.
WhentheREWkeyispressedwhilethepresetmemoryCHis1CH,thehighestCHisfoundasincaseofregularmode. When
the FF key is pressed while the preset memory CH is highest CH, 1CH is found.
The RADIO (TUNER) BAND key (or TUNER/BAND key on the remote controller) is valid.
Asincaseofregularmode,selectionofband,FMMONO/STEREOmodeisenabledbypressingtheRADIO(TUNER)BAND
(or TUNER/BAND ) key.
Exiting the tuner Test Mode, When the destruction data is stored in the memory in the tuner Test Mode, AC supply is
interrupted in the Test Mode and the AC supply is recovered, all the memory is cleared with the destruction data in case of
start-up.
(Countermeasures so that the Test Mode memory does not remain when AC supply is restored after power supply failure
occurred once in the Test Mode.) The memory is not cleared when AC supply is turned off after POWER OFF.
FUNCTIONkey is not accepted in the tuner test mode. In case of exit from the tuner Test Mode through the backup mode
upon occurrence of power failure the frequency data stored in the preset memory for adjustment/measurement is erased.
(As a result the preset memory CH becomes empty.)
The display indication is the same as that in case of regular operation.
The following display lights for one second when the tuner TEST mode is turned on
B

XL-520H,520E/CP-520,520E
– 14 –
Test Mode operation specification
3. Preset frequencies for various destinations (random preset memory)
BAND (CH)
1 FM 87.5MHz
2 FM 108.0MHz
3 FM 98.0MHz
4 FM 90.0MHz
5 FM 106.0MHz
6 MW 522 kHz
7 MW 1620 kHz
8 MW 990 kHz
9 MW 603 kHz
10 MW 1404 kHz
• The unit used in the table above is Hz. K represents 1,000 times, and M represents 1,000,000 times.
• The hatched data shown in the table are not stored in the memory.
• FM is stereo mode.
Note: Keys which are effective in Test Mode
• Main unit keys: VOLUME UP/DOWN, BAND, TUNING UP, POWER, MEMORY, CLEAR,
PRESET UP/DOWN
• Remote controller keys: VOL UP/DOWN, BAND, TUNING UP/DOWN, POWER, MEMORY, CLEAR, PRESET UP/DOWN
4. Electronic volume Test Mode (TEST 4)

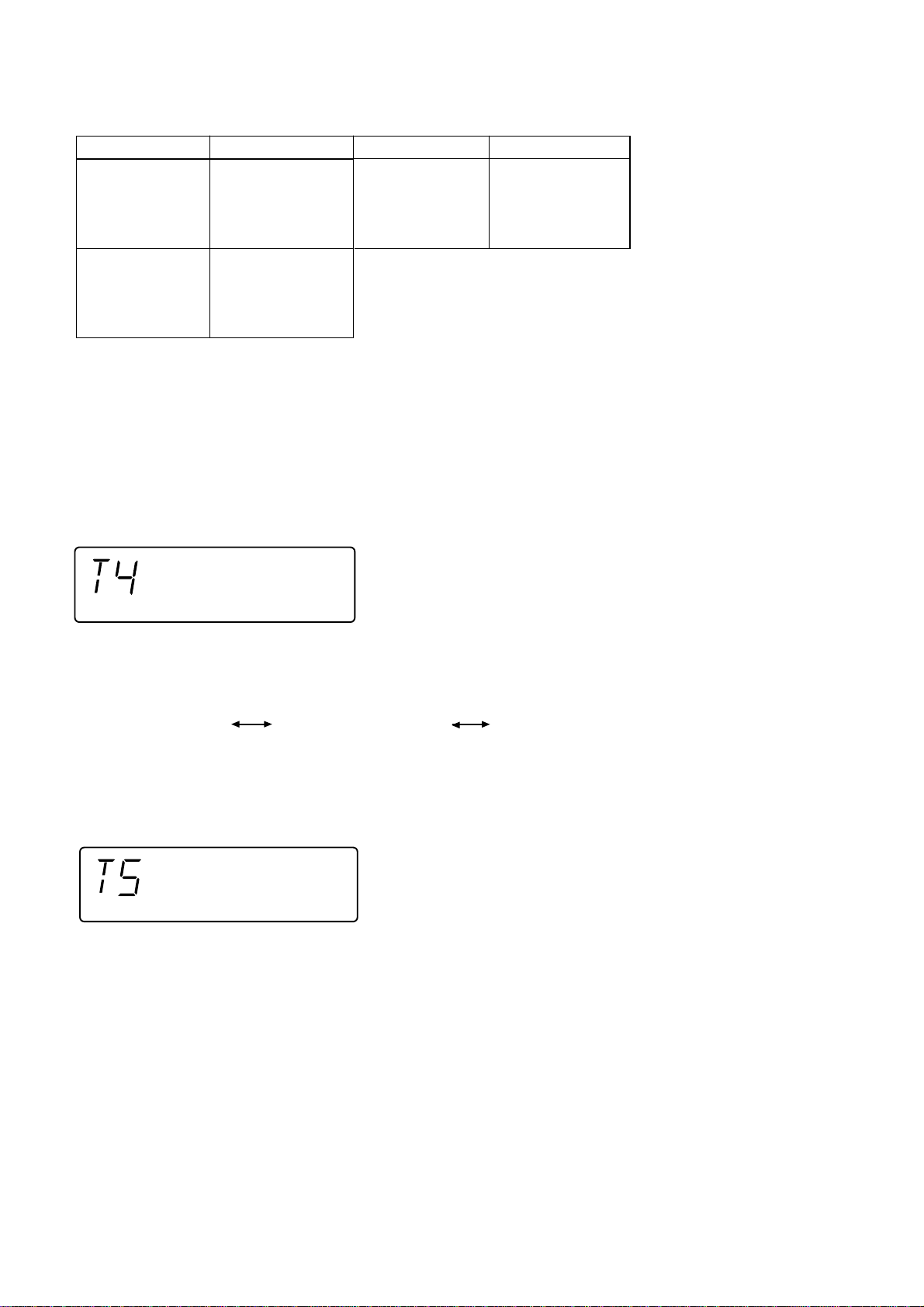

After the Test Mode is set, the following display lights for one second.
11 LW 522 kHz
12 LW 1620 kHz
13 LW 990 kHz
14 LW 603 kHz
15 LW 1404 kHz
When this mode has been set, -14dB (STEP17) is set, the preset equalizer is set to FLAT (EQ-3), the SRS mode is set to OFF,
and the start-up function is set to Tape.
1. The display is the same as that indicated in case of regular operation excepting when Test Mode is set.
2.ThevolumecontrolwiththeVolumeUP/DOWNkeyisonlythefollowing3steps,differingfromthevolumecontrolintheregular
operation mode.
Volume — ∞(STEP 0) Volume — 14dB (STEP 17) Volume — 0 (STEP 24)
3. The preset equalizer and SRS are switched if key operation is performed.
5. Timer Test Mode (TEST 5)
When the Test Mode is set, the following display lights for one second.
The current time and timer time are set in the following procedure, and timer playback is performed.
1.Thepresenttimeissetto1:00,thetimerissettoONtime1:02,OFFtime1:12,FunctionissettoTape,VolumeissettoSTEP8.
One minute is counted in increments of second, and timer playback is performed. One step of Fade-in/out in this mode is
performed for 0.5 sec.
The display is the same as that appears in the regular timer operation.
2.Aftercompletionoftimerplaybacktest"TEST-5"indication(whichappearswhenthemodeisset)appearsagainandStandby
state is set. PLAY key entry is waited. If an entry is detected, the SLEEP timer is set to 2 minutes, and Function is set to Tape,
so that playback is started at once. Volume is set to STEP8, and 10 seconds are counted down in decrements of second. One
step of Fade-out is 0.5 sec.
The display is the same as that appears in the regular sleep playback mode.
3. After completion of SLEEP test, the Test Mode is turned off, and regular standby mode is set, so that the Test Mode ends.
6. LCD Test Mode (TEST 6)
When the LCD Test Mode is set, all the LCD segments light.

– 15 –
XL-520H,520E/CP-520,520E
In this Test Mode checking as to whether all the main unit keys can be detected is performed. Accordingly, when this mode
is set, checking is performed so as to examine whether the POWER key was pressed last after all the following keys were
pressed. If the result is OK, the following OK is displayed. If any one of keys was not pressed, an error is indicated. When the
POWER key is pressed, exit from the mode is made irrespective of whether the termination is normal or abnormal, and the
standby mode is set.
All the models using this microcomputer do not have the same keys. The entry of the following keys is detected depending on
the combination of simultaneously pressed keys when this mode is set. Key pressing order is not fixed. Pressing of all keys
must be detected.
1. In case of "SRS" + "RDS PTY-TP"
Since the model does not have RDS and SRS, all the keys to be detected are the following 15 keys.
PLAY, VOL , VOL , BAND, G-EQ, FUNCTION, MEMORY/SET, REC PAUSE, REW/REV, FF/FWD, STOP, SRS
RDS ASPM, RDS DISPLAY, RDS PTY-TP
OK/NG indication of test result must be as follows.
<
<
NG indication OK indication
7. Key input diagnosis Test Mode (TEST A)
When the Test Mode is set, the following display appears.

XL-520H,520E/CP-520,520E
– 16 –
Figure 16 BLOCK DIAGRAM (1/4)
1
4
9
10
11
12
13
14
15
17
19
21
23
25 31 32 34 35 36 38 39 41 42 45 4640 44 47 48
51
52
53
54
55
56
57
62
5
321
987654321
18 17 16 15 14 13 12 11 10
28 29 30 31 32 33 34 35 36
19 20 21 22 23 24 25 26 27
8
7
6
5
4
3
2
1
88 77 66
55
443322
11
7
6
5
4
3
2
1
7766
55
443322
11
6
5
4
3
2
1
6
5
4
3
2
1
6
5
4
3
2
19
10
11
12
13
14
15161718192021222324
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39 40 41 42 43 44 45 46 47 48
8
7
6
5
4
3
2
1
321
FSO
M+12V
µ-CON +5V
~
~
~
~~
~
IX0189AW
IC701
~
PU-IN
BUS3
~
~~~
~
7493
SEG26
SEG7
COM0
COM3
DI CE
LCD
LCD701
LID-SW
BIAS
B-CAN
REC
MOT
SOL
FW701
LED704 - LED712
SW710-SW714
SW718
SW702-SW707
KEY
RX701
RESET
Q701
SWITCHING
Q702
Q703
SWTCHING
A 12V
LED+B
P CONT
SWITCHING
SWITCHING
Q707
Q706
(S+6.2VLINE)
SL–
SL+
TR+
TR–
TS2O
IC804
CD STB
DMEO
SP+
SP–
FO+
FO–
GAIN4
LEVEL
SHIFT
LEVEL
SHIFT
LEVEL
SHIFT LEVEL SHIFT
VCC
++ –– –– ++
––
++ ––
++
STAND
-BY
T.S.D
GND
Reg5V
VCC
GND
GAIN1
NC
NC
+
–
+
–
–
+
–
+
+–
–
+–
+
ACTUATOR
TR–
FO–
FO+
TR+
C4A
C2A C3A
VR1A
VCC
LD
MON
GND
E
A
B
F
C
1/2VCC
BI801
CNS801
TR–
GND
FO–
FO+
TR+
BI802
CNS802
1/2VCC
+5V
C
F
B
A
E
1/2V
+5V
+
–
+
–
M
M
M801
SLED
M802
SPINDLE
SW801
PU-IN
BI803
CNP803 CNS803
GND
PU-IN
SL–
SL+
SP–
SP+
Q801
SWTCHING
+5V
IC801
BLANCE
VR802
ERROR
TRACKING
FOCUS
OFFSET
VR803
TEST POINT
T
FW702
CD+5V
FMSO
Q704 Q705
PD
VR
LD
VRO TSO
SD R-MUTE
TPO
REMOCON
RESET
REMOCON
SYS STOP
TR–
TR+
FO+
FO–
GND
PD
VR
LD
GND
PU-INSL–
SL+
SP–
SP+
X702
DFCT
FMSO
FMSM
FMSP
THLD
TS2O
TS2N
TS2P
TS1N
TS1P
TSO
TEL1
TEL2
TSN
RFT
RFN
TPI
TNI
TNO
FNI
FPI
LDO
MDI
GND
VCC
SEL
DMEO
DMEN
DMEP
OSCI
COSC
FSO
FSN
FHLD
FEL1
FEL2
FEI
FEN
SBAD
FEO
FEP
DFIN
RFRP
2VRO
VRO
RFI
RFO
F.P
20
VSM
BUCK CEE CD RES DATA CLE STEREO SYS STOP CD+B
P-CONT
P-MUTE RESET
CAM SW
POWER
KEY1
VREF
MMOD
XO
XI
VSS
OSC1
OSC2
VLC3
X701
PD
LDO

– 17 –
XL-520H,520E/CP-520,520E
Figure 17 BLOCK DIAGRAM (2/4)
9
0
1
2
3
4
8
7
6
5
4
3
2
1
321
7
12
13
14
15
16
17
18
19
21
2526272830323334363740
41
42
43
44
47
48
49
50
51
52
53
54
58
59
65 67 7775 78 79 80
6
2
1
3
2
1
9
8
7
6
5
4
3
2
1
14
13
12
11
10
9
20
10
19
18
17
16
15
8
7
6
5
4
3
2
1
7654321
7654321
7654321
8
01
FOCUS
OFFSET
VR803
TEST POINT
TP801
DIGITAL
X801
J801
DIGITAL
OUT TO
MD/DAT
PDCNT
VDDA
GNDA
RFI
RFRP
VREF
SBAD
TEOF
TESH
FEI
FKIC
FCSI
SEL
2VREF
CCE
RST
BUCK
BUS3
BUS2
BUS1
BUS0
GNDD
VDDD
GNDA
RO
LO
GNDA
GNDX
XO
XI
VDDX
TESTX
GNDD
DA CONV
OUT
PLL
STATUS
AUDIO OUT
CLV SERVO
TMAX DET
STATUS
CODE
SUB
CLOCK
EFM
CORRECT
RAM
Q DATA INTERFACE
CD BUS
16K RAM
ADRESS
A/D CONVERTOR
SERVO
STATUS
GENERATOR
TIMING
FOCUS
TRACKING
SERVO
CONTROL
CD+5V
FMFB
TGUH1
DMPC
DMFC
FMON
TKIC
TGUL
TEL1 TEL2
GNDD
VDDD
D-GND
CD+5V
FW702
SW701
CD EJECT
5V
(S+6.2V)
REGULATOR
Q861
TO MAIN PWB
CNS603
M 12V
D GND
VDI
DI
CE
CL
DO
VCE
VCL
CNS602
REC
R-MUTE
P CONT
P MUTE
S+6.2V
A GND
M GND
A 12V
SD
BIAS
B-CAN
FM ST
CD+B
L-CH
R-CH
SWTCHING
µ-CON5V
Q906
TAPE MOTOR
DRIVER SWTCHING
Q905
M-12V
Q902
SWTCHING
SWTCHING
SOLENOID
DRIVER
CNP901
CNS901
BI901
SW902
CAM
PREVENTION
RECORD
SW901
PH901 FW901
–
+
SOLENOID
M
M901
TAPE
BUS0
BUS1
BUS2
BUS3
BUCK
CCE
RESET
G-GND
A-GND
CD R-CH
CD L-CH
Q904
P.F
CAM SW
Q901
Q903
VRO TSO
SOL901
MOT
SOL
RUN PLS
IC802
PU IN
FHLD
FEL1
FEL2
FEI
FEN
SBAD
FEO
FEP
DFIN
RFRP
2VRO
VRO
RFI
RFO

XL-520H,520E/CP-520,520E
– 18 –
Figure 18 BLOCK DIAGRAM (3/4)
MW/LW ANT.
T301
T302 FM MUTE LEVEL
VR351
AM OSC OUT
SWITCHING
R-MUTE
X351
MW/LW OSC.
T305
T306
CF351
T351
AM IF
CF352
+5V
VCC
AM MIX OUT
FM IF DET./
FM MPX./AM IF
IC303
LA1832
(AM/FM) MO/ST
L-CH OUT
R-CH OUT
MPX VCO
MPX IN
FM/AM OUT
AM RF IN
AM OSC
OUT
AM OSC
IN
AM MIX OUT
FM IF IN
SD
GND
AM IF IN
STEREO
FM DET VCC
IF OUT
PHASE
PHASE
Q351
AM IF IN
FW301
S0007WFM FRONT END
PLL CONTROLLER
LC72131
AUDIO
+12V
VOLTAGE
REGULATOR
ZD351
AM
LOOP
ANTENNA
CNP301
SO301
ANTENNA
TERMINAL
CF302
FM +B
IC302
VT
D GND
X352
4.5MHz
X OUT
X IN
AOUT
DO
CL
DI
CE
FM
FM
FM IN
AM IN
MO/ST IF REQ IF IN
VSS
AUDIO +12V
VOLTAGE
REGULATOR
FM+B
+5V
A-GND
Q360
RE
C
TAP
E
BIAS OSC.
SWITCHING
NF
ALC
L-IN
L-OUT
REC
RECORD/PLAYBAK
HEAD
R-CH
L-CH
ERASE HEAD
BEAT CANCEL
SWITCHING
B-CAN
REC
SWITCHING
Q172
SWITCHING
Q171
REC
REC MUTE
A-12V
SWITCHING
R-CH
L-CH
R-OUT
IC102
150K
150K
MUTE
NF
R-IN
Q152
SWITCHING
Q151
L151
Q153
IC101
BA3126N
AUDIO +12V
SWITCHING
Q101-Q104 Q105
Q106
Q107
A-12V
REC BIAS
CONT
Q154
Q155
REC SW
P/B SW
CONT
P/B SW
REC SW
+
–
–
+
ALC
CE
23
12 4
56789
10 12
13
14
15
16
171820
21
24
2
1
43 51
8
11
10
9
7
6
5
431
12
15
16
20
21
22
9
8
7
6
5
4
3
2
8
10
2
7
12
6 11
9
5
31
1

– 19 –
XL-520H,520E/CP-520,520E
Figure 19 BLOCK DIAGRAM (4/4)
R-MUTE
A
UDIO +12V
SD
STEREO
IC601
TAPE
VDD
RVROUT
LVROUT
Vref
RVref
LVref
LTEST
RTEST
AUDIO +12V
AUDIO PROCESSOR
LC75394E
IC401
G-EQ CONTROL
VOL CONTROL
FUNCTION CONTROL
VOLTAGE
REGULATOR
J601
HEADPHONES
AC SOCKET
230V,50Hz
POWER
TRANSFORMER
T651
T.F
F651
T2.5A
L 250V
D651 - D654
F652
T1.25A
L 250V
D656 - D659
BIAS B-CAN REC CD+B P MUTE CD L CD R A-GND M-GND D+5V M 12V
D-GND PRE DI
CL CQCK TUN DO TUN CE DI COIN
TO CD SERVO PWB
CNP603
VOLTAGE
REGULATOR
MECH +12V
AUDIO +12V
VOLTAGE
REGULATOR
Q604
Q605
CD+6.2V
P-CONT
VCC
STAND-BY
R-IN
MUTE Q601
Q602
+
–
SO601
R-CH X-BASS/GRAPHIC EQUALIZER
RINVIN2
RVRIN
RTOUT
RF3C3 RF3C2 RF3C1 RF2C3
L-CH X-BASS/GRAPHIC EQUALIZER
LSELO
VSS
NC
NC
RSELO
CD L
CD
L-CH
R-CH
SO401
VIDEO/
AUX
TUNER
RF2C2 RF2C1
R3
L3
CD R
TUN L
TUN R
TAPE RTAPE L
REC RREC L
TAPE L TAPE R
CL
TUNER
DODI
CD+B
L1
L2
R2
R1
CL
D1
CE
NC
NC
AVSS
VSS
LINVIN2
LTOUT
LVRIN
L-IN
GND
L-CH OUT
R-CH OUT
Q609
Q603
Q608
Q606
Q607
R-MUTE A 12V
P CONT
FM ST
SD
PRE CL PRE CE
LF2C1 LF2C2 LF2C3 LF3C1 LF3C2 LF3C3
CE
58
55
54
59
63
56
50
57
141312
11
10
915 876 910
8754321654321
9
14 35
13 2
5
12 7
3
30
19
17 32 16 33
21
28
23
24
25
31
29
27
26
22
20
18
5251 53
6061
62
45
44
43
42
4140
75
4
689
13
CNP602

XL-520H,520E/CP-520,520E
– 20 –
Figure 20 SCHEMATIC DIAGRAM (1/4)
A
B
C
D
E
F
G
H
123456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 29.
22 21 20 19 18 17 16 15 14 13 12
1110
98765
4321
24 23 22 21 20 19 18 17 16 15 14 13
121110
9
87
654
321
2
1
8765 4321
13
5
9
12
7
6
11
8
10
2
9
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B +B
+B
+B
+B
+B
+B
+B
+B
+B
9.35V
0.1V
0.82V
0.716V
(0V)
0V(0V)
0V(0V)
0V(0V)
0V(0V)
0.71V
(0V)
0.72V(0V)
0V(0V)
0V(0V)
CD SIGNAL
RECORD SIGNAL
PLAYBACK SIGNAL
AM SIGNAL
FM SIGNAL
SWITCHING FM MUTE
LEVEL
3
2
1
SWITCHING
SWITCHING
3
2
1
3
2
1
MW +B
2
SWITCHING
VOLTAGE
REGULATOR
SWITCHING
32 1
REC MUTE
SWITCHING
32
1
REC MUTE
REC SW
P/B SW
CONT
P/B SW
REC SW
SWITCHING
SWITCHING
3
2
1
BEAT CANCEL
SWITCHING BEAT CANCEL
SWITCHING
BIAS OSC.
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
AM IF
FM AFC
AM OSC IN
AM OSC OUTFM IF IN
REG AM MIX OUT
AM RF IN
GND AM IF IN
SD AM LOW CUT
FM/AM OUT
STEREO FM DET VCC MPX VCO
MPX IN
IF OUT PHASE PHASE (AM/FM) MO/ST
L-CH OUT
R-CH OUT
VSM
L.P.F.
MW ANT.
LW ANT.
MW OSC.
LW OSC.
MW/LW
LOOP
ANTENNA
BALUN
FM 75ohms
ANTENNA
TERMINAL
FM FRONT END
ANT.
GND GND
VCC
VT
F OUT
GND
IF OUT
VSS
AOUT
X OUT
AIN
PD
VDD
FM IN
AM IN
NC
MO/ST SW IF REQ IF IN DO FM
MW
FM CL DI CE NC X IN
3
1
TAPE L
TAPE R
REC R
REC L
FM+B
+
–
–
+
ALC
MUTE
150K
150K
3
2
1
32 1
BOTTOM
GND
MECHA
GND
RECORD/PLAYBACK
HEAD
ERASE HEAD
R-CH
L-CH
VT
MAIN PWB-A1
R335
100K
C328
0.022
VR351
10K(B)
Q155
KTC3199GR
Q172
KRC102M
R121
4.7K
C370
1/50
VD301-1
KV1236Z23F
VD301-2
KV1236Z23F
C337
0.022
CNP301
SO301
IC101
BA3126N
HEAD SELECTOR
R138
330
CNS101 CNP101
C645
330P
R113
3.3K
R114
3.3K
R141
330
C131
820P
(BK)
C122
82P
R139
2.7K
C121
82P
R370
270
R120
100
R119
100
R112
1K
R111
1K
R361
12K
R362
12K
R387
5.6K
C374 0.018
C373
0.018
C371
1/50
D104
1SS133
R132
4.7K
Q106
KTC3199GR
R155
56
R157
150
R156
150
R103
120
R137
4.7K
R136
10K
D105
1SS133
D106
1SS133
Q171
KRA102M
R140
10K
C101
470P
C102
470P
R102
1K
R101
1K
Q107
KRC104M
R104
120
R153
10K
R154
10K
C118 0.022
R106
150K
R134
100K
C126
22/16
R133
1K
R131
4.7K
Q105
KTC3199GR
R127
3.9K
R129
3.3K
R105
150K
C109
0.015
(Ra)
R107
10K R109
3.9K
C119
0.01
C107
47/16 C111
10/16
C112
10/16
C110
0.015(Ra)
R108
10K
IC102
BA3311L
REC./P.B. EQUALI ZER
R130
3.3K
R135
680K
C125
100/25
R110
3.9K R128
3.9K
C120
0.01
D102
1SS133
D101
1SS133
C105
270P
C104
330P
C123
2.2/50
C124
47/16
C108
47/16
C106
270P
C103
330P
C152
0.001
C151
180P
R160
5.6K
R159
5.6K
Q154 KTC3199GR
C156
0.022
C153
0.0039
(ML)
C154
0.027
(ML)
R151
47K R152 100K
Q153
KRC104M
C155 47/16
Q152
KTA1266GR
Q151
2SC2001-K
L151
330µH
R116
15K
C113
4.7/25
C114
4.7/25
R126
5.6K
C130
4.7/25
C129
4.7/25
R123
4.7K
R124
4.7K
R122
4.7K
R117
22K
R118
22K
Q103
KTC3199GR
Q101
KTC3199GR
Q104
KTC3199GR
Q102
KTC3199GR
C117
10/16 R125
100K
C116
0.0022
C115
0.0022
R115
15K
L341
R392
390
R391
390
L352
100µH
L342
2.2µH
L351
100µH
IC302
LC72131 PLL(TUNER)
IC303
LA1832
FM IF DET./
FM MPX./AMIF
C376
220P
C377
220P C378 220P C379 220P
R371
1K
R372
1K
R373
1K
R374
1K
C383 0.022
R376
10K
C386
330P
R386
330
R393
1K
C323
0.022
R351
5.6K
R395
47K
X351
Q351
KRC104M
CF302
R397
1K
Q362
KRA107M
X352
4.5MHz
C384
0.001
C382
15P(CH)
C381
12P(CH)
R377
5.6K
R359
1.8K
C380
1/50
C392
0.001
R365
10K
R360
4.7K
R382
330 R381
10K
C393
1/50
R380
1.5K
R379
2.2K
C394
47/16
C385
0.01
C387
0.022
C397
0.022
R384
12K
R383
5.6K R385
5.6K
C391
47/16
Q360
KTA1266GR
L353
1mH
C342 0.022
R358
8.2K
CF351
C364
10/16
C356 0.001
R363
3.3K
R364
3.3K
C395
0.022
C396
100/10
ZD351
UZ5.1BSB
C357
2.2/50
C358
1/50
R352
1K
C398
100/10
C352
10/16
R355
3.3K
R353
270
C355
22P
C399 0.022
C354 0.022
C353
0.022
C350
0.022
C344
33P
C351
0.022
CF352
T351
R357
470K
R356
1K
R350
2.7K
C372
1/50
C368 1/50
C367
1/50
C362
3.3/50
C369 56P
C366
0.001
C365
0.022
C363
0.022
L354
C361
0.022
C343
33P
C360 0.022
FE301
S0007AW
R348
680
C346
0.022
C347
0.022
C345
0.022
C341
0.022
R347
6.8K
R349
33
Q301 2SC380-O
CF301
R346
330
R343
330
R345
4.7K
R344
680
R369
120
R336
4.7K
C340
0.001
C301
0.001
D303
1SS133
D304
1SS133
R331
5.6K
Q302
KTC3199GR
C339
22P
(CH)
C322
10P
(CH)
C331
0.047 C332
0.022 C333
0.022
C330
8.2P
(UJ)
R319
100K
T301
T302
R334
5.6K
Q304
KTC3199GR
C324
27P
(UJ) C325
220P
C329
33P(CH)
C334
18P
(UJ) C327
680P
C326
18P
(CH)
C336
470P
C335
18P
(CH)
R324
100K
R337
470
R333
5.6K
R332
100K
R323
68K
Q303
KTC3199GR
T306
T305
C338
0.001
C302
0.001
D302
1SS133
D301
1SS133
