PARTS CATALOG
MULTI-TOOL SYSTEM
M230 EMC
M230 EMC

M230 EMC

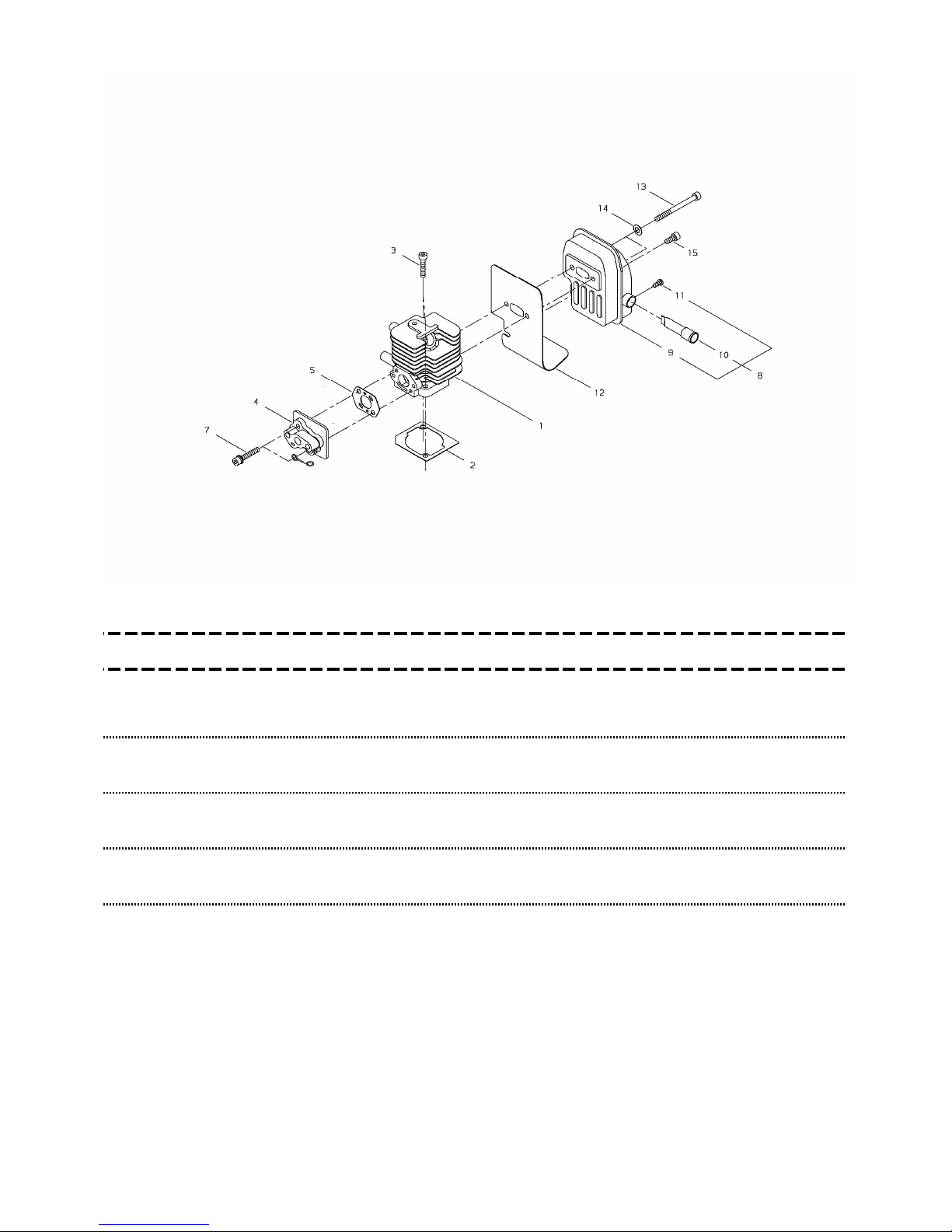

1. CYLINDER, MUFFLER
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 20016-12112 1 CYLINDER
2 20016-12120 1
GASKET
3 01020-05250 2
BOLT
M5×25
4 20016-12213 1
INSULATOR
5 20016-12222 1
GASKET
7 11022-05300 2
BOLT SW
M5×30
8 70135-15100 1
MUFFLER SUB ASSY
9・70135-15110 1
MUFFLER
10 ・70103-15150 1
SPARK ARRESTER
11 ・01270-03062 1
SCREW TAPPING
12 20016-15122 1
GASKET
13 01020-05500 2
BOLT
M5×55
14 01610-05080 2
WASHER
15 01020-05120 1
BOLT
M5*12 M5×12
- 1 -

M230 EMC

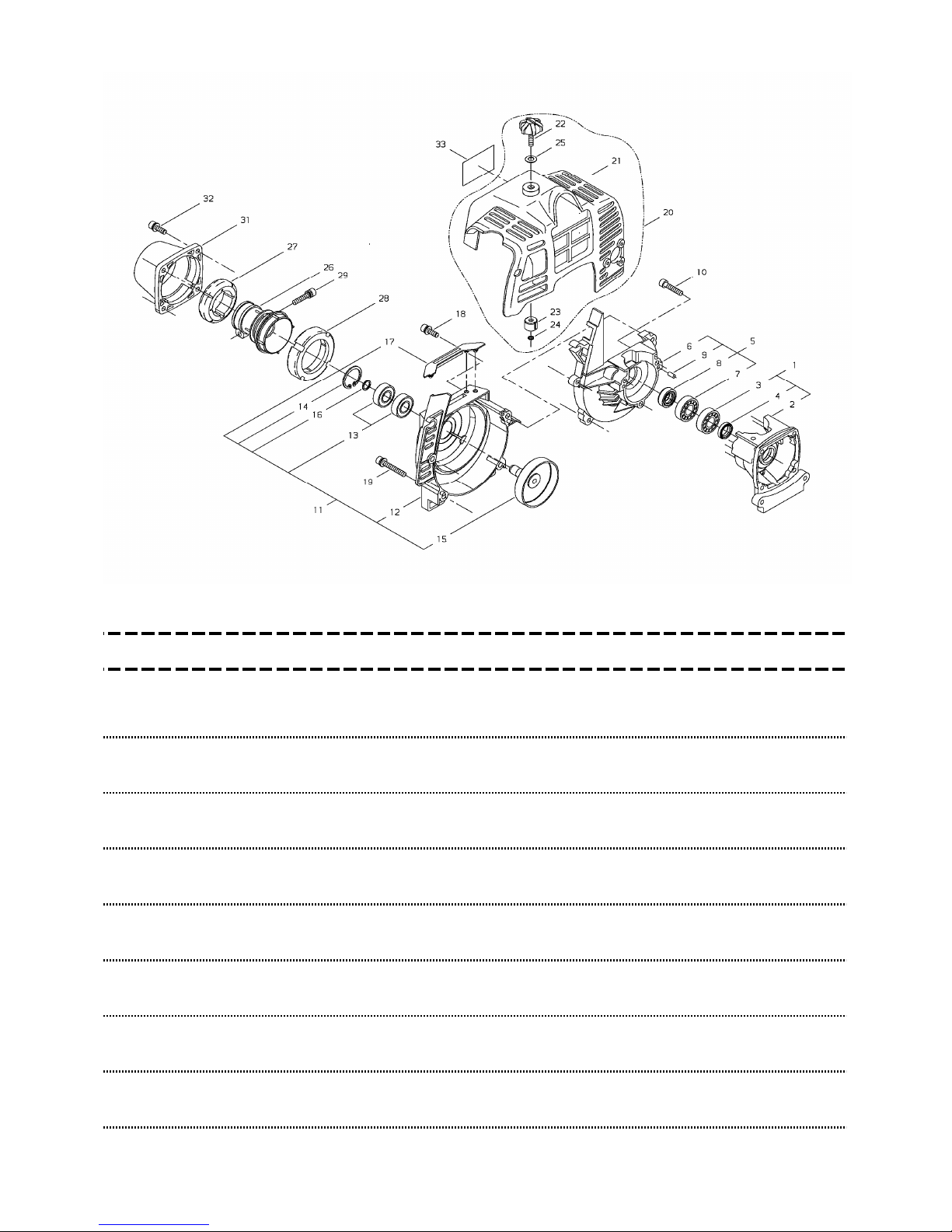

2. CASECRANK
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 62064-21010 1 CRANK CASE S COMP
2・20016-21111 1
CRANK CASE S
3・12900-60010 1
BALL BEARING
6001 C3
4・22150-21250 1
SEAL,OIL
5 62064-21020 1
CRANK CASE M COMP
6・20016-21120 1
CRANK CASE M
7・12900-60010 1
BALL BEARING
6001 C3
8・20000-21211 1
OIL SEAL
9・12492-40080 2
ROLLER
10 01020-05250 3
BOLT
M5×25
11 62010-31011 1
FAN COVER COMP
12 ・70140-31113 1
FAN COVER
13 ・02002-06000 2
BALL BEARING
6000ZZ
14 ・02432-26120 1
SNAP RING
φ26
15 ・20087-31210 1
CLUTCH DRUM
16 ・22000-13320 1
SNAP RING
17 ・70140-31130 1
CUSHION
18 11022-05160 2
BOLT SPW
M5×16
19 11022-05450 2
BOLT SPW
M5×45
20 62010-32010 1
CYLINDER COVER ASSY
21 ・70140-32111 1
CYLINDER COVER
22 ・20018-31251 1
KNOB
23 ・20018-31260 1
INSULATOR
24 ・20018-31270 1
CLIP
25 ・20024-81790 1
CONE WASHER
26 20018-31411 1
JOINT
- 2 -

M230 EMC
2. CASECRANK
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
27 20018-31420 1 FRONT CUSHION
28 20018-31430 1
REAR CUSHION
29 11023-05250 1
BOLT SW
M5×25
31 70135-31470 1
CAP
32 11022-05160 4
BOLT SPW
M5×16
33 65000-91020 1
LABEL TRADE
- 3 -

M230 EMC
3. PISTON, CRANKSHAFT, CLUTCH
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
15 70234-98011 1 PISTON SET
16 ・70234-98310 1
PISTON SET
1・・ 20075-41111 1
PISTON
6・・ 37013-41240 2
THRUST WASHER
2・20000-41210 2
PISTON RING
3・20075-41310 1
PISTON PIN
4・70030-41320 2
RING,END
5・37013-41230 1
NEEDLE BEARING
14 ・20016-12120 1
GASKET
7 20016-42002 1
CRANK SHAFT ASSY
8 70140-51102 1
CLUTCH SHOE ASSY
9・70140-51113 2
CLUTCH SHOE
10 ・37013-51310 1
COIL SPRING
11 ・20087-51210 2
BOLT
12 ・20087-51231 2
SPRING PLATE
13 ・22100-71430 2
WASHER
- 4 -

M230 EMC

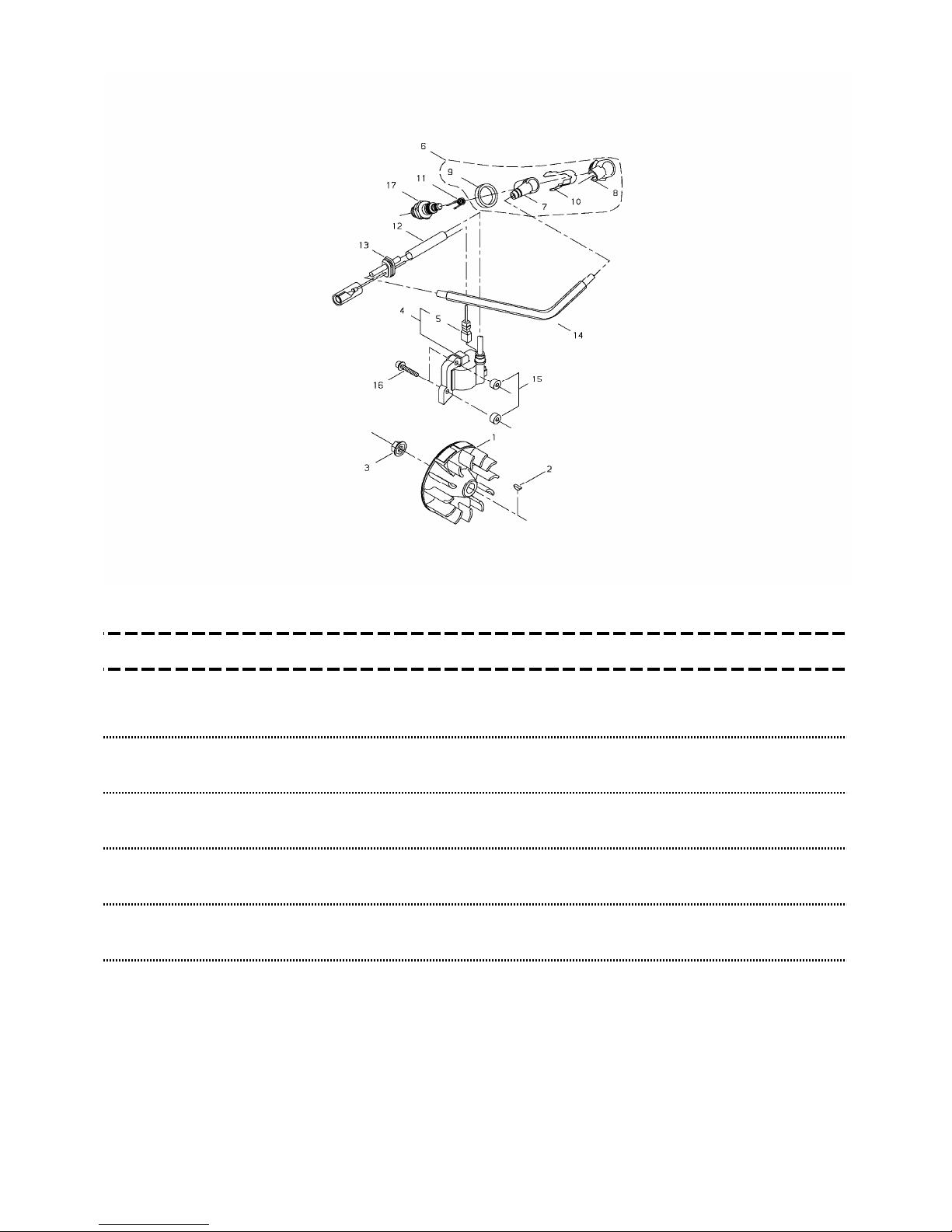

4. MAGNETO
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 20016-71200 1 ROTOR
2 02403-03100 1
KEY
3*10
3 20035-71220 1
NUT
4 20016-71601 1
COIL ASSY
5・20016-71641 1
CORD
6 70223-72200 1
PLUG CAP COMP
7・20010-72221 1
PLUG CAP
8・20000-72241 1
PLUG CAP COVER
9・20000-72250 1
COVER BAND
10 ・70180-72260 1
SHIELD
11 20000-72230 1
SPRING SPARK PLUG
12 20016-71651 1
TUBE
L50
13 20010-72110 1
GROMMET
14 20016-71660 1
TUBE
L125
15 70030-71620 2
INSULATOR
16 11024-04261 2
BOLT
M4×26
17 13000-13406 1
SPARK PLUG BMR6A
BMR6A
- 5 -

M230 EMC
5. RECOIL STARTER
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 72933-75900 1 RECOIL STARETR
2・70064-75110 1
STARTER CASE
3・72933-75120 1
REEL
4・70064-75130 1
RECOIL SPRING
5・72933-75140 1
DOG
6・70064-75150 1
WAVE WASHER
7・72933-75160 1
SCREW
8・72933-75170 1
RETAINER
9・72933-75180 1
WASHER
10 ・70064-75190 1
ROPE
11 ・32004-75150 1
KNOB
12 70064-75310 1
STARTER PULLEY
13 01511-08051 1
NUT
M8
14 11060-04122 4
BOLT ADHESIVE
M4×12
15 70117-75311 1
NAME PLATE
- 6 -

M230 EMC
6. CARBURETOR, CLEANER
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 65028-81010 1 CARBURETOR ASSY
2・6502881310 1
VALVE ASY THROTTLE
3・70064-81290 2
SCREW
M3*10
4・70097-81220 1
O-RING
5・62064-81310 1
MAIN JET
6・70097-81310 1
GASKET,PUMP
7・70097-81320 1
DIAPHRAGM
8・20016-81410 1
PUMP BODY COMP
9・・ 70030-81380 1
SCREEN
10 ・・ 20036-81440 1
VALVE
11 ・・ 20016-81270 1
SPRING
12 ・・ 20016-81450 1
SCREW
13 ・・ 22100-81250 1
PIN
14 ・・ 22100-81230 1
LEVER, METERING
15 ・37013-81310 1
DIAPHRAGM
16 ・20016-81280 1
GASKET
17 ・20016-81420 1
PUMP BASE COMP
18 ・20016-81510 1
PUMP COVER
19 ・20036-81670 1
PRIMER PUMP
20 ・20016-81140 4
SCREW
21 ・20016-81250 1
O RING
22 20016-81530 1
GASKET
23 70140-81710 1
CLEANER BODY COMP
24 60023-98031 1
FILTER
25 70140-81760 1
CLEANER COVER
26 20115-81780 1
KNOB CLEANER COVER
- 7 -

M230 EMC
6. CARBURETOR, CLEANER
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
27 22100-82430 1 O RING
28 20024-81790 1
CONE WASHER
29 20018-81721 1
BACK PLATE
30 11203-05608 2
SCREW PM SW
M5×60
31 19404-00008 1
LABEL CHOKE
- 8 -

M230 EMC

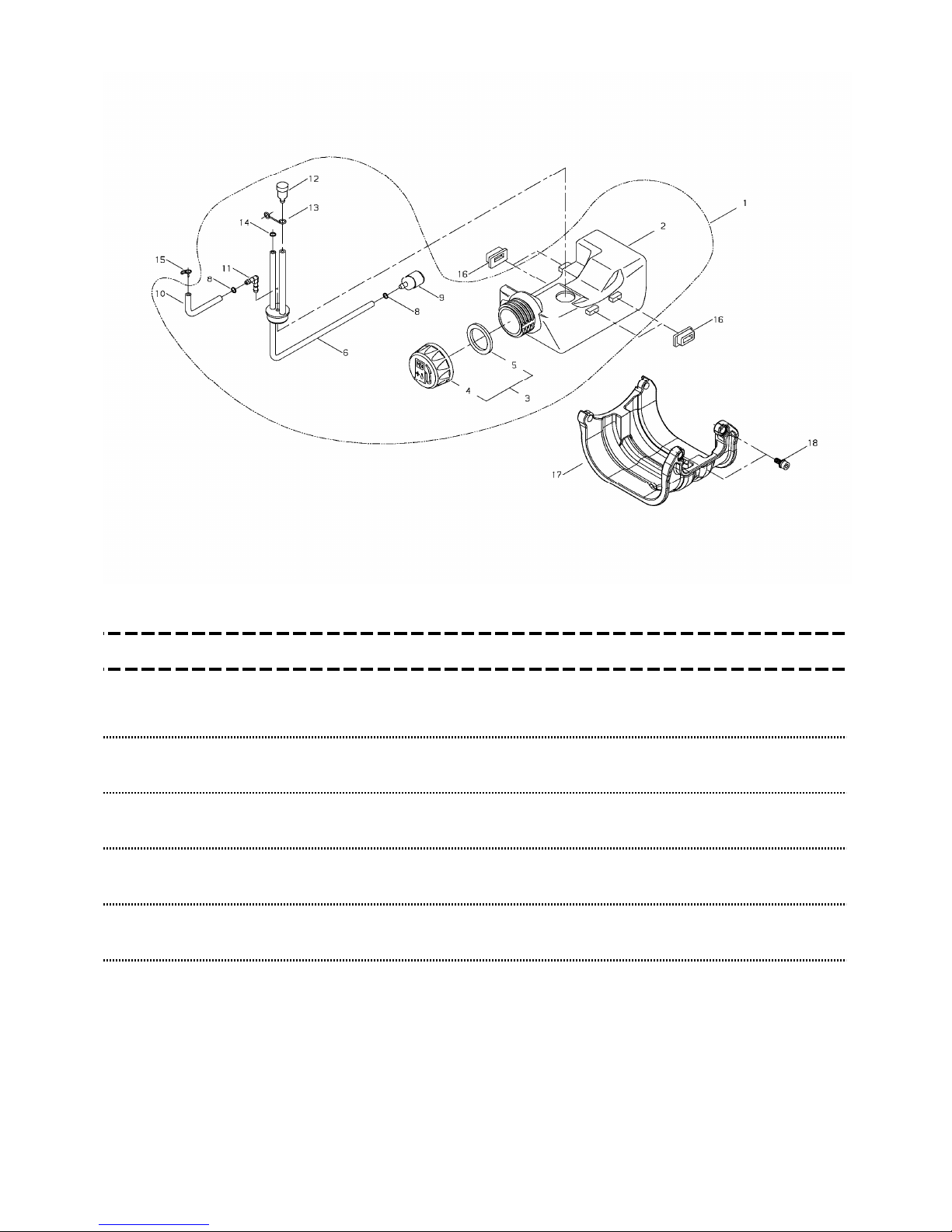

. FUEL TANK
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 20016-85003 1 FUEL TANK ASSY
2・20016-85112 1
FUEL TANK
3・70043-85201 1
FUEL CAP SUB ASSY
4・・ 70168-85210 1
FUEL CAP
5・・ 20000-85221 1
GASKET
6・20016-85310 1
FUEL PIPE
8・20020-85540 2
CLIP
9・20016-85400 1
FUEL FILTER
10 ・20089-83311 1
PIPE
11 ・20087-85340 1
JOINT,PIPE
12 ・20035-85522 1
VALVE
13 ・20016-12310 1
VALVE HOLDER
14 20020-85540 1
CLIP
15 37013-85310 1
CLIP
16 20024-86120 4
TANK CUSHION
17 62902-85320 1
TANK GUARD
18 11022-05160 2
BOLT SPW
M5x16
- 9 -

M230 EMC
8. OUTER PIPE
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 65005-62010 1 OUTER PIPE COMP
2・63880-64320 1
OUTER PIPE
φ24×L745
3・22035-12121 3
BUSH
4 63880-64340 1
MAIN SHAFT
φ6×L779
5 37000-62220 1
JOINT CASE
6 63880-64360 1
JOINT SHAFT
7 02002-00609 1
BEARING
609ZZ
8 22420-13350 1
SNAP RING
9 72030-14130 1
WASHER
10 17901-06220 1
COLLAR
11 63880-64380 1
KNOB
12 63880-64410 1
NUT
13 37000-62310 1
LOCK LEVER
14 17500-06001 1
COIL SPRING
15 37000-62340 1
COVER
16 17520-12400 1
COIL SPRING
17 15401-00004 1
COLLAR
18 11207-05120 1
SCREW PM SLPW
M5×12
19 22000-13420 1
SHIM
20 11023-05250 1
BOLT SW
M5×25
21 01020-05120 1
BOLT
M5*12 M5×12
22 19401-00168 1
LABEL INST
23 19402-00303 1
LABEL CAUTION
- 10 -

M230 EMC

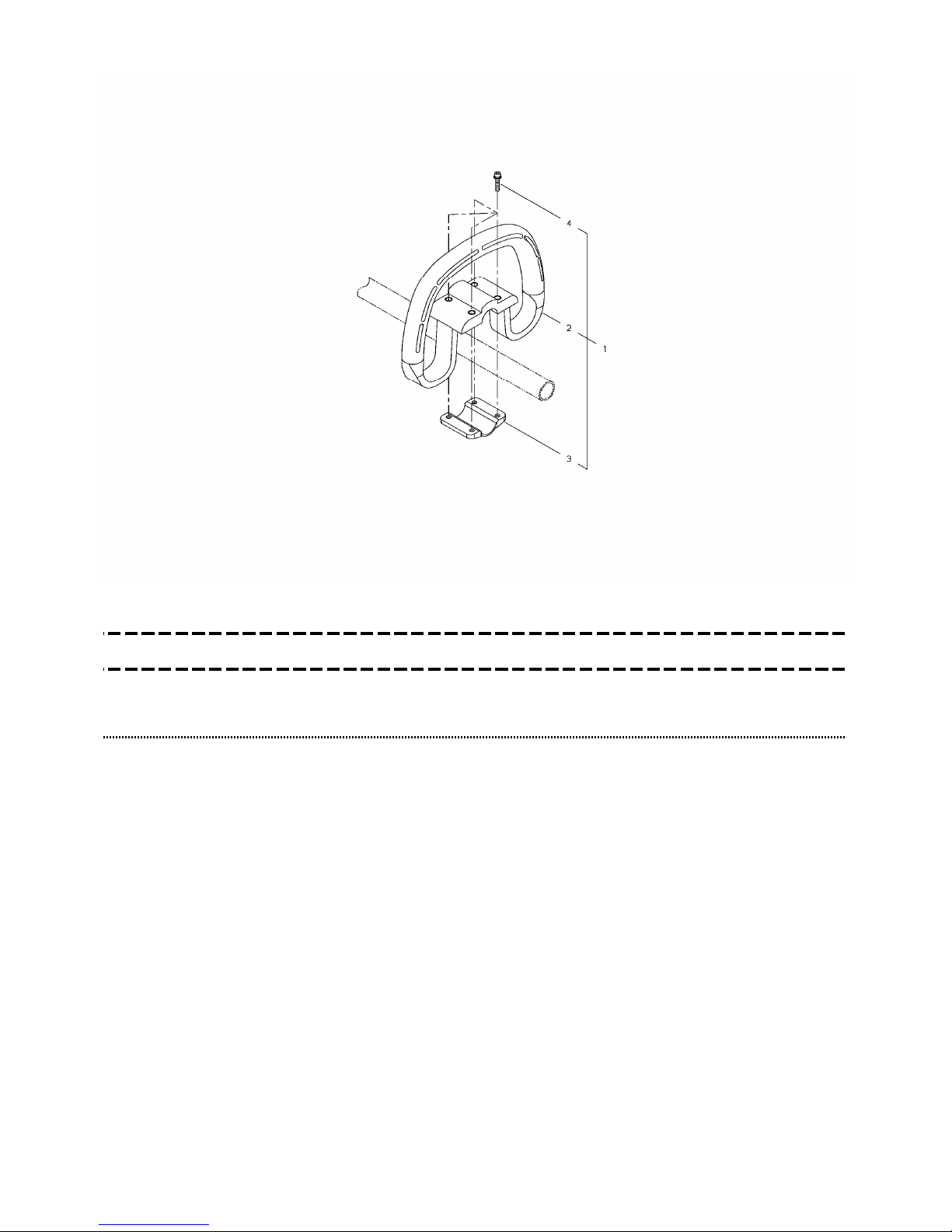

9. HANDLE
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 62039-64011 1 HANDLE ASSY
2・62901-64322 1
HANDLE
3・62901-64120 1
CLAMP
4・11022-05250 4
BOLT SPW
M5×25
- 11 -

M230 EMC
10. THROTTLE LEVER
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 63901-62142 1 GRIP
2 63023-62313 1
THROTTLE LEVER ASSY
3・63901-62321 1
BODY RIGHT
4・63901-62332 1
BODY LEFT
5・63901-62341 1
LEVER
6・63901-62352 1
LOCK LEVER
7・63901-62361 1
HOLDER
8・63880-65350 1
COIL SPRING
9・63901-62370 1
COIL SPRING
10 ・63023-62320 1
SWITCH
11 ・63880-65360 3
SCREW TAPPING
12 ・63901-62390 1
SCREW TAPPING
13 ・63901-62410 1
SCREW SPW
14 ・01501-05030 1
NUT
M5
15 ・63880-65411 1
PLUG
16 63023-62330 1
THROTTLE CABLE ASSY
17 ・63023-62170 1
THROTTLE CABLE
18 ・01501-06041 2
NUT
M6
19 ・22422-14540 1
TUBE
- 12 -

M230 EMC
11. TOOL, OPTION
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 78700-92010 1 TOOL SET
2・22102-91410 1
PLUG WRENCH
10×19
3・09026-04001 1
HEXA WRENCH
4MM M5ﾖｳ 4mm
4・22000-91120 1
SPANNER
8×10
5・19639-01100 1
POLY BAG
6 60840-98020 1
HANGER ASSY
7・22000-12210 2
HANGER
8・11020-05120 2
BOLT SW
9・01500-05041 2
NUT
M5
10 ・60840-98030 1
SPACER
11 22410-17202 1
STRAP ASSY
12 ・37013-67310 1
HOOK
13 ・22007-17220 1
PROTECTOR
14 6500794010 1
MANUAL
- 13 -

Index
Patrs Number Key No. Patrs Number Key No. Patrs Number Key No.
01020-05120 1 - 15 20016-12112 1 - 1 20087-85340 7 - 11
01020-05120 8 - 21 20016-12120 1 - 2 20089-83311 7 - 10
01020-05250 1 - 3 20016-12120 3 - 14 20115-81780 6 - 26
01020-05250 2 - 10 20016-12213 1 - 4 22000-12210 11 - 7
01020-05500 1 - 13 20016-12222 1 - 5 22000-13320 2 - 16
01270-03062 1 - 11 20016-12310 7 - 13 22000-13420 8 - 19
01500-05041 11 - 9 20016-15122 1 - 12 22000-91120 11 - 4
01501-05030 10 - 14 20016-21111 2 - 2 22007-17220 11 - 13
01501-06041 10 - 18 20016-21120 2 - 6 22035-12121 8 - 3
01511-08051 5 - 13 20016-42002 3 - 7 22100-71430 3 - 13
01610-05080 1 - 14 20016-71200 4 - 1 22100-81230 6 - 14
02002-00609 8 - 7 20016-71601 4 - 4 22100-81250 6 - 13
02002-06000 2 - 13 20016-71641 4 - 5 22100-82430 6 - 27
02403-03100 4 - 2 20016-71651 4 - 12 22102-91410 11 - 2
02432-26120 2 - 14 20016-71660 4 - 14 22150-21250 2 - 4
09026-04001 11 - 3 20016-81140 6 - 20 22410-17202 11 - 11
11020-05120 11 - 8 20016-81250 6 - 21 22420-13350 8 - 8
11022-05160 2 - 18 20016-81270 6 - 11 22422-14540 10 - 19
11022-05160 2 - 32 20016-81280 6 - 16 32004-75150 5 - 11
11022-05160 7 - 18 20016-81410 6 - 8 37000-62220 8 - 5
11022-05250 9 - 4 20016-81420 6 - 17 37000-62310 8 - 13
11022-05300 1 - 7 20016-81450 6 - 12 37000-62340 8 - 15
11022-05450 2 - 19 20016-81510 6 - 18 37013-41230 3 - 5
11023-05250 2 - 29 20016-81530 6 - 22 37013-41240 3 - 6
11023-05250 8 - 20 20016-85003 7 - 1 37013-51310 3 - 10
11024-04261 4 - 16 20016-85112 7 - 2 37013-67310 11 - 12
11060-04122 5 - 14 20016-85310 7 - 6 37013-81310 6 - 15
11203-05608 6 - 30 20016-85400 7 - 9 37013-85310 7 - 15
11207-05120 8 - 18 20018-31251 2 - 22 60023-98031 6 - 24
12492-40080 2 - 9 20018-31260 2 - 23 60840-98020 11 - 6
12900-60010 2 - 3 20018-31270 2 - 24 60840-98030 11 - 10
12900-60010 2 - 7 20018-31411 2 - 26 62010-31011 2 - 11
13000-13406 4 - 17 20018-31420 2 - 27 62010-32010 2 - 20
15401-00004 8 - 17 20018-31430 2 - 28 62039-64011 9 - 1
17500-06001 8 - 14 20018-81721 6 - 29 62064-21010 2 - 1
17520-12400 8 - 16 20020-85540 7 - 8 62064-21020 2 - 5
17901-06220 8 - 10 20020-85540 7 - 14 62064-81310 6 - 5
19401-00168 8 - 22 20024-81790 2 - 25 62901-64120 9 - 3
19402-00303 8 - 23 20024-81790 6 - 28 62901-64322 9 - 2
19404-00008 6 - 31 20024-86120 7 - 16 62902-85320 7 - 17
19639-01100 11 - 5 20035-71220 4 - 3 63023-62170 10 - 17
20000-21211 2 - 8 20035-85522 7 - 12 63023-62313 10 - 2
20000-41210 3 - 2 20036-81440 6 - 10 63023-62320 10 - 10
20000-72230 4 - 11 20036-81670 6 - 19 63023-62330 10 - 16
20000-72241 4 - 8 20075-41111 3 - 1 63880-64320 8 - 2
20000-72250 4 - 9 20075-41310 3 - 3 63880-64340 8 - 4
20000-85221 7 - 5 20087-31210 2 - 15 63880-64360 8 - 6
20010-72110 4 - 13 20087-51210 3 - 11 63880-64380 8 - 11
20010-72221 4 - 7 20087-51231 3 - 12 63880-64410 8 - 12
- 14 -

Index
Patrs Number Key No. Patrs Number Key No. Patrs Number Key No.
63880-65350 10 - 8 72933-75140 5 - 5
63880-65360 10 - 11 72933-75160 5 - 7
63880-65411 10 - 15 72933-75170 5 - 8
63901-62142 10 - 1 72933-75180 5 - 9
63901-62321 10 - 3 72933-75900 5 - 1
63901-62332 10 - 4 78700-92010 11 - 1
63901-62341 10 - 5
63901-62352 10 - 6
63901-62361 10 - 7
63901-62370 10 - 9
63901-62390 10 - 12
63901-62410 10 - 13
65000-91020 2 - 33
65005-62010 8 - 1
6500794010 11 - 14
65028-81010 6 - 1
6502881310 6 - 2
70030-41320 3 - 4
70030-71620 4 - 15
70030-81380 6 - 9
70043-85201 7 - 3
70064-75110 5 - 2
70064-75130 5 - 4
70064-75150 5 - 6
70064-75190 5 - 10
70064-75310 5 - 12
70064-81290 6 - 3
70097-81220 6 - 4
70097-81310 6 - 6
70097-81320 6 - 7
70103-15150 1 - 10
70117-75311 5 - 15
70135-15100 1 - 8
70135-15110 1 - 9
70135-31470 2 - 31
70140-31113 2 - 12
70140-31130 2 - 17
70140-32111 2 - 21
70140-51102 3 - 8
70140-51113 3 - 9
70140-81710 6 - 23
70140-81760 6 - 25
70168-85210 7 - 4
70180-72260 4 - 10
70223-72200 4 - 6
70234-98011 3 - 15
70234-98310 3 - 16
72030-14130 8 - 9
72933-75120 5 - 3
- 15 -

EMC
No.
©2012
