SBC840M 
8-Bay Networked Charger
IMPORTANT SAFETY INSTRUCTIONS
READ these instructions.
KEEP these instructions.
HEED all warnings.
FOLLOW all instructions.
DO NOT use this apparatus near water.
CLEAN ONLY with dry cloth.
DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance
withthemanufacturer’sinstructions.
DONOTinstallnearanyheatsourcessuchasopenflames,radiators,heatregisters,stoves,orotherapparatus(in
cluding amplifiers) that produce heat. Do not place any open flame sources on the product.
DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third
prongareprovidedforyoursafety.Iftheprovidedplugdoesnotfitintoyouroutlet,consultanelectricianforreplace
ment of the obsolete outlet.
PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
ONLY USE attachments/accessories specified by the manufacturer.
USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
UNPLUG this apparatus during lightning storms or when unused for long periods of time.
REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the
apparatus.
The MAINS plug or an appliance coupler shall remain readily operable.
The airborne noise of the Apparatus does not exceed 70dB (A).
ApparatuswithCLASSIconstructionshallbeconnectedtoaMAINSsocketoutletwithaprotectiveearthingconnec
tion.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
Operate this product within its specified operating temperature range.

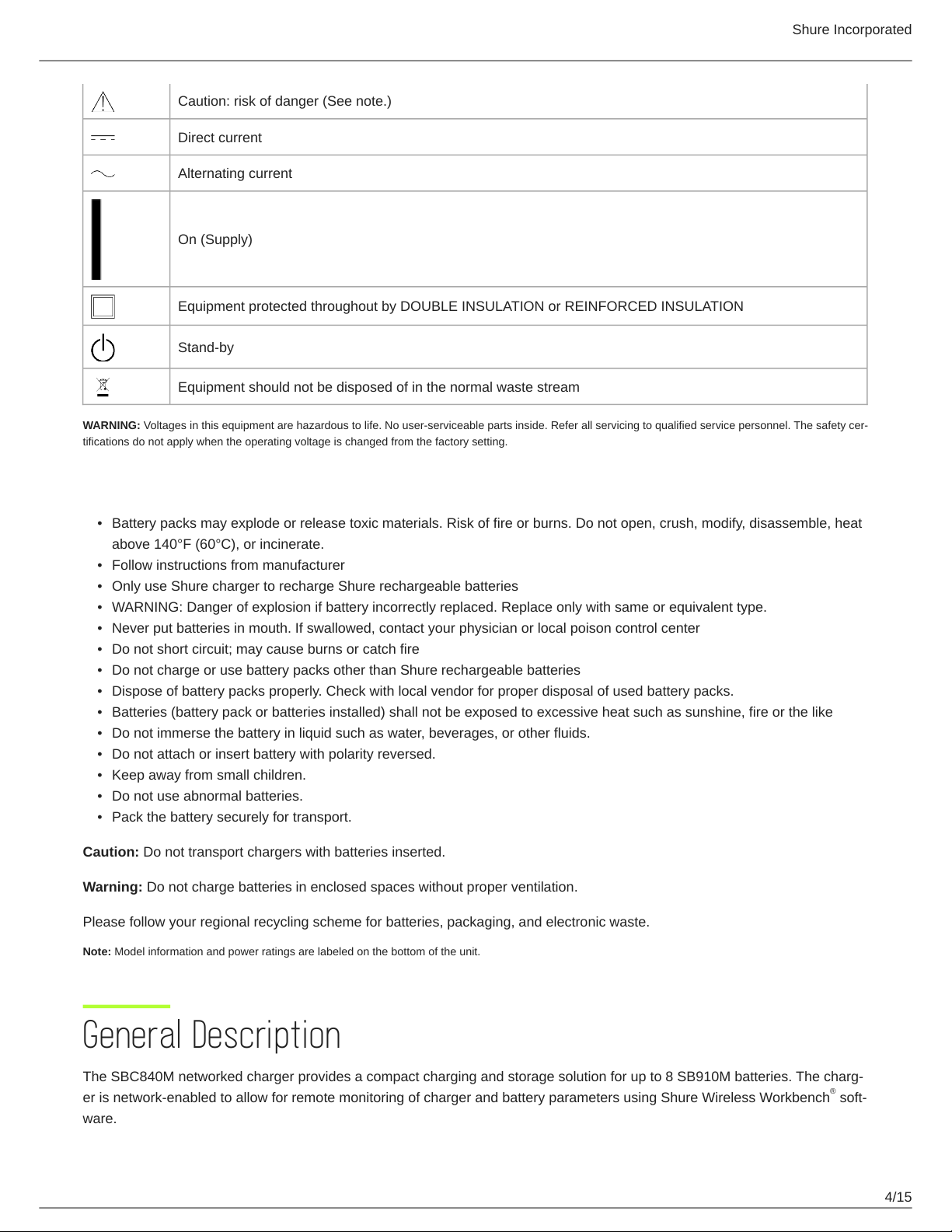

Explanation of Symbols
Caution: risk of electric shock

Shure Incorporated
4/15
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Caution: risk of danger (See note.)
Direct current
Alternating current
On (Supply)
Equipment protected throughout by DOUBLE INSULATION or REINFORCED INSULATION
Stand-by
Equipment should not be disposed of in the normal waste stream
WARNING: Voltagesinthisequipmentarehazardoustolife.Nouserserviceablepartsinside.Referallservicingtoqualifiedservicepersonnel.Thesafetycer
tifications do not apply when the operating voltage is changed from the factory setting.
WARNING
Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat
above 140°F (60°C), or incinerate.
Follow instructions from manufacturer
Only use Shure charger to recharge Shure rechargeable batteries
WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
Never put batteries in mouth. If swallowed, contact your physician or local poison control center
Do not short circuit; may cause burns or catch fire
Do not charge or use battery packs other than Shure rechargeable batteries
Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
Do not immerse the battery in liquid such as water, beverages, or other fluids.
Do not attach or insert battery with polarity reversed.
Keep away from small children.
Do not use abnormal batteries.
Pack the battery securely for transport.
Caution: Do not transport chargers with batteries inserted.
Warning: Do not charge batteries in enclosed spaces without proper ventilation.
Please follow your regional recycling scheme for batteries, packaging, and electronic waste.
Note: Model information and power ratings are labeled on the bottom of the unit.
General Description
TheSBC840Mnetworkedchargerprovidesacompactchargingandstoragesolutionforupto8SB910Mbatteries.Thecharg
er is network-enabled to allow for remote monitoring of charger and battery parameters using Shure Wireless Workbench soft
ware.
®

Shure Incorporated
5/15
•
•
•
•
Features
Charging for up to 8 SB910M batteries
LEDs indicate charge status and errors
Storage mode to prepare batteries for long-term storage
Network-enabled for remote monitoring

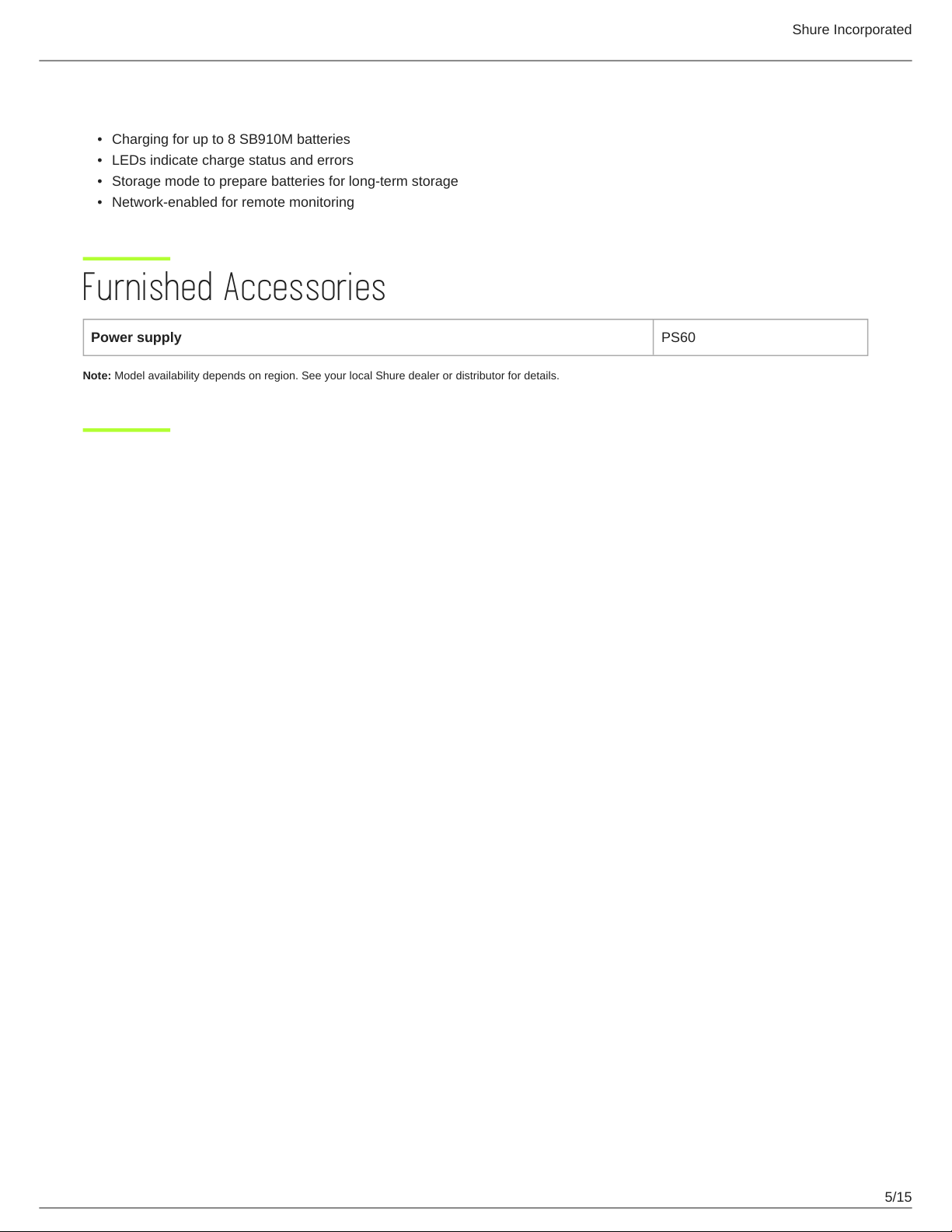

Furnished Accessories
Power supply PS60
Note: Model availability depends on region. See your local Shure dealer or distributor for details.

Shure Incorporated
6/15
◦
◦
Controls and Connectors
①Power LED
White = Power is on
Red = Charger is in storage mode
②Reset Button
Press and hold to restore charger factory settings, including network settings.
③Storage Mode Button
Press and hold to activate or deactivate storage mode, which charges or discharges batteries to the optimal voltage for
long-term storage.

Shure Incorporated
7/15
◦
◦
◦
◦
◦
◦
◦
◦
1.
2.
•
•
•
④Charging Status LED
Red = Charging
Green = Charging complete
Amber = Battery is in storage mode
See LED Indicators for details.
⑤Error LED
Flashesambertoindicateaproblemchargingbatteries.ErrorsarealsodisplayedinWirelessWorkbench.SeeLEDIndica
tors for details.
⑥Charging Slots
Insert 1 SB910M battery.
⑦Ethernet Port
Connect to a network to remotely monitor batteries and control charger settings using Wireless Workbench.
⑧Ethernet Link Speed LED (Amber)
Off = 10 Mbps
On = 100 Mbps
⑨Ethernet Status LED (Green)
Off = No network link
On = Network link established
Flashing = Network link active
⑩Power Input
Connect to power supply.
Power
Connect DC power cable to input jack. Finger tighten lock nut for a secure connection.
Connect power supply to AC power outlet.
WARNING:
Do not use pliers or any other tools to tighten lock nut. DC power cable must be attached before charger unit is installed.
Do not plug in power supply unit until DC connection and charger are in place.
After securing the charger, plug the power cable into a properly grounded outlet.
The charger has no power switch. When plugged in, the power LED illuminates. The charging LEDs illuminate after batteries
are inserted.

Shure Incorporated
8/15
1.
2.
3.
Charging
To charge, place batteries into the charging bays with the battery contacts facing down. The LEDs illuminate to indicate battery
status.
LED Indicators
Color State
Charge status LED red Charging
Charge status LED green Charging complete
Error LED amber flashing
Charging stopped. To resume charging, try these solutions:
Checkthatthebatterycontactsarecleanandundamaged.Ifcon
tactsaredirtyordamaged,thechargermightnotdetectthebatter
ies.
Check the temperature. If the battery temperature is above 60°C or
below 0°C, the error LED flashes.
Contact Shure service. Battery may be discharged beyond recovery
or have internal problems. Replace battery.
Charge status LED red
Error LED amber flashing
Battery too warm. Charging stops at 80% of full capacity. Allow battery to
cool below 45°C to resume charging to full capacity.
Charge status LED green
Error LED amber flashing
Charging complete, but battery temperature is too warm or cold (over 60°C
or below 0°C).
Power LED red Chargerisinstoragemode.Batteriesarechargingordischargingtostor
age voltage.
Power LED red
Charge status LED amber Batteries are ready for storage.

Shure Incorporated
9/15
Color State
Power LED red
Charge status LED red flashing Batteries are approaching storage voltage.
Power LED white flashing Charger firmware is being updated.
All LEDs flashing Hardware identification.
Tip: Wireless Workbench provides more detailed battery status information.
Storage Mode
To store batteries for longer than 8 days, use the charger's storage mode. Each battery will be charged or discharged to 3.8
volts, which is ideal for long-term storage.
To enter storage mode, press and hold storage for 3 seconds until the power LED turns red. The batteries will begin charging
or discharging to 3.8 volts, which may take several hours. The LEDs indicate when the battery is approaching storage voltage
or at storage voltage.
To exit storage mode, press and hold storage. The power LED changes to white and batteries resume charging normally.
Whenbatteriesarereadyforstorage,removethemfromthechargerandplaceinatemperaturecontrolledarea.Recommend
ed battery storage temperature is 10°C (50°F) to 25°C (77°F).
Note: Run storage mode once every 6 months to maintain the storage voltage.
Restoring Factory Settings
Press and hold reset to restore factory settings. All LEDs will flash and turn off as the charger reboots.
IP addressing will be set to automatic, and charger will be in charging mode.
Network Connections
Use Ethernet cables to connect chargers to a network to monitor charging, battery health, and other parameters.
For most installations, use a star network topology with an Ethernet switch. For smaller installations, you can connect chargers
to each other in a series.

Shure Incorporated
10/15
1.

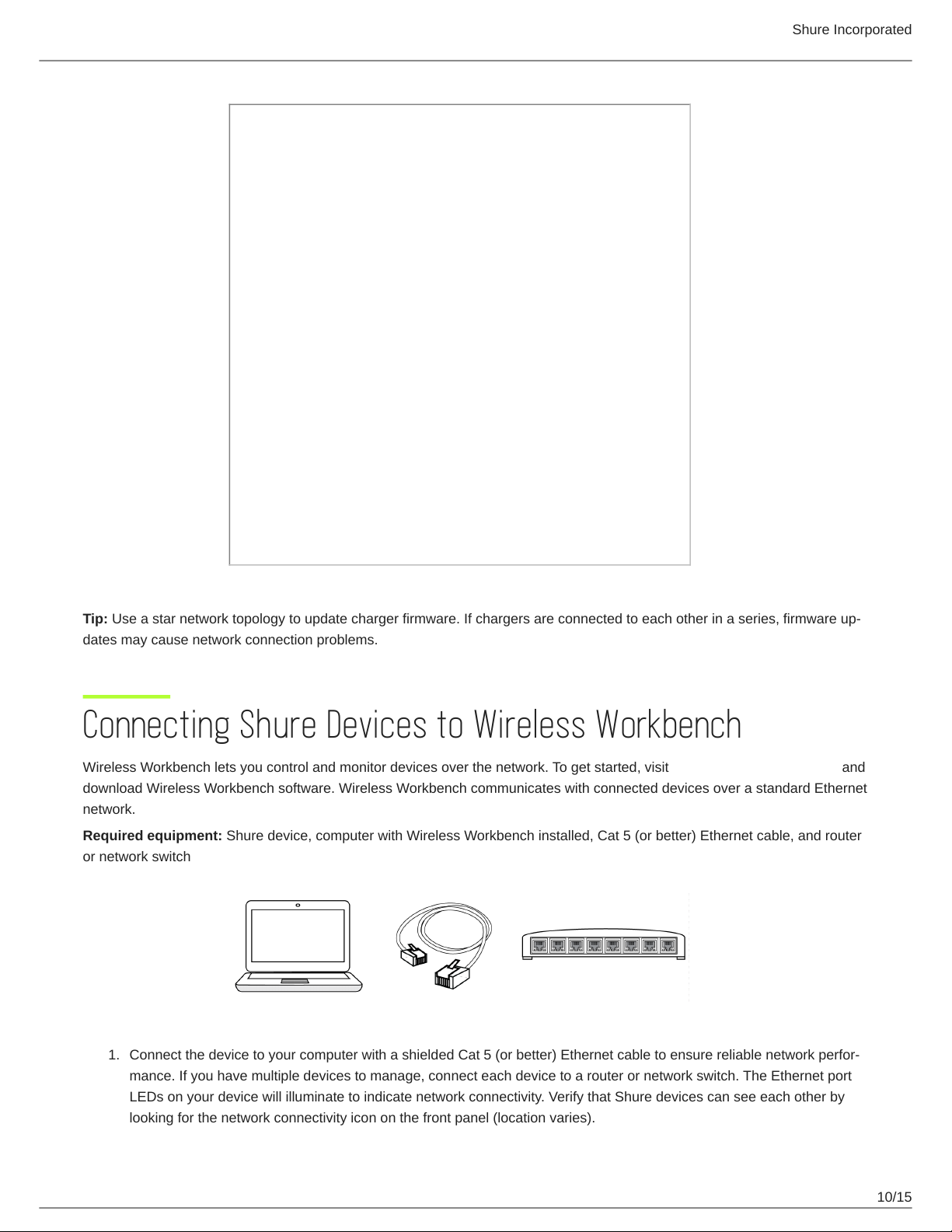

Tip: Useastarnetworktopologytoupdatechargerfirmware.Ifchargersareconnectedtoeachotherinaseries,firmwareup
dates may cause network connection problems.
Connecting Shure Devices to Wireless Workbench
Wireless Workbench lets you control and monitor devices over the network. To get started, visit http://www.shure.com/wwb and
download Wireless Workbench software. Wireless Workbench communicates with connected devices over a standard Ethernet
network.
Required equipment: Shure device, computer with Wireless Workbench installed, Cat 5 (or better) Ethernet cable, and router
or network switch
ConnectthedevicetoyourcomputerwithashieldedCat5(orbetter)Ethernetcabletoensurereliablenetworkperfor
mance. If you have multiple devices to manage, connect each device to a router or network switch. The Ethernet port
LEDs on your device will illuminate to indicate network connectivity. Verify that Shure devices can see each other by
looking for the network connectivity icon on the front panel (location varies).

Shure Incorporated
11/15
2.
3.
4.
5.
•
•
For most applications, use the Automatic mode (default) to let your switch or router assign an IP address using DHCP
addressing. If no DHCP server is present, your devices will fall back to a link-local address in the 169.254.xxx.xxx
range. If you need to assign specific IP addresses, set the IP mode to Manual in the Network menu.
Open Wireless Workbench software.
Select a Network Interface in the pop-up window. Choose the network that most closely matches the Ethernet port
where your devices are connected.
Your device will appear in the Inventory tab when the connection is successful.
Configuration Tips
Check your firewall settings to make sure Wireless Workbench has access to your network
Use multiple Ethernet switches to extend the network for larger installations
For more help, visit the Help menu in Wireless Workbench or http://www.shure.com/wwb.

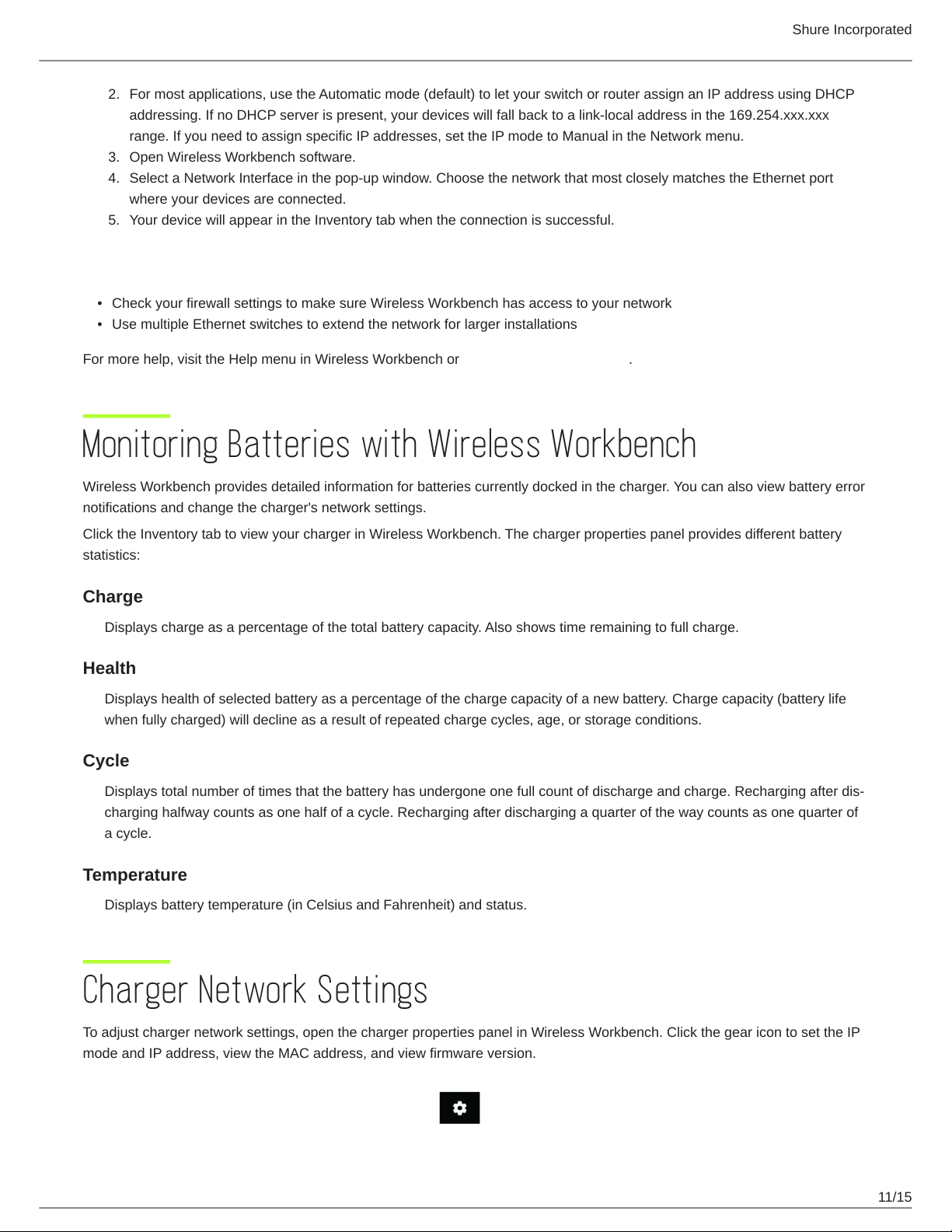

Monitoring Batteries with Wireless Workbench
Wireless Workbench provides detailed information for batteries currently docked in the charger. You can also view battery error
notifications and change the charger's network settings.
Click the Inventory tab to view your charger in Wireless Workbench. The charger properties panel provides different battery
statistics:
Charge
Displays charge as a percentage of the total battery capacity. Also shows time remaining to full charge.
Health
Displays health of selected battery as a percentage of the charge capacity of a new battery. Charge capacity (battery life
when fully charged) will decline as a result of repeated charge cycles, age, or storage conditions.
Cycle
Displaystotalnumberoftimesthatthebatteryhasundergoneonefullcountofdischargeandcharge.Rechargingafterdis
charging halfway counts as one half of a cycle. Recharging after discharging a quarter of the way counts as one quarter of
a cycle.
Temperature
Displays battery temperature (in Celsius and Fahrenheit) and status.
Charger Network Settings
To adjust charger network settings, open the charger properties panel in Wireless Workbench. Click the gear icon to set the IP
mode and IP address, view the MAC address, and view firmware version.

Shure Incorporated
12/15
•
•
1.
2.
3.

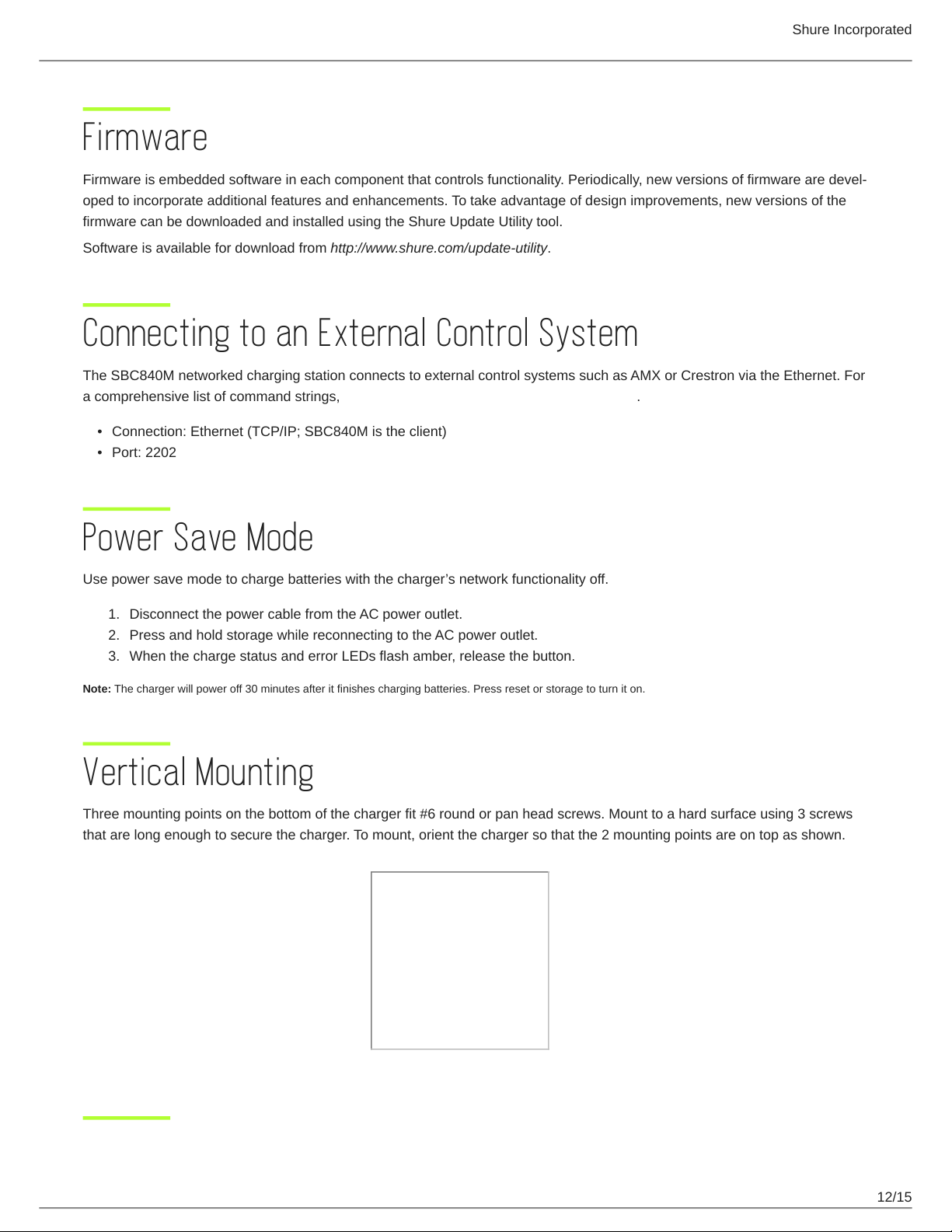

Firmware
Firmwareisembeddedsoftwareineachcomponentthatcontrolsfunctionality.Periodically,newversionsoffirmwarearedevel
oped to incorporate additional features and enhancements. To take advantage of design improvements, new versions of the
firmware can be downloaded and installed using the Shure Update Utility tool.
Software is available for download from http://www.shure.com/update-utility.
Connecting to an External Control System
The SBC840M networked charging station connects to external control systems such as AMX or Crestron via the Ethernet. For
a comprehensive list of command strings, visit the product page at https://www.shure.com.
Connection: Ethernet (TCP/IP; SBC840M is the client)
Port: 2202
Power Save Mode
Usepowersavemodetochargebatterieswiththecharger’snetworkfunctionalityoff.
Disconnect the power cable from the AC power outlet.
Press and hold storage while reconnecting to the AC power outlet.
When the charge status and error LEDs flash amber, release the button.
Note: The charger will power off 30 minutes after it finishes charging batteries. Press reset or storage to turn it on.
Vertical Mounting
Three mounting points on the bottom of the charger fit #6 round or pan head screws. Mount to a hard surface using 3 screws
that are long enough to secure the charger. To mount, orient the charger so that the 2 mounting points are on top as shown.

Shure Incorporated
13/15

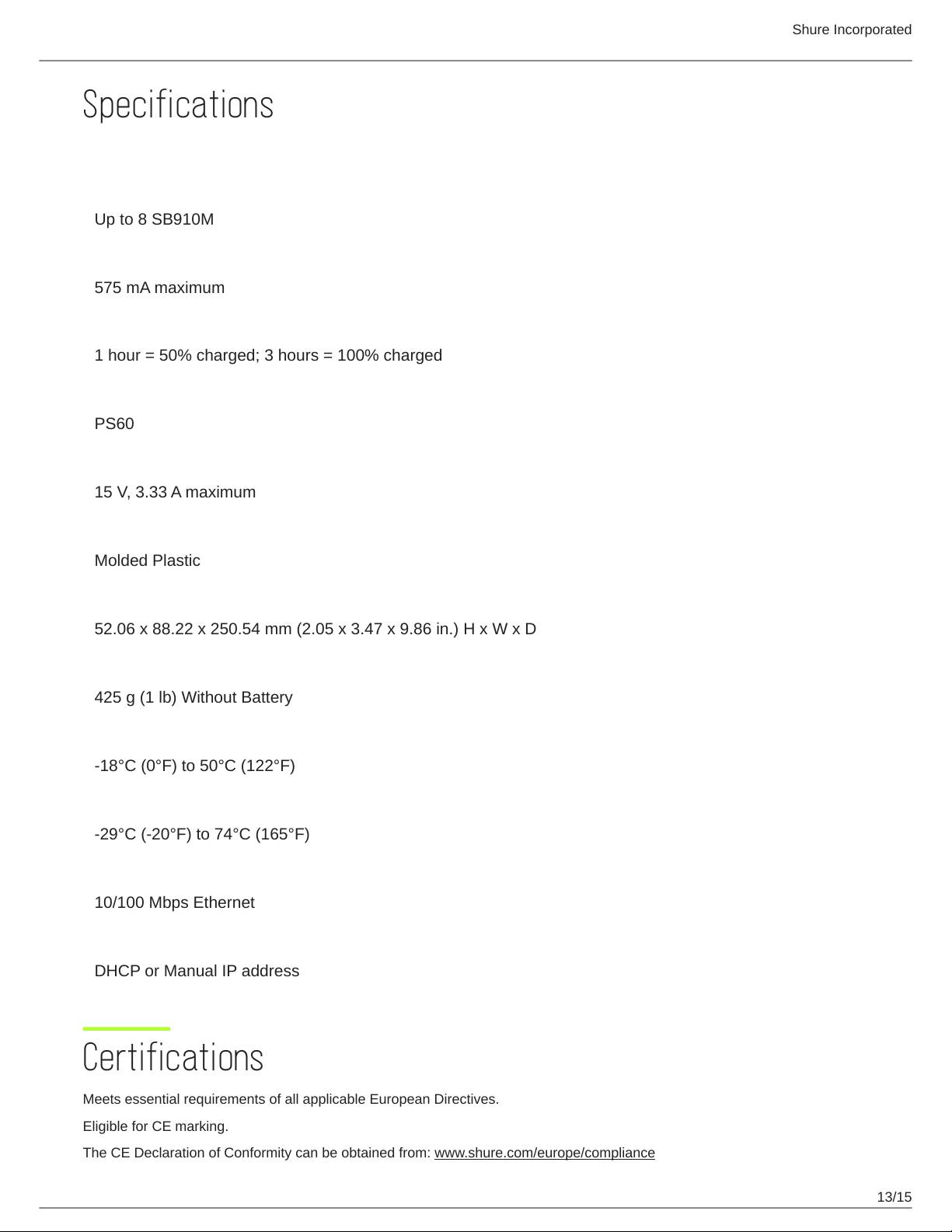

Specifications
SBC840M
Battery Type
Up to 8 SB910M
Charge Current
575mAmaximum
Charge Time
1hour=50%charged;3hours=100%charged
External Power Supply
PS60
Power Requirement
15V,3.33Amaximum
Housing
Molded Plastic
Dimensions
52.06x88.22x250.54mm(2.05x3.47x9.86in.)HxWxD
Weight
425g(1lb)WithoutBattery
Operating Temperature Range
-18°C (0°F) to 50°C (122°F)
Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Network Interface
10/100 Mbps Ethernet
Network Addressing Capability
DHCP or Manual IP address
Certifications
Meets essential requirements of all applicable European Directives.
Eligible for CE marking.
The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance

Shure Incorporated
14/15
1.
2.
•
•
•
•
Authorized European representative:
Shure Europe GmbH
Global Compliance
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: [phone]
Email: [email protected]
www.shure.com
Operationofthisdeviceissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisde
vice must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrelefonction
nement.
Authorized under the verification provision of FCC Part 15B.
CAN ICES-003 (B)/NMB-003(B)
Information to the user
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
theFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstalla
tion. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Note:EMCconformancetestingisbasedontheuseofsuppliedandrecommendedcabletypes.TheuseofothercabletypesmaydegradeEMCperfor
mance.
Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment.
Please consider the environment, electric products and packaging are part of regional recycling schemes and do not belong to
regular household waste.
臺灣進口商資訊：益誠國際驗證股份有限公司/臺北市中山區長安東路2段108號7樓之5

Shure Incorporated
15/15
