Shure GLXD Plus FM User manual

GLXD+FM
Frequency Manager
Online user guide for GLXD+FM.
Version: 1.1 (2023-A)

Shure Incorporated
2/13
Table of Contents
GLXD+FM Frequency Manager 3
Front and Rear Panels 3
Set Up the Frequency Manager 4
Selecting Frequency Groups 5
Linking Transmitters and Receivers 6
Connecting Multiple Frequency Managers 6
Remote Antenna Placement 7
Receiver Channel Display 7
GLXD4+ and GLXD6+ Receivers 8
Optional Accessories and Replacement Parts 8
Specifications 9
IMPORTANT SAFETY INSTRUCTIONS 10
Information to the user 11
Certifications 12

Shure Incorporated
3/13
GLXD+FM 
Frequency Manager
Front and Rear Panels
①Antenna A Connector Mount antenna and connect to antenna A input on rear panel.
②Power LED Illuminates when unit is on.
③Power Switch Powers the system on and off.
④Antenna B Connector Mount antenna and connect to antenna B input on rear panel.
⑤Power Input Connects to supplied external power supply.
⑥Power Outputs Connect to receiver power inputs.
⑦Firmware Update (USB-
C) Connect to computer to download firmware updates.
⑧RF Input Antenna B Use reverse SMA cables to connect antenna.

Shure Incorporated
4/13
1.
2.
3.
4.
5.

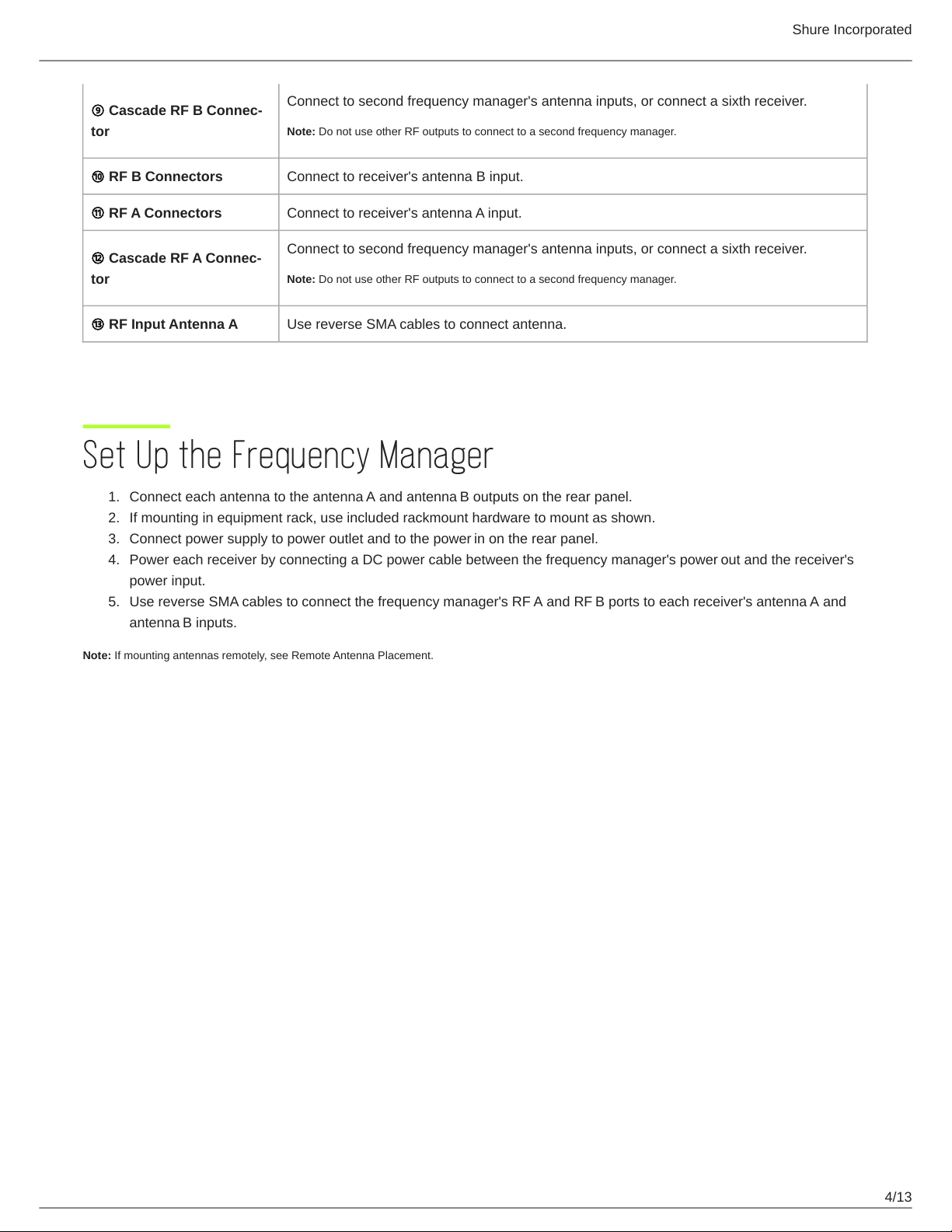

⑨ Cascade RF B Connec
tor
Connect to second frequency manager's antenna inputs, or connect a sixth receiver.
Note: Do not use other RF outputs to connect to a second frequency manager.
⑩RF B Connectors Connect to receiver's antenna B input.
⑪RF A Connectors Connect to receiver's antenna A input.
⑫ Cascade RF A Connec
tor
Connect to second frequency manager's antenna inputs, or connect a sixth receiver.
Note: Do not use other RF outputs to connect to a second frequency manager.
⑬RF Input Antenna A Use reverse SMA cables to connect antenna.
Set Up the Frequency Manager
Connect each antenna to the antenna A and antenna B outputs on the rear panel.
If mounting in equipment rack, use included rackmount hardware to mount as shown.
Connect power supply to power outlet and to the power in on the rear panel.
Power each receiver by connecting a DC power cable between the frequency manager's power out and the receiver's
power input.
Use reverse SMA cables to connect the frequency manager's RF A and RF B ports to each receiver's antenna A and
antenna B inputs.
Note: If mounting antennas remotely, see Remote Antenna Placement.

Shure Incorporated
5/13
1.
2.
3.
Selecting Frequency Groups
The frequency manager creates a shared group of frequencies for all receivers to use, and automatically assigns frequencies
to each receiver. If interference occurs, the frequency manager assigns new frequencies without audible dropouts.
Usingasharedgroupoffrequenciesforallreceiverspreventsonereceiverfromusingallofthebestfrequencies,anditim
proves RF reliability.
Press the power button to turn on the frequency manager.
Press the power button on the first receiver. The white data sync LED flashes while searching for frequencies.
Select a group for all receivers by pressing and holding the group button for two seconds.

Shure Incorporated
6/13
1.
2.
1.

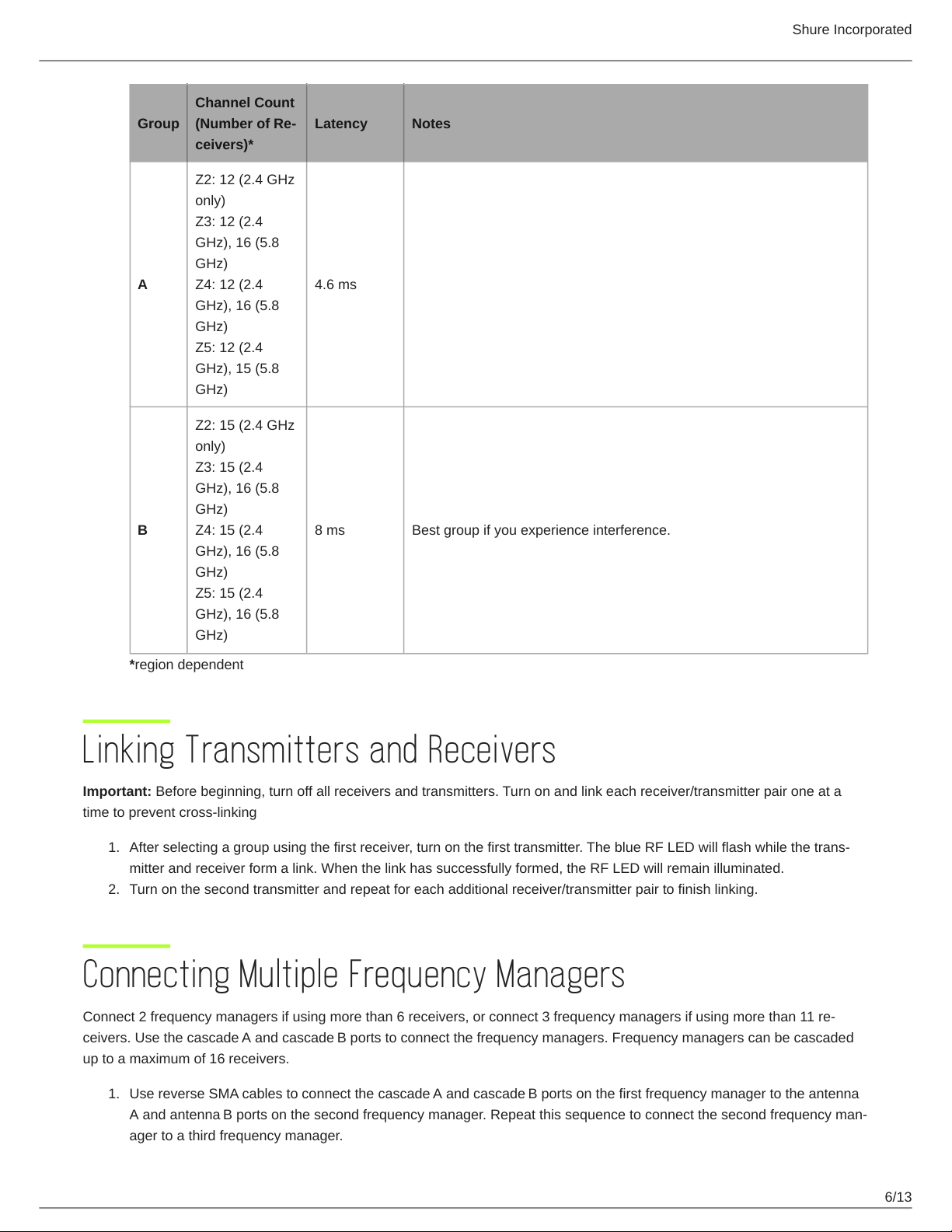

Group
Channel Count
(Number of Re
ceivers)*
Latency Notes
A
Z2: 12 (2.4 GHz
only)
Z3: 12 (2.4
GHz), 16 (5.8
GHz)
Z4: 12 (2.4
GHz), 16 (5.8
GHz)
Z5: 12 (2.4
GHz), 15 (5.8
GHz)
4.6 ms
B
Z2: 15 (2.4 GHz
only)
Z3: 15 (2.4
GHz), 16 (5.8
GHz)
Z4: 15 (2.4
GHz), 16 (5.8
GHz)
Z5: 15 (2.4
GHz), 16 (5.8
GHz)
8 ms Best group if you experience interference.
*region dependent
Linking Transmitters and Receivers
Important: Before beginning, turn off all receivers and transmitters. Turn on and link each receiver/transmitter pair one at a
time to prevent cross-linking
Afterselectingagroupusingthefirstreceiver,turnonthefirsttransmitter.TheblueRFLEDwillflashwhilethetrans
mitter and receiver form a link. When the link has successfully formed, the RF LED will remain illuminated.
Turn on the second transmitter and repeat for each additional receiver/transmitter pair to finish linking.
Connecting Multiple Frequency Managers
Connect2frequencymanagersifusingmorethan6receivers,orconnect3frequencymanagersifusingmorethan11re
ceivers. Use the cascade A and cascade B ports to connect the frequency managers. Frequency managers can be cascaded
up to a maximum of 16 receivers.
Use reverse SMA cables to connect the cascade A and cascade B ports on the first frequency manager to the antenna
A and antenna Bportsonthesecondfrequencymanager.Repeatthissequencetoconnectthesecondfrequencyman
ager to a third frequency manager.

Shure Incorporated
7/13
2.
•
•
•
•
•
◦
•
•

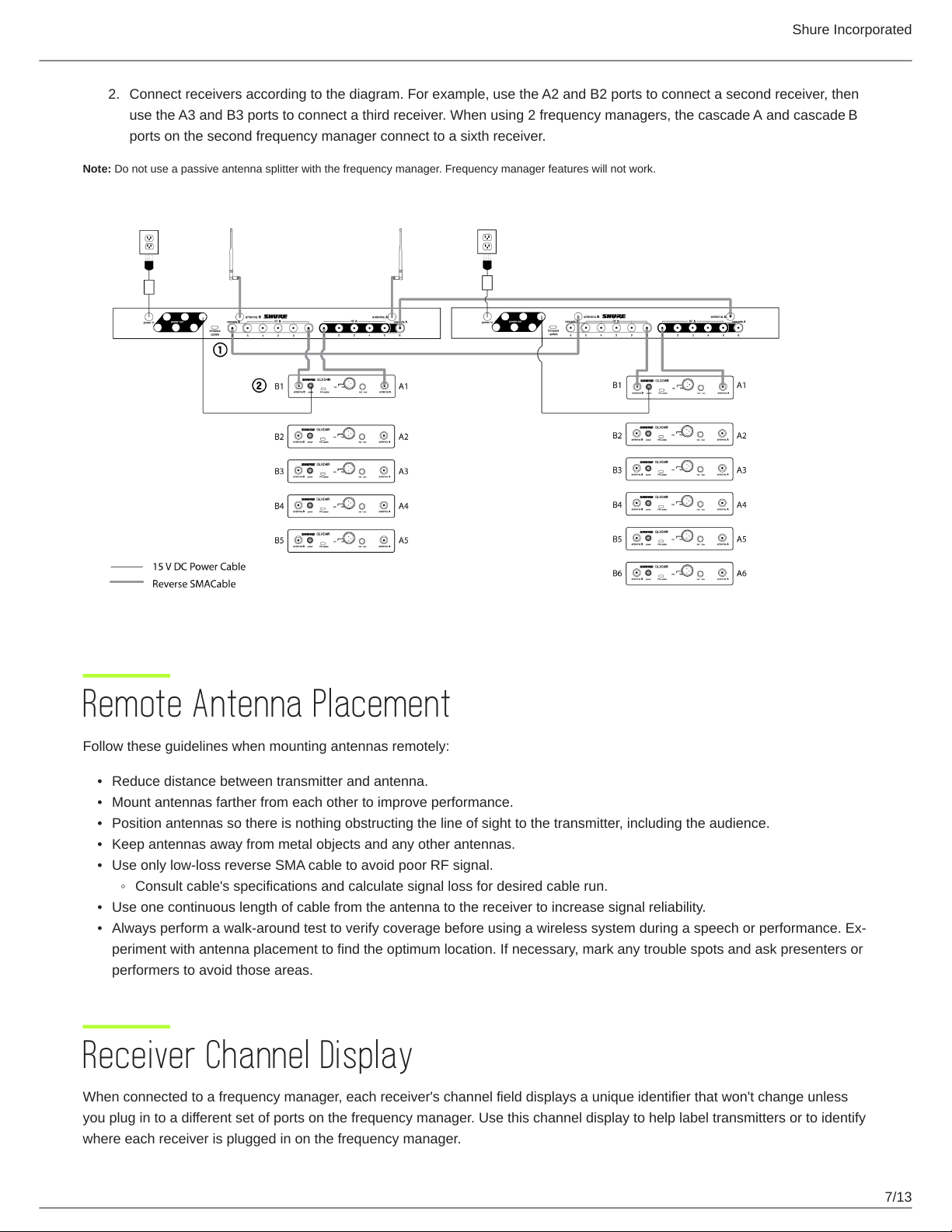

Connect receivers according to the diagram. For example, use the A2 and B2 ports to connect a second receiver, then
use the A3 and B3 ports to connect a third receiver. When using 2 frequency managers, the cascade A and cascade B
ports on the second frequency manager connect to a sixth receiver.
Note: Do not use a passive antenna splitter with the frequency manager. Frequency manager features will not work.
Remote Antenna Placement
Follow these guidelines when mounting antennas remotely:
Reduce distance between transmitter and antenna.
Mount antennas farther from each other to improve performance.
Position antennas so there is nothing obstructing the line of sight to the transmitter, including the audience.
Keep antennas away from metal objects and any other antennas.
Use only low-loss reverse SMA cable to avoid poor RF signal.
Consult cable's specifications and calculate signal loss for desired cable run.
Use one continuous length of cable from the antenna to the receiver to increase signal reliability.
Alwaysperformawalkaroundtesttoverifycoveragebeforeusingawirelesssystemduringaspeechorperformance.Ex
periment with antenna placement to find the optimum location. If necessary, mark any trouble spots and ask presenters or
performers to avoid those areas.
Receiver Channel Display
When connected to a frequency manager, each receiver's channel field displays a unique identifier that won't change unless
you plug in to a different set of ports on the frequency manager. Use this channel display to help label transmitters or to identify
where each receiver is plugged in on the frequency manager.

Shure Incorporated
8/13
Frequency Manager Frequency Manager Port Num
ber Receiver Channel Display
Frequency manager #1
1 1
22
33
44
55
6 (cascade)* 6*
Frequency manager #2
1 6
27
38
49
5A
6 (cascade)* B*
Frequency manager #3
1 B
2C
3D
4E
5F
6 (cascade) G
*There is no receiver channel display when connecting cascade port to second or third frequency manager.
GLXD4+ and GLXD6+ Receivers
GLXD4+ and GLXD6+ receivers cannot connect to the GLX-D+ frequency manager.
If you plan to use a GLXD4+ or GLXD6+ receiver in addition to a frequency manager, set up the GLXD4+/GLXD6+ receiver
first. Then turn on and set up the frequency manager.
Note: Using GLXD4+/GLXD6+ receivers alongside a frequency manager will affect the maximum number of channels you can operate with each group.
Optional Accessories and Replacement Parts
Passive Directional Antenna PA805DB-RSMA

Shure Incorporated
9/13

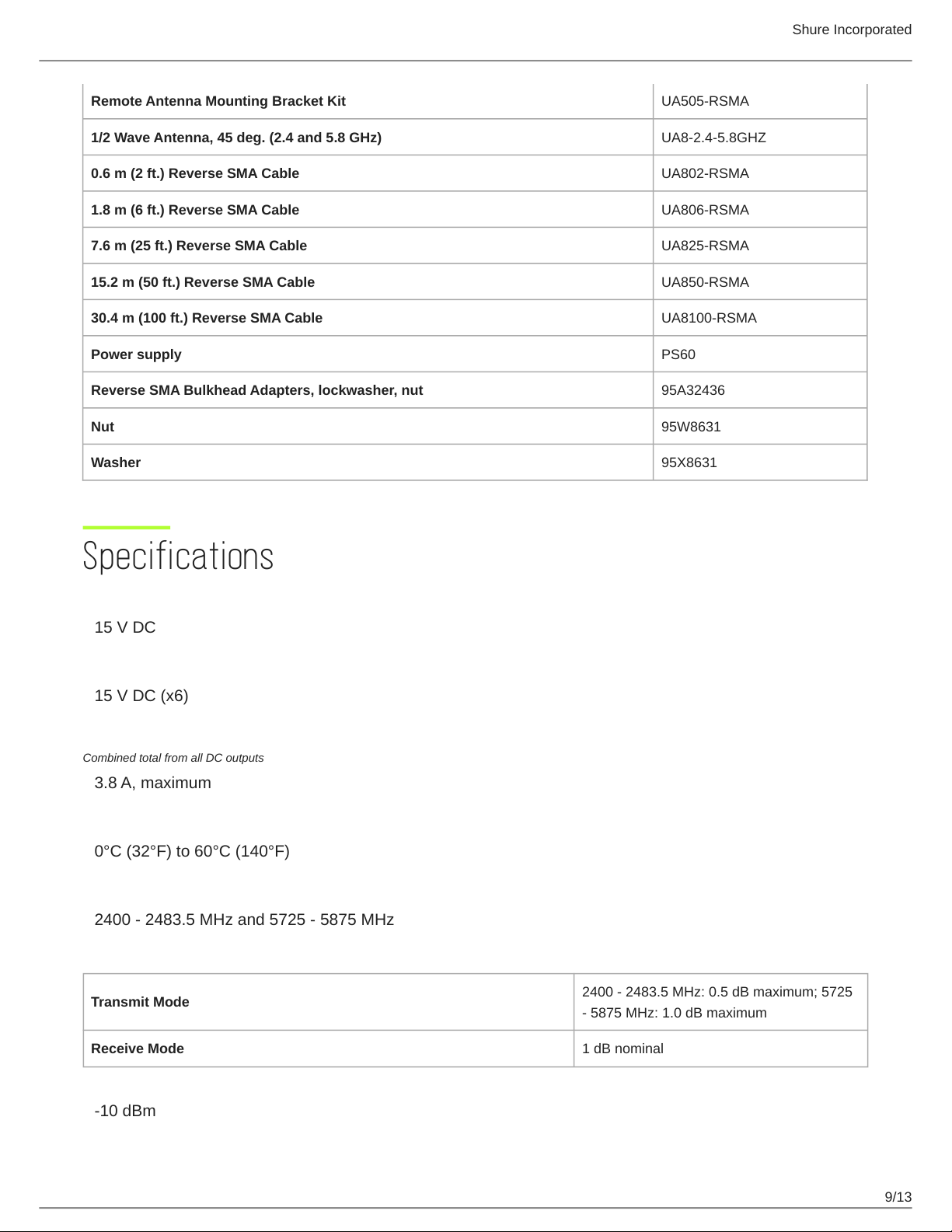

Remote Antenna Mounting Bracket Kit UA505-RSMA
1/2 Wave Antenna, 45 deg. (2.4 and 5.8 GHz) UA8-2.4-5.8GHZ
0.6 m (2 ft.) Reverse SMA Cable UA802-RSMA
1.8 m (6 ft.) Reverse SMA Cable UA806-RSMA
7.6 m (25 ft.) Reverse SMA Cable UA825-RSMA
15.2 m (50 ft.) Reverse SMA Cable UA850-RSMA
30.4 m (100 ft.) Reverse SMA Cable UA8100-RSMA
Power supply PS60
Reverse SMA Bulkhead Adapters, lockwasher, nut 95A32436
Nut 95W8631
Washer 95X8631
Specifications
Power Requirements
15 V DC
DC Output
15 V DC (x6)
Output Current
Combined total from all DC outputs
3.8 A, maximum
Operating Temperature Range
0°C (32°F) to 60°C (140°F)
RF Frequency Range
2400 - 2483.5 MHz and 5725 - 5875 MHz
Gain
Transmit Mode 2400 - 2483.5 MHz: 0.5 dB maximum; 5725
- 5875 MHz: 1.0 dB maximum
Receive Mode 1 dB nominal
Maximum Antenna Input Power
-10 dBm

Shure Incorporated
10/13
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Maximum Receiver Port Input Power
20 dBm (3 cascades)
Maximum Total Receiver Port Input Power
22 dBm (3 cascades)
Connector Type
Reverse SMA (RP-SMA)
Impedance
50Ω
Dimensions
19 x 7.47 x 1.73 in. (482.6 x 189.82 x 43.94 mm)
Weight
61 oz (1735 g)
Housing
Steel
IMPORTANT SAFETY INSTRUCTIONS
READ these instructions.
KEEP these instructions.
HEED all warnings.
FOLLOW all instructions.
DO NOT use this apparatus near water.
CLEAN ONLY with dry cloth.
DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance
withthemanufacturer’sinstructions.
DONOTinstallnearanyheatsourcessuchasopenflames,radiators,heatregisters,stoves,orotherapparatus(in
cluding amplifiers) that produce heat. Do not place any open flame sources on the product.
DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third
prongareprovidedforyoursafety.Iftheprovidedplugdoesnotfitintoyouroutlet,consultanelectricianforreplace
ment of the obsolete outlet.
PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
ONLY USE attachments/accessories specified by the manufacturer.
USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
