Shure TwinPlex TL47 Series User manual

TL45, TL46, TL47, TL48
TwinPlex™ Lavalier Microphones
The Shure TwinPlex Lavalier online user guide.
Version: 8 (2019-D)

Shure Incorporated
2/23
Table of Contents
TL45, TL46, TL47, TL48TwinPlex™ Lavalier Microphones3
General Description 3
Features 4
Model Variations 4
The Shure TwinPlex Cartridge 5
Care and Maintenance 6
TwinPlex Accessories Quick Start 6
Frequency Caps 7
Attaching the Windscreen 8
Lavalier Standoff 8
Tie Clip 8
Dual Tie Clip 9
Vampire Clip 9
Sticky Mount 9
Sticky Vampire Clip 10
Lavalier Distance 10
Threaded Mount Instructions 10
Specifications 11
Frequency Response 14
Accessories 14
Replacement Parts 15
Furnished Accessories 15
Optional Accessories 16
Wiring and Termination 16
Typical Wiring Table 16
Converting LEMO to TA4F 18
TA5F Wiring for Lectrosonics Bodypacks (Servo Biased
Wiring) 18
MTQG Connector Assembly 19

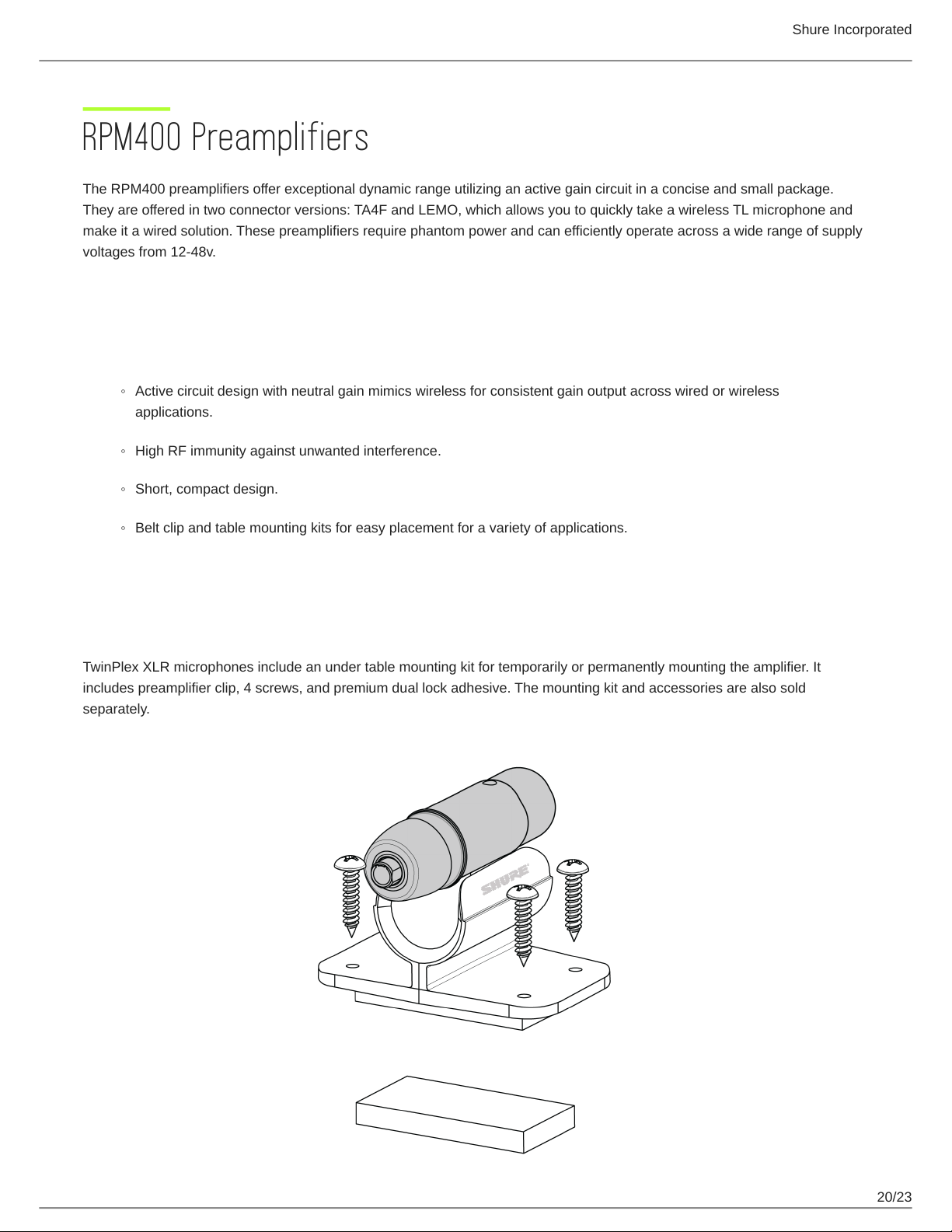

RPM400 Preamplifiers 20
Features 20
Preamplifier Mounting Kit 20
Specifications 21
Certifications 22

Shure Incorporated
3/23
TL45, TL46, TL47, TL48
TwinPlex™ Lavalier Microphones
General Description
The Shure TwinPlex subminiature omnidirectional lavaliers are designed to perform better than other 5 mm lavalier
microphones for professional theater, film, tv, and corporate events. The TwinPlex dual-diaphragm technology yields
extraordinary gain-before-feedback, off-axis response, and low self-noise while delivering life-like, exceptional clarity free of
digital interference. The cable itself is ultra quiet and has been tested to be the longest-lasting, most dependable cable in its
class. The TwinPlex series features the most extensive accessories and connector options to date. TwinPlex 5 mm lavs not
only meet premium market-leading expectations, they exceed them.

Shure Incorporated
4/23
◦
◦
◦
◦
◦
◦
◦
◦
◦

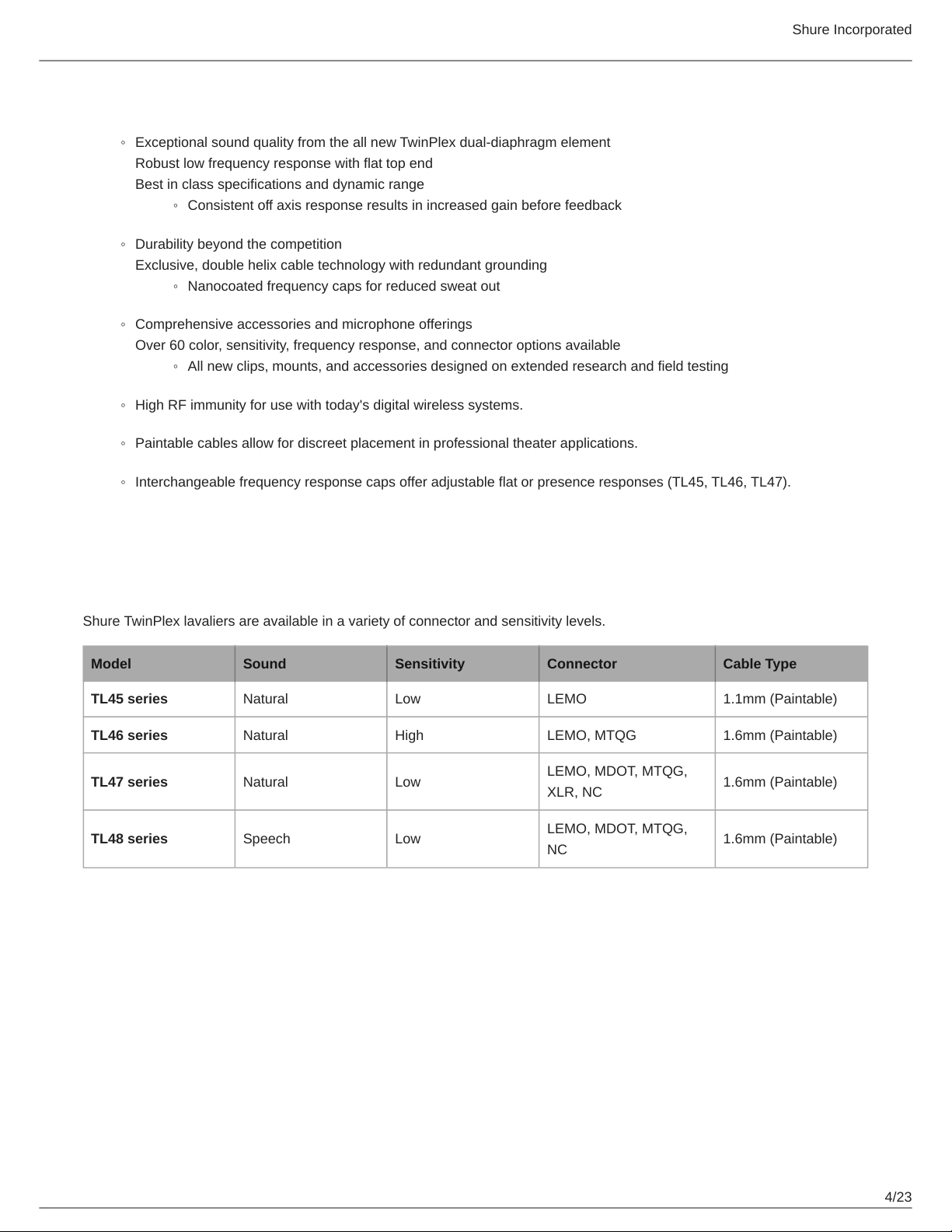

Features
Exceptional sound quality from the all new TwinPlex dual-diaphragm element
Robust low frequency response with flat top end
Best in class specifications and dynamic range
Consistent off axis response results in increased gain before feedback
Durability beyond the competition
Exclusive, double helix cable technology with redundant grounding
Nanocoated frequency caps for reduced sweat out
Comprehensive accessories and microphone offerings
Over 60 color, sensitivity, frequency response, and connector options available
All new clips, mounts, and accessories designed on extended research and field testing
High RF immunity for use with today's digital wireless systems.
Paintable cables allow for discreet placement in professional theater applications.
Interchangeable frequency response caps offer adjustable flat or presence responses (TL45, TL46, TL47).
Model Variations
Shure TwinPlex lavaliers are available in a variety of connector and sensitivity levels.
Model Sound Sensitivity Connector Cable Type
TL45 series Natural Low LEMO 1.1mm (Paintable)
TL46 series Natural High LEMO, MTQG 1.6mm (Paintable)
TL47 series Natural Low LEMO, MDOT, MTQG,
XLR, NC 1.6mm (Paintable)
TL48 series Speech Low LEMO, MDOT, MTQG,
NC 1.6mm (Paintable)

Shure Incorporated
5/23
Model Variations Key
Series Color Polar Pattern Connector Accessories
TL45 B: Black O: Omnidirectional LEMO: LEMO3
bodypacks
A: Accessories
included
TL46 C: Cocoa MTQG: TA4F/TQG Shure
bodypacks
TL47 T: Tan XLR: includes XLR
preamplifier
TL48 W: White NC: no connector
MDOT: MicroDot
(requires adapter)
Note: Not all model variations are available. Refer to www.shure.com/twinplex for the most up to date offerings.
The Shure TwinPlex Cartridge
Over 6 years in development, the patent pending, TwinPlex Omnidirectional element was designed to offer best in class sound
quality and specifications of any lavalier to date. It utilizes a dual-diaphragm design with two side firing elements as opposed to
a single, end fired design. By essentially doubling the surface area of the diaphragm in the same amount of space, the
TwinPlex design offers robust low frequency response, exceptional off-axis consistency, increased gain-before-feedback and
low handling noise, resulting in a new tier of performance for 5mm microphones.

Shure Incorporated
6/23
TwinPlex cartridge exploded view
①Diaphragm Assembly
②Spacer Washer
③Backplate Assembly
④Contact Spacer
⑤Nest
⑥PCB
Care and Maintenance
The TwinPlex lavalier dual-diaphragm has a nanocoating which rejects the build-up of grit from sweat and water. It is designed
to withstand being blown out with a can of air for quick clean-up.

Shure Incorporated
7/23

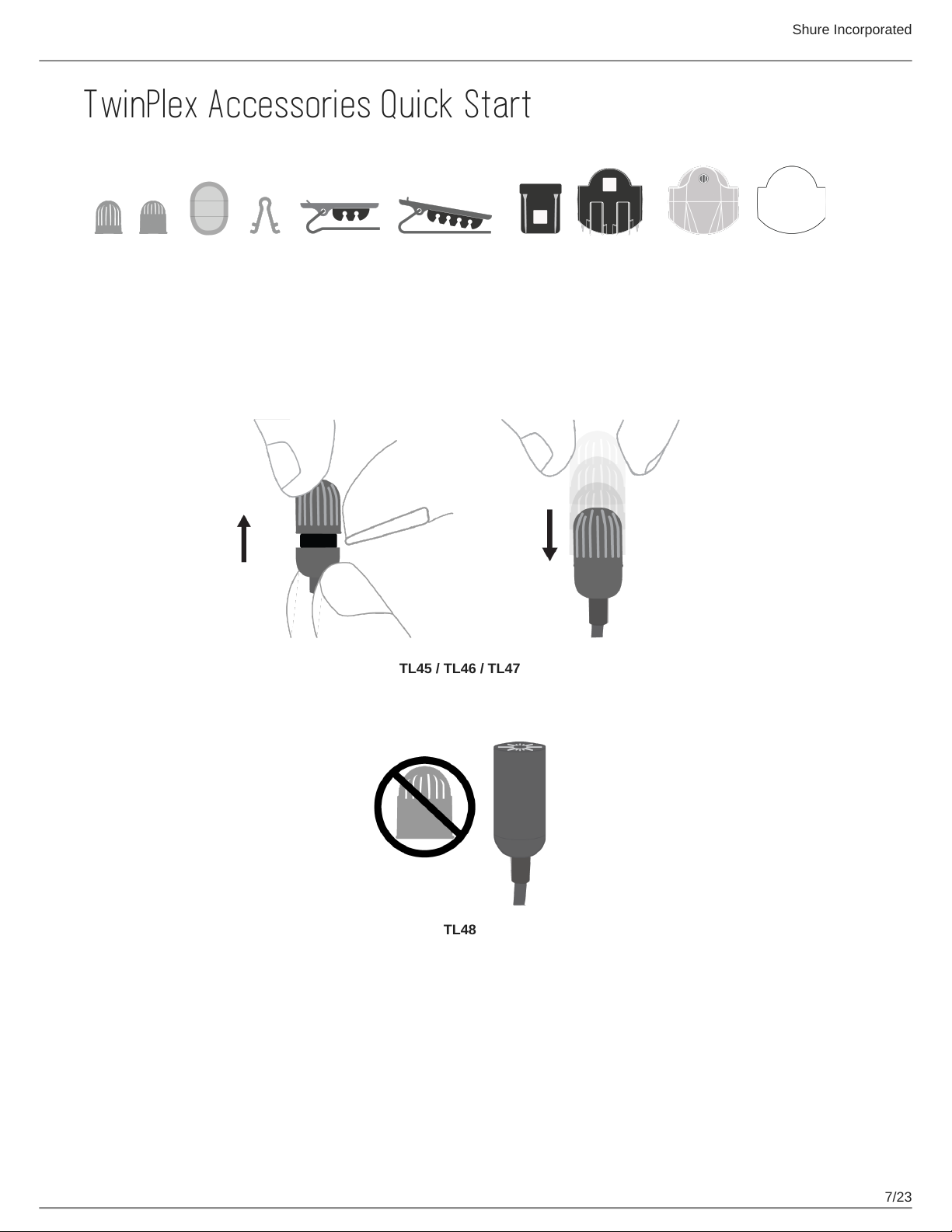

TwinPlex Accessories Quick Start
Frequency Caps
TL45 / TL46 / TL47
TL48

Shure Incorporated
8/23

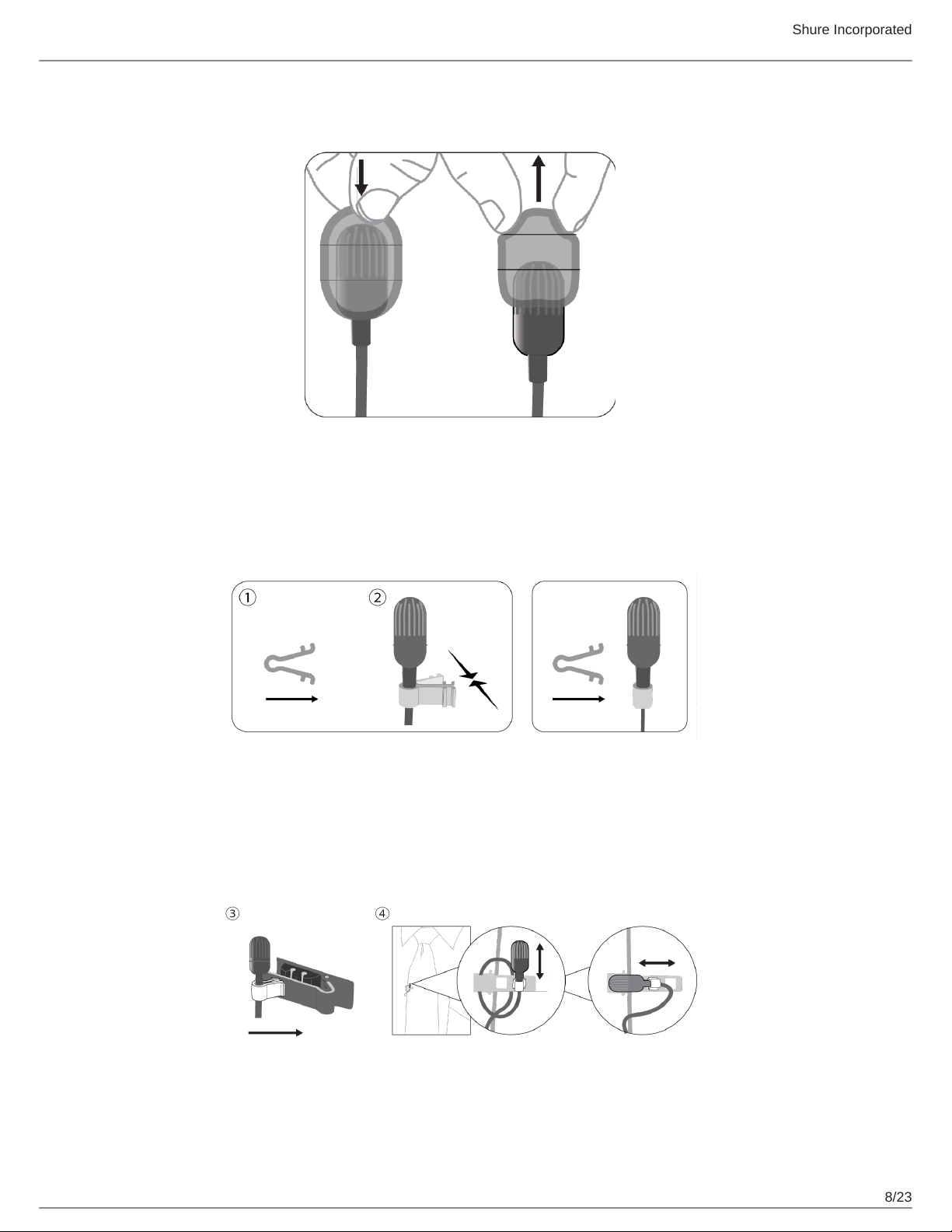

Attaching the Windscreen
Lavalier Standoff
Tie Clip

Shure Incorporated
9/23
Dual Tie Clip
Vampire Clip
Sticky Mount

Shure Incorporated
10/23

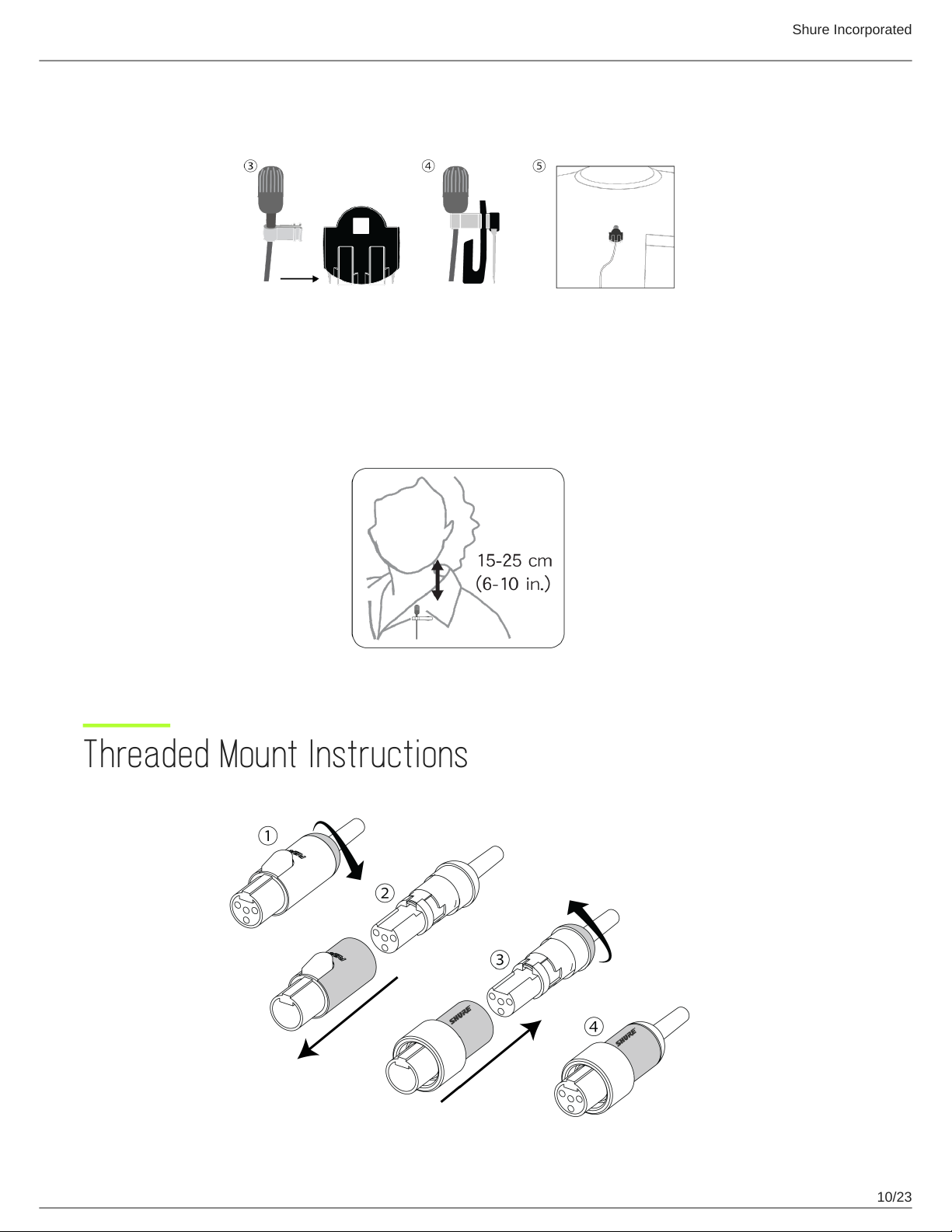

Sticky Vampire Clip
Lavalier Distance
Threaded Mount Instructions

Shure Incorporated
11/23

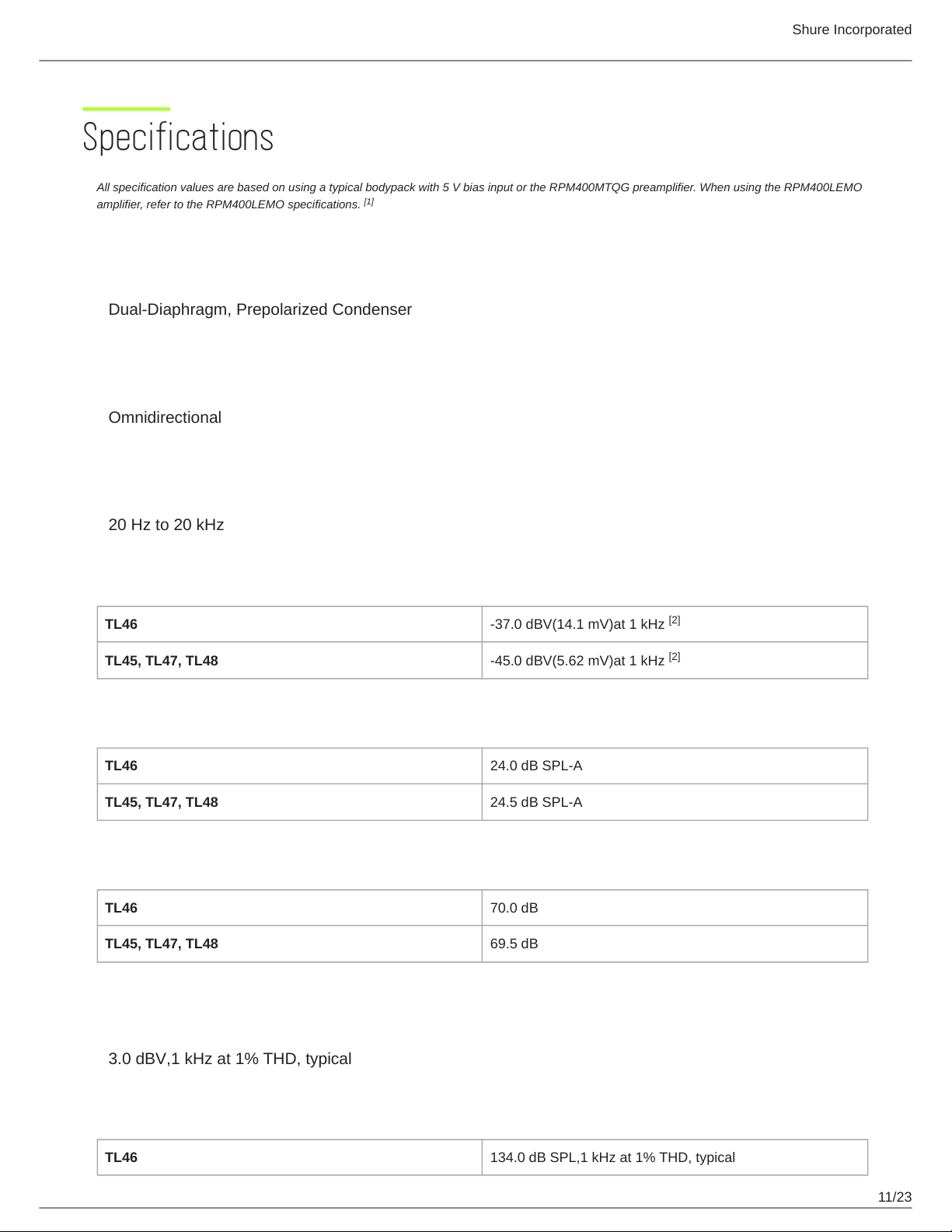

Specifications
All specification values are based on using a typical bodypack with 5 V bias input or the RPM400MTQG preamplifier. When using the RPM400LEMO
amplifier, refer to the RPM400LEMO specifications.
Microphone Capsule
Dual-Diaphragm, Prepolarized Condenser
Polar Pattern
Omnidirectional
Frequency Response
20 Hz to 20 kHz
Sensitivity
TL46 -37.0dBV(14.1mV)at 1 kHz
TL45, TL47, TL48 -45.0dBV(5.62mV)at 1 kHz
Self-Noise, A-Weighted, Equivalent Acoustical
TL46 24.0dBSPL-A
TL45, TL47, TL48 24.5dBSPL-A
Signal-To-Noise Ratio
TL46 70.0dB
TL45, TL47, TL48 69.5dB
Output Clipping Level
3.0dBV,1 kHz at 1% THD, typical
Maximum SPL
TL46 134.0dBSPL,1 kHz at 1% THD, typical
[1]
[2]
[2]
[3]
[4]

Shure Incorporated
12/23
TL45, TL47, TL48 142.0dBSPL,1 kHz at 1% THD, typical
Dynamic Range
TL46 110.0dB typical
TL45,TL47, TL48 117.5dB typical
Microphone Current Draw
120 to 240µA,typical
Bias Voltage
Recommended Operating Voltage
5VDC
Housing
Molded ABS
Polarity
MTQG, XLR connector Positive pressure on diaphragm produces positive voltage
on pin 3 with respect to pin 1
LEMO, NC, MDOT Positive pressure on diaphragm produces negative voltage
on pin 3 with respect to pin 1.
Cable Diameter
TL45 1.1mm
TL46, TL47, TL48 1.6mm
Cable Length
MTQG, LEMO, MDOT 66 in. (1.67m)
NC, XLR connector 96 in. (2.43m)
Net Weight
with cable

Shure Incorporated
13/23
12.0g(0.42 oz.)
All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with
slightly decreased headroom and sensitivity.
1 Pa=94 dB SPL
S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL
Dimensions
A B C D
Cable Length Cable Diameter Microphone Length Microphone Diameter
TL45 66 in. (1.67M) 1.1MM 13.5MM 5.6MM
TL46 66 in. (1.67M) 1.6MM 13.5MM 5.6MM
[1]
[2]
[3]
[4]

Shure Incorporated
14/23

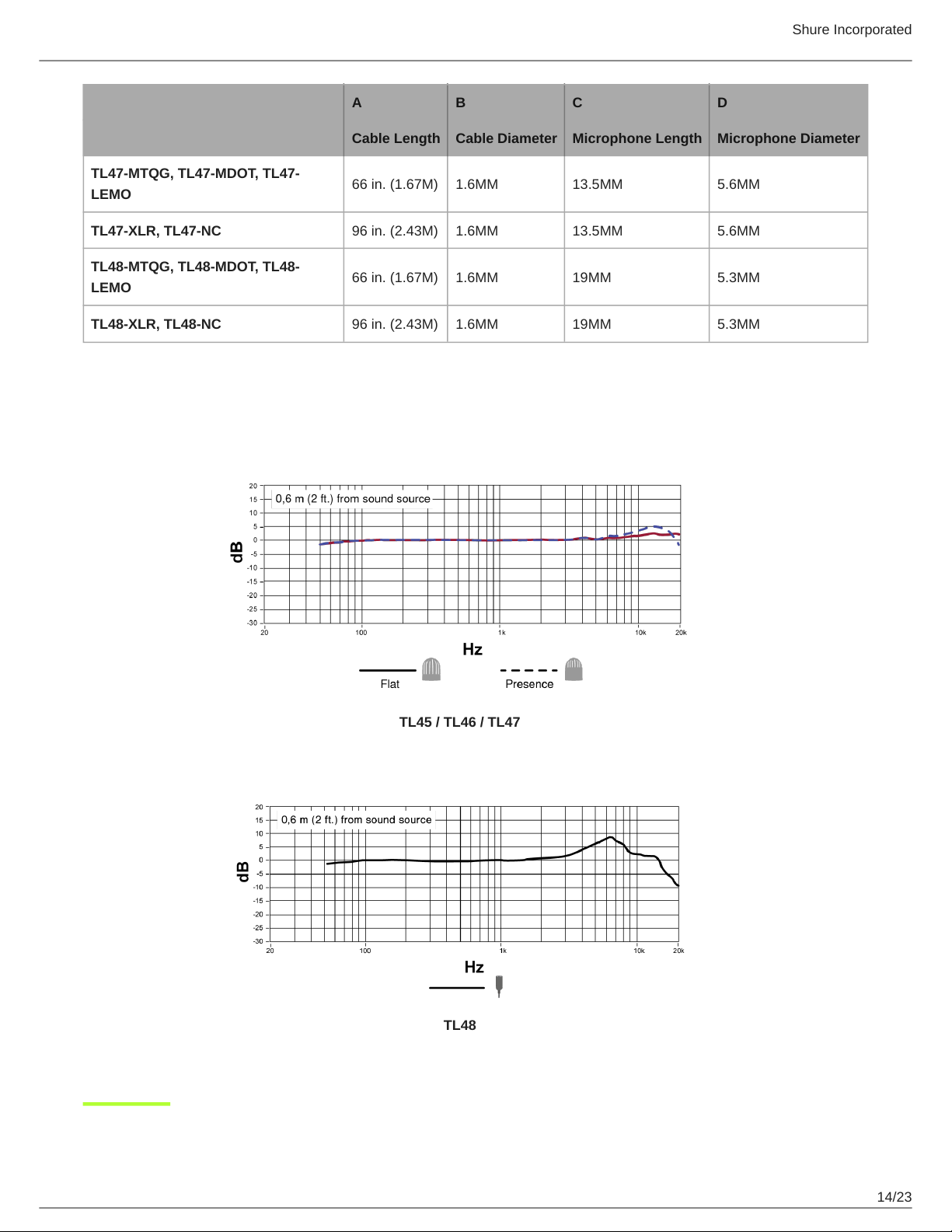

A B C D
Cable Length Cable Diameter Microphone Length Microphone Diameter
TL47-MTQG, TL47-MDOT, TL47-
LEMO 66 in. (1.67M) 1.6MM 13.5MM 5.6MM
TL47-XLR, TL47-NC 96 in. (2.43M) 1.6MM 13.5MM 5.6MM
TL48-MTQG, TL48-MDOT, TL48-
LEMO 66 in. (1.67M) 1.6MM 19MM 5.3MM
TL48-XLR, TL48-NC 96 in. (2.43M) 1.6MM 19MM 5.3MM
Frequency Response
TL45 / TL46 / TL47
TL48

Shure Incorporated
15/23
Accessories
Replacement Parts
MTQG/TA4F 4-pin Connector (Shure® Bodypacks) WA430
Neutrik MTQG 5-pin Connector Kit (Lectrosonics® Bodypacks) WA435
TL45 Lemo Connector for 1.1mm cables WA411
TL46/47/48/TH53 Lemo Connector for 1.6mm cables WA416
MicroDot adapters for -MDOT versions
MicroDot to LEMO 3 Pin for Shure® and Sennheiser® Bodypacks MD40LEMO
MicroDot to TA4F/TQG for (Shure® Bodypacks) MD40TA4F
MicroDot to TA5F/TQG (Lectrosonics® Bodypacks) MD40TA5F
Furnished Accessories
-A Series
Frequency Caps, Flat Response RPM40FC
Frequency Caps, Presence Response RPM40PC
Single Tie Clip RPM40STC
Dual Tie Clip RPM40TC
Standoff for Clips RPM40SO
Vampire Mount RPM40VM
Sticky Vampire Mount RPM40SVM
Foam Windscreen RPM40WS
Clear Sticky Mount RPM40SM
Sticky Mount Adhesives (15 Pieces) RPM40TS

Shure Incorporated
16/23

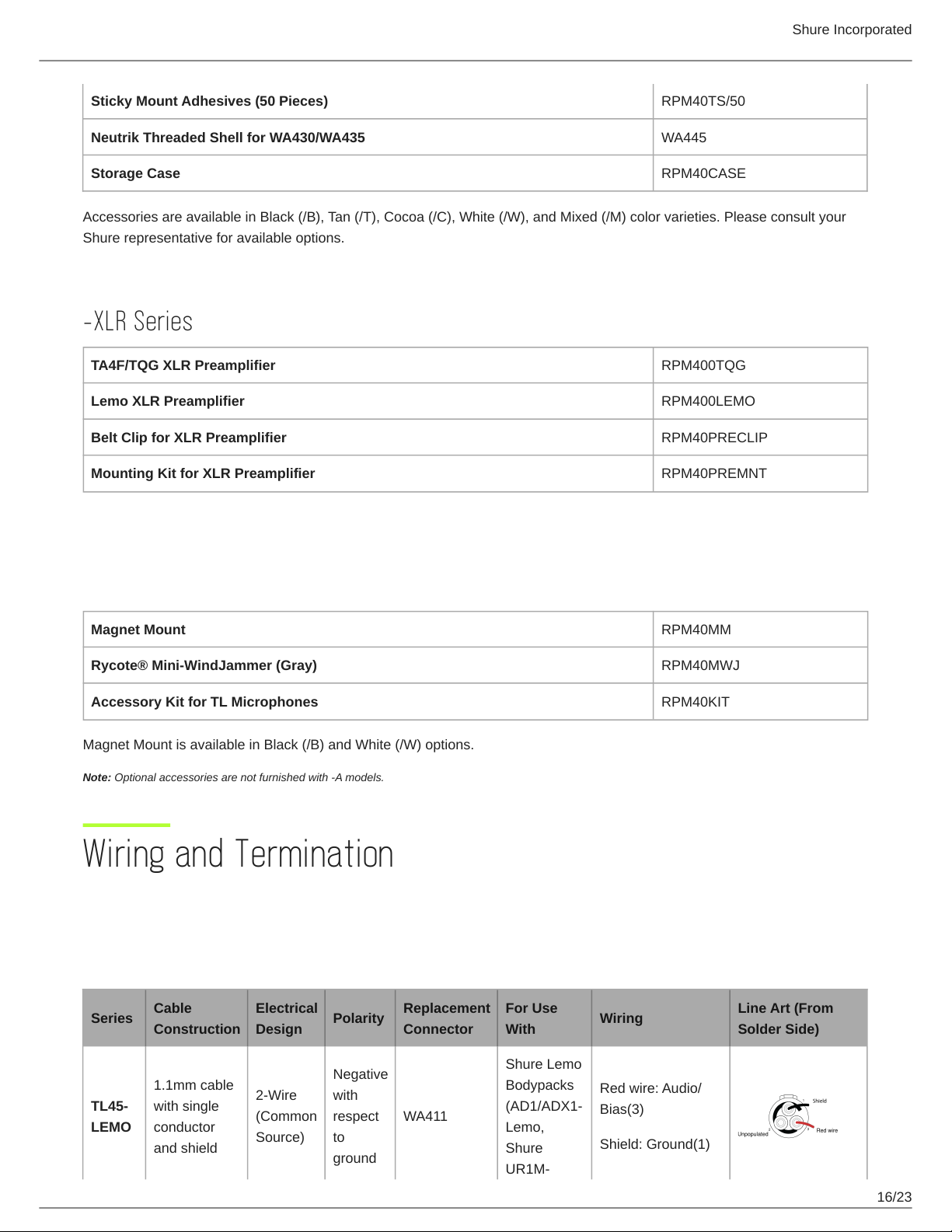

Sticky Mount Adhesives (50 Pieces) RPM40TS/50
Neutrik Threaded Shell for WA430/WA435 WA445
Storage Case RPM40CASE
Accessories are available in Black (/B), Tan (/T), Cocoa (/C), White (/W), and Mixed (/M) color varieties. Please consult your
Shure representative for available options.
-XLR Series
TA4F/TQG XLR Preamplifier RPM400TQG
Lemo XLR Preamplifier RPM400LEMO
Belt Clip for XLR Preamplifier RPM40PRECLIP
Mounting Kit for XLR Preamplifier RPM40PREMNT
Optional Accessories
Magnet Mount RPM40MM
Rycote® Mini-WindJammer (Gray) RPM40MWJ
Accessory Kit for TL Microphones RPM40KIT
Magnet Mount is available in Black (/B) and White (/W) options.
Note: Optional accessories are not furnished with -A models.
Wiring and Termination
Typical Wiring Table
Series Cable
Construction
Electrical
Design Polarity Replacement Connector
For Use
With Wiring Line Art (From Solder Side)
TL45-
LEMO
1.1mm cable
with single
conductor
and shield
2-Wire
(Common
Source)
Negative
with
respect
to
ground
WA411
Shure Lemo
Bodypacks
(AD1/ADX1-
Lemo,
Shure
UR1M-
Red wire: Audio/
Bias(3)
Shield: Ground(1)

Shure Incorporated
17/23

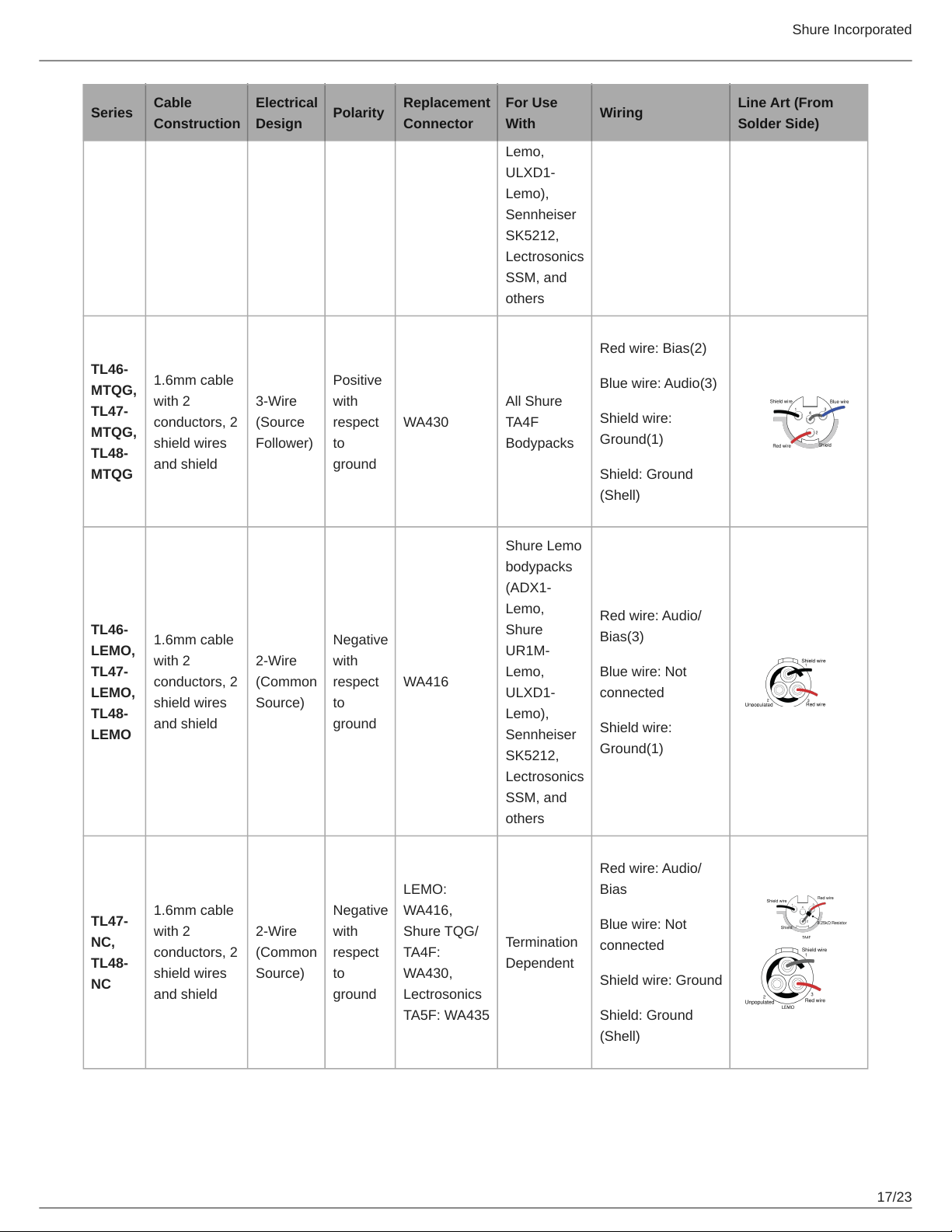

Series Cable
Construction
Electrical
Design Polarity Replacement Connector
For Use
With Wiring Line Art (From Solder Side)
Lemo,
ULXD1-
Lemo),
Sennheiser
SK5212,
Lectrosonics
SSM, and
others
TL46-
MTQG,
TL47-
MTQG,
TL48-
MTQG
1.6mm cable
with 2
conductors, 2
shield wires
and shield
3-Wire
(Source
Follower)
Positive
with
respect
to
ground
WA430
All Shure
TA4F
Bodypacks
Red wire: Bias(2)
Blue wire: Audio(3)
Shield wire:
Ground(1)
Shield: Ground
(Shell)
TL46-
LEMO,
TL47-
LEMO,
TL48-
LEMO
1.6mm cable
with 2
conductors, 2
shield wires
and shield
2-Wire
(Common
Source)
Negative
with
respect
to
ground
WA416
Shure Lemo
bodypacks
(ADX1-
Lemo,
Shure
UR1M-
Lemo,
ULXD1-
Lemo),
Sennheiser
SK5212,
Lectrosonics
SSM, and
others
Red wire: Audio/
Bias(3)
Blue wire: Not
connected
Shield wire:
Ground(1)
TL47-
NC,
TL48-
NC
1.6mm cable
with 2
conductors, 2
shield wires
and shield
2-Wire
(Common
Source)
Negative
with
respect
to
ground
LEMO:
WA416,
Shure TQG/
TA4F:
WA430,
Lectrosonics
TA5F: WA435
Termination
Dependent
Red wire: Audio/
Bias
Blue wire: Not
connected
Shield wire: Ground
Shield: Ground
(Shell)

Shure Incorporated
18/23
Converting LEMO to TA4F
Series Cable
Construction
Electrical
Design Polarity Replacement Connector
For Use
With Wiring Line Art (From Solder Side)
TL45-
LEMO
1.1mm cable
with single
conductor
and shield
2-Wire
(Common
Source)
Negative
with
respect
to
ground
Shure TQG/
TA4F: WA430
Termination
Dependent
Shield: Ground(1)
Red wire: Audio/
Bias(3)
8.25kΩResistor
between pin 2 and 3
Shield: Ground(Shell)
TL46-
LEMO,
TL47-
LEMO,
TL48-
LEMO
1.6mm cable
with 2
conductors, 2
shield wires
and shield
2-Wire
(Common
Source)
Negative
with
respect
to
ground
Shure TQG/
TA4F: WA430
Termination
Dependent
Shield wire:
Ground(1)
Red wire: Audio/
Bias(3)
Blue wire: Not
connected
8.25kΩResistor
between pin 2 and 3
Shield: Ground(Shell)
TA5F Wiring for Lectrosonics Bodypacks (Servo Biased Wiring)
Series Cable
Construction
Electrical
Design Polarity Replacement Connector
For Use
With Wiring Line Art (From Solder Side)
TL46-
MTQG,
TL47-
MTQG,
TL48-
MTQG
1.6mm cable
with 2
conductors, 2
shield wires
and shield
3-Wire
(Source
Follower)
Positive
with
respect
to
ground
WA435
Lectrosonics
TA5F
bodypacks
Red wire: Bias(3)
Blue wire: Audio(5)
Shield wire:
Ground(1)
Shield: Ground(Shell)
Jumper between 2
and 4

Shure Incorporated
19/23
Series Cable
Construction
Electrical
Design Polarity Replacement Connector
For Use
With Wiring Line Art (From Solder Side)
TL46-
LEMO,
TL47-
LEMO,
TL48-
LEMO,
TL47-
NC,
TL48-
NC
1.6mm cable
with 2
conductors, 2
shield wires
and shield
2-Wire
(Common
Source)
Negative
with
respect
to
ground
WA435
Lectrosonics
TA5F
bodypacks
Red wire: Audio/
Bias(3)
Blue wire: Not
connected
Shield wire:
Ground(1)
Shield: Ground(Shell)
Jumper between 2
and 4

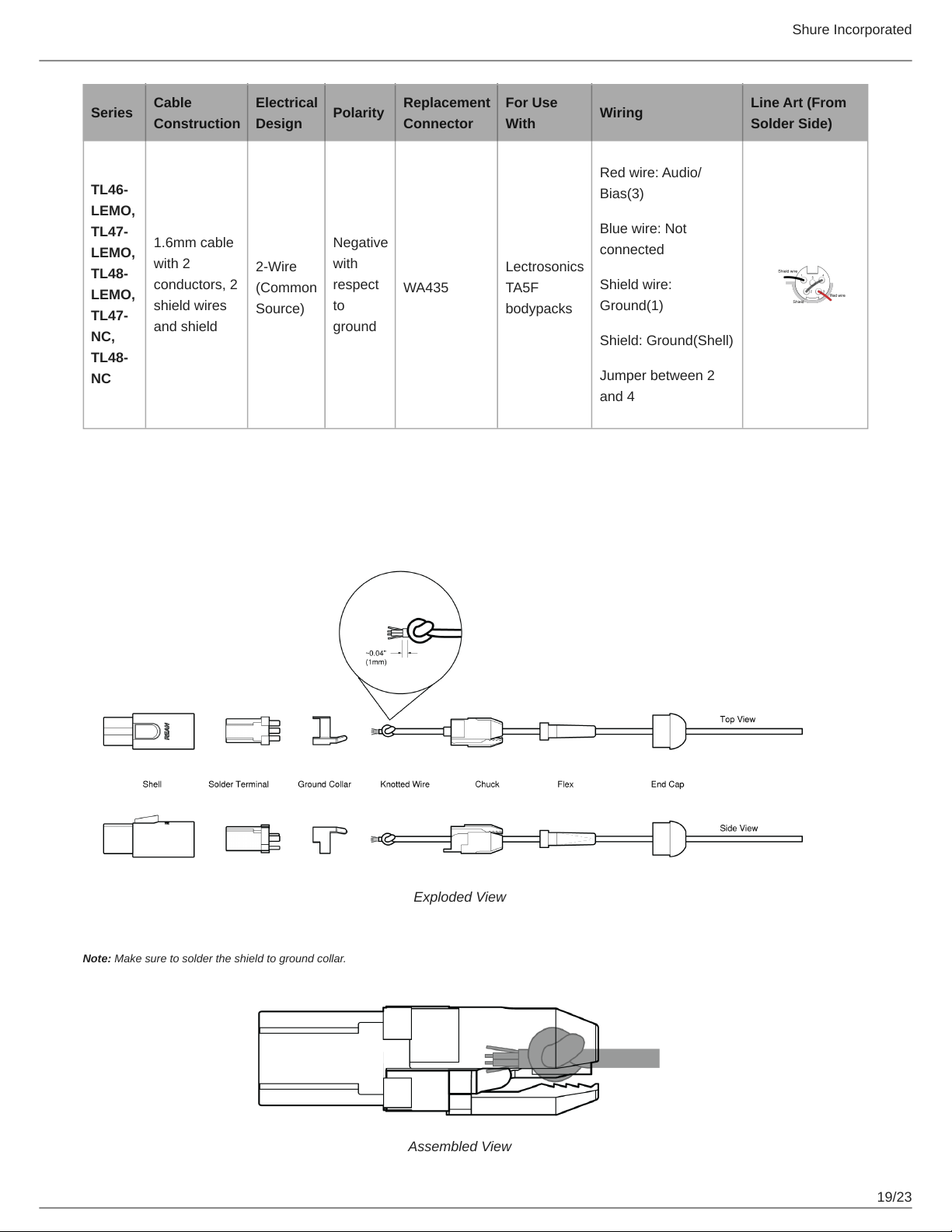

MTQG Connector Assembly
Exploded View
Note: Make sure to solder the shield to ground collar.
Assembled View

Shure Incorporated
20/23
◦
◦
◦
◦
RPM400 Preamplifiers
The RPM400 preamplifiers offer exceptional dynamic range utilizing an active gain circuit in a concise and small package.
They are offered in two connector versions: TA4F and LEMO, which allows you to quickly take a wireless TL microphone and
make it a wired solution. These preamplifiers require phantom power and can efficiently operate across a wide range of supply
voltages from 12-48v.
Features
Active circuit design with neutral gain mimics wireless for consistent gain output across wired or wireless
applications.
High RF immunity against unwanted interference.
Short, compact design.
Belt clip and table mounting kits for easy placement for a variety of applications.
Preamplifier Mounting Kit
TwinPlex XLR microphones include an under table mounting kit for temporarily or permanently mounting the amplifier. It
includes preamplifier clip, 4 screws, and premium dual lock adhesive. The mounting kit and accessories are also sold
separately.
