Shuttle SH61R4 Owner's manual

Product Specification
Value Mini-PC Barebone for the 2nd
generation Intel Core processors
The XPC Barebone SH61R4 with Socket 1155 supports powerful
Intel Core processors of the second generation and is based on
the Intel H61 chipset. Two high-resolution displays can be
connected using the two DVI connectors on the rear panel to
manage demanding visualization tasks. Ten USB ports are present,
three of which being USB 3.0, and allow for connecting different
peripheral devices. Two DIMM sockets can take up to 8 GB of
dual-channel DDR3 memory. As a special feature, the front panel
of the R4 chassis boasts a removable acrylic plate for a
customizable front design. The SH61R4 convinces as an attractive
aluminium Mini PC with modern technologies and a reliable
heatpipe cooling system.
SH61R4
Barebone
Feature Highlights
R4 chassis






Slots
Black aluminium chassis (13.3 litre)
Bays: 1x 5.25“ external, 2x 3.5“ internal
Supports Socket 1155 Desktop CPUs
Supports Intel Core i3 / i5 / i7 (TDP 
Shuttle I.C.E. Heat-pipe cooling system
1x PCIe x16 (v2.0) supports dual-slot
PCI-Express X16 graphics cards
with 6 pin power connector
1x PCIe X1 (v2.0), 1x Mini-PCIe X1 (v2.0)
Intel H61 Express PCH
Intel HD graphics integrated in the Intel
Core i3/i5/i7 processor
Video output: 2x DVI (DVI-I und DVI-D)
Supports HDCP, 1080p Full-HD
Supports 2x DDR3-1066/1333
Up to 8 GBytes in total
4x SATA 3Gb/s
2 pre-installed SATA cables
With UEFI Bios –supports hard disks >2.2TB
5.1-ch HD-audio
GigaBit LAN (RJ45)
2x USB 3.0 (rear)
8x USB 2.0 (2x front, 6x rear)
optional: RS232 COM-Port (H-RS232)
250 Watt mini power supply
Business, Office, Entry-level
CPU
Chipset


Integrated
Graphics














Memory
Drive
connectors
Images for illustration purposes only.
Other
connectors
Power supply
Application
Page 1 | 14 September
Mena Computers
Wageningselaan 46-D
3903 LA Veenendaal | The Netherlands
www.shuttleshop.nl
Tel. [phone]
[email protected]

Product Specification
Shuttle XPC Barebone SH61R4 –Product Features

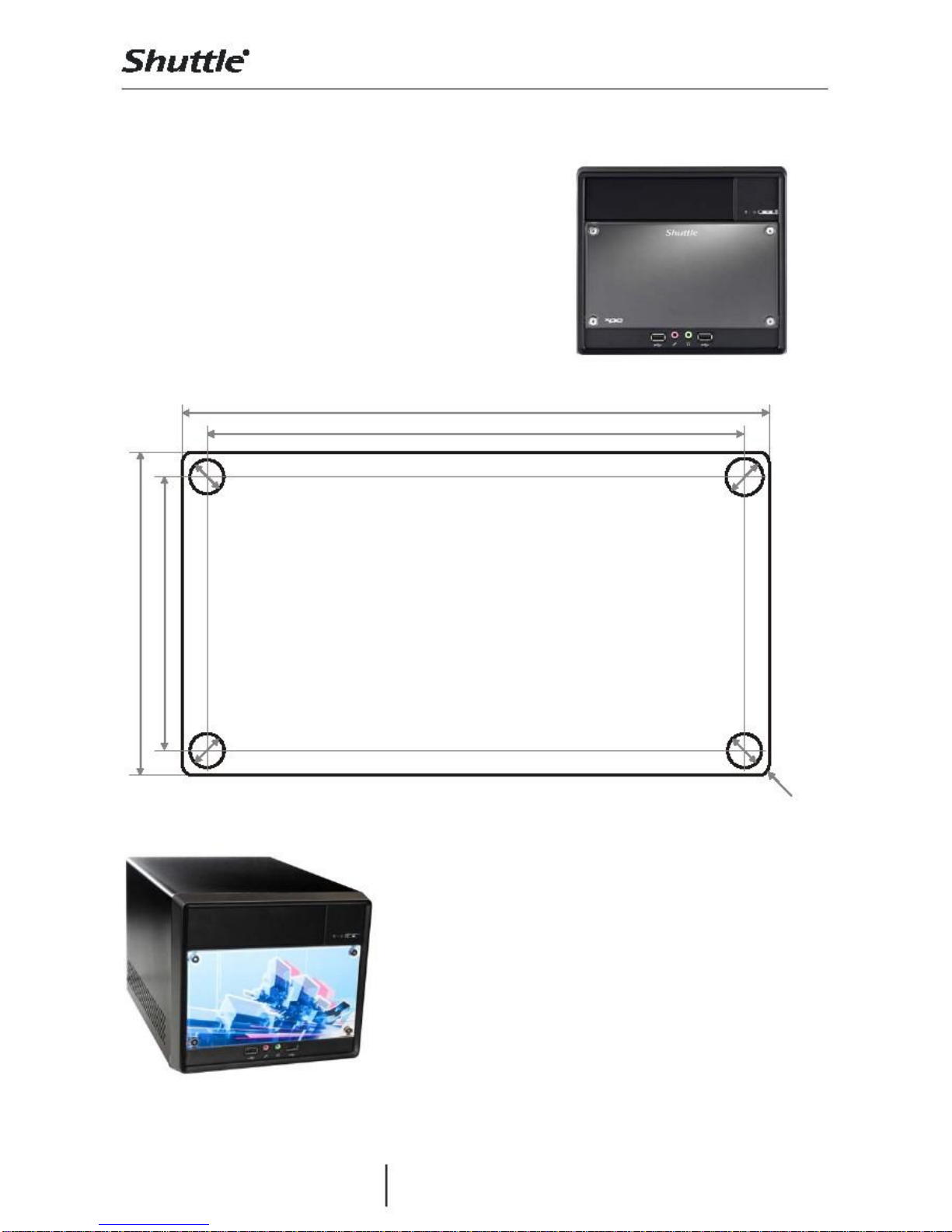

The R4 chassis design: a clean and modern look
Shuttle has always placed great emphasis on the interior and exterior
aesthetics of the XPC with the belief that a good blend of style and
form factor allows the XPC to be attractive, versatile, and work well in
almost any environment. The construction and cover of the R4 chassis
is made of aluminium. This leads to a stylish-robust appearance and
makes it a popular design. The drives and media connectors on the
front are easy to access in daily use.
Customizable
The front of this XPC can easily be customized by simply changing the
mylar behind the acylic front plate. Add your individual design such as
a photo, graphics or a company logo to the front panel in just a few
steps.
Small, but easy to build
Shuttle XPCs offer the performance of a desktop PC at a third of the
32.5 cm size while using standard desktop components. Be ready for the future
when banking on Shuttle’s new H3 chassis. The meticulously designed
internal layout features pre-routed cables to reduce clutter, increase
airflow and make the installation of components easy.
19
cm
21.5
Supports Intel 32nm Sandy Bridge Processors
Sandy Bridge is the codename for Intel's new 32nm processor
microarchitecture introduced in early 2011. It is the most sweeping
architectural transition from Intel since the introduction of Pentium 4. In
addition up to four CPU cores, the design incorporates the memory
controller, PCIe links and the graphics processor. This integration brings
higher performance, lower platform power consumption and more
compact packaging. The integrated graphics processor (IGP) has
become more capable. It can decode and encode H.264 high-
definition video streams. The architecture provides a high-bandwidth,
ring-style interconnect between the cores with their associated L3
cache partitions and the IGP. This also allows the IGP to expand its
available bandwidth by making use of the L3 cache.
2nd Generation Intel Core processor family
The new "Sandy Bridge" processors for socket 1155 follow the same
naming system as its predecessor "Nehalem" for socket 1156, but are
not downward compatible. Please refer to the support list for detailed
processor support information at global.shuttle.com.
Page 2 | 14 September
Mena Computers
Wageningselaan 46-D
3903 LA Veenendaal | The Netherlands
www.shuttleshop.nl
Tel. [phone]
[email protected]

Product Specification

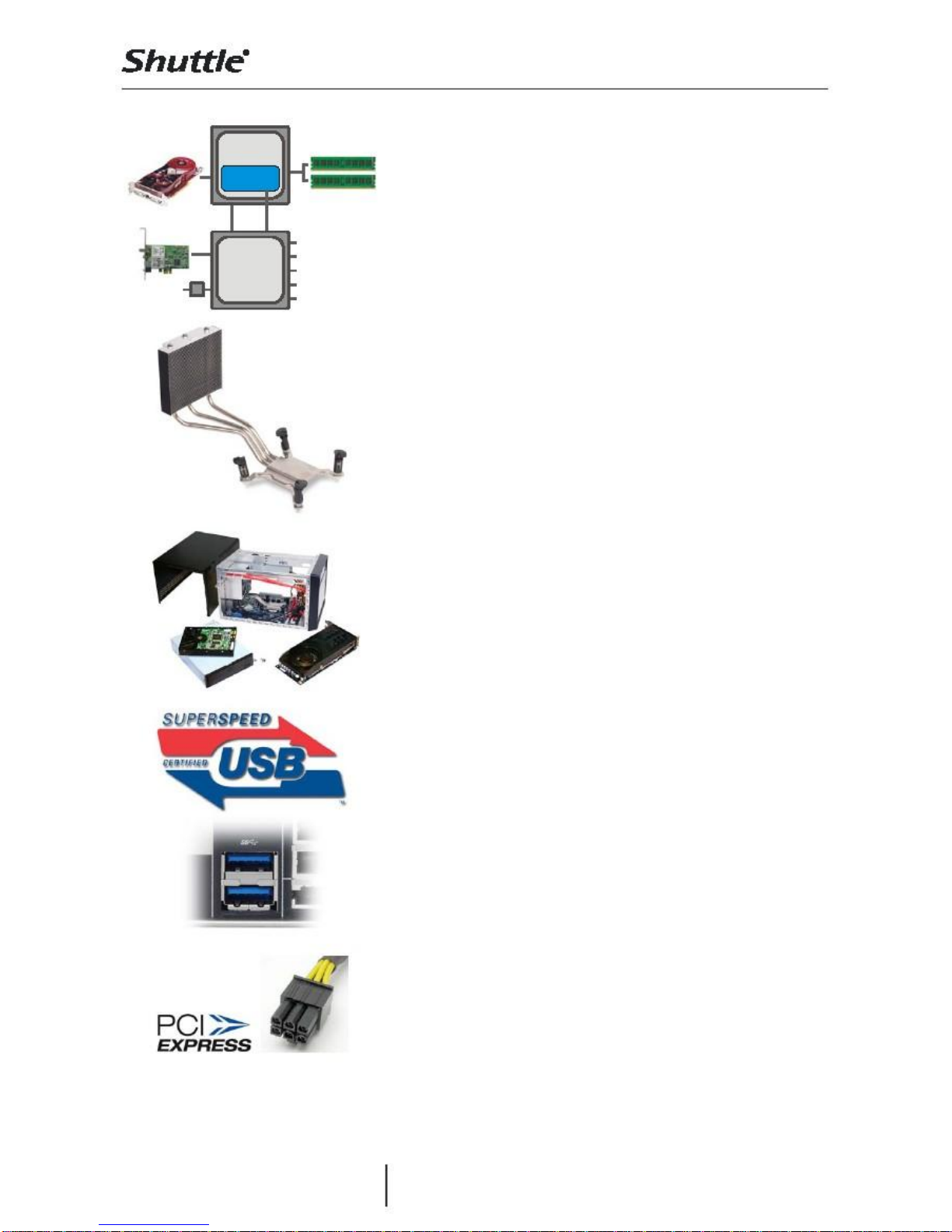

PCI-Express
V2.0
Processor
Grafik
2x DDR3-1333
Single-Chip Chipset: Intel H61 Express
The design of the Core i3/i5/i7 processors will eliminate the need for the
traditional Northbridge found on previous generation mainboards. Thus
the Shuttle XPC Barebone SH61R4 sports Intel's H61 Express Platform
Controller Hub (PCH) from the Intel 6-Series "Cougar Point" family which
integrates the hard drive controller, network controllers, monitor and
physical interfaces, PCIe links and other input/output functionalities.
DMI
PCIe x1
FDI
DVI-I + DVI-D
USB 2.0
SATA 3G
Gigabit LAN
5.1 HD-Audio
USB 3.0
Intel H61
Express
Chipset
Integrated Cooling Engine (I.C.E.)
Shuttle XPCs offer the performance of a desktop PC at a third of the
size. In order to ensure proper airflow inside such a small case, more
advanced cooling technologies have been developed and
implemented in the Shuttle XPC. Shuttle's industry-leading I.C.E.
heatpipe technology delivers efficient cooling and is exceptionally
quiet.
What does “Barebone” mean?
The Shuttle XPC Barebone SH61R4 consists of a stylish case with pre-
installed mainboard, power supply unit (PSU) and cables. Despite its
small form factor, it offers outstanding connectivity, functionality and
performance. For a full PC system, components such as a processor,
memory, hard disk and operating system need to be added that can
be chosen individually to ideally match personal needs. Some XPC
models require a graphics card to be added.
2x USB 3.0
The Shuttle XPC Barebone SH61R4 sports two USB 3.0 ports on the back
panel besides eight USB 2.0 ports on both front and rear. USB 3.0
achieves a maximum data rate of up to 5.0Gbps (640MBytes/sec)
which is ten times faster than USB 2.0. USB 3.0 is fully compatible to USB
2.0, but not to USB 1.1. At first USB 3.0 connectors seem no different to
USB 2.0 connectors, however USB 3.0 connectors have 5 more pins
placed inside the connector itself. USB 2.0 can provide a maximum
output of 500mA to the USB device while USB 3.0 can provide a
maximum output of 900mA which is particularly important for portable
hard drives. USB 3.0 also comes with better power saving features to let
devices draw less power when idle.
PCI-Express V2.0 for high-performance graphics cards
The Shuttle XPC Barebone SH61R4 is equipped with one PCI-Express x16
Version 2.0 slot delivering a bandwidth of up to 16GB/s which is twice
the speed of PCI-E 1.0. Thus there is plenty of potential for the newest
graphics cards. It is also downward compatible, allowing for use of
most of the current present graphics cards. SH61R4 also features a
6 Pin ATX auxiliary power connector for powerful graphics cards.
Page 3 | 14 September
Mena Computers
Wageningselaan 46-D
3903 LA Veenendaal | The Netherlands
www.shuttleshop.nl
Tel. [phone]
[email protected]

Product Specification

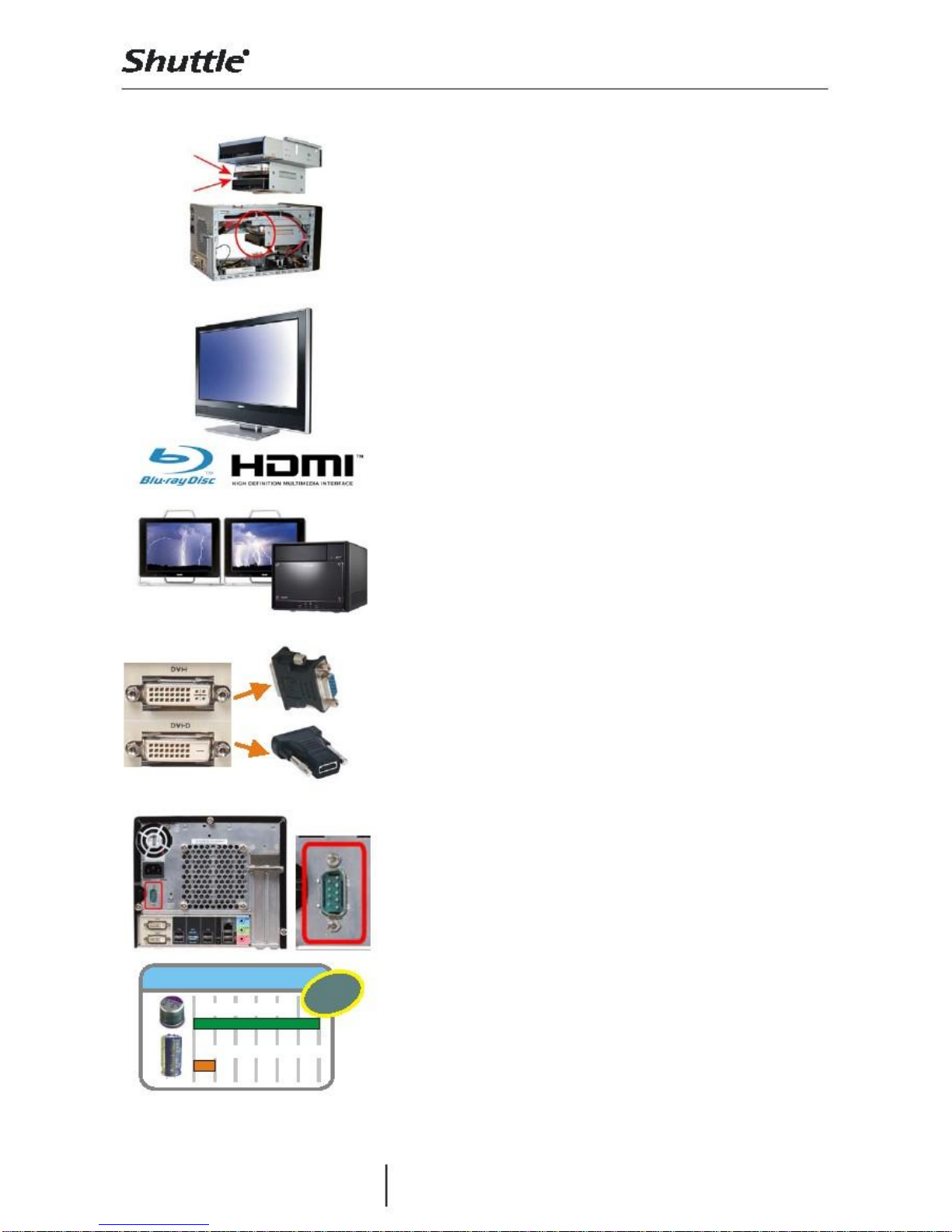

Internal Drives
Up to one optical drive and two hard disks can be fitted in the SH61R4.
To reduce heat and improve on airflow, the drive rack built into the
SH61R4 leaves generous space between the hard disks. Intelligently-
engineered airflow mechanics channels cool air to where it is needed
most - protecting components and providing optimal performance.
Built-in Intel® HD Graphics Engine
The Intel GMA HD 3000 / 2000 graphics processor has been moved
onto the same die as the CPU. It supports HDMI 1.4a standard with 3D
stereoscopic playback, hardware encoding for H.264 and MPEG-2
video, full 1080p high-definition video playback - including Blu-ray,
DirectX 10.1 and Shader 4.1. HD 2000 has 6 execution units (similar to
shader/stream processors) while HD 3000 has 12, the latter is only
available on the "K" series, though the i7's allow for a higher maximum
dynamic graphics frequency. With all these improvements and
changes to the architecture, this GPU is comparable to entry-level
discrete graphics cards such as the AMD Radeon HD 5450.
Dual View Technology with two digital video ports
Dual View technology offers multiple display support for up to two
separate monitors. This helps to improve on productivity by allowing to
spread multiple windows across two monitors while working with them
simultaneously. The SH61R4 features two digital DVI video outputs.
Video outputs
DVI-I
With optional adapters (not included) DVI-D devices can be
D-Sub connected to the HDMI port or VGA devices to the DVI-I port,
(VGA) respectively.
D-Sub (VGA) means the connector only outputs analog video signals.
DVI-D means the connector only outputs digital video signals.
DVI-I means digital and analog video signals are put out.
HDMI supports digital video plus multi-channel digital audio output, but
the DVI port and the adapter do not provide digital audio signals.
HDMI
DVI-D
Optional: Serial RS-232 port (COM)
One serial COM port (RS232) can optionally be installed to the back
panel (accessory “H-RS232”). This is particularly relevant to professional
applications such as electronic POS systems, industrial automation
systems and scientific analysis.
Operation Lifetime
Solid Capacitor
up
to
6x
Solid Capacitors
By using all-solid capacitors (audio excepted) Shuttle mainboards are
long-life and provide industry-leading stability and reliability. The
average lifespan of one solid capacitor is more than six times longer
compared to the previous generation of electrolytic capacitors.
Electrolytic Capacitor
Page 4 | 14 September
Mena Computers
Wageningselaan 46-D
3903 LA Veenendaal | The Netherlands
www.shuttleshop.nl
Tel. [phone]
[email protected]

Product Specification
Socket 1155 processor overview (August 2011)
Model Cores HT ClockTurbo Cache TDP Graphics
1- 1.6 GHz-1 MB 35W HDG440
2- 2.4 GHz-2 MB 65W HDG530
Celeron
2- 2.0 GHz-2 MB 35W HDG530T
2- 2.5 GHz-2 MB 65W HDG540
2- 2.2 GHz-3 MB 35W HDG620T
2- 2.6 GHz-3 MB 65W HDG620
2- 2.7 GHz-3 MB 65W HDG630
Pentium G630T2- 2.3 GHz-3 MB 35W HD
2- 2.8 GHz-3 MB 65W HDG840
2- 2.9 GHz-3 MB 65W HDG850
2- 3.0 GHz-3 MB 65W HDG860
2Yes 2.5 GHz-3 MB 35W HD 20002100T
2Yes 3.1 GHz-3 MB 45W HD 20002100
2Yes 3.1 GHz-3 MB 45W HD 30002105
Core i3 21202Yes 3.3 GHz-3 MB 45W HD 2000
2Yes 2.6 GHz-3 MB 35W HD 20002120T
2Yes 3.3 GHz-3 MB 65W HD 30002125
2Yes 3.4 GHz-3 MB 65W HD 20002130
2Yes 2.7 GHz 3.5 GHz 3 MB 35W HD 20002390T
4- 2.8 GHz 3.1 GHz 6 MB 95W HD 20002300
4- 2.9 GHz 3.2 GHz 6 MB 95W HD 20002310
4- 3.0 GHz 3.3 GHz 6 MB 95W HD 20002320
4- 2.5 GHz 3.3 GHz 6 MB 65W HD 20002400S
Core i5 2405S4- 2.5 GHz 3.3 GHz 6 MB 65W HD 3000
4- 3.1 GHz 3.4 GHz 6 MB 95W HD 20002400
4- 2.3 GHz 3.3 GHz 6 MB 45W HD 20002500T
4- 2.7 GHz 3.7 GHz 6 MB 65W HD 20002500S
4- 3.3 GHz 3.7 GHz 6 MB 95W HD 20002500
4- 3.3 GHz 3.7 GHz 6 MB 95W HD 30002500K
4Yes 2.8 GHz 3.8 GHz 8 MB 65W HD 20002600S
Core i7 26004Yes 3.4 GHz 3.8 GHz 8 MB 95W HD 2000
4Yes 3.4 GHz 3.8 GHz 8 MB 95W HD 30002600K
Name
Graphics clock
650~1000 MHz
850~1000 MHz
650~1100 MHz
850~1000 MHz
650~1100 MHz
850~1100 MHz
850~1100 MHz
650~1100 MHz
850~1100 MHz
850~1100 MHz
850~1100 MHz
650~1100 MHz
850~1100 MHz
850~1100 MHz
850~1100 MHz
650~1100 MHz
850~1100 MHz
850~1100 MHz
650~1100 MHz
850~1100 MHz
850~1100 MHz
850~1100 MHz
850~1100 MHz
850~1100 MHz
850~1100 MHz
650~1250 MHz
850~1100 MHz
850~1100 MHz
850~1100 MHz
850~1100 MHz
850~1350 MHz
850~1350 MHz
K = unlocked, S = Performance optimized lifestyle, T = Power optimized lifestyle, HT = Hyper Threading
Intel HD graphics HD 3000/2000 supports 12/6 Execution Units (Shader-Quads) and DirectX 10.1
Note: Intel® H61 Express Chipset does not enable overclocking features of unlocked 2nd generation Intel Core
processor family (K series: Core i5-2500K and Core i7-2600K).
Please refer to the support list at global.shuttle.com for detailed processor support information.
Page 5 | 14 September
Mena Computers
Wageningselaan 46-D
3903 LA Veenendaal | The Netherlands
www.shuttleshop.nl
Tel. [phone]
[email protected]

Product Specification
Shuttle XPC Barebone SH61R4 Specifications
Black aluminium chassis with acrylic front plate
Customizable front panel design:
simply change the mylar and add your individual design
such as a photo, graphics or a company logo to the front panel.
Storage bays: 1 x 5.25" (external), 2 x 3.5" (internal)
Dimensions: 32.5 x 21.5 x 19 cm (LWH) = 13.3 liters (without rubber feet)
Weight: 3.2 kg net / 5.0 kg gross
Shuttle Mainboard FH61, Shuttle form factor, proprietary design for XPC SH61R4
Chipset/Southbridge: Intel® H61 Express (Codename: Cougar Point)
Platform Controller Hub (PCH) as Single-Chip-Solution
Passive chipset cooling with heatsink
The Northbridge is integrated in the processor
Solid Capacitors for sensitive areas provide excellent
heat resistance for enhanced system durability
AMI BIOS, SPI Interface, 32MBit Flash-ROM
Supports PnP, ACPI 3.0, Hardware Monitoring
Supports boot up from external USB flash memory
Supports Unified Extensible Firmware Interface (UEFI) ***
250 Watt mini power supply unit
Input voltage range: 100~240V
Connectors: 20-pin ATX, 4-pin ATX12V
Other connectors: 4x SATA, 2x Molex, 1x Floppy
Graphics power connector: 6 pins
Active PFC (Power Factor Correction)
Socket 1155 (LGA 1155) supports next generation of
Intel Core i3 / i5 / i7 desktop processors with up to 95W TDP
Codename "Sandy Bridge", 32nm process technology
Not compatible with older Socket-1156 processors
The processor integrates PCI-Express, memory controller
and the graphics engine on the same die
Please refer to the support list for detailed processor support information.
Shuttle I.C.E. (Integrated Cooling Engine)
advanced I.C.E. heatpipe technology, linear controlled 92mm fan
SilentX cooling and noise reduction technology with Active Airflow
2 x 240 pin slots
Supports DDR3-1066/1333 SDRAM memory (PC3-8500/10600)
Supports Dual Channel mode
Supports max. 4 GB per DIMM, maximum total size 8 GB
R4-Chassis
Mainboard
and Chipset
BIOS
Processor
Support
Heatpipe
Processor
Cooling
Memory
Support
Page 6 | 14 September
Mena Computers
Wageningselaan 46-D
3903 LA Veenendaal | The Netherlands
www.shuttleshop.nl
Tel. [phone]
[email protected]
Power Supply

Product Specification
Integrated
Graphics
Intel® HD Graphics 2000/3000 integrated in processor
Supports Pixel Shader 4.1 and DirectX 10.1
Maximum size of Shared Memory: 1692MB
Supports DVI, max. resolution 1920x1200 @ 60Hz
Supports D-Sub, max. resolution 2048x1536 @ 75Hz
(optional VGA-to-DVI adapter required)
Supports HDCP through DVI and HDMI (HDMI through optional adapter)
Supports full HD 1080p Blu-ray (BD) / HD-DVD playback
Supports Dual-Independent-Display through DVI-D and DVI-I **)
1x PCI-Express x16 v2.0 slot (PEG, for graphics cards only)
1x PCI-Express x1 v2.0 slot, open-ended ****)
1x Mini-PCI-Express x1v2.0 half/full-size slot (for optional WLAN module)
Supports dual-slot graphics cards (occupies second PCI-Express slot)
With 6 pin power connector for the graphics card.
If a discrete graphics card is used, the onboard graphics will be deactivated
Audio Codec: IDT 92HD89C, 5.1 channel
Three analog audio connectors (3.5mm) at the back panel:
line-in (blue), line-out (green) and microphone input (pink)
shared with 5.1 channel line-out (front, rear, center/bass)
Front panel: microphone input and head phone output (line-out)
Gigabit LAN
Realtek RTL 8111E Ethernet network controller
PCI Express interface
IEEE 802.3u 1000Base-T compliant
Supports 10 / 100 / 1.000 MBit/s operation
Supports Wake-on-LAN (WOL)
Expansion
Slots
6-Channel
Audio
Gigabit-LAN
Controller
Drive
Connectors
4x Serial ATA rev. 2.0, max. 3 Gbit/s (onboard)
Front Panel
Connectors
Microphone input
Headphone output
2x USB 2.0
Power button
Power indicator (Blue LED)
Hard disk drive indicator (Yellow LED)
DVI-D **) supports HDMI through optional adapter
DVI-I **) supports analog VGA through optional adapter
6x USB 2.0
2x USB 3.0
GigaBit LAN (RJ45)
Audio Line-out
Audio Line-in
Microphone Input
Clear CMOS button
optional: Serial RS232 port (Accessory: "H-RS232")
Perforation for three optional WLAN antennas
Back Panel
Connectors
Page 7 | 14 September
Mena Computers
Wageningselaan 46-D
3903 LA Veenendaal | The Netherlands
www.shuttleshop.nl
Tel. [phone]
[email protected]

Product Specification
Other
Connectors
(onboard)
2x USB 2.0 ( 2x5 pins) - occupied by front panel
1x RS232 serial interface (2x5 pins)
2x fan connectors (4 pins and 3 pins)
Audio AUX input
Multi-language XPC Installation Guide
32/64bit driver disk including Adobe Reader Software
2x pre-installed SATA cables
Power Cord
Screws
Heatsink Compound
Cable straps
Back panel adapter for serial RS232 port (H-RS232)
Wireless LAN Modul 802.11n (Mini-PCIe card)
300W power supply, 80Plus Bronze (PC61J)
500W power supply, 80Plus Bronze (PC63J)
EMI: FCC, CE, BSMI, C-Tick
Safety: ETL, CB, BSMI
Other: RoHS, Energy Star 5.0, EuP Lot6
Conformity: This device is classed as a technical information equipment (ITE) in class B
and is intended for use in living room and office. The CE-mark approves the conformity
by the EU-guidelines:
- EMV-guideline 89/336/EWG electromagnetic tolerance
- LVD-guideline 73/23/EWG use of electric devices
within certain voltage-limits
Included
Accessories
Optional
Accessories
Certifications
Compliance
*) Overclocking Warning:
Please note there is a certain risk involved with overclocking, including adjusting the settings in the BIOS or using
third-party overclocking tools. Overclocking may affect your system stability or even cause damage of the
components and devices of your system. It is done at your own risk and expense. Shuttle cannot be held
responsible for possible damage caused by overclocking.
**) The integrated video outputs (DVI-D and DVI-I) will be disabled, if a PCI-Express graphics card is installed.
***) Unified Extensible Firmware Interface (UEFI) –required when booting from hard disks larger than 2.2 TB under
Windows 64 bit operating systems such as Windows 7, Windows Vista SP1 and Windows Server 2008/2003 SP1.
****) Open-ended PCI-E slot - The X1 slot uses an open-ended socket to permit physically longer cards (e.g. X4 or
X8) while the speed is limited to X1.
Page 8 | 14 September
Mena Computers
Wageningselaan 46-D
3903 LA Veenendaal | The Netherlands
www.shuttleshop.nl
Tel. [phone]
[email protected]

Product Specification
Shuttle XPC SH61R4 –Connectors
Front view
34
1
C
2
G
B
I
J
D
E
H
A
B
Rear view
F
RS
K
LMLN OPQB
5675
1
2
3
4
5
6
7
5.25“ bay for the optical drive
Removable acryllic plate
Hard disk LED indicator
Power switch with LED
2x USB 2.0 ports
Microphone input
Headphone output
A
B
C
D
E
F
G
H
I
J
*) Remark: the DVI video outputs will be disabled, if a PCI-Express graphics card is installed. **) Adapter H-RS232
Back panel connectors
Mainboard
Front audio header
Audio AUX input
Onboard USB
PCIe 1x slot
Fan 2 connector
Intel H61 chip
PCIe 16x slot
Voltage regulator
COM port (RS232)
LPC header
Mini-PCIe slot
CMOS Battery
4x SATA (3Gb/s)
Front connector
Page 9 | 14 September
Processor socket
(LGA1155)
Fan 1 (for CPU)
ATX power (4 pin)
2x DIMM slots
for DDR3 memory
ATX power (20 pin)
CIR header
Mena Computers
Wageningselaan 46-D
3903 LA Veenendaal | The Netherlands
www.shuttleshop.nl
Tel. [phone]
[email protected]
Perforation for optional
WLAN module
Three thumbscrews
Power supply
Power supply fan
AC power connector
Heatpipe cooling system
Hole for Kensington Lock
COM / RS232 (optional**)
DVI-I video output *)
DVI-D video output *)
K
L
M
N
O
P
Q
R
S
Gigabit LAN (RJ45)
6x USB 2.0
2x USB 3.0
Clear-CMOS-Button
Microphone input
Audio Line-out
Audio Line-in
PCI-Express X16 slot
PCI-Express X1 slot

Product Specification
Shuttle SH61R4 –Mylar Dimensions
The R4 front panel comes with a removable acrylic plate
which allows for creating individual front designs. Simply
change the mylar and add your individual design such as a
photo, graphics or a company logo to the front panel in just a
few steps.
192.6
176.4
106.0
89.9
12
.2
All dimensions in millimeter (mm)
Example
Page 10 | 14 September
Mena Computers
Wageningselaan 46-D
3903 LA Veenendaal | The Netherlands
www.shuttleshop.nl
Tel. [phone]
[email protected]
11
.
2
.2
11
.2
11
R
=1
.4
