Siemens Simodrive SIMAG H User manual

Planning/Installation Guide 07/2002 Edition
sensor
Measuring System for Main Spindle Drives
SIMAG H

07.02 Edition
General Information 1
Description of Components 2
Technical Data 3
Installation / Calibration 4
Assembly Drawing 5
SIMODRIVE sensor – SIMAG H
Measuring System for
Main Spindle Drives
Planning/Installation Guide

SIMODRIVEDocumentation
Printing history
Brief details of this edition and previous editions are listed below.
The status of each edition is shown by the code in the “Remarks”column.
Status code in the “Remarks” column:
ANew documentation. . . . .
BUnrevised reprint with new Order No.. . . . .
CRevised edition with new status.. . . . .
If factual changes have been made on the page since the last edition, this is indicated by a new edition
coding in the header on that page.
Edition Order No. Remarks
05.99 6SN1 197-0AB30-0BP0 A
07.02 6SN1 197-0AB30-0BP1 C
This manual is part of the documentation on CD-ROM (DOCONCD)
Edition Order No. Remarks
11.02 6FC5 298-6CA00–0BG3 C
Trademarks
SIMATICr, SIMATIC HMIr, SIMATIC NETr, SIROTECr, SINUMERIKr, SIMODRIVErand
MOTION-CONNECTrare Siemens trademarks. All other product and system names are registered
trademarks of their respective owners and must be treated accordingly.
Further information is available on the Internet under:
http://www.ad.siemens.de/simodrive
This publication was produced with Interleaf V 7
The reproduction, transmission or use of this document or its
contents is not permitted without express written authorization.
Offenders will be liable for damages. All rights, including rights
created by patent grant or registration of a utility model or design,
are reserved.
Siemens AG 2002. All rights reserved.
Other functions not described in this documentation might be
executable in the control. This does not, however, represent an
obligation to supply such functions with a new control or when
servicing.
We have checked that the contents of this publication agree with the
hardware and software described herein. Nonetheless, differences
might exist and therefore we cannot guarantee that they are
completely identical. The information given in this publication is
reviewed at regular intervals and any corrections that might be
necessary are made in the subsequent printings. Suggestions for
improvement are welcome at all times.
Subject to change without prior notice.
Siemens–AktiengesellschaftOrder No. 6SN1 197-0AB30-0BP1
Printed in the Federal Republic of Germany
3ls

v
Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
Preface
This document is part of the documentation developed for SIMODRIVE. All pu-
blications are available individually. The documentation list, which includes all
Advertising Brochures, Catalogs, Overviews, Short Descriptions, User Manuals
and Technical Descriptions can be obtained from your local Siemens office (with
Order No.).
This Guide does not purport to cover all details or variations in equipment, nor
to provide for every possible contingency to be met in connection with installa-
tion, operation or maintenance. Should further information be desired or should
particular problems arise which are not covered sufficiently for the purchaser’s
purposes, the matter should be referred to the local Siemens office. The con-
tents of this Guide shall neither become part of nor modify any prior or existing
agreement, commitment or relationship. The Sales Contract contains the entire
obligations of Siemens. The warranty contained in the contract between the
parties is the sole warranty of Siemens. Any statements contained herein do not
create new warranties or modify the existing warranty.
If you have any questions, please contact the following Hotline:
A&D Technical Support Tel: [phone]
FAX: [phone]
eMail: [email protected]
If you have any questions regarding the documentation (also suggestions, cor-
rections), please send a fax to the following number:
[phone]
Fax form: refer to the suggestion sheet the end of this brochure.
For the purpose of this Guide and product labels, a ”qualified person”is one
who is familiar with the installation, mounting, start-up and operation of the
equipment and the hazards involved. He or she must have the following
qualifications:
STrained and authorized to energize, de-energize, ground and tag circuits
and equipment in accordance with established safety procedures.
STrained in the proper care and use of protective equipment in accor-
dance with established safety procedures.
STrained in rendering first aid.
Hotline
Definition of
qualified
personnel

07.02
vi Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
!Danger
This symbol in the document indicates that death, severe physical injury or
substantial property damage will result if proper precautions are not taken.
!Warning
This symbol appears in the document if death, severe physical injury or
property damage can result if proper precautions are not taken.
!Caution
This symbol appears in the document indicating that minor physical injury or
property damage can result if proper precautions are not taken.
Caution
This warning (without warning triangle) indicates that material damage can
result if the proper precautions are not taken.
Notice
This warning indicates that an undesirable situation or condition can occur if
the appropriate instructions/information are not observed.
Note
We recommend that this information is observed
Explanation of the
various symbols
Preface

07.02
vii
Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
!Danger
SStart–up/commissioning is prohibited until it has been ensured that the
machine, in which the components described here are to be installed, fufills
the regulations/specifications of the Directive 98/37/EC.
SOnly appropriately qualified personnel may commission/start–up this equip-
ment.
SThis personnel must observe the technical customer documentation rele-
vant to the product and the observe the danger and warning information.
SOperational electrical equipment has parts and components which are at
hazardous voltage levels.
SHazardous axis motion can occur when working with the equipment.
SAll work should be undertaken with the system in a no–voltage condition
!Warning
SPerfect, safe and reliable operation of this equipment assumes that it has
been professionally transported, stored, mounted and installed as well as
careful operator control and service.
SThe information given in catalogs and quotations applies additionally for
special versions of machines and equipment.
SIn addition to the danger and warning information in the technical customer
documentation supplied with the equipment, all relevant national, local and
plant–specific regulations and specifications must also be taken into ac-
count.
!Caution
SFor synchronous motors, voltage is present at the motor terminals when the
rotor is turning (integrated permanent magents).
SSurface temperatures of over +100dC can occur on the motors. For this
reason, no heat–sensitive objects, such as cables or electronic compo-
nents, may be attached to or come into contact with the motor surface.
SWhen handling cables, please observe the following:
–They must not be damaged
–They must not be stressed
–They must not come into contact with rotating components.
Danger and
warning
information
Preface

07.02
viii Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
!Caution
Electrostatic dischargesensitive devices are individual components, integrated
circuits, or boards which when handled, tested or transported, could be des-
troyed by electrostatic fields or electrostatic discharge. These components are
designated as ESDS (ElectroStatic Discharge Sensitive Devices).
Handling ESDS boards:
SThe human body, working area and packing should be well grounded when
handling ESDS components!
SElectronic boards may only be touch by personnel in ESDS areas with con-
ductive floor surface if
–they are grounded with an ESDS bracelet
–they are wearing ESDS shoes or ESDS shoe grounding strips.
SBoards should only be touched when absolutely necessary.
SElectronic modules and boards may neither come into contact with plastic
materials nor man–made fibers
SBoards may only be placed on conductive surfaces (desk with ESDS sur-
face, conductive ESDS foam rubber, ESDS packing bag, ESDS transport
containers).
SBoards may not be brought close to data terminals, monitors or television
sets.
A minimum of 10 cm should be kept between the board and the screen.
SMeasurements may be taken on the boards only if
–the measuring equipment is grounded (e.g. via the protective conductor)
or
–in the case of floating measuring instruments, the probe is briefly
discharged before a measurement is taken (e.g. through contact with
bare control housing).
ESDS information
Preface

07.02
ix
Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
Note
For technical information about the SIMODRIVE 611, please refer to the follo-
wing Guides:
SIMODRIVE 611, Planning Guide
Transistor PWM Inverters for AC Feed Drives and AC Main Spindle Drives
Order Number: 6SN1197-0AA00-0VPV
SIMODRIVE 611 Planning Guide
AC Motors for Feed and Main Spindle Drives
Order Number: 6SN1197-0AA20-0VPV
SIMODRIVE 611 Analog System, Start-Up Guide
Transistor PWM Inverters for AC Feed Drives and AC Main Spindle Drives
Order Number: 6SN1197-0AA60-0VPV
SIMODRIVE 611 Planning Guide;
AC Induction Motors for Main Spindle Drives
Order No.: 6SN1197–0AC60–0VPV
SIMODRIVE 611 Planning Guide;
AC Motors for Main Spindle Drives
1FE1 Built–In Synchronous Motors
Order No.: 6SN1197–0AC00–0VPV
Preface

07.02
xSiemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
Preface

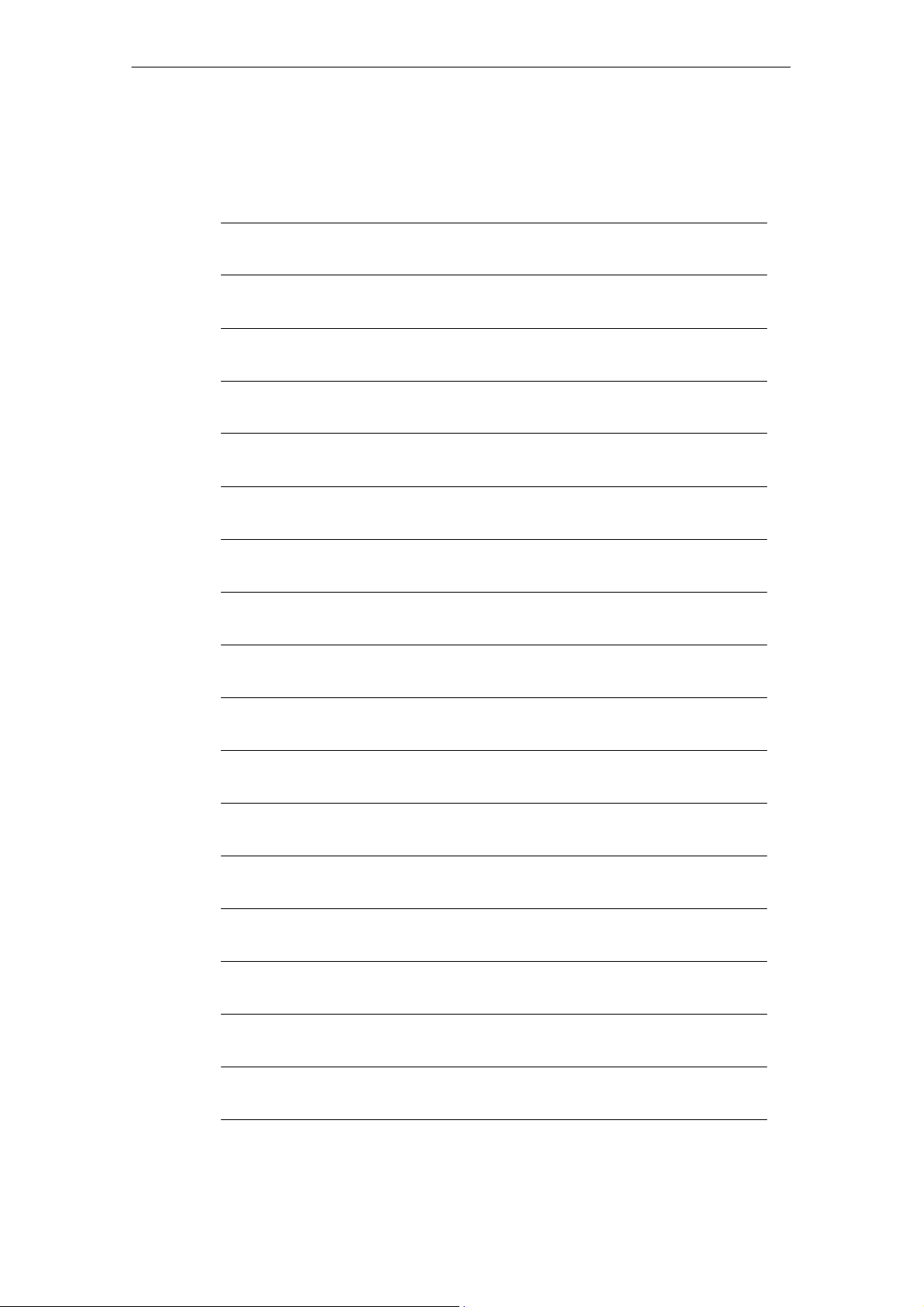

Space for your notes

xi
Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
Contents
1 General Information 1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Description of Components and Order Numbers 2-15. . . . . . . . . . . . . . . . . . . . . . .
2.1 Sensor head 2-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Sensor wheel 2-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Cable module 2-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Technical Data 3-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 Installation/Calibration 4-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 Mounting the sensor wheel 4-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 Mounting/adjusting the sensor head 4-23. . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3 Mounting the cable assembly 4-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Assembly Drawings 5-25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1 Dimension sheet 5-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 Dimension date and tolerances 5-27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3 Mounting drawing 5-28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

07.02
xii Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
Contents
Space for your notes

07.02
1-13
Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
General Information
SIMAG H is an incremental measuring (encoder) system for sensing angles of
rotation and angular velocity.
The system is designed for hollow-shaft applications with 1FE1 and 1PH2 direct
drives, but is also capable of operating as an autonomous spindle encoder.
SIMAG H can be used with the following SIEMENS drive systems:
SSIMODRIVE 611 digital
SSIMODRIVE 611 analog (in this case, only in conjunction with the measuring
wheel, pole number 2n)
SMASTERDRIVES
The SIMAG H measuring system consists of three components.
SSensor wheel
SSensor head with attached gauge holder plus
1 feeler gauge (0.20 mm) and
1 3x12 cylindrical pin
SFully pre-assembled cable module with
4 M 2.5x8 screws for mounting the flange-mounted socket and
2 M 3x6 screws for attaching the connector to the sensor head
The sensor wheel carries a magnetic pitch as a fixed gauge. Various different
inside diameters are available for each outside diameter. The inside diameter
can be re-machined later if required.
The sensor wheel is attached by means of the shaft nut or, alternatively, scre-
wed to a shaft collar (not suitable for all sensor wheel variants).
The sensor head scans the incremental and reference tracks on the sensor
wheel by a non-tactile method and amplifies the output signals.
The standard signal cables are connected via the flange-mounted socket on the
cable module. This is fully pre-assembled and attachable to the sensor head.
In this way, the measuring system can be optimally adapted to the prevailing
installation conditions.
Installation and mounting drawing 5-2.
Dimension drawing, refer to 5-1.
Scope of
application
Design
1 General Information
1

07.02
1-14 Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
Notice
SIMAG H is a measuring instrument.
The encoder system must always be installed by a qualified person.
Any type of damage will impair the function of the instrument or render the
system unserviceable.
Leave the encoder components in their packaging until you are ready to install
them!
Please apply ESDS protection measures (refer to the Foreword).
Disconnect the power supply before commencing with the installation.
No liability will be accepted for any damage caused by improper handling of
components.
After installation and calibration, the measuring system supplies
Stwo sinusoidal incremental signals of 1 Vpp in quadrature
Sone square-wave reference signal per revolution
Note
SIMAG H is compatible with SIMODRIVE motor measuring systems in terms of
electrical signals and signal connector.
The SIMAG H measuring system is scheduled to supersede the SIZAG 2 ge-
arwheel encoder in the medium term and should therefore be considered for
new spindle unit designs.
Pre-assembled signal leads are available for connecting the sensor to
SIMODRIVE converters.
See Catalog NC-Z and NC 60 for ordering information.
J
Output signals
Connection
1 General Information

07.02
2-15
Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
Description of Components and
Order Numbers
2.1 Sensor head
SCompact sensor head for mounting on bearing endshield of motor or spindle
SCalibration via cylindrical pin and feeler gauge
Table2-1 Order designation and pole pitch
Scanning head SIMAG H
Order designation 6FX2001–6AA11–0AA0
Pole pitch 1 mm
2.2 Sensor wheel
SPlastic-coated ferrite rings with magnetic pitch on steel hub
SOne pole ring each for incremental signals and zero signal
SScale division of incremental track 1 mm
SPole number (resolution) of the incremental track depends on the external
diameter
SVarious inside diameters available for each outside diameter (see Table 2-2)
SMounting methods (see Section 4.1)
SThe internal diameter can be machined, e.g. by turning it on a lathe
Table 2-2 Sensor wheel variants (for dimension assignments, see assembly drawing in Section 5)
Order numbers
Sensor wheel Number of increments Outside diameter Inside diameter Weight approx. Moment of in- ertia approx.
D1 [mm] D3 [mm] [kg] [10–4kgm2]
6FX2001–6RB01–4DF0 256 81.14 35 0.5 5.3
6FX2001–6RB01–4EF0 256 81.14 45 0.4 4.6
6FX2001–6RB01–4GA5 256 81.14 60 0.2 2.8
2 Description of Components and Order Numbers
2

07.02
2-16 Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
2.3 Cable module
SFully pre-assembled
SFlange-mounted socket at converter end, straight or angled, for connection
of signal cable
SPlug-in connection at encoder end:
Axial mounting direction, tangential cable exit direction
SConnecting cable for temperature sensor
Table 2-3 Variants of cable module (for dimension assignments, see assembly drawing in Section 5)
Order numbers
Cable module Length of signal cable L1 [m] Length of temperature sensor lead L2 [m] Flange-mounted socket
6FX2001–6KA10–1CA0 0.2+0.01 0.3 0.01 angled
6FX2001–6KA10–1DA0 0.4+0.01 0.5 0.01 angled
6FX2001–6KA10–1EA0 0.6+0.01 0.7 0.01 angled
6FX2001–6KA10–1FA0 0.8+0.02 0.9 0.01 angled
6FX2001–6KA10–2AA0 1.0+0.01 1.1 0.02 angled
6FX2001–6KA10–2FA0 1.5+0.03 1.6 0.02 angled
6FX2001–6KA10–3AA0 2.0+0.02 2.1 0.02 angled
6FX2001–6KC10–1CA0 0.2+0.01 0.3 0.01 straight
6FX2001–6KC10–1DA0 0.4+0.01 0.5 0.01 straight
6FX2001–6KC10–1EA0 0.6+0.01 0.7 0.01 straight
6FX2001–6KC10–1FA0 0.8+0.02 0.9 0.01 straight
6FX2001–6KC10–2AA0 1.0+0.01 1.1 0.02 straight
6FX2001–6KC10–2FA0 1.5+0.03 1.6 0.02 straight
6FX2001–6KC10–3AA0 2.0+0.02 2.1 0.02 straight
J
2 Description of Components and Order Numbers

07.02
3-17
Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
Technical Data
Table 3-1 Encoder tolerances (at the measuring system outputs for 120 Ωtermination)
Features Description/technical data
Indexing accuracy of sensor wheel Pole pitch 1mm: ”72”with pole number of 256
Storage temperature –20 °C...+70 °C (in packaging)
Operating temperature –20 °C...+100 °C
Degree of protection IP65 to DIN 40050 (with connector mounted on and screwed to sensor head
enclosure)
Permissible bending radius Cable module connecting cable:
once min. 25 mm
several times min. 60mm
Permissible cable length Max. 50m depending on closed-loop control used (see Catalog NC-Z for recom-
mended cables)
Vibration resistance (50...2000Hz) Max. 200 m/s2
Shock resistance (11ms) Max. 1000 m/s2
Sensor wheel / sensor head assign-
ment Permissible axial tolerance: ”1mm referred to nominal size (see Section 5.1 for nominal size).
Must be maintained under all operating conditions (temperature, vibration, etc.)
Nominal clearance between sensor
wheel / head Pole pitch 1mm: 0.2 mm (adjustable with feeler gauge)
Permissible maximum speed 6FX2001–6RB01–4VV0: 24000 RPM
Voltage supply UGB = 5V ”5%
Power consumption (typical) 40mA (typical)
Output signals Sinusoidal 1Vpp with 120W termination of signal cable
Miscellaneous The components of the measuring system are resistant to all commercially avai-
lable coolants and lubricants.
Additional error in mounted state:
Eccentricity1) ƪµm ƫ
"| ∆ϕ | ƪ”ƫ= "1296 Pole number * pole pitch ƪmm ƫ
1) Max. permissible eccentricity at room temperature: 20µm
Eccentricity-
related error
3 Technical Data
3

07.02
3-18 Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
0mech. angle j
Differ-
ential
signal
(A –*A)
0
mech. angle j
Differ-
ential
signal
(B –*B)
0
mech. angle j
Differ-
ential
signal
(R –*R)
360 degrees el.
Direct comp. UOff(A)
Direct comp. UOff(B)
Useful signal
Range of uniqueness
Direct voltage UG(R)
α1 α2
β
45 degrees
Fig. 3-1 Encoder signals with CW rotation
Table 3-2 Encoder tolerances (at measuring system outputs with 120W termination)
Parameter Designation Comment min. typ. max. Unit
Signal magnitude A–*A; B–*B 0.75 1 1.20 VPP
Ratio (A–*A)/(B–*B) 0.9 1.0 1.1 –
Direct component (offset) UOFF(A)/(A–*A);
UOFF(B)/(B–*B) UGB = 5 V
f 20 kHz –15 0 +15 mV
Phase angle β89 90 91 Degrees
Useful signal R–R* 0.4 –1.2 V
Quiescent value
UG(R)/useful value UG(R)/(R–R*) 30 50 70 %
Range of uniqueness α1; α2 90 180 270 Degrees
Output signals
3 Technical Data

07.02
3-19
Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
Flange-mounted socket, view of pin side:
PIN No. Core color Signal
1 green A
2 yellow *A
3 grey R +
4 not connected
5 not connected
6 not connected
7 white M encoder
8 brown +Temp 1)
9 white –Temp 1)
10 brown P encoder
11 blue B +
12 red *B
13 pink *R
14 not connected
15 black 0 V sense
16 violet 5 V sense
17 not connected
1): 2-core temperature sensor cable
456
7
8
9
10
11
12314
1715
16
12
13
View of mating side (pins)
J
Connector pin
assignments
3 Technical Data

07.02
3-20 Siemens AG 1999–2002 All rights reserved
SIMODRIVE sensor, Measuring System for Main Spindle Drives SIMAG H (PMH) –07.02 Edition
3 Technical Data
Space for your notes
