Siemens SIMATIC PC RI25 User manual

English
PC RI25/45
Manual
SIMATIC
C79000-G7076-C806-01
06/98

This manual contains notices which you should observe to ensure your own personal
safety, as well as to protect the product and connected equipment. These notices are
highlightedinthe manualbyawarning triangleandaremarked asfollowsaccordingto
the level of danger:
!Warning
indicates that death, severe personal injury or substantial property damage can result
if proper precautions are not taken.
Note
draws your attention to particularly important information on the product, handling
the product, or to a particular part of the documentation.
The device/system may only be set up and operated in conjunction with this manual.
Only qualifiedpersonnel should be allowed to install and work on this equipment.
Qualifiedpersonsare definedaspersonswhoareauthorized tocommission,toground,
and to tag circuits, equipment, and systems in accordance with established safety
practicesand standards.
Note the following:
!Warning
Thisdevice and its components may only be used for the applications described in the
catalogorthetechnicaldescription,andonlyinconnectionwithdevicesorcomponents
from other manufacturers which have been approved or recommended by Siemens.
Thisproductcanonlyfunctioncorrectlyandsafelyifitistransported,stored,setup,and
installedcorrectly, and operated and maintained as recommended.
SIMATICRSIMATIC HMIRand SIMATIC NETRareregisteredtrademarksof
SIEMENS AG.
Thirdpartiesusingfortheirownpurposesanyothernamesinthisdocumentwhichrefer
to trademarks might infringe upon the rights of the trademark owners.
Copyright ESiemens AG 1998 All Rights Reserved
The reproduction, transmission or use of this document or its contents is not
permittedwithoutexpresswrittenauthority.Offenderswillbeliablefordamages.
Allrights,includingrightscreatedbypatentgrantorregistrationofautilitymodel
or design, are reserved.
C79000-G7076-C806
Siemens AG
BereichAutomatisierungs-undAntriebstechnik
GeschaeftsgebietIndustrie-Automatisierungssysteme
Postfach4848,D-90327 Nürnberg
SiemensAktiengesellschaft
Disclaimer of Liability
We have checked the contents of this manual for agreement withthehardware
andsoftwaredescribed.Sincedeviationscannotbeprecludedentirely,wecannot
guarantee full agreement. However, the data in this manual are reviewed
regularly and any necessary corrections included in subsequent editions.
Suggestionsfor improvement are welcomed.
ESiemens AG 1998
Technicaldata subject tochange.
Safety Guidelines
Qualified Personnel
Correct Usage
Trademarks
이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하시기 바라며 가정 외의 지역에서 사용하는 것을 목적으로 합니다.

English
iii
SIMATIC PC RI25/45
C79000-G7076-C806-01
Contents
1 Safety Instructions 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 General Notes 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Information Regarding the CE Label 1-5. . . . . . . . . . . . . .
1.3 Approvals for the USA and Canada 1-6. . . . . . . . . . . . . . .
1.4 Technical Specifications 1-7. . . . . . . . . . . . . . . . . . . . . . . . .
2 Starting Up Your PC 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 Unpacking and Checking the Delivery Contents 2-1. . . .
2.2 Installing Your PC in a 19” Cabinet or Rack
(19” Operation) 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Connecting I/O Devices (such as a Monitor,
Mouse, or Keyboard) 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4 Connecting the Supply Voltage 2-7. . . . . . . . . . . . . . . . . . .
3 Setting Up and Operating Your PC RI25/45 3-1. . . . . . . . . . . . . . . .
3.1 Operator Elements of the System Unit 3-2. . . . . . . . . . . . .
3.2 Starting Up Your PC for the First Time 3-4. . . . . . . . . . . . .
3.3 Setting Up Your PC 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4 Loading the MS-DOS Operating System 3-6. . . . . . . . . . .
3.5 Loading the Windows 95 Operating System 3-6. . . . . . . .
3.6 Electronic Manual 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.7 Installing Adobe Acrobat 3-10. . . . . . . . . . . . . . . . . . . . . . . .
3.8 Using Adobe Acrobat 3-12. . . . . . . . . . . . . . . . . . . . . . . . . . .
3.9 SafeCard 3-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.10 Backing Up Hard Disk Data on Diskettes 3-13. . . . . . . . . .
3.11 Safety Functions 3-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.12 CD-ROM Drive 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

English
iv SIMATIC PC RI25/45
C79000-G7076-C806-01
4 Error Diagnostics 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 The PC Does not React to the ON/OFF Switch 4-2. . . . .
4.2 Problems When Using Modules from Other
Manufacturers 4-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3 The Monitor Screen Remains Dark 4-4. . . . . . . . . . . . . . .
4.4 The Screen Display Does not Appear or Drifts 4-5. . . . . .
4.5 No Mouse Pointer Appears on the Screen 4-6. . . . . . . . .
4.6 The Clock Time and/or the Date in Your PC Is
Incorrect 4-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7 Rebooting Your Hard Drive (Data Deleted) 4-7. . . . . . . . .
4.8 An Error Message Appears on the Screen 4-10. . . . . . . . .
4.9 Error Messages during the Self-Test (POST Codes) 4-12.
5 SIMATIC PC Service Representatives 5-1. . . . . . . . . . . . . . . . . . . .
6 Index Index-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents

1-1
SIMATIC PC RI25/45
C79000-G7076-C806-01
Safety Instructions
This chapter provides you with mandatory safety instructions you must
follow when you operate your PC and its components.
This device corresponds to the relevant safety measures according to IEC,
EN, VDE, UL and CSA. If you have questions about the permissibility of
theinstallationinthedesignatedenvironment,pleaseconferwithourservice
representative.Chapter 5 contains the service address locations.
1.1 General Notes
Werecommendthat youtransport the deviceonlyin the originalpackaging
(protectionagainst shock and impact).
Condensationcanoccurifthedeviceistransportedfromacoldenvironment
into the operating area. The device must be dry prior to startup. You must
allowfor an acclimatization time of at least four hours.
Please observe the notes on ambient conditions in Section 1.4, “Technical
Specifications,”and the installation notes in Chapter 2 of this manual when
installingand operating the device.
Besurethefanventilationslotsareopensothatasufficientamountofaircan
be drawn in to cool the housing interior.
The sliding door in front of the drives on the front side must be kept closed
for safety reasons (fire protection according to UL 1950/EN 60950). You
may open the sliding door only to service the drives. You must not remove
the sliding door.
Chapter
Overview
Transport
Installation
1

English
1-2 SIMATIC PC RI25/45
C79000-G7076-C806-01
Checkwhetherthedevice’ssetsupplyvoltageisthesameasthelocalsupply
voltage.
This device is equipped with a safety-tested power supply cable. You may
connect this device only to a grounding outlet with a grounding contact.
Makecertainthatthesocketoutletonthedeviceorthegroundingcontactfor
the building wiring system is freely accessible.
The mains switch does not separate the device from the power system. To
establisha complete power separation, you must disconnect the power plug
(inletconnectoronthebackofthedevice).Thislocationmustbeaccessible.
A central isolating switch must be present for cabinet mounting.
Installthecablessothatnoonecansteponthemortripoverthem.Whenyou
connectthe device, adhere to the relevant instructions in Chapter 2.
Do not connect or disconnect power supply cables and data transmission
linesduring thunderstorms.
Inemergencysituations(forexample,damagedhousing,damagedoperator
elements, a damaged power supply cable, ingress of liquids or foreign
particles),switch off thedevice. Disconnectthe power plug and inform the
responsibleservicepersonnel.
The PC must be switched off when you connect or disconnect I/O devices
(keyboard,mouse,printer,etc.).YoucandamagethePCifyoudonotadhere
totheseinstructions.
ForoperationinCanadaandtheUnitedStates, useCSAorUL-listedpower
cables.
For the USA and Canada:
Both an UL approval and a CSA marking are required for the cable in the
USA and Canada. The connector must comply with the NEMA 5-15
specification.
For 120 V devices
A flexible cable with UL approval and CSA marking and the following
features must be used: SVT or SJT design with three conductors, min.
18 AWGcross-section,a maximumlengthof 4.5mand parallelgrounding-
type plug (15 A, min. 125 V).
Power
Connection
Country-
Specific
Notes
Safety Instructions

English
1-3
SIMATIC PC RI25/45
C79000-G7076-C806-01
For 240 V devices (used in Germany)
A flexible cable with UL approval and CSA marking and the following
featuresmust be used: SVT or SJT design with three conductors, min. 18
AWG cross-section, a maximum length of 4.5 m and Tandem grounding-
type plug (15 A, min. 125 V).
For 230 V devices (outside the USA)
A flexible cable with the following features must be used: min. 18 AWG
cross-sectionandgrounding-type plug(15 A, min. 250V).The cables must
conform with the relevant safety guidelines of the country where they are
installedand bear the specified markings.
The device is intended for connection to grounded power supply systems.
(TN networks to VDE 0100 part 300 or IEC 364-3).
No provision is made for connection to non-grounded or impedance-
grounded power supply systems (IT networks).
The power cable should comply with the safety guidelines of the country
concerned.
Onlyauthorizedpersonnelarepermittedtorepairthedevice.Unauthorized
opening and improper repairs on the device can result in significant danger
to the user.
Beforeyouopenthedevice, firstswitchitoffandthendisconnectthepower
plug.
Install only system expansion devices provided for this computer. If you
install other expansion devices, you can damage the system or violate the
safety requirements and regulations for radio interference suppression.
ContactyourtechnicalsupportteamorwhereyoupurchasedyourPCtofind
out which system expansion devices may safely be installed.
If you install or exchange system expansions and damage your PC, the
warrantybecomes void.
Only authorized service personnel may remove or exchange the power
supply.
This device includes a battery on the motherboard and, in some cases, a
battery on the SafeCard. The battery must only be replaced by service
personnel.Pleaserefertotheinstructionsgiveninthedocumentationforthe
CPU module.
Repairs
Battery
Safety Instructions

English
1-4 SIMATIC PC RI25/45
C79000-G7076-C806-01
Dispose of used batteries in keeping with local regulations (special waste).
!Caution
Danger of explosion while handling or replacing the battery improperly.
You may only replace thebattery with an identicalbattery or abattery type
recommendedbythemanufacturer.Youshoulddisposeofusedbatteriesin
keeping with the manufacturer’sregulations.
The following sticker can be used to identify modules with ESD
(electrostaticallysensitivedevices):
If you handle modules with ESD, you absolutely must adhere to the
followingguidelines:
Beforeyouwork with modules with ESD, youmuststaticallydischarge
yourself(for example, through contact with a grounded object).
Devices and tools you use must be free of a static charge.
Disconnect the power plug before you connect or disconnect modules
with ESD.
Touch modules with ESD on the edge only.
Do not touch any wiring posts or conductors on a module with ESD.
ESD
Guidelines
Safety Instructions

English
1-5
SIMATIC PC RI25/45
C79000-G7076-C806-01
1.2 Information Regarding the CE Label
The following applies to the SIMATIC product described in this manual:
In accordance with the EU Directive 89/336/EEC “Electromagnetic
Compatibility.” In accordance with the CE label for this product, the
followingareas of application are relevant:
Application Requirements
Area EmittedInterference Immunity
Domestic,business
andcommercial
areas,aswell as
smallbusinesses
EN 50081-1: 1992 EN 50082-1: 1992
Industrialarea EN 50081-2: 1993 EN 50082-2: 1995
ThisproductcomplieswiththereqirementsoftheEUDirective 73/23/EEC
“Low-VoltageDirective.”Conformancewiththisstandardhasbeenverified
according to EN60950.
TheEUdeclarationsofconformityandtherelevantdocumentationareheld
atthe disposal of the competent authorities at the address below:
SiemensAktiengesellschaft
BereichAutomatisierungstechnik
AUT E 14
Postfach 1963
D-92209 Amberg
Germany
Products not bearing the CE label fulfill the requirements and standards as
specified in the section on “TechnicalSpecifications.”
The installation guidelines and safety instructions specified in the
documentationmust be observed during startup and operation.
EMC Directive
Low-Voltage
Directive
Declaration of
Conformity
Observing the
Installation
Guidelines
Safety Instructions

English
1-6 SIMATIC PC RI25/45
C79000-G7076-C806-01
1.3 Approvals for the USA and Canada
Importantfor the USA and Canada:
The following labels indicate that the relevant approval is
available for the device bearing the label:
Underwriters Laboratories (UL) to standard UL 1950
Underwriters Laboratories (UL) to Canadian standard C22.2
No. 950
UL Recognition Mark
Canadian Standard Association (CSA) to standard C22.2.
No. 950
Canadian Standard Association (CSA) to American standard
UL 1950
UL/CSA
Approval
C
NRTL
Safety Instructions

English
1-7
SIMATIC PC RI25/45
C79000-G7076-C806-01
1.4 Technical Specifications
Dimensions (w x h x d in mm) 448 x 177 x 482
Weight approx. 15 kg
Line voltage 120 VAC (103 to 132 VAC or
240 VAC (200 to 264 VAC)
(noautomatic switchover)
Line voltage frequency 50/60 Hz (47 to 63 Hz)
Briefvoltageinterruption
acc. to NAMUR max. 20 ms at 160 W load
max. power consumption 220 W
max.currentdelivery
+ 12 V can be loaded
max. 10s on 8A
5V
19 A
12V
4.2 A
-5V
0.5 A
-12V
0.5 A
Degreeof protection IP41 front with closed protective cover, IP20 on the rear panel
Safety
Protectionclass Protection class I acc. to VDE 0106 T1: 1982 (IEC 536)
Safetyrequirements EN 60950
Electromagneticcompatibility(EMC)
Emittedinterference EN 55022 limited value class B
Noiseimmunity:
line-fedinterferenceon
supply lines
+- 2 kV (to IEC 1000-4-4:1995; burst)
+- 1 kV (to IEC 1000-4-5:1995; surge symm)
+- 2 kV (to IEC 1000-4-5:1995; surge unsymm)
Noise immunity on
process,measuring,and
controllines
+- 1 kV (to IEC 1000-4-4:1995; burst; length < 3m)
+- 2 kV (to IEC 1000-4-4:1995; burst; length > 3m)
+- 1 kV (to IEC 1000-4-4:1995; surge symm;
length > 3m)
+- 2 kV (to IEC 1000-4-4:1995; surge unsymm;
length > 3m)
Noise immunity to
dischargesof static
electricity
+- 6 kV contact discharge (to IEC 1000-4-2:1995)
+- 8 kV air discharge (to IEC 1000-4-2:1995)
Noise immunity to
high-frequencyradiation 10 V/m 80-1000 MHz, 80% AM (to ENV 50140:1993) 10 V/m 900 MHz, 50% ED (to ENV 50204:1995)
Safety Instructions

English
1-8 SIMATIC PC RI25/45
C79000-G7076-C806-01
Ambientconditions
Temperature
- operation
-storage/transport
-gradient
tested to DIN EN 60068-2-2:1994, DIN IEC 68-2-1,
DIN IEC 68-2-14
+ 5°C to +45°C
40°C for CD-ROM operation
- 20°C to +60°C
max 10°C/h (no condensation)
rel.humidity
- operation
-storage/transport
tested to DIN IEC 68-2-3, DIN IEC 68-2-30,
DIN IEC 68-2-56
5% to 80% at 25°C (no condensation)
5% to 95% at 25°C (no condensation)
Mechanicalspecifications
Vibration
- operation
-transport
tested to DIN IEC 68-2-6
10 to 58 Hz: 0.0375 mm, 58 to 500 Hz: 4.9 m/s
5 to 9 Hz: 3,5 mm, 9 to 500 Hz: 9.8 m/s
Shock
- operation
-storage
tested to DIN IEC 68-2-29
50 m/s2, 30 ms, 100 shocks
250 m/s2, 6 ms, 1000 shocks
Motherboard
Processor see Logbook
Internalprocessorcache 2 x 8 KB
Main memory see Logbook
max. 128 MB
Secondlevel cache see Logbook
Expansion slots RI25/RI45: 6 ISA long format/2 PCI long format
If the device has a SafeCard, this occupies one ISA expansion
slot.
max.admissablepower
consumption per ISA slot
max.admissablepower
consumption per PCI slot
5V 2A; 12V 0.3 A; -12 V 0.05 A; -5 V 0.05 A
(the sum of 5V 9A must not be exceeded)
5V 2A; 12V 0.5A; -12V 0.1A; -5V 0.1A
Drives
Floppy disk drive 3.5” (1.44 MB)
Hard disk drive 3.5” EIDE type see Logbook
CD-ROM drive 650 MBytes, type see Logbook
CD-ROM port EIDE(secondary)
Safety Instructions

English
1-9
SIMATIC PC RI25/45
C79000-G7076-C806-01
Graphics
Graphicschip SVGA-LCD Controller Cirrus GD7543 on PCI bus with
Windowsaccelerator
Graphicsmemory 1 MByte DRAM
Resolutions/frequencies/
colors CRT: up to 1024x768/75 Hz/256 colors
Interfaces
COM1 Serial port 1 (V24), 25-pin sub-D socket
COM2 Serial port 2 (V24), 9-pin sub-D connetor (standard)
LPT1 Parallelport
Connection for printer with parallel port
VGA VGA interface, connection for external monitor
Keyboard PS/2 keyboard connection
Mouse PS/2 mouse connection
MPI/DPinterface,
opticallyisolated* 9-pin sub-D socket, screw-type locking
Transmissionrate 9.6 Kbps to 1.5 Mbps, assign parameters with software
Operatingmode Opticallyisolated*: data lines A, B
control lines RTS AS, RTS_PG
5V line voltage (max. 90 mA)
Ground connection: MPI/DP connection cable shield
Physicalinterface RS485, opticallyisolated
Memoryaddressarea 0CC000H– – 0CC7FFHor
0DC000H– – 0DC7FFH, to be set in BIOS Setup
Interrupts IRQ5, 10, 11 or 15 assign parameters with software
(only 1 interrupt possible)
Relayinterface Connection of a signaling device to a SafeCard monitoring
module. See SafeCard description in the section on
“MonitoringModule”.
Function display
LEDs on the device Power
Disk
Run (only with SafeCard option)
Temp (only with SafeCard option)
Floppy
CD-ROM
*) Optically isolated within the safety extra-low voltage circuit (SELV)
Safety Instructions

English
1-10 SIMATIC PC RI25/45
C79000-G7076-C806-01
Safety Instructions

2-1
SIMATIC PC RI25/45
C79000-G7076-C806-01
Starting Up Your PC
In this chapter, we tell you:
What you should note when you set up your PC
Which interface you use to connect the standard I/Os
How you connect your PC to the supply voltage
2.1 Unpacking and Checking the Delivery Contents
Proceedas follows to unpack your PC:
1. Removethe packaging material.
2. Do not throw the original packaging material away. Save it in case you
need to transport your PC.
3. Make certain you keep the enclosed documentation. You will need this
documentation when you start up your PC for the first time. (See
Chapter3).
Proceedas follows:
1. Check the delivery against the packing list to make certain you have
receivedeverything.
2. Check the delivery to see if there are any transport damages apparent.
3. Informyour supplier immediatelyif there areany transport damages or
differences between the packing list and the actual delivery.
Ifnecessary,refertothe logbookontheinsideof yourPCtoobtainthe exact
computerconfiguration.
Your SIMATIC PC RI25/45 can be used as a 19” built-in or for desktop
operation.Section 2.2 provides you with more information.
Chapter
Overview
Unpacking
the
PC RI25/45
Checking
Setting Up
2

English
2-2 SIMATIC PC RI25/45
C79000-G7076-C806-01
2.2 Installing Your PC in a 19” Cabinet or Rack
(19” Operation)
The installation height for your SIMATIC PC R125/45 is only four ET
(height modules = 177 mm, Figure 2-1). Therefore, special installation
assembliesare not required for installing this computer in a 19” cabinet or
rack. You must use four screws to fix the computer into position on the
cabinet’s braces. However, you should under no circumstances mount the
computerjust on these screws (without rack slide rails). Use the respective
manufacturer’scabinetorracksliderailsorL-sections.Contactyourcabinet
supplierdirectly regarding cabinet or rack installation.
101
483
SIEMENS
465
177
38
10
448
438
482

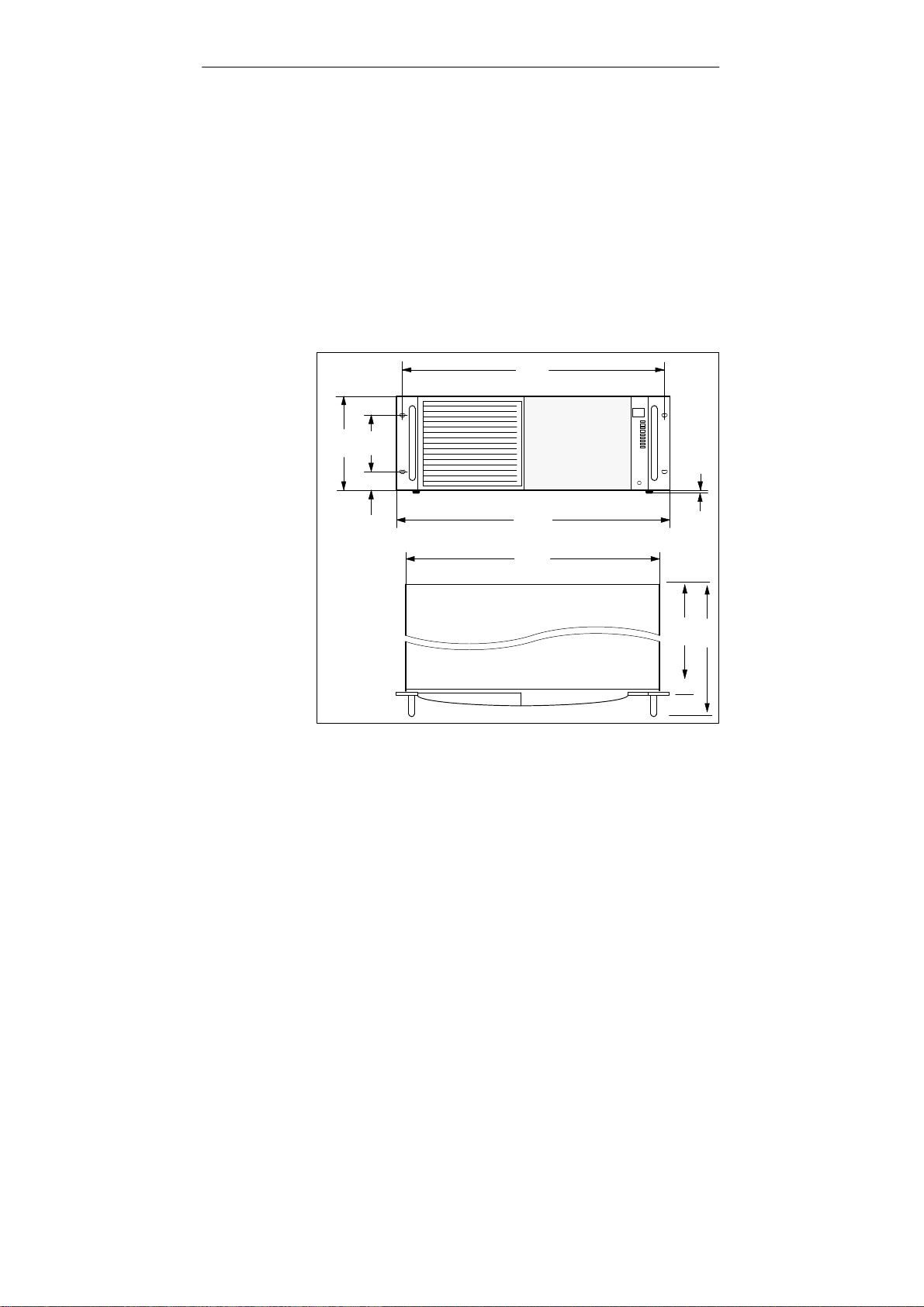

Figure 2-1 SIMATIC PC RI25/45 Installation Dimensions
Layout
Starting Up Your PC

English
2-3
SIMATIC PC RI25/45
C79000-G7076-C806-01
!Warning
Avoidextremeambientconditionsasfaraspossible.ProtectyourSIMATIC
PCfrom dust,moisture,andheat.(Refertothe“SystemUnit”sectioninthe
TechnicalDescription.)
Mountthe device as safely aspossible to prevent any danger(forexample,
by falling over).
The clearance around the system unit must be at least 200 mm at the front
andrear, so that the system unit is sufficientlyventilated.
Make certain that the ventilation slots for the system unit and the monitor
are not covered.
Make certain that the sliding door in front of the drives is closed during
operation.If theslidingdoorisnotclosed,insufficientairisdrawnthrough
the ventilation slots to cool the interior of the system unit.
Starting Up Your PC

English
2-4 SIMATIC PC RI25/45
C79000-G7076-C806-01
2.3 Connecting I/O Devices (such as a Monitor, Mouse, or
Keyboard)
AlloftheconnectionsandinterfacesforconnectingI/Odevicesaremounted
on the back of the system housing.
Line connector
output
Line connector input
Earthing studs
PS/2 keyboard
PS/2 mouse
LPT
MPI
COM1
COM2
VGA
Relay (only in connection
with a SafeCard)
Strain relief devices
Figure 2-2 Rear Panel of the System Housing
Note
Makesureyoufollowthe safetyinstructionsinChapter 1whenconnecting
I/Odevices!
Rear Panel of
the Device
Starting Up Your PC

English
2-5
SIMATIC PC RI25/45
C79000-G7076-C806-01
Table 2-1 Connections on the Back of the PC
Connections Function
VGA VGAinterface
Connection for external monitor
COM1 Serial interface 1 (RS 232)
25-pin sub-D socket
COM2 Serial interface 2 (RS 232)
9-pin sub-D connector (standard)
Mouse PS/2 mouse connection
Keyboard PS/2 keyboard connection
LPT1/Printer Parallelport
Connection for printer with parallel
interface
MPI/DP
MultipointInterface
(RS 485)*
MultipointInterface
Connection for a SIMATIC S7
programmablelogic controller system
Inlet connector input Power connection (115/230 VAC)
Inlet connector output Power connection for an external monitor
(115/230 VAC)
Relay output
(only in connection with a
SafeCard)
Connection for a signal device on the
SafeCard monitoring module. Refer to the
description of the SafeCard in the
“Monitoring Module” section in the
TechnicalDescription.
Technicalspecifications:
DC switching voltage : max. 60V
DC switching current : max. 1A
DC switching cap. : max. 30W
Permanent DC curr. : max. 1A
* Optically isolated within the safety extra-low voltage circuit (SELV)
Ifexpansion boardsare connected inthe PC, there are additionalinterfaces.
Pleaserefertothedescriptionoftherelevantmodule for the significance of
theseadditionalinterfaces.
Starting Up Your PC

English
2-6 SIMATIC PC RI25/45
C79000-G7076-C806-01
Note
When connecting I/O devices, watch out for shielded cables and metal
connectors,or you will terminate the operating license! Use a screwdriver
toplacetheinterfacecableconnectorsonthePChousing.Thisimprovesthe
electricalshielding.
Afterthe PS/2 connector is connected, both cables must be secured with the
provided strain relief device. This keeps the PS/2 connector from coming
loose when the mouse or keyboard is moved.
Connecting
the Keyboard
and Mouse
Starting Up Your PC
