Siemens SIMATIC VPU200-3104 User manual

SIMA TIC VPU200–3104
Hardware Manual
Order Number: PPX:560/65–8102
Manual Assembly Number: 2597773–0006
Second Edition

!DANGER
DANGER indicates an imminently hazardous situation that, if not avoided, will
result in death or serious injury
.
DANGER is limited to the most extreme situations.
!WARNING
W ARNING indicates a potentially hazardous situation that, if not avoided, could
result in death or serious injury, and/or property damage.
!CAUTION
CAUTION indicates a potentially hazardous situation that, if not avoided, could
result in minor or moderate injury, and/or damage to property
.
CAUTION is also used for property-damage-only accidents.
Copyright 1995 by Siemens Energy & Automation, Inc.
All Rights Reserved — Printed in USA
Reproduction, transmission, or use of this document or contents is not permitted without express consent of Siemens Energy
& Automation, Inc. All rights, including rights created by patent grant or registration of a utility model or design, are reserved.
Since Siemens Energy & Automation, Inc., does not possess full access to data concerning all of the uses and applications of
customer’ s products, we do not assume responsibility either for customer product design or for any infringements of patents or rights
of others which may result from our assistance.

MANUAL PUBLICA TION HISTOR Y
SIMATIC VPU200–3104 Hardwar e Manual
Or der Manual Number: PPX:560/65–8102
Refer to this history in all correspondence and/or discussion about this manual.
Event Date Description
Original Issue 07/85 Original Issue (2493916–0001)
Errata 1 7/87 Corr ects illustration on page 11 (2600782–0001)
Second Edition 10/95 Second Edition (2493916–0002)

LIST OF EFFECTIVE P AGES
Pages Description Pages Description
Cover/Copyright Second
History/Effective Pages Second
iii — iv Second
1-1 Second
2-1 — 2-2 Second
3-1 Second
4-1 — 4-14 Second
5-1 Second
Registration Second

Contents iii
Contents
Chapter 1 Introduction
Manual Contents 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 2 Description of the VPU200–3104
2.1 Introduction 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handling and Envir onmental Considerations 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 3 VPU200–3104 Specifications
Chapter 4 Installation
4.1 VPU200 V oltage Conversion 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 Power Receptacle and Power Cor d 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3 Operating Positions 4-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4 Controls 4-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.5 Communiation Ports 4-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
P/C Port 4-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary Port 4-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5TI Port 4-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CRU Expansion Port 4-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 5 Preventive Maintenance

iv Contents
List of Figures
1-1 VPU200–3104 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-1 Top V iew of VPU Ports, Fuse, V oltage Selector , and Brightness Contr ol 4-3. . . . . . . . . . . . .
4-2 Connections in a Receptacle 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-3 VPU200 Operating Positions 4-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-4 VPU200–3104 Contr ols 4-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-5 VPU200 to 560 Cable, PPX:VPU200–3605 4-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

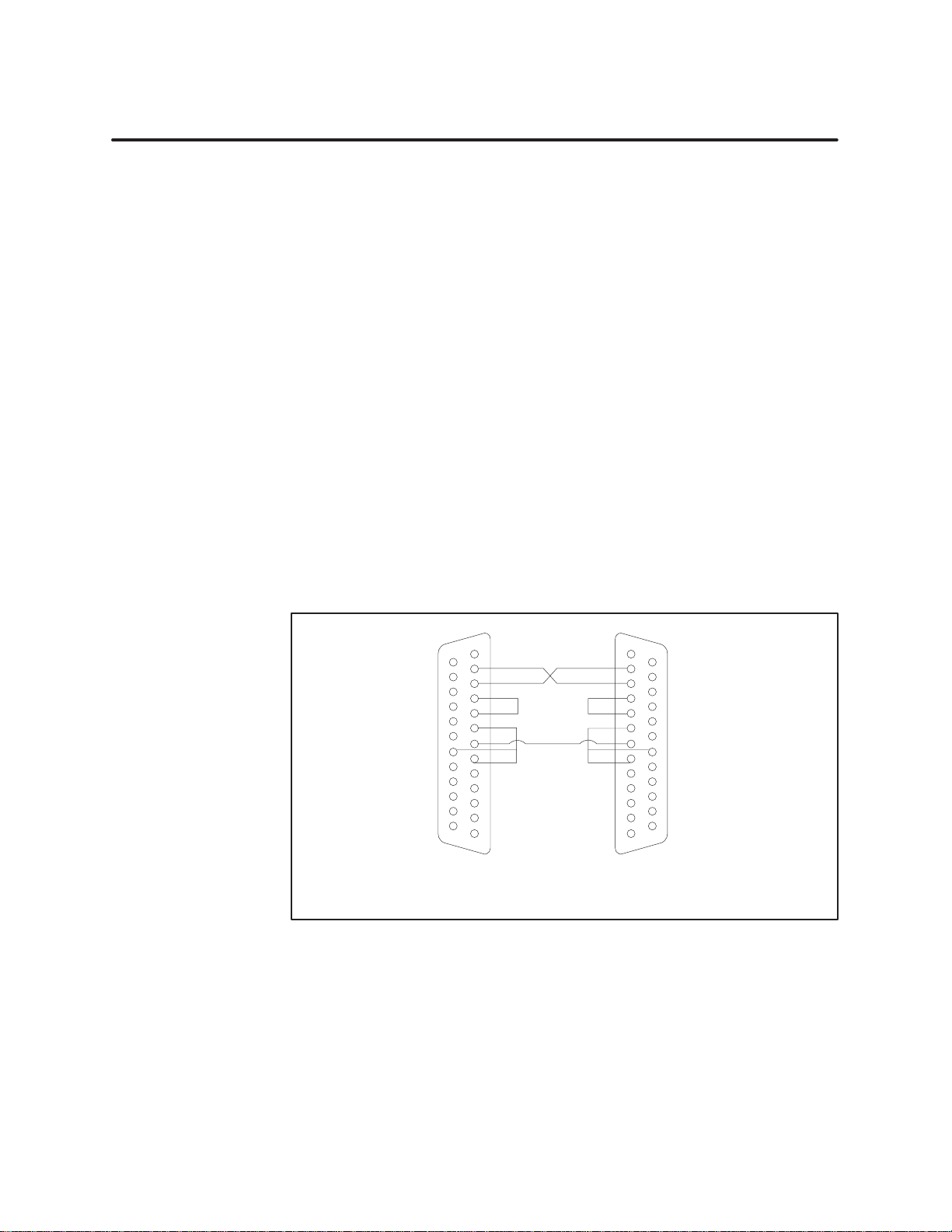

4-6 VPU200–3104 Modem Cable 4-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

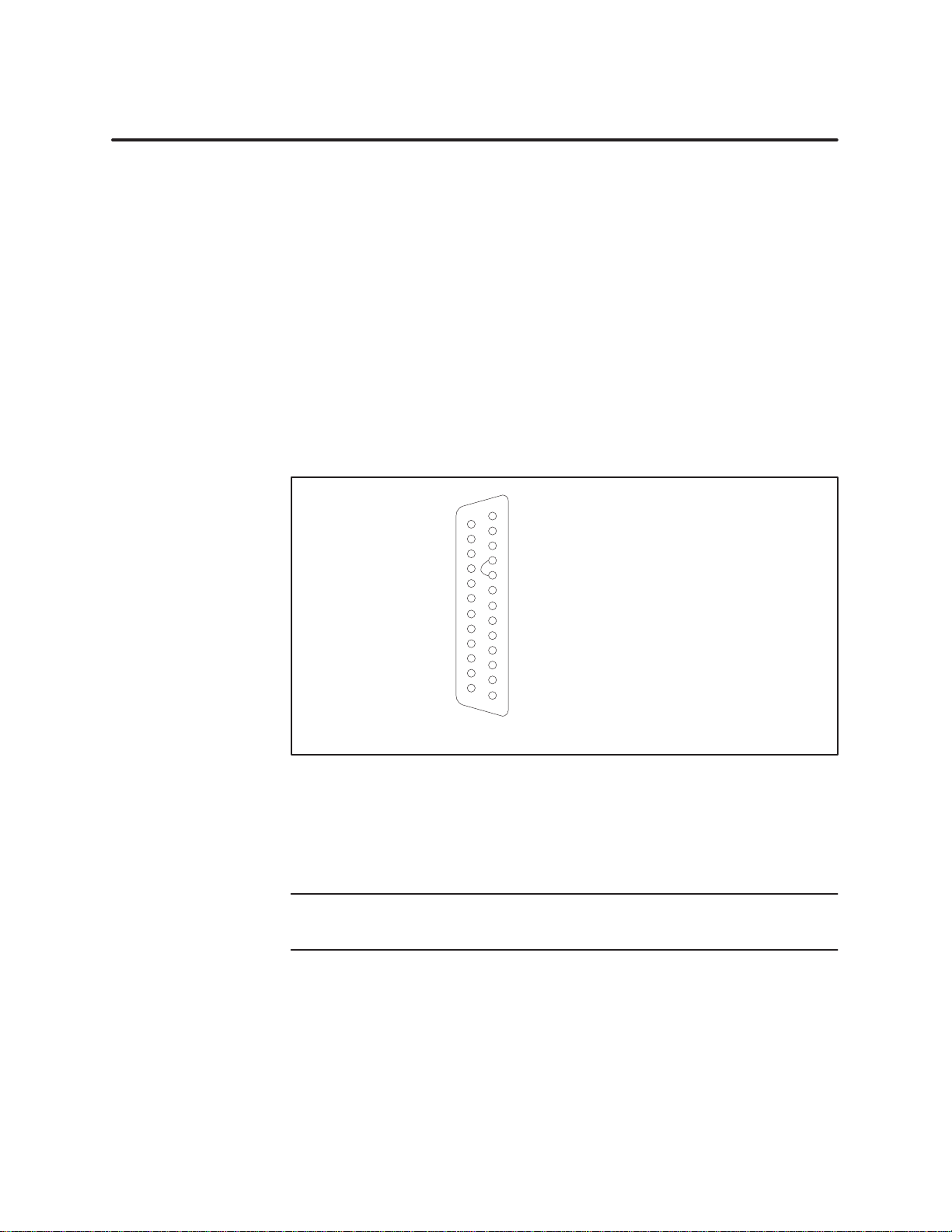

4-7 VPU Printer Port Connector 4-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-8 VPU to 733 Cable – 300 or 1200 Baud 4-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-9 VPU200 to 743/745 Cable 4-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-10 VPU200 to 763/765 Cable 4-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-11 VPU200 to Model 800 Cable 4-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-12 Character For mat 4-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 1-1 SIMATIC VPU200–3104 Hardware Manual
Chapter 1
Introduction
This manual provides you with an overview of the SIMA TIC VPU200 
(VPU200–3014) hardware and gives instructions for connecting the
VPU200–3104 to the SIMA TIC 560/565 controller , as well as to several
models of printers which may be used with the VPU200–3104. See
Figure 1-1.
Figure 1-1 VPU200–3104
Manual Contents

Description of the VPU200–3104 2-1 SIMATIC VPU200–3104 Hardware Manual
Chapter 2
Description of the VPU200–3104
2.1 Introduction 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handling and Envir onmental Considerations 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Description of the VPU200–3104
2-2 SIMATIC VPU200–3104 Hardware Manual
2.1 Introduction
The VPU200–3104 is a self-contained unit which houses a CRT display
screen and features an attached hinge keyboard and a 3.3 MByte floppy
disk drive. When the unit is not in use, the keyboard can be folded upward
toward the display screen and latched in that position. The bottom of the
keyboard then becomes the front of a completely closed case. For ease of
handling, a carrying strap is affixed to one side of the case.
The VPU200 is an industrial computer terminal and must be treated with
the care given to electronic test equipment. Observe the following
precautions when handling the unit:
1. Do not drop the VPU200. Damage to the unit, especially the CRT and
the disk drive, can result.
!CAUTION
Whenever the VPU200 is not in use, a head protector should be inserted into
the floppy disk drive to prevent damage to the drive. This procedure is most
important if the unit is in storage or transport.
2. Keep the original packing carton and material to reuse when the unit
must be shipped. This carton and materials must also be used when the
VPU200 is to be stored in the baggage or cargo area of a vehicle
(including the baggage/cargo hold of an airplane).
3. Because of possible temperature extremes, do not transport the
VPU200 in the trunk of an automobile. For short automobile trips, keep
the VPU200 in a secure position on one of the seats.
The VPU200 must have adequate ventilation. Be particularly careful not to
block the cooling vents located on the side of the VPU200.
!CAUTION
To avoid damage to the VPU200, observe the following guidelines:
Do not operate the VPU200 if the cooling vents are blocked. If the unit is
mounted in an enclosure, be sure there is sufficient cooling to prevent
temperature build-up in the unit. Failure to observe these precautions will void
the warranty.
Do not operate the VPU200 outside the normal operating range of 10 ° C to 40 °C
(50°
F to 104 ° F). If the terminal has been stored outside this range, allow it to sit
at room temperature for a minimum of 45 minutes before turning on the unit.
Never store the VPU200 at temperatures below –40 ° C or above 60 ° C (–40 °F or
140°
F).
Be careful not to spill liquids or drop items such as staples or paper clips into
the VPU200 case. Severe damage to electrical components can result.
Handling and
Environmental
Considerations

VPU200–3104 Specifications 3-1 SIMATIC VPU200–3104 Hardware Manual
Chapter 3
VPU200–3104 Specifications
Temperature
Operating:
Storage: 10°C to 40°
C (50 ° F to 104 °F)
–40°C to 52°
C (–40 ° F to 125.6 °F) – with diskette
–40°C to 60°
C (–40 ° F to 140 °F) – without diskette
Humidity
10% – 80% (Maximum W et Bulb of 24°C)
Shock 2G Any Axis
Vibration .5G Any Axis for 30 Minutes 10–60 Hz
Input Power 85 to 132 V AC or 195 to 260 VAC (Jumper Selected)
47 to 63 Hz 90 to 137 W atts
3 AMP Fuse
1 Cycle Dropout Protected
Weight 18 KG (40 lbs)
Dimensions
Closed:
(centimeters)
(inches)
Work Surface:
(centimeters)
(inches)
Floor:
(centimeters)
(inches)
Height
43.69
17.2
29.46
11.6
50.29
19.8
Width
23.88
9.4
43.69
17.2
43.69
17.2
Depth
55.12
21.7
72.14
28.4
72.14
28.4

Installation 4-1 SIMATIC VPU200–3104 Hardware Manual
Chapter 4
Installation
4.1 VPU200 V oltage Conversion 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 Power Receptacle and Power Cor d 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3 Operating Positions 4-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4 Controls 4-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.5 Communication Ports 4-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
P/C Port 4-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary Port 4-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5TI Port 4-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CRU Expansion Port 4-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation
4-2 SIMATIC VPU200–3104 Hardware Manual
4.1 VPU200 V oltage Conversion
The voltage requirement for the VPU200 can be changed to 120 or 240 volts
AC to meet local requirements. (See Figure 4-1) to change voltage:
1. T urn the VPU200 so the back is facing you and the power cord
receptacle is to the left.
2. Disconnect the power cord from the VPU200.
3. T o expose the fuse, slide the clear plastic panel so that it covers the
power cord receptacle.
4. Remove the fuse by pulling upward on the black plastic lever .
5. When the fuse lever is fully extended (and the fuse has been removed),
use needle-nose pliers to remove the small printed circuit board that is
mounted vertically next to the fuse holder .
6. Rotate the printed circuit board so that the correct voltage will be
visible through the clear plastic panel and replace the board.
7. Replace the fuse by pressing down on the black plastic lever .
8. A grounded cord set must be used.
!CAUTION
Use only a 3 AMP , 250 volt quick-acting fuse (T ype AGC).
Use of non-recommended fuses could result in damage to equipment.
9. Slide the clear plastic cover over the fuse and connect the power cord.

Installation 4-3 SIMATIC VPU200–3104 Hardware Manual
Figure 4-1 Top V iew of VPU Ports, Fuse, V oltage Selector , and Brightness Contr ol

Installation
4-4 SIMATIC VPU200–3104 Hardware Manual
4.2 Power Receptacle and Power Cord
Connect the female end of the VPU200 power cord to the power receptacle
located at the rear of the case (see Figure 4-1). To store the power cord when
it is not in use, wrap it around the L-shaped brackets located at the rear of
the case. Connect the male end of the VPU power cord to 1 10 V AC, 50 or 60
Hz power source (220 V AC if VPU has been converted as described above).
Plug the power cord into the same power source as the controller . In a noisy
environment, this is critical for proper performance of the VPU.
!WARNING
The wall receptacle for VPU power must accommodate the three-pronged male
connector . The receptacle must have three contacts, as shown in Figure 4-2,
including one for safety earth ground. If a three-contact receptacle is not used,
damage to the terminal and/or personal injury can occur
. If an extension cord is
needed, it must be a three-wire type.
For 220-volt operation, the power cord used must be capable of carrying three
amperes, and its male connector must be compatible with local power outlets.
Safety Ground
Neutral
Hot Side

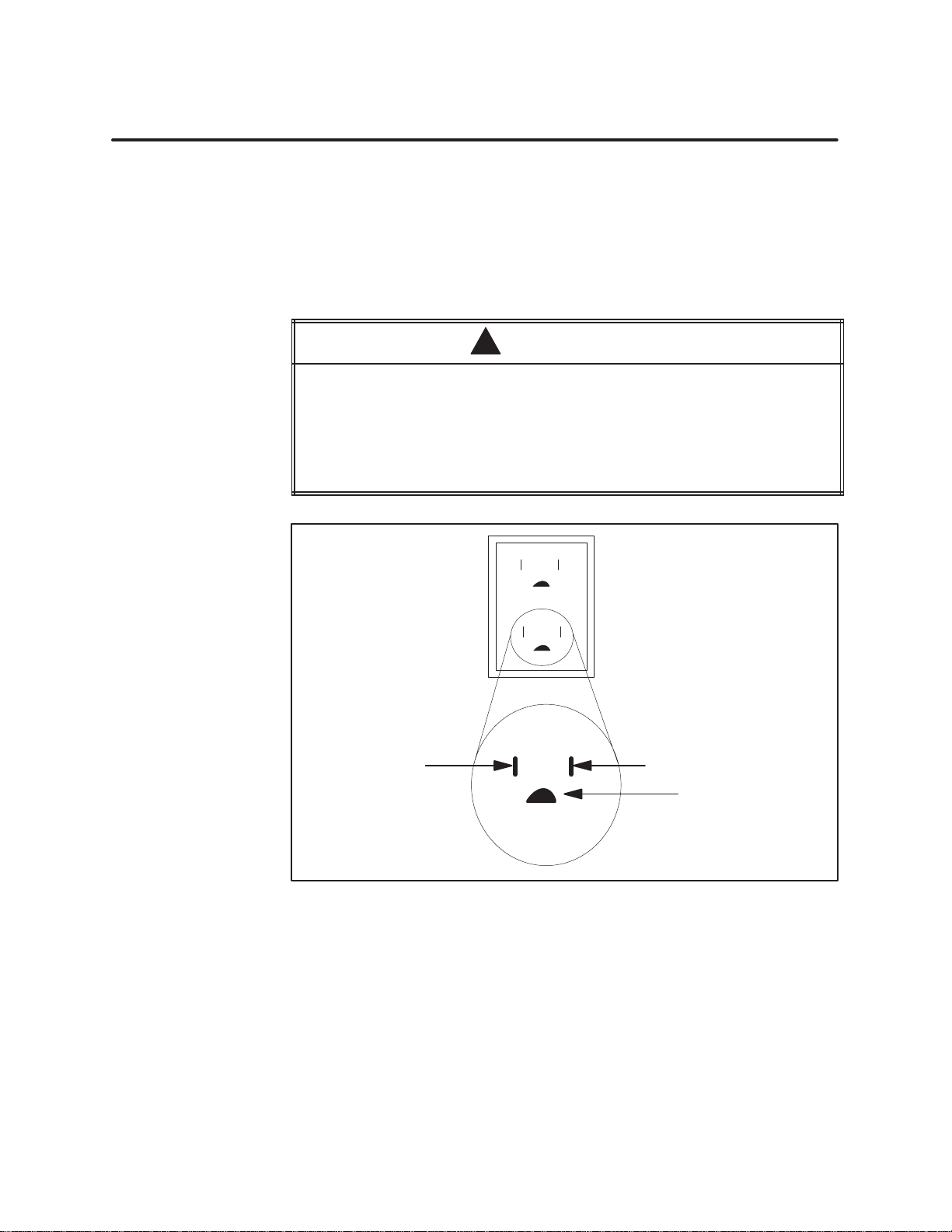

Figure 4-2 Connections in a Receptacle

Installation 4-5 SIMATIC VPU200–3104 Hardware Manual
4.3 Operating Positions
The VPU200 can be operated from a work surface or floor position. In the
work surface position, illustrated in Figure 4-3, the support bail on the base
of the unit is lowered to hold the VPU in position for use. In the floor
position, the back of the unit and the L-shaped brackets mounted on the
back form the standing base.

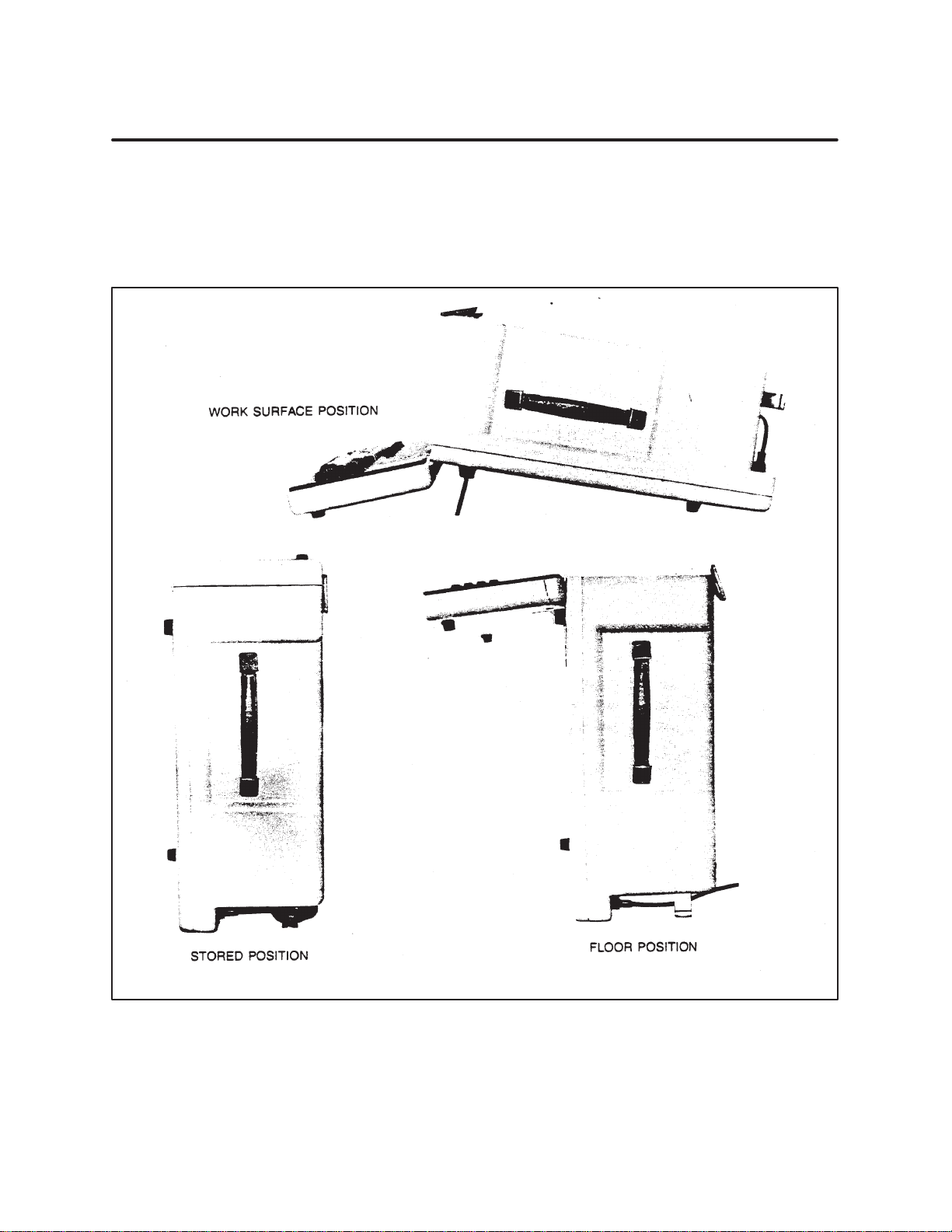

Figure 4-3 VPU200 Operating Positions

Installation
4-6 SIMATIC VPU200–3104 Hardware Manual
4.4 Controls
Figure 4-4 illustrates the location of the controls.
Figure 4-4 VPU200–3104 Controls

Installation 4-7SIMATIC VPU200–3104 Hardware Manual
4.5 Communication Ports
The following paragraphs explain the type and methods of connections to
the communiation ports.
The P/C Port is used in the following configurations:
1. Direct connection of the VPU200–3104 to a 560 controller using cable
VPU200–3605 (Figure 4-5).
2. Connection of the VPU200 to a remote 560 via modems. Modems must
be used when the total cable length is more than 50 feet. Figure 4-6
gives the pinouts for the cable (PPX:VPU200–3605) used with a
modem. The modem must be plugged into the same power source as the
VPU200 and the controller .
The following settings must be made on a modem used with the
VPU200–3104.
1. Desired baud rate
2. Full duplex
3. RS-232-C
14 1
25
14
1
25
VPU End 25-Pin
D-T ype Male
Connect to PC Port
560 End 25-Pin
D-T ype Male
Connect to 560
15 2
16 3
17 4
18 5
19 6
20 7
8
15
2
16
3
17
4
18
5
19
6
20
7
8
Figure 4-5VPU200 to 560 Cable, PPX:VPU200–3605
P/C Port

Installation
4-8 SIMATIC VPU200–3104 Hardware Manual
14 1
25
14
1
25
VPU End 25-Pin
D-T ype Male
Connect to PC Port
Modem End 25-pin
D-T ype Male
2
3
4
5
6
20 7
8
15
2
16
3
17
4
18
5
19
6
20
7
8
Modem End 25-Pin
D-T ype Male
560 End 25-Pin
D-T ype Male
Connect to Comm 1
13
Max Cable Length 50 Feet Max Cable Length 50 Feet
VPU MODEM MODEM 560
13
TX DATA
RX DATA
RTS
CTS
DSR
SIGNAL GROUND
DSR
RSD
14 1
25
14
1
25
2
3
4
5
6
20 7
8
15
2
16
3
17
4
18
5
19
6
20
7
8
13 13
TX DATA
RX DATA
RTS
CTS
DSR
SIGNAL GROUND
DSR
RSD
RTS
CTS
Figure 4-6 VPU200–3104 Modem Cable

Installation 4-9 SIMATIC VPU200–3104 Hardware Manual
The auxiliary port allows the VPU200 to be connected to one of several
types of printers and hardcopy devices to obtain printouts of programs and
of the contents of the display screen. Figure 4-7 illustrates the printer port
connector , with signals and pin numbers. V oltage levels are compatible with
E.I.A. Standard RS-232-C.
The VPU200 generates odd parity . The baud rate is specified on the Printer
Configuration Menu as 1 10, 300, 600, 1200, 2400, 4800, or 9600. Data
transmission is half-duplex. The parameters of the connected printer or
hardcopy device must correspond to these VPU200 parameters. The
printing device used with the VPU200 must have a chassis ground (pin 1)
isolated from signal ground (pin 7) for noise immunity . A resistance check
should be performed on the printer between pin 1 and pin 7 to insure that
the resistance is greater than 20K ohms. The printer must also be connected
to the same power source as the VPU200 and controller for noise immunity .
14 1
25
2
3
4
5
6
20 7
8
13
9
10
11
12
15
16
17
18
19
21
22
23
24
Data
T erminal
Ready
25-Pin
D-T
ype Female
Chassis Ground
T ransmitted Data (Input From T erminal or Modem)
Received Data (Output To Terminal or Modem)
Requesst to Send
Clear to Send
+5 VDC (Data Set Ready)
Signal Ground
Data Carrier Detect
Figure 4-7 VPU Printer Port Connector
The VPU200 can be connected to the hardcopy terminals and printers
discussed in the following paragraphs.
NOTE: Printer cable should be obtained from the vendor who supplies your
printer.
Auxiliary Port

Installation
4-10 SIMATIC VPU200–3104 Hardware Manual
733 Terminals. The VPU200 is connected to a 733 KSR terminal using
the cable illustrated in Figure 4-8. The 733 must be set for 300 baud
operation with the printer on-line, and the VPU200 must be configured for
300 baud.
The cable shown for 1200 Baud in Figure 4-8 is for use in transporting
programs from the VPU to 733 cassette only .
14
1
25
2
3
4
5
6
20 7
8
13
P13
(VPU END)
25-Pin
D-T
ype Male
Connect to Printer Port
A
H
10
F*
8
9
7
K6
T
O P1 (733 END)
CONNECT T O J1 A T 733
SET 733 FOR
300-BAUD OPERA TION
*for 1200 baud
this should be pin C
733VPU
Printer Port
P1
MAX CABLE LENGTH: 50 FEET
DOES NOT REFLECT LENGTH OF CABLE
Figure 4-8 VPU to 733 Cable – 300 or 1200 Baud
