Preface
Purpose of the Manual
This manual describes the functions of the paralleling device.
Target Audience
Protection system engineers, commissioning engineers, persons entrusted with the setting, testing and main-
tenance of automation, selective protection and control equipment, and operational crew in electrical installa-
tions and power plants.
Scope
This manual applies to the SIPROTEC 5 device family.
Further Documentation

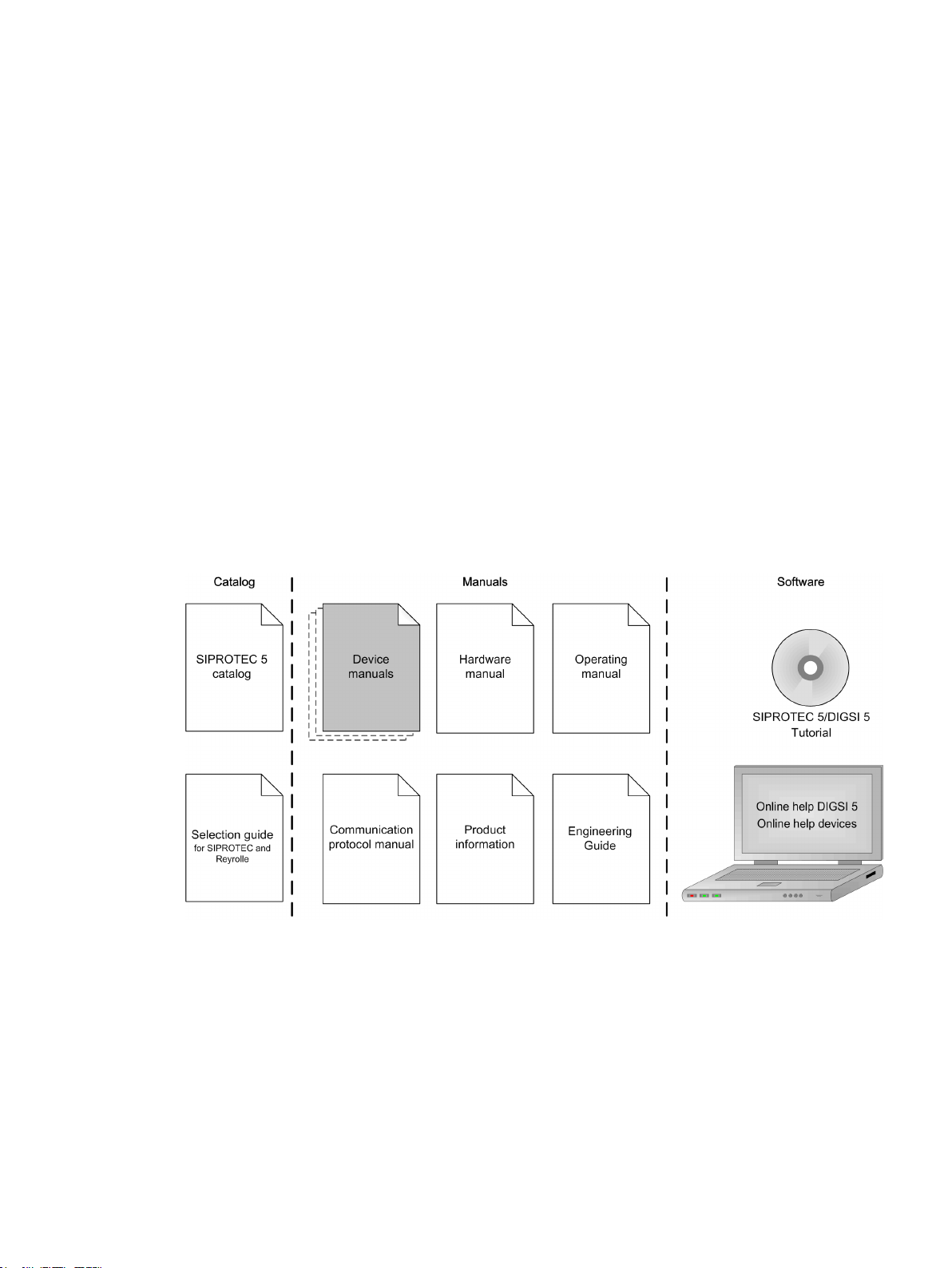

[dwprefdm-221012-01.tif, 3, en_US]
•Device manuals
Each Device manual describes the functions and applications of a specific SIPROTEC 5 device. The printed
manual and the online help for the device have the same informational structure.
•Hardware manual
The Hardware manual describes the hardware building blocks and device combinations of the SIPROTEC 5
device family.
•Operating manual
The Operating manual describes the basic principles and procedures for operating and assembling the
devices of the SIPROTEC 5 range.
SIPROTEC 5, Paralleling Device, Manual 3
C53000-H5040-C071-1, Edition 05.2018

•Communication protocol manual
The Communication protocol manual contains a description of the protocols for communication within
the SIPROTEC 5 device family and to higher-level network control centers.
•Product information
The Product information includes general information about device installation, technical data, limiting
values for input and output modules, and conditions when preparing for operation. This document is
provided with each SIPROTEC 5 device.
•Engineering Guide
The Engineering Guide describes the essential steps when engineering with DIGSI 5. In addition, the Engi-
neering Guide shows you how to load a planned configuration to a SIPROTEC 5 device and update the
functionality of the SIPROTEC 5 device.
•DIGSI 5 online help
The DIGSI 5 online help contains a help package for DIGSI 5 and CFC.
The help package for DIGSI 5 includes a description of the basic operation of software, the DIGSI princi-
ples and editors. The help package for CFC includes an introduction to CFC programming, basic examples
of working with CFC, and a reference chapter with all the CFC blocks available for the SIPROTEC 5 range.
•SIPROTEC 5/DIGSI 5 Tutorial
The tutorial on the DVD contains brief information about important product features, more detailed infor-
mation about the individual technical areas, as well as operating sequences with tasks based on practical
operation and a brief explanation.
•SIPROTEC 5 catalog
The SIPROTEC 5 catalog describes the system features and the devices of SIPROTEC 5.
•Selection guide for SIPROTEC and Reyrolle
The selection guide offers an overview of the device series of the Siemens protection devices, and a
device selection table.
Indication of Conformity
This product complies with the directive of the Council of the European Communities
on harmonization of the laws of the Member States relating to electromagnetic
compatibility (EMC Directive 2014/30/EU) and concerning electrical equipment for use
within specified voltage limits (Low Voltage Directive 2014/35/EU).
This conformity has been proved by tests performed according to the Council Directive
in accordance with the product standard EN 60255-26 (for EMC directive) and with the
product standard EN 60255-27 (for Low Voltage Directive) by Siemens AG.
The device is designed and manufactured for application in an industrial environment.
The product conforms with the international standards of IEC 60255 and the German
standard VDE 0435.
Other Standards
IEEE Std C 37.90
The technical data of the product is approved in accordance with UL.
For more information about the UL database, see certified.ul.com
Select Online Certifications Directory and enter E194016 as UL File Number.
IND. CONT. EQ.
69CA
[ul_listed_c_us, 1, --_--]
Preface
4 SIPROTEC 5, Paralleling Device, Manual
C53000-H5040-C071-1, Edition 05.2018

Additional Support
For questions about the system, please contact your Siemens sales partner.
Support
Our Customer Support Center provides a 24-hour service.
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Training Courses
Inquiries regarding individual training courses should be addressed to our Training Center:
Siemens AG
Siemens Power Academy TD
Humboldtstraße 59
90459 Nürnberg
Germany
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Internet: www.siemens.com/poweracademy
Notes on Safety
This document is not a complete index of all safety measures required for operation of the equipment (module
or device). However, it comprises important information that must be followed for personal safety, as well as
to avoid material damage. Information is highlighted and illustrated as follows according to the degree of
danger:
!
DANGER
DANGER means that death or severe injury will result if the measures specified are not taken.
²Comply with all instructions, in order to avoid death or severe injuries.
!
WARNING
WARNING means that death or severe injury may result if the measures specified are not taken.
²Comply with all instructions, in order to avoid death or severe injuries.
!
CAUTION
CAUTION means that medium-severe or slight injuries can occur if the specified measures are not taken.
²Comply with all instructions, in order to avoid moderate or minor injuries.
Preface
SIPROTEC 5, Paralleling Device, Manual 5
C53000-H5040-C071-1, Edition 05.2018

NOTICE
NOTICE means that property damage can result if the measures specified are not taken.
²Comply with all instructions, in order to avoid property damage.
i
i
NOTE
Important information about the product, product handling or a certain section of the documentation
which must be given particular attention.
Qualified Electrical Engineering Personnel
Only qualified electrical engineering personnel may commission and operate the equipment (module, device)
described in this document. Qualified electrical engineering personnel in the sense of this manual are people
who can demonstrate technical qualifications as electrical technicians. These persons may commission,
isolate, ground and label devices, systems and circuits according to the standards of safety engineering.
Proper Use
The equipment (device, module) may be used only for such applications as set out in the catalogs and the
technical description, and only in combination with third-party equipment recommended and approved by
Siemens.
Problem-free and safe operation of the product depends on the following:
•Proper transport
•Proper storage, setup and installation
•Proper operation and maintenance
When electrical equipment is operated, hazardous voltages are inevitably present in certain parts. If proper
action is not taken, death, severe injury or property damage can result:
•The equipment must be grounded at the grounding terminal before any connections are made.
•All circuit components connected to the power supply may be subject to dangerous voltage.
•Hazardous voltages may be present in equipment even after the supply voltage has been disconnected
(capacitors can still be charged).
•Operation of equipment with exposed current-transformer circuits is prohibited. Before disconnecting the
equipment, ensure that the current-transformer circuits are short-circuited.
•The limiting values stated in the document must not be exceeded. This must also be considered during
testing and commissioning.
Preface
6 SIPROTEC 5, Paralleling Device, Manual
C53000-H5040-C071-1, Edition 05.2018

Technical Data
12.1 General Device Data 708
12.2 Date and Time Synchronization 717
12.3 Paralleling Function 718
12.4 Synchronization Function 721
12.5 Overvoltage Protection with 3-Phase Voltage 723
12.6 Overvoltage Protection with Any Voltage 725
12.7 Undervoltage Protection with 3-Phase Voltage 727
12.8 Undervoltage Protection with Any Voltage 730
12.9 Overcurrent Protection, Phases 731
12.10 Overcurrent Protection, Ground 743
12.11 Instantaneous High-Current Tripping 753
12.12 Vector-Jump Protection 754
12.13 Overfrequency Protection 755
12.14 Underfrequency Protection 756
12.15 Rate of Frequency Change Protection 757
12.16 Power Protection (P,Q), 3-Phase 759
12.17 Power-Plant Disconnection Protection 760
12.18 Circuit-Breaker Failure Protection 762
12.19 Instantaneous Tripping at Switch onto Fault 764
12.20 Analog Channel Supervision via Fast Current Sum 765
12.21 Voltage-Comparison Supervision 766
12.22 Arc Protection 767
12.23 External Trip Initiation 768
12.24 Inrush-Current Detection 769
12.25 Voltage-Transformer Circuit Breaker 770
12.26 Operational Measured Values and Statistical Values 771
12.27 Phasor Measurement Unit 775
12.28 CFC 776
12
SIPROTEC 5, Paralleling Device, Manual 707
C53000-H5040-C071-1, Edition 05.2018

General Device Data
Analog Inputs
Voltage Input
All current, voltage, and power data are specified as RMS values.
Rated frequency frated 50 Hz, 60 Hz
Input and output modules IO202, IO208, IO211, IO214 IO215
Measuring range 0 V to 200 V 0 V to 7.07 V
Input impedance < 0.1 VA < 0.01 VA
Thermal rating 230 V continuously 20 V continuously
Measuring-Transducer Inputs (via Module ANAI-CA-4EL)
Insulation class SELV (Safety Extra Low Voltage) (according to IEC 60255-27)
Connector type 8-pin multiple contact strip
Differential current input channels 4
Measuring range DC -24 mA to +24 mA
Fault < 0.5 % of the measuring range
Input impedance 140 Ω
Conversion principle Delta-sigma (16 bit)
Permissible potential difference
between channels
DC 20 V
Galvanic separation from ground/
housing
DC 700 V
Permissible overload DC 100 mA continuously
Measurement repetition 200 ms
Measuring-Transducer Inputs (via Module ARC-CD-3FO)
Connector type AVAGO AFBR-4526Z
Number of transceivers 3
Fiber type Polymer Optical Fiber (POF) 1 mm
Receiver
Maximum -10 dBm ± 2 dBm
Minimum -40 dBm ± 2 dBm
Spectrum 400 nm to 1100 nm
Attenuation In the case of plastic optical fibers, you can expect a path attenuation of
0.2 dB/m Additional attenuation comes from the plug and sensor head.
Optical budget 1Minimal 25 dB
Analog sampling rate 16 kHz
ADC type 10-bit successive approximation
Transmitter
Type LED
Wavelength λ = 650 nm
Transmit power Minimum 0 dBm
Maximum 2 dBm
Numerical aperture 0.5 2
Signal rate connection test 1 pulse per second
12.1
12.1.1
Technical Data
12.1 General Device Data
708 SIPROTEC 5, Paralleling Device, Manual
C53000-H5040-C071-1, Edition 05.2018

Pulse duration connection test 11 μs
Comment:
1 All values in combination with sensors approved by Siemens.
2 Numerical aperture (NA = sin θ (launch angle))
High-Speed Measuring-Transducer Inputs, Voltage/Current (via IO210, IO212)
i
i
NOTE
Current and voltage must not be connected at the same time to one measuring-transducer input. Instead,
only connect either current or voltage. For EMC reasons, do not connect a line to an unused input (current
or voltage).
Use shielded cables.
Table 12-1 High-Speed Measuring-Transducer Inputs, Voltage
Differential voltage input channels IO210: 421
IO212: 822
Measuring range DC -10 V to +10 V
Fault < 0.5 % of the measuring range
Input impedance 48 kΩ
Conversion principle Delta-sigma (16 bit)
Insulation test voltage between the
channels
DC 3.5 kV
Insulation test voltage with respect
to ground/housing
DC 3.5 kV
Max. permissible voltage with
respect to ground on the meas-
uring inputs
300 V
Permissible overload DC 20 V continuously
DC 60 V continuously (IO210 MT3 terminal point C9)
Measured-value repetition 62.5 μs
Insulation class IO210 ELV (Extra Low Voltage) (acc. to IEC 60255-27)
Insulation class IO212 SELV (acc. to IEC 60255-27)
Table 12-2 High-Speed Measuring-Transducer Inputs, Current
Differential current input channels IO210: 423
IO212: 824
Measuring range DC -20 mA to +20 mA
Fault < 0.5 % of the measuring range
Input impedance, current 12 Ω
Conversion principle Delta-sigma (16 bit)
Permissible potential difference
between channels
DC 3.5 kV
Galvanic separation with respect to
ground/housing
DC 3.5 kV
Permissible current overload DC 100 mA continuously
21 The IO210 has 4 high-speed measuring-transducer inputs. They can be used either as a voltage or current input.
22 The IO212 has 8 high-speed measuring-transducer inputs. They can be used either as a voltage or current input.
23 The IO210 has 4 high-speed measuring-transducer inputs. They can be used either as a voltage or current input.
24 The IO212 has 8 high-speed measuring-transducer inputs. They can be used either as a voltage or current input.
Technical Data
12.1 General Device Data
SIPROTEC 5, Paralleling Device, Manual 709
C53000-H5040-C071-1, Edition 05.2018

Measured-value repetition 62.5 μs
Temperature Inputs
Settings Value Note
Insulation class PELV (Protective Extra Low Voltage)
(acc. to IEC 60255-27)
–
Measurement mode •Pt 100 Ω
•Ni 100 Ω
•Ni 120 Ω
3-wire connection, shielded cables
–
Connector type 16-pin, 17-pin terminal spring –
Temperature measuring range -65 °C to +710 °C For PT100
-50 °C to +250 °C For NI100
-50 °C to +250 °C For NI120
Supply Voltage
Integrated Power Supply
For modular devices, the following printed circuit-board assemblies have a power supply:
PS201 – Power supply of the base module and of the 1st device row
PS203 – Power supply of the 2nd device row
CB202 – Plug-in module assembly with integrated power supply, for example, to accommodate communica-
tion modules
Permissible voltage
ranges
(PS201, PS203, CB202)
DC 19 V to DC 60 V DC 48 V to DC 300 V
AC 80 V to AC 265 V, 50 Hz/60 Hz
Auxiliary rated voltage VH
(PS201, PS203, CB202)
DC 24 V/DC 48 V DC 60 V/DC 110 V/DC 125 V/DC 220 V/
DC 250 V or
AC 100 V/AC 115 V/AC 230 V, 50 Hz/60 Hz
Permissible voltage
ranges (PS101)
Only for non-modular
devices
DC 19 V to DC 60 V DC 48 V to 150 V DC 88 V to DC 300 V
AC 80 V to AC 265 V,
50 Hz/60 Hz
Auxiliary rated voltage VH
(PS101)
Only for non-modular
devices
DC 24 V/DC 48 V DC 60 V/DC 110 V/
DC 125 V
DC 110 V/ DC 125 V/
DC 220 V/DC 250 V
or
AC 100 V/AC 115 V/
AC 230 V, 50 Hz/60 Hz
Superimposed alternating
voltage, peak-to-peak,
IEC 60255-11
≤ 15 % of the DC auxiliary rated voltage (applies only to direct voltage)
Inrush current ≤ 18 A
Recommended external
protection
Miniature circuit breaker 6 A, characteristic C according to IEC 60898
Internal fuse
– DC 24 V to DC 48 V DC 60 V to DC 125 V DC 24 V to DC 48 V
AC 100 V to AC 230 V
12.1.2
Technical Data
12.1 General Device Data
710 SIPROTEC 5, Paralleling Device, Manual
C53000-H5040-C071-1, Edition 05.2018

Integrated Power Supply
PS101
Only for non-modular
devices
4 A inert, AC 250 V,
DC 150 V,
UL recognized
SIBA type 179200 or
Schurter type SPT 5x20
2 A time-lag, AC 250 V, DC 300 V, UL recognized
SIBA type 179200 or Schurter type SPT 5x20
PS201, PS203, CB202 2 A time-lag, AC 250 V, DC 300 V, UL recognized
SIBA type 179200 or Schurter type SPT 5x20
Power consumption (life relay active)
– DC AC 230 V/50 Hz AC 115 V/50 Hz
1/3 base module, non-
modular
Without plug-in modules
7.0 W 16 VA 12.5 VA
1/3 base module, modular
Without plug-in modules
13 W 33 VA 24 VA
1/6 expansion module 3 W 6 VA 6 VA
1/6 plug-in module
assembly without plug-in
modules (modules CB202)
3.5 W 14 VA 7 VA
Plug-in module for base
module or plug-in module
assembly (for example,
communication module)
< 5 W < 6 VA < 6 VA
Stored-energy time for auxiliary voltage outage or
short circuit, modular devices
IEC 61000-4-11
IEC 61000-4-29
For V ≥ DC 24 V ≥ 50 ms
For V ≥ DC 110 V ≥ 50 ms
For V ≥ AC 115 V ≥ 50 ms
Stored-energy time for auxiliary voltage outage or
short circuit, non-modular devices
IEC 61000-4-11
IEC 61000-4-29
For V ≥ DC 24 V ≥ 20 ms
For V ≥ DC 60 V/DC 110 V ≥ 50 ms
For V ≥ AC 115 V ≥ 200 ms
Binary Inputs
Rated voltage range DC 24 V to 250 V
The binary inputs of SIPROTEC 5 are bipolar with the exception of the
binary inputs on the IO230, the IO231, and the IO233.
Current consumption, excited Approx. DC 0.6 mA to 2.5 mA (independent of the control voltage)
Power consumption, max. 0.6 VA
Pickup time Approx. 3 ms
Dropout time25 Capacitive load (supply-line capaci-
tance)
Dropout time
< 5 nF < 4 ms
< 10 nF < 6 ms
< 50 nF < 10 ms
< 220 nF < 35 ms
12.1.3
25 For time-critical applications with low-active signals, consider the specified dropout times. If necessary, provide for active discharge of
the binary input (for example, a resistor in parallel to the binary input or using a change-over contact).
Technical Data
12.1 General Device Data
SIPROTEC 5, Paralleling Device, Manual 711
C53000-H5040-C071-1, Edition 05.2018

Control voltage for all modules
with binary inputs except the
IO233
Adapt the binary-input threshold to be set in the device to the control
voltage.
Range 1 for 24 V, 48 V, and 60 V
Control voltage
Vlow ≤ DC 10 V
Vhigh ≥ DC 19 V
Range 2 for 110 V and 125 V
Control voltage
Vlow ≤ DC 44 V
Vhigh ≥ DC 88 V
Range 3 for 220 V and 250 V
Control voltage
Vlow ≤ DC 88 V
Vhigh ≥ DC 176 V
Control voltage for binary inputs of
the IO233 modules
Range Vlow ≤ DC 85 V
Vhigh ≥ DC 105 V
Maximum permitted voltage DC 300 V
The binary inputs contain interference suppression capacitors. To ensure EMC immunity, use the terminals
shown in the terminal diagrams/connection diagrams to connect the binary inputs to the common potential.
Relay Outputs
Standard Relay (Type S)
Switching capacity On: 1000 W/VA
Off: 30 VA; 40 W ohmic;
30 W/VA at L/R ≤ 40 ms
AC and DC contact voltage 250 V
Permissible current per contact (continuous) 5 A
Permissible current per contact (switching on and
holding)
30 A for 1 s (make contact)
Short-time current across closed contact 250 A for 30 ms
Total permissible current for contacts connected to
common potential
5 A
Switching time OOT (Output Operating Time)
Additional delay of the output medium used
Make time: typical: 8 ms; maximum: 10 ms
Break time: typical: 2 ms; maximum: 5 ms
Max. rated data of the output contacts in accordance
with UL certification
DC 24 V, 5 A, General Purpose
DC 48 V, 0.8 A, General Purpose
DC 240 V, 0.1 A, General Purpose
AC 240 V, 5 A, General Purpose
AC 120 V, 1/6 hp
AC 250 V, 1/2 hp
B300
R300
Interference suppression capacitors across the
contacts
4.7 nF, ± 20 %, AC 250 V
Fast Relay (Type F)
Switching capacity On: 1000 W/VA
Off: 30 VA; 40 W ohmic;
30 W/VA at L/R ≤ 40 ms
AC and DC contact voltage 250 V
Permissible current per contact (continuous) 5 A
12.1.4
Technical Data
12.1 General Device Data
712 SIPROTEC 5, Paralleling Device, Manual
C53000-H5040-C071-1, Edition 05.2018

Permissible current per contact (switching on and
holding)
30 A for 1 s (make contact)
Short-time current across closed contact 250 A for 30 ms
Total permissible current for contacts connected to
common potential
5 A
Switching time OOT (Output Operating Time)
Additional delay of the output medium used
Make time: typical: 4 ms; maximum: 5 ms
Break time: typical: 2 ms; maximum: 5 ms
Rated data of the output contacts in accordance with
UL certification
AC 120 V, 5 A, General Purpose
AC 250 V, 5 A, General Purpose
AC 250 V, 0.5 hp
B300
R300
Interference suppression capacitors across the
contacts
4.7 nF, ± 20 %, AC 250 V
Supervision 2-channel activation with cyclic testing (only for make
contact)
High-Speed Relay with Semiconductor Acceleration (Type HS)
Switching capacity On/Off: 1000 W/VA
Contact voltage AC 200 V, DC 250 V
Permissible current per contact (continuous) 5 A
Permissible current per contact (switching on and
holding)
30 A for 1 s (make contact)
Short-time current across closed contact 250 A for 30 ms
Total permissible current for contacts connected to
common potential
5 A
Switching time OOT (Output Operating Time)
Additional delay of the output medium used
Make time, typical: 0.2 ms; maximum: 0.2 ms
Break time, typical: 9 ms; maximum: 9 ms
Rated data of the output contacts in accordance with
UL certification
B150
Q300
Power Relay (for Direct Control of Motor Switches)
Switching capacity for permanent and periodic operation
250 V/4.0 A
220 V/4.5 A
110 V/5.0 A
60 V/5.0 A
48 V/5.0 A
24 V/5.0 A
1000 W
1000 W
550 W
300 W
240 W
120 W
In order to prevent any damage, the external protec-
tion circuit must switch off the motor in case the rotor
is blocked.
Turn on switching power for 30 s, recovery time until switching on again is 15 minutes.
For short-term switching operations, an impulse/pause ratio of 3 % must be considered.
100 V/9.0 A
60 V/10.0 A
48 V/10.0 A
24 V/10.0 A
1000 W
600 W
480 W
240 W
Continuous and inching operation is not permitted.
In order to prevent any damage, the external protec-
tion circuit must switch off the motor in case the rotor
is blocked.
AC and DC contact voltage 250 V
Permissible continuous current per contact 5 A
Permissible current per contact (switching on and
holding)
30 A for 1 s
Technical Data
12.1 General Device Data
SIPROTEC 5, Paralleling Device, Manual 713
C53000-H5040-C071-1, Edition 05.2018

Short-time current across closed contact 250 A for 30 ms
Total permissible current for contacts connected to
common potential
5 A
Switching time OOT (Output Operating Time)
Additional delay of the output medium used
≤ 16 ms
Rated data of the output contacts in accordance with
UL certification
DC 300 V, 4.5 A - 30 s ON, 15 min OFF
DC 250 V, 1 hp motor - 30 s ON, 15 min OFF
DC 110 V, 3/4 hp motor - 30 s ON, 15 min OFF
DC 60 V, 10 A, 1/2 hp motor - 30 s ON, 15 min OFF
DC 48 V, 10 A, 1/3 hp motor - 30 s ON, 15 min OFF
DC 24 V, 10 A, 1/6 hp motor - 30 s ON, 15 min OFF
Interference suppression capacitors across the
contacts
4.7 nF, ± 20 %, AC 250 V
The power relays operate in interlocked mode, that is, only one relay of each switching pair picks up at a time
thereby avoiding a power-supply short circuit.
Design Data
Masses
Device Size
Weight of the Modular Devices
Type of construction 1/3 1/2 2/3 5/6 1/1
Flush-mounting device 4.4 kg 7.2 kg 9.9 kg 12.7 kg 15.5 kg
Surface-mounted device with inte-
grated on-site operation panel
7.4 kg 11.7 kg 15.9 kg 20.2 kg 24.5 kg
Surface-mounted device with
detached on-site operation panel
4.7 kg 7.8 kg 10.8 kg 13.9 kg 17.0 kg
Size Weight
Detached on-site operation panel 1/3 1.9 kg
Detached on-site operation panel 1/6 1.1 kg
Device Size
Weight of the Non-Modular Devices 7xx82
Type of construction 1/3
Flush-mounting device 3.6 kg
Bracket for non-modular surface-
mounted variant
1.9 kg
Dimensions of the Base and 1/3 Modules
Type of Construction (Maximum Dimensions) Width over all x Height over all x Depth (incl.
Current Terminal), Width and Depth Each Rounded
up to the Next Full mm (in Inches)
Flush-mounting device 150 mm x 266 mm x 229 mm
(5.91 x 10.47 x 9.02)
Surface-mounted device with integrated on-site oper-
ation panel
150 mm x 314 mm x 337 mm
(5.91 x 12.36 x 13.27)
Surface-mounted device with detached on-site opera-
tion panel
150 mm x 314 mm x 230 mm
(5.91 x 12.36 x 9.06)
12.1.5
Technical Data
12.1 General Device Data
714 SIPROTEC 5, Paralleling Device, Manual
C53000-H5040-C071-1, Edition 05.2018

Dimensions of Device Rows
Type of
Construction
(Maximum
Dimensions)
Width over all x Height over all x Depth (incl. Current Terminal), Width and Depth
Each Rounded up to the Next Full mm (in Inches)
Type of construc-
tion
1/3 1/2 2/3 5/6 1/1
Flush-mounting
device
150 mm x
266 mm x
229 mm
(5.91 x 10.47 x
9.02)
225 mm x
266 mm x
229 mm
(8.86 x 10.47 x
9.02)
300 mm x
266 mm x
229 mm
(11.81 x 10.47 x
9.02)
375 mm x
266 mm x
229 mm
(14.76 x 10.47 x
9.02)
450 mm x
266 mm x
229 mm
(17.72 x 10.47 x
9.02)
Surface-
mounted device
with integrated
on-site operation
panel
150 mm x
314 mm x
337 mm
(5.91 x 12.36 x
13.27)
225 mm x
314 mm x
337 mm
(8.86 x 12.36 x
13.27)
300 mm x
314 mm x
337 mm
(11.81 x 12.36 x
13.27)
375 mm x
314 mm x
337 mm
(14.76 x 12.36 x
13.27)
450 mm x
314 mm x
337 mm
(17.72 x 12.36 x
13.27)
Surface-
mounted device
with detached
on-site operation
panel
150 mm x
314 mm x
230 mm
(5.91 x 12.36 x
9.06)
225 mm x
314 mm x
230 mm
(8.86 x 12.36 x
9.06)
300 mm x
314 mm x
230 mm
(11.81 x 12.36 x
9.06)
375 mm x
314 mm x
230 mm
(14.76 x 12.36 x
9.06)
450 mm x
314 mm x
230 mm
(17.72 x 12.36 x
9.06)
Expansion Module Dimensions
Type of Construction (Maximum Dimensions) Width x Height x Depth, Width and Depth Each
Rounded up to the Next Full mm (in Inches)
Flush-mounting device 75 mm x 266 mm x 229 mm
(2.95 x 10.47 x 9.02)
Surface-mounted device with integrated on-site oper-
ation panel
75 mm x 314 mm x 337 mm
(2.95 x 12.36 x 13.27)
Surface-mounted device with detached on-site opera-
tion panel
75 mm x 314 mm x 230 mm
(2.95 x 12.36 x 9.06)
Plug-In Module Dimensions
Type of Construction (Maximum Dimensions) Width x Height x Depth (in Inches)
USART-Ax-xEL, ETH-Bx-xEL 61 mm x 45 mm x 120.5 mm
(2.4 x 1.77 x 4.74)
USART-Ax-xFO, ETH-Bx-xFO (without protection
cover)
61 mm x 45 mm x 132.5 mm
(2.4 x 1.77 x 5.22)
ANAI-CA-4EL 61 mm x 45 mm x 119.5 mm
(2.4 x 1.77 x 4.7)
ARC-CD-3FO 61 mm x 45 mm x 120.5 mm
(2.4 x 1.77 x 4.74)
Minimum Bending Radii of the Connecting Cables Between the On-Site Operation Panel and the Base Module
Fiber-optic cable R = 50 mm
Pay attention to the length of the cable protection
sleeve, which you must also include in calculations.
D-Sub cable R = 50 mm (minimum bending radius)
Technical Data
12.1 General Device Data
SIPROTEC 5, Paralleling Device, Manual 715
C53000-H5040-C071-1, Edition 05.2018

Degree of Protection According to IEC 60529
For equipment in the surface-mounting housing IP5426 for front
For equipment in the flush-mounting housing IP5426 for front
For operator protection (back side) IP2x for current terminal (installed)
IP2x for voltage terminal (installed)
Degree of pollution, IEC 60255-27 2
Maximum altitude above sea level 2000 m (6561.68 ft)
UL Note
Type 1 if mounted into a door or front cover of an enclosure.
When expanding the device with the 2nd device row, then they must be mounted completely inside an
enclosure.
Tightening Torques for Terminal Screws
Type of Line Current Terminal Voltage Terminal with
Spring-Loaded Terminals
Voltage Terminal with
Screw Connection
Stranded wires with ring-
type lug
2.7 Nm No ring-type lug No ring-type lug
Stranded wires with boot-
lace ferrules or pin-type
lugs
2.7 Nm 1.0 Nm 0.6 Nm
Solid conductor, bare
(2 mm2)
2.0 Nm 1.0 Nm –
i
i
NOTE
For current and voltage terminals, the maximum speed of the tool must not exceed 640 rpm.
i
i
NOTE
Use copper cables only.
Torques for Other Screw Types
Screw Type Torque
M4 x 20 1.2 Nm
M4 x 8 1.2 Nm
M2.5 x 6 0.39 Nm
Countersunk screw, M2.5 x 6 0.39 Nm
Countersunk screw, M2.5 x 8 0.39 Nm
Collar screw, M4 x 20 0.7 Nm
26 The provided plug-in label must be used for expansion modules with LEDs.
Technical Data
12.1 General Device Data
716 SIPROTEC 5, Paralleling Device, Manual
C53000-H5040-C071-1, Edition 05.2018

Date and Time Synchronization
Date format DD.MM.YYYY (Europe)
MM/DD/YYYY (USA)
YYYY-MM-DD (China)
Time source 1, time source 2 None
IRIG-B 002(003)
IRIG-B 006(007)
IRIG-B 005(004) with extension according to
IEEE C37.118-2005
DCF77
PI (protection interface) 27
SNTP
IEC 60870-5-103
DNP3
IEEE 1588
T104
Time zone 1, time zone 2 Local
UTC
Failure indication after 0 s to 3600 s
Time zone and daylight saving time Manually setting the time zones
Time zone offset with respect to GMT -720 min to 840 min
Switching over to daylight saving time Active
Inactive
Beginning of daylight saving time Input: day and time
End of daylight saving time Input: day and time
Offset daylight saving time 0 min to 120 min [steps of 15]
12.2
27 If provided
Technical Data
12.2 Date and Time Synchronization
SIPROTEC 5, Paralleling Device, Manual 717
C53000-H5040-C071-1, Edition 05.2018

Paralleling Function
Operating Modes
Switching synchronous systems
Switching asynchronous systems
Switching to dead line or dead busbar
Direct close command
Balancing voltage
Balancing frequency
Setting Values
Supervision/Delay/Pulse times
Max.durat. sync.process 0.00 s to 3600.00 s or ∞ (ineffective) Increments of 0.01 s
Supervision time for dead-system
switching
0.00 s to 60.00 s Increments of 0.01 s
Closure delay 0.00 s to 60.00 s Increments of 0.01 s
T V pulse min/T f pulse min 0.01 s to 1.00 s Increments of 0.01 s
T V pulse max/T f pulse max 0.01 s to 60.00 s Increments of 0.01 s
T pause V/T pause f 0.01 s to 60.00 s Increments of 0.01 s
T close without balancing 1.00 s to 100.00 s Increments of 0.01 s
Voltage threshold values
Upper voltage limit Vmax 0.300 V to 340.000 V (phase-to-phase) Increments of 0.001 V
Lower voltage limit Vmin 0.300 V to 340.000 V (phase-to-phase) Increments of 0.001 V
V1, V2 without voltage 0.300 V to 170.000 V (phase-to-phase) Increments of 0.001 V
V1, V2 with voltage 0.300 V to 340.000 V (phase-to-phase) Increments of 0.001 V
Differential values, changeover thresholds asynchronous/synchronous/balancing
Voltage difference
V2 > V1; V2 < V1
0.000 V to 170.000 V Increments of 0.001 V
Frequency difference
f2 > f1; f2 < f1
0.000 Hz to 2.000 Hz (synchronous)
0.000 Hz to 4.000 Hz (asynchronous)
Increments of 0.001 Hz
Angle difference
α2 > α1; α2 < α1
0° to 90° Increments of 1°
Δf threshold ASYN <-> SYN 0.010 Hz to 0.200 Hz Increments of 0.001 Hz
Δf set point for balancing -1.00 Hz to 1.00 Hz Increments of 0.01 Hz
Δf for the kick pulse -1.00 Hz to 1.00 Hz Increments of 0.01 Hz
Adjustments of the sides
Angle adjustment 0.0° to 360.0° Increments of 0.1°
Voltage adjustment 0.500 to 2.000 Increments of 0.001
Circuit breaker
Closing time of the circuit breaker 0.01 s to 0.60 s Increments of 0.01 s
Dropout Ratio
Min./max. operating limit 1 % of the setting value
Voltage differential 10 % of the setting value or 0.5 V
Dead/energized 5 % of the setting value
Frequency difference 3 mHz
Angle difference 0.1°
12.3
Technical Data
12.3 Paralleling Function
718 SIPROTEC 5, Paralleling Device, Manual
C53000-H5040-C071-1, Edition 05.2018

Measured Values
Reference voltage: V1 (always displayed as a phase-to-phase voltage)
Unit kV in primary, V in secondary, or % Vrated
Range 10 % to 120 % of Vrated
Tolerance at rated frequency ≤ 1 % of the measured value or 0.5 % Vrated
Voltage to be paralleled: V2 (always displayed as a phase-to-phase voltage)
Unit kV in primary, V in secondary, or % Vrated
Range 10 % to 120 % of Vrated
Tolerance at rated frequency ≤ 1 % of the measured value or 0.5 % Vrated
Frequency of the voltage V1: f1
Unit Hz
Range 25 Hz ≤ f ≤ 70 Hz
Tolerance at rated frequency 1 mHz
Frequency of the voltage V2: f2
Unit Hz
Range 25 Hz ≤ f ≤ 70 Hz
Tolerance at rated frequency 1 mHz
Voltage difference: V2 - V1 (always displayed as a phase-to-phase voltage according to V1)
Unit kV in primary, V in secondary, or % Vrated
Range 10 % to 120 % of Vrated
Tolerance at rated frequency ≤ 1 % of the measured value or 0.5 % Vrated
Frequency difference: f2 - f1
Unit mHz
Range frated ± 10 %
Tolerance at rated frequency 1 mHz
Angle difference: α2 - α1
Unit °
Range -180° to +180°
Tolerance at rated frequency 0.5°
Times
Measuring time after switching on
the variables
Approx. 80 ms
Operating Range
Voltage 20 V to 340 V
Frequency frated - 4 Hz ≤ frated ≤ frated + 4 Hz
Tolerances
Voltage 2 % of the setting value or 1 V
Voltage difference V2>V1; V2<V1 1 V
Frequency difference f2>f1; f2<f1 10 mHz
Angle difference α2>α1; α2<α1 1°
Pulse time 1 % of the calculated impulse or 10 ms
Tolerance of all time settings 10 ms
Technical Data
12.3 Paralleling Function
SIPROTEC 5, Paralleling Device, Manual 719
C53000-H5040-C071-1, Edition 05.2018

Max. phase displacement angle 5° for Δf ≤ 1 Hz
10° for Δf > 1 Hz
Technical Data
12.3 Paralleling Function
720 SIPROTEC 5, Paralleling Device, Manual
C53000-H5040-C071-1, Edition 05.2018
