Siemens ARCADIS Avantic Installation manual

© Siemens AG
The reproduction, transmission or use
of this document or its contents is not
permitted without express written
authority. Offenders will be liable for
damages. All rights, including rights
created by patent grant or registration
of a utility model or design, are
reserved.
Print No.:
Mühlhäusser
ARCADIS Avantic
System
Installation and Startup
SP
2005
SPR2-330.814.02.01.02
Replaces: n.a.
English
Doc. Gen. Date: 02.05
I.I. laser light localizer
0886870010048590

2 Revision / Disclaimer
ARCADIS Avantic SPR2-330.814.02.01.02 Siemens AG
02.05 CS SD 24
Page 2 of 20 Medical Solutions
1Revision / Disclaimer
Document revision level
The document corresponds to the version/revision level effective at the time of system
delivery. Revisions to hardcopy documentation are not automatically distributed.
Please contact your local Siemens office to order current revision levels.
Disclaimer
The installation and service of equipment described herein is to be performed by qualified
personnel who are employed by Siemens or one of its affiliates or who are otherwise
authorized by Siemens or one of its affiliates to provide such services.
Assemblers and other persons who are not employed by or otherwise directly affiliated
with or authorized by Siemens or one of its affiliates are directed to contact one of the
local offices of Siemens or one of its affiliates before attempting installation or service pro-
cedures.

Siemens AG SPR2-330.814.02.01.02 ARCADIS Avantic
02.05 CS SD 24
Table of Contents 3
Page 3 of 20
Medical Solutions
1- 0Table of Contents
1 _______ General information______________________________________________ 4
Required Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Required aids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General safety information (in existing documents) . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Protective conductor resistance test information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Laser light localizer option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 _______ Installation and Settings __________________________________________ 9
Installation of the I.I. laser light localizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation of the I.I. laser light localizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Checking the settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Attaching the adhesive labels (USA / Canada / UK) . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Final Work Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3 _______ Servicing______________________________________________________ 17
Mechanical Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Operating value inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4 _______ Service _______________________________________________________ 19
Functional checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5 _______ Changes since previous version __________________________________ 20

4 General information
ARCADIS Avantic SPR2-330.814.02.01.02 Siemens AG
02.05 CS SD 24
Page 4 of 20 Medical Solutions
2-
1General in formation
Required Parts 0
NOTE These instructions are also the instructions for annual mainte-
nance.
•I.I. laser light localizer
- I.I. laser light localizer
- Labels
Required aids 0
•Toolbox (including set of Allen keys)
Configurations 0
•The I.I. laser light localizer is available as an add-on for:
- ARCADIS Avantic with 33 cm (13") I.I.

Siemens AG SPR2-330.814.02.01.02 ARCADIS Avantic
02.05 CS SD 24
General information 5
Page 5 of 20
Medical Solutions
Safety information 0
General safety information (in existing documents) 0
WARNING Danger of injuries, death or material damage.
Non-compliance can lead to death, injury or material damage.
Please note:
¹The product-specific safety notes in these instructions,
¹The general safety information in TD00-000.860.01... and
¹The safety information in accordance with ARTD Part 2.
WARNING Electrical voltage!
Non-compliance can lead to severe bodily injury and even death.
¹The internal uninterruptible power supply of the system
(UPS) provides several components with line voltage -
even when the system is switched off or the system
power plug is disconnected.
¹Before the system is programmed to the local line volt-
age/line frequency, it is to be disconnected from the
power supply (the power plug is to be disconnected) and
the voltage output plug of the UPS is to be disconnected
as well.
Protective conductor resistance test information 0
Observe the instructions in the "Safety Rules for Installation and Repair"
(ARTD-002.731.17 ...).
The protective conductor resistance of 0.2 ohms must not be exceeded.
First measured value
In the case of systems thoroughly tested at the factory prior to delivery, the protective con-
ductor resistance test was already performed and the measured values were recorded in
the system test report.
The measurements were performed using the measuring procedures and measuring
equipment recorded in the system test report.
The test report is included with the accompanying documentation.
If no covers were opened while installing the system and no additional components (e.g.
options) were installed or modified, the values recorded in the test report including the
measuring point (e.g. cover of the basic unit or cover of the image intensifier) can be used
in the protective conductor resistance report as the first measured value.

6 General information
ARCADIS Avantic SPR2-330.814.02.01.02 Siemens AG
02.05 CS SD 24
Page 6 of 20 Medical Solutions
If the power plug was changed during system installation, covers were removed, or addi-
tional components were installed or modified, the values provided in the test report are
invalid.
The values are to be labeled invalid. Cross out the values, enter the comment "invalid
value" and confirm this with name, date and signature.
The protective conductor test must be performed again after all work has been completed.
In the case of systems with no measured values for the protective conductor test recorded
in the system test report, the protective conductor test is to be performed after all work
has been completed.
Measurement
The measurement must be performed according to DIN VDE 0751, Part 1 (see ARTD
Part 2). In this case the protective conductor resistance for all touchable conductive parts
must be measured during the normal operating state of the system.
Make sure that control cables or data cables between the components of the system are
not mistaken for a protective conductor connection.
During the measurement the power cable and additional connection cable with the inte-
grated protective conductor (e.g., monitor cable between the basic unit and monitor trol-
ley) must be moved section by section to detect cable breaks.
The protective conductor resistance must not exceed 0.2 ohms.
The values, including the measuring points, must be recorded as first measured values in
the protective conductor resistance report.
The measuring procedure and the measuring device used (designation and serial num-
ber) are also to be documented.
Separate the page with the report from these instructions and file it in the "Reports" regis-
ter in the system binder or log book.

Siemens AG SPR2-330.814.02.01.02 ARCADIS Avantic
02.05 CS SD 24
General information 7
Page 7 of 20
Medical Solutions
Fig. 1: Measuring circuit for measuring the protective conductor resistance for units that are
disconnected from power, in compliance with DIN VDE 0751-1/2001-10, Fig. C2.
Pos. 1 = System
Pos. 2 = Application part type B (if available)
Pos. 3 = Measurement setup (integrated into measuring device)
Repeat measurement
In the case of maintenance or repairs, perform the protective conductor resistance mea-
surement again.
Document and assess the values determined in the repeat measurement.
The measurement must be performed according to DIN VDE 0751, Part 1 (see ARTD
Part 2). In this case the protective conductor resistance for all touchable conductive parts
must be measured during the normal operating state of the system.
Make sure that control cables or data cables between the components of the system are
not mistaken for a protective conductor connection.
During the measurement, the power cable and additional connection cables with the inte-
grated protective conductor (e.g. monitor cable between the basic unit and monitor trolley)
must be moved section by section to detect cable breaks.
The protective conductor resistance must not exceed 0.2 ohms.
The values determined in the repeat measurement, including the measuring points, must
be recorded and assessed in the protective conductor resistance report.

8 General information
ARCADIS Avantic SPR2-330.814.02.01.02 Siemens AG
02.05 CS SD 24
Page 8 of 20 Medical Solutions
The measuring procedure and the measuring device used (designation and serial num-
ber) are also to be documented.
NOTE For evaluation purposes, the first measured value and the values
documented during maintenance or safety checks are to be com-
pared to the measured values. A sudden or unexpected increase
in the measured values may indicate a defect in the protective con-
ductor connections (protective conductor or contacts) - even if the
limit value of 0.2 ohms is not exceeded.
Laser light localizer option 0
(Comment: Information applies to line-type lasers of laser class 1M, e.g., laser light
localizers, I.I. / ARCADIS Avantic)
CAUTION Laser emissions!
This product contains lasers of the class 1M. (USA: Laser class
1M)
Non-compliance can result in injury.
¹Observe the safety information in ARTD-002.731.03...
When working with the laser light localizer, do not look
directly into the laser beam.
NOTE Laser emissions!
There is no direct hazard to the eye (blinking reflex). Nevertheless
do not look directly into the laser beam.

Siemens AG SPR2-330.814.02.01.02 ARCADIS Avantic
02.05 CS SD 24
Installation and Settings 9
Page 9 of 20
Medical Solutions
3-
2Installa tion and Settings
Installation of the I.I. laser light localizer 0
Preparation 0
•Removeable grid with grid segment - remove by loosening screws (see (1/Fig.2/p.9)
and (1/Fig.3/p.9)).
Fig. 2: Removeable grid
Fig. 3: Removeable grid with grid segment
•Unscrew I.I. ring and remove carefully (see (1/Fig.4/p.10)).
•Pull out wires with plug that are wedged in at the side of the I.I. housing (see
(1/Fig.5/p.10)).

10 Installation and Settings
ARCADIS Avantic SPR2-330.814.02.01.02 Siemens AG
02.05 CS SD 24
Page 10 of 20 Medical Solutions
Fig. 4: I.I._ring
Fig. 5: Plug connector

Siemens AG SPR2-330.814.02.01.02 ARCADIS Avantic
02.05 CS SD 24
Installation and Settings 11
Page 11 of 20
Medical Solutions
Installation of the I.I. laser light localizer 0
•Take out laser light localizer (see(1/Fig.6/p.11).
•Connect the two plugs ((1/Fig.7/p.11)and wedge them with foam into the side of the
I.I. housing ((1/Fig.8/p.12).
Fig. 6: I.I._1
Fig. 7: I.I._2

12 Installation and Settings
ARCADIS Avantic SPR2-330.814.02.01.02 Siemens AG
02.05 CS SD 24
Page 12 of 20 Medical Solutions
Fig. 8: I.I._3
Fig. 9: Mounting the laser light localizer
•Fasten the laser light localizer to the I.I. housing with Allen screws (making sure there
are no foreign bodies on the I.I. output screen); next, screw on the holder for the re-
moveable grid, then insert the removeable grid and secure it with the knurled thumb-
screw. For the mounting position of the laser light localizer, see ((1/Fig.9/p.12)).For
the position of the laser diodes see (2/Fig.9/p.12)

Siemens AG SPR2-330.814.02.01.02 ARCADIS Avantic
02.05 CS SD 24
Installation and Settings 13
Page 13 of 20
Medical Solutions
Checking the settings 0

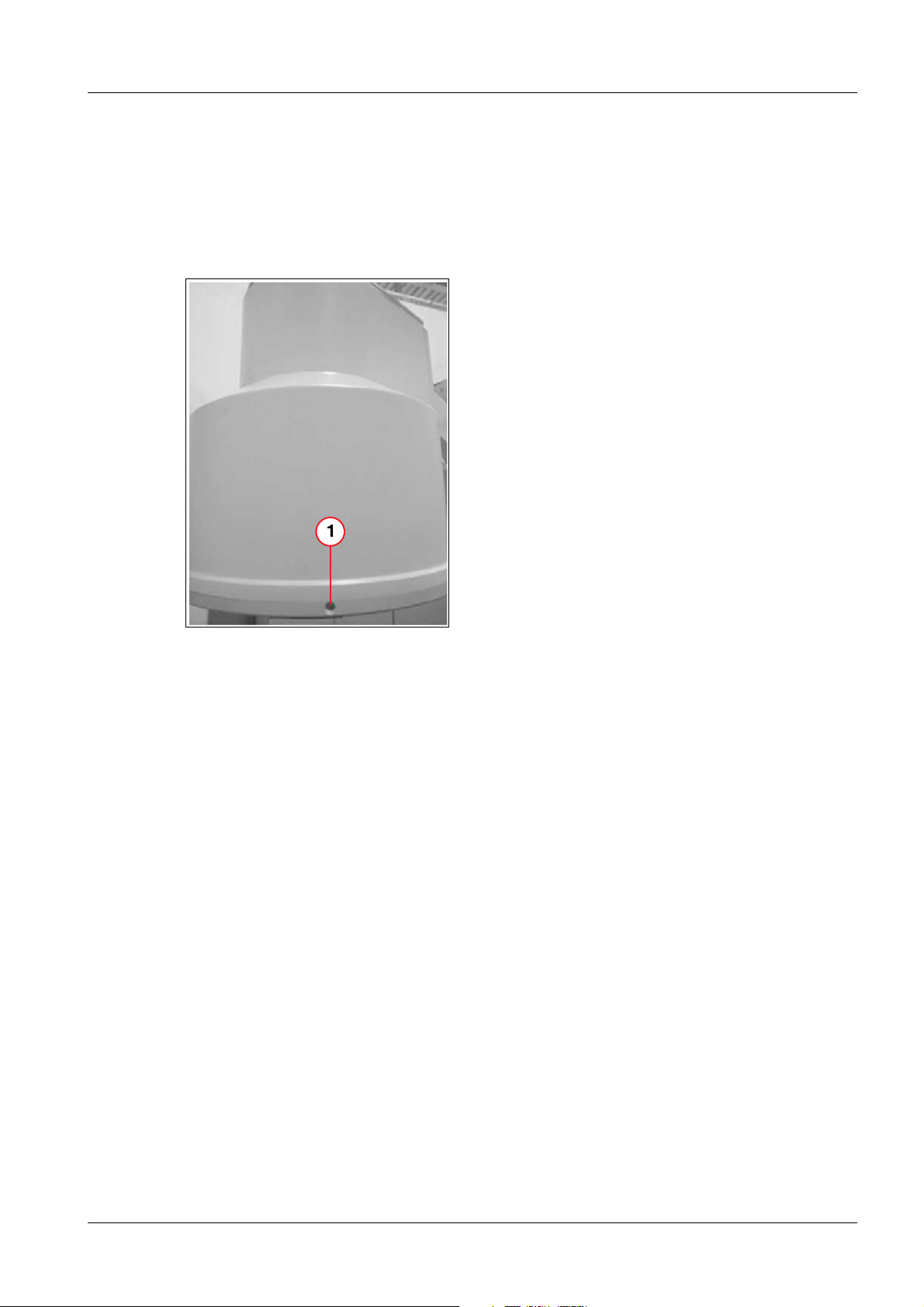

•Switch on the I.I. laser light localizer and adjust the two laser beams so that they strike
the center of the radiation-exit window (focal point) (1/Fig. 10 / p. 13) (center of the iris
diaphragm), using the two adjustment screws (AT THE SIDE OF THE LASER RING).
Adjustment is done in the basic position (I.I. up, X-ray head down).
Fig. 10: Adjusting the laser light localizer

14 Installation and Settings
ARCADIS Avantic SPR2-330.814.02.01.02 Siemens AG
02.05 CS SD 24
Page 14 of 20 Medical Solutions
Attaching the adhesive labels (USA / Canada / UK) 0
•Attach the included labels (1 und 2/Fig. 11 / p. 14) as shown (only attach for USA /
Canada / UK).
Fig. 11: I.I._Laser

Siemens AG SPR2-330.814.02.01.02 ARCADIS Avantic
02.05 CS SD 24
Installation and Settings 15
Page 15 of 20
Medical Solutions
Function check 0
•Check the function of the two keys to switch the laser light localizer on and off.
•Switch the laser light localizer back on. The laser beams must go off automatically after
approx. one minute.

16 Installation and Settings
ARCADIS Avantic SPR2-330.814.02.01.02 Siemens AG
02.05 CS SD 24
Page 16 of 20 Medical Solutions
Final Work Steps 0
•File these instructions in Register 8, Service, in the system binder.

Siemens AG SPR2-330.814.02.01.02 ARCADIS Avantic
02.05 CS SD 24
Servicing 17
Page 17 of 20
Medical Solutions
4-
3Servicing
Mechanical Safety 0
•Ensure that the I.I. laser light localizer is seated properly on the I.I.
•Check the laser aperture for soiling and damage.
•Check the alignment of the laser beams with the tube focus.

18 Servicing
ARCADIS Avantic SPR2-330.814.02.01.02 Siemens AG
02.05 CS SD 24
Page 18 of 20 Medical Solutions
Operating value inspection 0
•Check the function of the two keys to switch the laser light localizer on and off.
•Switch the laser light localizer back on. The laser beams must go off automatically af-
ter approx. one minute.

Siemens AG SPR2-330.814.02.01.02 ARCADIS Avantic
02.05 CS SD 24
Service 19
Page 19 of 20
Medical Solutions
5-
4Service
Functional checks 0
•Check the function of the two keys to switch the laser light localizer on and off.
•Switch the laser light localizer back on. The laser beams must go off automatically af-
ter approx. one minute.
•Check the labels (see (Fig. 11 / p. 14)).

20 Changes since previous version
ARCADIS Avantic SPR2-330.814.02.01.02 Siemens AG
02.05 CS SD 24
Page 20 of 20 Medical Solutions
6-
5Changes since previous version
N/A; first edition
