AirLink Raven X User Guide
20070914
Rev 2.0

Preface
Rev 2.0 May.10 1
Important
Notice Due to the nature of wireless communications, transmission and reception of data
can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be
totally lost. Although significant delays or losses of data are rare when wireless
devices such as the Sierra Wireless AirLink Raven X are used in a normal
manner with a well-constructed network, the Sierra Wireless AirLink Raven X
should not be used in situations where failure to transmit or receive data could
result in damage of any kind to the user or any other party, including but not
limited to personal injury, death, or loss of property. Sierra Wireless accepts no
responsibility for damages of any kind resulting from delays or errors in data
transmitted or received using the Sierra Wireless AirLink Raven X, or for failure of
the Sierra Wireless AirLink Raven X to transmit or receive such data.
Safety and
Hazards Do not operate the Sierra Wireless AirLink Raven X in areas where blasting is in
progress, where explosive atmospheres may be present, near medical
equipment, near life support equipment, or any equipment which may be
susceptible to any form of radio interference. In such areas, the Sierra Wireless
AirLink Raven X MUST BE POWERED OFF. The Sierra Wireless AirLink Raven X
can transmit signals that could interfere with this equipment.
Do not operate the Sierra Wireless AirLink Raven X in any aircraft, whether the
aircraft is on the ground or in flight. In aircraft, the Sierra Wireless AirLink Raven X
MUST BE POWERED OFF. When operating, the Sierra Wireless AirLink Raven X
can transmit signals that could interfere with various onboard systems.
Note: Some airlines may permit the use of cellular phones while the aircraft is on the
ground and the door is open. Sierra Wireless AirLink Raven X may be used at this time.
The driver or operator of any vehicle should not operate the Sierra Wireless
AirLink Raven X while in control of a vehicle. Doing so will detract from the driver
or operator's control and operation of that vehicle. In some states and provinces,
operating such communications devices while in control of a vehicle is an offence.
Limitation of
Liability The information in this manual is subject to change without notice and does not
represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND
ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL
DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL,
PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO,
LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE
ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS
PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE
FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY.
Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its
affiliates aggregate liability arising under or in connection with the Sierra Wireless
product, regardless of the number of events, occurrences, or claims giving rise to
liability, be in excess of the price paid by the purchaser for the Sierra Wireless
product.

Raven X 1x/EV-DO
220070914
Patents Portions of this product may be covered by some or all of the following US
patents:
5,515,013 5,629,960 5,845,216 5,847,553 5,878,2345,890,0575,929,8156,169,884
6,191,741 6,199,168 6,339,405 6,359,591 6,400,3366,516,2046,561,8516,643,501
6,653,979 6,697,030 6,785,830 6,845,249 6,847,8306,876,6976,879,5856,886,049
6,968,171 6,985,757 7,023,878 7,053,843 7,106,5697,145,2677,200,512D442,170
D459,303
and other patents pending.
This product includes
technology licensed from:
Licensed by QUALCOMM Incorporated under one or more of the following United
States patents and/or their counterparts in other nations:
4,901,307 5,056,109 5,101,501 5,109,390 5,228,0545,267,2615,267,2625,337,338
5,414,796 5,416,797 5,490,165 5,504,773 5,506,8655,511,0735,535,2395,544,196
5,568,483 5,600,754 5,657,420 5,659,569 5,710,7845,778,338
Manufactured or sold by Sierra Wireless or its licensees under one or more
patents licensed from InterDigital Group.
Copyright © 2010 Sierra Wireless. All rights reserved.
Trademarks AirCard®and “Heart of the Wireless Machine®” are registered trademarks of
Sierra Wireless. Watcher®is a trademark of Sierra Wireless, registered in the
European Community. AirLink™ and AceWare™ are trademarks of Sierra
Wireless.
Sierra Wireless, the Sierra Wireless logo, the red wave design, and the red-tipped
antenna are trademarks of Sierra Wireless.
Windows®is a registered trademark of Microsoft Corporation.
QUALCOMM®is a registered trademark of QUALCOMM Incorporated. Used
under license.
Other trademarks are the property of the respective owners.
Contact
Information
QUALCOMM
®
3G
Support Desk: Phone: [phone]
Hours: 5:00 AM to 5:00 PM Pacific Time,
Monday to Friday, except US Holidays
E-mail: [email protected]
Sales Desk: Phone: [phone]
1-604-232-1488
Hours: 8:00 AM to 5:00 PM Pacific Time
E-mail: [e-mail]

Preface
Rev 2.0 May.10 3
Consult our website for up-to-date product descriptions, documentation,
application notes, firmware upgrades, troubleshooting tips, and press releases:
www.sierrawireless.com
Revision
History
Post: Sierra Wireless America
39677 Eureka Drive
Newark, CA
USA 94560
Sierra Wireless
13811 Wireless Way
Richmond, BC
Canada V6V 3A4
Fax: [phone]
1-604-231-1109
Web: www.sierrawireless.com
Revision
number Release date Changes
1.x Q2: 2009 Guide updated with ALEOS Release 4.0 content.
2.x Q1: 2010 User Guide rebranded to current corporate standards.

Raven X 1x/EV-DO
420070914

Rev 2.0 May.10 1
Contents
Introduction to the Raven X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
ACEmanager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Simplified Deployment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Monitor and Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

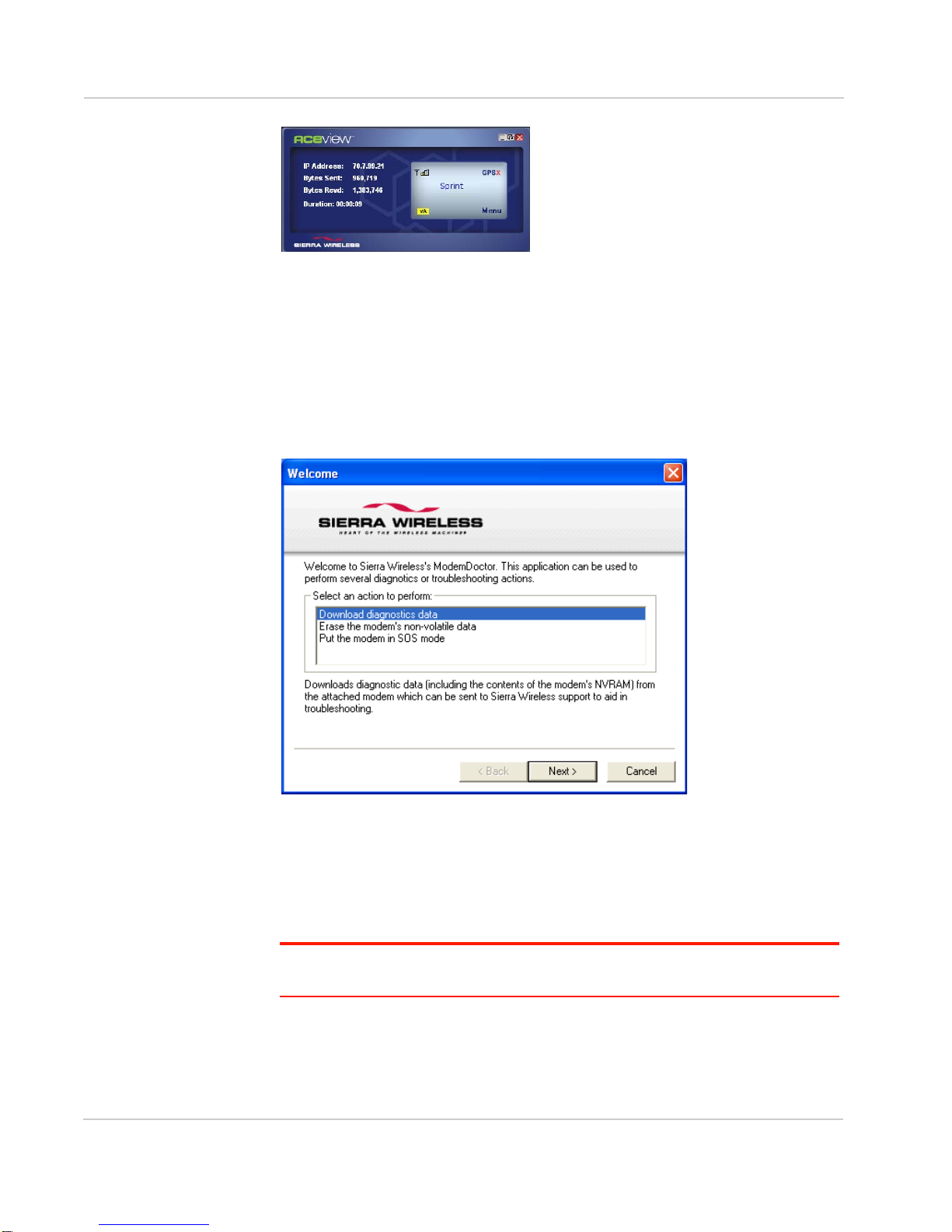

ACEview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Modem Doctor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

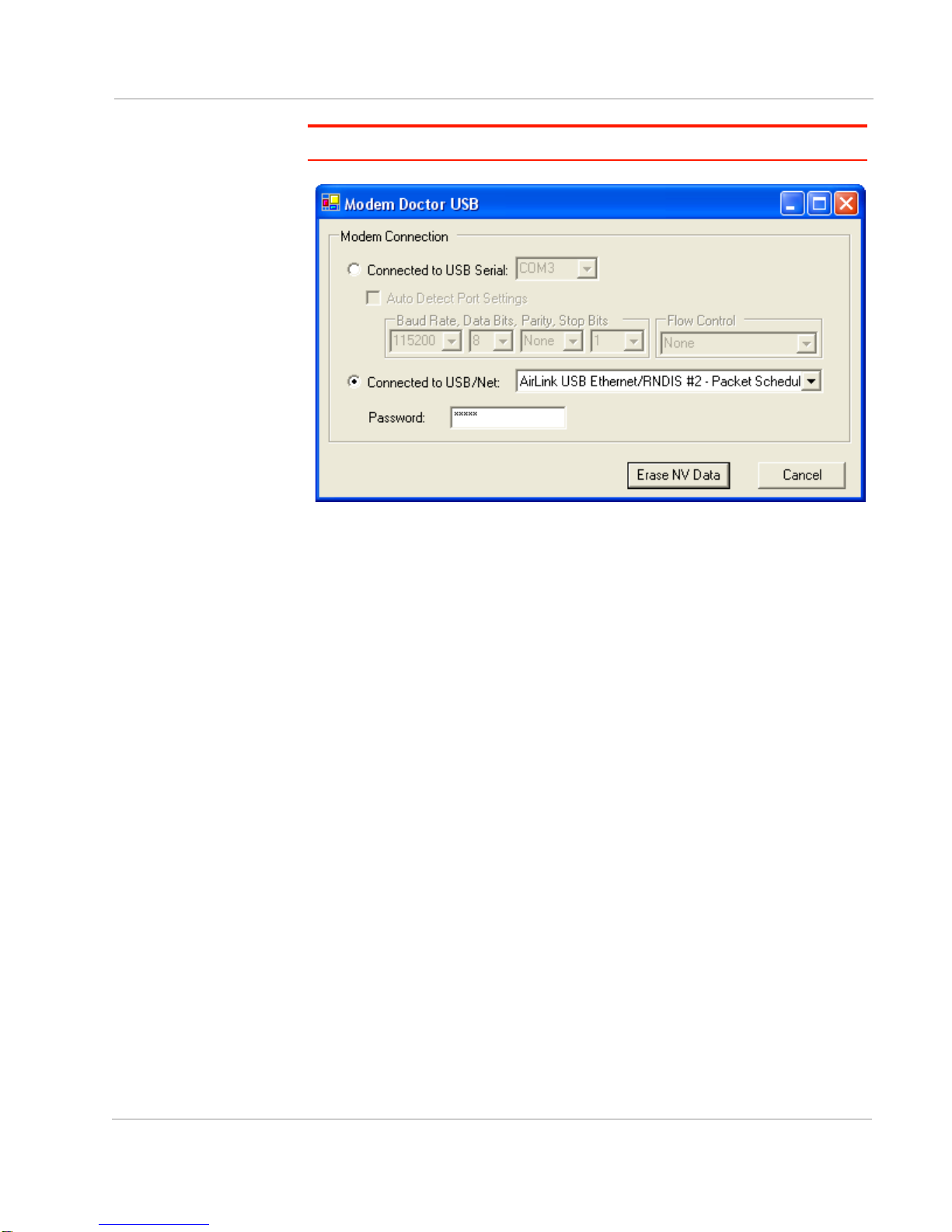

Modem Doctor USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Connecting to your cellular Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Steps of a connection:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Dynamic vs. Static IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
EV-DO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connection methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Virtual serial port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
IPSec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
GRE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Events Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Tools and Reference Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Raven X 1x/EV-DO
220070914
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Features and Benefits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Bands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Environmental. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power Consumption: (@12V DC). . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Standards/Approvals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Host Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Application Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Interface Port Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Serial Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Activating your Raven X on your cellular Network . . . . . . . . . . . . . . . . . . . . 15
Setup Wizard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Activating Using AT Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using Direct Commands to the Internal Hardware . . . . . . . . . . . . . . . . . 26
Activating the Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Private Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Hardware Installation of the Raven X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Connecting to Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Connecting to a Computer or other Device . . . . . . . . . . . . . . . . . . . . . . . . 31
Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Light Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Rev 2.0 May.10 1
1
1: Introduction to the Raven X
•Connecting to your
cellular Network
•EV-DO
•Connection
methods
•Networking
•Applications
•Software
•Documentation The Raven X is equipped with a robust ARM9 processor and
embedded ALEOS™ technology to optimize performance on today's
high speed data networks. The high-speed interface and 3G-
optimized architecture make the Raven X ideal for various
commercial mobile or portable network connectivity applications.
Embedded machine protocols make it equally suited for remote
industrial and M2M deployments.
Key applications for the Raven X include wireless networking, retail/
POS, vending/kiosks, multimedia and remote monitoring and control.
Figure 1-1: Sierra Wireless AirLink Raven X
ALEOS, the embedded core technology of the Sierra Wireless
AirLink products simplifies installation, operation and maintenance of
any solution, and provides an always-on, always-aware intelligent
connection for mission-critical applications. ALEOS enables:
•Persistent Network Connectivity
•Over-The-Air (OTA) Upgrades
•Wireless Optimized TCP/IP
•Real-Time Notification
•Extensive Machine Protocols
•Packet Level Diagnostics
•Device Management & Control
•Protocol Spoofing

Raven X 1x/EV-DO
220070914
Figure 1-2: Powered by ALEOS
A wireless solution is not complete until you have software tools to manage the
devices monitoring your valuable equipment. Using the AirLink Control
Environment (ACE), ACEWare is the device management and monitoring
application suite for Sierra Wireless AirLink devices powered by ALEOS.
Figure 1-3: ACEware Logo
The ACEware suite encompasses an application internal to the firmware (
ACEmanager), Windows-based applications (ACEview and Modem Doctor), and
a web-hosted application (ACEnet). You can download the applications and their
user guides from the Sierra Wireless AirLink Solutions web site: http://
www.sierrawireless.com/support. Contact your dealer or Sierra Wireless
representative for any further information.
Note: ACEview requires the Microsoft .NET Framework v. 2.0 and Microsoft Windows 98,
Windows 2000, Windows XP, or later. You can obtain the Microsoft .NET Framework from
Microsoft at: http://www.microsoft.com/.
ACEmanager
ACEmanager, the AceWare remote configuration and monitoring tool, simplifies
deployment and provides extensive monitoring, control and management
capabilities. ACEmanager gives you the power to monitor and control your Sierra
Wireless AirLink communications platforms in real-time.

Introduction to the Raven X
Rev 2.0 May.10 3
Figure 1-4: ACEmanager
Simplified Deployment
ACEmanager provides the ability to remotely set up and configure your Sierra
Wireless AirLink products. Remote device setup and configuration reduces the
deployment timeline of your wireless solution and provides a quicker path to ROI.
Templates allow you to easily configure devices in your fleet with identical
settings, ensuring a simple, accurate deployment.
Monitor and Control
ACEmanager allows an administrator to remotely monitor a modem’s status,
health and configuration settings. The user interface displays signal strength, cell
site information, byte counters and error conditions, enabling you to pinpoint any
issues and troubleshoot immediately.
ACEmanager enables remote configuration and parameter settings to be
changed or reset instantly over the air, change a device’s port configuration, IP
address settings, GPS settings, and much more. After configuring one modem,
use the template feature to copy that device configuration to other devices.
Tip: Configuration steps and examples in this guide use ACEmanager.
ACEview
ACEview is an efficient status and connection monitoring application with a low-
profile, easy to read interface. In ACEview, you can also update PRL.

Raven X 1x/EV-DO
420070914
Figure 1-5: ACEview
Modem Doctor
Modem Doctor and Modem Doctor USB is a troubleshooting and diagnostics
utility. This utility will allow you to get a log file of the Raven X activity which you
can then send to Sierra Wireless support or erase the current configuration
completely.
Figure 1-6: Modem Doctor
Modem Doctor USB
1. Open the ModemDoctorUSB.exe.
2. Select any one option.
Note: If you are using USB port as serial, then USB device is set to “o” and if you are using
the default option then the USB device is set to “1”.
The available port is automatically detected. Passsword is the fault password.
3. Press Erase. The modem will then reset.

Introduction to the Raven X
Rev 2.0 May.10 5
Note: If you erase the fatory defaults will be restored. USBnet is the factory default port.
Figure 1-7: Modem Doctor: USB connection
Connecting to your cellular Network
The Raven X uses your cellular Network as an ISP (Internet Service Provider) to
connect you to the Internet.
Steps of a connection:
1. When your Raven X is powered on, it automatically searches for cellular
service using CDMA-based cellular technology.
2. Your Raven X establishes a PPP (Point to Point Protocol or “dial” up
connection) link to your cellular Network network, also called registering on
the network, and receives an IP address.
3. When your Raven X has received its IP address from your cellular Network, a
connection to the Internet or the cellular network is also available for
computers or other devices connected directly to the Raven X.
The Raven X will perform routing for all internet traffic to and from the computers
or other end devicse.
With the Raven X in Ethernet Public mode, only one device connected to the
Ethernet port will receive the public IP address which is the one provided by the
cellular network. In Ethernet Private mode, with a hub or switch connected to the
Ethernet port, the Raven X will provide NAT for a range of computers or other
devices connected to the switch or hub and Internet access to all of them.

Raven X 1x/EV-DO
620070914
Dynamic vs. Static IP Addresses
There are two types of addresses on networks: dynamic and static.
•Dynamic addresses are assigned on a “need to have” basis. Your Raven X
might not always receive the same address each time it connects with your
cellular Network.
•Static addresses are permanently assigned to a particular account and will
always be used whenever your Raven X connects to the Internet. The IP
address will not be given to anyone else.
Most ISPs (cellular included) use dynamic IP addresses rather than static IP
addresses since it allows them to reuse a smaller number of IP addresses for a
large number of customers. A dynamic IP address is suitable for many common
Internet uses, such as web browsing, looking up data on another computer
system, or other client functions (such as data only being sent out or only being
received after an initial request).
Tip: If your account with your cellular Network includes a dynamic IP address and you
need a static IP, please consult your your cellular Network Representative for more infor-
mation about changing your account for static IP support.
If you need to contact your Raven X, a device connected to the Raven X, or a host
system using the Raven X from the Internet, you need to have a known IP (such
as one which is static) or domain name (an IP address which is converted by a
DNS server into a word based name). If you have a dynamic IP address for your
modem, you can use a Dynamic DNS service (such as IP Manager) to translate
your IP address into to a domain name.
Caution: If you want to connect remotely to your Raven X using TCP/IP, the IP address
given to your modem by your cellular Network cannot be a private or internal IP address
(such as a special private network) unless you are on the same network or inside that
network’s firewall (such as with frame relay).
EV-DO
CDMA (Code Division Multiple Access) is the underlying digital radio network
technology used by many cellular providers across the globe and is prevalent in
North America. To provide backward compatibility and seamless connections in
a wider range of locations, Sierra Wireless EV-DO products your Raven X will fall
back to 1x when EV-DO is not available.
Sierra Wireless is certified with your cellular Network, a prominent North
American 1x and EV-DO carrier.
EV-DO revision A is an enhancement on the original revision 0 adding expanded
upload capabilities and a more robust connection overall. In addition to increasing
the downlink speed, revision A also increases the uplink speed. In addition, it is
backwards compatible and automatically connects with existing and broadly
deployed EV-DO Rev. 0 and 1x networks ensuring reliable and pervasive
connectivity.

Introduction to the Raven X
Rev 2.0 May.10 7
Security
1x data transmissions are highly secure. Originally developed based upon the
“spread spectrum” pioneered by the US Department of Defense, security in
CDMA technologies is obtained by spreading the digital information contained in
a particular signal of interest over multiple coded paths, over a much greater
bandwidth than the original signal.
Connection methods
You can connect the Raven X to a USB or a Ethernet (RJ45) on a computer.
When connected to a USB or Ethernet port, the Raven X behaves like a network
card.
USB
The Raven X is equipped with a USB port which increases the methods by which
you can send and receive data. The USB port can be set to work as either a
virtual Ethernet port or a virtual serial port. A driver installation is required to use
the USB port in either mode.
It is recommended that you use a USB 2.0 cable with your Raven X and connect
directly to your computer for best throughput.
Virtual serial port
The Raven X supports one virtual serial port over USB. This VSP can be used,
for example, to send AT commands, or to run many serial based applications
such as HyperTerminal®.
Networking
IPSec
The IP protocol that drives the Internet is inherently insecure. Internet Protocol
Security (IPSec), which is a standards-based protocol, secures communications
of IP packets over public networks.
IPSec is a common network layer security control and is used to create a virtual
private network (VPN).
The advantages of the IPSec feature includes:
•Data Protection: Data Content Confidentiality allows users to protect their
data from any unauthorized view, because the data is encrypted (encryption
algorithms are used).

Raven X 1x/EV-DO
820070914
•Access Control: Access Control implies a security service that prevents
unauthorized use of a Security Gateway, a network behind a gateway or
bandwidth on that network.
•Data Origin Authentication: Data Origin Authentication verifies the actual
sender, thus eliminating the possibility of forging the actual sender’s identifi-
cation by a third-party.
•Data Integrity: Data Integrity Authentication allows both ends of the communi-
cation channel to confirm that the original data sent has been received as
transmitted, without being tampered with in transit. This is achieved by using
authentication algorithms and their outputs.
The IPSec architecture model includes the Sierra Wireless AirLink gateway as a
remote gateway at one end communicating, through a VPN tunnel, with a VPN
gateway at the other end. The remote gateway is connected to a Remote network
and the VPN is connected to the Local network. The communication of data is
secure through the IPSec protocols.
Figure 1-8: IPSec Architecture
GRE
GRE (Generic Routing Encapsulation) tunnel is used to carry non-IP packets
through an IP Network. Non -IP packets, that are send over the GRE tunnel, need
to be first encapsulated. Hence, ALEOS is used to configure and encapsulate
non-IP packets and transmit over IP through the GRE tunnel.
Applications
Events Reporting
Events Reporting is Sierra Wireless AirLink’s modem’s new software feature
provided via ACEmanager, that allows the users to generate reports from the
events that take place. Event Reporting Protocol is an intuitive embedded
protocol, which automatically formats the messages based on an event trigger.
The messages generated are then reported to the remote server.

Introduction to the Raven X
Rev 2.0 May.10 9
Software
The Raven X modem comes with the following software:
•AceView, the software for the Raven X which allows you to monitor your
connections.
•The driver that forms the interface between the Raven X and your Windows
operating system when using USB virtual Ethernet or USB virtual serial.
•The firmware that is stored in non-volatile memory and includes
ACEmanager.
The Raven X has an embedded radio module, also made by Sierra Wireless,
Inc. There are two firmware programs on the device—one stored on the con-
troller board of the Raven X and one on the radio module.
The firmware was loaded into the radio module and controller board when the
Raven X was assembled. As new versions of the software and firmware are
released, they are posted at www.sierrawireless.com.
Documentation
This Raven X User Guide describes how to:
•Install the Raven X hardware.
•Connect the radio antennas.
•Connect a notebook computer and other input/output
(I/O) devices.
•Interpret the LEDs on the Raven X and the indicators in the AceView
software.
This User Guide is provided as a PDF (Portable Document Format) file on the
installation CD or from the Sierra Wireless support website.
Tools and Reference Documents
User Guide Description
ALEOS User Guide This document discusses software configuration in ACEmanager and explains all the
ALEOS features.
ACEview User Guide This document explains the use of this utility tools which is used to view and monitor the
connection state of a Sierra Wireless AirLink device.
ACEnet User Guide This document explains the use of ACEnet services for remote management of Sierra
Wireless AirLink device.

Raven X 1x/EV-DO
10 20070914

Rev 2.0 May.10 11
2
2: Specifications
•Interface Port Pin-
Outs
•Power Connector
Features and Benefits
•Embedded Intelligence
•Low Power Consumption
•High-Speed Processor
•High-Speed 2-way Data
•Ethernet and Serial Port
•Machine Protocols
•Persistent Network Connectivity
•Remote Management and Configuration
•Class I Div 2 Certified
Technology
With Fallback to:
·CDMA 1x EV-DO (Revision 0)
·CDMA 1xRTT
·CDMA IS-95
Bands
•800 Mhz Cellular
•1900 Mhz PCS
Environmental
•Operating Temperature:
·-30° to 70° Celsius
•° Storage Temperature:
·-40° to 85° Celsius
Power Consumption: (@12V DC)
•Transmit/Receive (Typical/Max) 239/270 mA
•Idle 104 mA
•Dormant 85 mA
•Input Voltage 9 - 28V DC
•CDMA EV-DO Revision A

Raven X 1x/EV-DO
12 20070914
Standards/Approvals
•Carrier specific approvals
•FCC
•Industry Canada
•This apparatus is suitable for use in Class I, Division 2, Groups A, B, C, D or
unclassified or non-hazardous locations.
Warning: Explosion Hazard - Substitution of any components may impair suitability for
Class I, Division 2.
Host Interfaces
•Ethernet: 10/100 Mbps RJ-45
•RS-232: DB-9 DCE (300-230400 baud)
•Antenna Connection:
·Primary Cellular - 50 Ohm SMA
·Receive Diversity - 50 Ohm SMA
Warning: The antenna should be installed no closer than 20 cm from the human body. It
is one of the RSS-102 requirements for devices not requiring SAR.
Dimensions
•143mm x 37mm x 75mm
•317 grams
Application Interfaces
•TCP/IP, UDP/IP, DHCP, HTTP, SNMP, SMTP, SMS, MSCI, Binary, Modbus,
and more
LED Indicators
•Network
•Signal
•Activity
•Power
