Sigma mobile X-treme IT67 User manual

1
Thank you for purchasing X-treme IT67 protected
mobile phone. This user manual contains the
description of mobile phone functions.
Description of some functions may differ due to
changes in software or provider services.The
company keeps the right to arrange changes in
technical specifications without previous warning.

2
Key remarks in security techniques
The phone is designed for calling and receiving calls,
sending SMS messages, surfing the Internet (may be
unavailable) etc. The below mentioned instructions are to
help you use the phone and avoid phone malfunction or
causing damage to surroundings. Read carefully the below
section and follow instructions. The phone doesn’t contain
hazardous substances.
◆ Don’t use mobile phone and don’t charge it’s battery
during thunder on the open air to avoid a lighting strike or
other damage.
◆ Keep the battery away from high temperature to avoid
ignition and explosion.
◆ Don’t keep the mobile phone, its parts or accessories
near flammable liquids, gases or explosive materials.
◆ Follow security requirements. Switch mobile phone off if
using it may cause interference or be dangerous.
◆ Don’t put the phone to heating devices such as
microwave, hot plate or heater. Phone may explode if
overheated.
◆ Do not try to open mobile phone's case. Unqualified
repair may cause damage. If phone or any of accessories
do not work properly, please contact the closest
authorized service center. Employees of the center will
help you and do the necessary repair.
◆ Use only accessories and charging devices assigned to
this model. Otherwise, there’s a risk of malfunction. The
battery may explode.
◆ Please do not short circuit the battery. Accidental short

3
circuit may occur, if any metal item, e.g coin, clip or pen
connect battery contacts ( metal strips on the
battery). Short circuit may damage the battery.
◆ The battery may be charged many times it eventually
wears out. If working time is noticeably shorter, perhaps
there is a need to replace the battery. Don’t use broken
USB cable to charge device.
◆ If you use any personal medical devices, please learn
whether the device has sufficient protection from radio
frequencies. Your medic may help you in getting needed
information. Power the phone off in medical institutions if
it is required with inner regulation rules.
◆ Don’t use the mobile phone during driving. Follow
mobile phone using recommendations while driving.
◆ Keep the phone, all its components and accessories in a
place unavailable for kids and pets. They may damage the
device or accidentally choke with small details.
◆ Do not wash the phone during charging. This process
can cause injuries or electric shock. Before using the
phone, make sure that the charger cable is disconnected.
◆ Do not use potent chemicals, dissolvent or bleaches for
cleaning the phone. Clean it soft cloth, slightly moistened
with a mild soap solution.
◆ Do not subject the device under the effect of direct sun.
◆ To prevent heavy metals, acids, chemicals leak into
water or ground, utilize battery in recommended way.
Juristic responsibility occurs in case of failure to comply
with legislation.
Obtain utilization procedures information at closest

4
service center.
WARNING
This phone is protected against dust and water
penetration according to IP68 Standard. This
Standard doesn’t state shock-proof features.
Please, be carefull with USB and audio
connector's rubber caps and follow general rules
of safety usage.
Warranty void in case of water penetration due
to mechanical injuries or rubber caps not tightly
closed.

5
Getting started
Charge the battery and insert Sim-card before you
start using a phone.
Using battery
1. Use standard charging devices for charging
battery to prolong battery life.
2. Charge completely the battery for the first 3-5
cycles of charge \ discharge.
3. Avoid partial charge. Charge battery after
complete discharge.
1. 4. If standard charger is unavailable, charge the
phone via USB-cable.
Installing the battery
1. Unscrew fixing screws and open back cover.
2. Install the battery. Take care to fit to phone’s
battery contacts.
Charging the battery
In order to charge the battery:
1. Connect charger to micro-USB connector of the
phone.
2. Connect the charger to AC power source. During
charging, battery charge indicator will show that the
phone is charging.

6
3. When battery is charging, it displays charging
animation. Charging animation stops if battery is
fully charged. Disconnect charger from phone and
AC power source after charging.
Note: Please be very carefully when you connect
the charging device to the phone. Bad connection
may cause phone’s malfunction.
Install Sim-card
Insert SIM-card to the corresponding phone slot.
Make sure the contact areas of SIM-card coincide
with slot’s contacts.

7
Using code
There are few codes that protect your SIM-card from
unauthorized access. When you are prompted to,
input code and press OK.
PIN-code
Personal identification number or PIN-code (4-8
digits) protects your SIM-card from unauthorized
use. The PIN comes with the SIM card. (show
instructions to the SIM-card.) If you start the PIN

8
check function, then you will be required to input
PIN code each boot. If you enter an incorrect PIN
three times in a row, SIM card will be blocked until
you activate it with PUK-code.
PUK-code
Enter the PUK code (The 8 digit personal unlock
code) to unlock the PIN code. PUK code is also
provided with SIM card. In case you don’t have it
or you lost it, please contact your network operator.
Unlock procedure:
1. Enter PUK-code and press “OK”
2. Enter new PIN code and press “OK” key.
3. R-enter new PIN code and press "OK " key.
If you enter incorrect PUK ten times, SIM card
becomes invalid. Please contact your network
provider for a new SIM -card.
Insert memory card
Insert Memory according to the instructions on
the picture below. This device supports micro SD
card up to 32Gb.

9
Headset
Insert headset to phone’s audio connector.
Standby mode
In standby mode, you may view icons on the display.
Their meaning is mentioned below:
Vertical bars indicate signal strength of
the GSM network signal. Five bars
correspond to best quality.

10
Both SIM-cards are active
New text message
Call transfer to SIM1
Sound is ON
Mute
Phone is locked
Headset mode
Alarm is ON
Current battery capacity
Bluetooth is ON

11

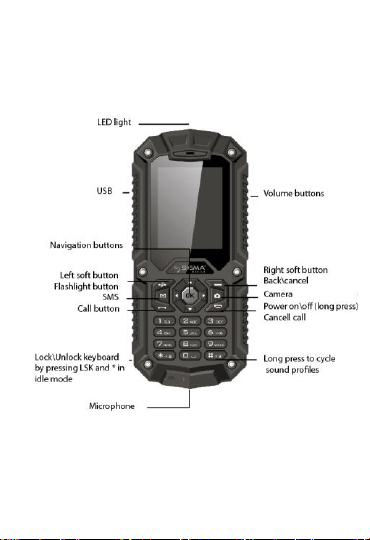

External view
Text input

12
Preferred Input Method
You may input text in different applications such as
contacts, text messages, calendar, using following
modes: ABC (character input), 123 (digital input).
Input text using alpha-numeric keypad.
In text edit mode, soft keys allow you to enter
options (left soft-key) or clear text (right soft-key).
[Options] - to save text or select input metod.
[Clear] - to clear the last character.
To change preferred input method, enter
settings>input methods menu and select default
input method. To change input metod in edit mode,
use lefr soft-key to enter options menu, select input
methods menu and select input method you need.
You may also cycle input methods by pressing #
key in edit mode.
Use * key in edit mode to input special symbols.

13
Phone functions
Dialing call
This section describe available phone functions. In
standby mode, press digit keys to enter number
directly and press Call button to start a call.
Dialing an international call
Press and hold [*] to input international prefix
connection (symbol +).
1. Input country code, area code and phone number.
2. Press call key.
Dialing a phonebook contact
In te standby mode, press right soft key to enter the
phonebook.
1. Find contact name or input the name in the
search field and then press the Dial key to call.
2. You may also enter contacts through the main
menu> “Contacts” and choose a contact using
navigation key or name search field.
Call waiting
You may answer other call during a conversation.
During conversation, press left-soft key to enter
“Options” menu and put current call on hold. Than

14
switch to new incoming call. Press left-soft key and
choose “Switch”option to switch back to previous
call any time.
Call options
You may use the followind options during a call
1. Hold: put current call on hold
2. End: end the current call
3. Contacts: quick access to the Contacts.
4. Call logs
5. Messages: quick access to “Messages” to write a
text message.
6. Sound recorder: activate recording of a
conversation.
7. Mute: mute\unmute microphone during
conversation.
Main menu
To enter main menu, press [Menu] in the standby
mode.
Some menus may change depending on network
services and provider options.
Calls
This menu allows to view call register and set call
register options.
Missed calls

15
This menu shows recent missed calls.
Outgoing calls
This menu displays last outgoing calls.
Incoming calls
This menu displays last incoming calls.
Clear call log
Allows you to clear all logs or select logs to clear.
Call settings
SIM1\2 settings
This menu allows you to set general settings for
calls.
This settings are configured for each SIM-card.
Available settings:
Call Waiting: You may activate is or disable, you
may also query the state of service.
Call forwarding: Redirect incoming calls for
different conditions, activate/deactivate call
forwarding, or check the status of call forwarding
service.
Call barring service: The mobile operator should
have the settings available to activate this service.
The password is required to change the settings.
The changing of the line: it allows you to switch
the line from the first to the second and reversely.
Additional settings
Black list

16
It allows to add or change phone numbers in the
black list.
Automatic redial
This enables the automatic redial if therecipient does
not pick up.
Alert during the call
This feature allows you to enable and configure one-
time or periodic notification about the time of
conversation after a specified period of time.
Answer mode
To enable automatic incoming call answer, hands
free mode settings.
Conversation recording
This feature allows you to record outgoing or
incoming call automatically. The recording is saved
to the memory card.
Contacts
Contacts are stored both at phone memory and at
SIM card. Although the SIM-card memory and the
phone memory are divided physically, they are used
as a single storage for telephone numbers. The phone
memory capacity is 600 numbers.
Press OK in standby mode to enter main menu and
select contacts, or press right soft-key in standby
mode to enter contacts directly.

17
New contact
Add new contact to the phone memory or to one of
SIM-cards.
Searching
The searching for names and numbers stored in the
phone book.
In search mode, # key lets you change input method.
Following operations are available:
Overview: to view detailed contact information.
Send SMS: to send a text message to selected
number.
Send MMS: to send a multimedia message to
selected number.
Call: to call selected number.
Edit: to edit selected number.
Delete: to delete selected number.
Copy: to copy selected number from SIM-card to
phone or from one SIM-card to another.
Black list: to add selected number to black list.
Group: to change the subscribers group, to assign a
ring tone for the group.
Settings
Contact settings
Preferred storage: it allows to specify the storage
location: phone memory, SIM1 or SIM2.

18
Speed dial: Allows you to set speed dial list. After
setting the list you may dial the preset phone by long
pressing corresponding key.
Additional numbers: allows you to set or change
fixed operator numbers.
Memory: shows total amount of phone and SIM-
cards memory.
Copy: allows to copy entries between SIM-cards and
phone
Move: allows to move all contacts between SIM-
cards and phone.
Delete all: to delete all the entries from the phone or
SIM-cards.
Backup\restore contacts: to backup contact list to
SD card or to restore contacts from SD card.
Note: Contacts are stored to ~vcard.vcf file after
backup. This file is located at the root directory of
memory card and has “hidden” attribute on. To
import contacts from other phone, rename VCF file
to ”~vcard.vcf” and put it to root directory of SD
card. After that, activate “restore contacts” menu
to import.
Files

19
File Manager allows you to manage images, audio,
video files and other content downloaded to the
phone.
Organizer
Calendar
The Calendar lets you organize your appointments
and tasks, set reminders.
Calendar supports following functions:
Overview: To view note to a specific date.
Show all: to see all notes by a certain date.
Add task: adding a new event to date.
Delete event: delete the event, several or all events.
Go to date: to go to a certain date.
Current date: go to current date.
Alarm-clock
This feature allows you to set alarm. Alarm clock
works even when the phone is turned off.
From the menu, select Alarm and press OK.
Click Edit to set the alarm.
Repeat: Choose to apply alarm: once, daily, on
weekdays.
Alarm ringtone: select one of preset tones or
download your own.
Notes
Allows you to create, edit and remove notes.

20
Tasks
This menu allows you to create tasks.
Calculator
Calculator performs simple arithmetic actions:
addition, subtraction, multiplication and division.
EBook
The program allows you to open e-book in TXT
format. Copy the book to [eBook] folder of the
memory card and start the application.
Message
Serves for sending and receiving text and
multimedia messages. There are also voice mail, and
broadcasts. The availability of some functions
depends on communications services provider and
may be restricted or required additional settings.
SMS
Use this menu to create and send text message.
MMS
Use this menu to create and send multimedia
messages.
Incoming
All received messages are stored in this folder.
Drafts
Messages are stored for later sending in this folder.
Output
