SIIG AV-GM03S3-S1 User manual

VGA/component, Audio & RS-232 over CAT5
Extender with IR Pass-through
P/N: AV-GM03S3-S1

Safety and Notice
The AV-GM03S3-S1 VGA/component, Audio & RS-232 over CAT5 Extender with IR Pass-through
has been tested for conformance to safety regulations and requirements, and has been
certified for international use. However, like all electronic equipments, the AV-GM03S3-S1
should be used with care. Please read and follow the safety instructions to protect yourself
from possible injury and to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
TABLE OF CONTENTS
INTRODUCTION .................................................................................................................1
FEATURES...........................................................................................................................1
PACKAGE CONTENTS.........................................................................................................1
SPECIFICATIONS.................................................................................................................2
PANEL DESCRIPTIONS .......................................................................................................3
CONNECTION DIAGRAM....................................................................................................5
IR PASS-THROUGH.............................................................................................................6
SUPPORTED IR DATA FORMAT ..........................................................................................7
HARDWARE INSTALLATION ...............................................................................................8
PIN DEFINITION .................................................................................................................9
NOTICE.............................................................................................................................10
WARRANTY.......................................................................................................................11

1
INTRODUCTION
With only one cost effective Cat-5/5e/6 cable, the AV-GM03S3-S1 lets you extend VGA (WUXGA –
1920x1200@60) or 720p component video, bi-directional IR signals and RS-232 serial commands at
the same time to cover the distance up to 300m (1,000ft). The AV-GM03S3-S1 comes in a set of a
transmitter and a receiver. The transmitter AV-GM03S3-S1[Tx] is installed near the signal source
and has, and the receiver AV-GM03S3-S1[Rx] is placed near the desired display. With built-in EQ and
GAIN control, the transmission path can be adjusted to adapt the cable quality and video
bandwidth. In order to extend the control path, AV-GM03S3-S1 also built RS-232 half-duplex long
range extender along with VGA/component video signals.
FEATURES
Supports up to WUXGA [1920x1200@60] or UXGA [1600x1200@60] VGA signal to 300m
(1,000ft)
Supports 720p component video signal to 300m (1,000ft)
Supports RS-232 half-duplex & bi-directional IR pass-through
Supports analog stereo audio and digital S/PDIF stereo audio
Video and audio local out on transmitting unit for easy monitoring
Adjustable equalization and gain control on receiving unit for signal tuning
Wall mounting case & interlocked power jack for better fixedness
PACKAGE CONTENTS
1x AV-GM03S3-S1
2x 5V power supply unit
1~3x VGA-component breakout cable [optional accessory]
1x User Manual

2
SPECIFICATIONS
Model Name
AV-GM03S3-S1
Role of usage
Transmitter [TX]
Receiver [RX]
Video bandwidth
350MHz
Video support
VESA
Video Transmission
WUXGA [1920x1200] / 720p —300m (1,000ft) [CAT5e]
Audio support
Stereo
RS-232 signal type
Half-duplex
Input video signal
1.2 Volts [peak-to-peak]
Equalization
Continuous analog control
RGB delay control
No
Loop-out
1 VGA local-out + 1 audio local-out at TX
ESD protection
Human body model —±15kV [air-gap discharge] & ±8kV [contact
discharge]
Input
1x VGA
1x RS-232
2x 3.5mm
1x RCA
1x RS-232
1x 3.5mm
1xRJ-45
Output
1x RJ-45
1x VGA
2x 3.5mm
1x RCA
1x VGA
1x RS-232
1x RCA
1x 3.5mm
VGA connector
HD-15 [15-pin D-sub female]
RJ-45 connector
WE/SS 8P8C with 2 LED indicators
RS-232 connector
DE-9 [9-pin D-sub female]
RCA connector
S/PDIF digital audio
3.5mm connector
Earphone jack for analog stereo audio or IR cable
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
[TX/RX] –123 x 95 x 25mm [4.8”x3.7”x1”]
Package
330 x 200 x 95mm [1’1”x7.9”x3.7”]
Carton
495 x 440 x 380mm [1’7.5”x1’5.3”x1’3”]
Weight
Model
[TX]–370g [12oz] / [RX]–380g [13oz]
Package
1240g [2.7 lbs]
Fixedness
Wall-mounting case with screws
Power supply
Inter-locked 5V 2A DC
Power consumption
6 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]

3
PANEL DESCRIPTIONS
Transmitting unit ►AV-GM03S3-S1-TX
Front Panel
1. RS-232: connect to a RS-232 signal source or receiver
2. IR-Blaster: connect to IR blaster for IR pass-through from RX to TX
3. Stereo IN: connect to analog audio source
4. S/PDIF IN: connect to digital audio source
5. Push-in button: select between S/PDIF and analog stereo audio [button down-S/PDIF, button
up-Stereo]
6. VGA IN: connect to a VGA input source or a component video source via a VGA-component break
cable
7. IR-Receiver: connect to IR receiver for IR pass-through from TX to RX
Rear Panel
8. +5V DC: inter-locked power jack to connect to 5V DC power supply unit
9. Local VGA: VGA loop-out to a local VGA display or component video display via a

4
VGA-component breakout cable
10. System OUT: Plug in a Cat-5/5e/6 cable that needs to be linked to the RJ-45 connector of the
receiving unit AV-GM03S3-S1[Rx]
11. Local S/PDIF: Digital stereo audio loop-out
12. Local Stereo: Analog stereo audio loop-out
Receiving unit►AV-GM03S3-S1-RX
Front Panel
13. RS-232: Connect to a RS-232 device
14. IR Receiver: Connect to the IR receiver
15. Audio OUT: Connect to analog audio output
16. S/PDIF OUT: Connect to digital audio output
17. VGA OUT: VGA output to a VGA display or component video display via a VGA-component
breakout cable
18. IR Blaster: Connect to the IR blaster
Rear Panel
19. +5V DC power jack: connect to 5V DC power supply
20. System IN:Plug in a CAT-5/5e/6 cable that needs to be linked to the RJ-45 connector of the
transmitting unit AV-GM03S3-S1[Tx]
21. EQUALIZER: Rotary control for equalization of R, G, B, respectively

5
22. GAIN: Rotary control for gain control of R, G, B, respectively respective R/G/B color channel
that is chosen by the RGB selector
Bottom Panel
DIP Switch Position
Description
Pin#1
Pin#2
Pin#3
Pin#4
ON []
OFF []
ON []
OFF []
TX&RX Extender Mode –
TxD1of AV-GM03S3-S1[TX] is connected to TxD of
AV-GM03S3-S1[RX]
RxD2of AV-GM03S3-S1[TX] is connected to RxD of
AV-GM03S3-S1[RX]
OFF []
ON []
OFF []
ON []
Master to Slave Mode –
TxD of AV-GM03S3-S1[TX] is connected to RxD of
AV-GM03S3-S1[RX]
RxD of AV-GM03S3-S1[TX] is connected to TxD of
AV-GM03S3-S1[RX]

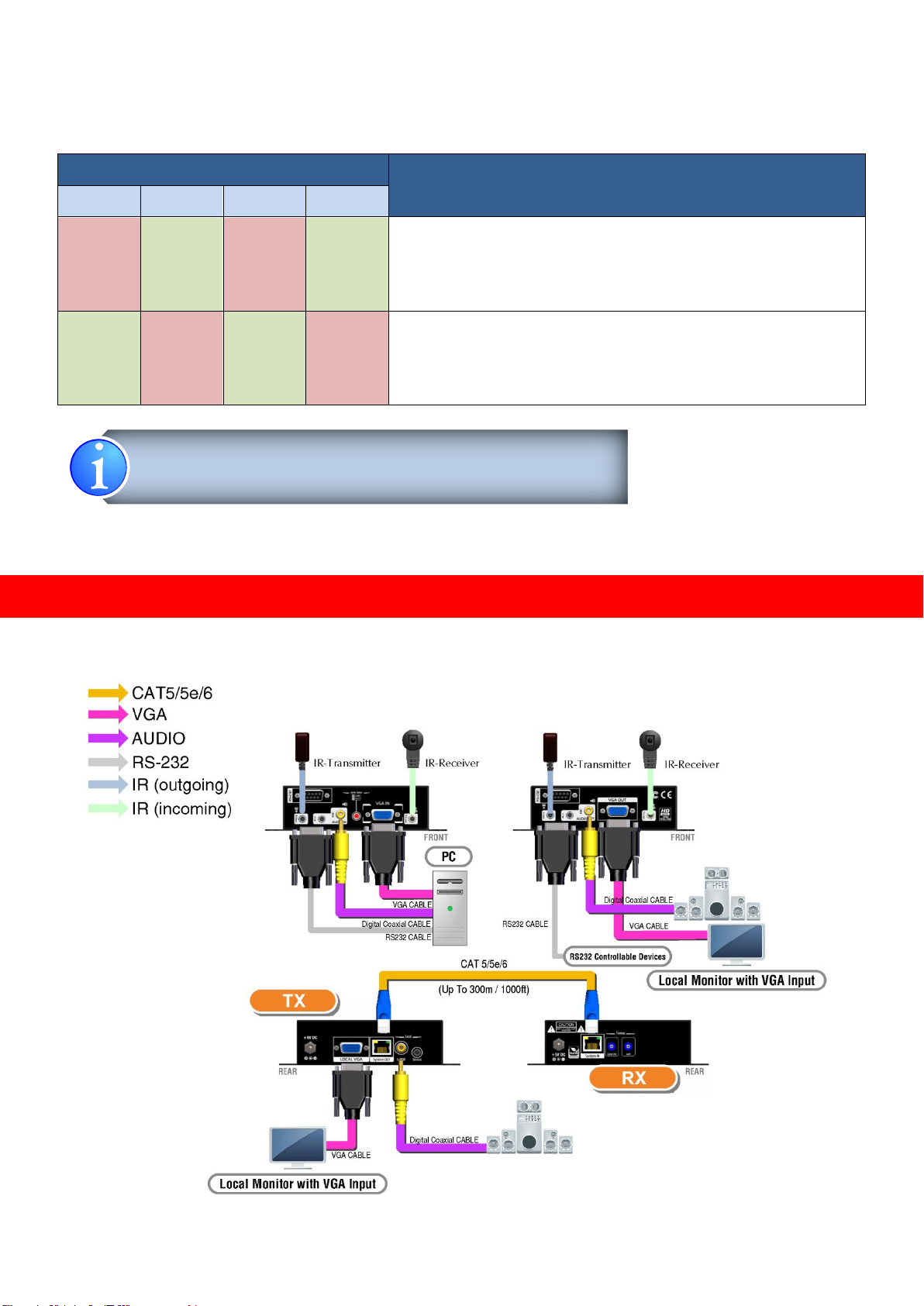

CONNECTION DIAGRAM
1. TxD: The 3rd pin of RS-232, which is in charge of sending data
2. RxD: The 2nd pin of RS-232, which is in charge of receiving data

6
IR PASS-THROUGH
IR Extenders
IR Blaster IR Receiver
IR Sockets
AV-GM03S3-S1[Tx]
IR Blaster:Plug in an IR blaster here to emit all IR command signals received from the IR receiver on
AV-GM03S3-S1[Rx] to control the associated devices with built-in IR sensor
IR Receiver:Plug in an IR receiver here to receive all IR command signals from the IR remote controls
of the associated devices
AV-GM03S3-S1[Rx]
IR Blaster:Plug in an IR blaster here to emit all IR command signals received from the IR receiver on
AV-GM03S3-S1[Tx] to control the associated devices with built-in IR sensor
IR Receiver:Plug in an IR receiver here to receive all IR command signals from the IR remote control
of the IR source device.
Definition of IR Earphone Jack
IR Blaster
IR Receiver

7
SUPPORTED IR DATA FORMAT
Data Format
Suitable
Not Recommended
NEC
RC5
TOSHIBA MICOM CODE
GRUNDIG CODE
SONY 12 BIT CODE
SONY 15 BIT CODE
SONY 20 BIT CODE
RCA CODE
RCM CODE
MATSUSHITA CODE
MITSUBISHI CODE
ZENITH CODE
JVC CODE
M50560-001P
MN6125H
MN6125L
MN6014_C5D7
MN6014-C6D6
MC14457P
LC7464(AHEA)
GEMINI_CM
You can buy any IR extension cables in the market that are compatible to the definition of
the IR sockets for the matrix if necessary for replacement use. However, IR cables longer
than 2m (6-ft) may not work.

8
HARDWARE INSTALLATION
1. Connect your VGA source, audio source, infrared and RS-232 devices to the transmitting unit
AV-GM03S3-S1[Tx]. If you want to connect to a component video source, please find a
VGA-component breakout cable and link it between the video source and the transmitting unit
of AV-GM03S3-S1.
2. Connect your VGA display, audio speaker, infrared and RS-232 devices to the receiving unit
AV-GM03S3-S1[Rx]. If you want to connect to a component video display, please find a
VGA-component breakout cable and link it between the video display and the receiving unit of
AV-GM03S3-S1.
3. Connect a Cat-5/5e/6 cable between the transmitting and receiving units.
4. Make sure this Cat-5/5e/6 cable is tightly connected and not loose.
5. Plug in 5V DC power supply unit to the power jack of the receiving unit AV-GM03S3-S1[Rx].
6. Plug in 5V DC power supply unit to the power jack of the transmitting unit AV-GM03S3-S1[Tx].
7. If you see the monitor is displaying blurred video or even worse, not displaying at all, please
adjust the EQ and Gain rotary controls to improve the cable skew. GAIN rotary control is to
adjust the gain to an appropriate level for a range of input signal levels (brightness), and EQ
rotary control is to equalize the wave form of the receiving video signal (sharpness). It is
suggested to begin with adjusting the rotary control of EQ to get the input video displayed first,
and then the rotary control of GAIN according to the video you see on the screen.

9
8.
PIN DEFINITION
Pair of Cat-5/5e/6 Cable
Associated Definition
Green
Audio
Blue
RED channel of VGA
Orange
GREEN channel of VGA
Brown
BLUE channel of VGA

10
NOTICE
1. All transmission distances are measured using Belden 1583A CAT5e 125MHz Solid UTP cable and
ASTRODESIGN Video Signal Generator VG-859C. The transmission distance is defined as the
distance between the video source and the VGA display.
2. The transmission length is largely affected by the type of CAT5/6 cables, the type of VGA sources,
and the type of VGA display. The testing result shows solid UTP cables (usually in the form of
300m or 1,000ft bulk cables) can transmit a lot longer signals than stranded UTP cables (usually
in the form of fixed length patch cords). Shielded STP cables are better suited than unshielded
UTP cables. A solid UTP CAT5e cable shows longer transmission range than stranded STP CAT6
cable. For long extension users, solid UTP/STP cables are the only viable choice.
3. To reduce the interference among the unshielded twisted pairs of wires in UTP cable, you can
use shielded STP cables to improve EMI problems, which is worsen in long transmission.
4. Because the quality of the CAT5/6 cables has the major effect on how long the transmission limit
can achieve and how good is the received picture quality, the actual transmission range is
subject to one’s choice of CAT5/6 cables. For desired resolutions greater than 1080i or
1280x1024, a Cat-6 cable is recommended.
Performance Guide for HDMI over Category Cable Transmission
Performance rating
Type of category cable
Wiring
Shielding
CAT5
CAT5e
CAT6
Solid
Unshielded (UTP)
Shielded (STP)
Stranded
Unshielded (UTP)
Shielded (STP)
Termination
Please use EIA/TIA-568-B termination (T568B) at any
time

11
WARRANTY
The SELLER warrants the AV-GM03S3-S1 VGA/component, Audio & RS-232 over CAT5
Extender with IR Pass-through to be free from defects in the material and workmanship for 3
years from the date of purchase from the SELLER or an authorized dealer. Should this product fail
to be in good working order within 3 years warranty period, The SELLER, at its option, repair or
replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modifications including static discharge and power surge. This warranty is offered by
the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on
the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day
of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted
without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or fitness or merchantability for any particular purpose, all
of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty
and cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual.
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages
resulting from any defect or omission in this manual, even if advised of the possibility of such
damages. Also, the technical information contained herein regarding the AV-GM03S3-S1 features
and specifications is subject to change without further notice.
April, 2018
Support
For more info or tech support
http://www.siig.com/support
Table of contents
Other SIIG Extender manuals

SIIG
SIIG CE-VG0711-SA User manual

SIIG
SIIG AV-GM0473-S1 User manual

SIIG
SIIG AV-GM0403-S1 Series User manual

SIIG
SIIG CE-H23811-S1 User manual

SIIG
SIIG CE-HM0051-S1 User manual

SIIG
SIIG AV-GM04A3-S1-IR User manual

SIIG
SIIG 04-1404A User manual

SIIG
SIIG AV-GM0413-S1 User manual

SIIG
SIIG AV-GM03T3-S1 User manual

SIIG
SIIG AV-GM02S3-S1 User manual

SIIG
SIIG CE-H20S11-S1 User manual

SIIG
SIIG CE-H23E11-S1 User manual

SIIG
SIIG AV-GM02R3-S1 User manual

SIIG
SIIG CE-H22T11-S1 User manual

SIIG
SIIG AV-GM04Q3-S1 User manual

SIIG
SIIG CE-H24B11-S1 User manual

SIIG
SIIG CE-KV0511-S1 User manual

SIIG
SIIG CE-H27611-S1 User manual

SIIG
SIIG CAT5e User manual

SIIG
SIIG AV-GM0463-S1 User manual
