Silvercrest Z32138 Technical specifications

IAN 43150
WIRELESS DOORBELL
FUNKTÜRKLINGEL
Montage-, Bedienungs- und Sicherheitshinweise
WIRELESS DOORBELL
Assembly, operating and safety instructions
TRÅDLØS DØRKLOKKE
Monterings-, betjenings- og sikkerhedshenvisninger
RADIOSTYRD DÖRRKLOCKA
Monterings-, bruks- och säkerhetsanvisningar
43150_Funktürklingel_cover_GB_IE_SE_DK.indd 2 26.03.14 15:57

GB/IE Assembly, operating and safety instructions Page 9
SE Monterings-, bruks- och säkerhetsanvisningar Sidan 24
DK Monterings-, betjenings- og sikkerhedshenvisninger Side 38
DE/AT / CH Montage-, Bedienungs- und Sicherheitshinweise Seite 52
43150_Funktürklingel_cover_GB_IE_SE_DK.indd 3 26.03.14 15:57

3

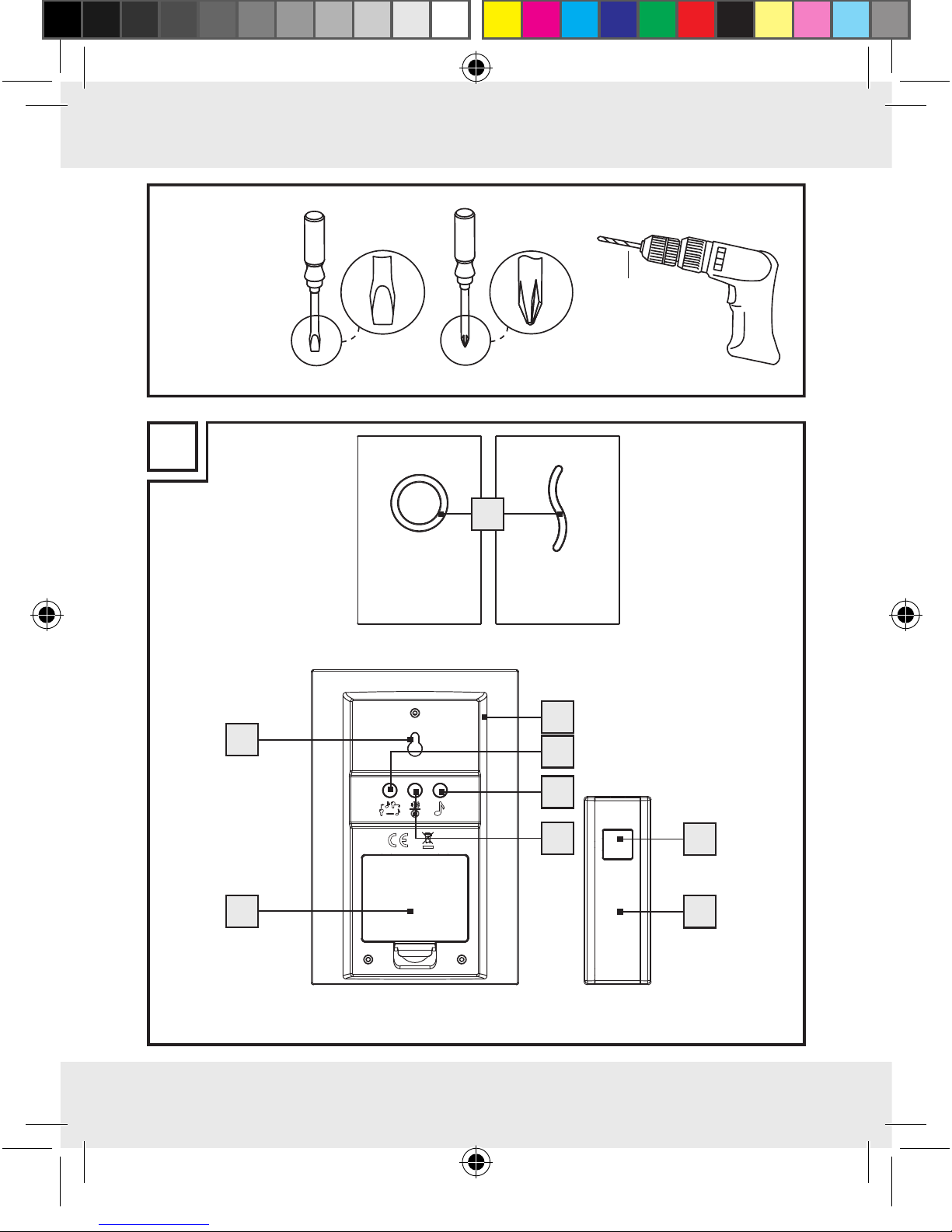

You need
Du behöver
Du skal bruge
Sie benötigen:
ø 6mm
A
1
6
2
3
4
9
10
5
7
Z32138 Z32139
43150_Funktürklingel_content_GB_IE_SE_DK.indd 3 26.03.14 15:57

4
B
C1
8
6
181211
15
43150_Funktürklingel_content_GB_IE_SE_DK.indd 4 26.03.14 15:57

5
D
C2
7
16
14 13
17
43150_Funktürklingel_content_GB_IE_SE_DK.indd 5 26.03.14 15:57

6
E
F
17
16
14
43150_Funktürklingel_content_GB_IE_SE_DK.indd 6 26.03.14 15:57

7

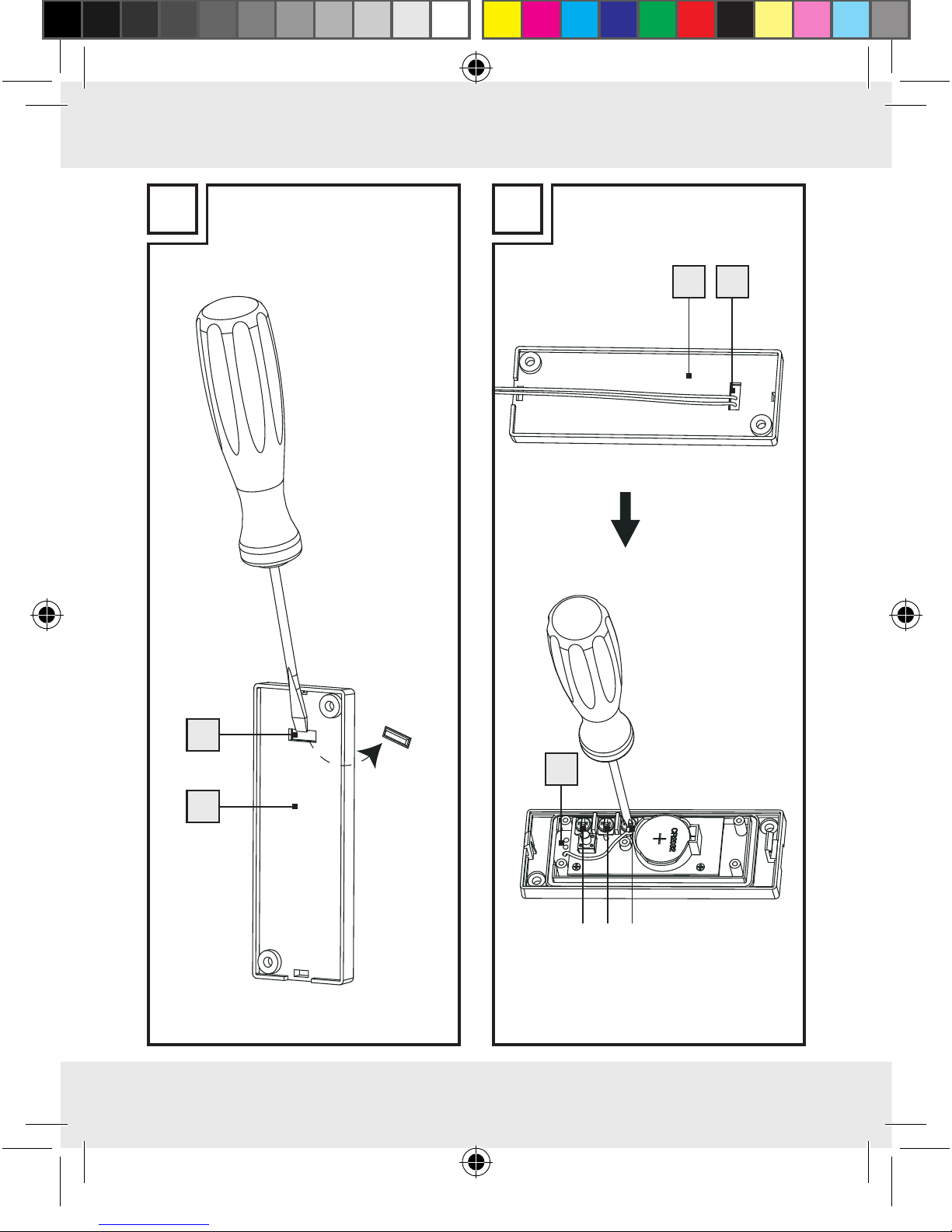

G H
12 18
19
18
12
C B A
43150_Funktürklingel_content_GB_IE_SE_DK.indd 7 26.03.14 15:57

8
I
J
43150_Funktürklingel_content_GB_IE_SE_DK.indd 8 26.03.14 15:57

9GB/IE
Introduction
Intended use .......................................................................................Page 10
Parts and features...............................................................................Page 10
Included items.....................................................................................Page 11
Technical data ....................................................................................Page 12
Safety
General safety information ................................................................Page 12
Safety instructions for batteries..........................................................Page 13
Assembly ........................................................................................Page 14
Preparing for use
Inserting/replacing the batteries ......................................................Page 15
Synchronising transmitter/receiver...................................................Page 16
Setting the signal type........................................................................Page 17
Setting the volume ..............................................................................Page 17
Selecting the chime.............................................................................Page 18
The procedure for connecting the transmitter to
existing bell system or existing doorbell button................................Page 18
Connecting the transmitter
to a existing bell system...................................................Page 19
Connecting a existing doorbell button ................Page 19
Troubleshooting........................................................................Page 20
Cleaning and maintenance.............................................Page 20
Disposal............................................................................................Page 20
Declaration of conformity................................................Page 21
Warranty........................................................................................Page 22
43150_Funktürklingel_content_GB_IE_SE_DK.indd 9 26.03.14 15:57

10 GB/IE
Wireless Doorbell
Introduction
Keep these instructions in a safe place. If you pass the
product on to anyone else, please ensure that you also pass
on all the documentation.
Intended use
This product is intended for the wireless transmission of the doorbell
signal. The product is not intended for commercial use.
Parts and features
Receiver
1Signal indicator
2Speaker
3Signal type selector button
(optical, acoustic, optical and acoustic signal)
4Melody selection button
5Volume/Synchronisation button
6Battery compartment cover
7Hanger
8Battery compartment
43150_Funktürklingel_content_GB_IE_SE_DK.indd 10 26.03.14 15:57

11GB/IE
Transmitter
9Chime button
10 Name plate
11 Lock hole
12 Holder (for wall mounting)
13 Battery compartment
14 Inner cover
Mounting
15 Rubber cover
16 Screw
17 Dowel
18 Cable exit hole
19 Cable holder
Included items
1 Transmitter
1 Receiver
3 Batteries 1.5V
, type AA (receiver)
1 Battery 3V
, type CR2032 (transmitter)
3 Screws (for transmitter and for mounting the receiver on a wall)
3 Dowels
1 Name plate (for the doorbell)
1 Operating instructions
43150_Funktürklingel_content_GB_IE_SE_DK.indd 11 26.03.14 15:57

12 GB/IE
Technical data
Range: 150 m (unobstructed area)
Transmission frequency: 434 MHz
Battery types: Receiver: 3 x 1.5V
(type AA/LR6),
Transmitter: 1 x 3V
(type CR2032)
Receiver: Audible signal volume (at maximum
volume setting): app. 73dB (at a distance
of 1 m from the device)
Ingress protection rating
of the transmitter: IP44 (splash water proof)
Safety
Read all safety information and instructions!
STORE ALL SAFETY INFORMATION AND INSTRUCTIONS IN A
SAFE PLACE IN CASE YOU NEED TO REFER TO THEM AGAIN
IN THE FUTURE!
General safety information
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
43150_Funktürklingel_content_GB_IE_SE_DK.indd 12 26.03.14 15:57

13GB/IE
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Check that all parts are in sound condition. If you use damaged
parts when assembling the device, you risk injury.
Safety instructions for batteries
DANGER TO LIFE! Batteries can be swallowed,
which can prove fatal. Consult a doctor immediately if anyone
swallows a battery.
EXPLOSION HAZARD! Never recharge non-
rechargeable batteries, short-circuit and/or open bat-
teries. This can cause them to overheat, burn or burst.
Never throw batteries into fire or water. The batteries may explode.
Immediately remove depleted batteries from the device; other-
wise there will be an increased risk of leakage!
Always replace all the batteries at the same time and insert
batteries of the same type.
Do not use different types of batteries or mix used and new
batteries together.
Batteries do not belong in household refuse. Dispose of used
batteries in an environmentally friendly manner.
Consumers are under a legal obligation to dispose of batteries in
the proper way.
Keep the battery out of the reach of children, do not dispose of
the battery in fire, do not short-circuit it, and do not take it apart.
43150_Funktürklingel_content_GB_IE_SE_DK.indd 13 26.03.14 15:57

14 GB/IE
Failure to observe these instructions may result in the battery dis-
charging beyond its end voltage, which poses a risk of leakage.
If the battery in your instrument has leaked, have it removed im-
mediately to prevent damage to the instrument.
Avoid contact with skin, eyes and mucous membrane. In the event
of contact with battery acid, rinse the affected area with plenty of
water and/or consult a doctor.
Never use rechargeable batteries.
The supply terminals are not to be short-circuited.
Do not mix old batteries with new ones.
Remove the batteries from the device if they have not been used
for a long period.
Make sure you insert the batteries the right way round (polarity).
Assembly
Note: You will need a screwdriver and a drill to assemble the
doorbell.
Note: Only use the screws and dowels supplied for the assembly of
the device.
Mount the receiver (see Fig. D)

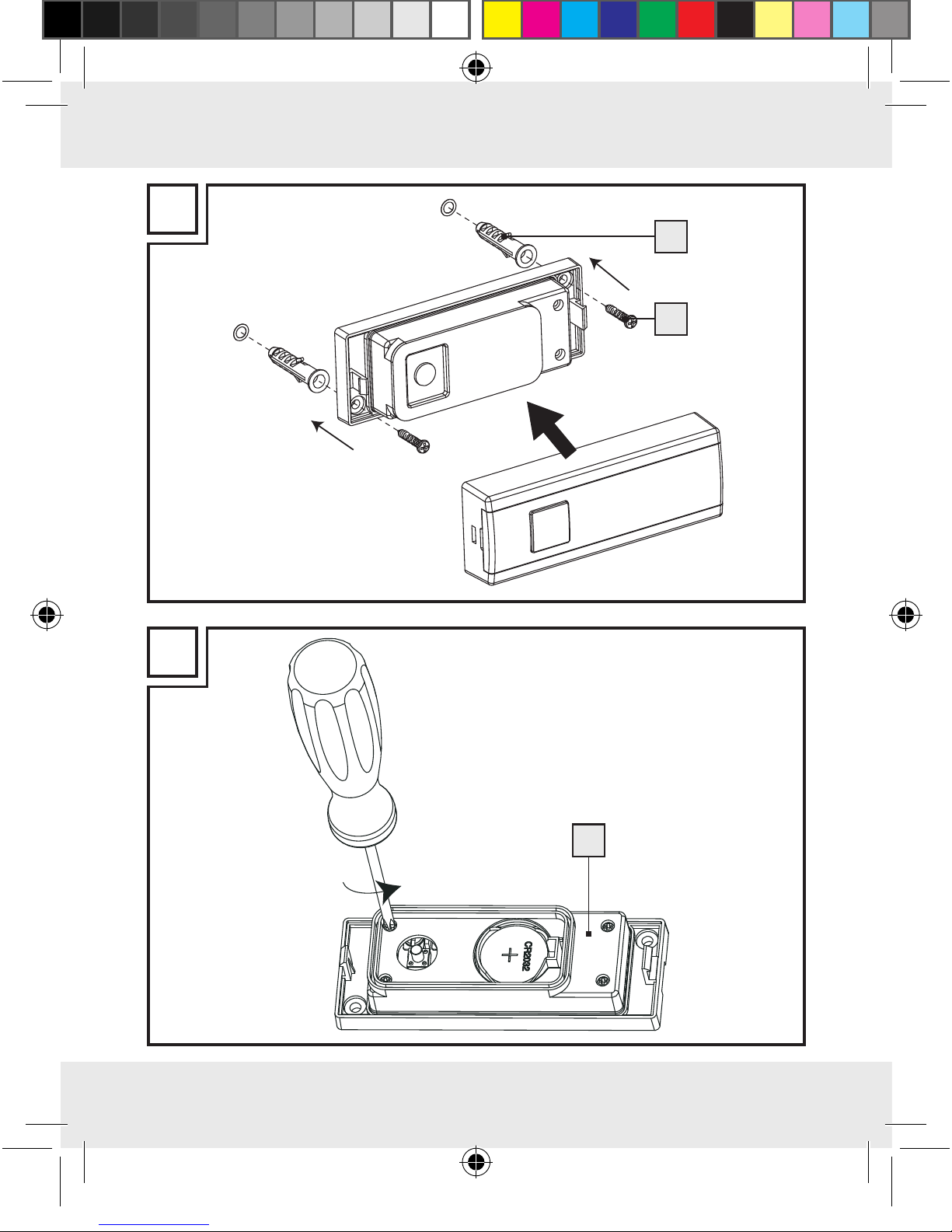

Mount the transmitter (see Fig. E)
43150_Funktürklingel_content_GB_IE_SE_DK.indd 14 26.03.14 15:57

15GB/IE
Preparing for use
Inserting/replacing the batteries
Insert the batteries to provide power to the device before prepar-
ing it for use.
CAUTION! Use the indicated battery types only. Failure to ob-
serve this advice may result in damage to the product.

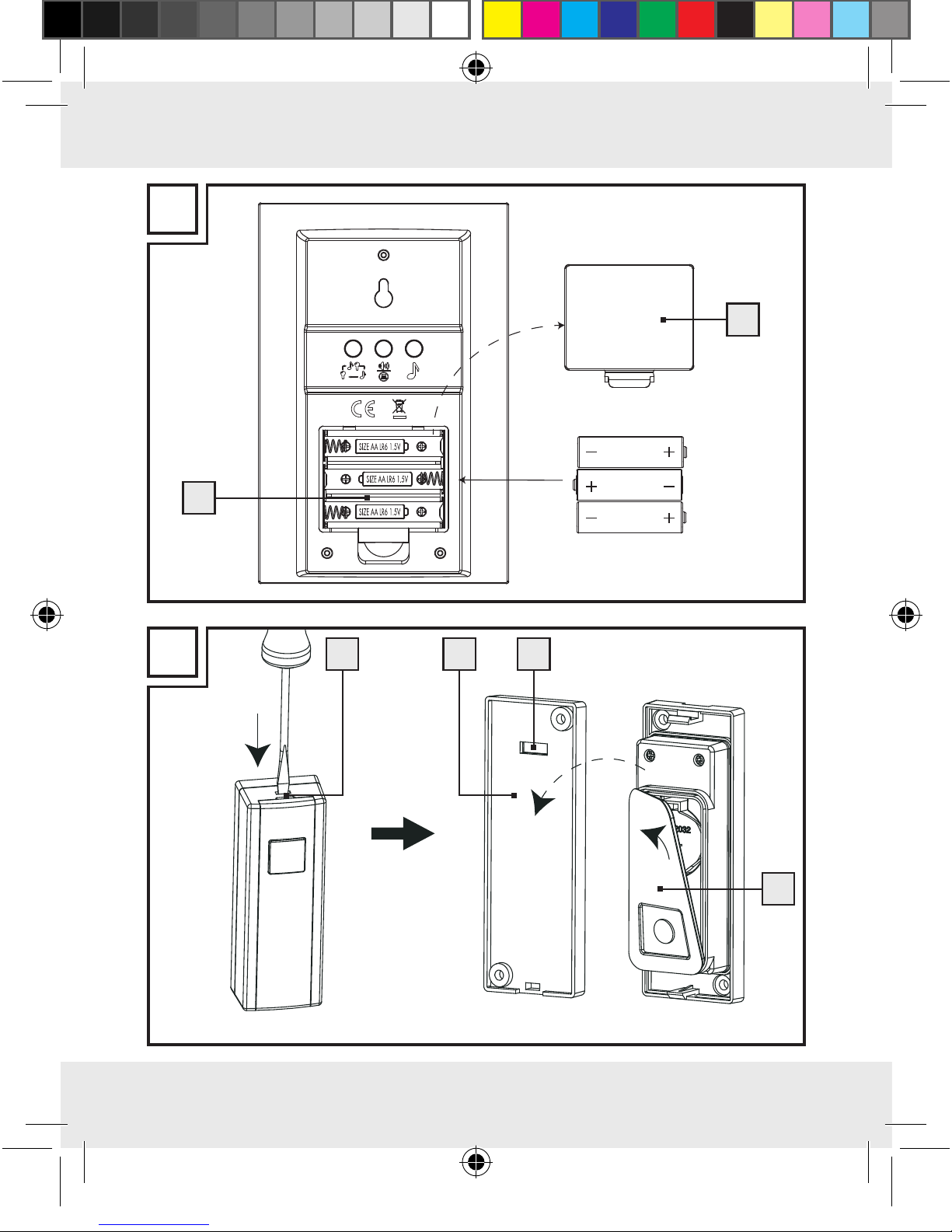

Receiver (see Fig. B):
Remove the battery compartment cover 6from the back of the
device.
Remove the used batteries, if present.
Insert 3 batteries (1.5V , type AA).
Note: Ensure correct polarity. This is indicated in the battery
compartment 8.
Close the battery compartment 8.
Transmitter:
Remove the holder 12 with the help of flat head screw driver
from the back of the transmitter and remove the rubber cover 15
(see fig. C1).
Remove the used batteries, if present (see fig. C2).
Insert a battery (3V , type CR 2032). The side marked “+”
must face upwards.
Install the rubber cover 15 , close the holder 12 of the transmitter
back on to the back of the device.
43150_Funktürklingel_content_GB_IE_SE_DK.indd 15 26.03.14 15:57

16 GB/IE
Synchronising transmitter/receiver
The doorbell works on 434MHz which is a quite common frequency.
To ensure that the function gets no influenced be doorbells in the
neighborhood, the transmitter and the receiver hence have to be syn-
chronized in regard of the encryption. Every transmitter is working
with a different encryption of the signal.
Synchronise the transmitter and receiver as follows:
As soon as the batteries are installed, the receiver enters synchro-
nizing mode for app. 1 minute. During the synchronizing mode,
the signal indicator 1steadily lights up in blue color.
You can also manually enter synchronising mode by holding the
synchronising button 5for approx. 3 seconds.
The signal indicator 1on the receiver will steadily light up for
approx. 1 minute, to indicate that the receiver is in synchronizing
mode.
Press the chime button 9of the transmitter, while the receiver is
in synchronise mode. If the receiver receives the signal, the steady
blue light of the signal indicator 1flickers 6 times to indicate
that the synchronization is successful.
43150_Funktürklingel_content_GB_IE_SE_DK.indd 16 26.03.14 15:57

17GB/IE
Setting the signal type
The receiver can indicate the reception of a door signal either both
optically and acoustically, acoustically or optically.
Using the signal type selector button 3, select whether the
signal is to be indicated both optically and acoustically or acous-
tically or optically.
Press the signal type selector button 3once. An acoustical
signal will sound up and the afterwards the signal indicator 1
will flash. The receiver will now indicate the door signal acousti-
cally and optically. Press again the signal type selector button 3.
An acoustical signal will sound. The receiver will now indicate the
door signal acoustically. Press again the signal type selector
button 3. The receiver will now indicate the door signal in an
optical way.
Setting the volume
Press the volume button 5until the desired volume is reached.
There are a total of 4 possible volume settings: very loud, loud,
medium, soft.
43150_Funktürklingel_content_GB_IE_SE_DK.indd 17 26.03.14 15:57

18 GB/IE
Selecting the chime
Note: The doorbell has 16 different chimes.
Press the melody selection button 4. The first audible signal
sounds.
Press the melody selection button 4again to move on to the
next audible signal.
Repeat this process until you have selected your desired audible
signal. The last-selected audible signal is automatically stored.

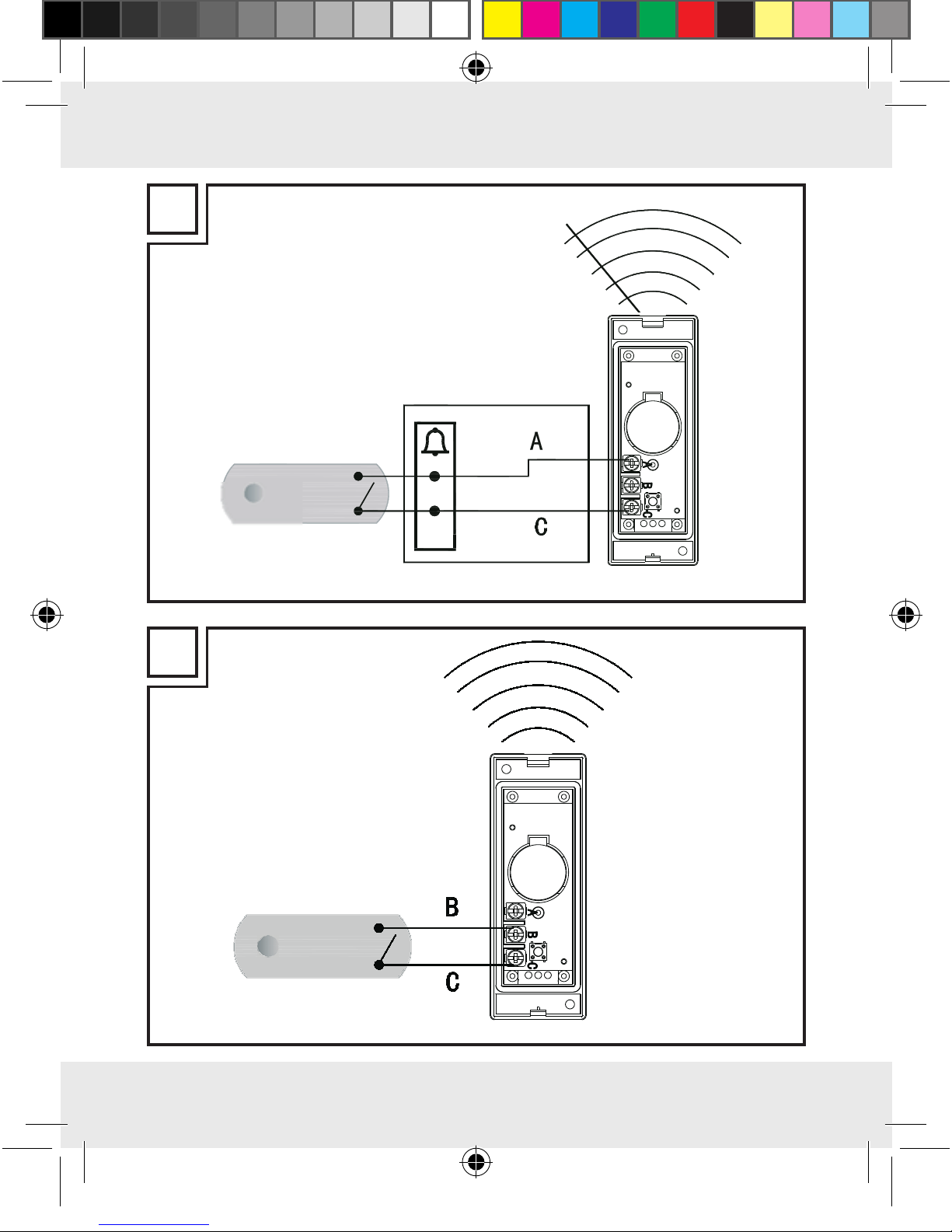

The procedure for connecting the
transmitter to existing bell system or
existing doorbell button
Remove the holder 12 with the help of flat head screw driver
from the back of the transmitter and remove the rubber cover 15
(see fig. C1).
Open the inner cover 14 by cross head screw driver (see fig. F).
Remove the plastic clip of cable exit hole 18 with a flat head
screw driver (see fig. G).
Insert the cable through cable holder 19 and cable exit hole 18
(see fig. H).
Connect cable to A/C terminal (for connecting to existing door-
bell) or B/C terminal (for connecting to existing door bell button)
by using screw driver (see fig. H).
Note: there is no polarity different for A or B terminal connect
to C terminal.
43150_Funktürklingel_content_GB_IE_SE_DK.indd 18 26.03.14 15:57

19GB/IE
Connecting the transmitter
to a existing bell system (see Fig. I)
Extension of an already existing doorbell system:
An already existing doorbell system can be extended with this wire-
less doorbell.
The connection clamps A and C on the backside of the transmitter
must be directly connected with an approx. 50cm long, 2-wired cord
(bell cord) to the connections of the already existing doorbell system.
The distance between bell and transmitter should be at least 30 to
40cm.
Note: Contact a qualified electrician in case of problems during
installation.
Connecting a existing
doorbell button (see Fig. J)
The separate bell button must not be connected to the existing door-
bell system. The battery must remain in the transmitter. The B and C
terminals are to this purpose with a two-core cable connected to the
bell push.
Possibly existing glow/light bulbs must be removed. The doorbell
button is used must be non-illuminated.
43150_Funktürklingel_content_GB_IE_SE_DK.indd 19 26.03.14 15:57

20 GB/IE
Troubleshooting
After the influence of extraordinary environmental conditions (e.g. a
strong electromagnetical field) the function of the item may be af-
fected. In this case, please take off the batteries of both appliances
for approximately 2 minutes. Then proceed again as described in the
section “Synchronising the transmitter/receiver”.
Electrostatic discharges may lead to malfunctions. If such malfunctions
do occur, remove the battery for a short time and then replace it again.
Then proceed again as described in the section “Synchronising the
transmitter/receiver”.
Cleaning and maintenance
Under no circumstances should you use liquids or detergents, as
these will damage the device.
The device should only be cleaned on the outside with a soft dry
cloth.
Disposal
The packaging is made entirely of recyclable materials,
which you may dispose of at local recycling facilities.
43150_Funktürklingel_content_GB_IE_SE_DK.indd 20 26.03.14 15:57
