Silvercrest SMPS 7 D2 User manual

MANICURE & PEDICURE SET SMPS 7 D2
MANIKÜRE-PEDIKÜRE-SET
Bedienungsanleitung
IAN 322345_1904
MANICURE & PEDICURE SET
Operating instructions ΣΕΤ ΜΑΝΙΚΙΟΥΡ/ΠΕΝΤΙΚΙΟΥΡ
Οδηүίες χρήσης

GB/IE/NI/CY Operating instructions Page 1
GR/CY Οδηүίες χρήσης Σελίδα 21
DE/AT/CH Bedienungsanleitung Seite 41
Before reading, unfold the page containing the illustrations and familiarise
yourself with all functions of the device.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε
με όλες τις λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen
Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

GB│IE│NI│CY │ 1 ■
SMPS 7 D2
Contents
Introduction .................................. 2
Information concerning these operating instructions ...........2
Copyright ............................................2
Limitation of liability ....................................2
Warning notes ........................................3
Intended use..........................................4
Safety....................................... 5
Basic safety guidelines ..................................5
Package contents ............................. 9
Controls ....................................10
Technical data ...............................11
Use of the appliance ..........................12
Attachments .........................................12
Working with the appliance.............................13
Cleaning ....................................15
Storage ....................................15
Disposal .................................... 16
Disposal of the appliance...............................16
Disposal of packaging .................................17
Notes on the Declaration of Conformity ..........17
Kompernass Handels GmbH warranty........... 18
Service .............................................20
Importer............................................20

■ 2 │ GB│IE│NI│CY SMPS 7 D2
Introduction
Information concerning these operating instructions
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions
are part of this product. They contain important information about
safety, usage and disposal. Before using the product, familiarise
yourself with all handling and safety guidelines. Use the product only
as described and for the range of applications specified. Keep these
operating instructions in a safe place. Please also pass these operating
instructions on to any future owner(s).
Copyright
This documentation is protected by copyright.
All rights reserved, including those of photographic reproduction,
duplication and distribution by means of particular methods (such
as data processing, data media and data networks), in whole or in
part, as well as substantive and technical changes.
Limitation of liability
All technical information, data and information for installation and
operation contained in these operating instructions corresponds to
the latest version(s) at the time of printing and, to the best of our
knowledge, takes into account our previous experience and know-how.
No claims can be derived from the details, illustrations and descriptions
in these instructions.
The manufacturer assumes no responsibility for damage caused
by failure to observe these instructions, improper use, incompetent
repairs, unauthorised modifications or for the use of non-approved
replacement parts.

GB│IE│NI│CY │ 3 ■
SMPS 7 D2
Warning notes
The following warnings are used in these operating instructions:
WARNING!
A warning at this hazard level indicates a potentially
hazardous situation.
Failure to avoid this hazardous situation could result in physical
injury.
► Follow the instructions in this warning to prevent physical injury.
CAUTION!
A warning at this hazard level indicates potential
material damage.
Failure to avoid this situation could result in material damage.
► Follow the instructions in this warning to prevent material damage.
NOTE
► A note provides additional information that will assist you in
using the appliance.

■ 4 │ GB│IE│NI│CY SMPS 7 D2
Intended use
This appliance is intended solely for the care and maintenance of
fingernails, toenails and feet. It is intended for domestic use only.
The mains adapter is intended for indoor use only.
It is not intended for any other use or use beyond that specified. Do
not use the appliance for commercial applications!
WARNING!
Danger if not used for intended purpose!
Failure to use the appliance for its intended purpose and/or
any other type of use can be hazardous.
► Use the appliance only for its intended purpose.
► Observe the procedures described in these operating instructions.
Claims of any kind for damage arising as a result of incorrect use
will not be accepted.
The risk shall be borne solely by the user.

GB│IE│NI│CY │ 5 ■
SMPS 7 D2
Safety
In this section, you will find important safety
instructions for using the appliance. Improper
use may result in personal injury and material
damage.
Basic safety guidelines
To ensure safe operation of the appliance, follow
the safety guidelines set out below
WARNING! RISK OF INJURY!
■ Prior to use, check the appliance for visible
external damage. Do not operate a appliance
that has been damaged or dropped.
■ This appliance may be used by children aged
8 years and above and by persons with limited
physical, sensory or mental capabilities or lack
of experience and knowledge, provided that
they are under supervision or have been told
how to use the appliance safely and are aware
of the potential risks. Children must not use
the appliance as a plaything. Cleaning and
user maintenance tasks may not be carried
out by children unless they are supervised.

■ 6 │ GB│IE│NI│CY SMPS 7 D2
■ This appliance may be used by children aged
3 and upwards if they are supervised.
■ All repairs must be carried out by authorised
specialist companies or by the Customer Ser-
vice department. Improper repairs can pose
significant risks to the user. The warranty
claim will also be invalidated.
■ Extended use may cause extreme warming
of the skin. Therefore, take frequent breaks.
Otherwise, there is a risk of burns!
■ Do not use the appliance while bathing or
showering.
■ Never touch the appliance with wet or moist
hands.
■ Always operate the appliance with the supplied
power adapter.
■ To prevent accidents, have defective plugs
and/or power cables replaced immediately
by a qualified specialist technician or our
Customer Service department.

GB│IE│NI│CY │ 7 ■
SMPS 7 D2
CAUTION! PROPERTY DAMAGE!
■ Defective components must always be re-
placed with original replacement parts. Com-
pliance with safety requirements can only be
guaranteed if original replacement parts are
used.
■ Protect the appliance from penetration by
moisture and liquids.
■ Protect the appliance against knocks, damp-
ness, dust, chemicals, extremes of tempera-
ture, etc. and keep it away from sources of
heat (ovens, radiators).
■ Never use the appliance under blankets,
pillows, etc.
■ Do not store the appliance where it could fall
into a bath tub or wash basin.
■ NEVER submerse the appliance in water or
other liquids!
■ Always remove the mains adapter from the
mains outlet; never pull on the power cable.
■ Ensure that the drive can always rotate freely.
Otherwise, the appliance may overheat and
be damaged beyond repair.t.

■ 8 │ GB│IE│NI│CY SMPS 7 D2
■
The mains adapter is intended for indoor
use only.
■ To disconnect the power supply to the
appliance, pull the mains adapter from the
socket outlet.
■ The mains power socket that is used must be
easily accessible so that the mains adapter
can be quickly removed from the mains
power socket in the event of an emergency.
■ In the event of a malfunction (unusual noises
or smoke) or during thunderstorms, disconnect
the mains adapter from the power socket.
■ Never try to open the housing of the mains
adapter – there is a risk of electrocution.
■ To avoid damage caused by unwanted
warming, do not cover the mains power
adapter.
■ Repairs to the appliance during the warranty
period may only be carried out by a customer
service department authorised by the manufac-
turer. Otherwise no additional warranty claims
can be considered for subsequent damage.

GB│IE│NI│CY │ 9 ■
SMPS 7 D2
Package contents
The appliance is supplied with the following components as standard:
▯ Hand element
▯ Power adapter
▯ 7 attachments:
- Sapphire cone
- Felt cone
- 2 sapphire discs (rough/fine)
- Hardened skin remover
- Cylindrical miller
- Flame miller
▯ Storage bag
▯ Operating instructions
♦ Remove all parts of the appliance from the packaging and
remove all packaging materials.
WARNING!
Risk of suffocation!
► Packaging material must not be used as a plaything.
Risk of suffocation.
NOTE
► Check the package for completeness and for visible signs of
damage.
► If the consignment is incomplete or damaged due to defective
packaging or carriage, contact the Service hotline (see the
chapter Service).

■ 10 │ GB│IE│NI│CY SMPS 7 D2

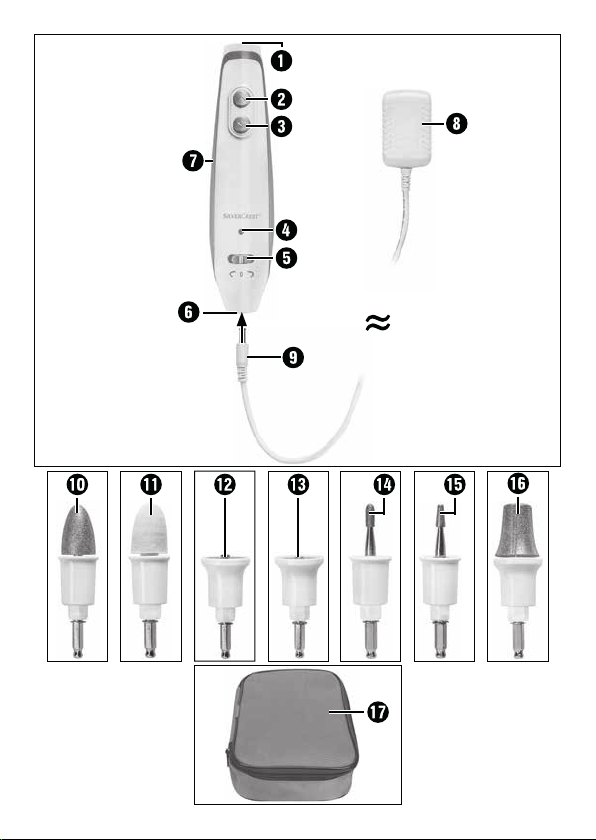

Controls
Attachment fitting
2button (increase speed)
3button (reduce speed)
4LED rotation direction indicator
(red = clockwise/green = anti-clockwise)
5On/off/direction switch
6Connector socket
7Hand element
8Mains adapter
9Connector plug
10 Sapphire cone
11 Felt cone
12 Sapphire disc (rough)
13 Sapphire disc (fine)
14 Flame miller
15 Cylindrical miller
16 Hardened skin remover
17 Storage bag

GB│IE│NI│CY │ 11 ■
SMPS 7 D2
Technical data
Mains adapter: ZD8H300025BS
Input voltage 100–240 V ∼ (alternating
current), 50/60 Hz
Current consumption 0.3 A
Output voltage/output current 30 V / 250 mA
Protection class II / (double insulation)
Switched-mode power supply
Efficiency class 5
Enclosed safety transformer
Nominal ambient temperature (ta) 40°C
Polarity
Protection type
IP 20: Protection against
solid objects with a
diameter of more than
12.5 mm
Appliance
Input voltage 30 V
Current consumption 250 mA
Operating speeds 2000–4600 rpm
Polarity

■ 12 │ GB│IE│NI│CY SMPS 7 D2
Use of the appliance
Attachments
■ Sapphire cone 10 :
For removing dry skin, hardened skin or calluses on the soles and
heels.
♦ Guide the sapphire cone 10 over the parts of the sole and
heel to be treated using a circular motion while exerting
gentle pressure. Do not press too firmly, and always guide
the appliance carefully to the surface to be treated. Apply a
moisturising cream after every treatment.
■ Felt cone 11 :
For smoothing and polishing nail edges after filing, and for clean-
ing the nail surface.
♦ Use the felt cone 11 to polish and smooth the edge of the nail
and to clean the nail surface after grinding. Always polish in
a circular motion and never let the felt cone 11 stay in one
place.
■ Sapphire disc 12 /13 :
For filing and working the nails.
Work the edge of the nail using the sapphire disc 12 /13 . Since
only the inner disc rotates and the outer edge does not move, you
can file your nails accurately without damaging your skin with the
rapidly rotating disc.
♦ Always work from the outside of the nail to the tip.
■ Flame miller 14 :
You can use the flame miller 14 to free ingrown nails.
♦ Guide the flame miller 14 carefully onto the treatment area
and cut away the affected nail part.

GB│IE│NI│CY │ 13 ■
SMPS 7 D2
■ Cylindrical miller 15 :
For grinding off thick toenail surfaces and rough smoothing of the
surfaces.
You can use the cylindrical miller 15 to mill away thickly growing
nail surfaces.
♦ Always hold the cylinder miller 15 parallel to the nail surface
and apply light pressure and circular movements to remove
the excess growth.
■ Hardened skin remover 16 :
For large-scale and rapid removal of thick hardened skin or
calluses on the sole or heel of your foot.
♦ Guide the hardened skin remover 16 over the parts of the sole
and heel to be treated while exerting gentle pressure.
Working with the appliance
WARNING! RISK OF INJURY!
Excessively long or intensive treatment can also
injure deeper layers of skin.
► Therefore, check the treatment progress and results regularly.
Diabetics in particular are less sensitive on their hands and feet.
NOTE
► The attachments do not have as much effect on softened skin.
Therefore, do not carry out any pretreatment in a water bath
before using the appliance.
1) Find a well-lit place to work. There must be a mains power outlet
in close proximity.
2) Insert the appropriate attachment for your purpose in the attach-
ment fitting . The attachment must sit securely.

■ 14 │ GB│IE│NI│CY SMPS 7 D2
3) Attach the connector plug 9of the mains adapter 8to the
connector socket 6of the hand element 7.
4) Plug the mains adapter 8into a mains power outlet.
5) Always start the treatment at slow speed and only increase it
when necessary. Press the button 2to increase the speed.
If you want to reduce the speed, press the button 3.
6) Slide the on/off/direction switch 5in the desired direction.
The selected direction of rotation is shown by the coloured LED
direction indicator 4as follows:
–Green LED = anti-clockwise
–Red LED = clockwise
7) The appliance operates at the slowest speed.
NOTE
► Always select the direction of rotation for treating the nails in
their direction of growth. If possible, treat the nails from the
outside towards the inside (to the nail tip). Otherwise, the nails
will split more easily.
► If you feel that the nails could crack during treatment, select
the other direction.
8) You can now start working.
WARNING! RISK OF BURNS!
Risk due to severe heat development!
► While you are working, never let the attachments remain in one
location. Friction leads to increased heat generation and may
cause injuries.
► Always work with a circular motion.

GB│IE│NI│CY │ 15 ■
SMPS 7 D2
9) Move the on/off/direction switch 5to “0” and disconnect the
power adapter 8from the mains power socket when you have
finished the treatment.
NOTE
► If you have treated hardened skin, apply a moisturising cream
to the treated areas after completing the procedure.
Cleaning
WARNING!
Risk of electrical shocks!
► Always disconnect the mains adapter 8from the mains power
socket before cleaning the appliance!
CAUTION! PROPERTY DAMAGE!
► Do not use chemical, aggressive or abrasive cleaning agents.
These can damage the surface of the appliance.
♦ Clean the hand element 7and the mains adapter 8with a
damp cloth. For stubborn soiling use a mild detergent on the
cloth. Ensure that no water or moisture can penetrate the
appliance. Dry everything thoroughly.
♦ For hygienic reasons, we recommend cleaning the attachments
with a clean cloth or brush moistened with alcohol after every
use. Dry everything thoroughly.
Storage
♦ After you have cleaned the appliance, put it back in the storage
bag 17 .
♦ Store the appliance in a dry and clean location.

■ 16 │ GB│IE│NI│CY SMPS 7 D2
Disposal
Disposal of the appliance
Under no circumstances should you dispose
of the appliance in normal household waste.
This product is subject to the provisions of
the European WEEE (Waste Electrical and
Electronic Equipment) Directive 2012/19/EU.
Dispose of the appliance via an approved waste disposal company
or your municipal waste disposal facility. Please observe applicable
regulations. Please contact your waste disposal facility if you are in
any doubt.
Do not dispose of the mains adapter with
the normal household waste. This mains
adapter is subject to the provisions of
European Directive 2012/19/EU WEEE
(Waste Electrical and Electronic Equipment).
Dispose of the mains adapter via an approved disposal centre or
at your community waste facility. Please comply with all applicable
regulations. Please contact your waste disposal facility if you are in
any doubt.
Your local community or municipal authorities can
provide information on how to dispose of the worn-out
product.

GB│IE│NI│CY │ 17 ■
SMPS 7 D2
Disposal of packaging
The packaging protects the appliance from damage during shipment.
The packaging materials have been selected for their environmental
friendliness and ease of disposal, and are therefore recyclable.
Returning the packaging to the materials cycle conserves
raw materials and reduces the amount of waste that is
generated. Dispose of packaging materials which are
no longer needed in accordance with applicable local
regulations.
Dispose of the packaging in an environmentally friendly
manner. Note the labelling on the packaging and
separate the packaging material components for
disposal if necessary. The packaging material is labelled
with abbreviations (a) and numbers (b) with the following
meanings: 1–7: Plastics, 20–22: Paper and cardboard,
80–98: Composites.
NOTE
► If possible, keep the original packaging of the appliance during
the warranty period so that the appliance can be packed properly
for returning in the event of a warranty claim.
Notes on the Declaration of Conformity
This appliance complies with the essential requirements
and other relevant provisions of the European Electro-
magnetic Compatibility Directive 2014/30/EU, the Low
Voltage Directive 2014/35/EU and the RoHS Directive
2011/65/EU.
The entire Declaration of Conformity, in its original form,
is available from the importer.
