Silvercrest DZKW 20-A FR 3655 User manual

TIMER SWITCH
ZEITSCHALTUHR
Bedienungs- und Sicherheitshinweise
TIMER SWITCH
Operation and Safety Notes
ČASOVÉ SPÍNACÍ HODINY
Pokyny pro obsluhu a bezpečnostní pokyny
SPÍNACIE HODINY
Pokyny pre obsluhu a bezpečnostné pokyny
IAN 298849

GB Operation and Safety Notes Page 5
CZ Pokyny pro obsluhu a bezpečnostní pokyny Strana 33
SK Pokyny pre obsluhu a bezpečnostné pokyny Strana 62
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 91
Before reading, unfold the page containing the illustrations and familiarise
yourself with all functions of the device.
Před čtením si otevřete stranu s obrázky a potom se seznamte se všemi
funkcemi přístroje.
Pred čítaním si odklopte stranu s obrázkami a potom sa oboznámte so
všetkými funkciami prístroja.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen
Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

B
21
16
1423
22 15
17
20 1818 19
CLOCK TIMER ON/AUTO/OFFWEEK HOUR
RST/RCL
MIN
RANDOM
MASTER CLEAR
A
12
7
3
4
5
11
10
9 8
6
1
13
2

5GB
List of pictograms used..........Page 7
Introduction.....................................Page 8
Intended use ..........................................Page 8
Control elements....................................Page 9
Technical data .......................................Page 10
Safety notices ................................Page 11
Control- and display
elements.............................................Page 13
Control elements....................................Page 13
Displays + Explanation .........................Page 13
Operating mode function......................Page 15
Program function....................................Page 15
Clock function........................................Page 16
Preparation .....................................Page 16
Charging the device..............................Page 16

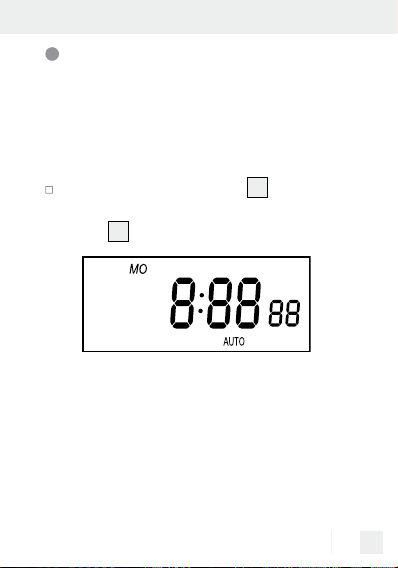

Reset all settings.....................................Page 17
Setting the current time..........................Page 18

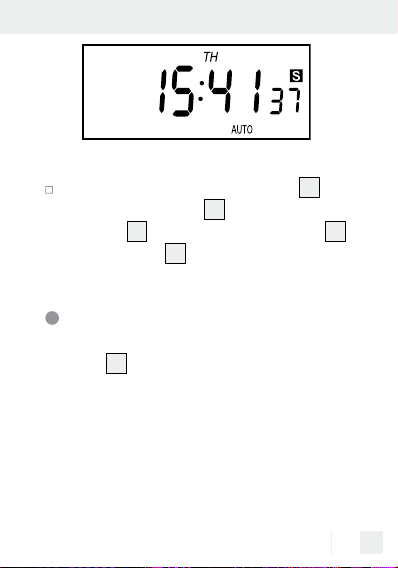

Setting standard and summer time.......Page 18

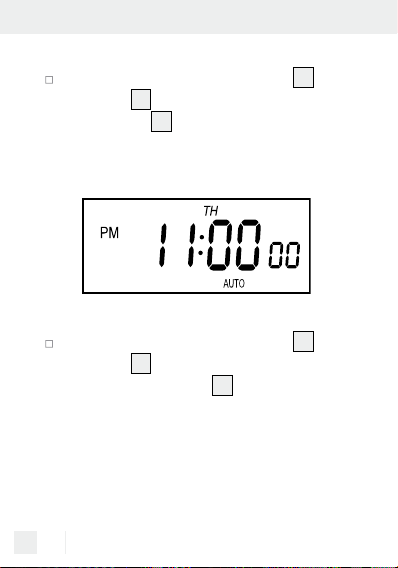

Setting the hour mode...........................Page 19

6 GB
Operation..........................................Page 21
No notifications on the display.............Page 21
Switching to the clock function .............Page 21
(De-)activating continuous operation ...Page 22
Configuring programs...........................Page 24
Switching the random function
on and off ..............................................Page 27
Cleaning..............................................Page 29
Disposal...............................................Page 30
Warranty and Service............Page 30
Service address .....................................Page 31
Manufacturer.........................................Page 32

7GB
List of pictograms used
Observe the warning and
safety instructions!
Attention! Risk of electric shock!
Do not dispose of electric equip-
ment in the household waste!
Use indoors
-10T40 Ambient temperature
Micro-switch with a contact
opening width of < 3mm

8 GB
Timer Switch
Digital – for indoors
Introduction
Intended use
The device is intended as a digital weekly
timer switch for use in enclosed, dry rooms
and designed for private use. It is not suita-
ble for commercial use. Only operate the
device individually. Do not connect several
timer switches in series. Any other use is con-
sidered improper. The manufacturer is not
liable for damages due to improper use.
Read the entire instructions for use before
using the device. Keep these instructions for
use. Include the instructions for use when
passing the device on.

9GB
Control elements (Fig. A)
1LC display
2LED status light
3RST/RCL button
4MIN button
5HOUR button
6Socket
7WEEK button
8ON/AUTO /OFF button
9TIMER button
10 CLOCK button
11 RANDOM button
12 MASTERCLEAR button
13 Plug (reverse)
LC display (Fig. B)
14 Weekday display
15 R symbol
16 S symbol
17 Seconds display

10 GB
18 ON – AUTO – OFF
19 Minutes display
20 Hours display
21 Program number
22 AM – PM
23 ON – OFF
Technical data
Model designation: DZKW 20-A FR
3655
Operating voltage: 230V~50Hz
Switched voltage: 230V~16(2) A
Switching capacity: max. 3600 W
Ambient temperature: -10°C to 40°C
-10T40
Time error: ± 1 minute/month
Shorting switching time: 1 minute
Programs: 10 ON/OFF
program sets
