simatherm IH 070 User manual

smart mounting
®
Bedienungsanleitung
Instructions for use
Mode d‘emploi
Manuale d‘istruzioni
Manual de instrucciones
Induction Heater
IH 070/090

smart mounting
®
2 Induktionsheizgerät IH 070/090 © simatec ag

smart mounting
®
20 Induction Heater IH 070/090 © simatec ag
Table of contents
EU Declaration of conformity 21
Safety recommendations 22
1 Introduction 23
1.1 Intended use 23
1.2 Principle of operation 23
1.3 Distinguishing feature 24
2 Description 24
2.1 Components 24
2.2 Technical data 25
3 Installation of mains plug 27
4 Preparation for use 28
5 Operation 30
5.1 Function of displays 30
5.2 Function of buttons 30
5.3
TEMP MODE
TEMP MODE 31
5.4 TIME MODE 32
5.5 Temperature measurement 32
5.6 Change of temperature unit 32
5.7 Demagnetisation 32
5.8 Power level selection 33
6 Safety features 33
7 Troubleshooting 34
8 Spare parts 35

smart mounting
®
© simatec ag Induction Heater IH 070/090 21
English
EU Declaration of conformity
simatec ag
Stadthof 2, CH-3380 Wangen a. Aare, Switzerland
declares that the
Induction Heaters
simatherm IH 070/090
are designed and manufactured in accordance with
Directive 2006/95/EC of the European Parliament and of the Council re-
lating to electrical equipment designed for use within certain voltage limits
Directive 2004/108/EC of the European Parliament and of the Council
relating to electromagnetic compatibility and repealing
Directive 89/336/EEC
The following standards have been applied:
EN 60519-1
EN 60519-3
EN 55011
EN 61000-3-3
EN 61000-6-2
Wangen a. Aare, 2013-10-01
Mischa N. Wyssmann
Managing Director / CEO

smart mounting
®
22 Induction Heater IH 070/090 © simatec ag
Safety recommendations
• Because the IH 070/090 generates a magnetic field,
people wearing a pacemaker must not be within 5m (16ft) of the
IH 070/090 during operation. Electronic equipment,
such as wristwatches, may also be affected.
• Follow the operating instructions at all times.
• Be certain that the voltage supply is correct.
• Electrical arcing may occur when a potential difference exists
between the IH 070/090 and the workpiece. This is not
dangerous to human beings and will not cause damage to the
IH 070/090 or the workpiece. However, the IH 070/090 must
never be used in areas where there is a risk of explosion.
• Do not expose the heater to high humidity.
• Never operate the IH 070/090 without a yoke in
position.
• Do not modify the IH 070/090.
• Use proper handling equipment when lifting heavy workpieces.
• Avoid contact with hot workpieces. Wear the supplied heatresistant
gloves to handle hot workpieces.

smart mounting
®
© simatec ag Induction Heater IH 070/090 23
English
1 Introduction

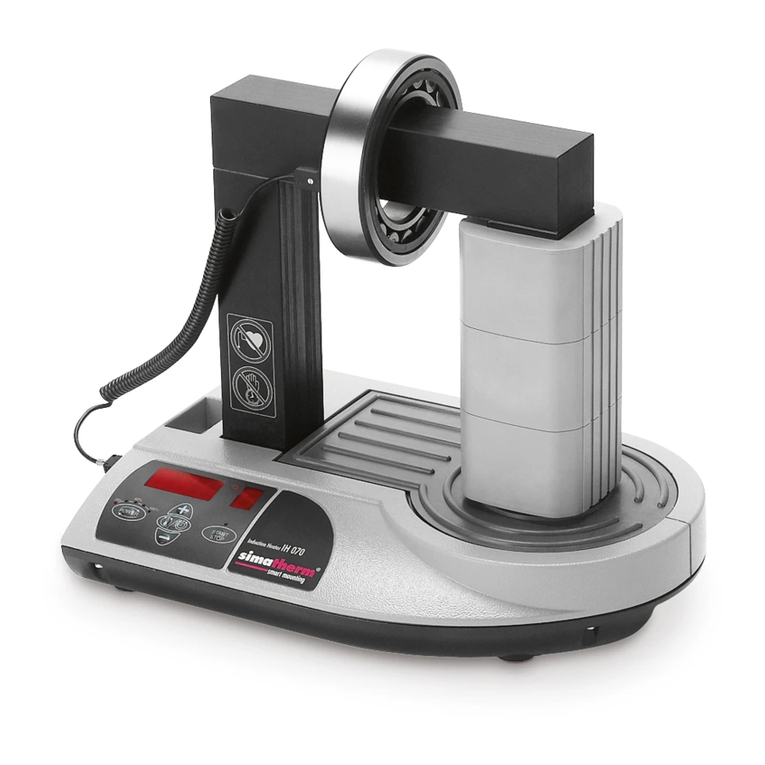

The simatec IH 070/090 induction heater is designed to heat bearings that
are mounted with an interference fit onto a shaft. The heat causes the bea-
ring to expand, which eliminates the need to use force during installation. A
90°C (194°F) temperature difference between the bearing and shaft is ge-
nerally sufficient to enable installation. At an ambient temperature of 20°C
(68°F), the bearing must therefore be heated to 110°C (230°F).
1.1 Intended use
The IH 070/090 has been designed to heat rolling bearings. However, other
metal workpieces that form a closed circuit can also be heated. Examples
of acceptable workpieces include bushings, shrink rings, pulleys, and gears.
All bearings that fit over the inductive coil and between the vertical supports
with the top yoke in place can be heated using the IH 070/090. In addition,
smaller bearings can be placed over either of the three standard yokes. See
the illustrations at the beginning of this manual for examples.
1.2 Principle of operation
The IH 070/090 generates heat by me-
ans of a large electrical current that is
magnetically induced in the workpiece
by a coil within the
heater. The high voltage, low current
electricity flowing through the large
number of windings in the inductive
coil induces low voltage, high current
electricity in the workpiece. Because the
workpiece has the electrical characteri-
stics of a coil with a single, short-circui-
ted winding, the high
current generates heat within the
workpiece. Because the heat is
generated within the workpiece, all of
the heater components remain cool.

smart mounting
®
24 Induction Heater IH 070/090 © simatec ag
1.3 Distinguishing feature
The distinguishing feature of the IH 070/090 induction heater is the location
of the workpiece at the same position on the core as the inductive coil. This
design improves efficiency, resulting in less power consumption and faster
heating, which reduces the cost to heat each bearing.
2 Description
The operation of the heater is controlled by the internal electronics in
either of two modes. The operator can either select the desired
temperature of the bearing in TEMP MODE or set the length of time
that the bearing will be heated in TIME MODE. The power level can
be adjusted in steps of 20% for slower heating of sensitive
workpieces (for example, bearings with C1 or C2 clearance).
2.1 Components
The IH 070/090 induction heater contains a U-shaped iron core with an
inductive coil surrounding one of the vertical supports. Internal electronics
control the operation of the heater. A removable yoke on the top of the verti-
cal supports allows the workpiece to be placed onto the heater. The top yoke
of the IH 090 is mounted on a swivel. To accommodate smaller workpieces,
two smaller yokes are also provided. A temperature probe is also included
with the heater. Heat-resistant gloves are also included.

smart mounting
®
© simatec ag Induction Heater IH 070/090 25
English
2.2 Technical data
IH 070
Voltage (± 9%): 100 V / 50-60Hz
110–120 V / 60Hz
220–240 V / 50–60Hz
Recommended circuit protection 20A circuit breaker
Power consumption (maximum) 1.5kVA (100 V / 50-60Hz)
3.7kVA (110–120 V / 60Hz)
3.7kVA (220–240 V / 50–60Hz)
Temperature control 0–250°C (32–482°F) in steps of 1°
Probe maximum temperature 250°C (482°F)
Time mode 0–60 minutes in steps of 0.1 minute
Power range 20–100% in steps of 20%
Demagnetisation, automatic Residual magnetism < 2A/cm
Overall dimensions 420 x 280 x 345mm
Area between supports (wxh) 145 x 205mm
Coil diameter 115mm
Weight (with yokes) 35kg
Workpiece maximum weight Bearing 80 kg, solid component 40 kg
Maximum heating temperature approx. 400°C (752°F)
Standard yoke dimensions 55 x 55 x 275mm (for Øof 78mm)
28 x 28 x 275mm (for Øof 40mm)
14 x 14 x 275mm (for Øof 20mm)

smart mounting
®
26 Induction Heater IH 070/090 © simatec ag
IH 090
Voltage (± 9%): 400 V / 50 Hz
440–480 V / 60 Hz
575 V / 60 Hz
Recommended circuit protection 20A circuit breaker
Power consumption (maximum) 6,4kVA (400 V / 50 Hz)
7,4kVA (440–480 V / 60 Hz)
9,2kVA (575 V / 60 Hz)
Temperature control 0–250°C (32-482°F) in steps of 1°
Probe maximum temperature 250°C (482°F)
Time mode 0–60 minutes in steps of 0.1 minute
Power range 20–100% in steps of 20%
Demagnetisation, automatic Residual magnetism < 2A/cm
Overall dimensions 420 x 280 x 420mm
Area between supports 145 x 205mm
Coil diameter 115mm
Weight (with yokes) 38kg
Workpiece maximum weight Bearing 120kg, solid component 60kg
Maximum heating temperature approx. 400°C (752°F)
Standard yoke dimensions 55 x 55 x 275mm (for Øof 78mm)
28 x 28 x 275mm (for Øof 40mm)
14 x 14 x 275mm (for Øof 20mm)

smart mounting
®
© simatec ag Induction Heater IH 070/090 27
English
3 Installation of mains plug
Due to the many types of mains plugs, no mains plug is supplied with
the IH 070/090. A qualified electrician must install a suitable mains plug.
The correct supply voltage is shown in section 2.2.
The wires should be connected as follows:
IH 070
Colour of IH 070 wire Mains supply terminal
yellow/green Protection earth (PE)
brown Phase 1 (L1)
blue Neutral (N)
Connect the IH 090 to only two of the three phases. Verify that the
correct circuit breaker is installed. See section 2.2 for circuit breaker
specifications.
IH 090
Colour of IH 090 wire Mains supply terminal
yellow/green Protection earth (PE)
brown Phase 1 (L1)
bluw Phase 2 (L2)

smart mounting
®
28 Induction Heater IH 070/090 © simatec ag
• For the IH 090 only, follow these steps to install the swivel arm:
- Attach the protection plate (4) to the side post to prevent damage.
- Install the swivel head (1) and the swivel body (2) on the lefthand
side post of the heater.
- Install the large top yoke (55 x 55mm) in the swivel head.
Adjust the swivel body so that there is no visible gap (A)
between the side post and the yoke.
- Tighten the four screws (3) of the swivel body (maximum
torque 5Nm).
- Turn the screw (5) on top of the swivel head to position the top
yoke. The top yoke must contact as much of the upper surface
of the right-hand side post (B) as possible. Noise during
operation could indicate that the top yoke is not positioned
properly.
• Special notes for the IH 090:
- The yoke support is required when either of the smaller yokes
(28 x 28mm or 14 x 14mm) is installed. Install the yoke
support and the yoke together in the swivel head. If necessary,
rotate the swivel head to provide better access.
4 Preparation for use
• Place the IH 070/090 in the horizontal position on a
stable surface.
• Connect the mains plug to a suitable mains supply.

smart mounting
®
© simatec ag Induction Heater IH 070/090 29
English
- Heavy workpieces (≥10 kg/22 lbs) that must be installed on
the top yoke should be supported until the yoke is in the correct
position on the right-hand side post. The heater may tip over if
the workpiece is not supported.
- The swivel body (2) can remain on the heater at all times.
• For workpieces with an internal diameter large enough to fit over
the inductive coil, follow these steps:
- Place the workpiece over the inductive coil using appropriate
lifting equipment.
- For best performance, adjust the position of the workpiece so
that the inductive coil is in the centre.
- Remove the protective film from the bright underside of the top
yoke before the first use.
- Position the top yoke so that it completely covers the top of
both vertical supports.
• For workpieces that do not fit over the inductive coil, follow these
steps:
- Choose the larger of the three yokes that fit through the internal
diameter of the workpiece.
- If necessary, remove the top yoke from the IH 070/090.
- Verify that the protective film has been removed from the
underside of the small or medium yoke if it is to be used for the
first time.
- Slide the workpiece onto the yoke that you have selected.
- Position the yoke on the IH 070/090 with the bright
underside resting evenly on the two vertical supports.
• If you will use TEMP MODE, plug the temperature probe into the
connector on the left side of the heater. Place the magnetic end of
the probe on the inner ring of the bearing or on the innermost
surface of the workpiece.
• Use the power switch on the left side to switch on the IH 070/090.
• Observe the self-test of the display and signal tone.

smart mounting
®
30 Induction Heater IH 070/090 © simatec ag
B
A
5 Operation
5.1 Function of displays
A. The main display shows the selected time or temperature for heating.
Display Indication
t time in minutes
°C temperature in degrees Celsius
°F temperature in degrees Fahrenheit
B. The power display shows the selected power setting.
Display Indication
• 20% power
•• 40% power
••• 60% power
•••• 80% power
••••• 100% power
5.2 Function of buttons
Button Function
POWER Press to adjust the power in steps of 20%. The selected
power is indicated on the power display.
MODE Press to switch between TIME MODE and TEMP MODE.
UP (+) Press to increase the value shown on the main display.
DOWN (-) Press to decrease the value shown on the main display.
START/STOP Press to start or stop the heater. The LED on the START/
STOP button is lit when the heater is heating and flashes
during temperature measurement.

smart mounting
®
© simatec ag Induction Heater IH 070/090 31
English
5.3 Temp mode
• If the main display shows ‚t‘, press MODE to select TEMP MODE.
The main display shows °C or °F in TEMP MODE.
• The selected temperature is shown on the main display. The
default temperature for bearings is 110°C (230°F). If a different
temperature is desired, press UP or DOWN to adjust the
temperature in steps of 1°.
• It may be desirable to heat bearings to temperatures above 110°C
(230°F) for increased mounting time. Consult the bearing
specifications to determine the maximum permitted temperature.
Always ensure the bearing does not lock due to an excessive
expansion of the inner ring compared to outer ring. See section 5.8.
• All Spherical Roller Bearings (SRBs) are subjected to a
special heat treatment. These bearings can be operated at
temperatures as high as 200°C (392°F). Heating these bearings
above 110°C (230°F) will not cause any damage as long as the
bearing is still able to rotate. For other bearings, a temperature of
125°C (257°F) must not be exceeded unless otherwise specified.
• Press POWER to select the power level. Use the guidelines in
section 5.8 to determine the correct power setting.
• Make sure the temperature probe is mounted on the bearing inner
ring.
• Press START/STOP to start the heater. The main display shows
the current temperature of the workpiece.
• When the selected temperature has been reached, the heater
demagnetises the workpiece, switches off, and generates an
acoustic signal for 10 seconds or until START/STOP is pressed.
• Press START/STOP to stop the heater.
• Remove the workpiece with proper handling equipment.
• If the workpiece remains on the heater, the heater will start again
when the temperature of the workpiece drops 10°C (18°F). Press
START/STOP to stop the heater and demagnetise the workpiece.
• The IH 070/090 is now ready to heat another workpiece
with the same settings.

smart mounting
®
32 Induction Heater IH 070/090 © simatec ag
5.4 Time mode
• If the main display shows °C or °F, press MODE to select
TIME MODE. The main display shows ‚t‘ in TIME MODE.
• Press UP or DOWN to adjust the time in steps of 0.1 minute.
• Press POWER to select the power level. Use the guidelines in
section 5.8 to determine the correct power setting.
• Press START/STOP to start the heater. The main display shows
the time that remains.
• When the time has elapsed, the heater demagnetises the
workpiece, switches off, and generates an acoustic signal for
10 seconds.
• Press START/STOP to cancel the acoustic signal and stop the
heater.
• Remove the workpiece with proper handling equipment.
• The IH 070/090 is now ready to heat another workpiece
with the same settings.
5.5 Temperature measurement
When the heater is not operating, the temperature of the workpiece can be
measured by pressing MODE and START/STOP at the same time. The LED
on the START/STOP button flashes during temperature measurement. Press
START/STOP to cancel temperature measurement.
5.6 Change of temperature unit
Press MODE and UP at the same time to switch between °C and °F. The tem-
perature unit setting remains the same even after disconnection from mains
power.
5.7 Demagnetisation
The workpiece is automatically demagnetised when heating is complete.
Demagnetisation will not occur if the power is interrupted or the main switch
is switched off. To use the IH 070/090 for demagnetisation only, select TIME
MODE and set the time to 0.1 minute (6 seconds).

smart mounting
®
© simatec ag Induction Heater IH 070/090 33
English
5.8 Power level selection
When heating bearings with an induction heater, most of the heat will
be generated in the inner bearing race. The heat will then be transferred
through the bearing. It is therefore important that bearings with small inter-
nal clearance or slight preload are heated slowly. Slow heating ensures that
the bearing expands evenly, thereby preventing damage to the bearing.
The shape, weight, size, and internal clearances all affect the amount
of time required to heat a bearing. The large variety of bearing types
precludes the possibility of providing a specific power level setting for
each type. Instead, the following guidelines are provided:
• For sensitive bearings (including bearings with C1 or C2 internal
clearance) or bearings with brass cages, do not exceed 20%
power when using the small yoke, 40% power when using the
medium yoke, or 60% power when using the large yoke.
• When using the small yoke, never exceed 40% power.
• When using the medium yoke, never exceed 60% power.
6 Safety features
The IH 070/090 is equipped with the following safety features:
• Automatic overheating protection
• Automatic current control
• In the TEMP MODE the heater will switch off if the temperature
probe does not register a temperature increase of 1° every
15 seconds. To increase the interval to 30 seconds, press MODE
and DOWN at the same time.
• Additionally, the IH 090 is equipped with a main switch with
over-current circuit breaker.

smart mounting
®
34 Induction Heater IH 070/090 © simatec ag
7 Troubleshooting
A system fault will be indicated by an acoustic signal and one of the
following fault codes on the main display:
Display Fault Action
E01 E General system failure Return IH 070/090 for repair.
E02 E Memory failure Return IH 070/090 for repair.
E03 E Overheated coil Wait until the inductive coil cools.
E04 E not in use
E05 E Temperature increase
of less than 1° every 15
seconds (or 1° every 30
seconds)
Check the temperature probe
connection. If the connection is OK,
select the 30 second interval as
described in section 6 or operate the
heater in TIME MODE.
E06 E Temperature probe not
connected (or defective)
Check the temperature probe.
E07 E Failure during current
measurement
Return IH 070/090 for repair.
E08 E Failure during communi-
cation with power printed
circuit board
Return IH 070/090 for repair.
E09 E Overheated printed circuit
board
Wait until the printed circuit board
cools.

smart mounting
®
© simatec ag Induction Heater IH 070/090 35
English
8 Spare parts
Art. No. Description
190.1311 IH 070-P Power print 100-240V/50-60Hz
190.1314 IH 090-P/200V Power print 200V/50-60Hz
190.1005 IH 090/210-P Power print 400-575V/50-60Hz
190.1309 IH 070-C110V Coil 100-115V/50-60Hz
190.1310 IH 070-C230V Coil 200-230V/50-60Hz
190.1313 IH 090-C Coil 400-460V/50-60Hz
190.7302 IH 070-CP/100V Control print IH 070/100V
190.7303 IH 070-CP/110V Control print IH 070/110V
190.7402 IH 210-CP Control print 200V for IH 090
190.7304 IH 070/090-CP Control print IH 070/230V
Control print IH 090/400-460V
190.7301 IH 070/090-H Heating pad incl. sealing
190.1008 IH 025/030/070-S Main switch 100-230V/20A
190.1301 IH 090-S Main switch 400-460V/16A
190.1308 IH 070/090-Y8 Yoke 55 x 55 x 275mm (for bearings
with minimum 80mm bore)
190.1307 IH 070/090-Y6 Yoke 40 x 40 x 275mm (for bearings
with minimum 60mm bore)
190.1306 IH 070/090-Y4 Yoke 28 x 28 x 275mm (for bearings
with minimum 40mm bore)
190.1305 IH 070/090-Y3 Yoke 20 x 20 x 275mm (for bearings
with minimum 30mm bore)
190.1304 IH 070/090-Y2 Yoke 14 x 14 x 275mm (for bearings
with minimum 20mm bore)
190.1004 IH 030/070/090-YS Set support yoke 55 x 55 x 100mm
190.1302 IH 070/090-SA Swivel arm
190.1001 IH P2 Temperature probe, K type

smart mounting
®
Swiss made by:
simatec ag
Stadthof 2
3380 Wangen a. Aare
Switzerland
www.simatec.com
610.9184/1310
