Dear customer,
Thank you for choosing our product. Read this manual carefully before installing your radiator, as it provides useful information for
installation, use and proper maintenance of the appliance.
Remember that this manual must accompany the radiator should it be moved to a dierent installation location.
THE PACKAGE INCLUDES:
Aluminium radiator tted with a thermostat with electronic regulation, kit made up of three mounting brackets with wall plugs and
instruction manual.
CONTENTS
1. CHARACTERISTICS......................................................................................................................................................................................................................................Page 3
2. DESCRIPTION AND TECHNICAL SPECIFICATIONS OF THE PRODUCT .......................................................................................................................................Page 3
3. WARNINGS ....................................................................................................................................................................................................................................................Page 4
4. INSTALLATION..............................................................................................................................................................................................................................................Page 4
5. ELECTRICAL CONNECTIONS ...................................................................................................................................................................................................................Page 7
6. REGULATION AND PROGRAMMING.....................................................................................................................................................................................................Page 8
7. CLEANING THE RADIATOR.......................................................................................................................................................................................................................Page 12
8. TROUBLESHOOTING..................................................................................................................................................................................................................................Page 13
9. WARRANTY ...................................................................................................................................................................................................................................................Page 13
10. ENVIRONMENT..........................................................................................................................................................................................................................................Page 13
11. DECLARATION OF CONFORMITY........................................................................................................................................................................................................Page 14

3
1. CHARACTERISTICS
1.1 Characteristics of the appliance
IP24: appliance protected against splashing water
Class II: double insulation
1.2 Technical characteristics of the electronic part
Power supply 230V +/-10% AC 50 Hz
Electrical resistor capacity Mod. SM0805 800 W
Mod. SM1006 1000 W
Mod. SM1509 1500 W
Mod. SM2011 2000 W
Insulation class Class II
Water protection rating IP24
Operating temperature 0 to 40°C
Storage temperature -20 to 80°C
Relative humidity 0 to 85% without condensate
Regulation type Proportional integral
Temperature range 7° ; 15 to 30°C
Activation of safety thermostat 110°C for 800W and 1000W
120°C for 1500W and 2000W
Temperature reading resolution 1/16 °C
Maximum range 0.5 °C
Maximum deviation 1.5 °C
2. DESCRIPTION AND TECHNICAL SPECIFICATIONS OF THE PRODUCT
The radiator consists of a die-cast body of EN AB 46100 aluminium alloy.
The inner heating element is an electric resistance embedded between two plates of soapstone.
Soapstone is a natural material with high inertia capable of storing heat and releasing it slowly even when the radiator is turned o.
The electronic control and adjustment ensure high precision in adjusting room temperature.
A safety thermostat limits the maximum temperature which the radiator can reach even in case of failure.
On the left-hand side there is a receptacle for distilled water used to humidify the environment.
This receptacle can be removed when lling.
NB: All Fondital radiators are manufactured with an identifying label which guarantees their traceability.
This label certies that the appliance complies with European directives and electrical standards.
The appliance must be installed according to accepted practice, in accordance with current standards and the instructions contained in
this manual.
Radiator colour: RAL 9010.

4
3. WARNINGS
A label on the side of the radiator contains the symbol shown here. The meaning of this symbol is:

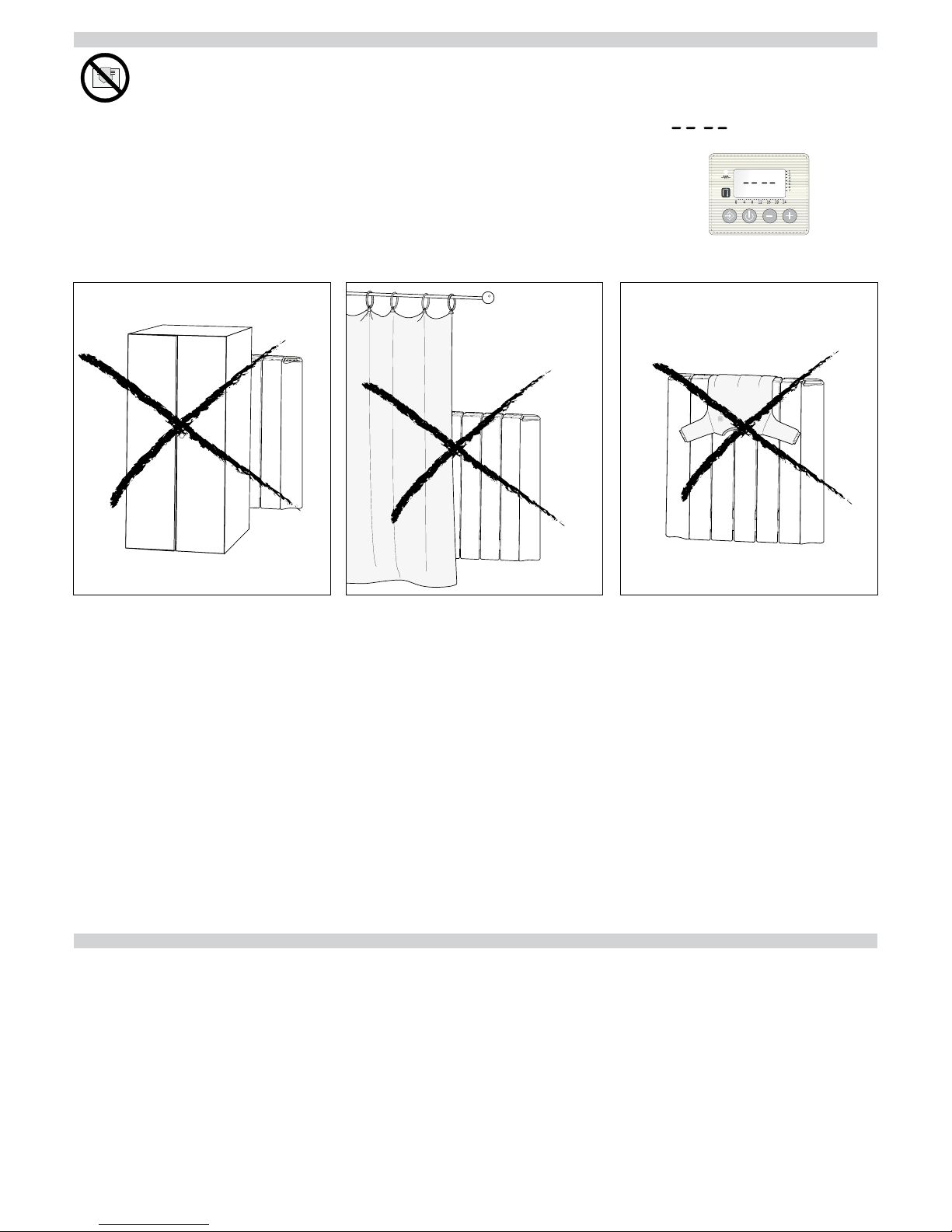

In order to avoid overheating the appliance, DO NOT COVER THE RADIATOR with clothing, pieces of cloth or other objects
.
IMPORTANT: in stand-by mode the electrical supply of the radiator is on and the display shows four segments
The radiator must never be:
- partially or totally covered
- in direct contact with or a short distance from curtains, furniture, etc.
The radiator must never be installed:
- in an alcove
- less than 10 cm. from the corners of the room
- beneath a power point
- on a shelf
The radiator must be mounted on the wall using the standard mounting brackets included.
All work required on the appliance must be performed by a qualied professional.
If the power cord is damaged, it must be replaced by the Manufacturer, after sale service or similarly qualied personnel in order to avoid any
hazard.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsibke for their safety.
Children should be supervised to ensure that they do not play with the appliance.
4. INSTALLATION
To obtain the best results from your appliance in terms of thermal output and comfort, we recommend installing the radiator under a window or
near areas of the space to be heated with high thermal dispersion, whenever possible.
The radiator must be placed with the control unit at the bottom right.
The radiator must not be installed in an alcove or beneath a power point.
Curtains, furniture and objects which may obstruct proper heat distribution must be placed a minimum of 50 cm. from the front of the radiator.
Maintain a minimum space of 120 mm between the lower part of the radiator and the ground

5
4.1 Mounting the radiator to the wall
The radiator can be mounted on the wall using the mounting brackets included with the appliance.
The mounting system consists of:
A
A
B
B
DEF
DEF
6 éléments 9 éléments 11 éléments
CE
CE
BF
BF
AG
AG
1000 W
5 éléments
CD
CD
800 W 1500 W 2000 W
min. 120 mm min. 120 mm
C
C
G
G
axecentral du radiateuraxecentral du radiateur
800 W, 1500 W, 2000 W 1000 W
500 h bracket x2 x4
3 9 x 8 Slotted cheese
head screw - at tip
x4
Screw anchor
Locking
element x2
Paper
template x1
A
A
B
B
DEF
DEF
6éléments 9 éléments 11éléments
CE
CE
BF
BF
AG
AG
1000W
5éléments
CD
CD
800W 1500W 2000W
min.120 mm min.120 mm
C
C
G
G
axecentralduradiateuraxecentralduradiateur
800W, 1500W, 2000 W 1000W
A
A
B
B
DEF
DEF
6 éléments 9 éléments
11 éléments
CE
CE
BF
BF
AG
AG
1000 W
5 éléments
CD
CD
800 W 1500 W
2000 W
min. 120 mm min. 120 mm
C
C
G
G
ax
ecentral du radiateur
axecentral du radiateur
800 W, 1500 W, 2000 W
1000 W
Number of sections/Heat output
5/800W 6/1000W 9/1500W 11/2000W
Drilling points D - E D - F B - G B - G
Fitting the brackets:
2) Using a pointed tool, mark the centres of the four holes to be
drilled. Each radiator model has a dierent position, indicated by
the letters on the template (e.g. for a 9-element radiator, drill at the
letters B and G).
1) Fix the paper template to the wall using paper tape; be sure the
bottom edge rests on the completed oor to ensure compliance
with the minimum distance of 120 mm from the ground.
3) Remove the paper template and drill the wall on the marks
previously made; use a 8 mm drill.
4) Insert the anchor screws into the holes.

6
Number of sections/Heat output
5/800W 6/1000W 9/1500W 11/2000W
Drilling points C - D C - E B - F A - G
5) Screw the two brackets equipped with the locking elements
previously secured to the bracket using only one of the two screws.
6) Place the radiator onto the brackets.
7) Tighten the second screw of the brackets locking elements in
order to completely secure the radiator.
- Check for stable installation.

7
5. ELECTRICAL CONNECTIONS
IMPORTANT
During installation, maintenance and cleaning, the appliance must be disconnected from the power supply.
The electronic thermostat must be connected to a 230 VAC power supply only. Follow the colours indicated:
Brown Phase
Blue or grey Neutral
Black Pilot Wire
Note:
The pilot wire is used only in radiators sold in France.
If the (black) pilot wire is not in use, regulations require that it be isolated. Never connect it to the earth lead for any reason.
A multi-pole circuit breaker must be installed. The distance between the contacts must be at least 3 mm.
The appliance’s power circuit must be protected by a high sensitivity dierential protection device.
The power cord must be connected to the power supply using a shunt box located 25 cm from the ground, without the use of an electrical plug.
Never insert metal objects into or attempt to pierce the side of the radiator containing the regulation system (right side).
If the power cord is damaged, it must be replaced by a qualied electrician only.
5.1 Details of bathroom installation
The appliance must be installed according to current regulations and laws in the country of use.
The radiator is class II and has IP24 electrical protection.

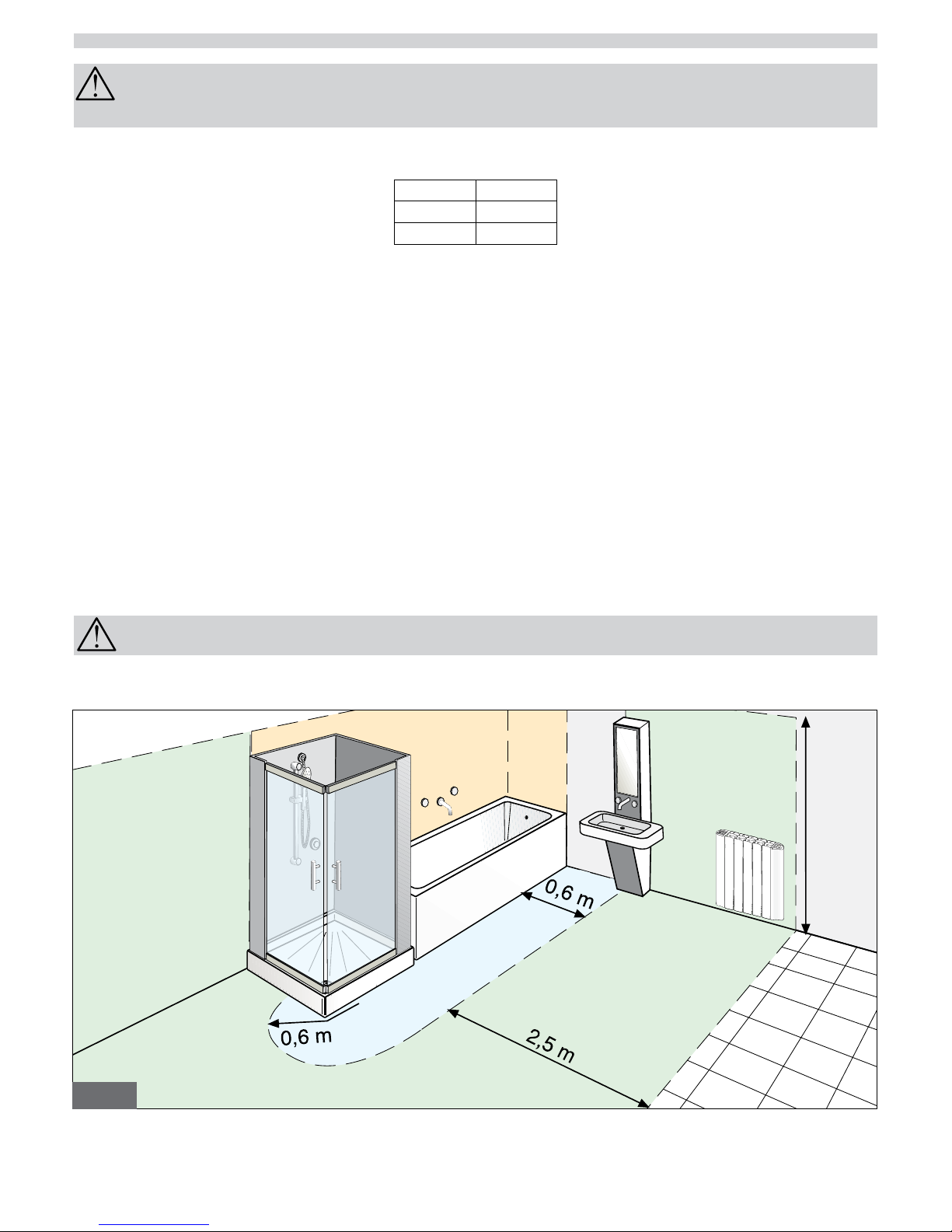

In bathrooms, it can be installed in areas 2 and 3 (see gure 1) on condition that the control device is not within reach of people using the shower
or bathtub.
The radiator must not be connected to the earth lead.
In the bathroom, protect the power line with a 30 mA high sensitivity dierential device
Install a multi-pole circuit breaker. The distance between the contacts must be at least 3 mm.
2,5 m
Area 0
Area 0
Area 1
Area 2
Area 3
g. 1
Area types in bathrooms

8
6. REGULATION AND PROGRAMMING
6.1 Turning the radiator on

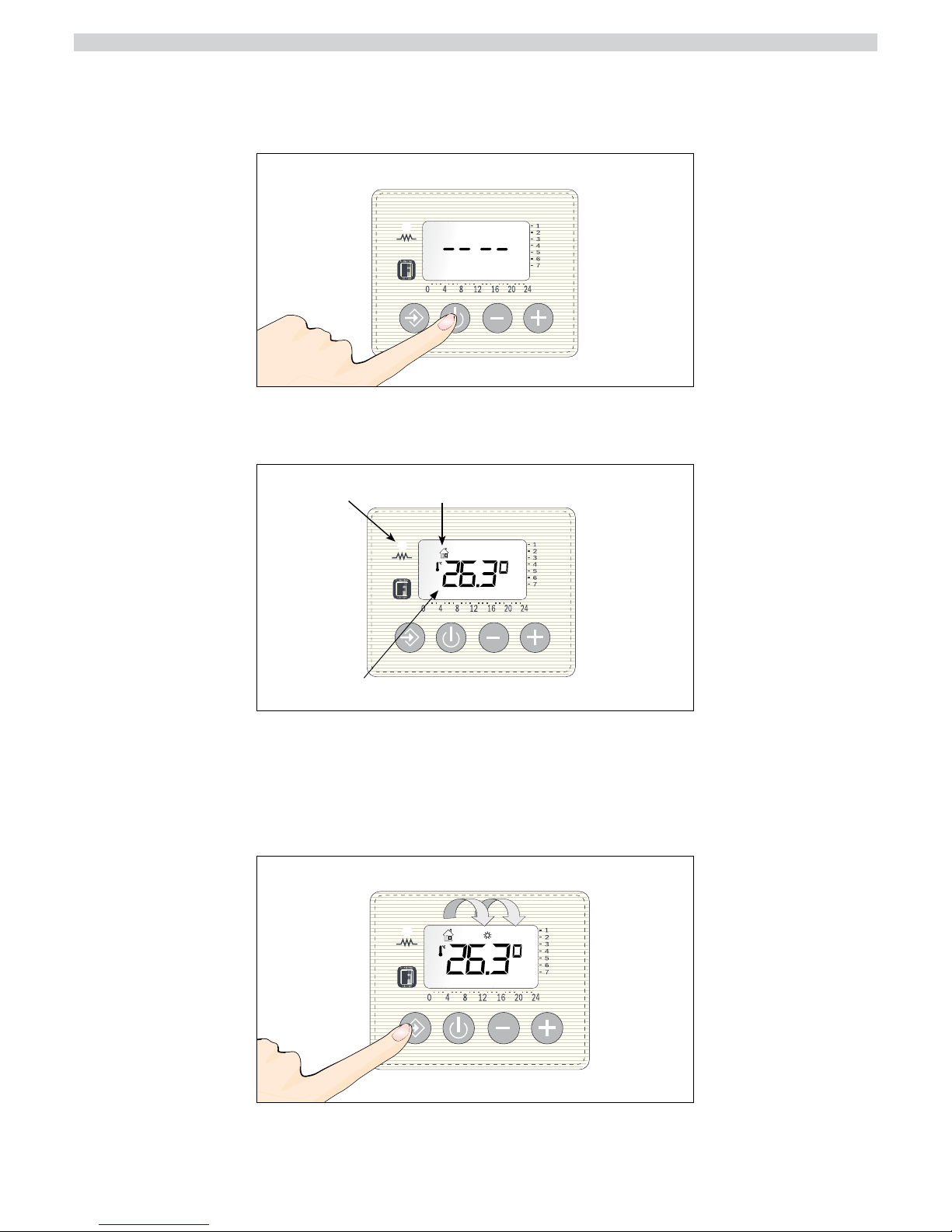

The appliance is regulated using four keys, as shown in the gure. When the appliance is in stand-by mode the display shows four segments.
To turn the radiator on, press the‘on/o’ key, as shown in the following gure:
The radiator has various operating modes, as shown in the table on page 12.
When the radiator is in clock mode, the screen shows the time; in the other modes it shows the programmed temperature. A small icon indicates
the current mode.
There is an LED light on the control panel: when the system is in heating mode and the room temperature has not yet reached the desired
temperature programmed by the user, the LED is RED. Once the room reaches the programmed temperature, the LED turns GREEN.
6.2 Changing the mode

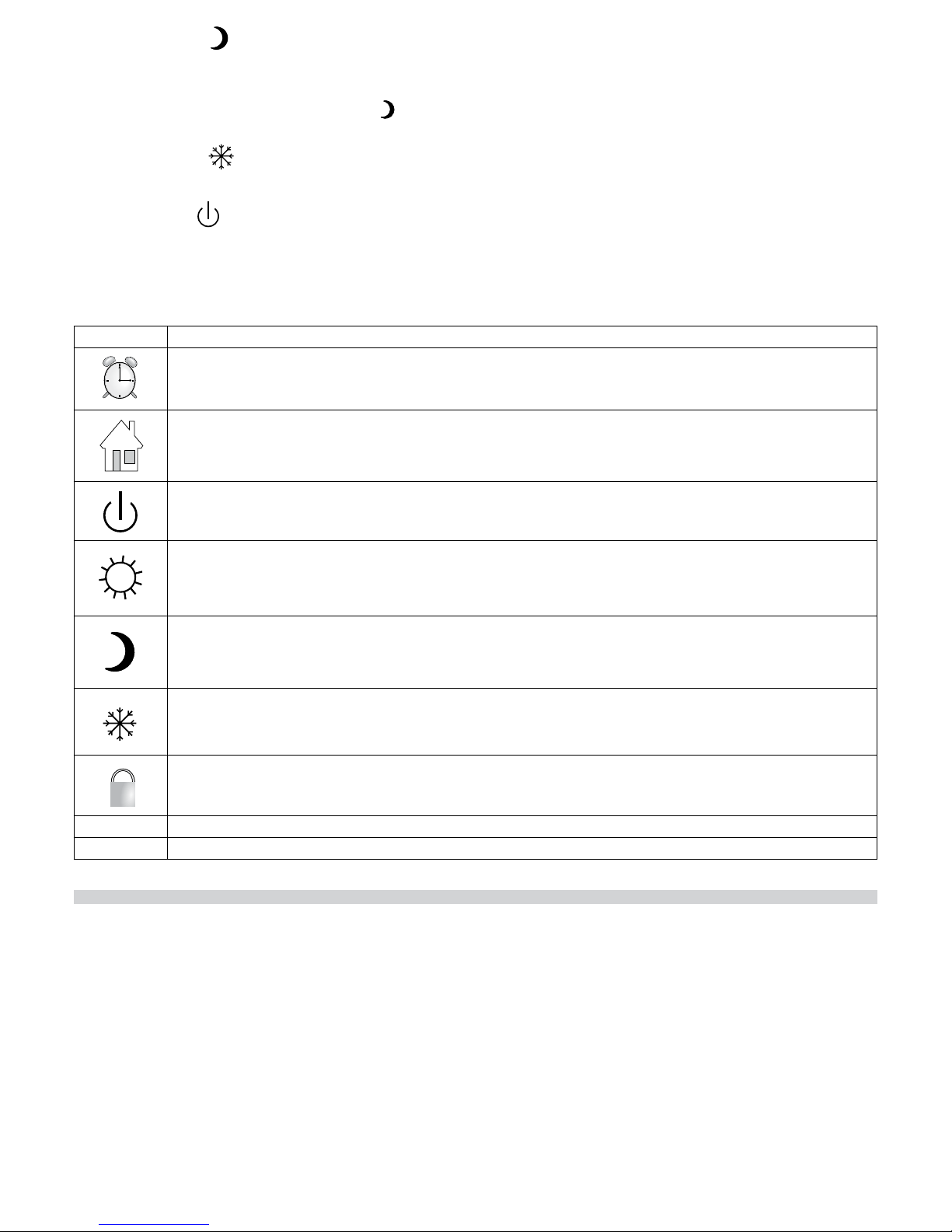

Press the‘mode’key to select the desired mode:
ICON INDICATING THE
SELECTED MODE
PROGRAMMED TEMPERATURE
LED

9
6.3 Programming TH and TL temperatures
It is possible to programme two separate temperature levels: TH is the desired ambient temperature during operation in Comfort and Pilot Wire
mode or when programming; TL is the ambient temperature in Night-time Reduction mode.
These two temperature levels can be programmed using the plus and minus keys. A blinking thermometer icon on the screen indicates that the
temperature is being programmed.
TH can be programmed in Comfort mode, TL can be programmed in Night-time Reduction mode.
The two temperature levels are also used when programming:
02468101214161820
TL
TH
THERMOMETER
6.4 Setting times and weekly programming

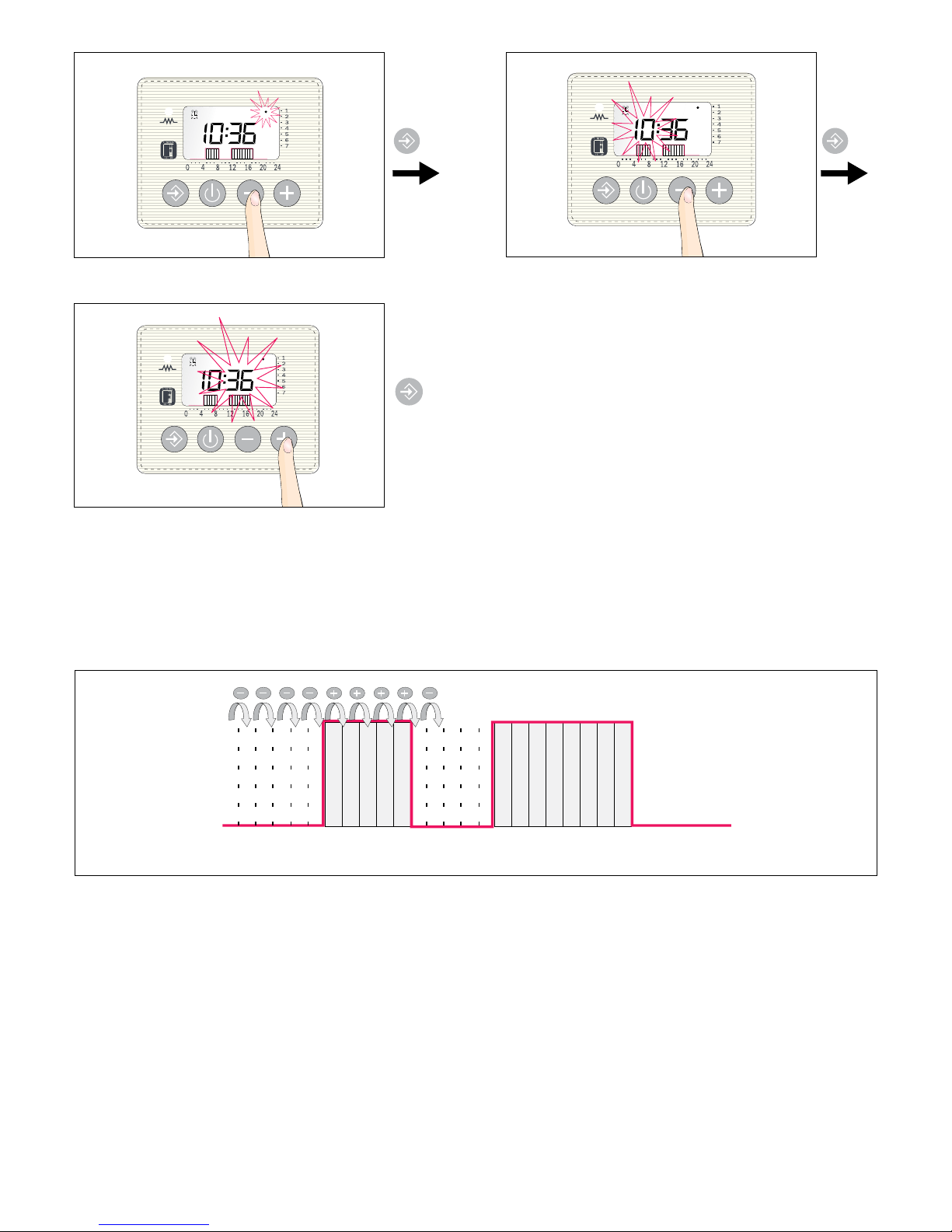

Press the‘stand-by’ and ‘mode’keys at the same time and hold for three seconds.
A dot will blink on the screen next to the days of the week (1-7). The current day can be selected using the plus or minus key. Use the ‘mode’ key to
conrm the selection.
The number corresponding to the hour will blink. Programme the correct time using the plus and minus keys. Conrm the selection with the ‘mode’
key.
The number corresponding to the minutes will blink. Programme the correct minutes using the plus and minus keys. Conrm the selection with the
‘mode’ key.
TEMPERATURE
TIME
TH is the desired ambient temperature during the time periods selected; TL is the (reduced) desired temperature outside the selected time periods.

10
You can now assign a programme to each day of the week. When a segment appears between two times on the programming bar (at the bottom
of the screen), this indicates that the TH temperature level has been selected for this period. The absence of a segment indicates that during this
period, the radiator will keep the temperature at the TL level.
Starting from day 1, select the times when the TH temperature is desired. Pressing the + key activates the segment on the screen, and therefore TH
as well. Pressing the - key deactivates the segment and the programmed temperature will be equivalent to the TL level.
PROGRAMME DAY PROGRAMME HOUR
PROGRAMME MIN.
04 812 16 20 24
Conrm the selection using the ‘mode’ key.
This same process must be repeated for each day of the week (1-7).
N.B.
This model of radiator is characterized by its high thermal inertia: it accumulates heat while the unit is on, and this heat is released when
the unit is o. This means the radiator programmed switch-on time does not correspond to the time when the radiator releases heat in the
air: there is a dierence of about 40 minutes.

11
02468101214161820
TL
TH
6.6. Description of operating modes
6.6.1 Programming mode
In this mode, the ambient temperature remains at the TH or TL level, depending on the times set by the user.
6.6.2 Pilot Wire mode (for radiators installed in France only)
This mode enables the user to control the radiator from a remote location.
1. Press the‘mode’key until the screen displays the icon
2. Select the desired temperature using the + and - keys. The operating mode will be selected by the Pilot Wire control centre.
6.6.3 Comfort mode
This is the normal mode when the radiator is in use, keeping the ambient temperature at the programmed level.
1. Press the‘mode’key until the screen displays the icon
2. Select the desired temperature using the + and - keys.
In order to unlock the keypad, press and hold both the plus and minus keys again for three seconds
THE ICON SHOWS THAT THE KEYPAD IS
LOCKED
6.5 Child lock
The appliance can be locked to prevent improper or accidental use, to protect children, for example. In order to activate the lock, press and hold
the plus and minus keys at the same time for three seconds: the keypad will be locked.

12
7. CLEANING THE RADIATOR
For safety reasons, disconnect the power supply before cleaning the appliance.
Cleaning must be done when the radiator is turned o and is cold.
Do not use abrasive or corrosive products to clean the body: use soapy water, for example, and dry the body with a soft cloth.
Clean plastic parts, controls and the humidier with a dry cloth only and avoid contact with chemicals or alcohol.
- Summary of operating modes:
Mode Description
Programme:
Daily and weekly programming which sets the two temperature levels (Comfort and Night-time) dened by the user for each
time of day
Pilot wire:
The temperature depends on the Pilot Wire control (for radiators installed in France only)
Stand-by:
The appliance is in stand-by
Comfort:
Comfort status and the temperature which the environment must be kept at are transmitted
Night-time:
Night-time status and the temperature which the environment must be kept at are transmitted
Anti-freeze:
Minimum safety temperature: a xed value equivalent to 7ºC is transmitted
Keypad lock:
Pressing on the keypad does not change functions; the keypad is not active
Err S Temperature sensor is faulty
6.6.4 Night-time mode
When this operating mode is selected, the radiator will keep the ambient temperature at the programmed TL temperature. The desired TL
temperature is programmed as follows:
1. Press the‘mode’key until the screen displays the icon
2. Select the desired TL temperature using the + and - keys.
6.6.5 Anti-freeze mode
When this mode is selected, the ambient temperature will not drop below 7ºC.
6.6.6 Stand-by mode
The radiator is in stand-by mode.
Commands sent by the Pilot Wire are disabled.

1313
8. TROUBLESHOOTING
If the appliance stops working, do not use it: disconnect from the power supply and contact only a qualied technician who is authorized to work
on this type of product.
If the power cord is damaged, it must be replaced by the Manufacturer, after sale service or similarly qualied personnel in order to avoid any
hazard.
The manufacturer accepts no responsibility for harm to persons, animals, and objects which may result from untrained handling of or improper
work on the radiator.
TABLE OF TECHNICAL PROBLEMS
PROBLEM RADIATOR STATUS POSSIBLE CAUSE SOLUTION
The radiator does not heat up LCD not lit Lack of power supply Verify that power is owing to the
appliance
The radiator does not heat up LCD lit in Programme mode The radiator is set for the night-
time level Check programmed settings
The radiator does not heat up LCD lit in Comfort or Programme
mode
Malfunction in the electrical
resistor or regulation board
Contact technical support for
repair
The radiator does not heat up LCD lit in Comfort / Programme /
Night-time or Anti-freeze mode
The ambient temperature is
higher than the programmed level
Check the temperature
programmed
The room does not get hot enough
in Comfort mode LCD lit in the desired mode The radiator is not large enough
for the size of the room
Replace the radiator with one
with greater output
Ineective ambient temperature
regulation Err S The temperature sensor is faulty Contact technical support for
repair
9. WARRANTY
The electrical system of the radiator is guaranteed two years from the date of purchase against manufacturing defects.
Cast aluminium structure is guaranteed for 10 years from the date of purchase.
The warranty will be taken into consideration on presentation of the dated invoice.
The installation must comply with applicable standards and regulations.
Wear parts, expendable materials and accessories are excluded from the warranty as well as any breaking due to transport and/or unauthorised
disassembling.
10. ENVIRONMENT
The symbol placed on the appliance and shown here indicates that the product is subject to separate collection of
electrical appliances.
At the end of its useful life, it cannot be disposed of together with common municipal solid waste, but must be
disposed of at a specic collection centre for the area or be given to the distributor when a new appliance of the
same type is purchased for the same use. Separate collection of electrical and electronic appliances is part of a policy
aimed at defending, protecting and improving the quality of the environment, and at limiting the harmful eects on
human health caused by the presence of substances considered hazardous according to the classication applied in
European directives or an unauthorised use of them or their parts.
Warning! Improper disposal of the appliance is subject to penalties.

14
DECLARATION OF CONFORMITY
With the present,
FONDITAL S.p.A.
with headquarters at
via Cerreto 40, 25079 Vobarno (BS), Italy
hereby declares that the
INERTIA OILFREE
ELECTRIC RADIATORS
Model
AL-ADVANCE
manufactured by FONDITAL S.p.A.
are manufactured in accordance with European directives
- DIRECTIVE 2006/95/CE of 12 December 2006 on the harmonisation of the laws of Member States relating to Electrical
Equipment designed for use within certain voltage limits (low voltage)
- DIRECTIVE 2004/108/CE, for electromagnetic compatibility
- DIRECTIVE 2002/96/CE of 27 January 2003 on waste from electrical and electronic equipment (WEEE).
and in accordance with the following harmonized regulations:
- EN 60335-1 (2004-04): safety of electrical equipment for domestic or similar uses. Part 1: General regulations.
- EN 60335-2-30 (2006-05): safety of electrical equipment for domestic or similar uses. Part 2: Specic regulations for electrical
heating appliances for premises.
- EN 55014-1: 2000 + A1: 2001 + A2: 2002
- EN 61000-3-2: 2000
- EN 61000-3-3: 1995 +A1: 2001
- EN 55014-2: 1997 + A1: 2001
- EN 61000-4-2: 1995 +A1: 1999 +A2: 2001
- EN 61000-4-4: 1995 +A1: 2001 +A2: 2002
- EN 61000-4-5: 1995 +A1: 2001
- EN 61000-4-6: 1996 +A1: 2001
- EN 61000-4-11: 1994 +A1: 2001
FONDITAL S.p.A.
For the Management
Technical Oce Manager
Ing. Roberto Cavallini
Vobarno (Italy), 2013
11. DECLARATION OF CONFORMITY

15
Notes

16
Fondital S.p.A.
25079 VOBARNO (Brescia) Italy - Via Cerreto, 40
Tel. [phone] - Fax. [phone]
e mail: [e-mail] - www.fondital.com
The manufacturer reserves the right to modify the products
as it deems necessary and useful, without affecting their basic features.
Uff. Pubblicità Fondital IST 03 F 047 - 01 Settembre 2013 (09/2013)
0ZLIBISV05
