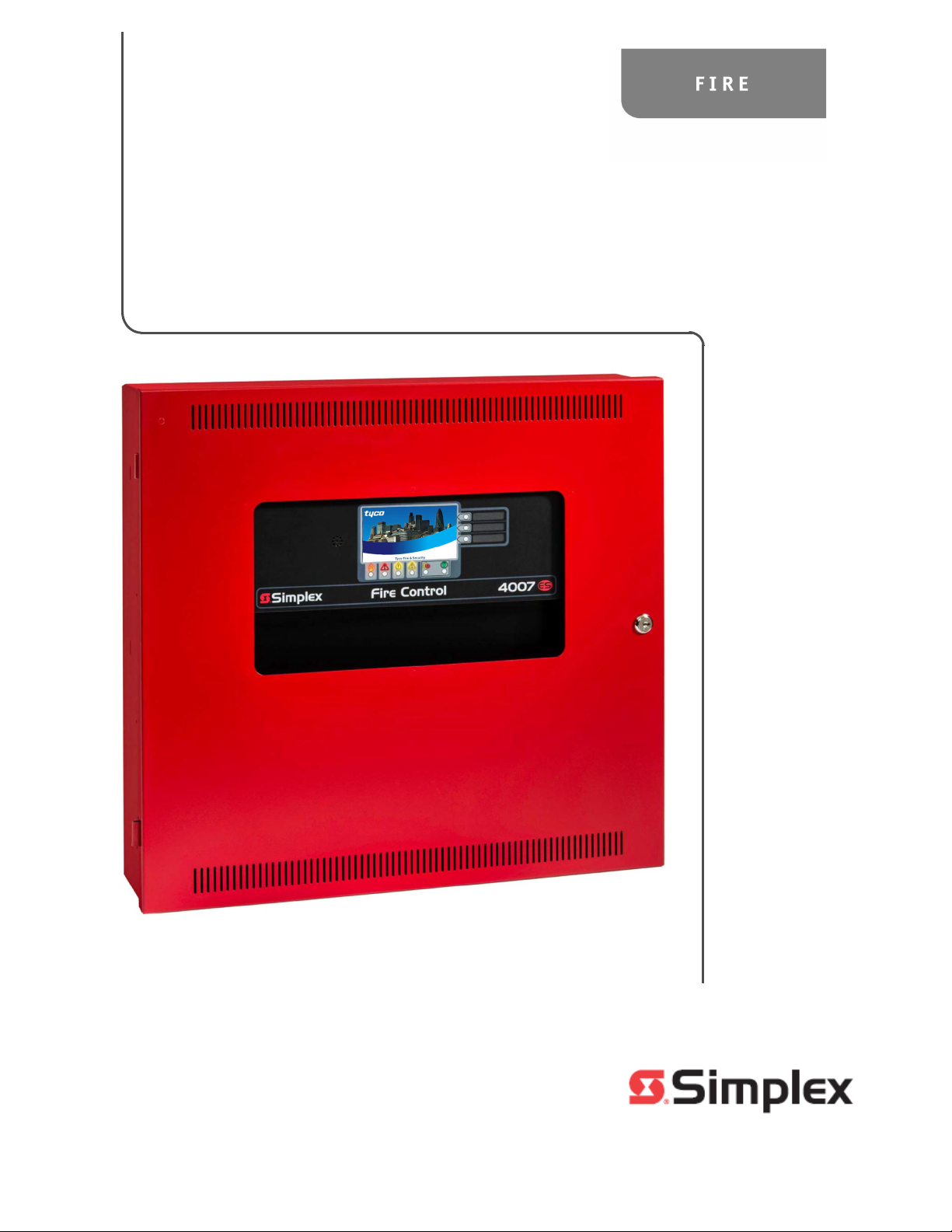

Simplex 4007ES Panels Operating and maintenance manual

4007ES and 4007ES Hybrid
Fire Alarm Systems
Programmer’s
Manual
579-1167
Rev. D

i
Copyright, Trademarks, Cautions, Warnings, and Regulatory Info
Copyrights
and
Trademarks
©2015-2016 Tyco Fire Protection Products. All rights reserved.
Specifications and other information shown were current as of publication and are subject to
change without notice. TYCO, SIMPLEX, and the product names listed in this material are
marks and/or registered marks. Unauthorized use is strictly prohibited.
Cautions
and
Warnings
READ AND SAVE THESE INSTRUCTIONS- Follow the instructions in this installation manual. These instructions
must be followed to avoid damage to this product and associated equipment. Product operation and reliability
depend upon proper installation.
DO NOT INSTALL ANY SIMPLEX® PRODUCT THAT APPEARS DAMAGED- Upon unpacking your Simplex
product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim
with the carrier and notify an authorized Simplex product supplier.
ELECTRICAL HAZARD - Disconnect electrical field power when making any internal adjustments or repairs. All
repairs should be performed by a representative or authorized agent of your local Simplex product supplier.
STATIC HAZARD - Static electricity can damage components. Handle as follows:
• Ground yourself before opening or installing components.
• Prior to installation, keep components wrapped in anti-static material at all times.
EYE SAFETY HAZARD - Under certain fiber optic application conditions, the optical output of this device may
exceed eye safety limits. Do not use magnification (such as a microscope or other focusing equipment) when
viewing the output of this device.
FCC RULES AND REGULATIONS – PART 15 - This equipment has been tested and found to comply with the limits for a Class A
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
SYSTEM REACCEPTANCE TEST AFTER SOFTWARE CHANGES - To ensure proper system operation, this product must be
tested in accordance with NFPA-72, after any programming operation or change in site-specific software. Re-acceptance testing is
required after any change, addition or deletion of system components, or after any modification, repair or adjustment to system
hardware or wiring.
All components, circuits, system operations, or software functions known to be affected by a change must be 100% tested. In addition, to ensure that
other operations are not inadvertently affected, at least 10% of initiating devices that are not directly affected by the change, up to a maximum of 50
devices, must also be tested and proper system operation verified.
IMPORTANT: Verify FACP System Programmer, Executive, and Slave Software compatibility
when installing, or replacing system components. Refer to the Technical Support
Information and Downloads website for compatibility information.

iii
Table of Content
Chapter 1 Getting Started ...................................................................... 1-1
Introduction .................................................................................................1-1
Requirements and Compatibility .................................................................1-1
Downloading the Software ..........................................................................1-1
Installing the Software .................................................................................1-2
Starting the Programmer .............................................................................1-2
Chapter 2 User Interface ........................................................................ 2-1
Introduction .................................................................................................2-1
Menus .........................................................................................................2-1
Toolbar Icons ..............................................................................................2-4
Tabs and Sub-Tabs .....................................................................................2-5
Status bar ....................................................................................................2-5
Chapter 3 Working with Jobs ................................................................ 3-1
Introduction .................................................................................................3-1
Creating Jobs ..............................................................................................3-1
Opening Existing Jobs ................................................................................3-2
Setting Job Preferences ..............................................................................3-2
Job Notes ....................................................................................................3-3
Saving Jobs .................................................................................................3-3
Building a Job ..............................................................................................3-3
System Requirements .....................................................................................3-4
Archiving a Job ............................................................................................3-4
Backing Up a Job ........................................................................................3-4
Chapter 4 Panel Information and Configuration ................................. 4-1
Introduction .................................................................................................4-1
In this chapter ..............................................................................................4-1
Notice to users, Installers, AHJ, and other Involved Parties .......................4-1
Panel Information ........................................................................................4-1
System Options ...........................................................................................4-2
User Access Level Configuration ................................................................4-7
Passcode Configuration ..............................................................................4-8
Features Configuration ................................................................................4-8
Chapter 5 Specifying Hardware Components ..................................... 5-1
Introduction .................................................................................................5-1
Hardware Tab Overview .............................................................................5-1
Adding Hardware ........................................................................................5-2
Adding a City/Relay Card ............................................................................5-3

iv
Table of Content
Adding the Additional IDNet Loops .............................................................5-3
Removing Hardware ...................................................................................5-3
Editing Properties ........................................................................................5-3
Annunciator Numbers .................................................................................5-4
Annunciator Number Sharing Rules ............................................................5-4
Editing Basic Card Properties .....................................................................5-5
Chapter 6 Editing Standard Component Properties ........................... 6-1
Introduction .................................................................................................6-1
Accessing Properties ..................................................................................6-1
Editing the Unit Properties ..........................................................................6-1
Editing the CPU ...........................................................................................6-1
Editing the Color User Interface ..................................................................6-3
Editing the IDNAC Power Supply ................................................................6-5
Editing the IDNET Multiloop ........................................................................6-7
Editing the NAC Power Supply ...................................................................6-9
Editing the Zone/Relay Card .....................................................................6-11
Editing the Serial DACT Card Per Point ....................................................6-13
Editing the Event DACT Card ...................................................................6-15
48-LED Module .........................................................................................6-17
Chapter 7 Editing TrueAlert Devices Properties ................................. 7-1
Introduction .................................................................................................7-1
Point Editing for TrueAlert Device .................................................................7-2
TrueAlert ES AO Appliance Point Editing ...................................................7-2
TrueAlert ES VO Appliances Point Editing ..................................................7-3
TrueAlert ES VO-H Appliances Point Editing ..............................................7-4
TrueAlert ES VO-L Appliances Point Editing ..............................................7-5
TrueAlert ES VO-LH Appliances Point Editing ............................................7-6
TrueAlert ES AV Appliance Point Editing ....................................................7-7
TrueAlert ES AV-H Appliance Point Editing ................................................7-9
TrueAlert ES AV-L Appliance Point Editing ...............................................7-11
TrueAlert ES AV-LH Appliance Point Editing ............................................7-13
ISO Options ...............................................................................................7-15
Repeater Options ......................................................................................7-15
DCAI Options ............................................................................................7-16
TrueAlert STRB Appliances Point Editing .................................................7-16
TrueAlert Horn Appliance Point Editing .....................................................7-17
TrueAlert A/V Appliances Point Editing .....................................................7-18

v
Table of Content
Chapter 8 Viewing, Adding, and Editing Lists ..................................... 8-1
Introduction .................................................................................................8-1
List Tab .......................................................................................................8-2
Sort Function ...............................................................................................8-2
Custom Label Spell Check ..........................................................................8-2
Managing Points .........................................................................................8-3
Turning Autogen Off and On from the General List Tab .............................8-3
Basic Operations .........................................................................................8-4
Adding a User-Defined List .........................................................................8-4
Editing an Existing User-Defined List ..........................................................8-4
Latching Supv Verification ...........................................................................8-5
WalkTest™ ..................................................................................................8-6
Elevator Recall List .....................................................................................8-9
Zone Lists ..................................................................................................8-10
Chapter 9 Custom Control .................................................................... 9-1
Introduction .................................................................................................9-1
Custom Control Overview ...........................................................................9-1
Role of Lists and Pseudo Points .................................................................9-2
Anatomy of a Custom Control Equation ......................................................9-2
Using a Ladder Logic Diagram to Evaluate an Equation ............................9-3
Custom Control Window .............................................................................9-5
Selecting User Program ..............................................................................9-6
Adding Input Statements .............................................................................9-7
Adding Output Statements ..........................................................................9-8
Floor Above/Floor Below Wizard .................................................................9-8
Selecting Floor Tab .....................................................................................9-9
General Information ..................................................................................9-10
Specifying Floor Names ............................................................................9-11
Specifying Input and Static Points .............................................................9-11
Using the Selective Signaling Wizard .......................................................9-12
Selecting Selective Signaling Wizard Tab .................................................9-12
Setting General Options ............................................................................9-13
Setting Zone Names .................................................................................9-13
Linking Initiating and Notification Points ....................................................9-14
Using the Sounder/Relay Base Wizard .....................................................9-15
Activating Base on Alarm ..........................................................................9-15
Common Ground Fault LED Control .........................................................9-17
Suppression Release Introduction ............................................................9-18
Suppression Release General Capabilities ...............................................9-18
Suppression Release Device and Point Types .........................................9-20
Suppression Release Signal Responses ..................................................9-22
Suppression Release Use Cases .............................................................9-22

vi
Table of Content
Step 1. Defining Hazard Area ...................................................................9-27
Step 2. Specifying Initial Data and Options ...............................................9-28
Step 3. Specifying Abort Switch Operation ...............................................9-29
Step 4. Setting Timer Options ...................................................................9-30
Step 5. Specifying Hazard Area Points .....................................................9-31
Deleting Hazard Area ................................................................................9-34
Editing Existing Hazard Area ....................................................................9-34
Scheduling Options for Self-Test Wizard ..................................................9-35
Step 1. Creating a New Self-Test ..............................................................9-35
Step 2. Selecting Start Time and Frequency of the Self-Test ...................9-36
Step 3. Selecting Self-Test Triggering Point and Point List ......................9-37
.
Chapter 10 File Transfer ...................................................................... 10-1
Introduction ...............................................................................................10-1
USB File Transfer ..........................................................................................10-2
USB File Transfer ......................................................................................10-2
Files Transferred .......................................................................................10-3
IP File Transfer ...............................................................................................10-4
IP File Transfer ..........................................................................................10-4
File Transfer Connection to the PC ...........................................................10-4
Starting the IP File Transfer Utility ............................................................10-4
IP Communication Parameter Settings .....................................................10-5
Downloadable Files ...................................................................................10-5
Download Tab ...........................................................................................10-6
Upload/Reports Tab ..................................................................................10-8
Type of Transfer ........................................................................................10-9
Chapter 11 Port Vectoring ................................................................... 11-1
Introduction ...............................................................................................11-1
Choosing Event Groups to Route .............................................................11-1
Chapter 12 AMON Point Type ............................................................. 12-1
Introduction ...............................................................................................12-1
AMON Pt Type Tab ...................................................................................12-1
Adding a Point Type ..................................................................................12-2
Editing a Point ...........................................................................................12-4
Deleting a Point .........................................................................................12-4

vii
Table of Content
Chapter 13 Adding or Editing Network Information ......................... 13-1
Introduction ...............................................................................................13-1
Role of the Network Programmer ..............................................................13-1
Public Versus External Points ...................................................................13-1
General Network Programming Guidelines ...............................................13-1
4007ES Programmer Network tab ............................................................13-2
Gaining Access to the Network Information ..............................................13-3
Editing the Network Name and Node Number ..........................................13-4
Procedure to Declare Public Points ..........................................................13-5
Procedure to Declare External Points .......................................................13-5
Programming Network Alarm Silence .......................................................13-6
Programming Central Network Silence .....................................................13-7
Programming Distributed Network Silence ...............................................13-8
Programming Central Network Reset .......................................................13-9
Programming Distributed Network Reset ................................................13-10
Distributed Configuration .........................................................................13-11
Chapter A ULC Programming Requirements ..................................... A-1
Introduction ................................................................................................ A-1
Required Operations ...................................................................................... A-2
Introduction ................................................................................................ A-2
Procedure ................................................................................................... A-2
Alarm Cutout Timer Feature .......................................................................... A-4
Introduction ................................................................................................ A-4
Enabling Alarm Cutout Timer ..................................................................... A-4
Programming the LED ................................................................................ A-4
Releasing Specific Controls and Indications ............................................... A-7
Introduction ................................................................................................ A-7
Pre-Discharge LED Programming (Red LED) ............................................ A-7
Discharge LED Programming (RED LED) ................................................. A-9
Abort Switch Active .................................................................................. A-10
Abort Switch Trouble during Normal Supervisory Conditions .................. A-10
Releasing Service Signal Silence Programming - Optional
(Pushbutton and Yellow LED) .................................................................. A-13

1-1
Chapter 1.
Getting Started
Introduction The 4007ES Panel Programmer is a software program designed to create “jobs” that are used
to configure and program the 4007ES and 4007ES Hybrid Fire Alarm Control Panel (FACP).
The 4007ES Panel Programmer must be installed on a computer that can be either physically
or remotely connected to the panel.
In this chapter
Requirements
and Compatibility
Computer requirements:
The Programmer must be installed on a Computer that has the following requirements:
• Windows XP with SP3 or a more recent operating system.
• Removable media for job archives and backups.
• 1 CD-ROM drive, for access to the documentation CD.
• 1 Ethernet port or optionally 1 serial port & assorted cables for communication with the ES
Panel.
Programmer Requirements:
To install and open the Programmer, the user must have the following:
• Internet access in order to download the software.
Downloading the
Software
To download the 4007ES panel programmer software:
1. Connect to Internet.
2. Connect to the simplex-fire.com Tech Support website (registration is required).
3. Navigate to the Distributor Support, then Technical Support page.
4. Once in the Software Download area, click the 4007ES Hybrid. This should be the latest
revision of the ES Programmer for the 4007ES panel.
5. Once the file is loaded a security warning will ask you if you wish to proceed. Click Run.
6. An authorization request to copy the file to your computer’s C Drive appears. Click OK.
The file 4100ESProg will then start to download to the C directory of your computer.
Requirements and Compatibility .....1-1 Installing the Software.....................1-2
Downloading the Software ..............1-1 Starting the Programmer..................1-2

1-2
4007ES Panel Programmer Manual (579-1167)
Getting Started
Installing the
Software
To install the software:
1. Go to the computer C Drive and open the 4100ESProg folder.
2. Double click on the ES programmer executable file (.exe).
3. The Software Licensing agreement appears. Read the agreement and click Next to continue
the installation.
4. A prompt window requesting the user to specify the destination folder for the programmer
files appears.
• Click on the Next button to accept the default destination. It is recommended that you
choose the default folder Simplex. When the correct entry is specified, click on Next to
continue.
5. Progress indicators appear, displaying the progress of the file copy operations.
6. The next prompt requests that the user restart the computer.
Note: Before restarting the computer be sure that all open files have been saved.
7. Click on Finish to restart and complete the installation.
Starting the
Programmer
To Start the ES Panel Programmer:
1. Open the Windows Start menu.
2. Click on the All Programs menu.
3. Click on the Simplex menu item.
4. Click on the version of the ES Panel Programmer you want to open and a menu appears.
5. To start the Programmer select ES Panel Programmer from the menu.
Note: The following options are also available from the ES Panel Programmer menu:
• Compare: This option allows the user to compare job revisions.
• IP File Transfer: This option opens the IP File Transfer menu.
• Job builder: Select this option to build a Job.
• Tera Term: This option opens the Tera Term connection.
• Uninstall ES Panel Programmer: Click on this option to uninstall the ES Panel Programmer.
Figure 1-1. Starting the ES Panel Programmer
See page 3-1 for information on how to create a new job.

2-1
Chapter 2.
User Interface
Introduction The user interface has menus, icons, tabs, sub-tabs, and a status bar that help the user navigate
through the programmer and create jobs.
The following sections detail the user interface and the options associated with each item.
Figure 2-1. 4007ES Programmer Interface
In this chapter
Menus The menus are located at the top of the ES Panel Programmer:
Consult the following tables for the description of the menu items.
Icons
Tabs
Sub-Tabs
Status Bar
Menus
Toolbar
Menus ..............................................2-1 Toolbar Icons ...................................2-4
Tabs and Sub-Tabs...........................2-5 Status bar..........................................2-5
Table 2-1. File Menu
Menu Item Description Menu Item Description
New Creates a new job. Archive Archives the job.
Open Opens an existing job. Backup Backs up the job.
Close Closes the current job. Restore Restores the previous saved version of
the job.
Save Saves the current job. Export Allows the user to:
• Export data to service sales tools
• Export user points to text file
• Export XLG point data
Save as Allows you to copy or rename the
current job.
Reports Generates a digital job report. Import Allow the importation of user points
from another file.
View report Brings up the latest report. DB Compare Compares the job to previous revisions
of itself.
Print set up Configures the hard copy print
specifications.
Current Job The name of the current job.
Print Label Prints labels for the FACP cards. Exit Exits the current job.
Continued on next page

2-2
4007ES Panel Programmer Manual (579-1167)
User Interface
Menus Table 2-2. Edit Menu
Table 2-3. View Menu
Table 2-4. Tools Menu
Continued on next page
Menu Item Description
Cut Copies and deletes the selected content.
Copy Copies the selected content.
Paste Inserts the previously cut or copied material into the selected area.
Preferences Allows the user to configure certain aspects of the programmer.
Menu Item Description
Revision History Allows the user to enter notes about the changes made for each revision.
*Tab List* Click on the option to open the corresponding tab. The choices are:
• Panel: Allows the user to access the following sub-tabs: General Info, System
Options, Access Levels, Passcode Assignments, and Feature.
• Hardware: Allows the user to add and remove components and configure their
properties.
• Point: Allows the user to edit TrueAlert devices.
• List: Allows the user to access the following sub-tabs: General List, Latching Supv
Verification, Alarm Verification, WalkTest, and Elevator Recall.
• Custom Control: Allows the components of the ES Panel FACP to be controlled
with user-definable custom control equations.
• TrueAlert Zone: Allows the user to view the points in each TrueAlert zone.
• Port Vectoring: Allows the user to program cards to output only specific groups of
events.
• AMON Pt Type: Allows the user to create custom point types.
• Zone Lists: Allows the user to view the lists sorted by zone.
Checklist Displays a mandatory and an optional checklist that lets the user know which steps
have been completed in the programming process.
Toolbar Click in the checkbox to make the tool bar icons visible.
Status Bar Click in the checkbox to make the status bar visible.
Menu Item Description
Notes Click to open a note pad where the user can type in notes about the job.
Table 2-5. Build Menu
Menu Item Allows the user to:
Build Job Build the job.
View Build Log Click to view the log of previous builds for this job.

2-3
4007ES Panel Programmer Manual (579-1167)
User Interface, Continued
Menus Table 2-6. Transfer Menu
Table 2-7. Terminal Menu
Menu Item Allows the user to:
USB Transfer the job data from the computer to the USB key.
Network Click on To Panel to transfer the job data to the panel.
Menu Item Allows the user to:
Serial Enable a serial connection between the FACP and the Perle Box. This option cannot be
used for panel serial downloads.
Network Enable a network connection between the computer and the panel.
Settings Access the service port connection settings.
Table 2-8. Help Menu
Menu Item Description
Help Topics Click to access the 4007ES Programmer Help.
About Programmer Click to access basic information, copyright of the programmer software, and the
revision of the programmer being used.

2-4
4007ES Panel Programmer Manual (579-1167)
User Interface, Continued
Toolbar Icons The toolbar icons are shortcuts to popular programmer commands. Table 2-9 explains each
icon and the command it is attached to.
Table 2-9. Icons and Commands
Icon Name Allows the user to:
New Click to create a new job.
Open Click to open an existing job.
Save Click to save the current job.
Cut Click to cut the selected information from its current location.
Copy Click to copy the selected information.
Paste Click to paste cut or copied data.
Print Click to print the current job.
Build Job Click to build the current job.
File Transfer Click to initiate a file transfer.
Checklist Click to make the checklists appear.
Note Click to add a note to the job.
About Click to access basic information and copyright of the programmer software.
Help Topics Click to access the 4007ES Online Help.
Exit Click to exit the programmer.

2-5
4007ES Panel Programmer Manual (579-1167)
User Interface, Continued
Tabs and Sub-
Tabs
Each tab represents a specific component or feature of the job that must be configured. The
tabs are placed in sequential order and should be completed in that order. Certain tabs are made
up of multiple sub-tabs that are found at the bottom of the page. All sub-tabs must be opened
and configured to complete the job.
Status bar The Status bar is found at the bottom of the Programmer window and indicates the:
• Programmer status
•Time
Table 2-10. Tab list
Icon Name Sub-Tabs Allows the user to:
Panel • General Info Enter and view the general panel and branch
information.
• System Options Set the system options for the job.
• Access Levels View the default user levels for specific tasks. Right
click on the user level to view and edit its properties.
• Passcode
Assignments
View and edit the passcode assigned to each user
level.
• Features Enable or disable certain features with specific
dongles and codes.
Hardware • Tree View Display the panel components in a branch structure.
• Grid View Display the panel components in a grid structure.
Point -NA- Display the list of all the points in the FACP.
Double click on any of the points to view and edit
their properties.
List • General list View all the Panel lists.
• Latching Supervisory
Verification
View and edit the items on the Latching Supervisory
Verification list.
• Alarm Verification View and edit the items on Alarm Verification list.
• WALKTEST View and edit the items on the WALKTEST list.
• Elevator Recall View and edit the items on the Elevator Recall list.
Custom Control • Custom Control Create custom control equations which allow
operations to be customized per job.
• Floor Above/Floor
Below Wizard
Control the areas in which the NACs are activated.
• Selective Signaling
Wizard
Control the NACs that are activated.
• Sounder/Relay Base
Operation Wizard
Customize the default operation of select smoke
detectors
TrueAlert Zone -NA- View the points in each TrueAlert zone.
Port Vectoring -NA Assign certain cards to specific groups of events.
AMON Point Type -NA- View the analog monitor (AMON) points.
Zone Lists -NA- View the lists sorted by zone.
Network • Network Information
• Network Points
Add and edit the lists of public and external points.

3-1
Chapter 3.
Working with Jobs
Introduction A job is a file that contains specific programming and configuration information for the FACP.
This chapter explains the basics surrounding creating and saving jobs, however, it is important
to consult the following chapter in this document, Panel Information and Configuration, for
crucial information on how to configure and program the job.
In this chapter
Creating Jobs When the programmer is opened on a computer for the first time, a prompt window appears
automatically requesting that the user create a job. If a job has been previously saved on the
programmer it automatically opens when the programmer is started.
To create a new job:
1. Start the ES Panel Programmer:
• If this is the first job saved for the FACP, the New Job window opens automatically.
• If a previous job opens, click on the New icon or select New from the File menu to
open the New Job window.
2. In the New Job window, select the job type:
- 4007 - for the addressable panel
- 4007H - for the Hybrid panel.
3. Enter the job number. The job name should be 8 characters long and start with a number.
•Ye a r. This is a two-digit field. Use the last two digits of the current year to indicate the year
in which the job is programmed.
•Month. This is a single character field. Use the numbers and letters shown in the example
below to indicate the month in which the job is programmed. See Table 3-1.
•File Type. This field is a single letter, used to indicate the panel type. There is currently
only a single supported type.
•Number. This is a three-digit field used to track how many of a specific job type have been
programmed during the month. For example, if the File type is 4100ES, enter the number
of 4100ES jobs programmed during the month.
•Job Version. When archiving a job, you can use letters to differentiate the jobs once they
have been archived. For example, once job 103E123A is archived, new edits should be
saved to 103E123B.
Creating Jobs ...................................3-1 Opening Existing Jobs .....................3-2
Setting Job Preferences....................3-2 Job Notes .........................................3-3
Saving Jobs......................................3-3 Building a Job ..................................3-3
Archiving a Job................................3-4 Backing Up a Job.............................3-4

3-2
4007ES Panel Programmer Manual (579-1167)
Working with Jobs
Creating Jobs Table 3-1 describes the naming convention format.
4. Select the path to the file in which the job will be stored.
Note: It is preferable that the default folder C:\4100UJOBS be used for job storage.
Opening Existing
Jobs
To open an existing job:
1. Start the ES Panel Programmer.
2. Click on the Open icon or select Open from the File menu to access the Open window.
3. Open the job’s folder. It will have the same name as the job.
4. Once in the folder, open the “.SDB4100U” file.
Setting Job
Preferences
To set the job preferences:
1. Once in the job, open the Edit menu and select Preferences.
2. Preference allows the user to configure the following options:
• Job: Click on the Reload Job checkbox to automatically reload the last saved job each
time you start the programmer.
• Toolbar Icon Size: Use to select large or small icons for the programmer toolbar.
• Checklist: There are two preference settings for this option.
- Reminder: If this box is selected, the programmer generates a reminder dialog
each time you exit a screen whose corresponding entry in the Programmer Task
Checklist has not been marked as complete. For example, if you view the
General Information tab and its checklist entry is not marked as complete, the
programmer will ask whether you want to mark the task as complete when you
exit the screen.
- Build Warning: Attempting to build a job when all mandatory checklist tasks
are not marked as complete causes the programmer to generate warning
messages in the job builder screen.
• Default Central Station Email Address: This option allows you to set the default
central station email address used by a per point SDACT. The address that you enter
here automatically appears in the email address field of the SDACT card's
programming screen.
• Report Print Cover page: Select this box so that a cover page is printed with every
report.
• Editing Allow mixed case labels (non-English jobs only): This option is made to
accommodate the characteristics of non-English languages.
3. Click on OK once all the options are set.
Table 3-1. Job Naming Convention
YEAR MONTH FILE TYPE NUMBER JOB VERSION
1 = Jan E=4100ES
2 = Feb
3 = Mar
4 = Apr
5 = May
6 = Jun
7 = Jul
8 = Aug
9 = Sep
A = Oct
B = Nov
C = Dec
00 5 E 001 A
