Simpro Multi-Tip Instruction Manual

User’s
Handbook
Multi-Tip

Copyright © Simpro Handling Equipment Ltd Page 1
Multi-Tip
The Multi-Tip®bin-tipper’s tipping action makes it one of
the safest, most efficient, and easiest to use systems in the
world.
A Multi-Tip lifts bins straight up then rolls them forward
around the lip of the skip or hopper being emptied into.
Standard features include:
A small ‘footprint’ yet excellent stability.
150kg (330lbs) weight capacity.
Standard tipping heights of 1200mm (4’) and 1600mm (5’4”)
No need to clamp standard drums and bins –simply place
on the cradle and press the ‘Raise’ button.
Easily modified to suit a wide range of bin sizes & shapes.
Multi-Tip bin-tippers have a powder-coated main frame
and zinc-plated cradle and guards, can be used indoors or
outdoors and are virtually maintenance-free.
They are also available in stainless steel for critical
hygiene areas.
Multi-Tip bin-tippers are highly versatile and can be
used in almost any application from emptying rubbish bins
into skips to pouring food ingredients into hoppers or mixers.
All standard models
Battery, 3-phase, or 1-phase power
Simpro Handling Equipment Ltd certifies that the Multi-Tip
bin-tipping machine complies with European Standards.

Copyright © Simpro Handling Equipment Ltd Page 2
Page
Introduction to Multi-Tip Bin Tippers
1
Safe handling of Multi-Tip bin-tippers
2
Safe use of Multi-Tip bin-tippers
3
Precautions for safe use of Multi-Tip bin-tippers
4
Electrical Safety
5
Battery care
5
Maintenance guidelines
6

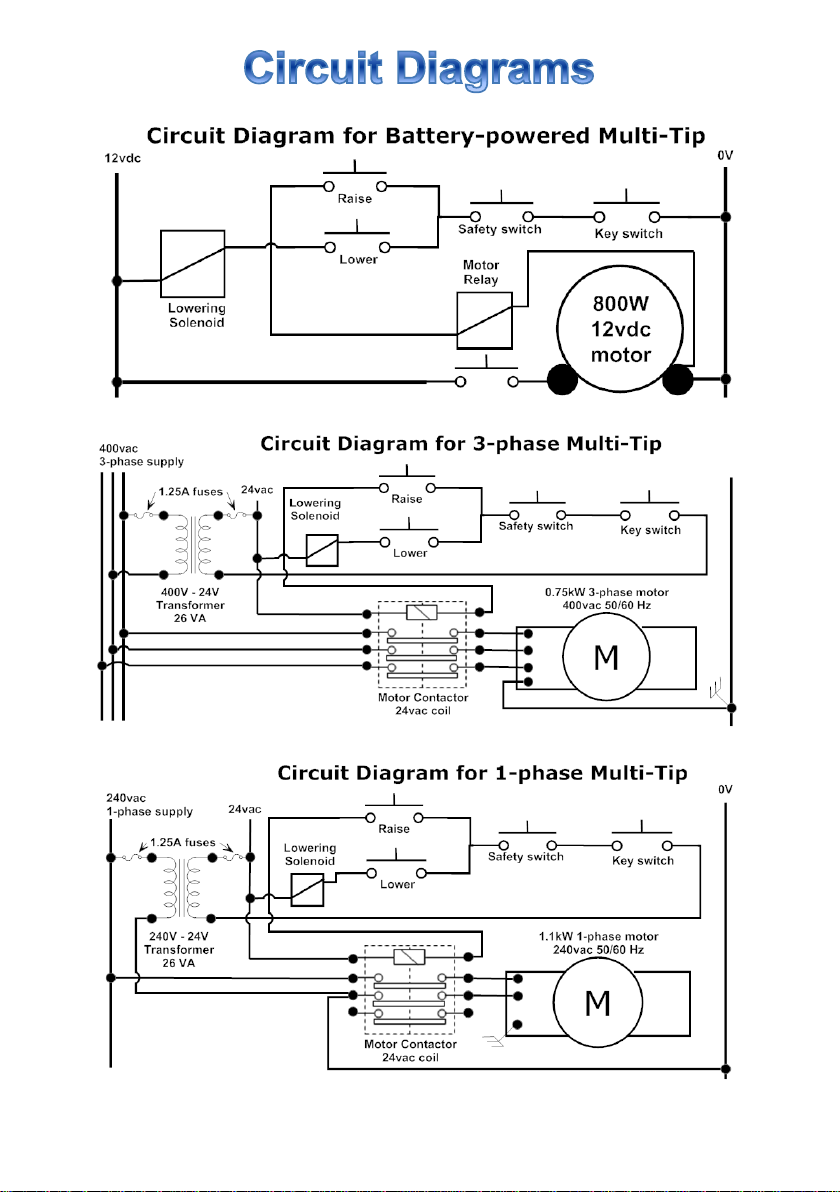

Circuit Diagrams
7
General Operation Instructions
8
Trouble-shooting Guide
9
Declaration of Conformity
10
Multi-Tip:
Machine Weight (without bins):
MT1200, all models: 149 –153kg (depending on power source)
MT1600, all models: 159 –163kg (depending on power source
If the machine is delivered lying down on a pallet, it should be lifted
upright using a sling or chain through the lifting eye at the top of the
mast. NEVER lift using the control handle!
If the cradle is in the fully lowered position it may be stood upright
with 2 persons. Warning: Parts such as the cradle can slide or drop
when it is stood up, so take care to keep fingers clear.
Once the machine is standing up it may be easily moved on its
wheels. The Multi-Tip cradle should always be just off the ground
when moved around, and care must be taken when moving on sloping
ground, or close to drop-offs such as truck docks.
If the Multi-Tip has to be lain down for transport or maintenance,
ensure the battery is removed or well retained first.

Copyright © Simpro Handling Equipment Ltd Page 3
Multi-Tip:
A Hazard and Risk Assessment must be undertaken before
the machine is used for the first time, taking into account all
relevant factors such as the area it will be used, the skill and
training of operators, the proximity of other persons, frequency of
use, etc.
All appropriate steps must be taken to eliminate, isolate, or
minimise hazards to the operator and to all other persons on site.
These steps may include some or all of the following:
Training of operators
Testing and recording that operators are ‘trained’
Implementing Standard Operating Procedures and ensuring
they are followed
Posting additional signage, floor marking, or other warnings
as deemed appropriate
The Multi-Tip has been designed to be as safe as possible
without restricting the ease-of-use and versatility of the machine.
As with all powered industrial equipment, some hazards will be
present despite all the safety measures implemented by the
manufacturer.
It is the responsibility of the owner and the operators to identify
remaining hazards and to put in place and follow procedures to
ensure the safety of all persons in the vicinity of the machine.

Copyright © Simpro Handling Equipment Ltd Page 4
Multi-Tip
Only trained and authorized operators should be permitted to use
the machine.
Remove the key from the machine whenever it is not in use.
Operators must read and obey the instructions displayed on the
machine.
All persons other than the operator must keep well clear while the
machine is in use.
The need for the operator to use both hands is part of the safety
system of a Multi-Tip. Any attempt to bypass the ‘safety’ button is
dangerous and may result in harm.
Do not put feet under the side guards.
If emptying bins with potentially dangerous product (e.g. glass,
metal), ensure the operator uses PPE
Do not empty bins if over-filled
If regularly emptying potentially dangerous product, have an
operator guard installed (contact your agent for details).
Ensure power leads are in good condition; replace the lead if the
insulation is damaged.
Do not connect plugs and sockets if they are damp
Ensure the supply socket is fitted with a residual current device.
Never operate on uneven or sloping ground (more than 1:12).
Never use a Multi-Tip on the edge of a truck dock.
Never use a Multi-Tip to pour liquid from closed-top drums.

Copyright © Simpro Handling Equipment Ltd Page 5
(Mains-powered machines) Before connecting the Multi-Tip to a
mains supply ensure that the voltage and frequency of the supply
corresponds with the values on the rating plate. If in doubt consult a
qualified electrician.
The electrical safety of this machine can only be guaranteed when
continuity is complete between the machine and an effective earthing
system which complies with local and national regulations. The
manufacturer cannot be held liable for the consequences of an
inadequate earthing system (e.g. electric shock)
(Mains-powered machines) Do not use an extension lead to
connect to the mains electricity supply.
The standard batteries supplied have a life expectancy of 1 - 3 years
depending on the amount of use and the frequency of charging.
Frequent charging gives the best life and overall performance.
The battery is sealed and requires no maintenance.
Multi-Tip bin-tippers are fitted with a 12-volt battery and an automatic
battery charger. As a rule of thumb a full charge is sufficient to empty
up to 5 tonnes of product, but this does depend on the tipping height
and age of the battery.
The battery status LED turns from green to red when there is
approximately 40% charge remaining, then starts flashing when the
charge drops to approximately 20%. Maximum battery life is obtained
with frequent charging and no harm whatever will result from
recharging every night.
To recharge the battery, simply plug the charging lead into the socket
on the side of the main box, and into a standard 110v or 240v outlet. A
full recharge takes around 3 hours.

Copyright © Simpro Handling Equipment Ltd Page 6
Multi-Tip bin-tippers are designed to give years of service with
minimal maintenance.
Caution! - if the Multi-Tip is found to be in need of repair or in any
way in unsafe condition, the matter must be reported immediately to
the designated authority and the machine must not be operated until it
has been restored to safe operating condition.
Installation and repairs should only be carried out by suitably
qualified and competent persons to ensure safety. Repairs and other
work by unqualified persons could result in harm to persons or damage
to the machine, for which the manufacturer will not be held liable.
MODEL ________ SERIAL NUMBER _________ Start date __/____/___
NOTE: Check the items listed below at least once a month. Certain items may be listed that are
not included on all models. Check all items applicable to unit noted above.
Tick appropriate box “OK” or “Needs repair” (Give details in comments section)
Jan
Feb
Mar
April
May
June
July
Aug
Sept
Oct
Nov
Dec
Visual Checks
No dented, bent or broken parts
No oil leaks
Cradle: no broken welds, not twisted
Flap on tipping guide moves freely
Guards Intact
Controls and stickers OK
Operational checks
Travel: Cradle up down, no jamming or noises
Castors and brakes OK
Power Lead not damaged
Switches and buttons operating correctly
Covers in place
Cradle wheel catchers OK
Operators Initials
Supervisors OK

Copyright © Simpro Handling Equipment Ltd Page 7

Copyright © Simpro Handling Equipment Ltd Page 8
Before use ensure that:
1. The machine is stable and on level ground.
2. The wheel brakes are applied.
3. All personnel other than the operator are well clear of the
machine.
4. All covers and safety guards are in place.
To empty bins:
1. Lower the cradle fully, then place the bin on the cradle.
Ensure that it is properly positioned.
2. Turn the key switch to the ‘On’ position
3. Press the single button under the left side of the shroud with
your left thumb, and the ‘RAISE’ (↑) button with your right
thumb simultaneously, holding down until the bin reaches the
inverted position, then release.
4. When the contents of the bin have emptied, press the left
button and the ‘LOWER’ (↓) button simultaneously, holding
until the cradle rests on the ground.
The bin may be stopped at any point of the cycle, by simply
releasing either or both buttons.

Copyright © Simpro Handling Equipment Ltd Page 9
Problem
Possible
Causes
Remedy
Cradle will
not go up
Flat Battery
Recharge the battery
Faulty switch
or wiring
Check and rectify
Faulty motor
relay
The motor relay should click
when the ‘Up’ and Safety
buttons are pressed.
If not, check and repair/replace.
Clicking sound
when Raise
button pressed
Battery almost
flat
Recharge the battery
Machine will
not lift heavy
bins, although
the motor runs
Bin too heavy
Reduce the bin weight
Pressure-
relief valve
set too low
Consult manufacturer or agent
Cradle will not
come down
from the
inverted
position
Mast slider frame
sticking
in masts
Spray lubricant inside the mast.
Lift ram jamming
Consult manufacturer or agent.
Faulty switch,
wiring, or
lowering valve
The lowering valve should click
when the ‘Down’ and Safety
buttons are pressed. If not, check
the switch, wiring and solenoid
Cradle jams
part-way down
Mast bent or
damaged
Check and repair
Tip guide flap
sticking or
damaged
Check and repair
A more detailed Service Manual giving specific testing and repair
instructions is available on request from the manufacturer.

Copyright © Simpro Handling Equipment Ltd Page 10
DECLARATION OF CONFORMITY
ORIGINAL
Business Name and Full Address of Manufacturer
Simpro Handling Equipment
51 –53 Church St, Onehunga,
Auckland 1061, New Zealand
Name and Address of Authorised Representative
As above
Name and Address of the Person in Community Authorised to
compile the Technical File
(If different to above)
Safe Machine Limited DBH Business Centre, Coxwold Way,
Billingham, Tees Valley TS23 4EA UK
Description of product (Commercial Name)
Multi Tip
Function, Model, Type, Serial Number
Function: Bin Tipper
Type:
Model: Multi Tip
Serial No:
Standards Used
EN 349 1993, EN 574 1996+A1:200, EN 953 1997, EN ISO 4413
2010, EN ISO 12100 2010, EN ISO13849-1 2006, EN ISO 13857
2008, EN 60204 2006+A1 2009, EN61000-6-2 2005, EN61000-6-4
2007
Place of Declaration
51 –53 Church St, Onehunga,
Auckland 1061, New Zealand
Date of Declaration:
Declaration
I declare that the machinery fulfils all the relevant provisions of the
following Directives:- Machinery Directive 2006/42/EC,
Electromagnetic Compatibility Directive 2004/108/EC.
Person Empowered to Draw Up Declaration
Name:
Signature:
Position:
Declaration No:

Copyright © Simpro Handling Equipment Ltd Page 11
For all sales or service enquiries, call:
P O Box 13-679, Onehunga, Auckland, New Zealand
Ph: ([phone] | Fax: [phone]
Email: [e-mail] Website: www.simpro.net.nz
Also available from Simpro:

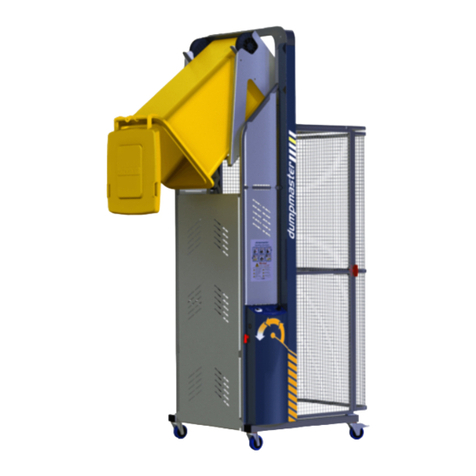

Dumpmaster heavy-duty bin-tippers
