SinoCastel A-266 User manual

A-266 User Manual
(Rev. 1.0)
Sinocastel Co., Ltd.
May, 2022

一. Product Appearance
1. Power/Record indication
2. Speaker
3. TF card
4. Reset
5. USB Power Supply
6. MIC
7. WIFI indication
8. Camera
二、Reset function:
The reset hole can be found on the side of dash cam，if dash cam crashes, briefly
presses reset hole and repower the dash cam.
Installation Guide:
1. Turn off engine.
2. Insert TF card.

Notes: Please use high speed TF card (Class 10 or above, minimum capacity of
8GB, format TF card with dash cam or PC first).
3. Fix the dash cam on the windscreen.
4、Plug the charger into cigarette lighter socket and connect to USB port of dash
cam, please use attached 1.5A charger.
Notes: The power cable could be laid along the edge of the windscreen.
6. Adjust the angel of the camera, make sure camera keeps horizontal positon
with ground.
7. Turn on engine, check if the dash cam works correctly.

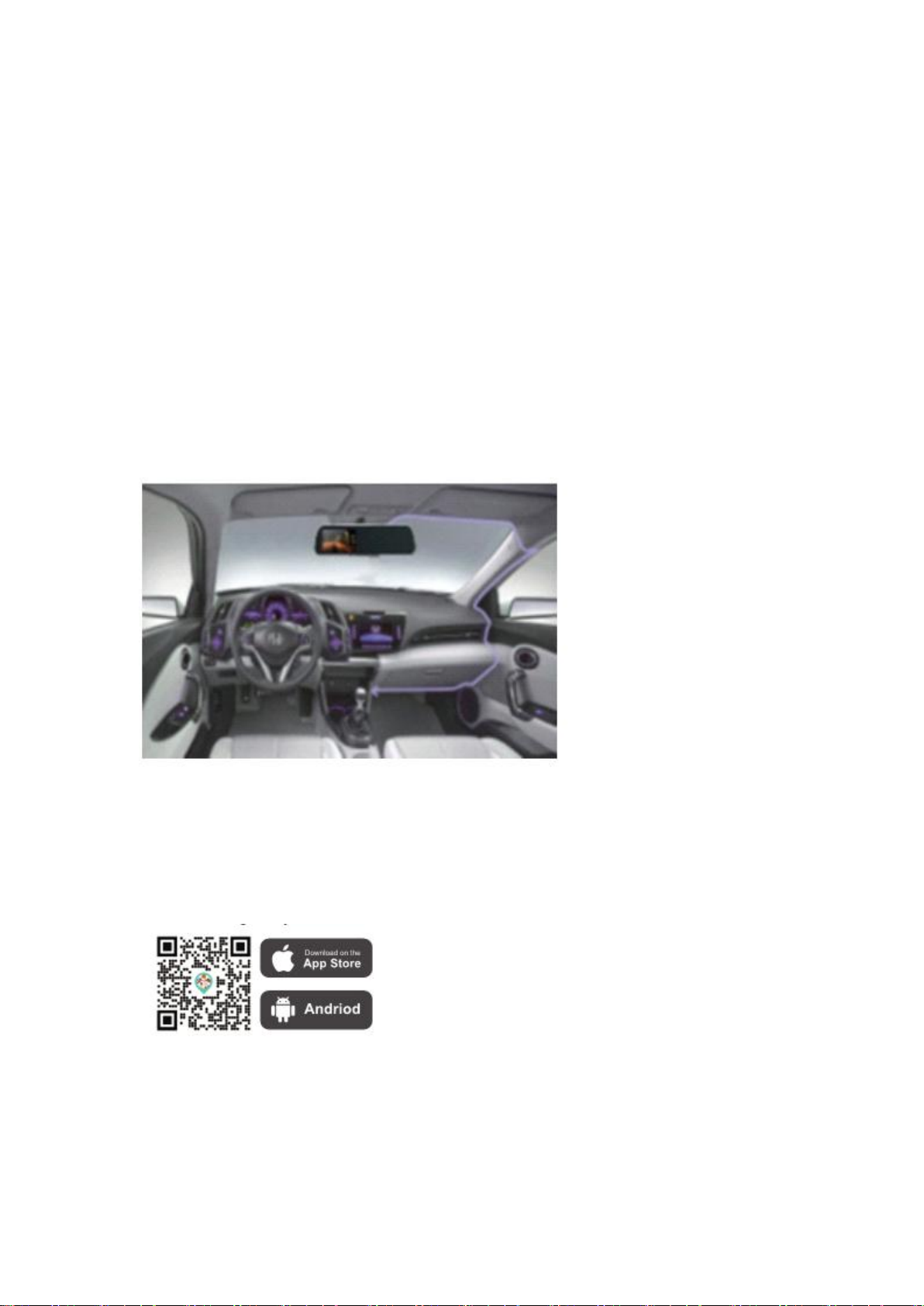

三、Installation Diagram：
Getting the App：
Scan below QR code to download app on your iPhone or Android phone. Also
you could search “Lite Guardian” in Apple Store or Google Play.

四、Functions：
1. WiFi Transmission: The app can transmit videos and pictures in real time, and
view historical videos and pictures.
2. Circular Recording: The dash cam supports 1080p HD circular recording.
When the memory card capacity reaches a certain level (it is nearly full Status,
the dash cam will keep the locked file in the memory card), the earliest non
locked videos will be deleted, to make room for the latest video files. It can
provide effective evidence for traffic accidents.
3. Emergency Video: In the normal video recording state, when the vehicle
encounters impact/shaking, the dash cam detects vibration, it will lock the
current recorded video file to prevent it from being deleted by the circular video
function, so as to retain the evidence.
4. Parking Monitoring: After engine is turned off, the dash cam goes into standby
state. When the dash cam detects collision or vibration, it will automatically turn
on to record short video, and then turn off. (with optional power cable)
五、Specification:
Model
A-266
Chipset
NOVATEK
WIFI
2.4G 802.11b/g/n
Recording resolution
1080P 30FPS
Wide angle
140

Video format
MP4
Storage
TF card, max. 128GB
G-Sensor
Built-in 3 axis accelerometer, lock
videos on detecting vibration
Parking monitoring
Optional power cable
Power supply
Micro USB, 5V
Working temperature
-20~70 ℃
六、Troubles Shooting :
Troubles
Shootings
Taking pictures and
recording do not work
Check whether the TF card has enough
space
Stop recording
Check if there is C10 mark on TF card,
format the card with dash cam or PC
The image is not clear
The lens is not clean, check the lens for
dirt and finger prints. Wipe the lens
with lens paper before recording
Notes: Please do not disassemble this product. If you need any after-sales
service or repair, please contact the customer service center on the official
website: www.sinocastel.com
七、Warranty
If product got quality problem within the warranty period, please bring the
product together with a valid warranty card and purchase invoice to the dealer
for checking. Please do not disassemble this product, this may result in
damage, Sinocastel will not be responsible for those problem.

1 year of warranty since purchase time and life-long maintenance. For Failure
or damage due to incorrect operation or not following the instruction,
Sinocastel will provide paid maintenance within warranty period.
User name:
Contact number:
Address:
Post code:
Purchasing date:
Serial number:
Remark:
Please keep this card carefully in order to better serve you.
Distributor (Company Chop):
Maintenance Records
Product Model:
Date
Faults and maintenance of records
Maintenance
(Signature)
User
(Signature)
Fault Description
Maintenance

Note: This form must be carefully completed.
八、Statement
Without written permission from Sinocastel, it is prohibited reproduce,
transmit, distribute or save part or all of the contents of this document in any
form.
Sinocastel reserves the rights to modify or improve these products without any
prior notification.
Sinocastel reserves the rights to change or cancel the content of this document
without any prior notification.
All rights reserved by Sinocastel Co., Ltd.
Address: 501A, Building 11, Shenzhen Software Park (Phase 2), No. 1,
Keji Middle 2nd Road, Gaoxin Middle District,Nanshan
District, Shenzhen, China
Postcode: 518057
http://www.sinocastel.com
WARNING: This equipment may generate or use radio frequency energy. Changes
or modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. The user could lose
the authority to operate this equipment if an unauthorized change or modification is
made.

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment complies with RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The rating information is located at the bottom of the unit.
