SinoCastel IDD-213W User manual

IDD-213W User Manual
(Rev.1.0)
Sinocastel Co., Ltd.
August, 2017

IDD-213W User Manual
1
Contents
1. Introduction......................................................................................................................................................................4
2. Specifications...................................................................................................................................................................5
2.1 External Interface....................................................................................................................................................5
2.2 Status Indicator .......................................................................................................................................................6
2.3 Technical Parameters............................................................................................................................................7
3. Device Configuration....................................................................................................................................................9
3.1 PC Tool .......................................................................................................................................................................9
3.2 SMS Instructions.....................................................................................................................................................9
4. Installation Instruction............................................................................................................................................... 11
4.1 SIM Card Installation.......................................................................................................................................... 11

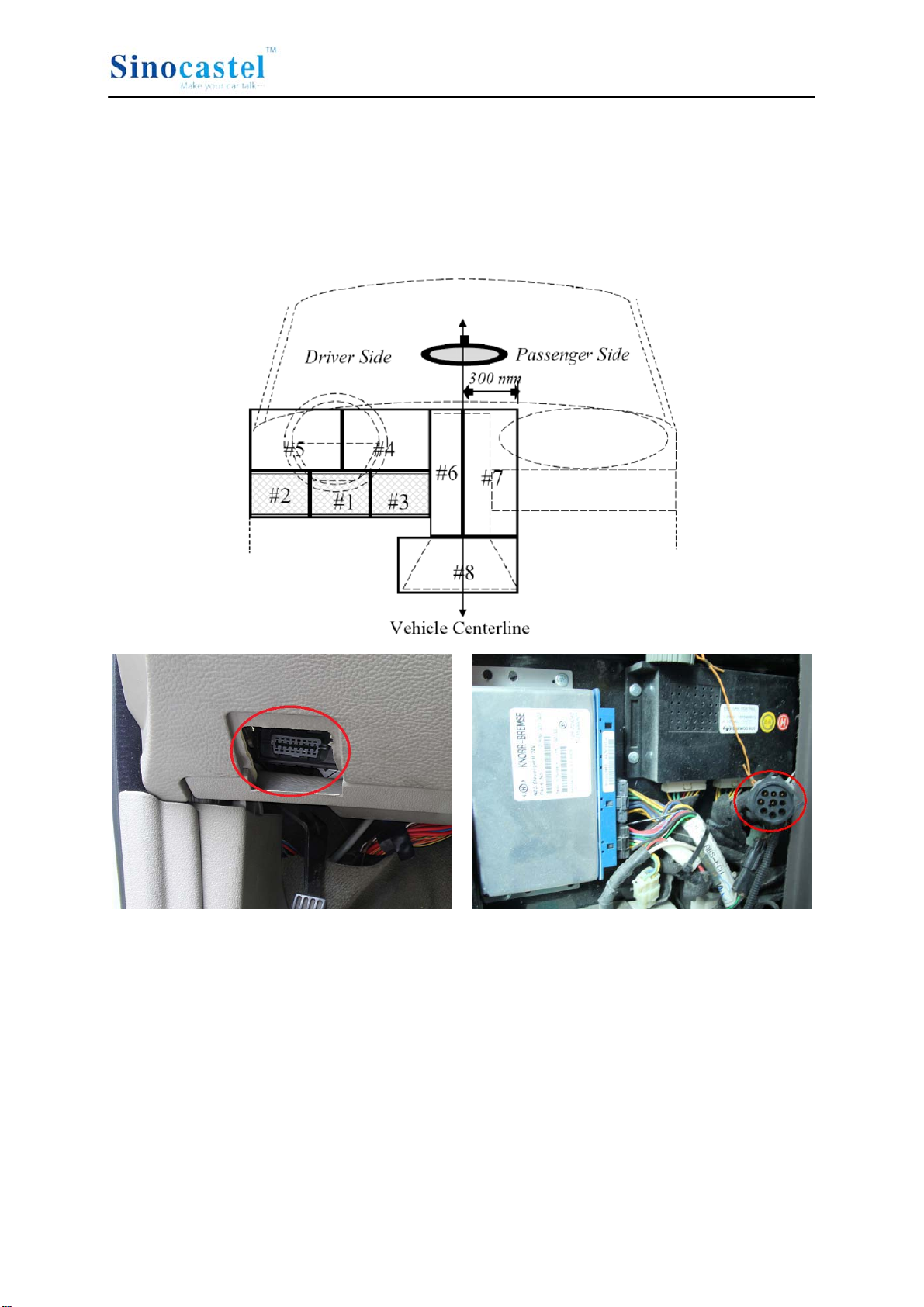

4.2 OBD Port................................................................................................................................................................. 12
4.3 Device Installation............................................................................................................................................... 13
5. Functions........................................................................................................................................................................ 17
5.1 OBD Protocols ...................................................................................................................................................... 17
5.2 Location Inquiry ................................................................................................................................................... 17
5.3 Regular GPS data reporting............................................................................................................................. 17
5.4 Regular G-Sensor Data Reporting ................................................................................................................ 18
5.5 Regular Diagnostic Data Reporting.............................................................................................................. 18
5.6 DTCs Reporting.................................................................................................................................................... 18
5.7 Cell ID Reporting ................................................................................................................................................. 18
5.8 GPS Data Reporting in Sleep Mode............................................................................................................. 19
5.9 Data storage/Supplementary Report in Dead zones............................................................................. 19
5.10 Trip Mileage ........................................................................................................................................................ 19
5.11 Trip Fuel Consumption ................................................................................................................................... 19
5.12 Driving behavior monitoring........................................................................................................................ 19
5.13 Alarms and Events Reporting....................................................................................................................... 19
5.14 Working Mode................................................................................................................................................... 20
5.15 GPS/Cellular Timer............................................................................................................................................ 20
5.16 SMS Alert.............................................................................................................................................................. 20

IDD-213W User Manual
2
5.17 Google Map Link............................................................................................................................................... 20
5.18 Remote Configuration .................................................................................................................................... 21
5.19 SMS Configuration ........................................................................................................................................... 21
5.20 PC Tool Configuration..................................................................................................................................... 21
6. Disclaimer....................................................................................................................................................................... 22
7. Warranty ......................................................................................................................................................................... 23
8. Statement....................................................................................................................................................................... 24

IDD-213W User Manual
3
Regulatory Compliance
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible
for compliance could void the user‘s authority to operate the equipment.
RF Exposure Information
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches)
during normal operation.

IDD-213W User Manual
4
1. Introduction
IDD-213W is an intelligent on-board diagnostic device with OBD II and SAE
J1939/J1708 (Heavy duty) compliant, it features plug-and-play technology, could read
diagnostic info from vehicle ECU and capture location data with built-in GPS, then
send them to backend server for real-time remote diagnostic and tracking purpose.

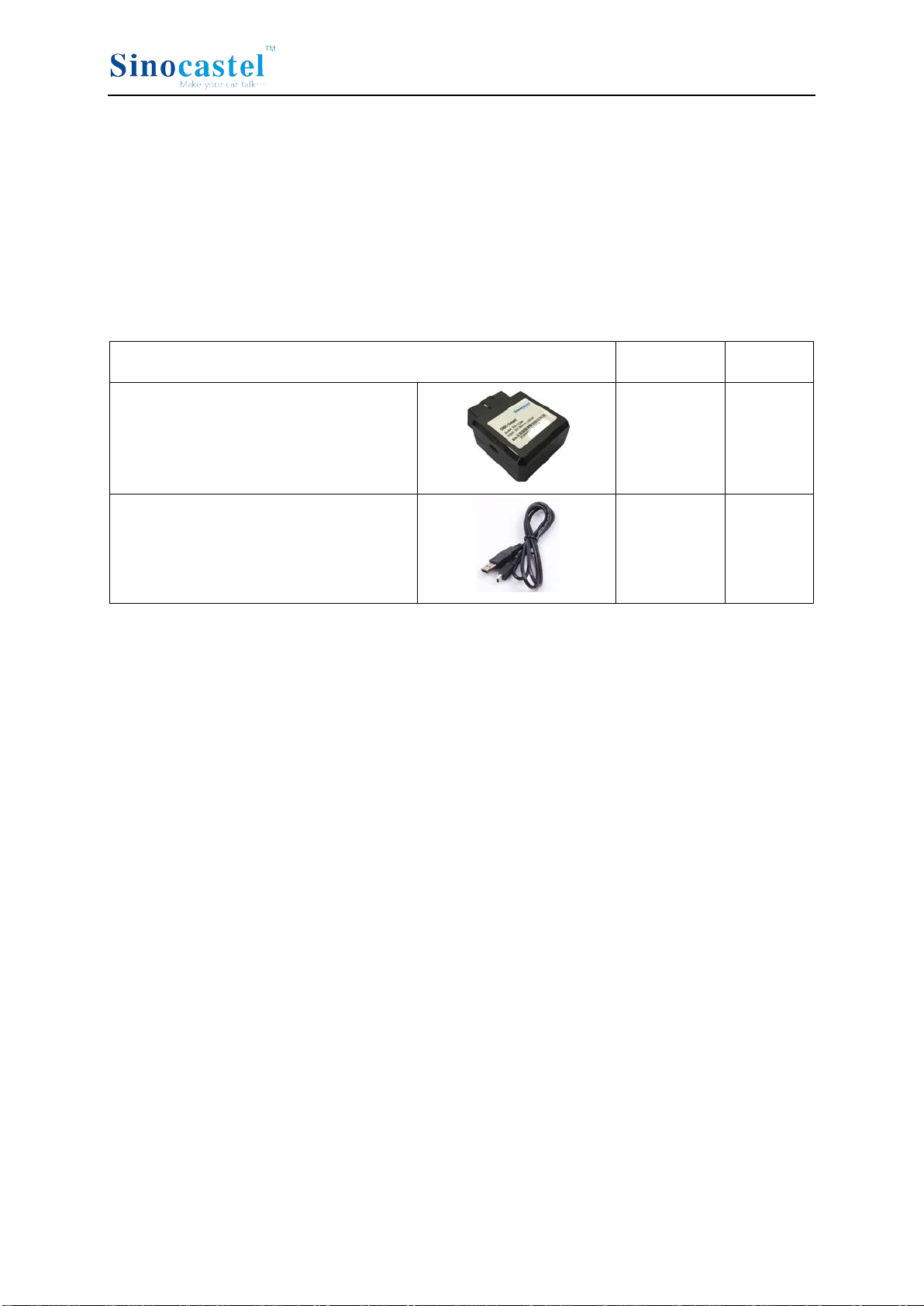

Packing List
Parts name Quantity Note
IDD-213W OBD Dongle 1 ●
USB Configuration
Cable
1 ○
Note: ● Standard configuration ○ Optional configuration
(Optional accessories will not be included if there is no indication in the order)

IDD-213W User Manual
5
2. Specifications

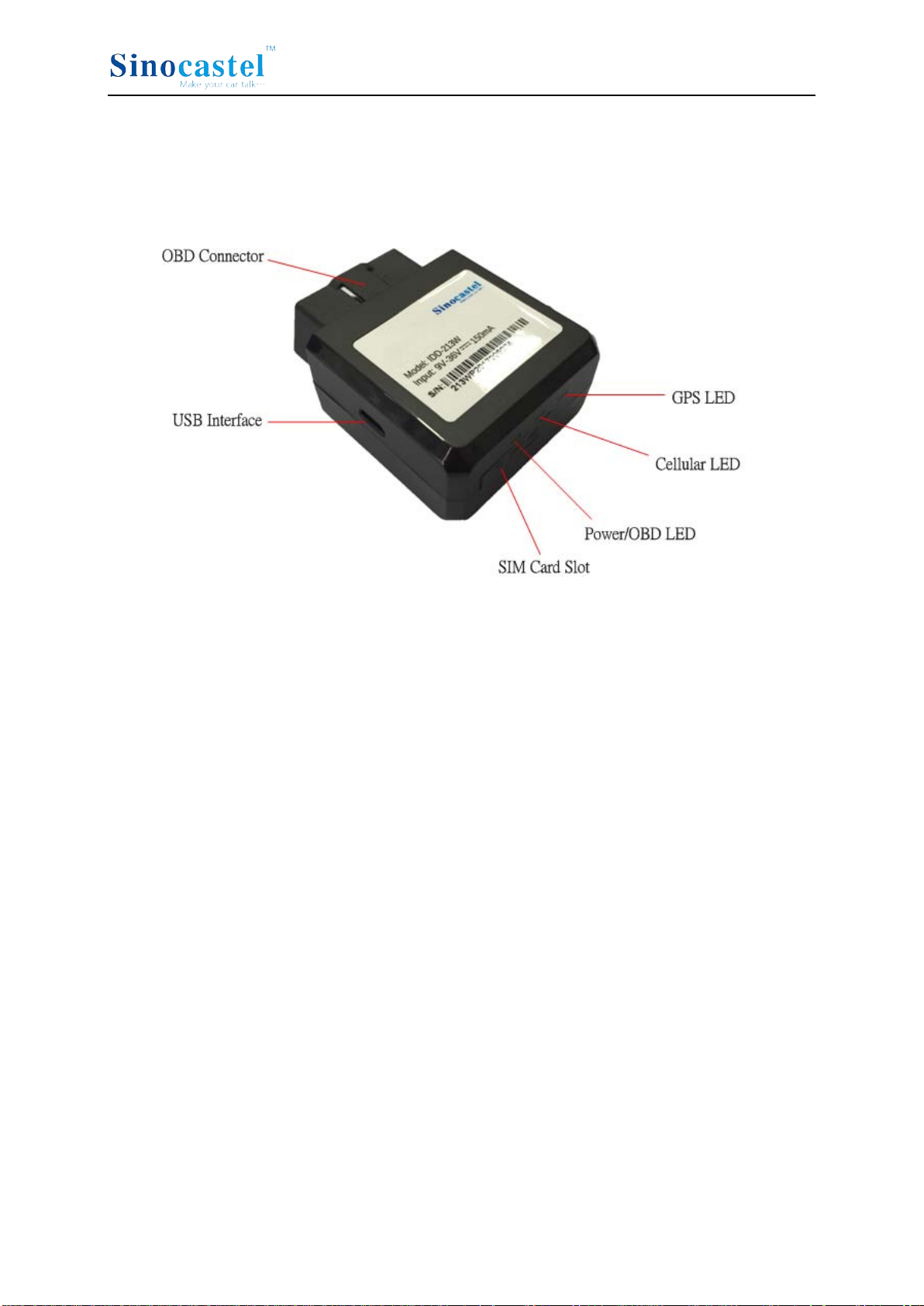

2.1 External Interface
Product appearance as follows：
1. Standard OBD Connector
Connect to the 16 pin on-board Diagnostic Link Connector (DLC).
2. Micro USB Interface
Connect to PC through USB configuration cable.
3. SIM Card slot

IDD-213W User Manual
6

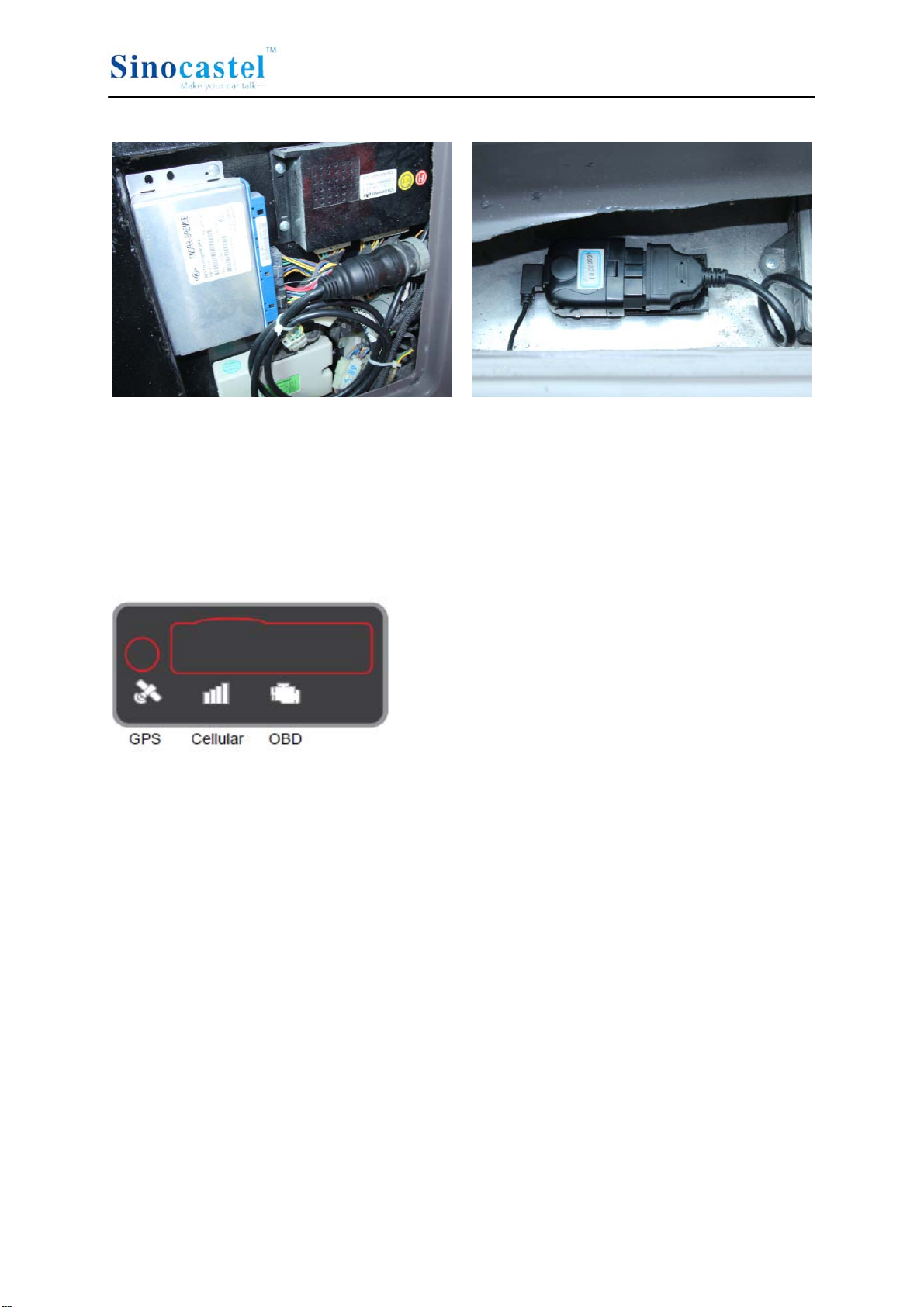

2.2 Status Indicator
Indicator Color Status
Power/OBD
LED Red
Blinking (on 0.5s, off 0.5s) - Trying to access OBD
system or power off
Solid on - Successful OBD communication
Solid off - Tracker mode or in sleep
Cellular LED Orange-red
Fast blinking (on 0.5s, off 0.5s) - No SIM card or
network searching
Slow blinking (on 0.5s, off 2.5s) - Registered network
Solid on - Logged into the server
Solid off - Cellular off
GPS LED Green
Blinking (on 1s, off 1s) - GPS signal is good
Solid on - Searching for GPS signal
Solid off - GPS off
Buzzer Beep
One beep - Power on
Two beeps - Successful OBD communication
Three beeps - Successful log in
Four beeps - Trip end and stop OBD communication
Five beeps - Power off
Six beeps - Fail to access OBD system
Five beeps (short beep) - Alarm indication

5064mm
IDD-213W User Manual
7
2.3 Technical Parameters
Mechanical Dimension (L) x mm (W) x 28mm (H)
Weight 50g
Interface
OBD interface: 16 pin standard OBD II
Configuration interface: Micro USB
SIM card interface: Push-Push Type
Storage 2MB FLASH, can store up to 24000 GPS data
Data Transmission Packet data (GPRS or HSPA) and SMS
Positioning Mode GPS
OBD Protocol
SAE J1850 PWM
SAE J1850 VPW
ISO 9141-2
ISO 14230-4
ISO 15765-4
SAE J1939 (Heavy duty)
SAE J1587/J1708 (Heavy duty)
Power
Working Voltage 9-36VDC
Working Currency
Average Currency: <15[email protected]/27.6VDC
Max. Currency: <20[email protected]/27.6VDC
Sleep Currency: <10mA@12/24VDC
Internal Battery 3.7V/150mA Lithium battery
3-axis Accelerometer +/-2g、+/-4g、+/-8g、+/-16g
GPS
Channels: 48
Sensitivity: -163dBm
Accuracy: 5m CEP
Time to first fix:
Cold start: <35s (typ.)
Hot start: <1s (typ.)
Cellular
Frequency:
GSM/GPRS/EDGE: 850/900/1800/1900MHz
UMTS/HSDPA: 850/900/1900/2100MHz
Network protocol: Embedded TCP/IP stack
Sensitivity:
-110dBm@UMTS

IDD-213W User Manual
8
-109dBm@GSM 850/900MHz
-108dBm@GSM 1800/1900MHz
Output power:
Class 4 (2W, 33dBm)@GSM 850/900MHz
Class 1 (1W, 30dBm)@GSM 1800/1900MHz
Class 3 (0.25W, 24dBm)@UMTS
Certification: CE, GCF, FCC, PTCRB, IC, AT&T
LED Indicator OBD/Cellular/GPS
Buzzer System status/Alarm indication
Antenna Cellular Antenna Built-in
GPS Antenna Built-in
Environment
Working
Temperature -30℃ ~ +70℃
Storage
Temperature -40℃ ~ +85℃
Humidity 5%～95%（no fog）

IDD-213W User Manual
9
3. Device Configuration
3.1 PC Tool
Download USB driver and PC Tool at http://www.sinocastel.com/Support/. Install the
USB driver and PC Tool on your PC.
Connect device to PC through USB configuration cable, open the OBD PC Tool, click
on “Help->User manual” for configuration reference.
3.2 SMS Instructions
SMS command is mainly for remote maintenance. The message content is text format.
Default secret key is the last 6 digits of the device ID. The key can only be changed
through PC Tool. SMS format is defined as follows:
3.2.1 Set IP parameters
Send SMS *SecretKey#set gprs#APN,User,Password,IP,Port*, device will reply *set
gprs#ok* or *set gprs#fail*.
e.g.: *123456#set gprs#cmnet,,,113.98.241.66,11088*
3.2.2 Get IP parameters
Send SMS *SecretKey#get gprs#*, device will reply *get gprs#APN,User,Password,
IP,Port*.
e.g.: *123456#get gprs#*
3.2.3 Set domain parameters
Send SMS *SecretKey#set domain #APN,User,Password,IP,Port*, device will reply *set
domain#ok* or *set domain#fail*.
e.g.: *123456#set domain# cmnet,,,obd.livetelematics.com,11088*
3.2.4 Get domain parameters
Send SMS *SecretKey#get domain#*, device will reply *get domain#APN,User,
Password,domain,Port*.
e.g.: *123456#get domain#*
3.2.5 Get current location
