1
12” Heavy Duty
Table Saw
Please read and fully understand the instructions in this
manual before operation. Keep this manual safe for
future reference

243
DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
WE
SIP LTD
GELDERS HALL ROAD
SHEPSHED
LOUGHBOROUGH
LEICESTERSHIRE
LE12 9NH
Declare that the
12” Heavy Duty Table Saw SIP Pt No: 01446
Complies with the following EEC Directives their supporting Statutory
Instruments and the relevant standard where applicable:
98/37/EC Machinery Directive
73/23/EEC Low Voltage Directive
as amended by
93/68/EEC
89/336/EEC EMC Directive
as amended by EN 55014-1+A1+A2
93/68/EEC EN 61000-3-2:2000
EN 61000-3-11:2000
EN 55014-2:1997+A1
Signed:
Joint Managing Director
Date: 15 February 2006

42
PARTS LIST (C)
Ref. No. Description Qty.
C-30 Square Nut M6 4
C-31 Cross Recessed Pan Head Screw M6 X 16 4
C-32 Board Instead Of Nut 1
C-33 Cross Recessed Countersunk Screw 6
C-34 Left End Cap For Scale Indicator Housing 1
C-35 Scale Indicator Housing 1
C-36 Right End Cap For Scale Indicator Housing 1
C-37 Scale Indicator 1
C-38 External Teeth Lock Washer 5 3
C-39 Cross Recessed Pan Head Screw M5 X 10 3
C-40 Square Nut M5 3
C-41 Small Gear 1
C-42 Gear Rod 1
C-43 Eccentric Wheel 1
C-44 Gear Rod Frame 1
C-45 Spring For Gear Rod 1
C-46 Hexagon Socket Set Screw With Flat Point M6 X 5 2
C-47 Rip Fence Handle 1
C-48 Rear Board 1
C-49 Pin 5 X 16 2
C-50 Rear Block 1
C-51 Lock Eccentric Rod 1
C-52 Lock Eccentric 2
C-53 Rip Fence Lock Rod 1
C-54 Rip Fence Handle 1
C-55 Rip Fence Cover 1
C-56 L-Shape Fence 1
C-57 Step Bolt M6 X 70 2
C-58 Large Washer 6 2
C-59 Wing Nut M6 2
3
CONTENTS
Page No. Description
3. Contents
4. General Safety Instructions
6. Specific Safety Instructions
7. Safety Devices
7. Safety Symbols
8. Safety Symbols Used Throughout This Manual
8. Technical Specifications
9. Accessories
10. Getting To Know Your Saw
11. Specified Conditions Of Use.
11. Guarantee
12. Electrical Connection
13. Assembly Instructions
22. Operating Instructions
25. Care And Maintenance
29. Troubleshooting
31. Optional extras
32. Exploded diagram (A)
33. Parts list (A)
35. Exploded diagram (B)
36. Parts list (B)
40. Exploded diagram (C)
41. Parts list (C)
43. Declaration Of Conformity

4
GENERAL SAFETY INSTRUCTIONS
Please read the following instructions carefully, failure to do so could lead to seri-
ous personal injury.
When using electric tools, basic safety precautions should always be followed to reduce
the risk of fire, electric shock and personal injury.
Read all these instructions before operating the tool and save this user manual for fu-
ture reference.
SIP recommends that this tool should not be modified or used for any application
other than that for which it was designed. If you are unsure of its relative applications
do not hesitate to contact us using the telephone number on the back of this user
manual, and we will be more than happy to advise you.
KNOW YOUR POWER TOOL: Read and understand the owner's manual and labels
affixed to the tool. Learn its applications and limitations, as well as the potential haz-
ards specific to this tool.
KEEP WORK AREA CLEAN AND WELL LIT: Cluttered work benches and dark areas
invite accidents. Floors must not be slippery due to oil, water or sawdust etc.
DO NOT USE THE TOOL IN DANGEROUS ENVIRONMENTS: Do not use power
tools in damp or wet locations, or expose them to rain. Provide adequate space sur-
rounding the work area. Do not use in environments with a potentially explosive at-
mosphere.
KEEP CHILDREN AND UNTRAINED PERSONNEL AWAY FROM THE WORK
AREA: All visitors should be kept at a safe distance from the work area.
STORE TOOLS SAFELY WHEN THEY ARE NOT IN USE: All tools should be stored
in a dry, locked cupboard wherever possible and out of the reach of children.
WEAR THE CORRECT CLOTHING: Do not wear loose clothing, neckties, rings,
bracelets, or other jewellery, which may get caught in moving parts. Non-slip footwear
is recommended. Wear protective hair covering to contain long hair. Roll long sleeves
up above the elbow.
USE SAFETY GOGGLES AND EAR PROTECTION: Wear CE approved safety goggles
at all times, Normal spectacles only have impact resistant lenses, they are NOT safety
glasses. A face or dust mask should be worn if the operation is dusty and ear protec-
tors (plugs or muffs) should be worn, particularly during extended periods of operation.
PROTECT YOURSELF FROM ELECTRIC SHOCK: When working with power tools,
avoid contact with any earthed items (e.g. pipes, radiators, hobs and refrigerators,
etc.). It is advisable wherever possible to use an RCD (residual current device) at the
mains socket.
STAY ALERT: Always watch what you are doing and use common sense. Do not oper-
ate a power tool when you are tired or under the influence of alcohol or drugs.
DISCONNECT THE TOOL FROM THE MAINS SUPPLY: When not in use, before
servicing and when changing accessories such as cutters, blades etc.
AVOID UNINTENTIONAL STARTING: Make sure the switch is in the OFF position
before connecting the tool to the mains supply.
41
PARTS LIST (C)
Ref. No. Description Qty.
C-1 Lock Handle For Miter Gauge 1
C-2 Large Washer 8 1
C-3 Miter Gauge 1
C-4 Cross Recessed Pan Head Screw M5 X 10 3
C-5 Miter Gauge Pointer 1
C-6 Miter Gauge Block 1
C-7 Stop Pin 1
C-8 Cross Recessed Countersunk Head Screw M5 X 8 1
C-9 Guide Board Washer 1
C-10 Shoulder Screw 1
C-11 Guide Board 1
C-12 Cross Recessed Pan Head Screw M4 X 8 3
C-13 Hexagon Nut M4 3
C-14 Scale 1
C-15 Cross Recessed Countersunk Screw 1
C-16 End Cap A For Dial Fence 1
C-17 Dial Fence 1
C-18 End Cap B For Dial Fence 1
C-19 Step Bolt M6 X 35 2
C-20 Washer 6 2
C-21 Flower Nut 2
C-22 Hexagon Nut M8 1
C-23 Washer 8 1
C-24 End Lock Plate 1
C-25 Spring Ring D6 2
C-26 Rolling Wheel 1
C-27 Rip Fence 1
C-28 Cross Recessed Countersunk Head Screw M6 X 12 4
C-29 Fence Plate 1

40

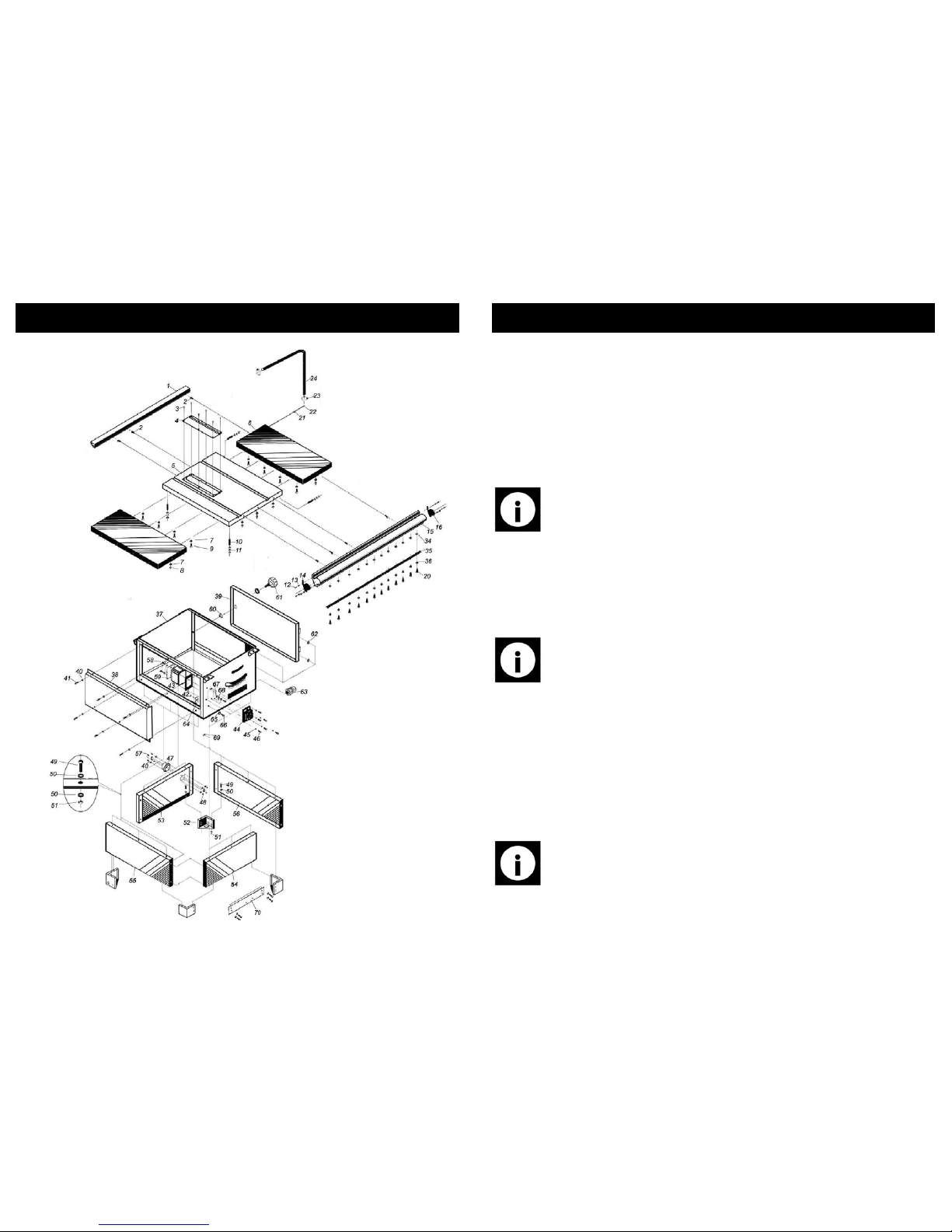

EXPLODED DIGRAM (C)
5
GENERAL SAFETY INSTRUCTIONS….cont
NEVER LEAVE THE TOOL RUNNING / CONNECTED WHILST UNATTENDED:
Turn off the tool and disconnect it from the mains supply between jobs. Do not leave
machine until it comes to a complete stop.
DO NOT ABUSE THE MAINS LEAD: Never carry the tool by the mains lead or pull it
to remove the plug from the mains socket. Keep the mains lead away from heat, oil
and sharp edges. If the mains lead is damaged, it must be replaced by the manufac-
turer or its service agent or a similarly qualified person in order to avoid unwanted haz-
ards.
CHECK FOR DAMAGED PARTS: Before every use of the tool, a guard or other part
that is damaged should be carefully checked to determine that it will operate correctly
and perform its intended function. Check for alignment of moving parts, free running of
moving parts, breakage of parts, and any other conditions that may affect its opera-
tion. A guard or other part that is damaged should be correctly repaired or replaced by
an authorized service centre unless otherwise indicated in this instruction manual. Have
defective switches replaced by an authorized service agent. Do not use the tool if the
switch does not turn it on and off.
KEEP ALL GUARDS IN PLACE: And in full working order.
MAINTAIN TOOLS WITH CARE: Keep tools sharp and clean for the best and safest
performance. Follow instructions for lubricating and changing accessories. All extension
cables must be checked at regular intervals and replaced if damaged. Always keep the
hand grip on the tool clean, dry and free of oil and grease.
USE ONLY RECOMMENDED ACCESSORIES: Consult this user manual for recom-
mended accessories. Follow the instructions that accompany the accessories. The use
of improper accessories may cause hazards and will invalidate any warranty you may
have.
REMOVE ADJUSTING KEYS AND WRENCHES: Form a habit of checking to see
that keys and adjusting wrenches are removed from the tool before every use.
SECURE THE WORKPIECE: Use clamps or a vice to hold the work-piece . This frees
up both hands to operate the tool.
DO NOT OVERREACH: Keep proper footing and balance at all times.
USE THE RIGHT TOOL: Do not use the tool or attachment to do a job for which it
was not designed.
DO NOT FORCE THE TOOL: It will do the job better and more safely at the rate
which it was designed.
DO NOT OPERATE POWER TOOLS IN EXPLOSIVE ATMOSPHERES: Do not use
the tool in the presence of flammable liquids, gases, dust or other combustible sources.
Power tools may create sparks which can ignite the dust or fumes.
DO NOT EXPOSE THE TOOL TO RAIN OR USE IT IN WET CONDITIONS: Water
entering a power tool will greatly increase the risk of electric shock.
HAVE YOUR TOOL REPAIRED BY A QUALIFIED PERSON: The tool is in accor-
dance with the relevant safety requirements. Repairs should only be carried out by
qualified persons using original spare parts, otherwise this may result in considerable
danger to the user.

6
SPECIFIC SAFETY INSTRUCTIONS
1. Use only the blade flange specified for this tool.
2. Be careful not to damage the arbor, flange (especially the installing surface) or
bolt. Damage to these parts could result in blade breakage.
3. Make sure that the table base is properly secured so it will not move during op-
eration.
4. For your safety; remove the chippings and work debris etc. from the table top and
from inside the extraction port before each operation.
5. Avoid cutting nails / screws etc; Remove all obstructions from the work-piece be-
fore cutting.
6. Make sure the arbor lock is released before switching on the saw.
7. Be sure that the blade does not come into contact with the base when the blade is
in the lowest position.
8. Hold the handle firmly.
9. Do not perform any operation freehand. The work-piece must be secured firmly
against the base and guide fence with the clamp during all operations; Using your
hand may cause severe injury.
10. Keep hands out of path of saw blade, never reach around saw blade.
11. Make sure the blade is clear of the work-piece before the switch is turned on.
12. Before making the first cut using the saw, let it run for a while; Watch for vibra-
tion or wobbling that could indicate poor installation or a poorly balanced blade. Ad-
just or replace as necessary.
13. Allow the blade to run up to full speed before cutting.
14. Stop operation immediately if you notice anything abnormal.
15. Do not attempt to lock the trigger in the ON position.
16. Wait for the saw blade to stop completely and remove from mains supply before
servicing or adjusting tool.
17. Be alert at all times, especially during repetitive, monotonous operations. Don't
be lulled into a false sense of security. Blades are extremely unforgiving.
18. Use of improper accessories such as abrasive wheels may cause damage to the
saw and surrounding area as well as increasing the risk of injury.
19. Turn off the saw and wait for it to complete stop before moving work-piece or
changing settings.
20. To reduce the risk of injury, return, carriage to the full rear position after each
crosscut operation.
21. Do not modify the saw to do tasks other than those intended.
CAUTION: The warnings and cautions mentioned in this user manual
can not cover all possible conditions and situations that may occur. It
must be understood by the operator that common sense and caution
are factors which cannot be built into this product, but must be applied.
39
Ref. No. Description Qty.
B-94 Elastic Lock 2
B-95 Lock Nail Bush 1
B-96 Hexagon Socket Cap Head Screw M6 X 25 1
B-97 Active Board 1
B-98 Active Board Block 1
B-99 Lock Handle 1
B-100 Handle Sleeve 1
B-101 Lock Handle Spring 1
PARTS LIST (B)

38
Ref. No. Description Qty.
B-63 Motor Wheel 1
B-64 Hexagon Socket Cap Head Screw M8X24 7
B-65 Single Coil Spring Lock Washer 8 7
B-66 Rotation Press Block 2
B-67 Adjusting Cradle 1
B-69 Hexagon Nut M12 1
B-70 Single Coil Spring Lock Washer 12 1
B-71 Worm- Wheel 1
B-72 Eccentric Sleeve 1
B-73 Hexagon Socket Cap Head Screw M8X30 1
B-74 Worm- Wheel Shaft Nail 1
B-75 Locking Block 1
B-76 Large Washer 8 2
B-77 Flower Bolt 1
B-78 Cross Recessed Pan Head Screw M5X12 2
B-79 Pointer Bracket 1
B-80 Pointer 1
B-81 Flat Washer 4 1
B-82 Single Coil Spring Lock Washer 4 1
B-83 Cross Recessed Pan Head Screw M4X10 1
B-84 Adjusting Worm-Wheel Bracket 1
B-85 Dust Collection Cover 1
B-86 Hexagon Socket Cap Head Screw M6X18 3
B-87 Neck Chain 1
B-88 Hexagon Head Bolt M6X25 2
B-89 Dust Collection Tube 1
B-90 Elliptic Neck Chain 1
B-91 Cross Recessed Countersunk Head Tapping Screw 5
B-92 Spanner Shaft 1
B-93 Hexagon Nut M5 1
PARTS LIST (B)
7
SAFETY SYMBOLS
When using the saw always ensure the operator as well as those in the
area wear ear protection.
When using the saw always ensure the operator as well as those in the
area wear eye protection.
Some wood and wood composites have the potential to be highly
toxic; always wear a face mask when operating saw.
SAFETY DEVICES
Blade guard:
A
B
•The blade guard (a) protects against uninten-
tional contact with the saw blade and from air-
borne chips / debris.
•The riving knife (b) prevents the work-piece
from being caught on the rising teeth of the
saw blade and being thrown against the opera-
tor.
•The push stick (p) serves as an extension of
the hand and protects against accidental con-
tact with the saw blade.
•Use push stick particularly if distance be-
tween rip fence and the saw blade is below
120 mm.
•In order for the push stick to be always at
hand, it should be stored within easy reach of
the machine.
P
Note: Always have riving knife and blade guard installed during operation.

8
TECHNICAL SPECIFICATIONS
Part number 01446
Input voltage 230v / 50 hz
Input fuse rating 16 amps
Power 3000 watts
Maximum speed (no load) 4000 rpm
Blade outside Ø 315 mm
Blade bore Ø 30 mm
Blade tilt 0° - 45°
Main table size 800 mm (D) x 600 mm (W)
Table working height 860 mm
Extension table size 800 mm (D) x 440 mm (W)
Cutting capacity @ 0° 100 mm
Cutting capacity @ 45° 80 mm
SAFETY SYMBOLS USED THROUGHOUT THIS MANUAL
Danger / Caution: Indicates risk of personal injury and/or the possibil-
ity of damage.
Warning: Risk of electrical injury or damage!
Note: Supplementary information.
Drawing-in / trapping hazard! Risk of personal injury to body parts or
clothing by being drawn into the rotating saw blades.
37
Ref. No. Description Qty.
B-32 Cross Recessed Countersunk Head Screw M8 X 30 1
B-33 Hexagon Head Bolt M8 X 65 1
B-34 Locking Nut For Motor Base 2
B-35 Motor Base 1
B-36 Hexagon Socket Cap Head Screw M5 X 12 2
B-37 Large Washer 5 4
B-38 Hand Wheel 2
B-39 Handle 2
B-40 Handle Bolt 2
B-41 Hexagon Socket Pan Head Screw M6 X 16 4
B-42 Flat Washer 6 12
B-43 Ball Bracket 1
B-44 Thread Rod Ball 1
B-45 Spring Dowel 4 X 28 1
B-46 Adjusting Thread Rod 1
B-47 Worm-Wheel Connecting Rod Nail A 1
B-48 Worm-Wheel Connecting Rod 1
B-49 Worm-Wheel Connecting Rod Nail B 1
B-50 Connecting Rod Bush 1
B-51 Hexagon Nut M6 6
B-52 Adjusting Frame 1
B-53 Cir-clip For Shaft D=24 2
B-54 Knuckle 1
B-55 Thin Nut M12 2
B-56 Height Adjustment Rod 1
B-57 Cross Recessed Countersunk Head Screw M5 X 32 1
B-58 Motor 1
B-59 Hexagon Head Bolt M8 X 40 6
B-60 Key 8X7X50 1
B-61 Hexagon Socket Set Screw With Flat Point M6X9 1
B-62 Hexagon Socket Set Screw With Flat Point M6X6 1
PARTS LIST (B)

36
PARTS LIST (B)
Ref. No. Description Qty.
B-1 Blade Nut M16 (Left Hand) 1
B-2 Outer Blade Washer 1
B-3 Blade 1
B-4 A-Belt 1
B-5 Pulley 1
B-6 Key (A-Type) 1
B-7 Arbor Shaft 1
B-8 Bearing 80203 2
B-9 Arbor Shaft Sleeve 1
B-10 Arbor Shaft Bush 1
B-11 Cir-clip For Hole D=40 2
B-12 Arbor Shaft End Bush 1
B-13 Press Wheel 1
B-14 Single Coil Spring Lock Washer 6 1
B-15 Hexagon Head Bolt M6 X 16 1
B-16 Hexagon Head Bolt M8 X20 4
B-17 Flat Washer 8 18
B-18 Press Board For Riving Knife 1
B-19 Riving Knife 1
B-20 Flower Nut 1
B-21 Large Washer 6 1
B-22 Step Bolt M6 X 46 1
B-23 Blade Guard 1
B-24 Hexagon Nut M8 11
B-25 Hexagon Socket Set Screw With Flat Point M8 X 25 4
B-26 Hexagon Socket Cap Head Screw M10 X 30 1
B-27 Locking Nut With Plastic Insert M8 2
B-28 Riving Knife Bracket 1
B-29 Connecting Rod 1
B-30 Cross Recessed Countersunk Screw M8 X 20 1
B-31 Bush 1
9
ACCESSORIES
Main saw assembly.
Main saw base (4 pieces, 2 x side panels, 1x front panel and 1 x rear panel = 1 set).
Feet (4 pieces = 1 set).
2 x Table extensions.
Mitre gauge.
Auxiliary fence (mitre gauge).
Rip fence.
Auxiliary fence (rip-fence).
Rip-fence micro adjust assembly (inc. fixing bolts).
Front rail.
Rear rail.
Blade guard.
Fixing kit.
Extraction hose outlet adaptor (inc. 4 x screws, nuts and bolts).
Internal extraction hose (larger Ø).
Outlet to blade guard extraction hose (smaller Ø).
2 x Pipe clips (larger Ø).
2 x Pipe clips (smaller Ø).
Arbor nut wrench.
Arbor lock shaft.
Push stick.
Mounting plate for mobile wheel kit (SIP Part no. 06920) *
Fixing kit (nuts, bolts etc).
* The wheel kit is an optional extra and is not supplied with this saw as standard
equipment.
IF ANY OF THE ABOVE ITEMS ARE MISSING or DAMAGED; CONTACT YOUR
DISTRIBUTOR IMMEDIATELY.
Caution: To avoid damage or injury, do not attempt to assemble or use
the saw if any parts are missing or damaged.

10
GETTING TO KNOW YOUR SAW
Ref: Description Ref: Description
A. Extension Table G. Front Fence Rail
B. Mitre Gauge H. Rip-Fence
C. Main ON/OFF (NVR) Switch I. Rear Fence Rail
D. Blade Height Adjustment J. Blade guard
E. Blade Angle Adjustment K. Extraction Hose
F. Fence Micro Adjust
J I
A
C
D
F
H
B
E
G
K A
35
EXPLODED DIAGRAM (B)

34
PARTS LIST (A)
Ref. No. Description Qty.
A-43 Switch House 1
A-44 Switch 1
A-45 Washer 4 9
A-46 Cross Recessed Pan Head Screw M4 X 10 7
A-47 Tie-In 1
A-48 Hexagon Nut M6 4
A-49 Hexagon Head Bolt M8 X 12 28
A-50 Washer 8 57
A-51 Hexagon Nut M8 28
A-52 Stand Level Foot 4
A-53 Front Panel For Stand 1
A-54 Rear Panel For Stand 1
A-55 Left Side Panel For Stand 1
A-56 Right Side Panel For Stand 1
A-57 Cross Recessed Countersunk Head Screw M6 X 16 4
A-58 Cross Recessed Countersunk Screw 2
A-59 Switch Bottom Board 1
A-60 Lock Nut M8 1
A-61 Knob 1
A-62 Copper Washer 6 2
A-63 Strain Relief M20 1
A-64 Wire Strain 1
A-65 Washer 5 1
A-66 Cross Recessed Countersunk Head Screw M5 X 18 1
A-67 External Teeth Lock Washer 5 1
A-68 Earth-Plate 1
A-69 Hexagon Nut M6 1
A-70 Mounting plate for mobile wheel kit 1
11
SPECIFIED CONDITIONS OF USE
Guarantee:
Thissip “pro”table saw is covered bya24 month parts and labourwarrantycovering
failure due to manufacturers defects. This does not cover failure due to misuse or op-
erating the machine outside the scope of this manual.
In the unlikely event of warranty claims, contact your distributor or contact our help
line on the back page of this manual.
GUARANTEE
•This machine is intended to rip and crosscut grown timber, faced boards, chip
board, wood-core plywood sheets and similar wood-derived materials.
•Do not cut round stock without suitable jigs or fixtures, the rotating saw blade
could turn the work-piece.
•When sawing thin stock on edge, a suitable guide must be used for firm support.
•The use of wobble (or similar) type saw blades is not permitted on this machine.
Note: Proof of purchase will be required before any warranty can be hon-
oured.
•Use not specified, alteration of the saw or use of parts that are not approved by
the equipment manufacturer can cause unforeseen damage and / or personal
injury to the operator as well as those in the working area.
Caution: Use, other than that specified is not permitted.

12
ELECTRICAL CONNECTION
Connecting to the power supply:
This sip “pro” table saw is supplied without a plug fitted; due to the fuse rating (16
amps) the saw is not classed as a “domestic item”. A plug with a rating of at least 16
amps (and an adequate supply) will have to be fitted prior to use, alternatively the saw
could be hard wired into an adequate supply. Each time you use your saw inspect the
cable and plug to ensure that neither are damaged. If any damage is visible have the
tool inspected / repaired by a suitably qualified person.
The wires for the plug are coloured in the following way:
Yellow / green Earth
Blue Neutral
Brown Live
As the colours of the wires may not correspond with the markings in your plug, pro-
ceed as follows: The wire which is coloured blue, must be connected to the terminal
marked with N or coloured black. The wire which is coloured brown, must be con-
nected to the terminal, which is marked L or coloured red. The wire which is coloured
yellow / green should be connected to the terminal which is coloured the same or
marked
Always secure the wires in the plug terminal carefully and tightly. Secure the cable in
the cord grip carefully.
Note: Always make sure the mains supply is of the correct voltage and the
correct fuse protection is used. In the event of replacing the fuse always use
a 16A fuse.
Note: If an extension lead is required in order to reach the mains supply;
ensure that this too is rated for the correct voltage and fuse rating (16
amps).
Note: The cross section of the extension lead should be checked so that it
is of sufficient size so as to reduce the chances of voltage drops.
Warning: Never connect live or neutral wires to the earth terminal of the
plug. Only fit an approved plug with the correct rated fuse (16 amp). If in
doubt consult a qualified electrician.
33
PARTS LIST (A)
Ref. No. Description Qty.
A-1 Rear Rail 1
A-2 Step Bolt M8 X 25 9
A-3 Cross Recessed Countersunk Head Screw M5 X 6 5
A-4 Insert 1
A-5 Worktable 1
A-6 Extension Table 2
A-7 Washer 8 16
A-8 Hexagon Nut M8 7
A-9 Hexagon Head Bolt M8 X 20 8
A-10 Slotted Set Screw With Flat Point M10 X 80 4
A-11 Hexagon Nut M10 12
A-12 Cross Recessed Pan Head Screw 6
A-13 Washer 4 6
A-14 Left End Cap For Front Rail 1
A-15 Front Rail 1
A-16 Right End Cap For Front Rail 1
A-20 Cross Recessed Pan Head Screw M5 X 8 12
A-21 Washer 6 1
A-22 Hexagon Socket Cap Head Screw M6 X 15 1
A-23 Neck Chain 2
A-24 Dust Collection Tube 1
A-29 Nut Board 2
A-34 Square Nut M5 12
A-35 Rack 4
A-36 External Teeth Washer 5 12
A-37 Base 1
A-38 Left Side Panel For Base 1
A-39 Right Side Panel For Base 1
A-40 Washer 6 14
A-41 Hexagon Socket Cap Head Screw M6X20 6
A-42 Rubber Washer Of Switch House 1

32
EXPLODED DIAGRAM (A)
13
ASSEMBLY INSTRUCTIONS
•Remove the sides and top of the packing container (leave the saw inverted and
on the bottom of the container).
•Remove all the other packaging and loose parts of the saw and check them
against the list on page 8 of this user manual to ensure that all of the parts are
accounted for.
•
Fitting the stand:
•Locate the 2 x side sections and the 1 x front and 1 x rear sections of the saw
stand and the fixing kit.
•Fix all the panels together by means of :-
⇒8 x M8 x 12 mm bolts.
⇒16 x 8 mm washers.
⇒8 x M8 nuts.
Fitting the feet:
•Locate the 4 x feet.
Note: Although the front and rear panels are the same size, the rear panel
is the one with the hole to allow the extraction outlet to be fitted.
•Fix all of the panels in their appropriate locations to the main body of the saw by
means of:-
⇒8 x M8 x 12 mm bolts.
⇒16 x 8 mm washers (one above and one below the panel / main body).
⇒8 x M8 nuts.
Note: Do not fully tighten the nuts / bolts at this time.
Note: Although all 4 feet look similar, there are some differences that mean
that each foot should only be fitted in its correct position. This is to allow
you to fit the optional wheel kit (SIP Part no. 06920) should you wish to at
a later date.

14
ASSEMBLY INSTRUCTIONS….cont
Fit the 2 x front feet by means of:-
⇒4 x M8 x 12 mm bolts.
⇒8 x 8 mm washers.
⇒4 x M8 nuts.
•The 2 x identical threaded holes (as shown above) should be vertical and on the
front edge of the saw if they have been fitted correctly.
Large hole Large hole
Small hole Small hole
Fit the 2 x rear feet by means of:-
⇒4 x M8 x 12 mm bolts.
⇒8 x 8 mm washers.
⇒4 x M8 nuts.
•There are 2 x differently sized threaded holes on the rear feet, the arrows above
should be facing towards the rear of the saw with the larger threaded hole fur-
thest back if the feet have been fitted correctly.
•Proceed to fully tighten all the nuts / bolts to fully secure the panels to the main
saw body, the panels to each other and the feet to the panels.
Note: The pictures are shown as if the saw was the correct way up rather
than upside down.
31
OPTIONAL EXTRAS
There are a number of optional extras available for this SIP Pro table saw. They have
been designed to make the saw as adaptable and as user friendly as possible.
Rear Extension Table - SIP part number: 01448.
The rear extension table provides extra support to larger work-pieces.
Sliding Carriage - SIP part number: 01447.
The sliding carriage makes cutting larger work-pieces easier and safer by providing ex-
tra support (particularly useful when cutting large sheets such as plywood etc).
Wheel kit - SIP part number: 06920.
The wheel kit allows the saw to be effortlessly moved from point to point, The same kit
also fits most of the other SIP Pro woodworking products. *
* Please note that a retro fit kit may be required to allow the wheel kit to fit some older versions of the SIP
Pro range.

30
TROUBLESHOOTING….cont
Problem Possible cause Possible solution
Table saw vibrates exces-
sively:
•Floor surface is uneven.
•V-belt is damaged.
•Saw blade is damaged.
•Loose bolt, Screws,
Nuts.
•Sit the saw on a level
surface.
•Replace the V-belt.
•Replace the Saw Blade.
•Tighten all Hardware.
Table saw does not start: •Mains lead is not con-
nected to the mains
supply.
•Circuit fuse is blown.
•Circuit breaker has
tripped.
•Mains lead or Switch is
damaged.
•Connect the mains lead
to the electrical outlet.
•Replace circuit fuse.
•Reset circuit breaker.
•Have the Mains lead or
Switch checked, re-
paired or replaced.
Power Switch does not op-
erate:
•Power Switch contacts
are burned out.
•Capacitor is defective.
•Wiring connections are
loose or damaged.
•Have the Power Switch
checked, repaired or
replaced.
•Have the Capacitor
checked, repaired or
replaced.
•Have the wiring connec-
tions checked / re-
paired.
Fuses or circuit breakers
blow or open frequently:
•Motor is overloaded.
•Fuses or circuit breakers
are wrong size or defec-
tive.
•Dull saw blade.
•Power Switch or motor
is defective.
•Feed work-piece more
slowly.
•Replace fuses or circuit
breakers.
•Replace the saw blade.
•Have the Power Switch
or motor checked, re-
paired or replaced.
Table Saw is noisy when
running:
•Motor is loose or defec-
tive.
•Have the Motor
checked /repaired.
15
ASSEMBLY INSTRUCTIONS….cont
•Slide the 2 pipe clips (larger Ø) over the ends of the internal extraction hose.
•Fit the internal extraction hose from the back of the adaptor to the internal dust
collection cover.
Fitting the extraction assembly:
•Fit the extraction hose outlet adaptor to the rear panel of the saw stand by
means of:-
⇒4 x cross head M6 x 16 mm screws.
⇒8 x 6 mm washers.
⇒4 x M6 nuts.
Internal extraction hose
dust collection cover
Pipe clips
•Tighten the pipe clips to secure the extraction hose in place.
Extraction hose outlet adaptor
Note: The pictures show the saw the correct way up rather than upside
down.

16
•The saw can now be turned the correct way up and completely removed from
it’s packaging.
ASSEMBLY INSTRUCTIONS….cont
•The above instructions should be followed until both the left and right hand ex-
tension tables (if required) are fitted (but not correctly set).
Setting the extension table / tables:
•A soft mallet is required (not supplied) to safely carry-out the operation of set-
ting the extension tables. If one is not available, a scrap piece of wood and a
hammer will suffice.
Note: Ensure the bolts are fairly tight but not fully tightened at this point as
some adjustments are still required to ensure the table is correctly located.
It will make setting the extension table easier if the top of the extension ta-
ble sits just higher than the main table after this operation is complete.
•Set the extension table to the side of the main saw bed of the saw.
•Ensure the 4 holes on the extension table line up with the 4 threaded holes on
the main bed of the saw.
•Secure the extension table by means of :-
⇒4 x M8 x 20 mm bolts.
⇒4 x 8 mm washers.
Caution: Due to the weight of the saw 2, or more persons will be required
to safely lift and turn the saw, and to fit the extension tables (see below).
Note: The saw can be used without the extension tables fitted, with one
fitted to the left of the main table, one fitted to the right of the main table
or with both tables fitted (left and right).
Fitting the extension tables:
29
TROUBLESHOOTING
Problem Possible cause Possible solution
Motor is slow or weak: •Voltage from source is
low.
•Windings are burned
out or open.
•NVR Switch is defective.
•Circuit is overloaded
with appliances lights or
other electrically pow-
ered equipment
•Request a voltage check
from local power com-
pany.
•Have the Motor
checked, repaired or
replaced.
•Have the NVR checked,
repaired or replaced.
•Do not use other appli-
ances or electrically
powered equipment on
the same circuit when
using the Table Saw.
Motor regularly overheats: •Voltage from source is
low.
•Dull saw blade.
•Sawdust inside table
saw is blocking airflow.
•Request a voltage check
from the local power
company.
•Replace the saw blade.
•Clean out the saw base.
When ripping, the cut
burns the work-piece, or
stalls the motor:
•blade teeth are dull.
•Work-piece is warped.
•Rip fence is not parallel
with the saw blade.
•Sharpen or replace the
blade.
•Replace the work-piece.
•Re-align the rip fence,
and lock it in position.
Miter-gauge does not move
freely:
•Miter gauge assembly is
dirty.
•Loosen the miter gauge
knob, clean and lubri-
cate the Miter Gauge
Rod.
Rip Fence does not move
smoothly:
•Rip Fence is mounted
incorrectly.
•Remove, and reposition
the Rip Fence and lock
it in position
Bevel & Height Handles are
hard to turn:
•Sawdust has collected
on the mechanisms in-
side the base.
•Clean and lubricate the
mechanisms inside the
base.
Saw blade does not lower
when turning the Height
Handle:
•Height Lock Handle is
not fully released.
•Fully release the height
Lock Handle.

28
CARE AND MAINTENANCE….cont
Replacing / tensioning the drive belt:
The main drive belt is set at the factory to the correct tension, but time and use may
mean that the belt needs to be re-tensioned.
To re-tension the drive belt:
•Open the main side door of the saw and make yourself familiar with the internal
components (see picture below).
Motor
Tension bolt
Motor mount bolts
Main saw bed
Drive belt
•Loosen the 4 x (2 on each side) motor mount bolts.
•Turn the tension bolt whilst checking the tension of the belt.
•Once the correct tension has been achieved (approximately 1”-11/2”) , re-tighten
the motor mount bolts to secure.
To replace the drive belt:
•Release the tension from the belt by following the instructions above.
•Remove the blade (see instructions on page 24).
•The belt can now be removed and replaced.
•Follow all previous instructions in reverse to re-fit the blade, blade guard etc.
Caution: Check for alignment of moving parts, free running of moving parts,
breakage of parts, and any other conditions that may affect its operation Be-
fore restarting the saw.
17
ASSEMBLY INSTRUCTIONS….cont
Scrap piece of wood (if a soft
mallet is not available)
•Sit a straight edge across the extension table, or tables depending on how long
your straight edge is, and across the main saw bed.
•Using the straight edge as a guide, tap the joints between the extension table /
tables and the main saw bed with the mallet or scrap of wood until all tables are
level.
•Tap at the front and the back of the tables to ensure that they are correctly set
in all directions.
Tip: The rip fence (inverted) makes a good straight edge.
Tap here
Main saw bed
Extension table
•Once you are happy that all the tables are correctly set and level proceed to
tighten all the bolts to ensure that the tables stay in place.
Fitting the front fence rail:
Caution! The front and rear rails must be carefully aligned to reduce the
risk of kickback, which can cause serious injury.
•To install the front rail will require the following hardware:
⇒5 x square head bolt.
⇒5 x 8 mm flat washer.
⇒5 x M8 hex nuts.
⇒Right and left end cap for front rail.
⇒6 x self-tapping screw.

18
ASSEMBLY INSTRUCTIONS….cont
•Insert the 5 square head bolts into the holes on the front of the main table and
extension tables, so the bolt heads extend out 6 mm.
•Loosely attach a flat washer and a hex nut to each bolt.
•Slide the slot on the front fence rail over bolts until the rail is in its correct posi-
tion.
•Adjust each bolt to fit the rail closely to the table.
•Push the rear fence rail against table and hand tighten each hex nut.
Note: Ensure there are no gaps between the rail and the edge of the main
table or extensions.
•Fit the end caps on the rail ends, secure them with the self-tapping screws and
tighten with Phillips screwdriver.
Fitting the rear fence rail:
Caution! The front and rear rails must be carefully aligned to reduce the risk
of kickback, which can cause serious injury.
•To install the rear rail will require the following hardware:
⇒5 x square head bolt.
⇒5 x 8 mm flat washer.
⇒5 x M8 hex nuts.
27
CARE AND MAINTENANCE….cont
•Adjust the distance between the blade and the riving knife (b).
Note: The gap should be between 3 mm and 8 mm.
•Once the gap has been correctly set, re-tighten the nut (a).
•Re-install the table insert and blade guard.
Adjusting the mitre gauge angle:
The mitre gauge has quick set stops at 0° and +/- 45° with the mitre gauge stop pin
and adjustable stop screws. The stop screws are factory set for accuracy but after time
and use, the gauge may need to be re-set, this can be achieved by the following:-
•Loosen the angle lock knob and pull out the stop pin.
•rotate the mitre gauge until the stop pin rests against the 0° stop screw.
•Place a 90° square against the mitre gage rod and the mitre gauge base.
•If the rod is not square, Loosen the lock nut of the 0° stop screw 8 mm wrench.
•Adjust the 0° stop screw until a true 90° angle is achieved.
•Tighten the lock nut to secure, and adjust the angle pointer to read 0°.
•Adjust the plus and minus 45° stop screws using a 45° triangle and the steps
above.
Mitre gauge rod
Angle lock knob
Stop pin
Mitre gauge base
45° stop screw 0° stop screw 0° lock nut
Angle pointer
Note: The mitre gauge provides close accuracy for angled cuts, for very
close tolerances, test cuts are recommended.

26
CARE AND MAINTENANCE….cont
Note: The arbor nut has a left handed thread.
•Remove the outer blade flange and blade from the saw.
•Check that the clamping surfaces are smooth and flat, clean or replace as nec-
essary.
Caution: Do not use cleaning agents (e.g. for removing resin residue) that
could corrode the light metal components of the saw.
•Fit the new saw-blade ensuring that the direction of rotation is correct.
Caution: Do not use:-
⇒Incorrectly sized blades, either inner or outer diameter.
⇒Damaged blades, parts could be thrown from the blade by centrifugal force.
•Replace the outer flange.
•Fit and tighten the arbor nut.
Caution: Do not over-tighten the arbor nut, but ensure it is tight enough.
⇒Do not tighten the arbor nut by “tapping” it with a hammer or similar item.
⇒Do not forget to remove the arbor wrench and lock bar once the nut has been
tightened.
Setting the distance between the blade and the riving knife:
•Loosen nut (a) of the riving knife bracket.
19
ASSEMBLY INSTRUCTIONS….cont
•Insert the 5 square head bolts into the holes to the rear of the main table and
extension tables so the bolt heads extend out approximately 6 mm.
•Loosely attach a flat washer and a hex nut to each bolt.
•Slide the slot on the rear fence rail over bolts until the rail is in its correct posi-
tion.
•Adjust each bolt to ensure that the rail is as close as possible to the table.
•Push the rear fence rail against table and hand tighten each nut.
Note: The rails have only been secured by hand tightening the nuts at this
point because some adjustment may be required once the rip-fence is fitted.
Fitting the rip-fence:
•Fit the rip fence assembly onto the scale mount.
•If needed, attach the "L" shape extension to the rip fence.
•Slide the rip fence onto the rear and front rails.
•Adjust the height of the rear and front rails to keep the rip fence approximately
1 mm above the table.

20
•Slide the rip fence against the saw blade, check that the red line of scale mount
lens lines up with the “0” on the scale which is located on the front rail.
•If it does not, slide the front fence rail left / right until it does.
•Once you are happy that the rails are correctly set, proceed to tighten all of the
bolts to ensure that the rails stay in their correct positions.
•Fit the micro adjust feature to the right hand side and below the scale housing.
Fitting the blade guard:
ASSEMBLY INSTRUCTIONS….cont
A
B
•Line up the 2 slots on the riving knife with the 2 screws on the rip fence and
push down.
•Once the rip fence is positioned correctly the 2 screws should be tightened.
Note: do not over tighten the screws, the guard should move up easily and
fall back over the blade with gravity.
Fitting the mitre gauge:
•To fit the mitre gauge, simply slide the mitre gauge guide rod into the channel
on the main saw bed.
Front rail Channel
Guide rodMain saw bed
25
CARE AND MAINTENANCE
Caution!
Prior to all adjustments and maintenance:
⇒Switch the machine OFF.
⇒Unplug the mains lead.
⇒Wait until the saw has come to a complete stop.
After all adjustments and maintenance:
⇒Check that all safety devices are operational.
⇒Check for abnormalities, which may have been caused during the maintenance
procedure.
Note: Adjustments and maintenance procedures should only be carried out
by suitably qualified persons.
Changing the saw-blade:
Caution: Risk of injury by the blade’s teeth; Always wear the appropriate
safety gloves when handling blades.
•Remove the blade guard.
•Undo the table insert screws and remove it.
•Raise the saw-blade fully.
•Lock the saw-blade by turning it until the hole on the inner flange lines up with
the cut-out on the main saw bed.
•Insert the lock bar.
•Whilst using the lock-bar to hold the arbor shaft in-place, loosen and remove the
arbor nut with the wrench supplied.
